TP-Link AC1900 User Manual
REV1.0.0
1910011101
Archer C9
AC1900 Wireless Dual Band Gigabit Router
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1） This device may not cause harmful interference.
2） This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
10 mW e.i.r.p. within
cation use. Refarming of the 2.4 GHz
General authorization required if used outside own
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None
Outdoor use limited to
France
the band 2454-2483.5
MHz
Italy None
Luxembourg None
Norway Implemented
Russian Federation None Only for indoor applications
General authorization required for outdoor use and
public service
Military Radiolo
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
If used outside of own premises, general authorization is
required
General authorization required for network and service
supply(not for spectrum)
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
5150-5250 MHz
Country Restriction Reason/remark
Bulgaria Not implemented Planned
Croatia License required
Italy
premises
General authorization required if used outside own
tion required for network and service
Relevant+ provisions for the implementation of DFS
in ETSI standard EN 301 893
General authorization required if used outside own
General authorization required for network and service
Luxembourg None
Russian Federation No info
General authorization required for network and service
supply (not for spectrum)
5250-5350 MHz
Country Restriction Reason/remark
Bulgaria
Not
implemented
Croatia License required
Italy
Luxembourg None
Russian Federation No info
Planned
premises
General authoriza
supply (not for spectrum)
5470-5725 MHz
Country Restriction Reason/remark
Bulgaria
Not
implemented
France
Italy
Luxembourg None
Russian Federation No info
Turkey Not implemented Defence systems
Planned
mechanism described
V1.3.1 and subsequent versions
premises
supply (not for spectrum)
Note: Please don’t use the product outdoors in France.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for
successful communication.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即
停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射
頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
減少電磁波影響，請妥適使用。
安全諮詢及注意事項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
●注意防潮，請勿將水或其他液體潑灑到本產品上。
●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and
voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA US
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: AC1900 Wireless Dual Band Gigabit Router
Model No.: Archer C9
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,
Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
EN 300 328 V1.8.1
EN 301 489-1 V1.9.2 & EN 301 489-17 V2.2.1
EN 55022: 2010 + AC: 2011
EN 55024: 2010
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009
EN 61000-3-3: 2013
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011
EN 50385: 2002
EN 301 893 V1.7.1
The product carries the CE Mark:
Person responsible for making this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2014
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd,
Nanshan, Shenzhen, China
CONTENTS
Package Contents ..................................................................................................... 1
Chapter 1. Introduction ......................................................................................... 2
1.1 Overview of the router .................................................................................................. 2
1.2 Conventions .................................................................................................................. 2
1.3 Main Features ............................................................................................................... 3
1.4 Panel Layout ................................................................................................................. 4
1.4.1 The Front Panel ................................................................................................ 4
1.4.2 The Rear Panel ................................................................................................. 5
Chapter 2. Connecting the router ........................................................................ 7
2.1 System Requirements .................................................................................................. 7
2.2 Installation Environment Requirements ........................................................................ 7
2.3 Connecting the router ................................................................................................... 7
Chapter 3. Quick Setup ......................................................................................... 9
Chapter 4. Basic .................................................................................................. 15
4.1 Network Map ............................................................................................................... 15
4.2 Internet ........................................................................................................................ 15
4.3 Wireless ...................................................................................................................... 20
4.4 USB Settings ............................................................................................................... 20

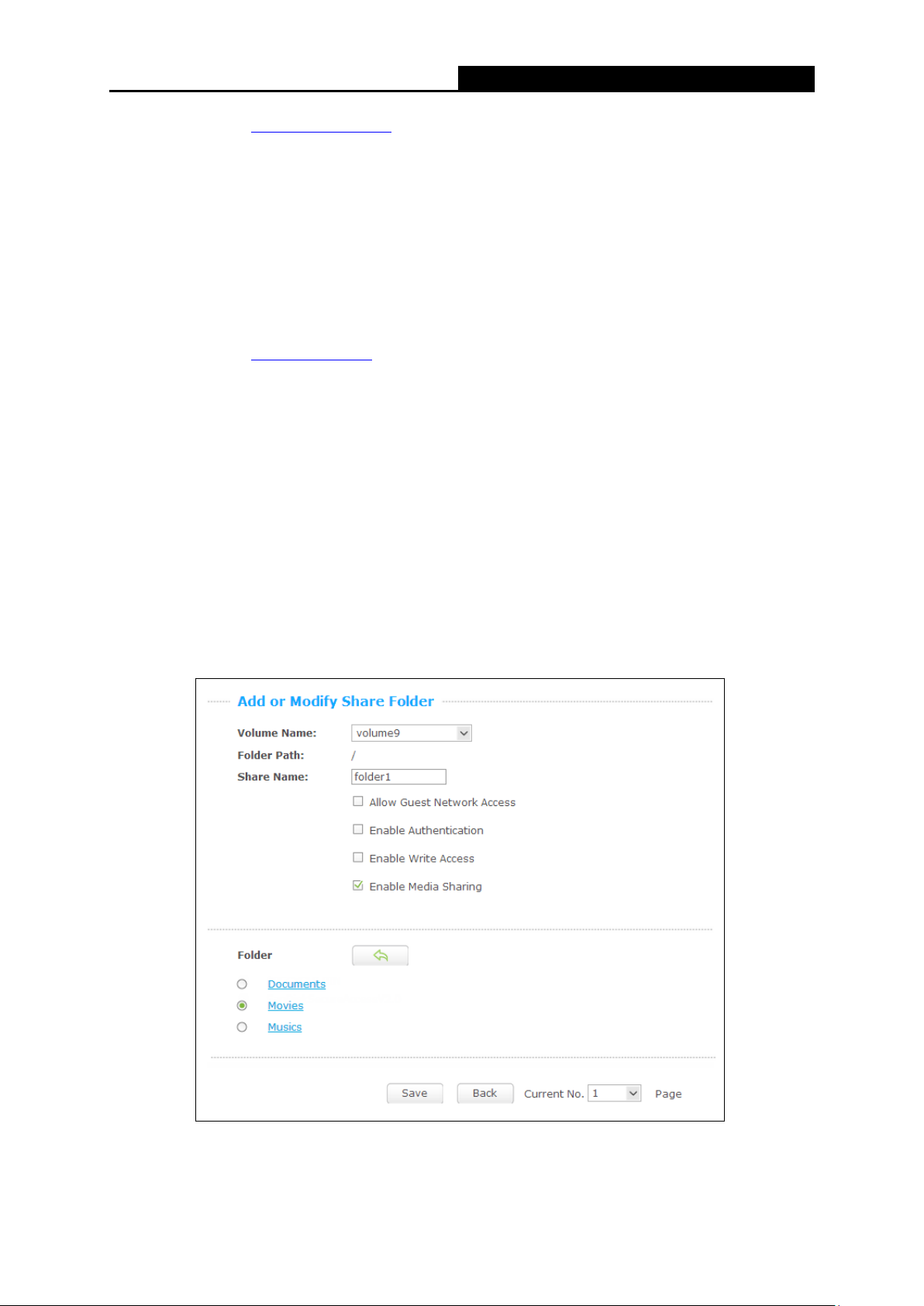

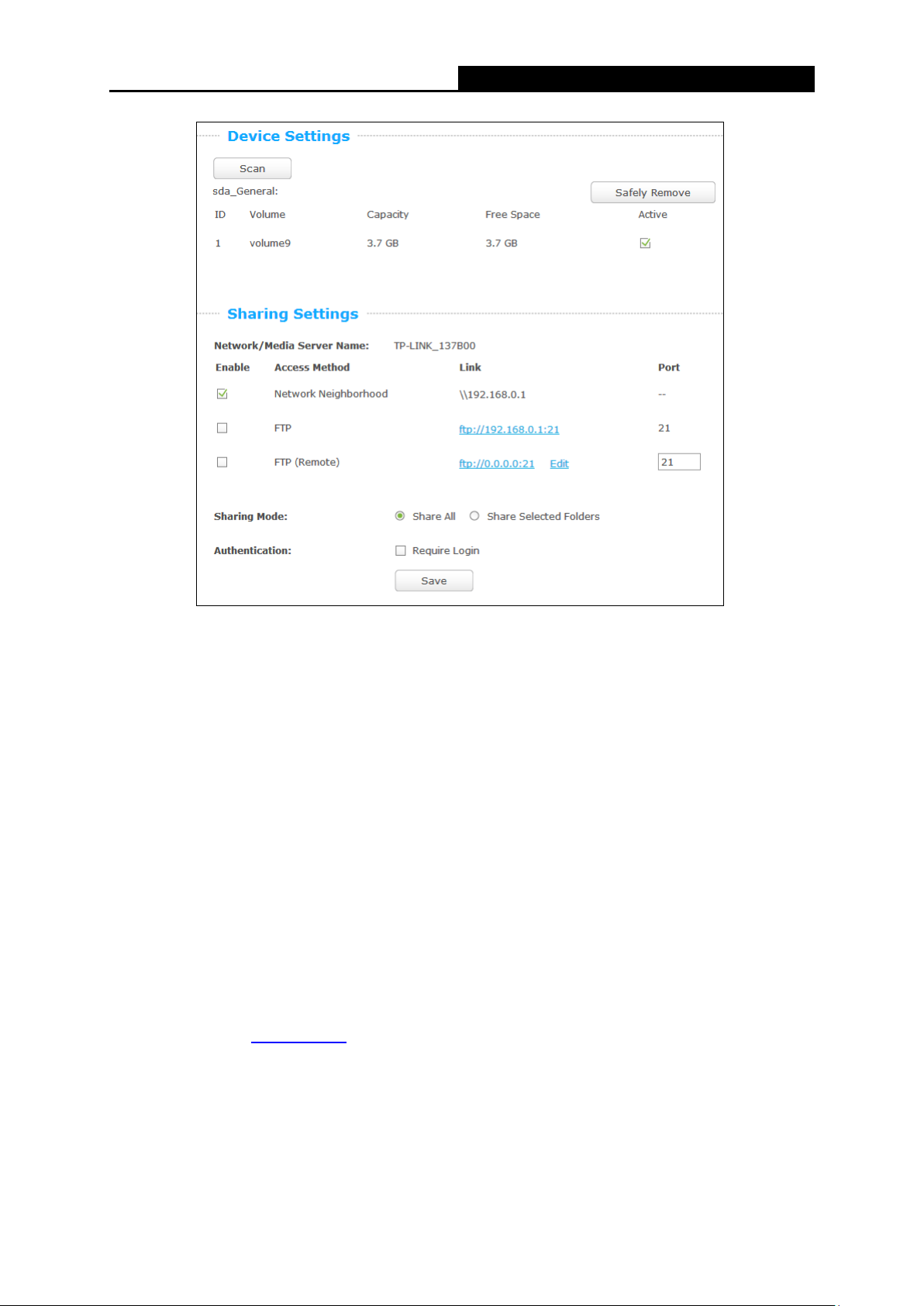

4.4.1 File Sharing ..................................................................................................... 20
4.4.2 Print Server ..................................................................................................... 23
4.5 Guest Network ............................................................................................................ 23
Chapter 5. Advanced .......................................................................................... 25
5.1 Status .......................................................................................................................... 25
5.2 Network ....................................................................................................................... 26

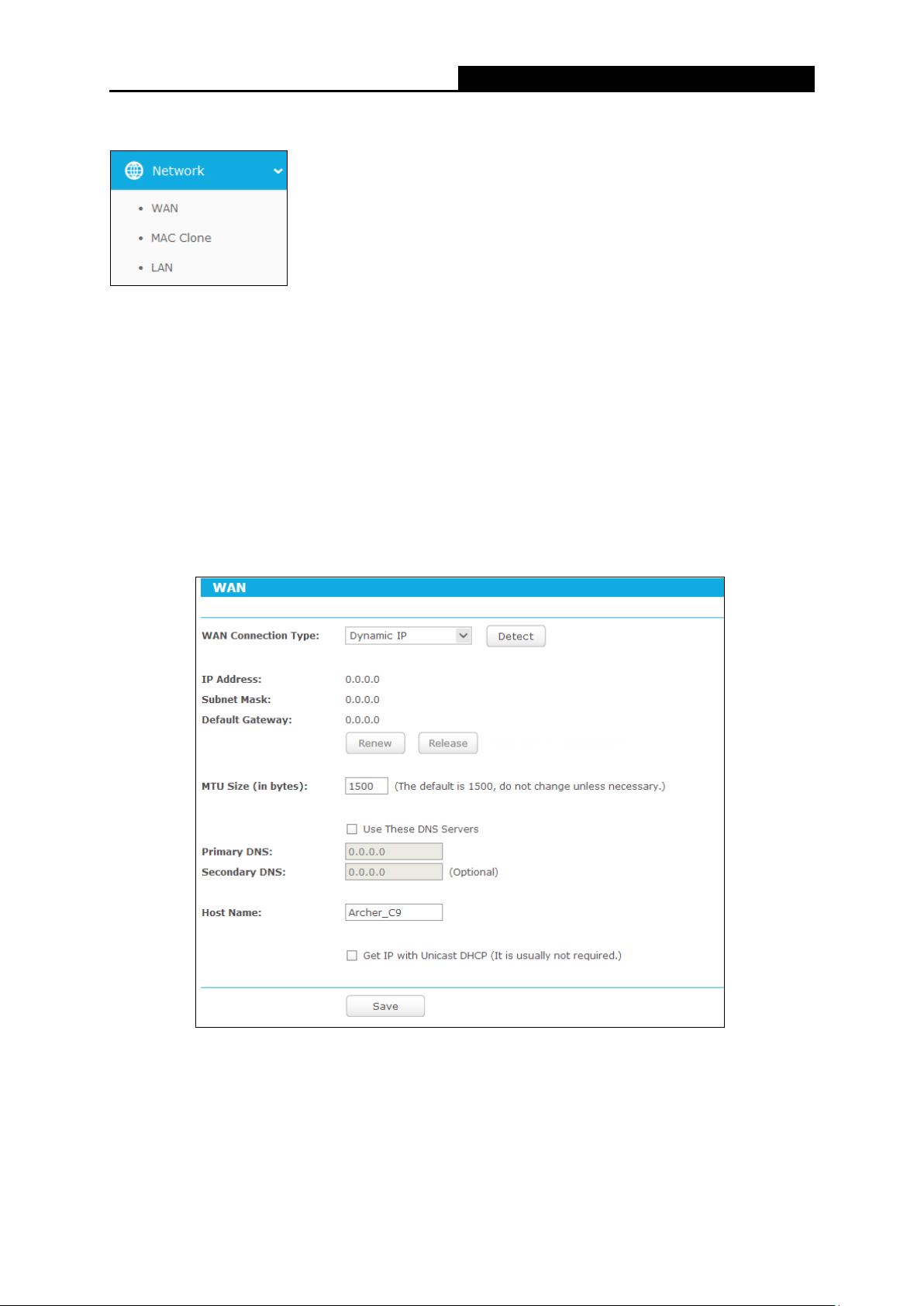

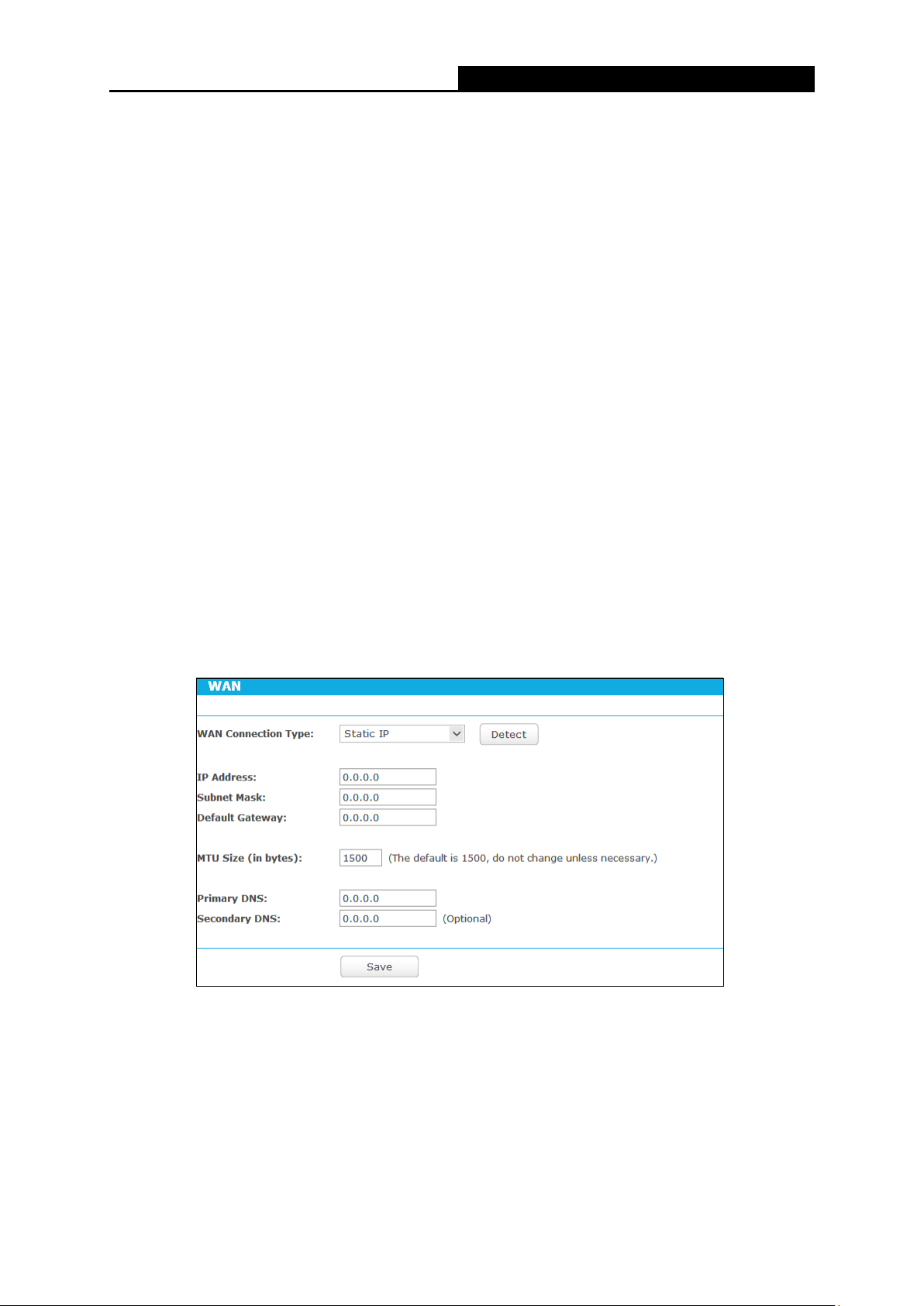

5.2.1 WAN ................................................................................................................ 26
5.2.2 MAC Clone ...................................................................................................... 34
5.2.3 LAN ................................................................................................................. 34
5.3 Dual Band Selection ................................................................................................... 35
5.4 Wireless 2.4GHz ......................................................................................................... 36
5.4.1 Wireless Settings ............................................................................................ 36

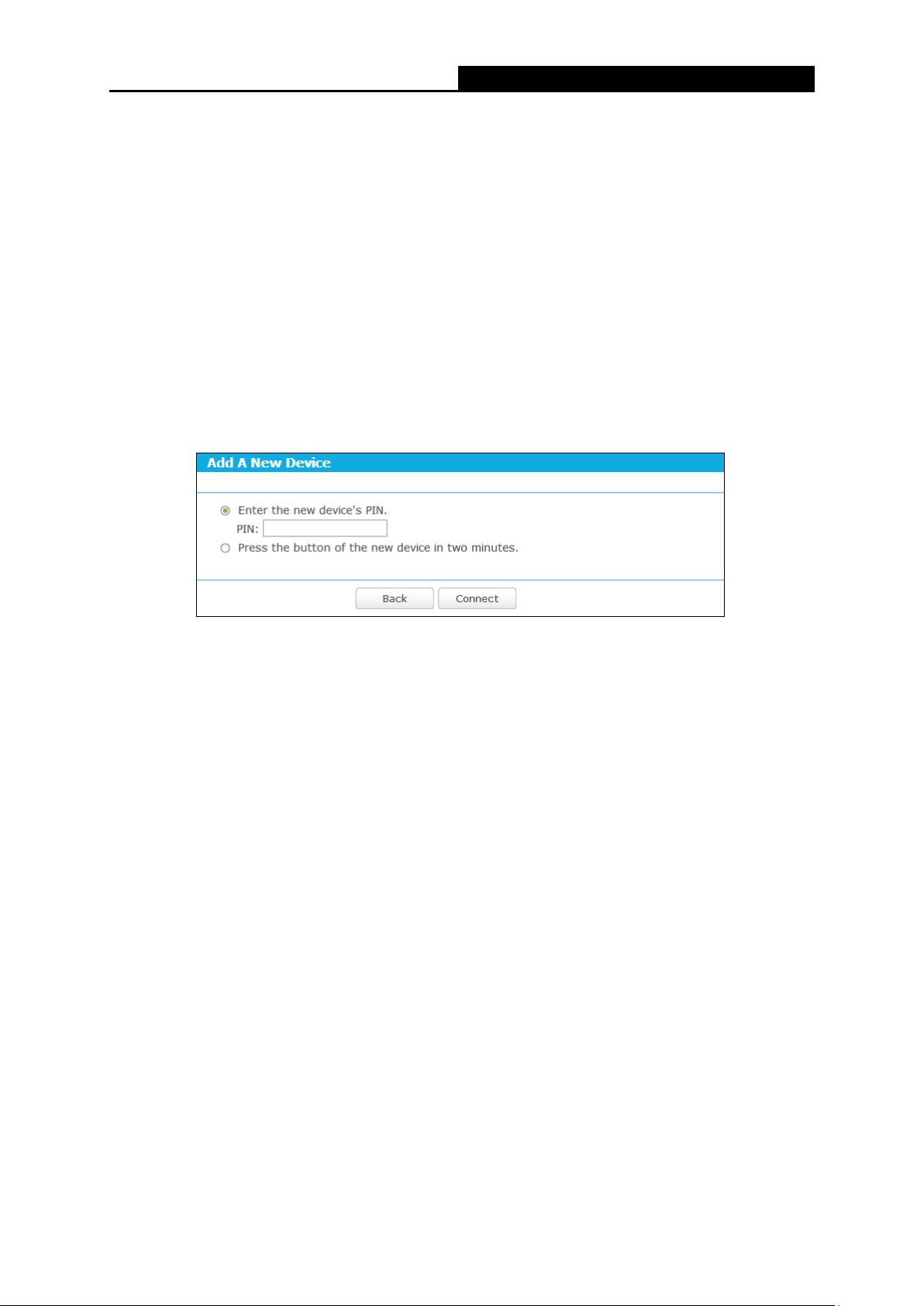

5.4.2 WPS ................................................................................................................ 38

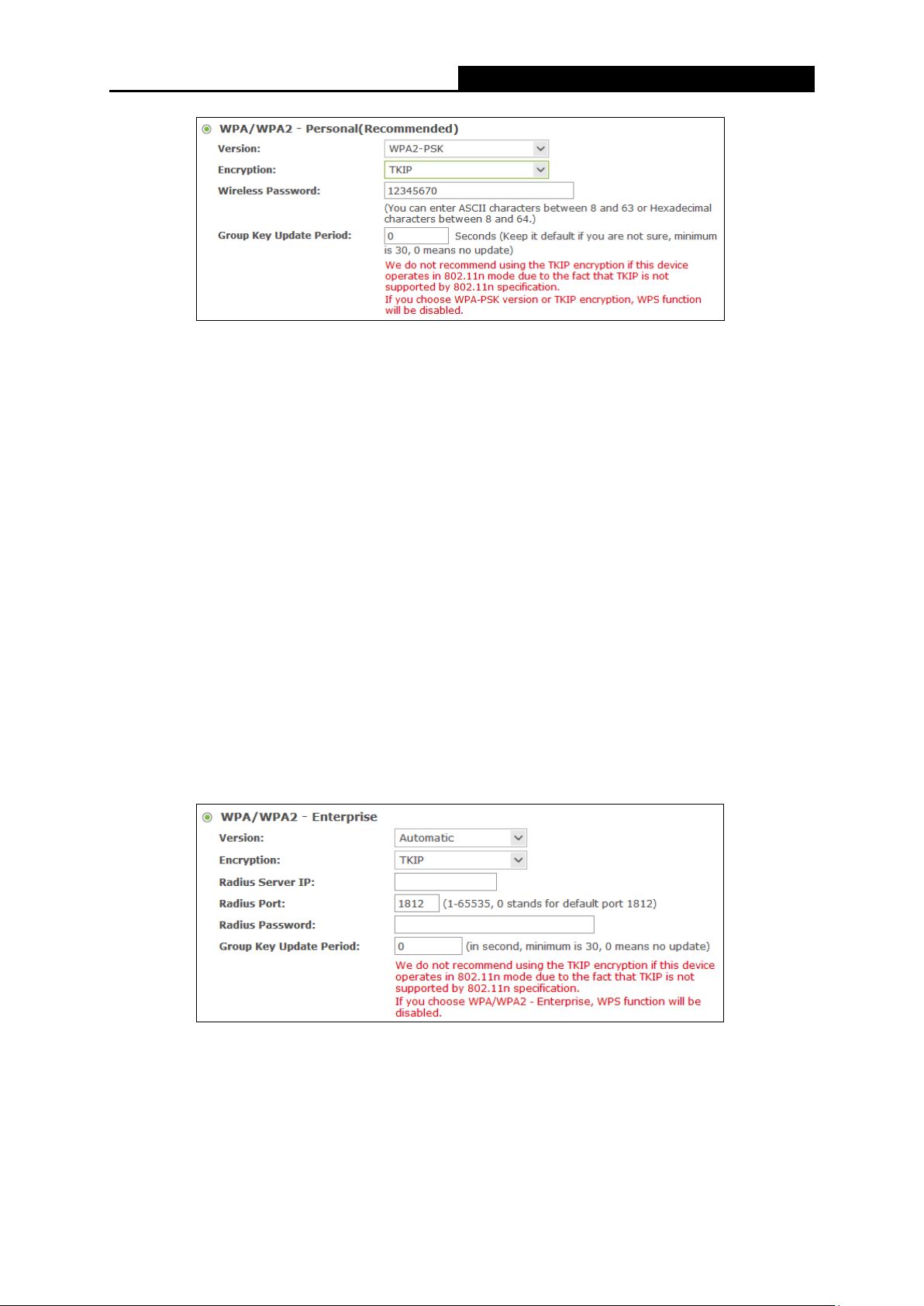

5.4.3 Wireless Security ............................................................................................ 39

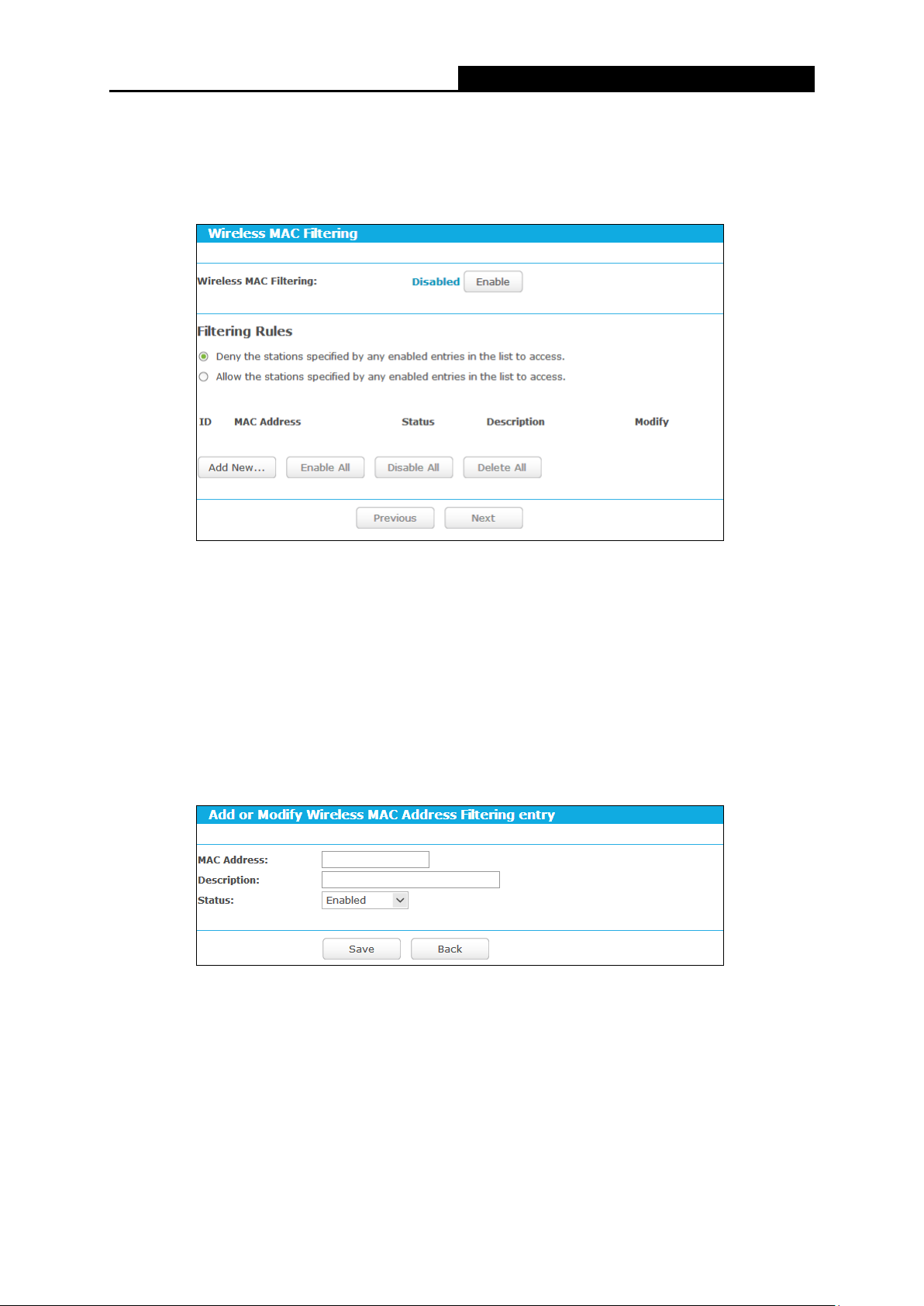

5.4.4 Wireless MAC Filtering ................................................................................... 43

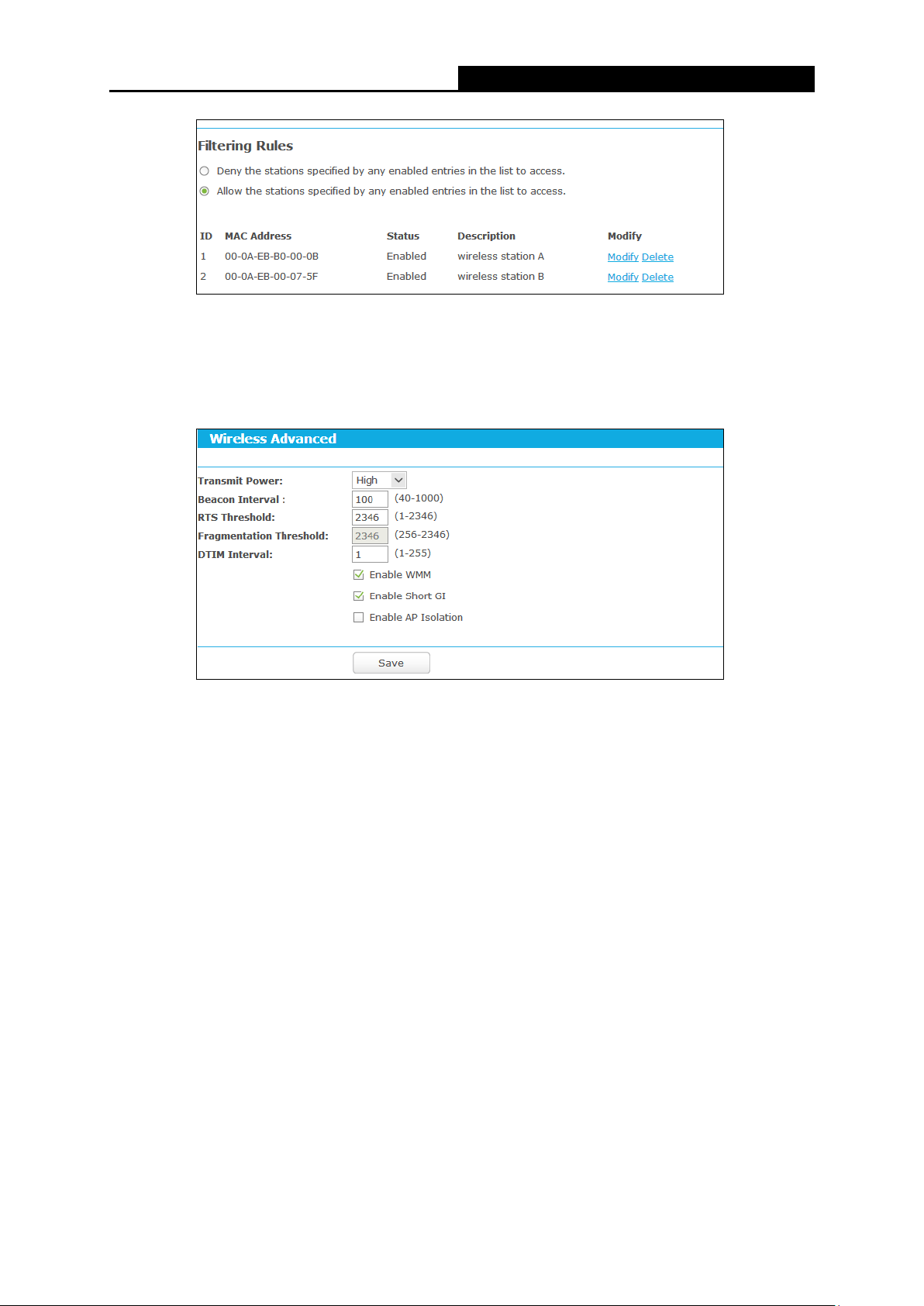

5.4.5 Wireless Advanced ......................................................................................... 45

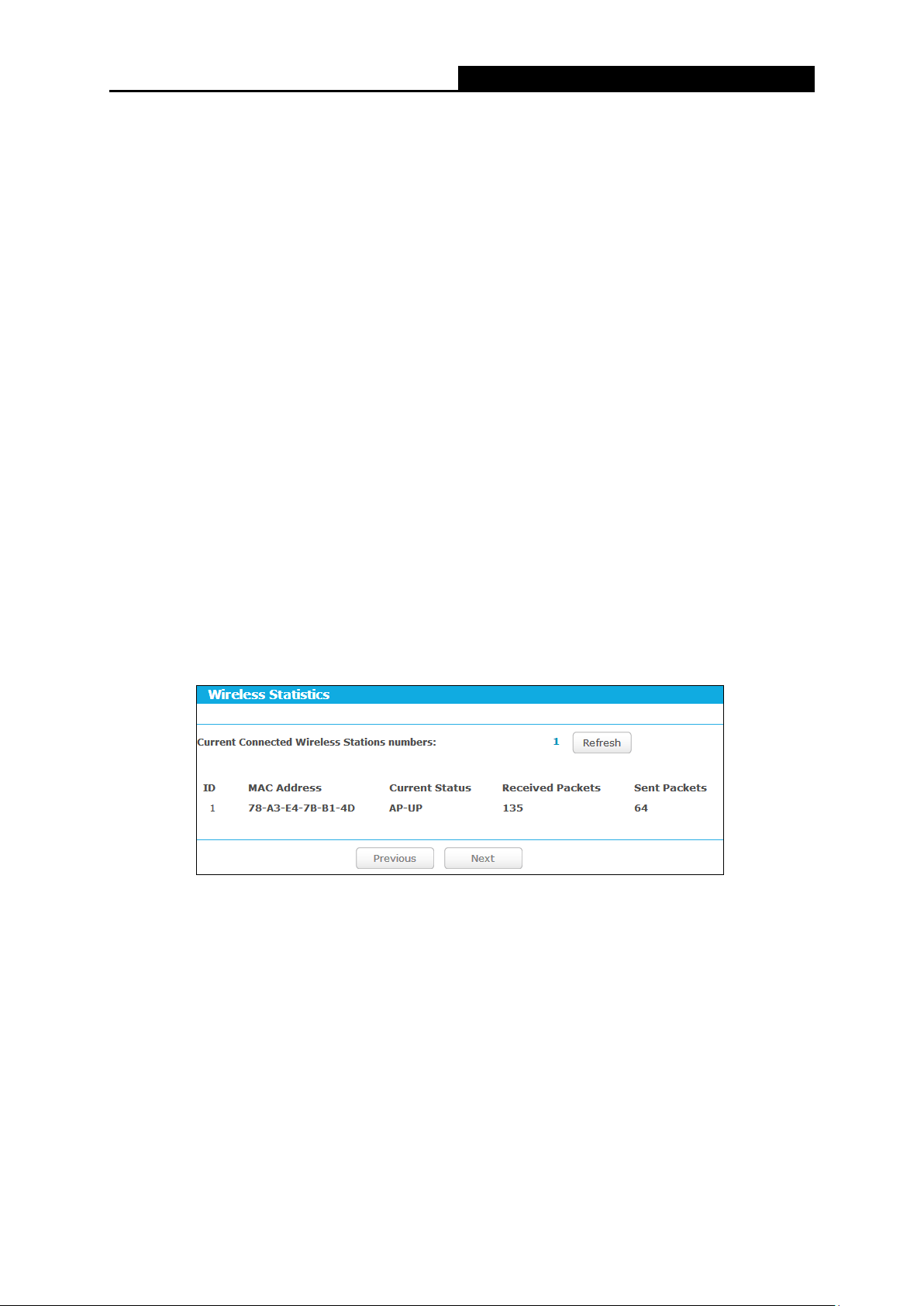

5.4.6 Wireless Statistics ........................................................................................... 46
5.5 Wireless 5GHz ............................................................................................................ 47
5.5.1 Wireless Settings ............................................................................................ 47
5.5.2 WPS ................................................................................................................ 49
5.5.3 Wireless Security ............................................................................................ 51

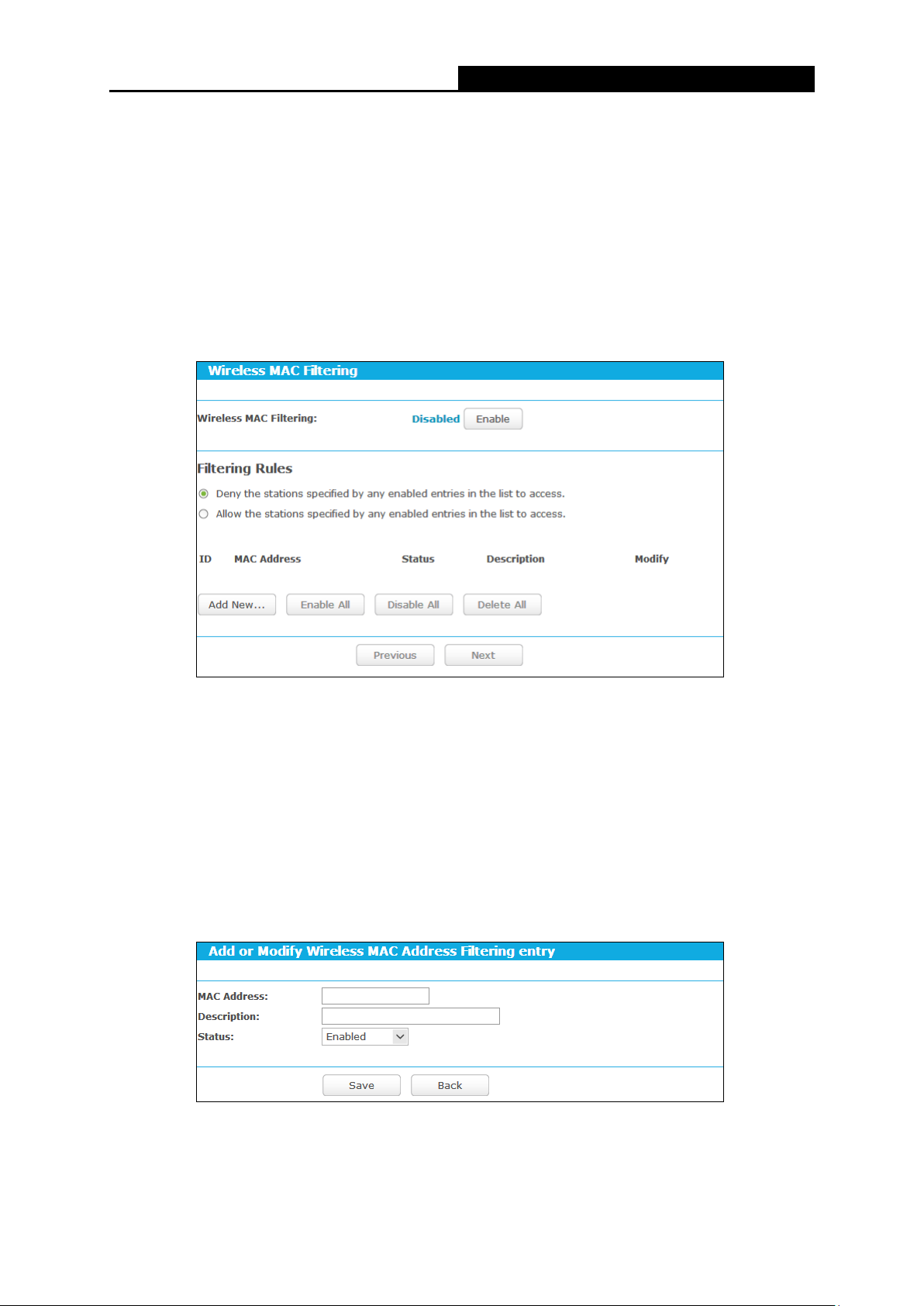

5.5.4 Wireless MAC Filtering ................................................................................... 54
5.5.5 Wireless Advanced ......................................................................................... 56

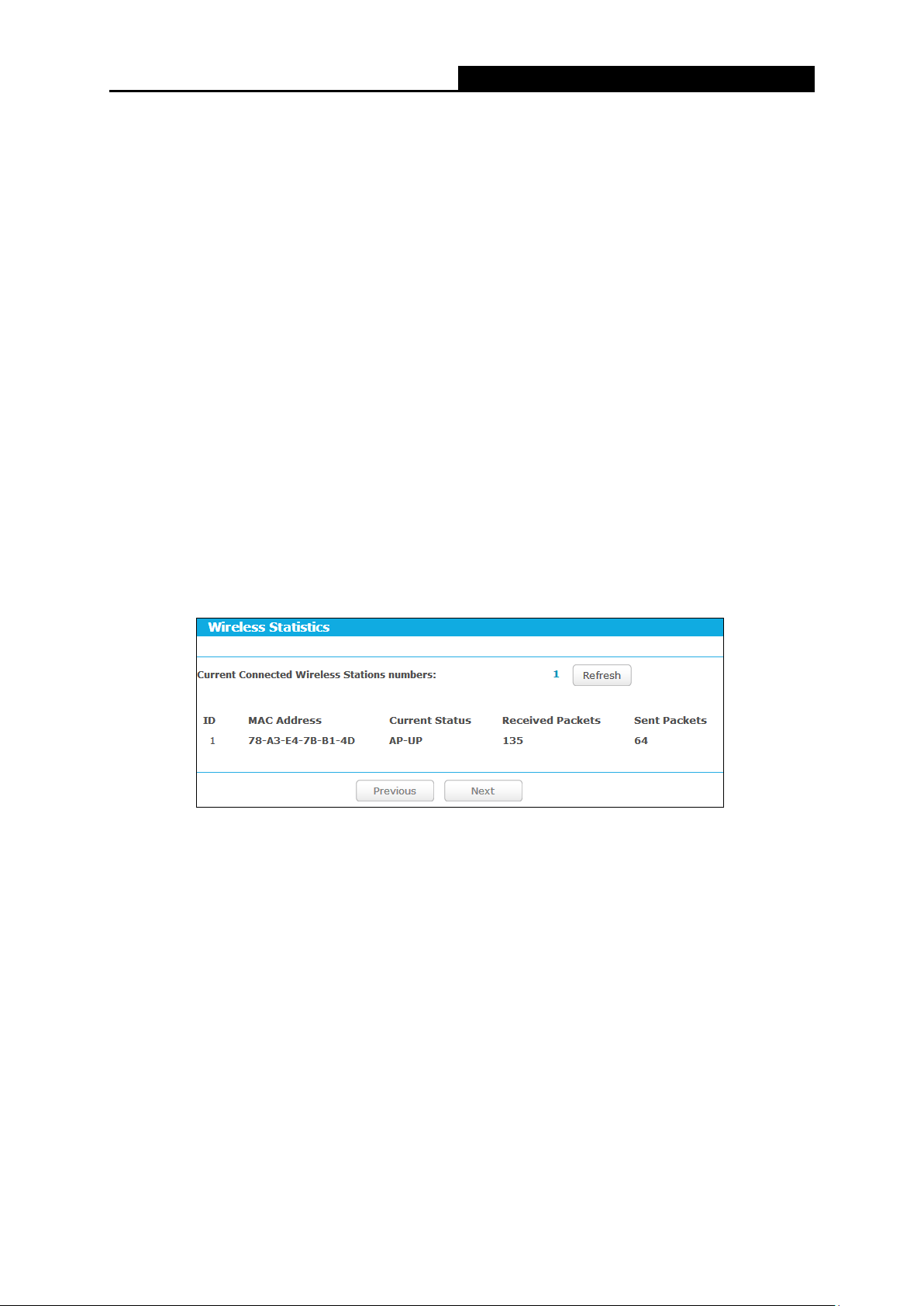

5.5.6 Wireless Statistics ........................................................................................... 57

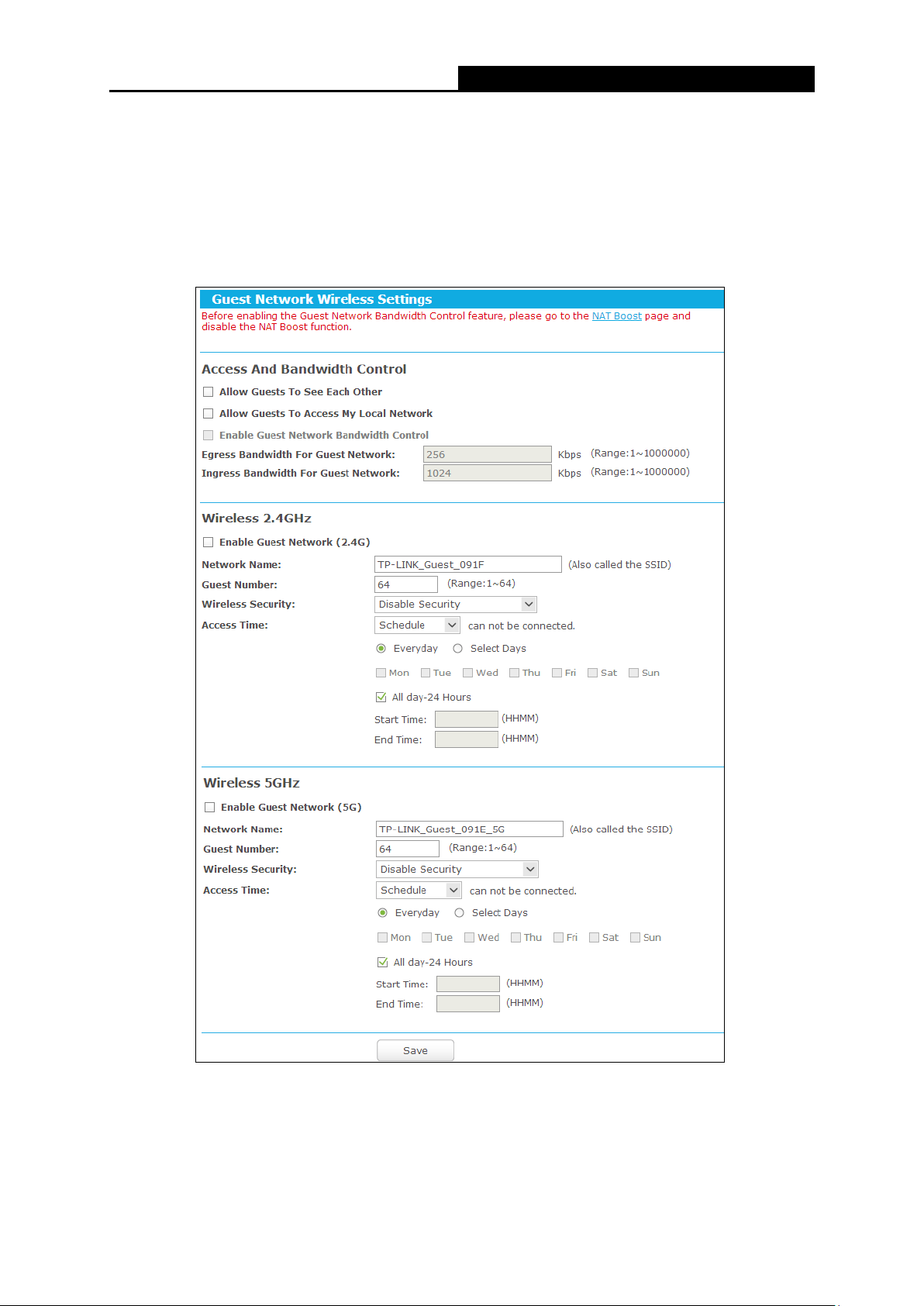

5.6 Guest Network ............................................................................................................ 58
5.7 DHCP .......................................................................................................................... 60

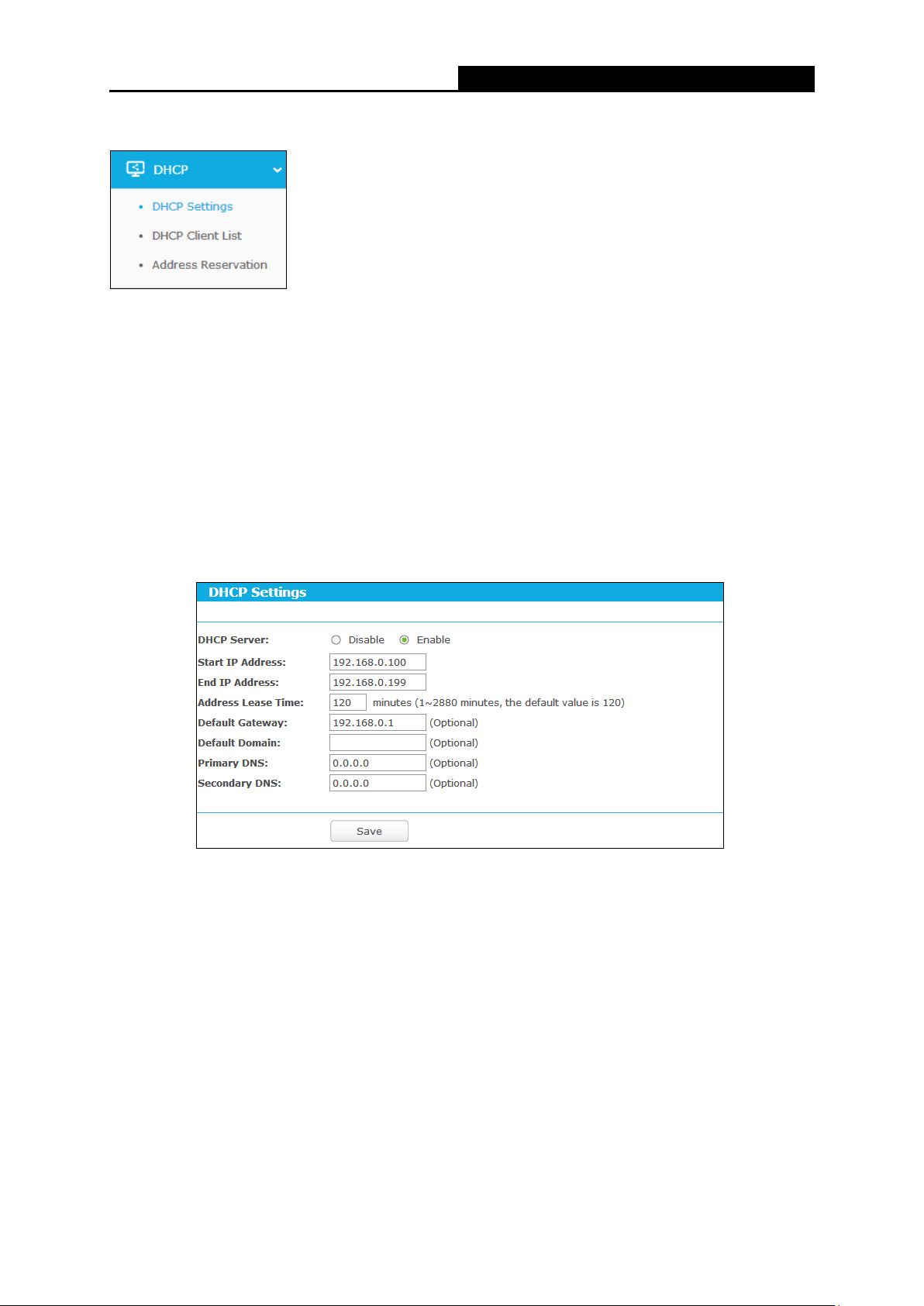

5.7.1 DHCP Settings ................................................................................................ 60

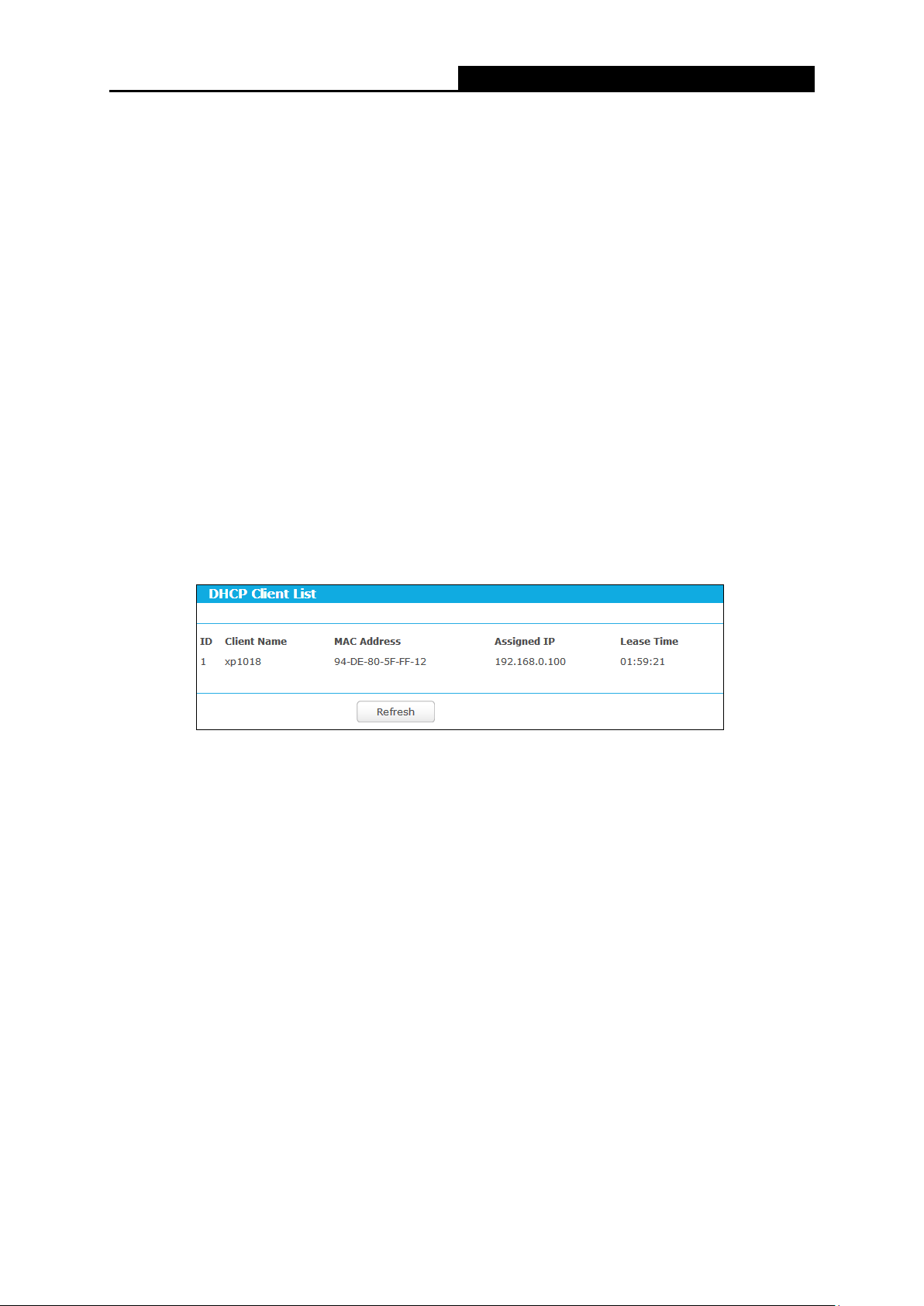

5.7.2 DHCP Clients List ........................................................................................... 61
5.7.3 Address Reservation ...................................................................................... 61

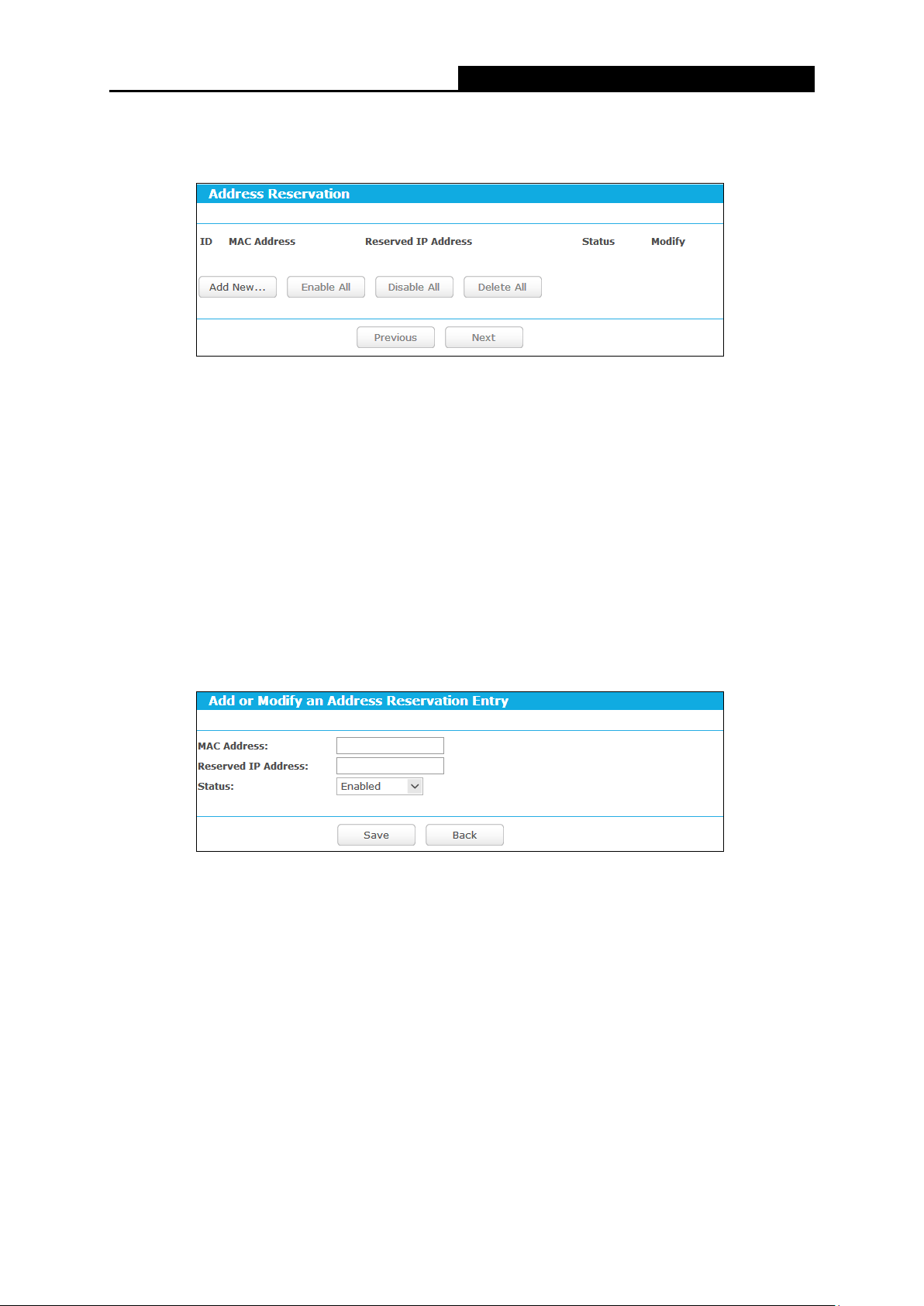

5.8 USB Settings ............................................................................................................... 63
5.8.1 Device Settings ............................................................................................... 63
5.8.2 File Sharing ..................................................................................................... 63
5.8.3 Print Server ..................................................................................................... 66
5.9 NAT Boost ................................................................................................................... 66
5.10 Forwarding .................................................................................................................. 67
5.10.1 Virtual Servers ................................................................................................ 67
5.10.2 Port Triggering ................................................................................................ 69

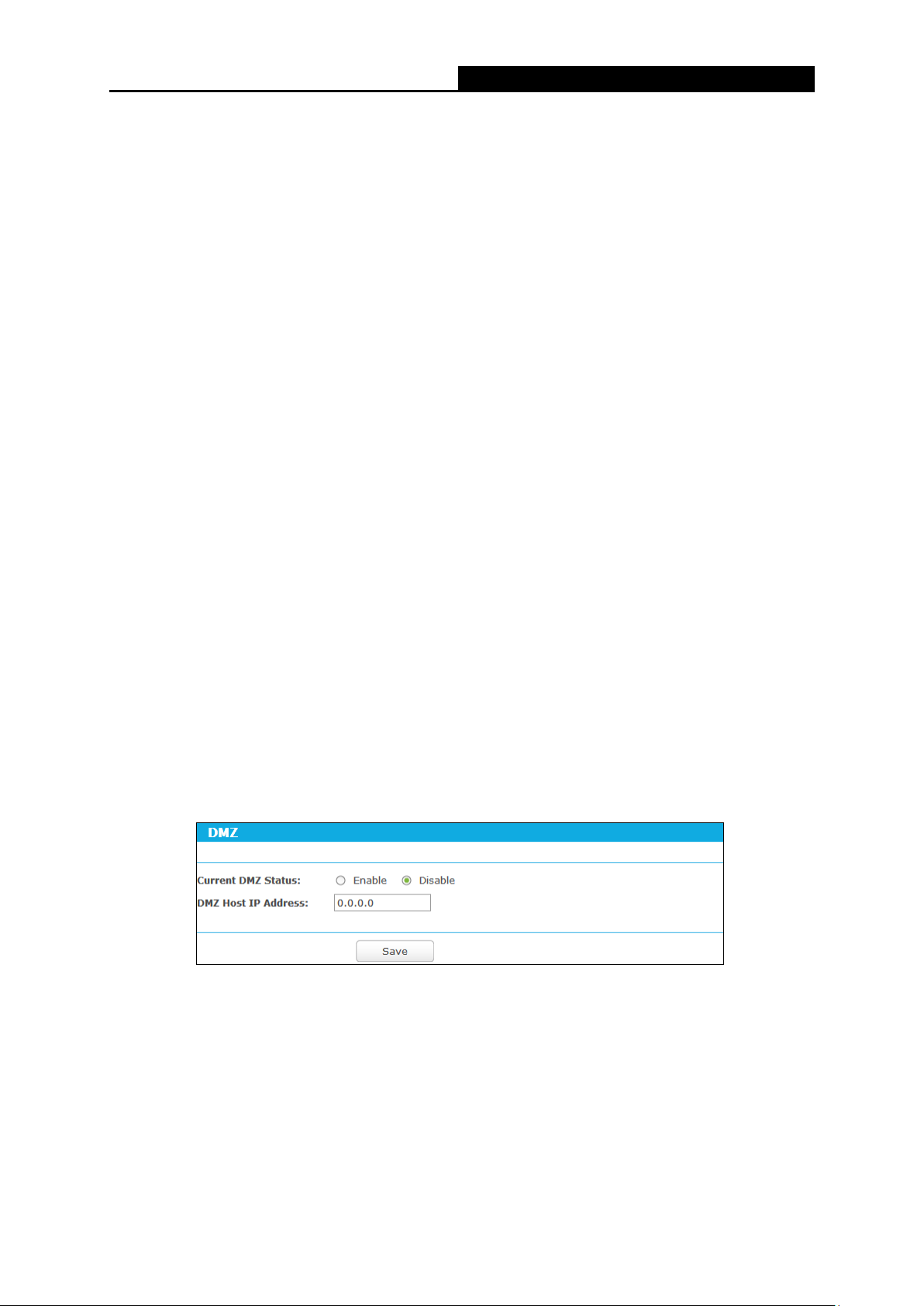

5.10.3 DMZ ................................................................................................................ 71
5.10.4 UPnP ............................................................................................................... 72
5.11 Security ....................................................................................................................... 73

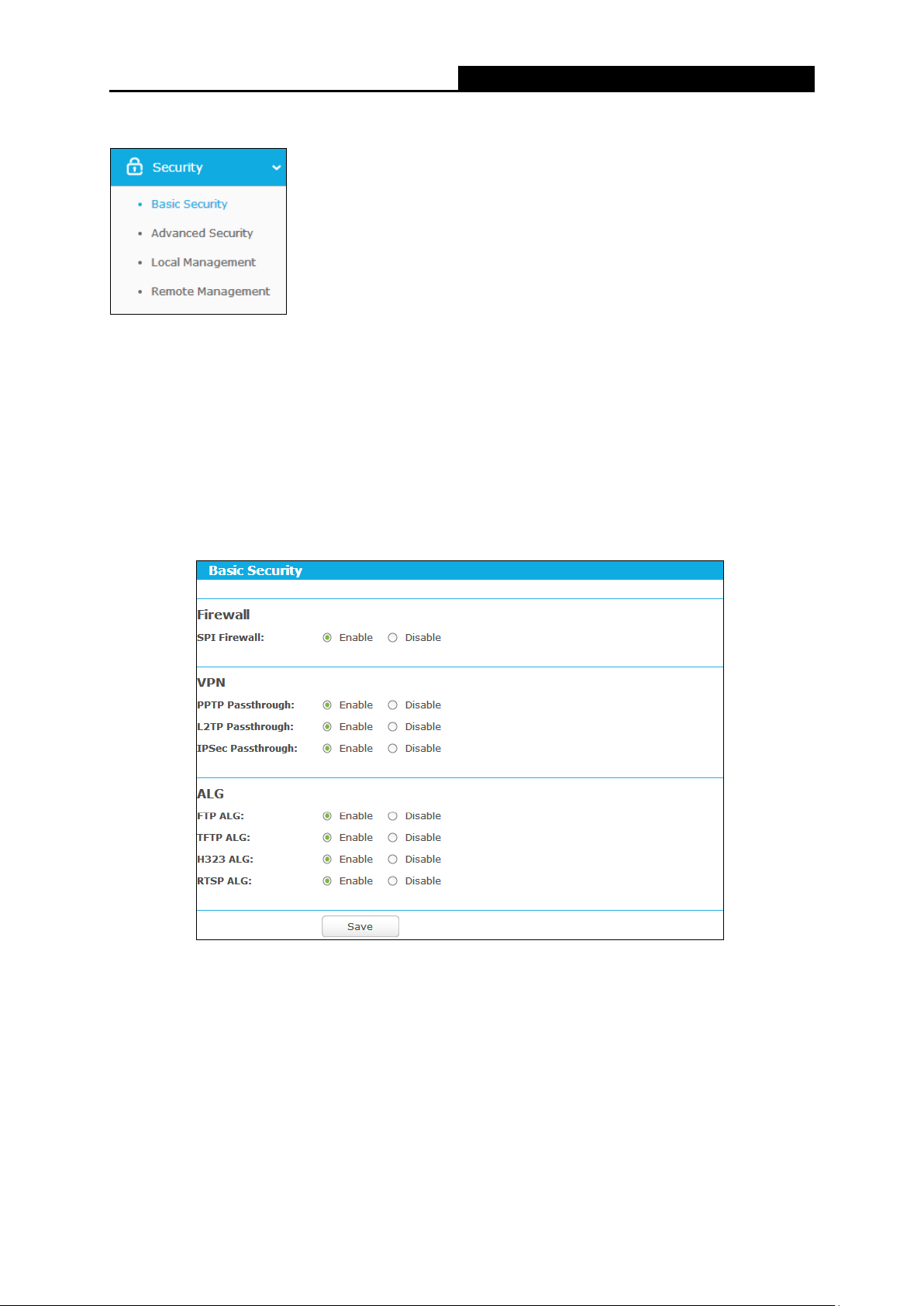

5.11.1 Basic Security ................................................................................................. 73

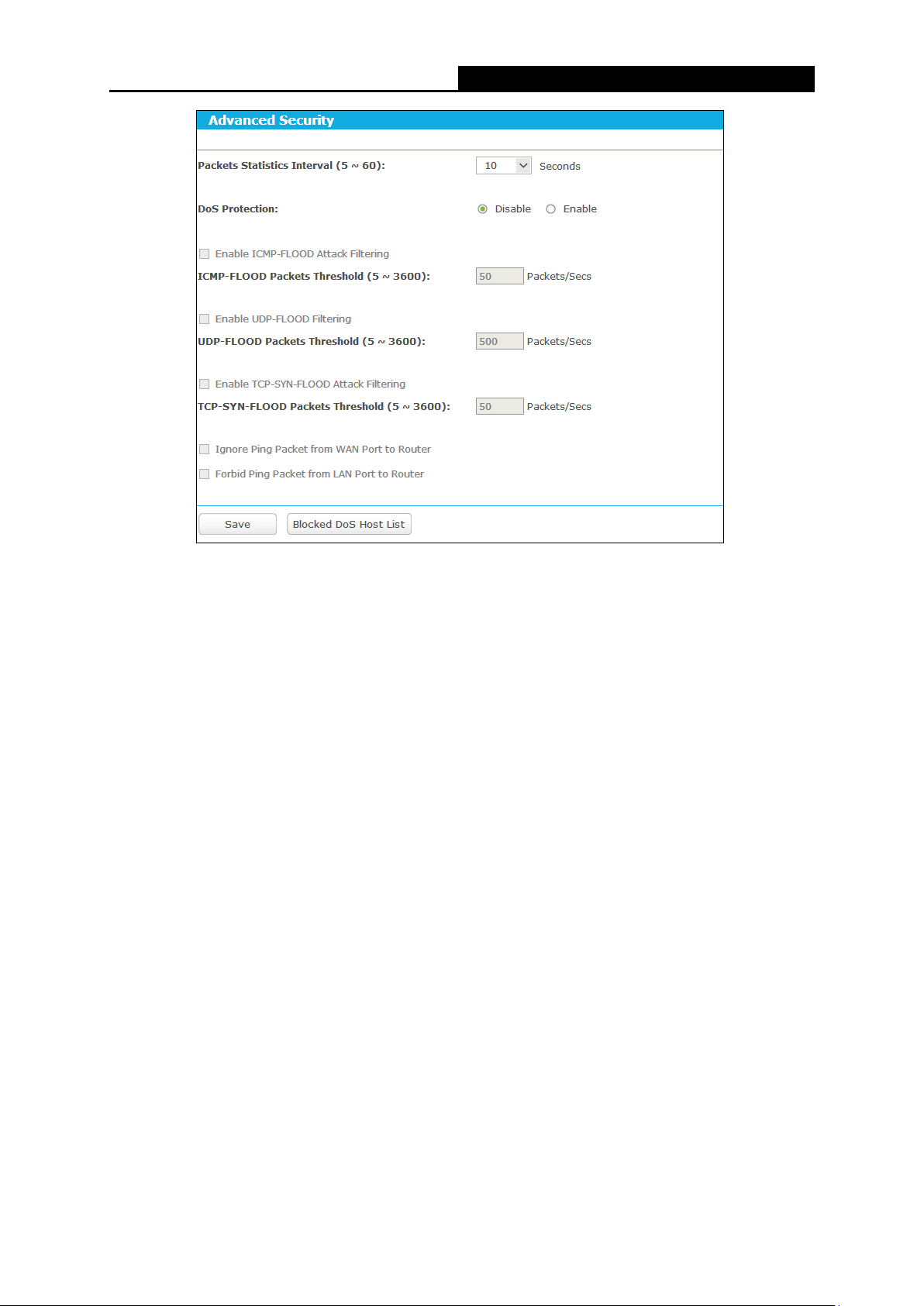

5.11.2 Advanced Security .......................................................................................... 74

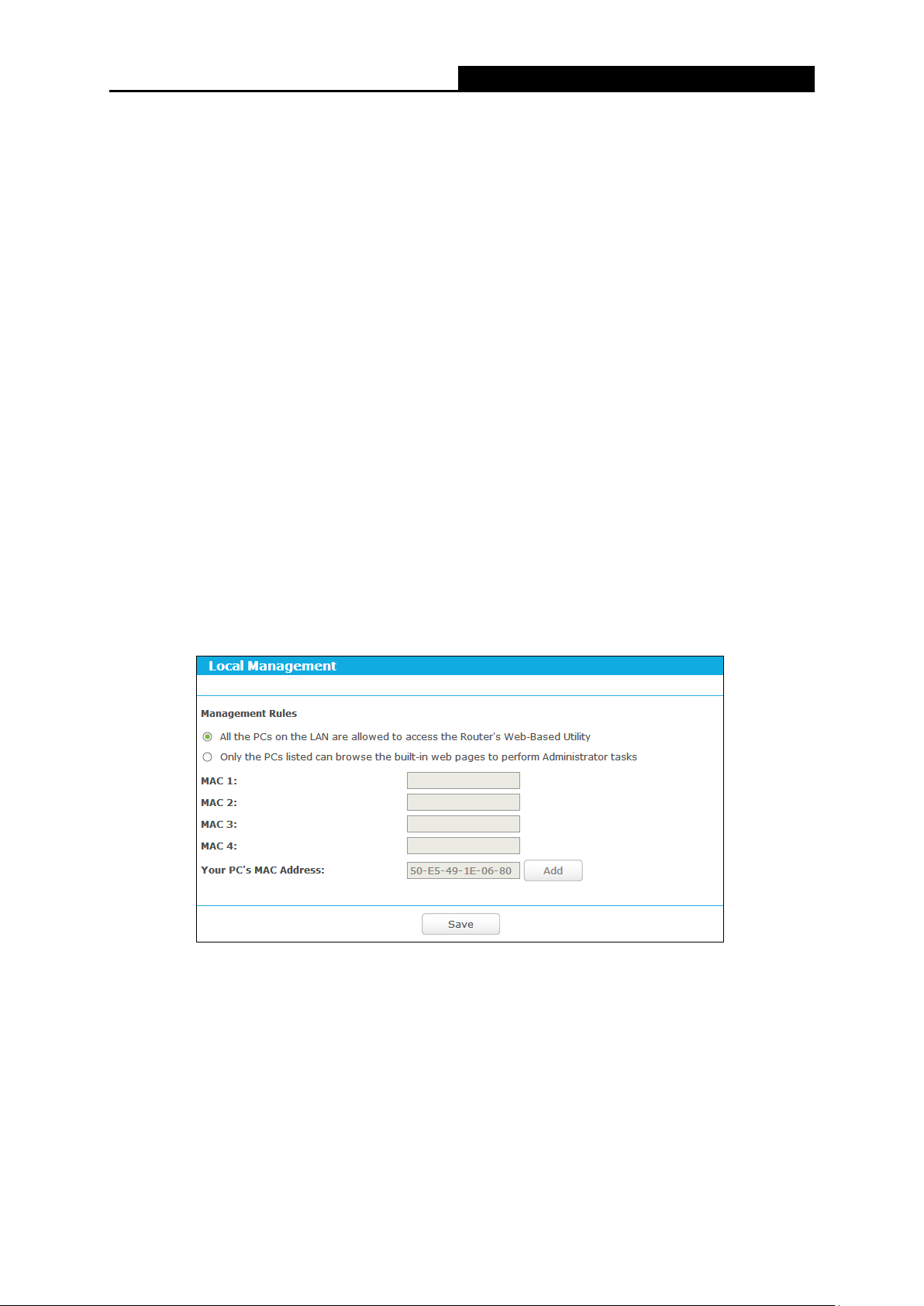

5.11.3 Local Management ......................................................................................... 76

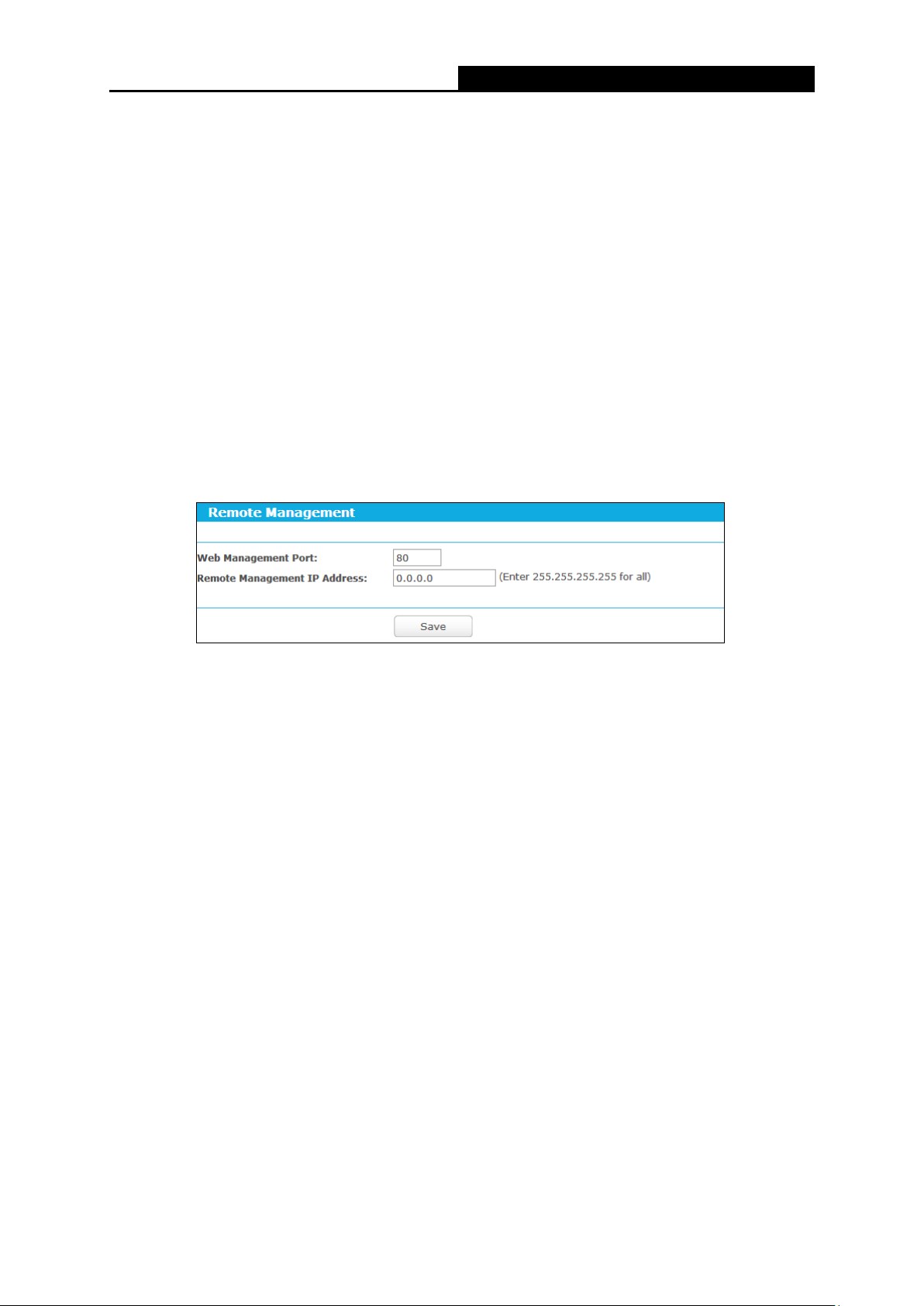

5.11.4 Remote Management ..................................................................................... 77
5.12 Parental Control .......................................................................................................... 78
5.13 Access Control ............................................................................................................ 80

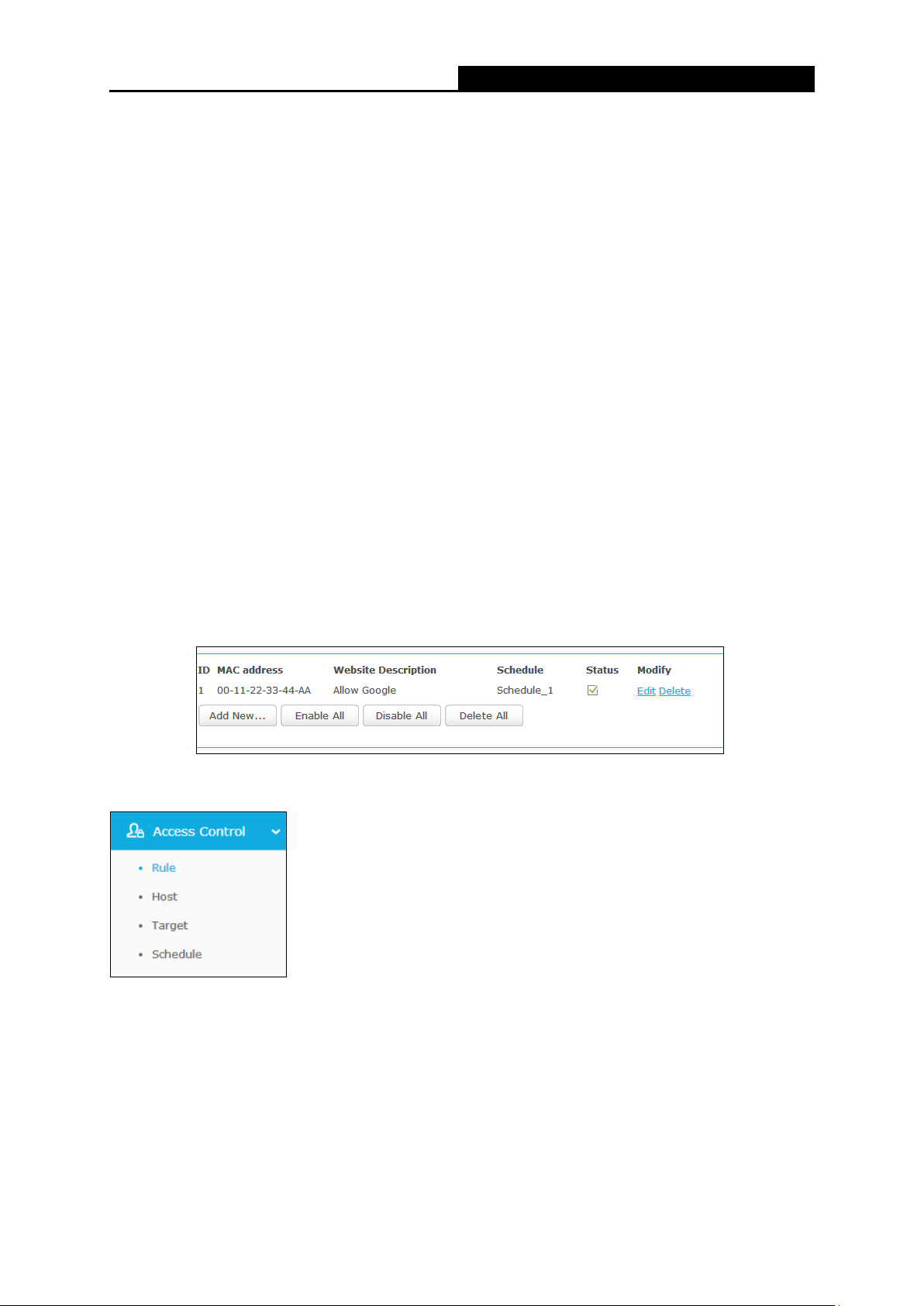

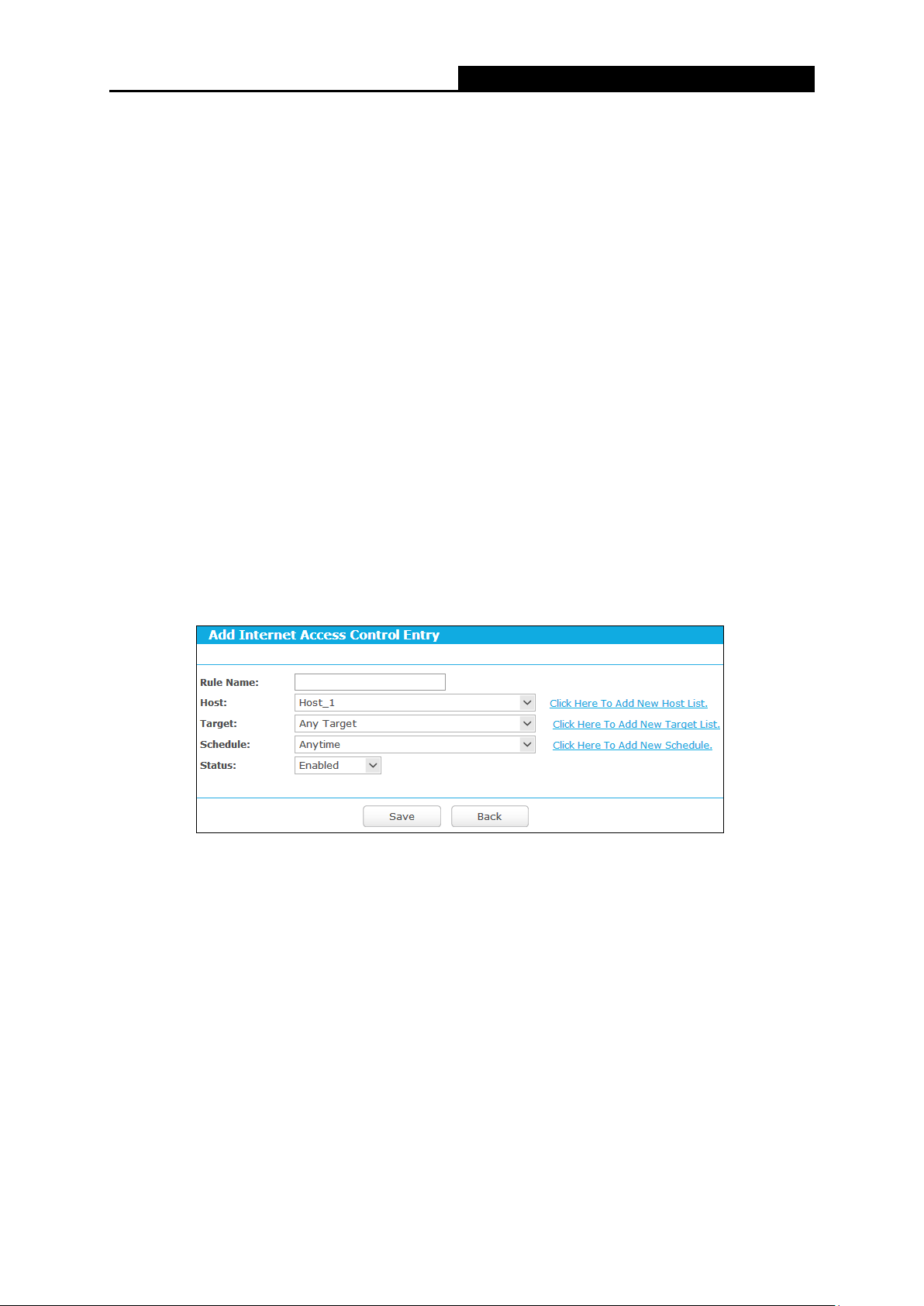

5.13.1 Rule ................................................................................................................. 81

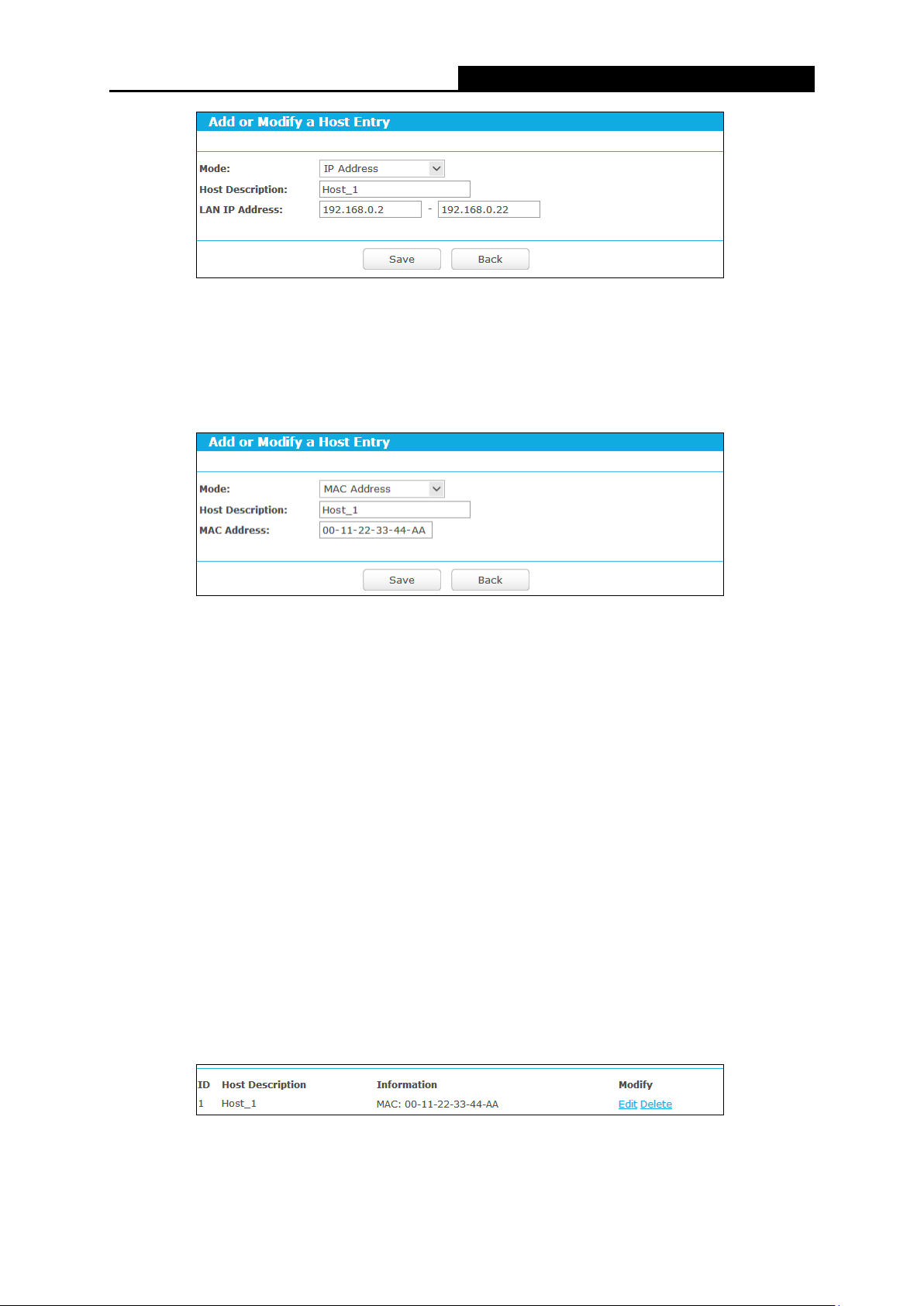

5.13.2 Host ................................................................................................................. 86

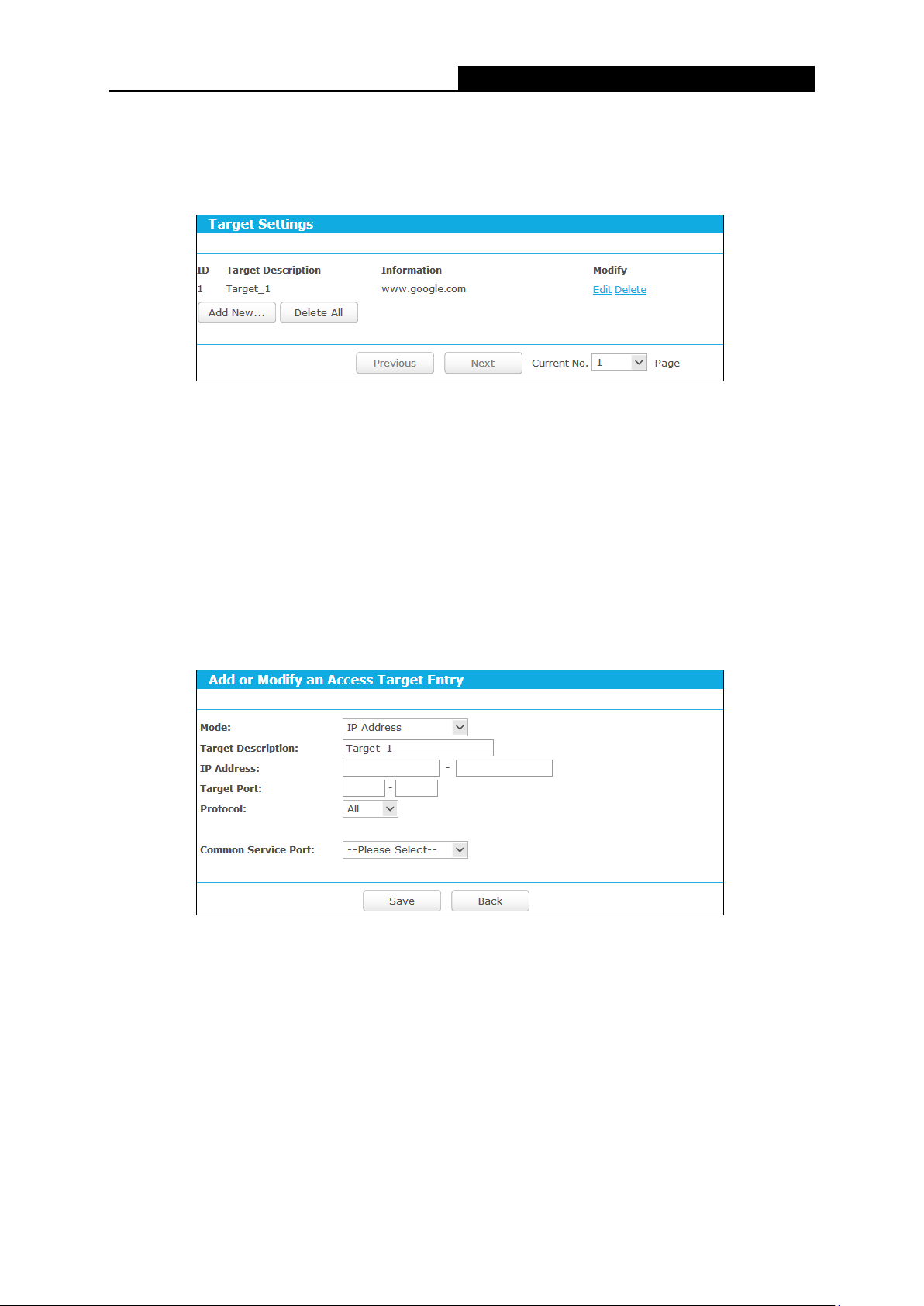

5.13.3 Target .............................................................................................................. 88
5.13.4 Schedule ......................................................................................................... 89
5.14 Advanced Routing ...................................................................................................... 91
5.14.1 Static Routing List ........................................................................................... 91
5.14.2 System Routing Table ..................................................................................... 92
5.15 Bandwidth Control ...................................................................................................... 93
5.15.1 Control Settings .............................................................................................. 93
5.15.2 Rules List ........................................................................................................ 94
5.16 IP & MAC Binding ....................................................................................................... 95
5.16.1 Binding Settings .............................................................................................. 95
5.16.2 ARP List .......................................................................................................... 97
5.17 Dynamic DNS ............................................................................................................. 98
5.17.1 Comexe.cn DDNS........................................................................................... 98
5.17.2 Dyn.com/dns DDNS ........................................................................................ 99
5.17.3 No-ip.com DDNS ............................................................................................ 99
5.18 IPv6 Support ............................................................................................................. 100
5.18.1 IPv6 Status .................................................................................................... 101
5.18.2 IPv6 Setup .................................................................................................... 102
5.19 System Tools ............................................................................................................. 110
5.19.1 Time Settings ................................................................................................ 110
5.19.2 Diagnostic ..................................................................................................... 112
5.19.3 Firmware Upgrade ........................................................................................ 114
5.19.4 Factory Defaults ............................................................................................ 115
5.19.5 Backup & Restore ......................................................................................... 115
5.19.6 Reboot ........................................................................................................... 116
5.19.7 Password ...................................................................................................... 117
5.19.8 System Log ................................................................................................... 117
5.19.9 Statistics ........................................................................................................ 119
Appendix A: FAQ .................................................................................................. 122
Appendix B: Configuring the PC ......................................................................... 127
Appendix C: Specifications ................................................................................. 130
Appendix D: Glossary .......................................................................................... 131
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Package Contents
The following items should be found in your package:
Archer C9 AC1900 Wireless Dual Band Gigabit Router
DC Power Adapter for Archer C9 AC1900 Wireless Dual Band Gigabit Router
Quick Installation Guide
Resource CD for Archer C9 AC1900 Wireless Dual Band Gigabit Router, including:
• This Guide
• Other Helpful Information
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.
- 1 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Simple Installation
Flexible Access Control
Multiple Security Protections
Incredible Speed
Chapter 1. Introduction
1.1 Overview of the router
The Archer C9 AC1900 Wireless Dual Band Gigabit Router integrates 4-port Switch, Firewall,
NAT-router and Wireless AP. Powered by 3x3 MIMO technology, the AC1900 Wireless Dual Band
Gigabit Router delivers exceptional range and speed, which can fully meet the need of Small
Office/Home Office (SOHO) networks and the users demanding higher networking performance.
Your wireless connections are radio band selectable to avoid interference in your area, and the four
built-in Gigabit ports supply high-speed connection to your wired devices.
The Archer C9 AC1900 Wireless Dual Band Gigabit Router provides up to 1900Mbps wireless
connection with other wireless clients. The incredible speed makes it ideal for handling multiple data
streams at the same time, which ensures your network stable and smooth. The performance of this
802.11ac wireless router will give you the unexpected networking experience at speed much faster
than 802.11n. It is also compatible with all IEEE 802.11n, IEEE 802.11a, IEEE 802.11b and IEEE
802.11g products.
With multiple protection measures, including SSID broadcast control and wireless LAN
64/128/152-bit WEP encryption, Wi-Fi Protected Access (WPA2- PSK, WPA- PSK), as well as
advanced Firewall protections, the Archer C9 AC1900 Wireless Dual Band Gigabit Router
provides complete data privacy.
The Archer C9 AC1900 Wireless Dual Band Gigabit Router provides flexible access control, so that
parents or network administrators can establish restricted access policies for children or staff. It also
supports Virtual Server and DMZ host for Port Triggering, and then the network administrators can
manage and monitor the network in real time with the remote management function.
Since the router is compatible with virtually all the major operating systems, it is very easy to
manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in
this user guide. Before installing the router, please look through this guide to know all the router’s
functions.
1.2 Conventions
The router or Archer C9 mentioned in this guide stands for Archer C9 AC1900 Wireless Dual Band
Gigabit Router without any explanation.
- 2 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
1.3 Main Features
Complies with IEEE 802.11ac.
One 10/100/1000M Auto-Negotiation RJ45 Internet port, four 10/100/1000M Auto-Negotiation
RJ45 Ethernet ports, supporting Auto MDI/MDIX.
Provides a USB 3.0 port and a USB 2.0 port supporting file sharing and print server.
Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.
Shares data and Internet access for users, supporting Dynamic IP/Static IP/PPPoE/PPTP/
L2TP Internet access.
Supports simultaneous 2.4GHz and 5GHz connections for 1900Mbps of total available
bandwidth.
Supports Virtual Server, Special Application and DMZ host.
Supports UPnP, Dynamic DNS, Static Routing.
Provides Automatic-connection and Scheduled Connection on certain time to the Internet.
Built-in NAT and DHCP server supporting static IP address distributing.
Supports Parental Control and Access Control.
Connects Internet on demand and disconnects from the Internet when idle for PPPoE.
Provides WEP encryption security and wireless LAN ACL (Access Control List).
Supports Flow Statistics.
Supports IPv6.
Supports firmware upgrade and Web management.
- 3 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
WPS button on the router is pressed, and the router is trying to
1.4 Panel Layout
1.4.1 The Front Panel
The router’s LEDs are located on the front panel (View from left to right).
Name Status Indication
Flashing The router is booting or upgrading.
(Power)
(2.4G Wireless)
(5G Wireless)
(Ethernet)
(Internet)
(WPS)
On The router has booted.
Off Power is off.
On 2.4G wireless is working properly.
Off 2.4G wireless is disabled.
On 5G wireless is working properly.
Off 5G wireless is disabled.
On There is device(s) connected to the Ethernet (1/2/3/4) port(s).
Off No any device is connected to the Ethernet (1/2/3/4) port.
Blue The Internet port is connected, and the Internet is accessible.
Orange The Internet port is connected, but the Internet is inaccessible.
Off
Flashing
On The connection via WPS is successful.
Off The connection via WPS fails.
The Internet port isn’t connected, and the Internet is
inaccessible.
connect a wireless device to its network via WPS.
- 4 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Flashing
(USB 1)
(USB 2)
Note:
After a device is successfully added to the network by WPS function, the WPS LED will keep on
for about 5 minutes and then turn off.
On The device is identified successfully.
Off No device is connected to the USB 2.0 port.
Flashing
On The device is identified successfully.
Off No device is connected to the USB 3.0 port.
The router is identifying the device connected to the USB 2.0
port.
The router is identifying the device connected to the USB 3.0
port.
1.4.2 The Rear Panel
The following parts are located on the rear panel (View from left to right).
USB 2.0: The USB 2.0 port connects to a USB 2.0 storage device or a USB 2.0 printer.
Reset/WPS:
Pressing this button for less than 5 seconds enables the WPS function. If your client devices,
such as wireless adapters, that support Wi-Fi Protected Setup, then you can press this
Figure 1-1 Rear Panel sketch
- 5 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
button to quickly establish a connection between the router and client devices and
automatically configure wireless security for your wireless network.
Pressing this button for more than 5 seconds enables the Reset function. With the router
powered on, press and hold the Reset/WPS button for approximately 8 seconds. And then
release the button and wait the router to reboot to its factory default settings.
Internet: This port is where you will connect the DSL/cable Modem, or Ethernet.
Ethernet (1, 2, 3, 4): These ports (1, 2, 3, 4) connect the router to the local PC(s).
Power On/Off: The switch for the power.
Power: The Power socket is where you will connect the power adapter. Please use the
power adapter provided.
The following parts are located on the side panel (View from top to bottom).
WiFi: The button for the wireless function.
USB 3.0: The USB 3.0 port connects to a USB 3.0 storage device or a USB 3.0 printer.
- 6 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Chapter 2. Connecting the router
2.1 System Requirements
Broadband Internet Access Service (DSL/Cable/Ethernet)
One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the router is
connected directly to the Ethernet)
PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors
TCP/IP protocol on each PC
Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari
2.2 Installation Environment Requirements
Place the router in a well-ventilated place far from any heater or heating vent
Avoid direct irradiation of any strong light (such as sunlight)
Keep at least 2 inches (5 cm) of clear space around the router
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90%RH, Non-condensing
2.3 Connecting the router
Before installing the router, make sure your PC is connected to the Internet through the
broadband service successfully. If there is any problem, please contact your ISP. After that, please
install the router according to the following steps. Don't forget to pull out the power plug and keep
your hands dry.
1. Power off your modem (if the modem has a backup battery, please remove it too.), and
disconnect your existing router if you have one.
2. Connect the Internet port on your Router to the Modem’s LAN port with an Ethernet cable.
3. Connect your computer to one of the Ethernet ports labeled 1~4 on the Router with an
Ethernet cable.
4. Power on the modem and wait for 2 minutes.
5. Make sure the Wireless On/Off switch is ON. Then plug the provided power adapter into the
Power jack and the other end to a standard electrical wall socket. Press the On/Off button to
power on the Router. (Before you power on the Router, please make sure your computer is
NOT connected to any other wireless network.)
- 7 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Figure 2-1 Hardware Installation
Note:
If you want to use the router to share files or printer, plug the USB storage device to the USB port
or connect the printer to the router with a matching cable.
Figure 2-2 USB Installation
- 8 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Chapter 3. Quick Setup
1. Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If
you need instructions as to how to do this, please refer to Appendix B: Configuring the PC
2. Open a web-browser (such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari),
and type in the default IP address http://tplinkwifi.net
in the address field.
.
Figure 3-1 Log in the router
After a moment, a login window will appear. Enter admin for the User Name and Password,
both in lower case letters. Then click the Login button or press the Enter key.
Figure 3-2 Login Windows
Note:
If the above screen does not pop up, it means that your Web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
3. After successful login, the Quick Setup page will appear for you to select your Region and
Time zone. After finishing the selection, click Next.
Figure 3-3 Quick Setup
- 9 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
4. Then WAN Connection Type page will appear as shown below. Select your connection type
if you know what it is or click Auto Detect button; then follow the instructions to continue.
Note:
1) It's likely that you will skip Step 3 and jump to Step 4 in some situations, which is normal.
2) Make sure the cable is securely plugged into the Internet port before using Auto-Detect.
3) Auto-Detect supports only three popular connection types, PPPoE, Dynamic IP, and
Static IP. If your connection type is L2TP or PPTP, you need to manually select the very
type and click Next to go on configuring.
Figure 3-4 WAN Connection Type
Dynamic IP
Choose to clone MAC address or not and then click Next to continue.
Figure 3-5 WAN Connection Type
- 10 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Static IP
Figure 3-6 WAN Connection Type
IP Address - Enter the IP address into this field.
Subnet Mask - Enter the subnet mask into this field. It is usually 255.255.255.0.
Default Gateway - Enter the gateway IP address into this field.
Primary DNS - Enter the DNS Server IP address into this field.
Secondary DNS (Optional) - If your ISP provides another DNS server IP address, enter it
into this field.
PPPoE/Russian PPPoE
Figure 3-7 WAN Connection Type
Username - Enter the username provided by your ISP. This field is case-sensitive.
Password - Enter the password provided by your ISP. This field is case-sensitive.
- 11 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
L2TP
Figure 3-8 WAN Connection Type
VPN Server IP/ Domain Name - Enter the server IP address/name provided by your ISP.
Username - Enter the username provided by your ISP. This field is case-sensitive.
Password - Enter the Password provided by your ISP. This field is case-sensitive.
Dynamic IP/Static IP - Select Static IP if the IP Address, Subnet Mask, Default Gateway,
and Primary DNS server address have been provided by your ISP. Otherwise, please select
Dynamic IP.
IP Address - Enter the IP address provided by your ISP.
Subnet Mask - Enter the subnet mask provided by your ISP.
Default Gateway- Enter the default gateway provided by your ISP.
Primary DNS - Enter the primary DNS provided by your ISP.
- 12 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
PPTP
Figure 3-9 WAN Connection Type
VPN Server IP/Domain Name - Enter the server IP address/name provided by your ISP.
Username - Enter the username provided by your ISP. This field is case-sensitive.
Password - Enter the Password provided by your ISP. This field is case-sensitive.
Dynamic IP/Static IP - Select Static IP if the IP Address, Subnet Mask, Default Gateway,
and Primary DNS server address have been provided by your ISP. Otherwise, please select
Dynamic IP.
IP Address - Enter the IP address provided by your ISP.
Subnet Mask - Enter the subnet mask provided by your ISP.
Default Gateway- Enter the default gateway provided by your ISP.
Primary DNS - Enter the primary DNS provided by your ISP.
5. After finishing WAN Connection Type selection, you need to configure the basic parameters
for your wireless network, including 2.4GHz and 5GHz, and then click Next.
Figure 3-10 WAN Connection Type
- 13 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Wireless 2.4GHz/5GHz - Displays whether the wireless function is enabled or not.
Network Name (SSID) - Also called the SSID (Service Set Identification). Enter a value of up
to 32 characters. The same name must be assigned to all wireless devices in your network.
This value is case-sensitive. For example, TEST is NOT the same as test.
Password - Create a password for your 2.4GHz and 5GHz wireless network.
- 14 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Chapter 4. Basic
4.1 Network Map
Network Map provides a router-centered dashboard that lets you see the status of your
Internet connection and network at a glance. You can click any of the six sections of the
dashboard to view the detail information. All the information is read-only.
Figure 4-1 Network Map
Internet - Click to view the ISP settings of your router.
Wireless Clients - Click to view the wireless devices connected to your network.
Wired Clients - Click to view the wired devices connected to your network.
Wireless - Click to view or change the wireless settings for your router.
Printer - Click to view the information of the printer connected to your network.
USB Disk - Click to view the information of the USB storage device connected to your
network.
4.2 Internet
Choose menu “Basic→Internet”, and you can view or change the basic ISP information for your
router.
- 15 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Figure 4-2 Internet
1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will
automatically get IP parameters from your ISP. You can see the page as shown below.
Figure 4-3 Dynamic IP
IP Address - Assigned dynamically by your ISP.
Subnet Mask - Assigned dynamically by your ISP.
Default Gateway - Assigned dynamically by your ISP.
Click the Renew button to renew the IP parameters from your ISP. Click the Release button to
release the IP parameters.
- 16 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Primary/Secondary DNS - If your ISP gives you one or two DNS addresses, select Use
These DNS Servers and enter the primary and secondary addresses into the correct fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
Note:
If you find error when you go to a website after entering the DNS addresses, it is likely that
your DNS servers are set up improperly. You should contact your ISP to get DNS server
addresses.
Click the Save button to save your settings.
2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting,
select Static IP. The Static IP settings page will appear as shown below.
Figure 4-4 Static IP
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your
ISP.
Primary/Secondary DNS - Enter one or two DNS addresses in dotted-decimal notation
provided by your ISP.
Click the Save button to save your settings.
3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. And you
should enter the following parameters in the screen below.
- 17 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
Figure 4-5 PPPoE
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive. Click the Connect button to connect immediately. Click the
Disconnect button to disconnect immediately.
Click the Save button to save your settings.
4. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. And you
should enter the following parameters in the screen below.
Figure 4-6 L2TP/Russia L2TP
VPN Server IP/Domain Name - Enter the IP address or domain name of your VPN server.
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
Dynamic IP/Static IP - Choose either as you are given by your ISP. Click the Connect button
to connect immediately. Click the Disconnect button to disconnect immediately.
Click the Save button to save your settings.
- 18 -
Archer C9
AC1900 Wireless Dual Band Gigabit Router
5. If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you
should enter the following parameters (Figure 5-8).
Figure 4-7 PPTP/Russia PPTP
VPN Server IP/Domain Name - Enter the IP address or domain name of your VPN server.
User Name/Password - Enter the User Name and Password provided by your ISP. These
fields are case-sensitive.
Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the ISP’s IP
address or the domain name. If you choose static IP and enter the domain name, you should
also enter the DNS assigned by your ISP. And click the Save button. Click the Connect
button to connect immediately. Click the Disconnect button to disconnect immediately.
Click the Save button to save your settings.
Note:
If you don't know how to choose the appropriate connection type, click the Detect button to allow
the router to automatically search your Internet connection for servers and protocols. The
connection type will be reported when an active Internet service is successfully detected by the
router. This report is for your reference only. To make sure the connection type your ISP provides,
please refer to the ISP. The various types of Internet connections that the router can detect are as
follows:
PPPoE - Connections which use PPPoE that requires a user name and password.
Dynamic IP - Connections which use dynamic IP address assignment.
Static IP - Connections which use static IP address assignment.
The router cannot detect PPTP and L2TP connections with your ISP. If your ISP uses one of
these protocols, then you must configure your connection manually.
- 19 -
