Tp-link TL-WR841N 10, 100BASE-TX User Manual [ru]

TL-WR841N
TL-WR841ND
300Mbps Wireless N Router
REV: 5.0.0 1910010905
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered
trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are
trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
I
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1)This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1)cet appareil ne doit pas provoquer d’interférences et
(2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
This device has been designed to operate with the antennas listed below, and having a maximum
gain of 3 dBi. Antennas not included in this list or having a gain greater than 3 dBi are strictly
prohibited for use with this device. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for
successful communication.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
II
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意!
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻 率、加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行;經發現有干擾現象時,應立
即停用,並改善至無干擾時方得繼續使用。前項合法通信,指依電信規定作業之無線電信。低功率
射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
安全諮詢及注意事項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
●注意防潮,請勿將水或其他液體潑灑到本產品上。
●插槽與開口供通風使用,以確保本產品的操作可靠並防止過熱,請勿堵塞或覆蓋開口。
●請勿將本產品置放於靠近熱源的地方。除非有正常的通風,否則不可放在密閉位置中。
●請不要私自打開機殼,不要嘗試自行維修本產品,請由授權的專業人士進行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
III
Safety Information
z When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
z Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock
and voiding the limited warranty. If you need service, please contact us.
z Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA
IV
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 300Mbps Wireless N Router
Model No.: TL-WR841N/TL-WR841ND
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,
Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.9.2:2011& ETSI EN 301 489-17 V2.2.1:2012
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 60950-1:2006+A112009+A1:2010+A12:2011
EN 62311:2008
The product carries the CE Mark:
Person responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2013
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,
Shennan Rd, Nanshan, Shenzhen, China
CONTENTS
Package Contents ....................................................................................................................................1
Chapter 1. Introduction..........................................................................................................................2
1.1 Overview of the Router .........................................................................................................2
1.2 Conventions ..........................................................................................................................3
1.3 Main Features ....................................................................................................................... 3
1.4 Panel Layout ......................................................................................................................... 4
1.4.1 The Front Panel........................................................................................................4
1.4.2 The Rear Panel.........................................................................................................5
Chapter 2. Connecting the Router........................................................................................................ 7
2.1 System Requirements........................................................................................................... 7
2.2 Installation Environment Requirements ................................................................................7
2.3 Connecting the Router .......................................................................................................... 7
Chapter 3. Quick Installation Guide .....................................................................................................9
3.1 TCP/IP Configuration ............................................................................................................9
3.2 Quick Installation Guide ...................................................................................................... 11
Chapter 4. Configuring the Router ..................................................................................................... 19
4.1 Login....................................................................................................................................19
4.2 Status ..................................................................................................................................19
4.3 Quick Setup.........................................................................................................................20
4.4 WPS .................................................................................................................................... 20
4.5 Network ...............................................................................................................................23
4.5.1 WAN........................................................................................................................23
4.5.2 MAC Clone .............................................................................................................32
4.5.3 LAN.........................................................................................................................33
4.6 Wireless...............................................................................................................................34
4.6.1 Wireless Settings....................................................................................................34
4.6.2 Wireless Security....................................................................................................37
4.6.3 Wireless MAC Filtering ........................................................................................... 41
4.6.4 Wireless Advanced ................................................................................................. 43
4.6.5 Wireless Statistics...................................................................................................44
I
4.7 DHCP ..................................................................................................................................45
4.7.1 DHCP Settings........................................................................................................45
4.7.2 DHCP Clients List...................................................................................................47
4.7.3 Address Reservation ..............................................................................................47
4.8 Forwarding ..........................................................................................................................48

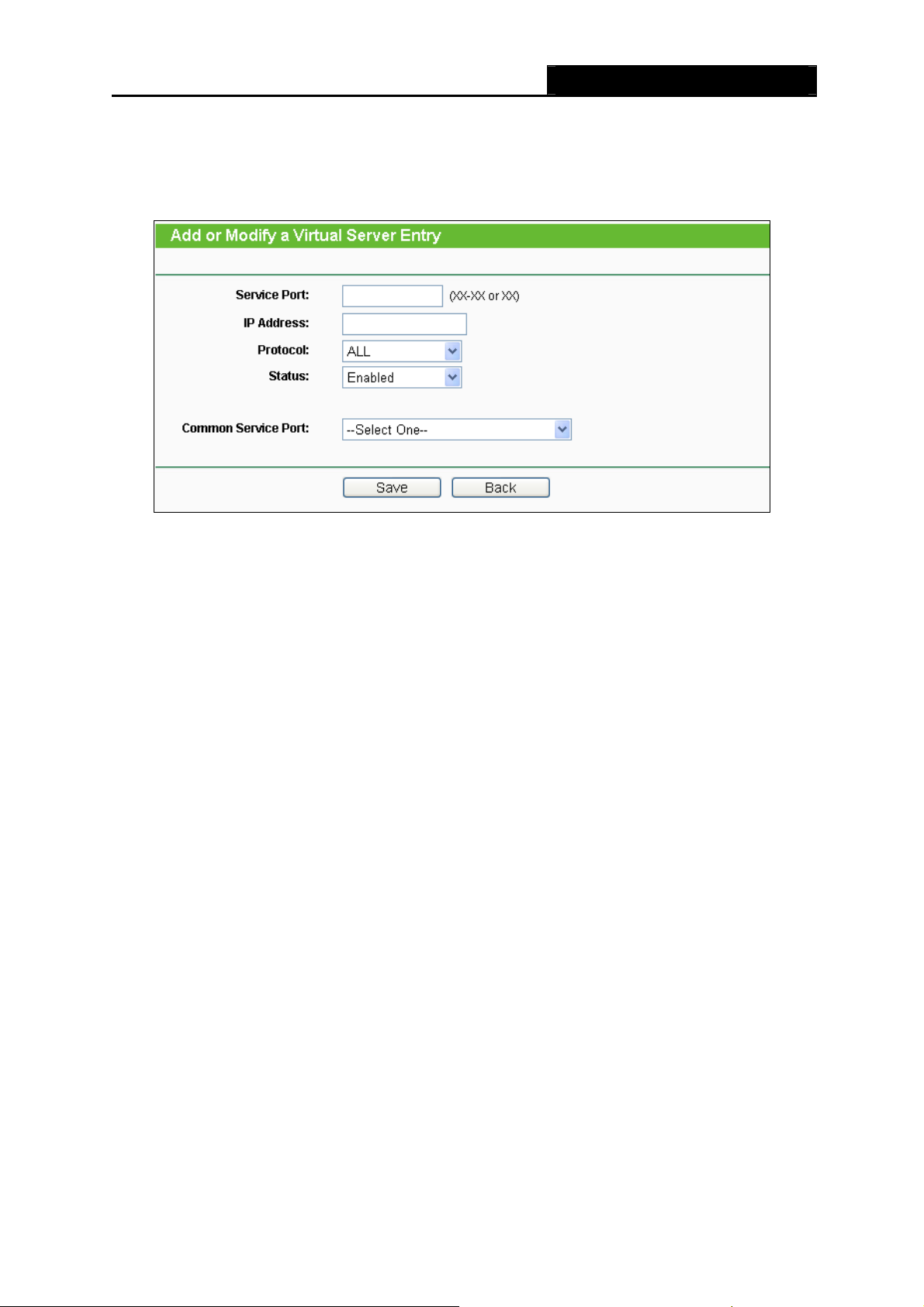

4.8.1 Virtual Servers ........................................................................................................49
4.8.2 Port Triggering ........................................................................................................ 50
4.8.3 DMZ ........................................................................................................................ 53
4.8.4 UPnP.......................................................................................................................53
4.9 Security ...............................................................................................................................54
4.9.1 Basic Security ......................................................................................................... 55
4.9.2 Advanced Security.................................................................................................. 56
4.9.3 Local Management ................................................................................................. 58
4.9.4 Remote Management ............................................................................................. 59
4.10 Parental Control ..................................................................................................................60
4.11 Access Control .................................................................................................................... 62
4.11.1 Rule.........................................................................................................................63
4.11.2 Host.........................................................................................................................65
4.11.3 Target ...................................................................................................................... 67
4.11.4 Schedule.................................................................................................................69
4.12 Advanced Routing...............................................................................................................70

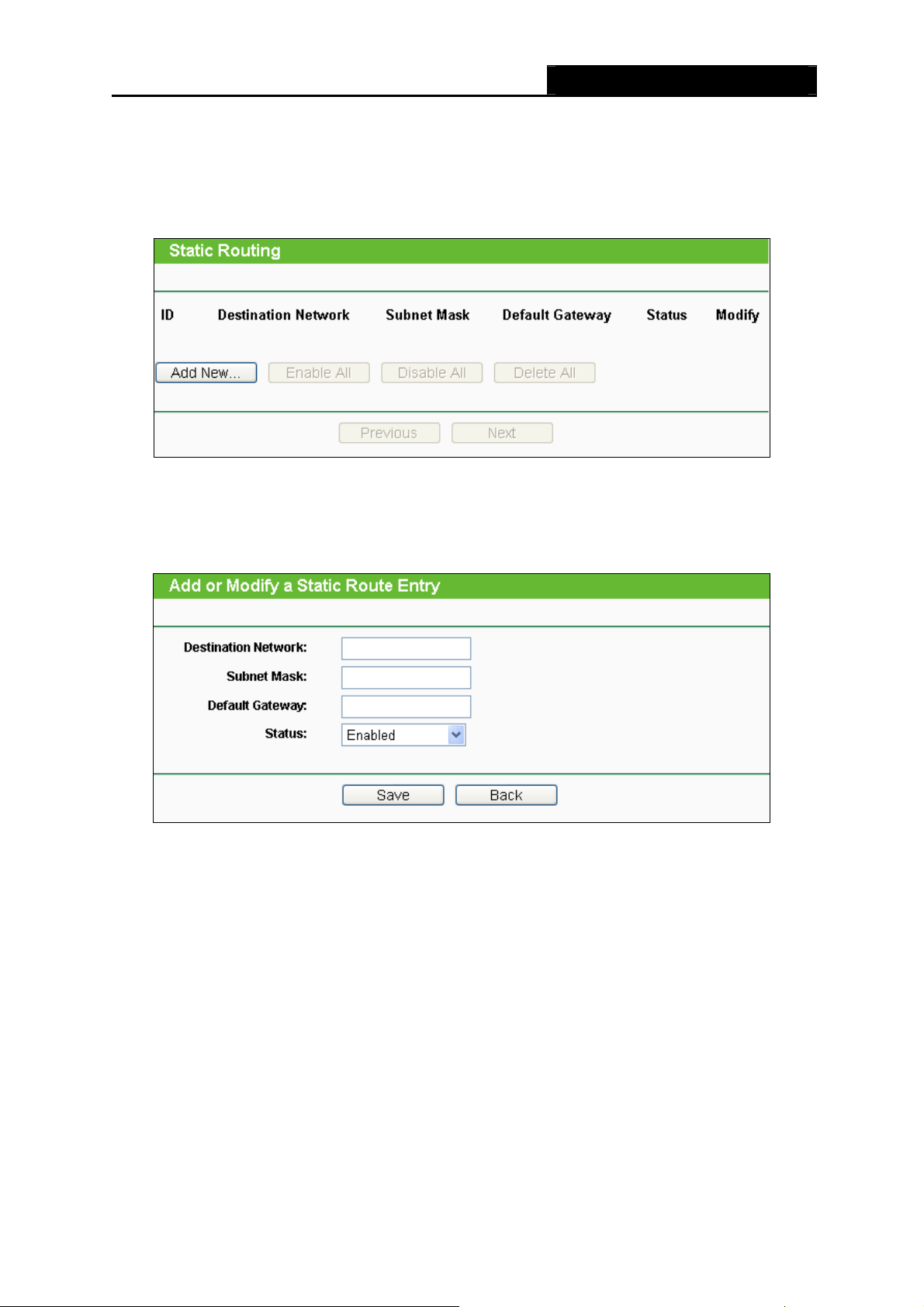

4.12.1 Static Routing List...................................................................................................71
4.12.2 System Routing Table............................................................................................. 72
4.13 Bandwidth Control...............................................................................................................73
4.13.1 Control Settings ......................................................................................................73
4.13.2 Rule List .................................................................................................................. 73
4.14 IP & MAC Binding ...............................................................................................................74
4.14.1 Binding Settings......................................................................................................75
4.14.2 ARP List .................................................................................................................. 76
4.15 Dynamic DNS...................................................................................................................... 77
4.15.1 Comexe.cn DDNS ..................................................................................................77
II
4.15.2 Dyndns.org DDNS ..................................................................................................78
4.15.3 No-ip.com DDNS ....................................................................................................79
4.16 System Tools .......................................................................................................................80
4.16.1 Time Settings..........................................................................................................81
4.16.2 Diagnostic ...............................................................................................................82
4.16.3 Firmware Upgrade .................................................................................................. 84
4.16.4 Factory Defaults...................................................................................................... 85
4.16.5 Backup & Restore...................................................................................................85
4.16.6 Reboot ....................................................................................................................86
4.16.7 Password ................................................................................................................ 87
4.16.8 System Log.............................................................................................................87

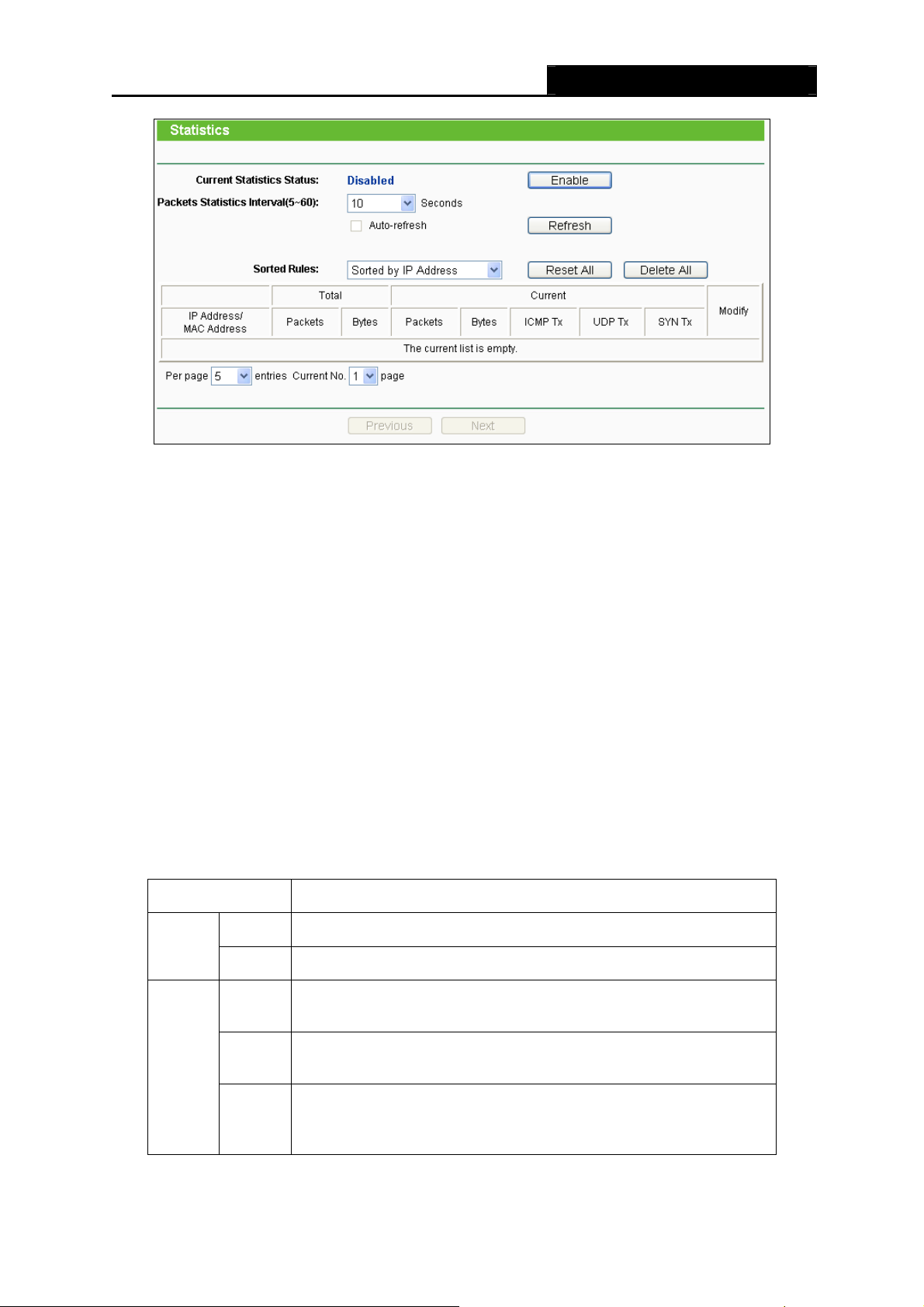

4.16.9 Statistics.................................................................................................................. 89
Appendix A: FAQ....................................................................................................................................92
Appendix B: Configuring the PC ..........................................................................................................97
Appendix C: Specifications.................................................................................................................101
Appendix D: Glossary..........................................................................................................................102
III
TL-WR841N/TL-WR841ND
300Mbps Wireless N Router
Package Contents
The following items should be found in your package:
¾ TL-WR841N/TL-WR841ND 300Mbps Wireless N Router
¾ DC Power Adapter for TL-WR841N/TL-WR841ND 300Mbps Wireless N Router
¾ Quick Installation Guide
¾ Ethernet Cable
¾ Resource CD for TL-WR841N/TL-WR841ND 300Mbps Wireless N Router, including:
This Guide
Other Helpful Information
Note:
)
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.
-1-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Chapter 1. Introduction
Thank you for choosing the TL-WR841N/TL-WR841ND 300Mbps Wireless N Router.
1.1 Overview of the Router
The TL-WR841N/TL-WR841ND 300Mbps Wireless N Router integrates 4-port Switch, Firewall,
NAT-Router and Wireless AP. The 300Mbps Wireless N Router delivers exceptional range and
speed, which can fully meet the need of Small Office/Home Office (SOHO) networks and the users
demanding higher networking performance.
The TL-WR841N/TL-WR841ND 300Mbps Wireless N Router provides up to 300Mbps wireless
connection with other 802.11n wireless clients. The incredible speed makes it ideal for handling
multiple data streams at the same time, which ensures your network stable and smooth. The
performance of this 802.11n wireless router will give you the unexpected networking experience at
speed 650% faster than 802.11g. It is also compatible with all IEEE 802.11g and IEEE 802.11b
products.
Multiple Security Protections
With multiple protection measures, including SSID broadcast control and wireless LAN
64/128/152-bit WEP encryption, Wi-Fi protected Access (WPA2-PSK, WPA-PSK), as well as
advanced Firewall protections, the TL-WR841N/TL-WR841ND 300Mbps Wireless N Router
provides complete data privacy.
The TL-WR841N/TL-WR841ND 300Mbps Wireless N Router provides flexible access control, so
Incredible Speed
Flexible Access Control
that parents or network administrators can establish restricted access policies for children or staff. It
also supports Virtual Server and DMZ host for Port Triggering, and then the network administrators
can manage and monitor the network in real time with the remote management function.
Simple Installation
Since the router is compatible with virtually all the major operating systems, it is very easy to
manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in
this user guide. Before installing the router, please look through this guide to know all the router’s
functions.
-2-
TL-WR841N/TL-WR841ND
300Mbps Wireless N Router
1.2 Conventions
The router or TL-WR841N/TL-WR841ND mentioned in this guide stands for TL-WR841N/TL-WR841ND
300Mbps Wireless N Router without any explanation.
Note:
)
The two devices of TL-WR841N and TL-WR841ND are sharing this User Guide. For simplicity, we
will take TL-WR841ND for example throughout this Guide.
The differences between them are:
¾ TL-WR841N router with 2 fixed antennas.
¾ TL-WR841ND router with 2 detachable antennas.
1.3 Main Features
¾ Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.
¾ One 10/100M Auto-Negotiation RJ45 WAN port, four 10/100M Auto-Negotiation RJ45 LAN
ports, supporting Auto MDI/MDIX.
¾ Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.
¾ Shares data and Internet access for users, supporting Dynamic IP/Static IP/PPPoE Internet
access.
¾ Supports Virtual Server, Special Application and DMZ host.
¾ Supports UPnP, Dynamic DNS, Static Routing.
¾ Provides Automatic-connection and Scheduled Connection on certain time to the Internet
¾ Built-in NAT and DHCP server supporting static IP address distributing.
¾ Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address
filtering.
¾ Connects Internet on demand and disconnects from the Internet when idle for PPPoE.
¾ Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control
List).
¾ Supports Flow Statistics.
¾ Supports firmware upgrade and Web management.
-3-
1.4 Panel Layout
1.4.1 The Front Panel
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Figure 1-1 Front Panel sketch
The router’s LEDs and the Wireless On/Off button are located on the front panel (View from left to
right).
Name Status Indication
Power
(WLAN)
(LAN 4-1),
(WAN)
(WPS)
Off Power is off.
On Power is on.
Off The Wireless function is disabled.
Flashing The Wireless function is enabled.
Off There is no device linked to the corresponding port.
On
Flashing There is an active device linked to the corresponding port.
Slow Flash
On
Quick Flash
There is a device linked to the corresponding port but there is no activity.
A wireless device is connecting to the network by WPS function. This process will last in the first 2 minutes.
A wireless device has been successfully added to the network by WPS function.
A wireless device failed to be added to the network by WPS function.
Table 1-1 The LEDs description
Note:
)
After a device is successfully added to the network by WPS function, the WPS LED will keep on for about 5 minutes and then turn off.
-4-
1.4.2 The Rear Panel
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Figure 1-2 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
¾ ON/OFF: The switch for the power.
¾ POWER: The Power socket is where you will connect the power adapter. Please use the
power adapter provided with this TL-WR841ND 300Mbps Wireless N Router.
¾ WAN: This WAN port is where you will connect the DSL/cable Modem, or Ethernet.
¾ 1,2,3,4 (LAN): These ports (1,2,3,4) connect the Router to the local PC(s).
¾ WPS/RESET: This button is used for both WPS and Reset function. To use the WPS
function, press it for less than five seconds; to use the RESET function, press it for more
than five seconds.
z Used as RESET button:
There are two ways to reset to the Router's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the
Router's Web-based Utility.
-5-
TL-WR841N/TL-WR841ND
300Mbps Wireless N Router
2) Use the WPS/RESET button: With the Router powered on, press and hold the
WPS/RESET button (more than 5 seconds) until the SYS LED becomes quick-flash from
slow-flash. Then release the button and wait the Router to reboot to its factory default
settings.
z Used as WPS button:
If you have client devices, such as wireless adapters, that support Wi-Fi Protected Setup,
then you can press this button to quickly establish a connection between the Router and
client devices and automatically configure wireless security for your wireless network.
¾ WIFI ON/OFF: This switch is used to enable/disable the Router’s wireless function.
¾ Wireless antenna: To receive and transmit the wireless data.
-6-
TL-WR841N/TL-WR841ND
300Mbps Wireless N Router
Chapter 2. Connecting the Router
2.1 System Requirements
¾ Broadband Internet Access Service (DSL/Cable/Ethernet)
¾ One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the router is
connected directly to the Ethernet.)
¾ PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors
¾ TCP/IP protocol on each PC
¾ Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari
2.2 Installation Environment Requirements
¾ Place the router in a well ventilated place far from any heater or heating vent
¾ Avoid direct irradiation of any strong light (such as sunlight)
¾ Keep at least 2 inches (5 cm) of clear space around the router
¾ Operating Temperature: 0 ~40 (32 ~104 )℃℃℉ ℉
¾ Operating Humidity: 10%~90%RH, Non-condensing
2.3 Connecting the Router
Before installing the router, make sure your PC is connected to the Internet through the
broadband service successfully. If there is any problem, please contact your ISP. After that, please
install the router according to the following steps. Don't forget to pull out the power plug and keep
your hands dry.
1. Power off your PC, Cable/DSL Modem, and the router.
2. Locate an optimum location for the router. The best place is usually at the center of your
wireless network. The place must accord with the Installation Environment Requirements
.
3. Adjust the direction of the antenna. Normally, upright is a good direction.
4. Connect the PC(s) and each Switch/Hub in your LAN to the LAN Ports on the router, shown in
Figure 2-1. (If you have the wireless NIC and want to use the wireless function, you can skip
this step.)
5. Connect the DSL/Cable Modem to the WAN port on the router, shown in
Figure 2-1.
6. Connect the power adapter to the power socket on the router, and the other end into an
electrical outlet. The router will start to work automatically.
-7-
7. Power on your PC and cable/DSL modem.
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Figure 2-1 Hardware Installation of the
TL-WR841ND 300Mbps Wireless N Router
-8-
TL-WR841N/TL-WR841ND
300Mbps Wireless N Router
Chapter 3. Quick Installation Guide
This chapter will show you how to configure the basic functions of your TL-WR841ND 300Mbps
Wireless N Router using Quick Setup Wizard within minutes.
3.1 TCP/IP Configuration
The default domain name of the TL-WR841ND 300Mbps Wireless N Router is
http://tplinklogin.net
255.255.255.0. These values can be changed as you desire. In this guide, we use all the default
values for description.
Connect the local PC to the LAN ports of the router. And then you can configure the IP address for
your PC in the following two ways.
¾ Configure the IP address manually
, the default IP address is 192.168.0.1, and the default Subnet Mask is
1) Set up the TCP/IP Protocol for your PC. If you need instructions as to how to do this,
please refer to Appendix B: "Configuring the PC."
2) Configure the network parameters. The IP address is 192.168.0.xxx ("xxx" is any number
from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.0.1 (The router's
default IP address)
¾ Obtain an IP address automatically
1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC.
If you need instructions as to how to do this, please refer to Appendix B: "Configuring the
PC."
2) Then the built-in DHCP server will assign IP address for the PC.
Now, you can run the Ping command in the command prompt to verify the network connection
between your PC and the router. The following example is in Windows XP.
Open a command prompt, and type ping 192.168.0.1, and then press Enter.
¾ If the result displayed is similar to the
Figure 3-1, it means the connection between your PC
and the router has been established well.
-9-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Figure 3-1 Success result of Ping command
¾ If the result displayed is similar to the Figure 3-2, it means the connection between your PC
and the router is failed.
Figure 3-2 Failure result of Ping command
Please check the connection following these steps:
1. Is the connection between your PC and the router correct?
Note:
)
The 1/2/3/4 LEDs of LAN ports which you link to on the router and LEDs on your PC's adapter should be lit.
-10-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
2. Is the TCP/IP configuration for your PC correct?
Note:
)
If the router's IP address is 192.168.0.1, your PC's IP address must be within the range of
192.168.0.2 ~ 192.168.0.254.
3. Is the default LAN IP of the router correct?
) Note:
If the LAN IP of the modem connected with your router is 192.168.0.x, the default LAN IP of the router will automatically switch from 192.168.0.1 to 192.168.1.1 to avoid IP conflict. Therefore, in order to verify the network connection between your PC and the router, you can open a command prompt, and type ping 192.168.1.1, and then press Enter.
3.2 Quick Installation Guide
With a Web-based utility, it is easy to configure and manage the TL-WR841ND 300Mbps Wireless
N Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web
browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
1. To access the configuration utility, open a web-browser and type in the default address
http://tplinklogin.net
in the address field of the browser.
Figure 3-3 Login the Router
After a moment, a login window will appear, similar to the Figure 3-4. Enter admin for the User
Name and Password, both in lower case letters. Then click the OK button or press the Enter key.
Figure 3-4 Login Windows
-11-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Note:
)
If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go to Tools>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
2. After successfully login, you can click the Quick Setup to quickly configure your router.
Figure 3-5 Quick Setup
Note:
)
The Router will automatically detect the Internet connection. If the Internet is available, the Router will direct you to step 5 Wireless settings; otherwise, you need to continue with step 3 to choose WAN Connection Type.
3. Click Next, and then WAN Connection Type page will appear, shown in Figure 3-6.
Figure 3-6 Choose WAN Connection Type
The router provides Auto-Detect function and supports five popular ways Dynamic IP,
Static IP, PPPoE/Russian PPPoE, L2TP/Russian L2TP and PPTP/Russian PPTP to
connect to the Internet. It’s recommended that you make use of the Auto-Detect function. If
-12-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
you select Auto-Detect, the router will automatically detect the connection type your ISP
provides. If you are sure of what kind of connection type your ISP provides, you can select
the very type and click Next to go on configuring.
Note:
)
1) L2TP and PPTP cannot be detected by the router. You must select it manually.
2) Before continuing, please make sure the cable of the WAN port is well connected to your device. If the WAN port is not connected, the cable is unplugged page will appear.
4. If you select Auto-Detect, the router will automatically detect the connection type your ISP
provides. Make sure the cable is securely plugged into the Internet port before detection. The
appropriate configuration page will be displayed when an active Internet service is
successfully detected by the router.
1 If the connection type is Dynamic IP, there will appear the MAC Clone page (as shown
in Figure 3-7). In most cases, there is no need to clone the MAC address. You can select “No, I do NOT need to clone MAC address” and then click Next. If it is necessary in your case, please select “Yes, I need to clone MAC address” and then click Next.
Figure 3-7 MAC Clone
2 If the connection type is Static IP, the next screen will appear as shown in Figure 3-8.
-13-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Figure 3-8 Quick Setup - Static IP
¾ IP Address - This is the WAN IP address as seen by external users on the Internet
(including your ISP). Enter the IP address into the field.
¾ Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually
255.255.255.0.
¾ Default Gateway - Enter the gateway IP address into the box if required.
¾ Primary
DNS - Enter the DNS Server IP address into the box if required.
¾ Secondary DNS - If your ISP provides another DNS server, enter it into this field.
3 If the connection type is PPPoE/Russian PPPoE, the next screen will appear as shown
in Figure 3-9. Configure the following parameters and then click Next to continue.
Figure 3-9 Quick Setup – PPPoE
¾ User Name and Password - Enter the User Name and Password provided by your ISP.
These fields are case sensitive. If you have difficulty with this process, please contact
your ISP.
-14-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
¾ Confirm Password - Re-enter the password provided by your ISP to ensure the
Password you entered is correct. If the Password is different from the Confirm Password,
the screen will appear as shown below. Click OK, and re-enter the Password and
Confirm Password.
Check the radio button of Dynamic/Static IP to activate the secondary connection if your ISP
provides an extra Connection type such as Dynamic/Static IP to connect to a local area
network.
4 If the connection type is L2TP/Russian L2TP, the next screen will appear as shown in
Figure 3-10. Configure the following parameters and then click Next to continue.
Figure 3-10 Quick Setup – L2TP
¾ User Name and Password - Enter the User Name and Password provided by your ISP.
These fields are case sensitive. If you have difficulty with this process, please contact
your ISP.
¾ Confirm Password - Re-enter the password provided by your ISP to ensure the
Password you entered is correct. If the Password is different from the Confirm Password,
the screen will appear as shown below. Click OK, and re-enter the Password and
Confirm Password.
Select Dynamic IP if none of the above parameters are provided. Then you just need to enter
server IP address or domain name provided by your ISP.
-15-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Select Static IP if IP Address/ Subnet Mask/ Gateway and DNS server address have been
provided by your ISP. Then please enter server IP address or domain name provided by your
ISP, and also enter the corresponding parameters.
5 If the connection type is PPTP/Russian PPTP, the next screen will appear as shown in
Figure 3-11. Configure the following parameters and then click Next to continue.
Figure 3-11 Quick Setup – PPTP
¾ User Name and Password - Enter the User Name and Password provided by your ISP.
These fields are case sensitive. If you have difficulty with this process, please contact
your ISP.
¾ Confirm Password - Re-enter the password provided by your ISP to ensure the
Password you entered is correct. If the Password is different from the Confirm Password,
the screen will app
ear as shown below. Click OK, and re-enter the Password and
Confirm Password.
Select Dynamic IP if none of the above parameters are pro
vided. Then you just need to enter
server IP address or domain name provided by your ISP.
-16-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Select Static IP if IP Address/ Subnet Mask/ Gateway and DNS server address have been
provided by your ISP. Then please enter server IP address or domain name provided by your
ISP, and also enter the corresponding parameters.
5. Click Next to continue, the Wireless settings page will appear as shown in Figure 3-12.
Figure 3-12 Quick Setup – Wireless
¾ Wireless Radio - Enable or disable the wireless radio.
¾ Wireless Network Name - Enter a string of up to 32 characters. The same name of
SSID (Service Set Identification) must be assigned to all wireless devices in your
network. Considering your wireless network security, the default SSID is set to be
TP-LINK_XXXXXX (XXXXXX indicates the last unique six numbers of each router’s
MAC address). This value is case-sensitive. For example, TEST is NOT the same as
test.
¾ Region - Select your region from the pull-down list. This field specifies the region where
the wireless function of the router can be used. It may be illegal to use the wireless
function of the router in a region other than one of those specified in this field. If your
-17-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
country or region is not listed, please contact your local government agency for
assistance.
Note:
)
Limited by local law regulations, version for North America does not have region selection option.
¾ Mode - This field determines the wireless mode which the router works on.
¾ Channel Width - Select any channel width from the pull-down list. The default setting is
automatic, which can adjust the channel width for your clients automatically.
¾ Channel - This field determines which operating frequency will be used. The default
channel is set to Auto, so the AP will choose the best channel automatically. It is not
necessary to change the wireless channel unless you notice interference problems with
another nearby access point.
¾ Disable Security - The wireless security function can be enabled or disabled. If
disabled, the wireless stations will be able to connect the router without encryption. It is
recommended strongly that you choose one of following options to enable security.
¾ WPA/WPA2-Personal - Select WPA based on pre-shared passphrase.
z PSK Password - You can enter ASCII or Hexadecimal characters.
For ASCII, the key can be made up of any numbers 0 to 9 and any letters A to Z, the
length should be between 8 and 63 characters.
For Hexadecimal, the key can be made up of any numbers 0 to 9 and letters A to F,
the length should be between 8 and 64 characters.
Please also note the key is case sensitive, this means that upper and lower case
keys will affect the outcome. It would also be a good idea to write down the key and
all related wireless security settings.
¾ No Change - If you chose this option, wireless security configuration will not change!
These settings are only for basic wireless parameters. For advanced settings, please refer to
4.6 Wireless
6. Click the Finish button to complete the Quick Setup.
.
Figure 3-13 Quick Setup – Finish
-18-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Chapter 4. Configuring the Router
This chapter will show each Web page's key functions and the configuration way.
4.1 Login
After your successful login, you will see the fifteen main menus on the left of the Web-based utility.
On the right, there are the corresponding explanations and instructions.
The detailed explanations for each Web page’s key function are listed below.
4.2 Status
The Status page provides the current status information about the router. All information is
read-only.
-19-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Figure 4-1 Router Status
4.3 Quick Setup
Please refer to 3.2 Quick Installation Guide.
4.4 WPS
This section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function.
a). Choose menu “WPS”, and you will see the next screen (shown in Figure 4-2 ).
-20-
300Mbps Wireless N Router TL-WR841N/TL-WR841ND
Figure 4-2 WPS
¾ WPS Status - Enable or disable the WPS function here.
¾ Current PIN - The current value of the router's PIN is displayed here. The default PIN of the
router can be found in the label attached on the router.
¾ Restore PIN - Restore the PIN of the router to its default.
¾ Gen New PIN - Click this button, and then you can get a new random value for the router's
PIN. You can ensure the network security by generating a new PIN.
¾ Disable PIN of this device - You can disable the router’s PIN manually here. If the router
receives multiple failed attempts to authenticate an external registrar, this function will be
disabled automatically.
¾ Add Device - You can add a new device to the existing network manually by clicking this
button.
b). To add a new device:
If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless adapter and router using either Push Button Configuration (PBC)
method or PIN method.
Note:
)
To build a successful connection by WPS, you should also do the corresponding configuration of
the new device for WPS function meanwhile.
I. Use the Wi-Fi Protected Setup Button
Use this method if your client device has a Wi-Fi Protected Setup button.
Step 1: Press the WPS/RESET button on the back panel of the router for one second.
You can also keep the default WPS Status as Enabled and click the Add Device button
in Figure 4-2, then Choose “Press the button of the new device in two minutes” and
click Connect. (Shown in the following figure)
-21-
