USER MANUAL
MOBILE VHF
RF POWER AMPLIFIER
RC3-1FE
3370 SAN FERNANDO RD., #206
LOS ANGELES, CA 90065
TEL: (323)256-3000 FAX: (323)254-3210
www.tplcom.com
L-RC3-1FE-U/K6
TABLE OF CONTENTS
PRODUCT DESCRIPTION ......................................................................... 2
GENERAL SPECIFICATIONS..................................................................... 2
OPERATING PRECAUTIONS ..................................................................... 4

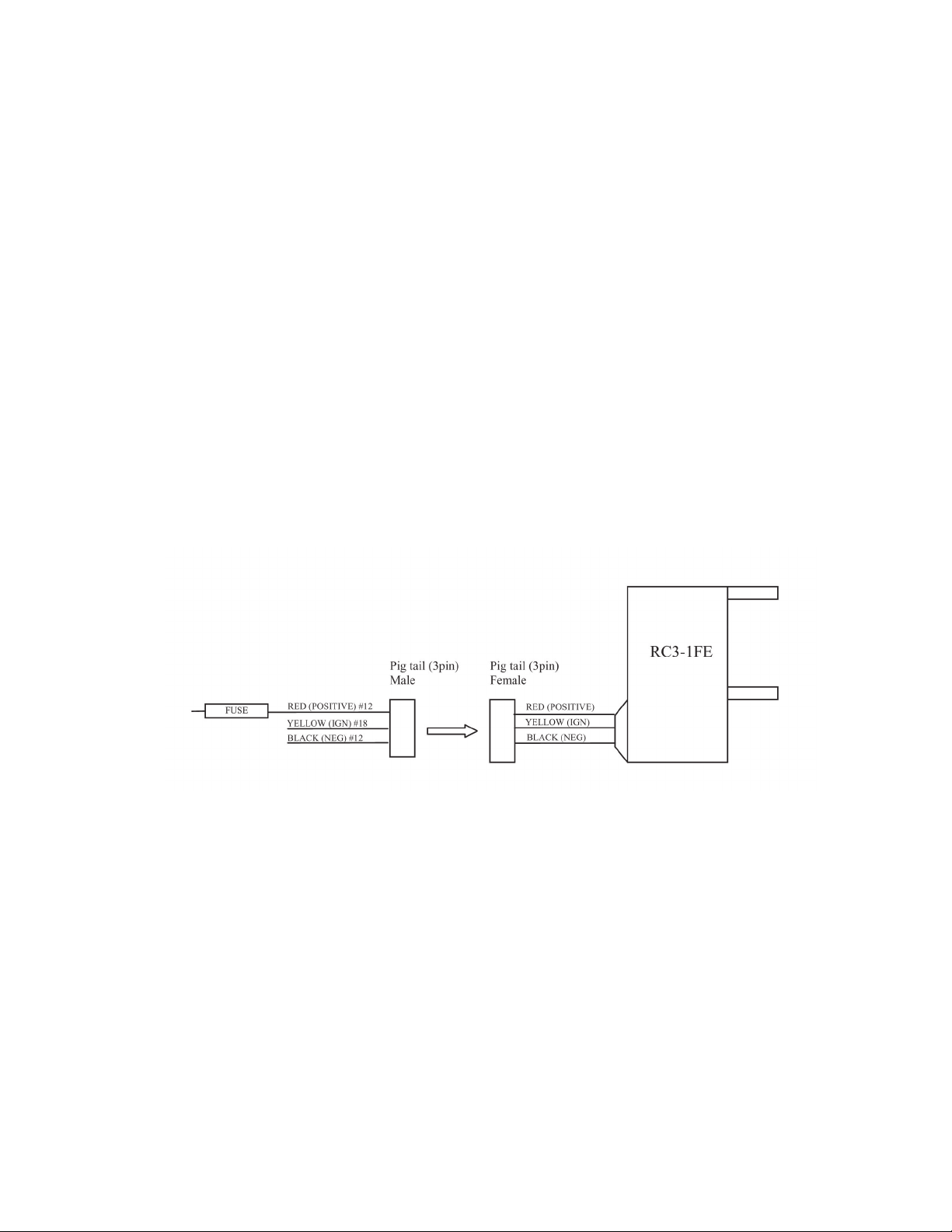

INSTALLATION ........................................................................................... 5
WARRANTY................................................................................................ 6
Page 1
PRODUCT DESCRIPTION
The RC3-1FE model is a VHF broad band amplifier intended for use in mobile applications. This
amplifier can deliver 100W when driven with 25W and it will cover the frequency range form 136-174
MHz. The amplifier’s dimensions are: 6.73"L x 1.94"H x 6.0" W, including tabs (see figure 1) and the
weight is 2 lbs.
Figure 1. Package dimension for RC3-1FE amplifier
GENERAL SPECIFICATIONS
The general specifications for the RC3-1FE amplifier are shown in this section.
T ABLE 1
LEDOM
TUPNI
REWOP
EF1-3CRW52W001A51CDV8.31A52
OPERA TION MODE: FM / CW
OPERA TING VOL T AGE: Nominal DC operating voltage is 13.8VDC and the specifications are
given at this voltage. However, the minimum DC operating voltage is 11 Volts and the maximum DC
operating voltage is 15 V olts as measured at the VDC input connector . Reduced DC input volt age will
result in lower output power and efficiency.
TUPTUO
REWOP
LANIMON
TNERRUC
LANIMON
EGATLOV
ESUF
EIA DUTY CYCLE: WITH NO EXTERNAL COOLING:
100 W Output (FM) 30% duty cycle
NOTE: Use of TPL Mobile Amplifiers above the recommended duty cycle or in repeater
applications is not recommended and voids the warranty.
