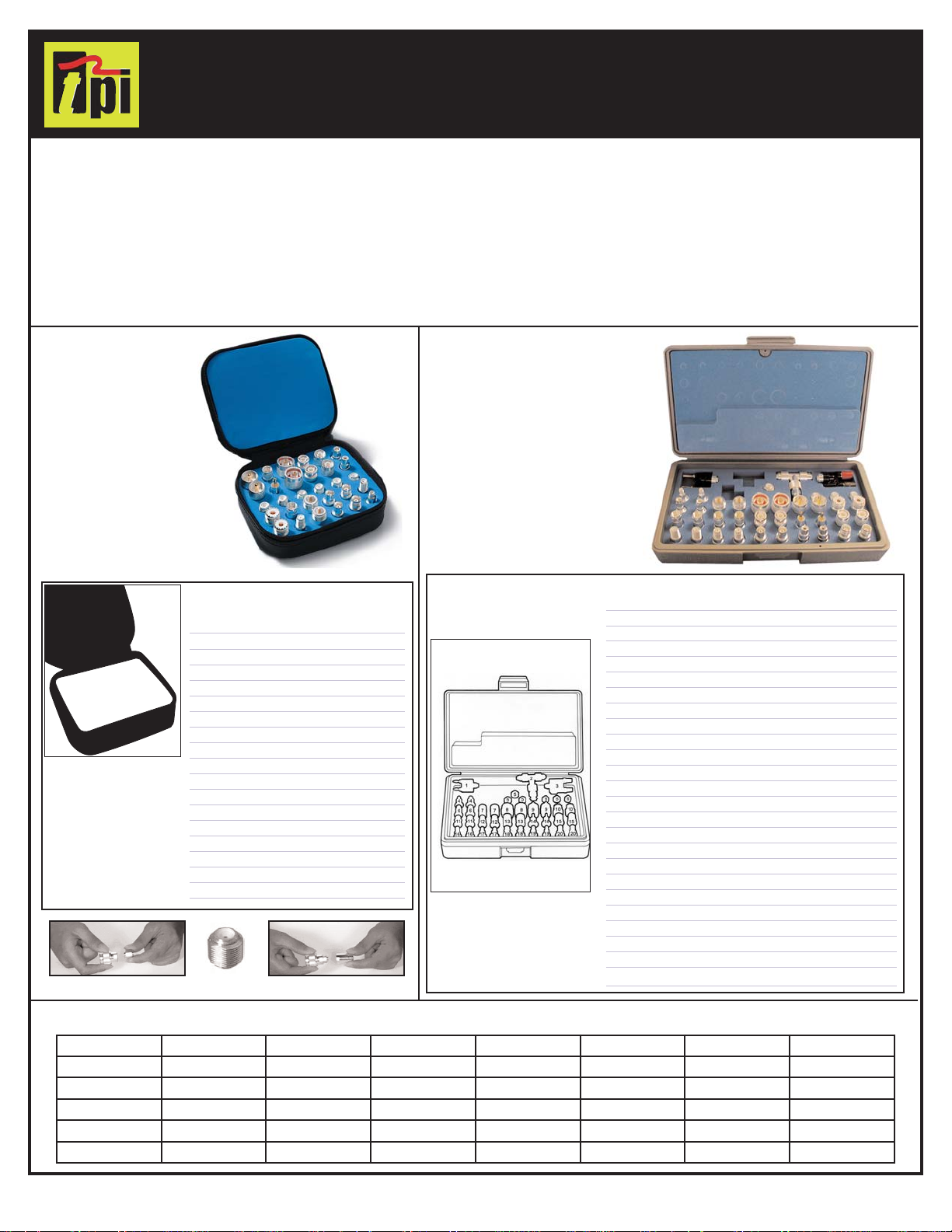

TPI TPI-3000A Data Sheet

KIT REPLACEMENTS

M = male F = female

1. TPI 3001 Universal Interface

2. TPI-3002 BNC M

3. TPI-3003 BNC F

4. TPI-3004 F M

5. TPI-3005 F F

6. TPI-3006 N M

7. TPI-3007 N F

8. TPI-3008 SMA M

9. TPI-3009 SMA F

10. TPI-3010 TNC M

11. TPI-3011 TNC F

12. TPI-3012 UHF M

13. TPI-3013 UHF F

14. TPI-3014 Mini. UHF M

15. TPI-3015 Mini UHF F

16. TPI-3020 RCA M

17. TPI-3021 RCA F

12 14 6 2 10 8

12 16 6 2 1017

111 11 1

13 4 7 3 11 5

13 15 7 3 11 9

TPI-3000A

Cage Code:

4MJL8

KIT REPLACEMENTS

M = male F = female

1. TPI 3024 Banana plug-Universal
Interface Adapter

2. TPI-3025 BNC-Universal
Interface “T” Fitting

3. TPI-3026 Terminal-Universal
Interface Adapter

4. TPI-3009 SMA Female

5. TPI-3001 Universal Interface

6. TPI-3008 SMA Male

7. TPI-3007 N Female

8. TPI-3006 N Male

9. TPI-3012 UHF Male

10. TPI-3013 UHF Female

11. TPI-3005 F Female

12. TPI-3014 Mini UHF Male

13. TPI-3002 BNC Male

14. TPI-3020 RCA Male

15. TPI-3010 TNC Male

16. TPI-3004 F Male

17. TPI-3015 Mini UHF Female

18. TPI-3003 BNC Female

19. TPI-3021 RCA Female

20. TPI-3011 TNC Female

Specifications BNC F N SMA TNC UHF Mini UHF

Impedance

50W 75W 50W 50W 50W

Non Constant

50W
Freq. Range DC - 3 GHz DC - 500 MHz DC - 3 GHz DC - 3 GHz DC - 3 GHz DC - 300 MHz DC - 2.5 GHz
Working Volts 500 Vrms 500 Vrms 1,000 Vrms 335 Vrms 500 Vrms 500 Vrms 335 Vrms
VSWR < 1.4:1 < 1.5:1 < 1.3:1 < 1.3:1 < 1.3:1 < 1.25:1
Insertion Loss < -.2 dB < -.5 dB < -.2 dB < -.2 dB < -.2 dB < -.2 dB

TPI-5000A

Cage Code:

4MJL8

Connector Specifications:

Universal Connector Kits

Never again be without the exact adapter you need for mating or repairing coax cables. Select from the kits that
will fit your needs and make you more efficient. No more special orders or leaving a job because of not having the
proper 'custom' fitting. Make that fitting yourself with the proper ends and the threaded “Universal Interface”
connector. Connectors screw together in seconds. No soldering or crimping to make that perfect adapter. It is
fast, easy and best of all exactly what you need.

These premium quality kits are delivered in convenient carrying cases that hold the fittings snugly. The machined
brass connectors are silver or zinc plated with gold plated connector tips and insulated with teflon seals. Use the
components you need then reorder as needed to keep the kit ready for your next custom connector project.

Adapter end + Universal Interface + Adapter end

+

+
