TPI 126 User Manual

126

Digital Multimeter

Instruction Manual

TABLE OF CONTENTS

A. INTRODUCTION

1. Congratulations . . . . . . . . . . . . . . . . . .3

2. Product Description . . . . . . . . . . . . . .3

3. EC Declaration of Conformity . . . . . . . .4

B. SAFETY CONSIDERATIONS . . . . . . . . . . . .5

C. TECHNICAL DATA

1. Features and Benefits . . . . . . . . . . . . .6

2. Product Applications . . . . . . . . . . . . . .7

3. Specifications . . . . . . . . . . . . . . . . . . .8

D. MEASUREMENT TECHNIQUES

1. Controls and Functions . . . . . . . . . .10

2. Step by Step Procedures:

a) Measuring DC Volts . . . . . . .13

b) Measuring AC Volts . . . . . . .15

c) Measuring DC Amps . . . . . .16

d) Measuring AC Amps . . . . . .17

e) Measuring Resistance . . . . .19

f) Measuring Diodes . . . . . . . .20

g) Continuity Buzzer . . . . . . . .21

h) Data Hold . . . . . . . . . . . . . .21

i) Record Mode . . . . . . . . . . .22

page

E. ACCESSORIES . . . . . . . . . . . . . . . . . . . . .23

F. MAINTENANCE . . . . . . . . . . . . . . . . . . . .24

G. TROUBLE SHOOTING GUIDE . . . . . . . . . .25

2 3

A. INTRODUCTION

1. Congratulations!!

Thank you for purchasing TPI brand products. The meter is
easy to use and is built to last. It is backed by a 3 year
limited warranty. Please remember to complete and return
your product warranty registration card.

2. Product Description

The 126 is a hand-held autoranging DMM. The 126
measures ACV, DCV, ACA, DCA, Resistance, Diodes and
Continuity.

The 126 also features:

• REC Records Min/Max readings during

specified measurement intervals.

• AC/DC Toggles between AC/DC volts and Amps.

• RANGE Allows the user to manually range the

126 instead of autoranging.

• Data Hold Holds the reading on the display for

easy viewing.

• Auto Off Preserves battery life.

The 126 comes complete with the following accessories:

126 Instrument
Rubber Boot
Test Lead Set
Instruction Manual
Battery

3. EC Declaration of Conformity

This is to certify that TPI model 126 conforms to the
protection requirements of the council directive
89/336/EEC, in the approximation of laws of the member
states relating to Electromagnetic compatibility and
73/23/EEC, The Low Voltage Directive by application of the
following standards:

EN 50081-1 1992 Emissions Standard
EN 50082-1 1992 Immunity Standard
EN61010-1 1993 Safety Standard
EN61010-2-031 1995 Safety Standard
EN61010-2-032 1995 Safety Standard

To ensure conformity with these standards, this instrument
must be operated in accordance with the instructions and
specifications given in this manual.

CAUTION:

Even though this instrument complies with the
immunity standards, the accuracy can be affect­ed by strong radio emissions not covered in the
above standards. Sources such as hand held
radio transceivers, radio and TV transmitters,
vehicle radios and cellular phones generate
electromagnetic radiation that could be induced
into the test leads of this instrument. Care
should be taken to avoid such situations or
alternatively, check to make sure that the
instrument is not being influenced by these
emissions.

4

B. SAFETY CONSIDERATIONS

WARNING: Please follow manufacturers test
procedures whenever possible. Do not attempt to
measure unknown voltages or components until a
complete understanding of the circuit is obtained.

GENERAL GUIDELINES

W

AYS

AL

• Test the 126 before using it to make sure it is

operating properly.

• Inspect the test leads before using to make sure

there are no breaks or shorts.

• Double check all connections before testing.

• Have someone check on you periodically if

working alone.

• Have complete understanding of circuit being

measured.

• Disconnect power to circuit then, connect test

leads to the 126, then to circuit being measured.

NEVER

• Attempt to measure unknown high voltages.

• Attempt to measure current with the meter in

parallel to the circuit.

• Connect the test leads to a live circuit before

setting up the instrument.

• Touch any exposed metal part of the test lead

assembly.

5

INTERNATIONAL SYMBOLS

DANGEROUS VOLTAGE

AC (ALTERNATING CURRENT)

DC (DIRECT CURRENT)

REFER TO INSTRUCTION MANUAL

GROUND

FUSE

DOUBLE INSULATION

ON/OFF, PUSH BUTTON SWITCH

C. TECHNICAL DATA

1. Features and Benefits

Agency Approval Meets CE and IEC 1010 requirements.

Record Records Min/Max values.

Range Allows you to either manual range or

use auto range to select the appropri­ate range.

Auto Off Preserves battery life. LCD shows oFF

when in this mode. Automatically
powers down after 30 minutes of
inactivity.

3 Year Covered by a standard 3 year warranty.
Warranty

2. Product Applications

Perform the following tests and/or measurements
with the TPI 126 and the appropriate function:

HVAC/R

FUNCTION
DCmV • Thermocouples in furnaces or gas

applications.

DCV • Thermocouples in furnaces of gas

applications. DC controlled circuits.

ACA • Heat anticipator current in thermostats.

ACV • Line voltage.

ACV or DCV • Control circuit voltage.

DCµA • Flame safeguard control current.

OHMS • Heating element resistance (continuity).

OHMS • Compressor winding resistance.

OHMS • Contactor and relay coil resistance.

OHMS • Continuity of wiring.

DCmV • Temperature with optional temperature

adapter (A301).

ELECTRICAL

FUNCTION
ACV • Measure line voltage.

OHMS • Continuity of circuit breakers.

DCV • Voltage of direct drive DC motors.

76

3. Specifications

IEC 1010 Over Voltage:

CAT II - 1000V
CAT III - 600V
Pollution Degree 2

UL 3111-1

a. DCV

Range Resolution Accuracy Impedance

400mV 0.1mV ±0.3% of reading, 10MΩ
4V 0.001V ±3 digits
40V 0.01V
400V 0.1V
1000V 1V

b. ACV (45 to 450 Hz)

Range Resolution Accuracy Impedance

4V 0.001V ±0.8% of reading, 10MΩ
40V 0.01V ±3 digits
400V 0.1V
750V 1V

c. DCA

Range Resolution Accuracy Overload Protection

400µA 0.1µA ±0.8% of reading, Fuse
4mA 0.001mA ±3 digits 0.5Amp/600V
40mA 0.01mA
400mA 0.1mA

*Warning: Use only correct size, voltage and current rated fuses.
Test Leads: Use only correct type and overvoltage category rating.

8

d. ACA

Range Resolution Accuracy Overload Protection

400µA 0.1µA ±0. 8% of reading, Fuse
4000µA 1µA ±3 digits 0.5Amp/600V
40mA 0.01mA
400mA 0.1mA

e. OHM (Resistance,Ω)

Range Resolution Accuracy Overload Protection

400Ω 0.1Ω ±0. 5% of reading, 600V DC or
4kΩ 0.001kΩ ±3 digits AC Peak
40kΩ 0.01kΩ
400kΩ 0.1kΩ
4MΩ 0.001MΩ ±1% of reading,
40MΩ 0.01MΩ ±3 digits

f. Diode Test

Test Voltage Max Test Current Over Load Protection

3V Approx. 30µA 600 V DC or Peak AC

g. Continuity Buzzer

Test Voltage Threshold Over Load Protection

3V < 50Ω 600 V DC or Peak AC

h. General Specifications

Max. Volt. between 1000V
any Input and Ground
Fuse Protection mA: 0.5Amp/600VAC
Display Type 4,000 Count, 2 times per second update
Operating Temp. 0° to 40°C (32° to 104°F)
Storage Temp. -10° to 50°C (14° to 122°F)
Relative Humidity 0% to 80%
Power Supply 2 Each 1.5 Volt “AA” Batteries
Battery Life 200 hrs. Typical
Size (H x L x W) 33mm x 86mm x 187mm (1.3in x 3.4in x 7.4in)
Weight 340g (12oz)

9

D. MEASUREMENT TECHNIQUES

1. Controls and Functions:

Push Buttons

AC/DC Toggles between AC and DC volts.

REC Activates the Min/Max mode. Hold in for 3

seconds to deactivate.

RNG Activates manual ranging. Hold in for 3 seconds

to return to autorange.

D-H Activates the Data Hold function.

Rotary Switch

DCmV Used to measure millivolts DC

AC/DCV Used to measure AC and DC volts.

OHM Used to measure ohms (resistance).

Used for testing diodes.

Function for using audible continuity buzzer.

µA Used to measure AC and DC microamps.

mA Used to measure AC and DC milliamps.

V Function for measuring DC Volts.

V Function for measuring AC Volts.

1. Controls and Functions: (cont.)

Input Jacks

µmA Red test lead connection for current

measurement on the µA and mA functions.

COM Black test lead connection for all functions.

Ω

V

Red test lead connection for all Volt, Ohm, Diode
and Continuity measurements.

1110

Application Notes

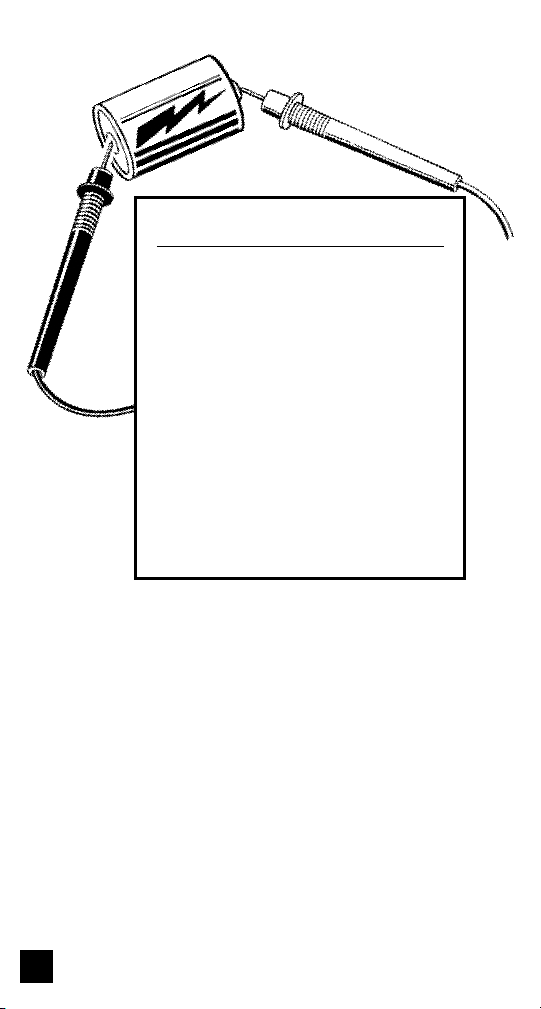

When measuring DC Voltage of a bat­tery, the most accurate reading can be
attained by testing the battery under
load. To accomplish this, follow steps 1
through 4 shown on page 10 and the
following:

• Connect the red test lead from the
meter to the positive (+) terminal of
the battery.

• Connect the black test lead to the
negative (-) terminal of the battery.

• Reconnect power to the circuit and
read the voltage on the 126.

12

2. Step by Step Procedures:

a. MEASURING DC VOLTS

CAUTION!
Do not attempt to make a voltage measurement
if a test lead is plugged in the A or µmA input
jack. Instrument damage and/or personal
injury may result.

ARNING!

W
Do not attempt to make a voltage measurement
of more than 1000V or of a voltage level that is
unknown.

Instrument set-up:

FUNCTION BLACK RED MINIMUM MAXIMUM

mV COM VΩ 0.1mV 400.0mV
V COM VΩ 0.001V 600V

TEST LEAD TEST LEAD READING READING

Measurement Procedure:

1. Disconnect power to the circuit to be measured.

2. Plug the black test lead into the COM input jack.

3 Plug red test lead into the VΩ input jack.

4. Set rotary switch to either the mV or V range,

depending on the voltage to be measured.

5. Connect the test leads to the circuit to be measured.

6. Reconnect power to the circuit to be measured.

7. Read the voltage on the 126.

13

Application Notes

When measuring the AC voltage of a standard

household outlet, remember that the small

rectangular hole is hot, the larger rectangular hole

is neutral and the round hole is ground.

To disconnect power from the outlet, find the fuse or
circuit breaker that controls the outlet and turn it off.

Set up the meter following the steps under
“Measurement Procedure” on page 13.
Then proceed with the following:

• Connect the red test lead to the hot side of
the outlet and the black lead to the neutral
side of the outlet. Reconnect power to the
outlet and read the voltage on the meter.
The reading should be approximately 110V
to 130V.

• Disconnect power from the outlet and
move the red wire to the ground hole.
Reconnect power to the outlet and read the
voltage on the meter. Typically less than
20V should exist from neutral to ground. If
110V or above exists, the outlet may be
wired incorrectly.

14

b. MEASURING AC VOLTS

CAUTION!
Do not attempt to make a voltage measurement
if a test lead is plugged in the A or µmA input
jack. Instrument damage and/or personal injury
may result.

ARNING!

W
Do not attempt to make a voltage measurement
of more than 750V or of a voltage level that is
unknown.

Instrument set-up:

FUNCTION BLACK RED MINIMUM MAXIMUM

V COM VΩ 0.001V 600V

TEST LEAD TEST LEAD READING READING

Measurement Procedure:

1. Disconnect power to the circuit to be measured.

2. Plug the black test lead into the COM input jack.

3. Plug the red test lead into the VΩ input jack.

4. Set the rotary switch to the V function depending on

the voltage to be measured.

5. Connect the test leads to the circuit to be measured.

6. Reconnect power to the circuit to be measured.

7. Read the voltage on the 126.

15

c. MEASURING DC AMPS

CAUTION!
Do not attempt to make a current measurement with the
test leads connected in parallel with circuit to be tested.
Test leads must be connected in series with the circuit.

ARNING!

W
Do not attempt to make a current measurement of
circuits with more than 600V present. Instrument
damage and /or personal injury may result.

Instrument set-up:

FUNCTION BLACK RED MINIMUM MAXIMUM

µA COM mAµA 0.1µA 4000µA

mA COM mAµA 0.01mA 400mA

10A COM A 0.001A 10.00A

TEST LEAD TEST LEAD READING READING

Application
Notes

When measuring the DC current of a
flame controller, follow the steps
under “Measurement Procedure”
below and then proceed with the
following:

• Set up the meter for making a
mA measurement.

• Connect the meter to the flame
controller lead by opening the

Measurement
Procedure:

1. Disconnect power
to circuit to be measured.

2. Plug the black test lead into the COM input jack.

3. Plug the red test lead into the mAµA or A input jack
depending on the value of current to be measured.

4. Set the rotary switch to the µA, mA, or 10A function.

5. Connect test leads in series to circuit to be measured.

6. Reconnect power to the circuit to be measured.

7. Read the current on the 126.

circuit and inserting the leads in
series with the circuit as shown
in the picture above.

16

d. MEASURING AC AMPS

CAUTION!
Do not attempt to make a current measurement
with the test leads connected in parallel with the
circuit to be tested. Test leads must be connected
in series with the circuit.

ARNING!

W

Do not attempt to make a current measurement of
circuits with more than 600V present. Instrument
damage and /or personal injury may result.

Instrument set-up:

FUNCTION BLACK RED MINIMUM MAXIMUM

µA COM mAµA 0.1µA 4000µA

mA COM mAµA 0.01mA 400mA

10A COM A 0.001A 10.00A

TEST LEAD TEST LEAD READING READING

Measurement Procedure:

1. Disconnect power to the circuit to be measured.

2. Plug the black test lead into the COM input jack.

3. Plug the red test lead into the mAµA or A input jack
depending on the value of current to be measured..

4. Set the rotary switch to the µA, mA or 10A function.

5. Connect test leads in series to circuit to be measured.

6. Reconnect power to the circuit to be measured.

7. Read the current on the 126.

17

Application Notes

When measuring resistance of a motor,
make sure the power is disconnected prior
to testing.

Set up the meter following the steps under
“Measurement Procedure” on page 17, and
then proceed with the following:

• Connect the red test lead to one power

input line of the motor and the black

test lead to the other power input line

of the motor. In most applications, if

the reading is OFL, the motor winding

is open.

• Connect the red test lead to the frame

of the motor and the black test lead to

the winding. In most applications, if a

reading of 0 Ohms is displayed, the

winding is shorted to the motor frame

(ground).

18

e. MEASURING RESISTANCE

WARNING!
Do not attempt to make resistance measurements
with circuit energized. For best results, remove
the resistor completely from the circuit before
attempting to measure it.

NOTE:
To make accurate low ohm measurements, short
the ends of the test leads together and record the
resistance reading. Deduct this value from
actual readings.

Instrument set-up:

FUNCTION BLACK RED MINIMUM MAXIMUM

Ω COM VΩ 0.1Ω 40.00MΩ

TEST LEAD TEST LEAD READING READING

Measurement Procedure:

1. Disconnect power to the circuit to be measured.

2. Plug the black test lead into the COM input jack.

3. Plug the red test lead into the VΩinput jack.

4. Set the rotary switch on the 126 to the Ωfunction.

5. Connect the test leads to the circuit to be measured.

6. Read the resistance value on the 126.

19

f. MEASURING DIODES

CAUTION!
Do not attempt to make diode measurements with
circuit energized. The only way to accurately test
a diode is to remove it completely from the circuit
before attempting to measure it.

Instrument set-up:

FUNCTION BLACK RED MINIMUM MAXIMUM

TEST LEAD TEST LEAD READING READING

COM VΩ 0.001V 2.000V

Measurement Procedure:

1. Disconnect power to the circuit to be measured.

2. Plug the black test lead into the COM input jack.

3. Plug the red test lead into the VΩinput jack.

4. Set the rotary switch to the function.

5. Connect black test lead to the banded end of the diode

and the red test lead to the non-banded end of the
diode.

6. Reading on the display should be between

0.5 and 0.8 volts.

7. Reverse test lead connections in 5 above.

8. Reading on the display should be OFL (Overload).

NOTE: If diode reads 0 in both directions, diode is short­ed. If diode reads OFL in both directions, diode is open.

20

g. CONTINUITY BUZZER

WARNING!
Do not attempt to make continuity measurements
with circuit energized.

Instrument set-up:

FUNCTION BLACK RED

TEST LEAD TEST LEAD

COM VΩ

Measurement Procedure:

1. Disconnect power to the circuit to be measured.

2. Plug the black test lead into the COM input jack.

3. Plug the red test lead into the VΩinput jack.

4. Set the rotary switch to the function.

5. Press yellow push button to activate continuity buzzer.

6. Connect the test leads to the circuit to be measured.

7. Listen for the buzzer to confirm continuity.

h. DATA HOLD

Press the Data Hold button at any time on any function or
range to freeze the reading on the LDC display. This func­tion is very useful when measuring in locations where the
display is difficult to read.

21

i. RECORD MODE

The record mode saves minimum (MIN) and maximum
(MAX) values measured for a series of reading. Activate
the function as follows:

1. Depress the REC button on the 126.

2. The 126 will immediately start to record
MIN/MAX values. REC will be on the LCD to
show record mode has been activated. The
reading on the LCD will be the actual reading.
The 126 will give a confirmation beep every
time a new value is recorded.

3. Press the REC button a second time and the
MIN reading will be displayed.

4. Press the REC button a third time and the MAX
reading will be displayed on the LCD.

5. To terminate the record mode, hold the REC
button down for approximately 2 seconds or
turn the rotary switch to a different function.

22

E. ACCESSORIES*

Standard Accessories Part No.

2 each 1.5 volt AA Batteries A002
Fuse, 0.5 Amp A104
Test Lead Set A040
Rubber Boot (126 only) A101

Optional Accessories Part No.

Deluxe Test Lead Set SDK1
IEC 1010 Deluxe Test Lead Kit TLS2000B
Temperature Adapter A301
Boot Hook A103
Soft Carrying Case A100

*These accessories have not been evaluated by UL and are not
considered as part of the UL Listing of this product.

23

F. MAINTENANCE

1. Battery Replacement: The 126 will display BAT when

the two internal 1.5 Volt “AA” batteries need replace­ment. Batteries are replaced as follows:

a. Disconnect and remove all test leads from live

circuits and from the 126.

b. Remove 126 from protective boot.

c. Remove the four screws from back of housing.

d. Carefully pull apart front and rear instrument

housing.

e. Remove old batteries and replace with new

batteries.

f. Reassemble instrument in reverse order from

above.

2. Fuse Replacement: Both the A and mAµA input jacks

are fuse protected. If either do not function, replace
fuse as follows:

a. Disconnect and remove all test leads from live

circuits and from the 126.

b. Remove 126 from protective boot.

c. Remove the three screws from back of housing.

d. Carefully pull apart the front and rear instrument

housing.

e. Remove the old fuse(s) and replace it with new

fuse(s).

f. Reassemble the instrument in reverse order

from above.

24

G. TROUBLE SHOOTING GUIDE

Problem

Probable Causes

Does not power up

• Dead or defective battery

• Broken wire from battery
snap to PCB

Won’t display current readings

• Open fuse

• Open test lead

• Improperly connected to
circuit under test

All functions except ohms read high

• Very weak battery that will
not turn on the low battery
indicator on the LCD

ACV do not read

• Very weak battery that will
not turn on the low battery
indicator on the LCD

25

WARRANTY

Please refer to product warranty card for
warranty statement.

Test Products International, Inc.

9615 SW Allen Blvd., Ste. 104

Beaverton, OR USA 97005

503-520-9197 • Fax: [phone] • [e-mail]

Test Products International plc

Longley House

East Park

Crawley, West Sussex RH10 6AP

England

Tel: [phone] • Fax: [phone]

L126M • 10/28/02 copyright © 2002 Test Products International, Inc.

126 SPECIFICATIONS

±0.3% Basic DCV Accuracy (also see pages 8-9)

Function Range Resolution

DCV 400mV 0.1mV

4V 0.001V
40V 0.01V
400V 0.1V
600V 1V

ACV 4V 0.001V

DCA 400µA 0.1µA

ACA 400µA 0.1µA

OHM 400Ω 0.1Ω

40V 0.01V
400V 0.1V
600V 1V

4mA 0.001mA
40mA 0.01mA
400mA 0.1mA

4000µA 1µA
40mA 0.01mA
400mA 0.1mA

4kΩ 0.001kΩ
40kΩ 0.01kΩ
400kΩ 0.1kΩ
4MΩ 0.001MΩ
40MΩ 0.01MΩ

Test Voltage Max. Test Current

Diode 3V Approx. 30µA

Continuity 3V <50Ω

Test Voltage Threshold

Test Products International, Inc.

L126M • 10/28/02 copyright © 2002 Test Products International, Inc.
