Numeric control
CN2008 SE
Documentation
Page 2
Document data
Date
20/12/2016
Revision
0
File Name
eCN2008SE.pdf
Protocol
Type
Documentation
By
; © T.P.A. S.p.A.
Group name
Remarks
This documentation is property of T.P.A. S.p.A.
Any unauthorized duplication is forbidden.
The Company reserves the right to modify the content of the document at any time.
Page 3
Revisions
3
TABLE OF CONTENTS
CONTENTS ................................................................................................................................................. 5
1 DESCRIPTION ................................................................................................................................... 6
2 FUNCTIONAL SPECIFICATION .................................................................................................... 7
2.1 General requirements .................................................................................................................. 7
2.2 Control specifications.................................................................................................................. 7
2.3 Expansion specific boards ........................................................................................................... 7
2.4 Power supply specifications ........................................................................................................ 8
3 TECHNICAL DATA ........................................................................................................................... 9
3.1 System ......................................................................................................................................... 9
3.2 I/O ............................................................................................................................................... 9
3.3 Expansion Slot .......................................................................................................................... 10
3.4 Dimensions ................................................................................................................................ 11
4 DESCRIPTIONS OF THE INTERFACES ..................................................................................... 12
4.1 24Vdc connector ....................................................................................................................... 12
4.2 Connector PS/2 Keyboard and Mouse ..................................................................................... 12
4.3 RS232 and RS485 connectors ................................................................................................... 13
4.4 VGA video out connector ......................................................................................................... 14
4.5 LAN and EtherCAT connectors ................................................................................................ 15
4.6 CAN and FRO connectors ........................................................................................................ 15
4.7 GBus4 connector ....................................................................................................................... 15
4.8 Other leds .................................................................................................................................. 16
5 INSTRUCTIONS ............................................................................................................................... 21
5.1 Operating temperature ............................................................................................................... 21
5.2 Power Supply ............................................................................................................................ 21
5.3 Expansion .................................................................................................................................. 21
Page 4
REVIEWS
No. of
review
Date
Protocol
Changes and/or changed paragraphs
Rev 0
20/12/2016
First release
Page 5
Contents
eCN2008SE
5
CONTENTS
This document describes the CN2008 Second Edition Numeric Control (hereafter
abbreviated as SE).
Page 6
Description
eCN2008SE
6
1 DESCRIPTION
Substantially, CN2008 SE is a computer embedded with bus PC104.
CN2008 SE is a small device that can be installed in an electric cabinet, with mounted
DIN rail (omega rail) or wall mounting.
CN2008 SE offers following advantages:
small sizes
low consumptions.
CN2008 SE philosophy is to take back to the field the connections by means of a set of
buses. According to the set of boards in the CN2008 SE, it is possible to configure a
field bus.
Page 7
Functional specification
eCN2008SE
7
2 FUNCTIONAL SPECIFICATION
2.1 General requirements
General requirements of the device are as follows:
based on an embedded small-sized PC architecture.
Mounting on DIN Rail (with both high and low profile).
The basic configuration includes 1 TMSBus or TMSCAN expansion board.
This system permits the expandability thanks to an additional PC104 board
homologated by TPA.
All the connections are displayed on the front side.
Connection with PC supervisor through Ethernet 10/100/1000 Mb/s.
Windows CE Operating System
Serigraphics indications
24 V external power supply.
Fanless system
2.2 Control specifications
based on a 3.5” MPU with 1GHz processor.
RAM DDR3 1066MHz, 1GByte (or higher).
Flash: 512MByte (or higher).
Fanless board
n°.1 VGA output for monitor.
n°.1 PS/2 I/F for mouse + keyboard.
no.1 serial RS232
n°.1 serial RS485 (RS422 configurable by request).
n°.1 LAN Ethernet 10/100/1000 Mb/s for connection to PC supervisor.
n°.1 LAN Ethernet for EtherCAT bus.
2.3 Expansion specific boards
PC104 standard format
Dedicated panel
Front connectors.
TPA's approval on expansion board.
Page 8
Functional specification
eCN2008SE
8
2.4 Power supply specifications
+24V +/- 10%, 4A input supply
Input protected and filtered.
Page 9
Technical Data
eCN2008SE
9
3 TECHNICAL DATA
3.1 System
Processor:
1 GHz, 512KB cache
RAM memory
DDR3 1066 MHz, 1GB (or higher)
Flash memory
512MB (or higher)
Operating system
Windows CE
Operation temperature
5 - 45° C
Storage temperature
NA
Moisture
10 - 95% relative moisture, without condensation
Power Supply
24 V dc ± 10%, 4 A
Dimensions
185 x 128 x 81.1 mm (DIN rail hook included)
Weight
900 g max
Assembly
DIN EN50022 or EN50035 rail
3.2 I/O
I/O Module
1 serial RS232
1 RS485 half-duplex serial (or RS422 full-duplex)
1 PS/2 for keyboard and mouse
Ethernet
1 Lan Ethernet 10/100/1000 MB/s
CRT
1 out VGA for monitor
Page 10
Technical Data
eCN2008SE
10
3.3 Expansion Slot
AlbMech-e
Control up to 8 digital Mechatrolink II ® axes (at 1
ms)
Technical data: see relative documents
TMSbus
CAN Bus Management
GreenBus 4.0 bus
Feedrate override port
Technical data: see associated documents
TMSCAN
CAN Bus: CANOpen
Feedrate override port
Technical data: see associated documents
EtherCAT
Made with on-board LAN card.
Any combination of expansion boards as above can be used unless exceptions and/or
constraints and restrictions depending on the application.
The basic control includes a TMSBus or a TMSCAN.
Page 11
Technical Data
eCN2008SE
11

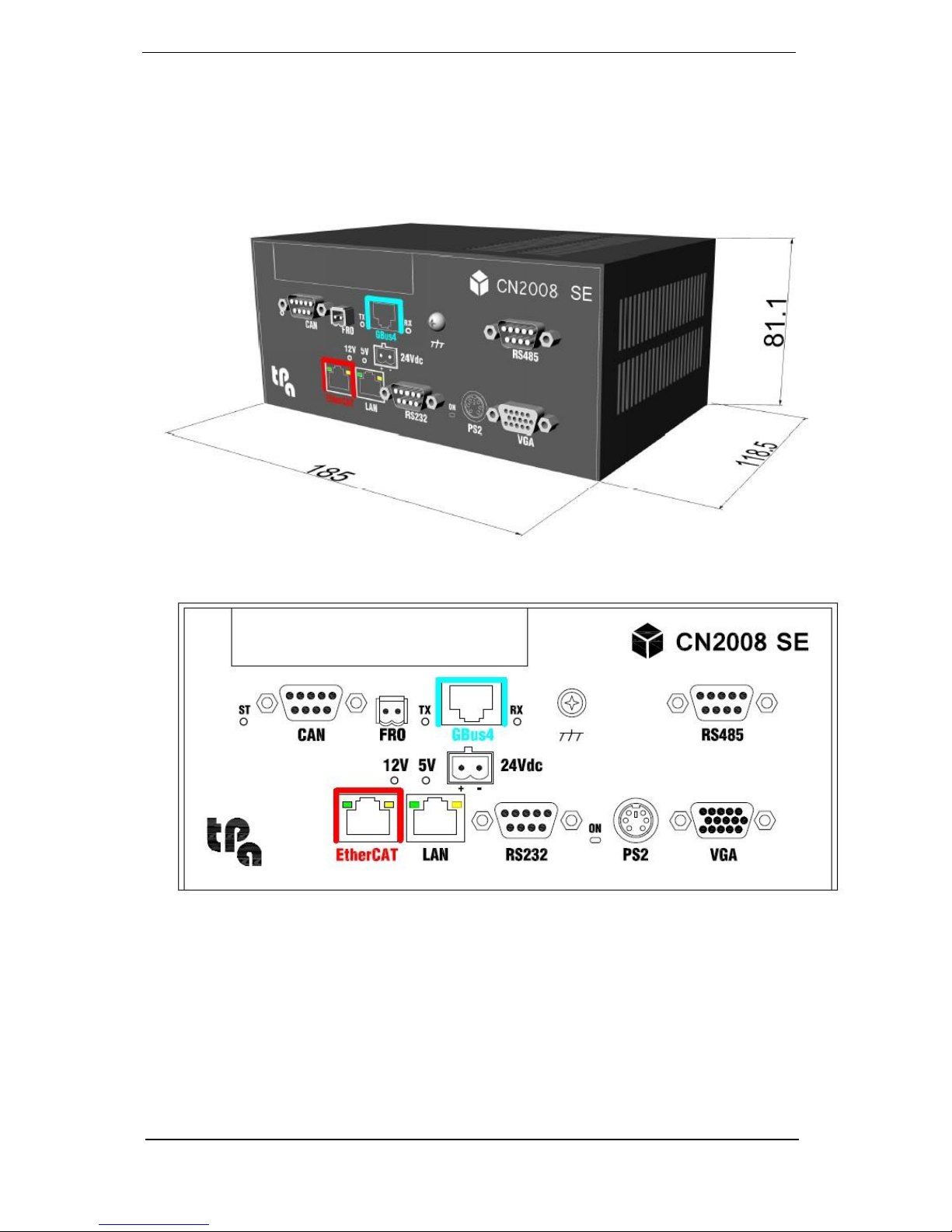

3.4 Dimensions
Page 12
Description of the interfaces
eCN2008SE
12
4 DESCRIPTIONS OF THE INTERFACES

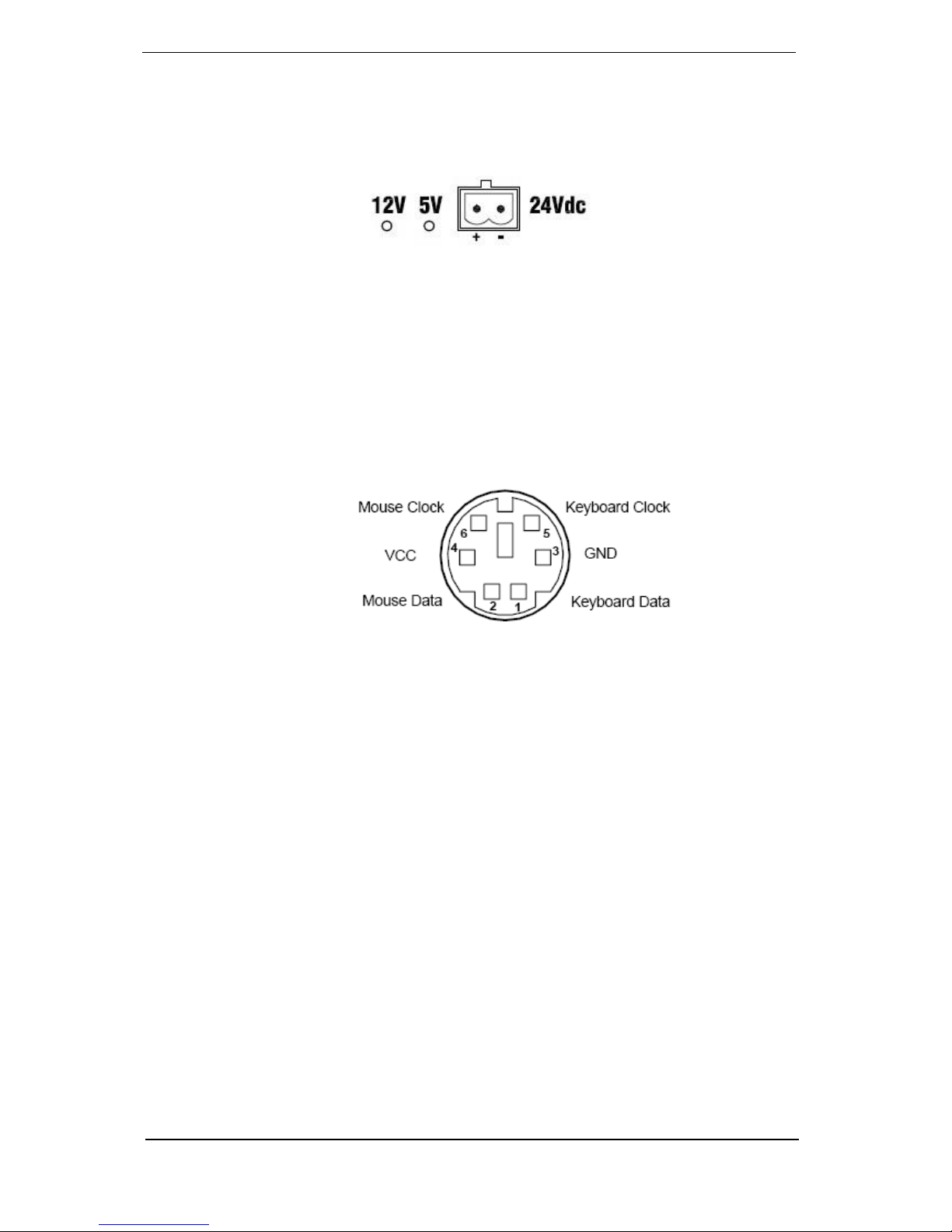

4.1 24Vdc connector
12V: internal 12V power led
5V: internal 5V power led
24Vdc: power connector with polarization serigraphy
4.2 Connector PS/2 Keyboard and Mouse
Page 13
Description of the interfaces
eCN2008SE
13

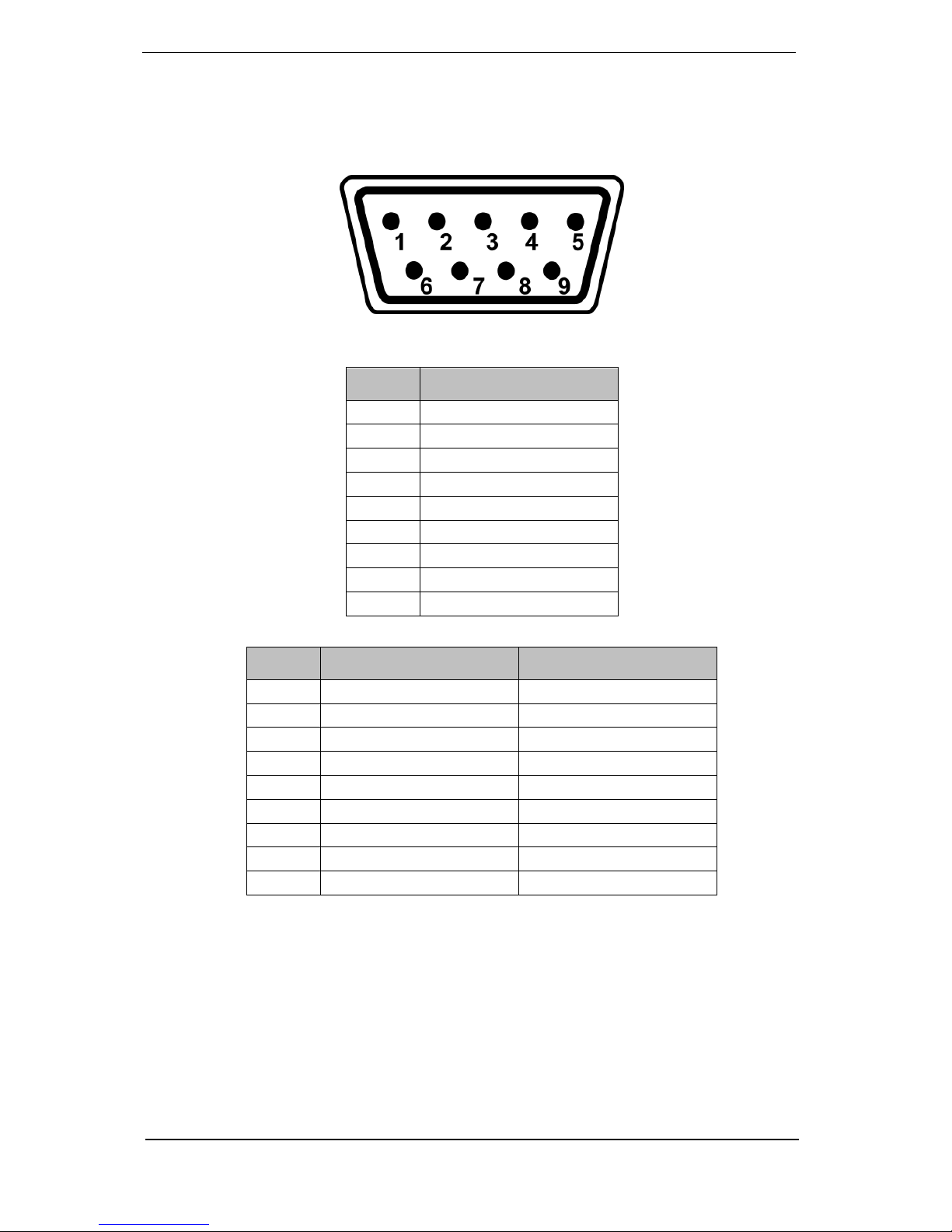

4.3 RS232 and RS485 connectors
Pin
RS232
1
DCD
2
RX
3
TX
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RING
Pin
RS485
RS422 (by request)
1
DATA-
TX-
2
DATA+
TX+
3
nc
Rx+
4
nc
RX-
5
GND
GND
6
nc
nc 7 nc
nc 8 nc
nc 9 nc
nc
Page 14
Description of the interfaces
eCN2008SE
14

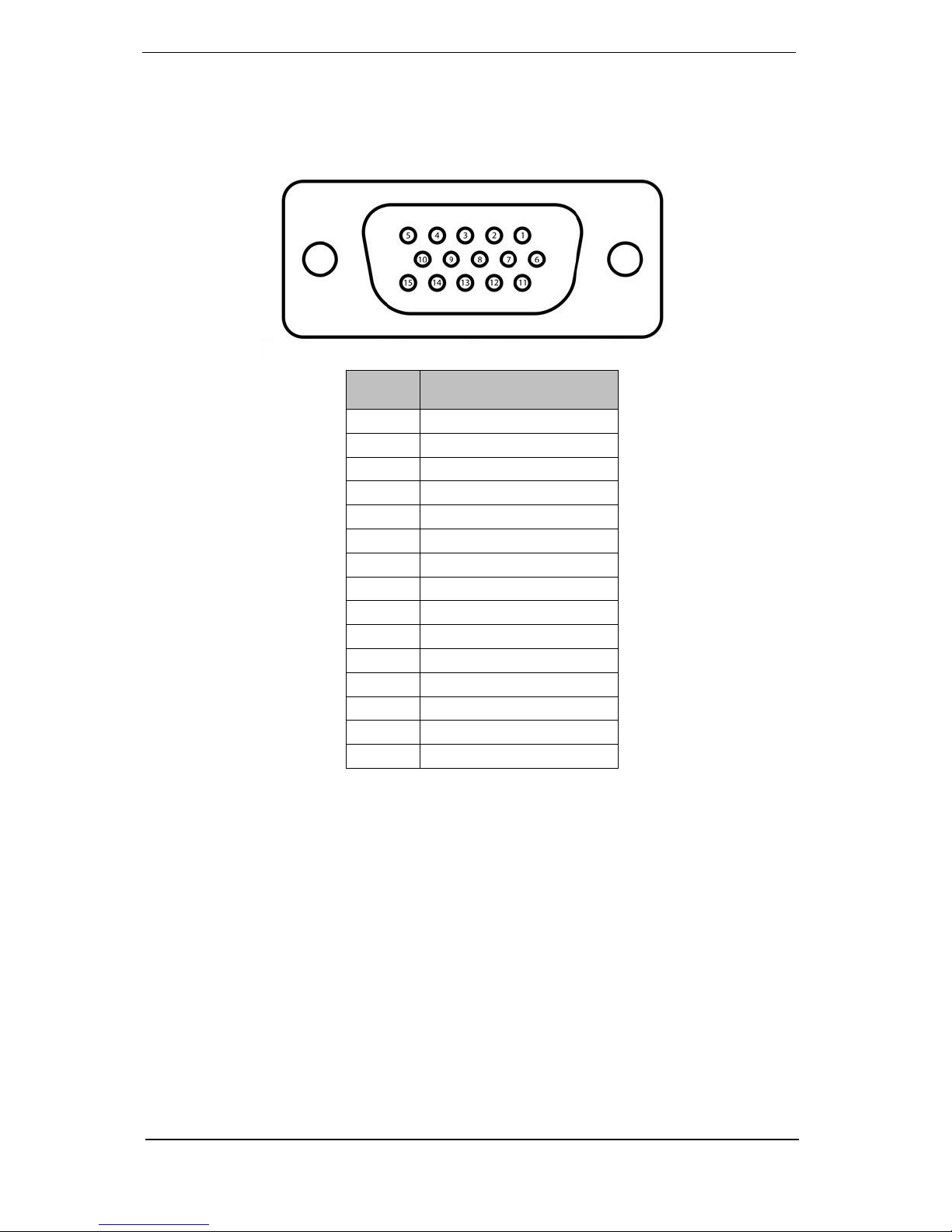

4.4 VGA video out connector
Pin
Description
1
Red
2
Green
3
Blue
4
nc
5
Gnd
6
AGnd
7
AGnd
8
AGnd
9
nc
10
Gnd
11
nc
12
DDC dat
13
HSync
14
VSync
15
DDC Clk
Page 15
Description of the interfaces
eCN2008SE
15

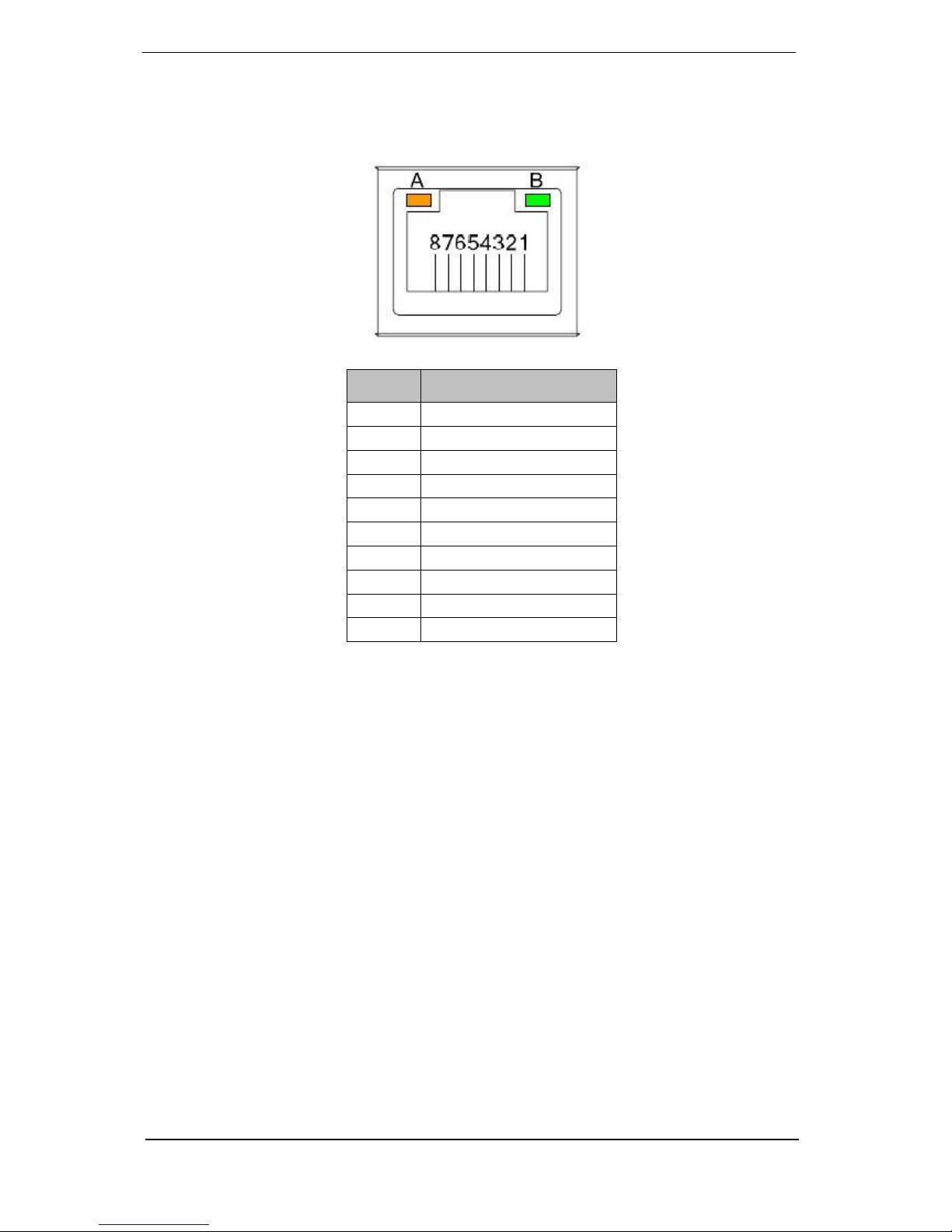

4.5 LAN and EtherCAT connectors
Pin
Description
1
MDI0+
2
MDI0-
3
MDI1+
4
MDI2+
5
MDI2-
6
MDI1-
7
MDI3+
8
MDI3-
A
Act Link LED
B
Speed LED
4.6 CAN and FRO connectors
For the description, please, read the documentation of the TMSBus or TMSCAN board
according to the board integrated into the basic control.
4.7 GBus4 connector
It works only if the board integrated into the basic control is TMSBus; please, the
associated documentation.
Page 16
Description of the interfaces
eCN2008SE
16
4.8 Other leds
In addition to the leds available on the previously described RJ45 connectors,
hereafter you will find the references for the other leds on the interface.
For the TX, RX and ST warning lights, please, see the TMSBus/TMSCAN
documentation according to the basic configuration.
The led "ON" next to the RS232 connector shows the operating state of the control. It
is normally green-red, when turned on.
Page 17

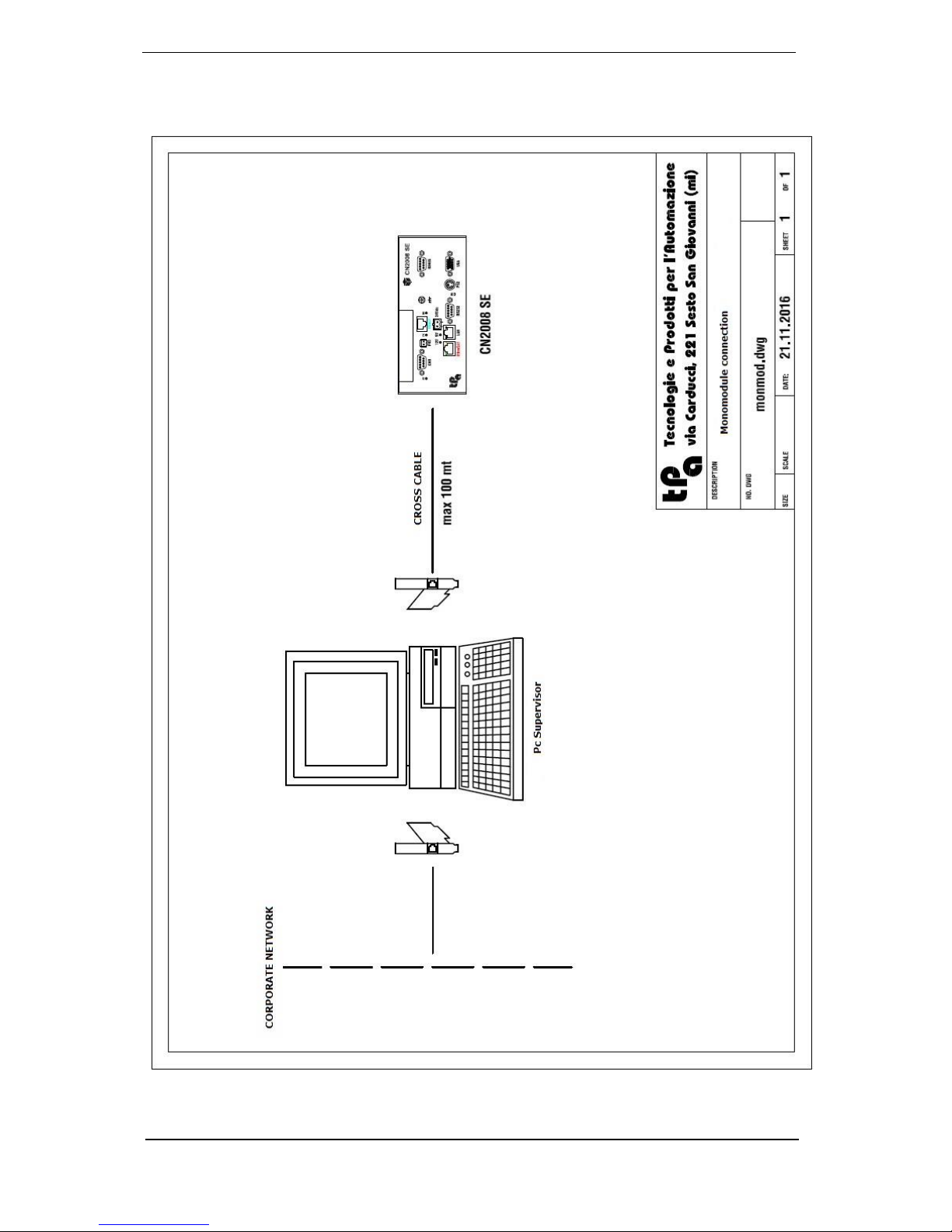

Description of the interfaces
eCN2008SE
17
Page 18

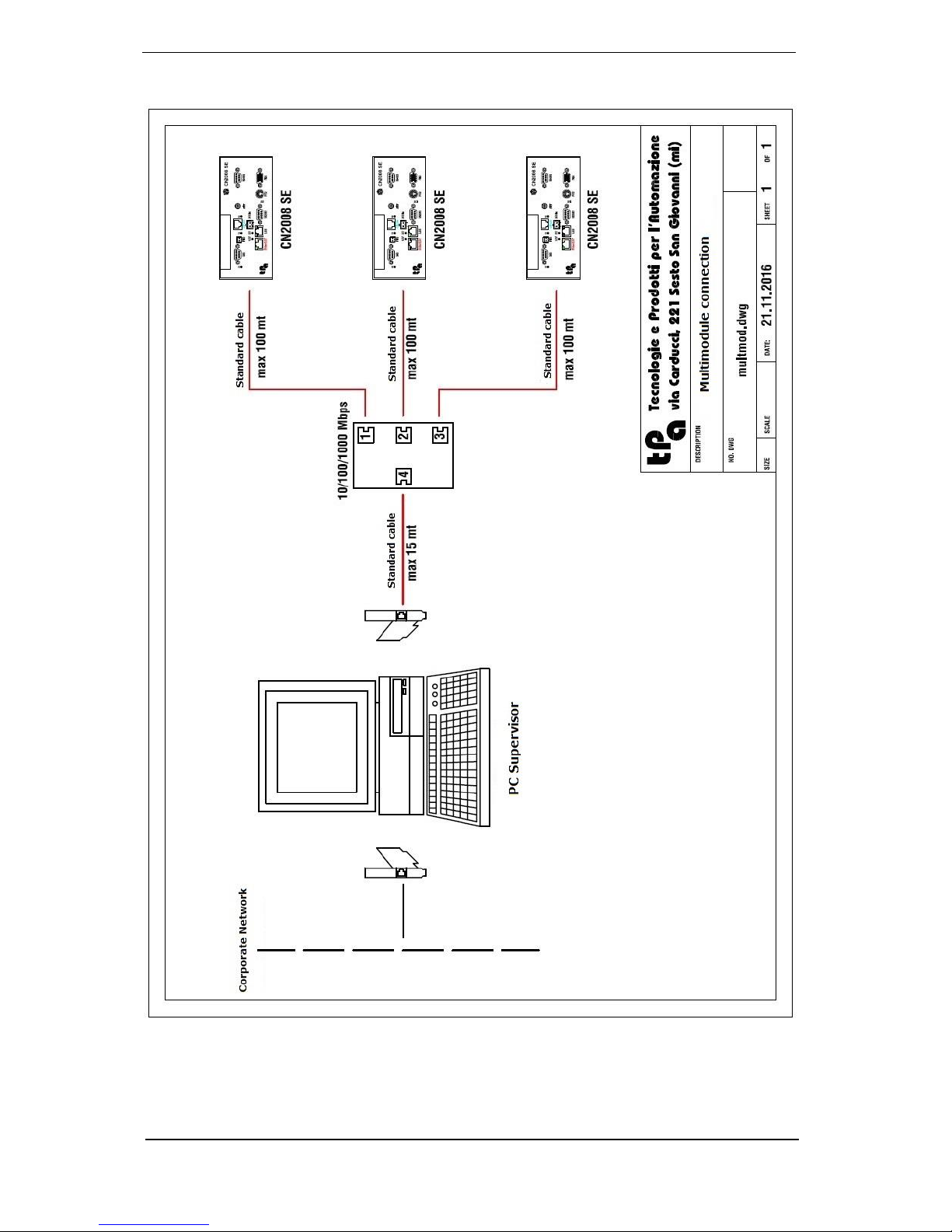

Description of the interfaces
eCN2008SE
18
Page 19

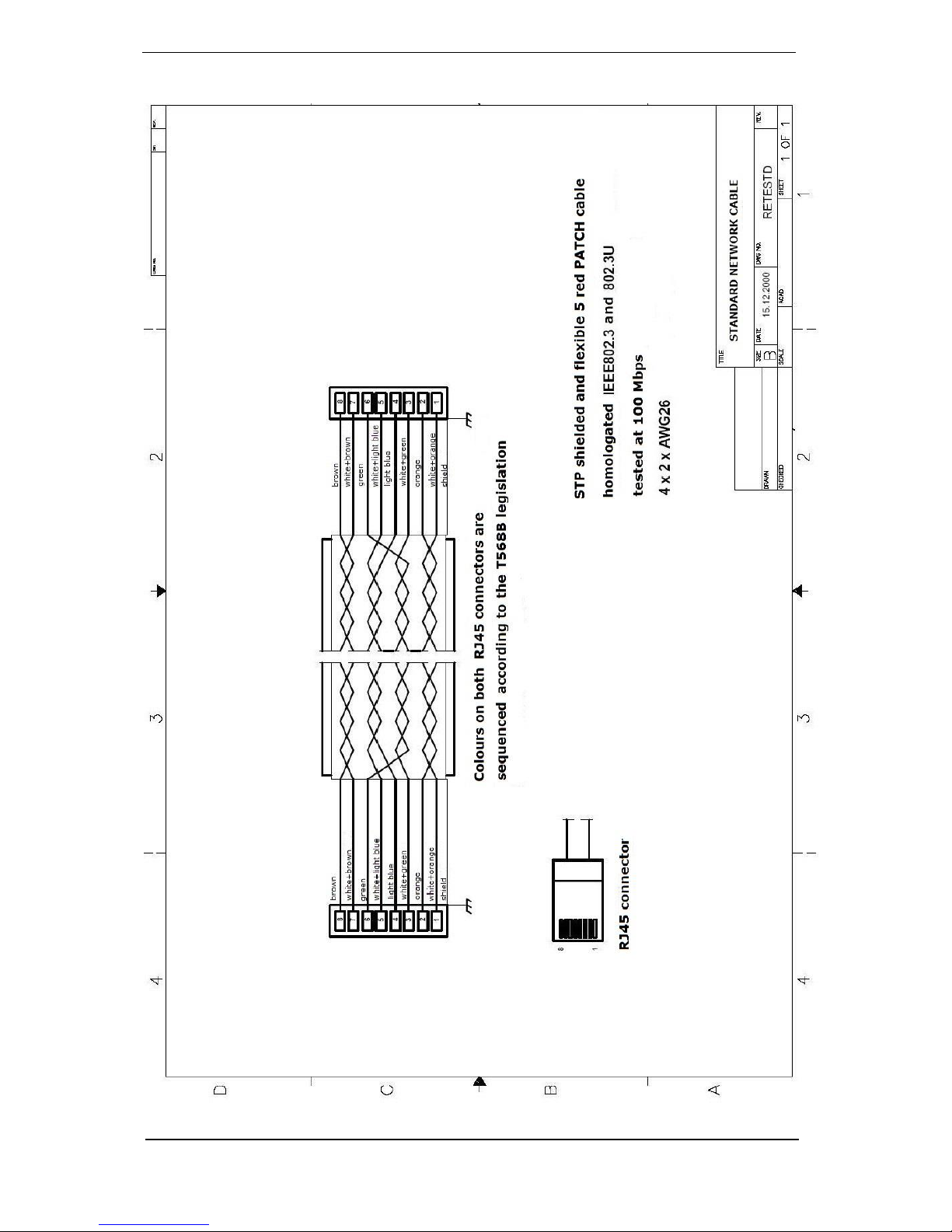

Description of the interfaces
eCN2008SE
19
Page 20

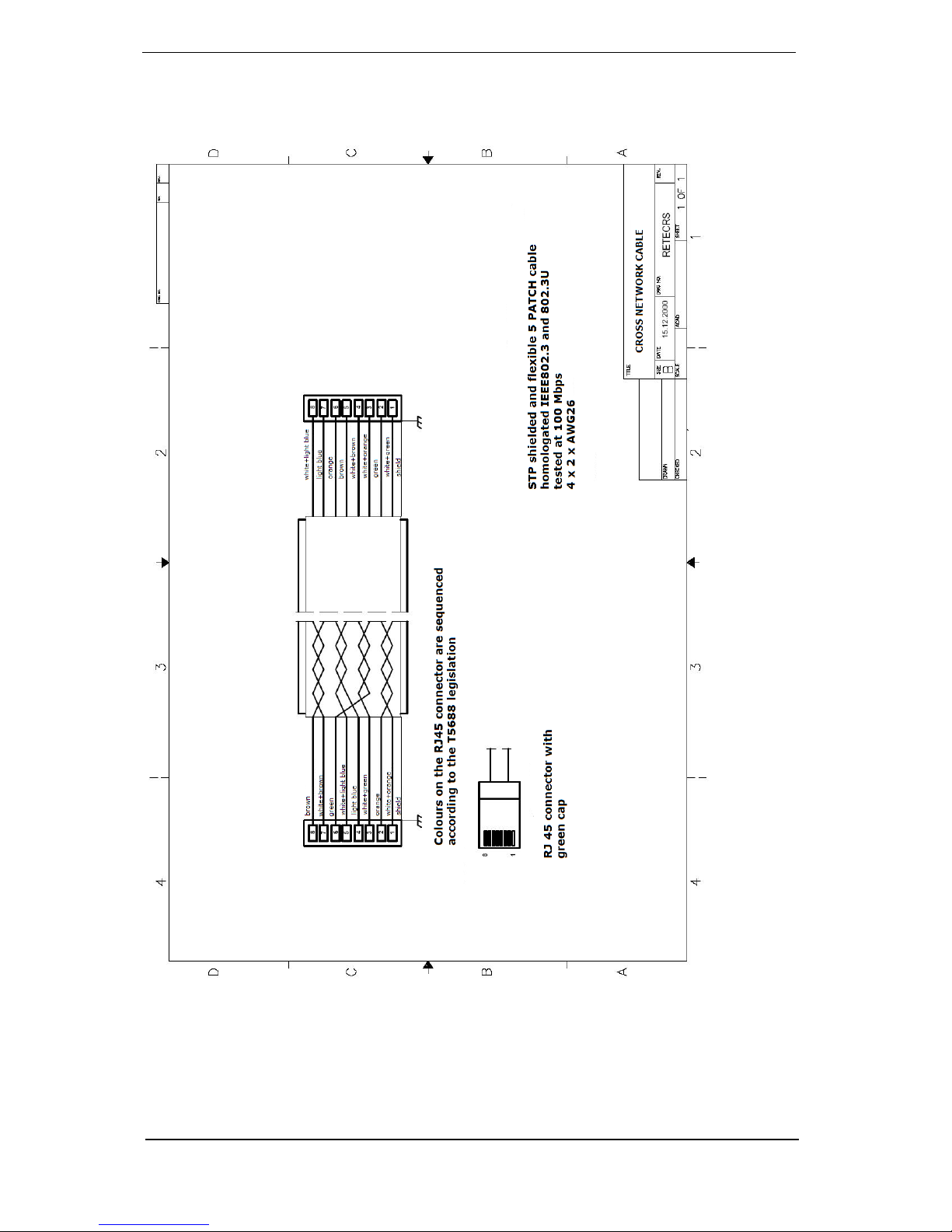

Description of the interfaces
eCN2008SE
20
Page 21
Instructions
eCN2008SE
21
5 INSTRUCTIONS
Generally, the values of power supply, temperature and moisture must not exceed the
values indicated in the chapter 3.
CN2008 SE must be connected (by means of a special screw) to the grounding.
We suggest you to install CN2008 SE in an electric cabinet or electric switchboard.
CN2008 SE is a computerized numeric control for general purposes in the environment
of the light industry.
It is a class A product. In a domestic environment this product may cause radio
interference, in which case the user may be required to take the due precautions .
5.1 Operating temperature
Operating ambient temperature in the basic version : from 5°C to 45 ° C.
5.2 Power Supply
To use CN 2008 SE we suggest Mean-Well DR120-24.(ac/dc converter) power supply.
However, you can also use a power supply unit (ad/dc converter) whose technical
features are: Vout = 24V dc ±10%, Iout = 4 A, so that CN2008 SE functions can be
guaranteed. in all its configurations described in the chapter 3.
5.3 Expansion
According to the expansion(s) used, please make reference to the suitable documentation for the rules
concerning installation and cabling.
