Page 1
toyota :: Toyota Tercel Sedan 2-Door L4-1497cc
1.5L DOHC (5E-FE) (1995)
Page 2
> Relays and Modules > Relays and Modules - Body and Frame > Door Lock Relay > Component Information > Locations
Door Lock Relay: Locations
Page 3
> Relays and Modules > Relays and Modules - Body and Frame > Door Lock Relay > Component Information > Locations > Page 7
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)

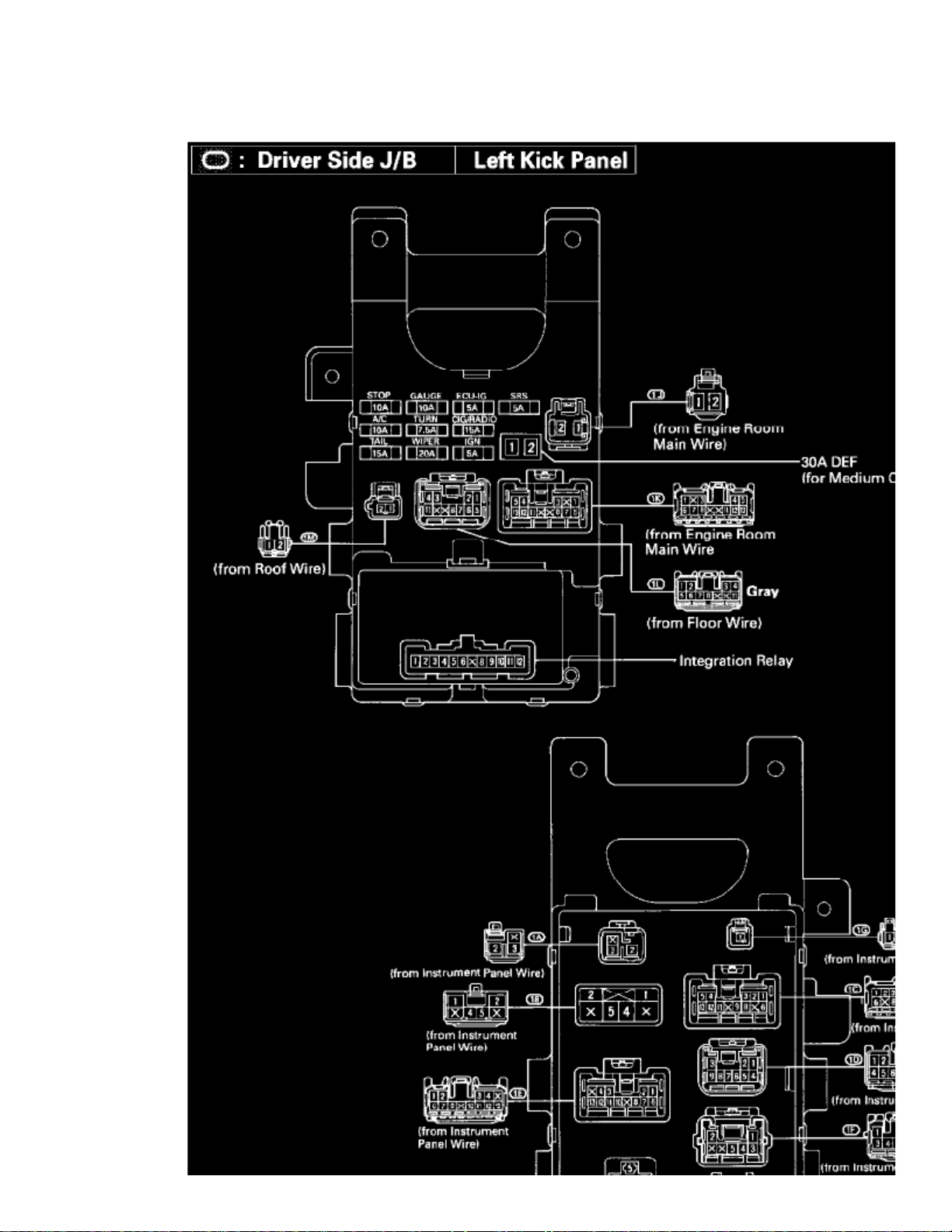

Fig 20
Page 4
Page 5
> Relays and Modules > Relays and Modules - Body and Frame > Door Lock Relay > Component Information > Locations > Page 8
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Location-Engine Room R/B, Engine Compartment Left (Fig 22)
Page 6

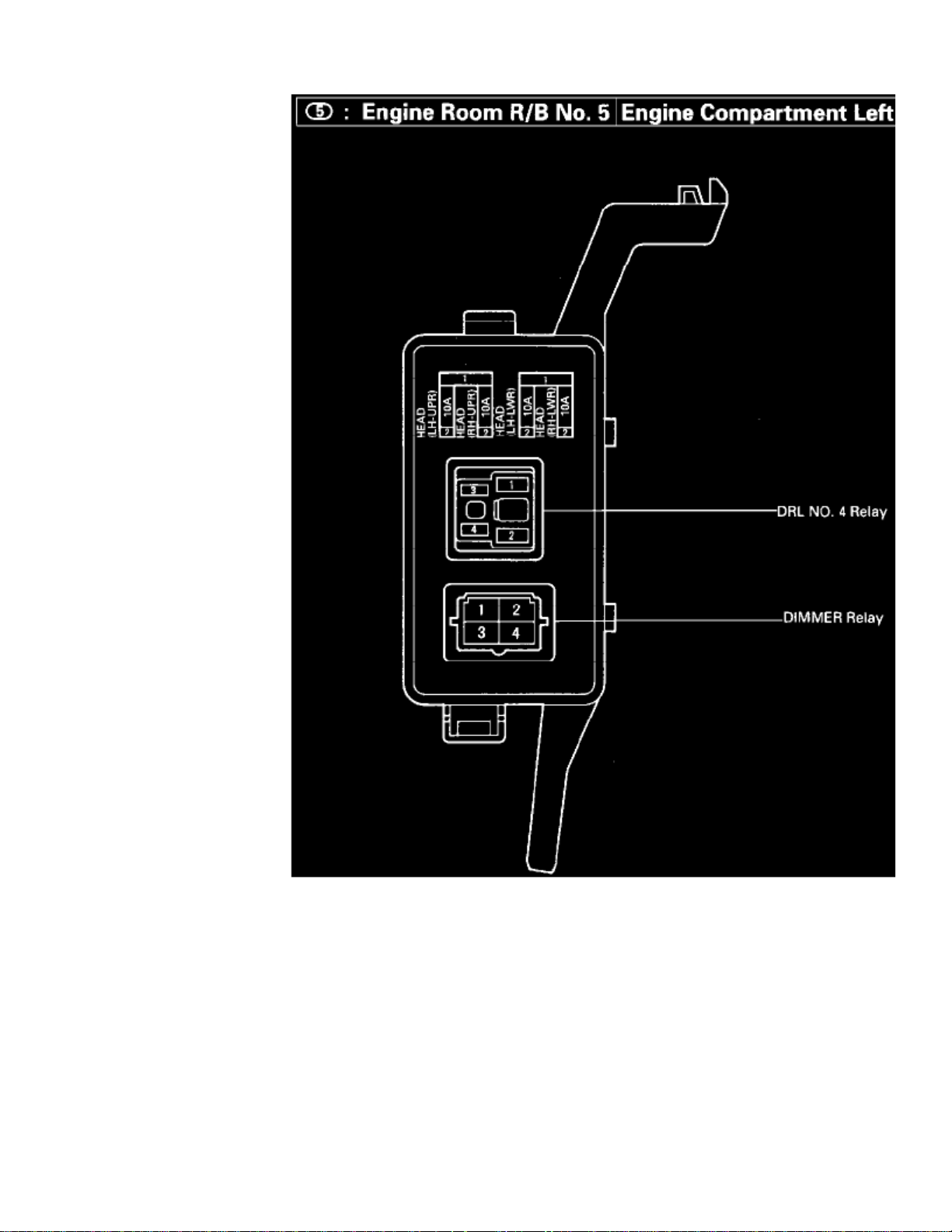

Location-Engine Room R/B No.5, Engine Compartment Left (Fig 23)
Details
Page 7
> Relays and Modules > Relays and Modules - Body and Frame > Door Lock Relay > Component Information > Locations > Page 9
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 8

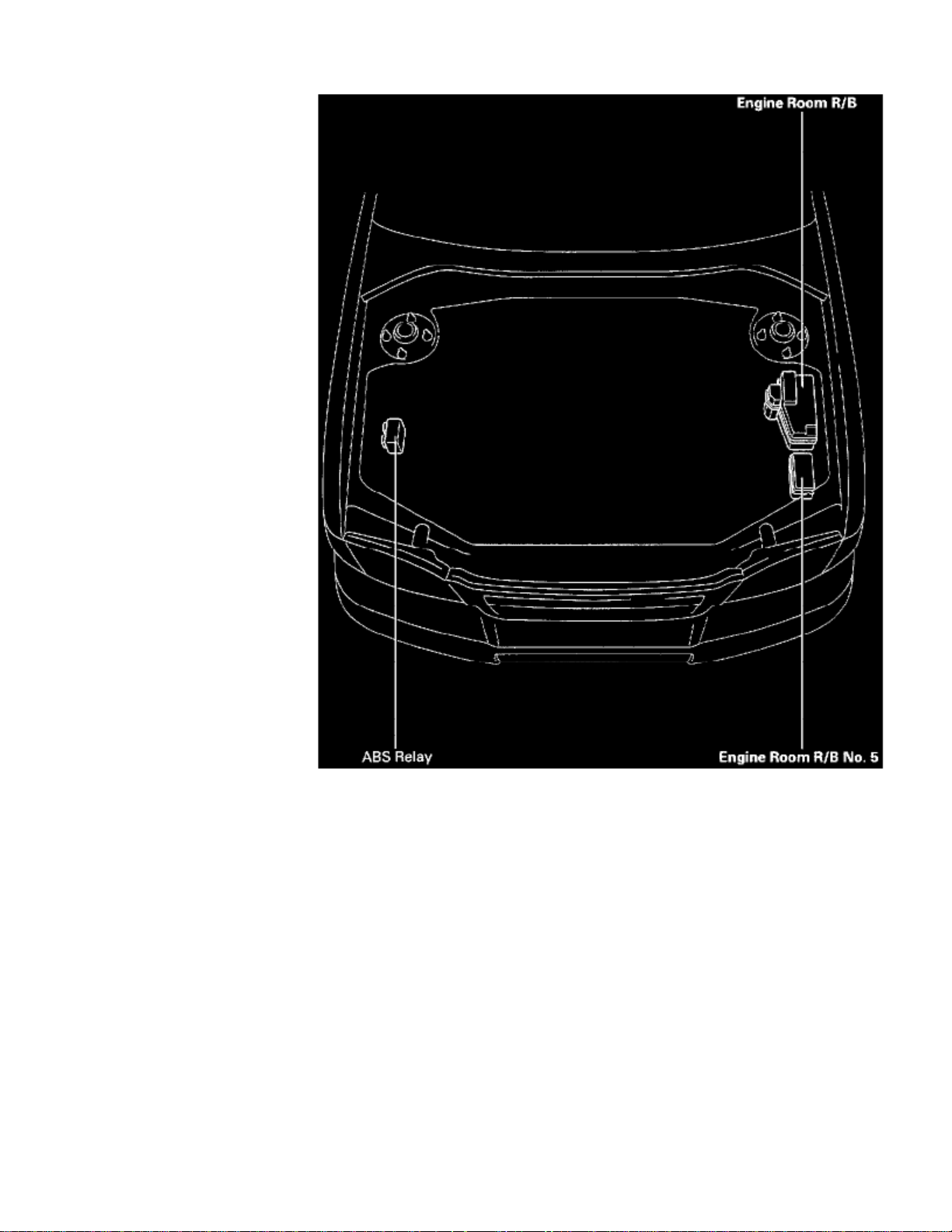

Locations-Engine Compartment (Fig 18)
Page 9
> Relays and Modules > Relays and Modules - Body and Frame > Door Lock Relay > Component Information > Locations > Page 10
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 10

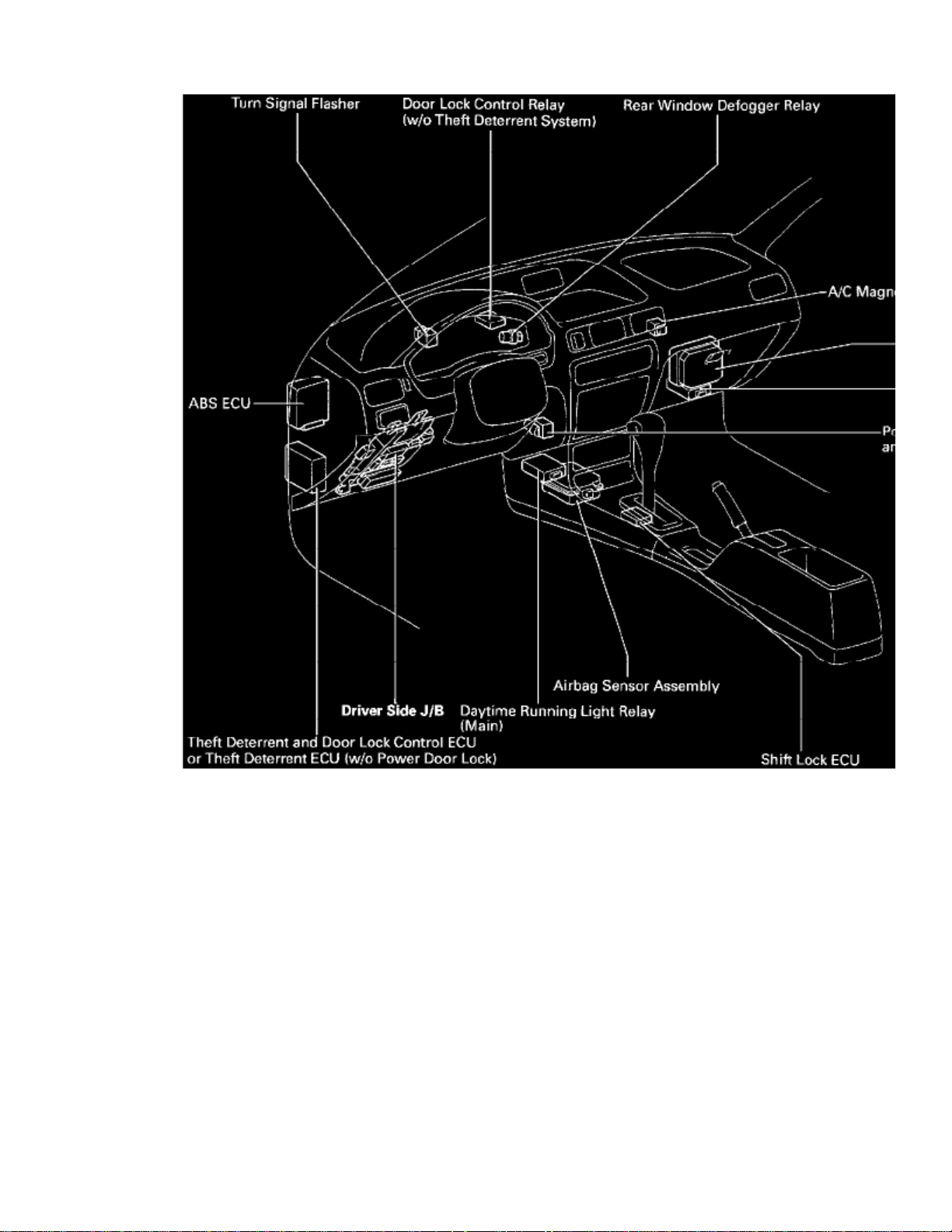

Locations-Instrument Panel (Fig 19)
Locations
Page 11
Page 12
> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS Main Relay > Component Information > Locations
ABS Main Relay: Locations
Page 13
> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS Main Relay > Component Information > Locations > Page 15
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Fig 20
Page 14
Page 15
> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS Main Relay > Component Information > Locations > Page 16
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Location-Engine Room R/B, Engine Compartment Left (Fig 22)
Page 16
Location-Engine Room R/B No.5, Engine Compartment Left (Fig 23)
Details
Page 17
> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS Main Relay > Component Information > Locations > Page 17
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 18

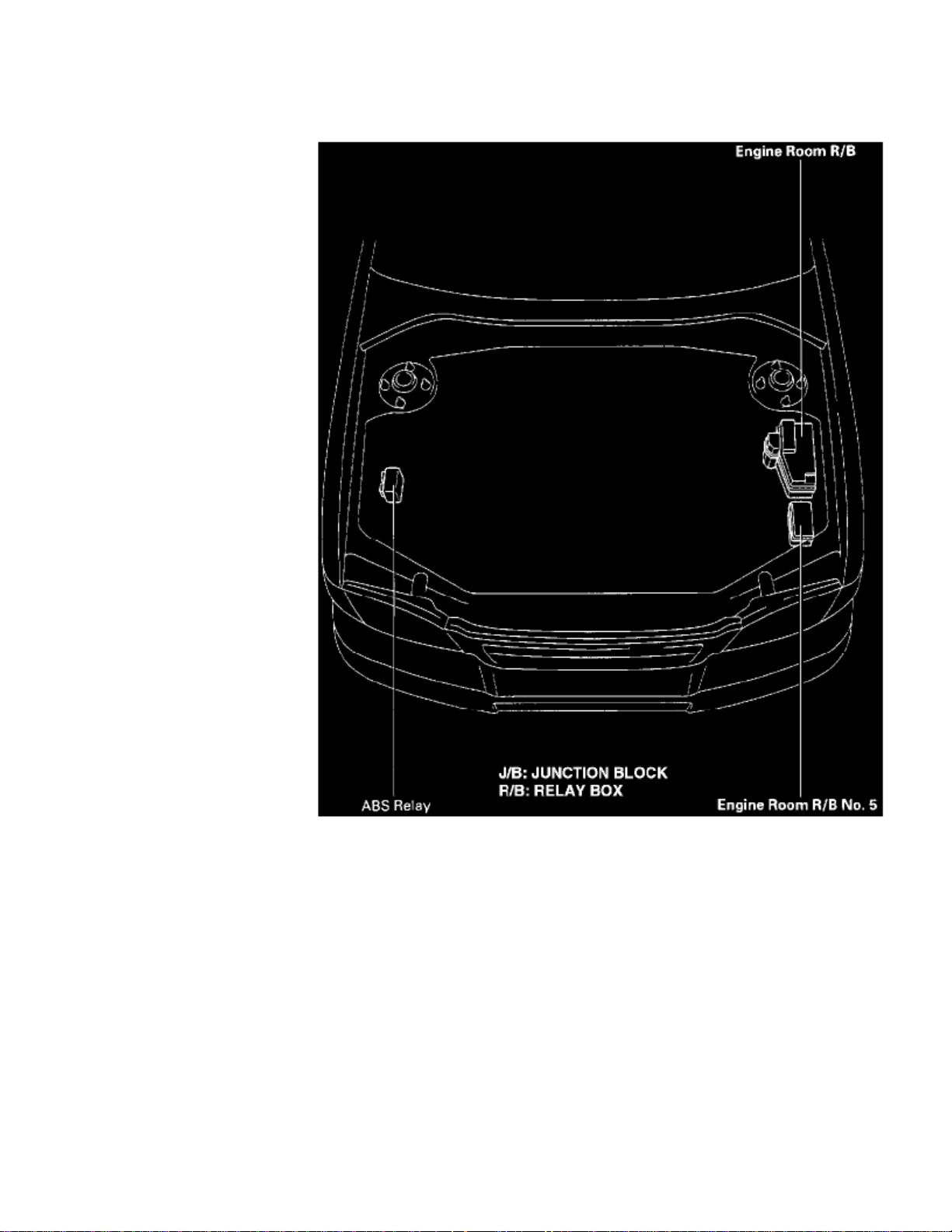

Locations-Engine Compartment (Fig 18)
Page 19
> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS Main Relay > Component Information > Locations > Page 18
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 20
Locations-Instrument Panel (Fig 19)
Locations
Page 21
Page 22
> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Testing and Inspection

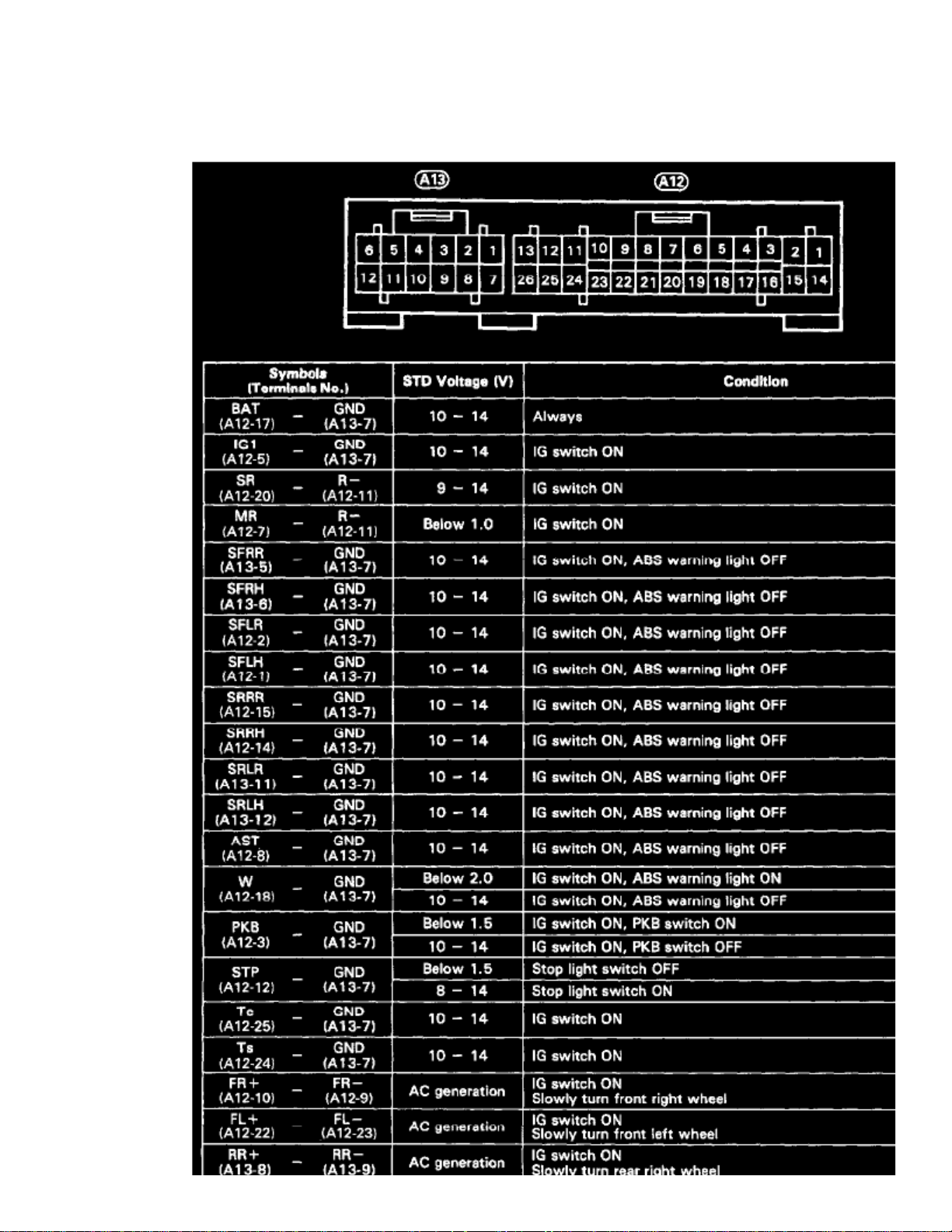

Electronic Brake Control Module: Testing and Inspection
STANDARD VALUE OF ECU TERMINALS
Page 23
Page 24
> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations
Radiator Cooling Fan Motor Relay: Locations
Page 25
> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 26
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Fig 20
Page 26
Page 27
> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 27
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Location-Engine Room R/B, Engine Compartment Left (Fig 22)
Page 28
Location-Engine Room R/B No.5, Engine Compartment Left (Fig 23)
Details
Page 29
> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 28
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 30
Locations-Engine Compartment (Fig 18)
Page 31
> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 29
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 32
Locations-Instrument Panel (Fig 19)
Locations
Page 33
Page 34
> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 30
Radiator Cooling Fan Motor Relay: Testing and Inspection

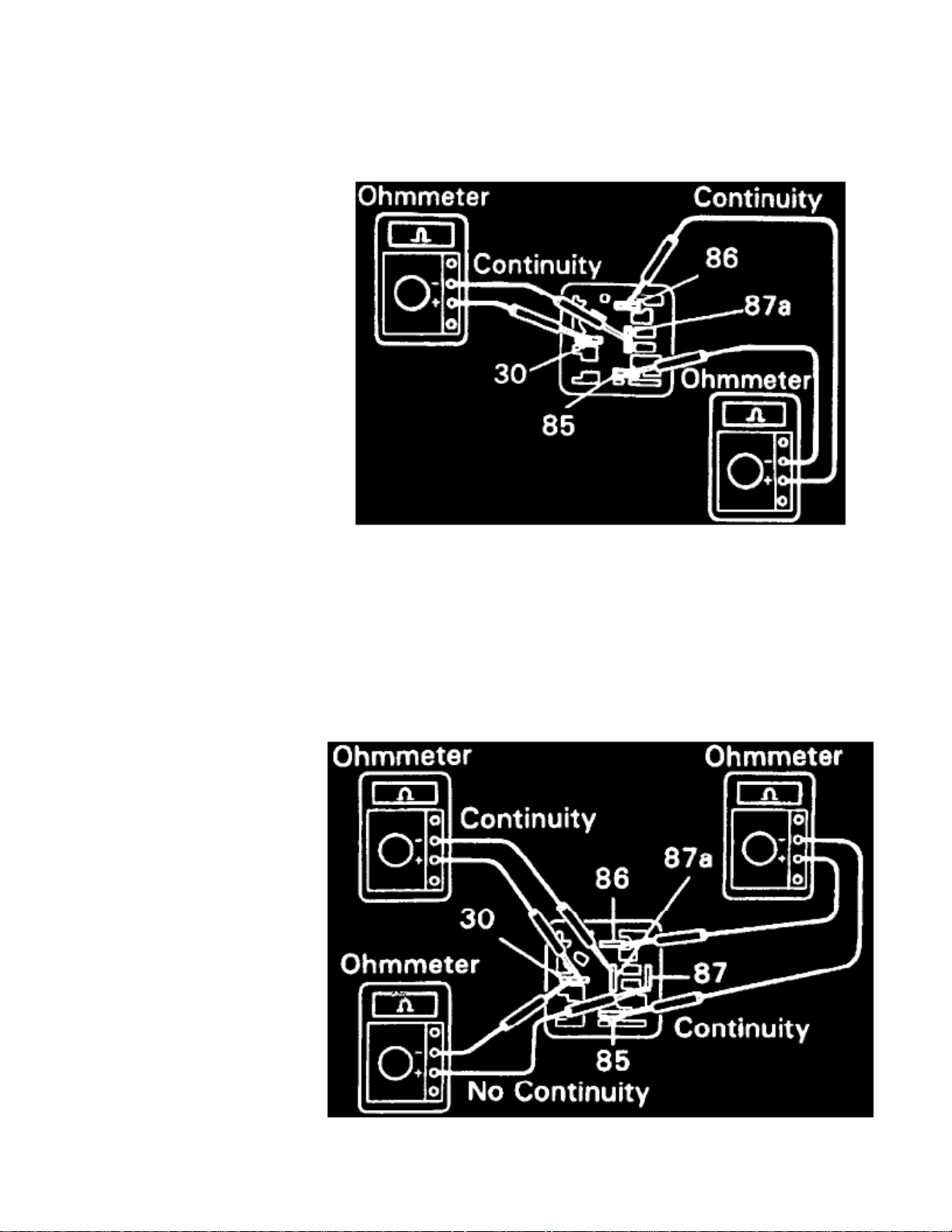

1. Inspect No. 1 cooling fan relay as follows:
a. Ensure continuity exists between terminals 85 and 86, Fig. 14.

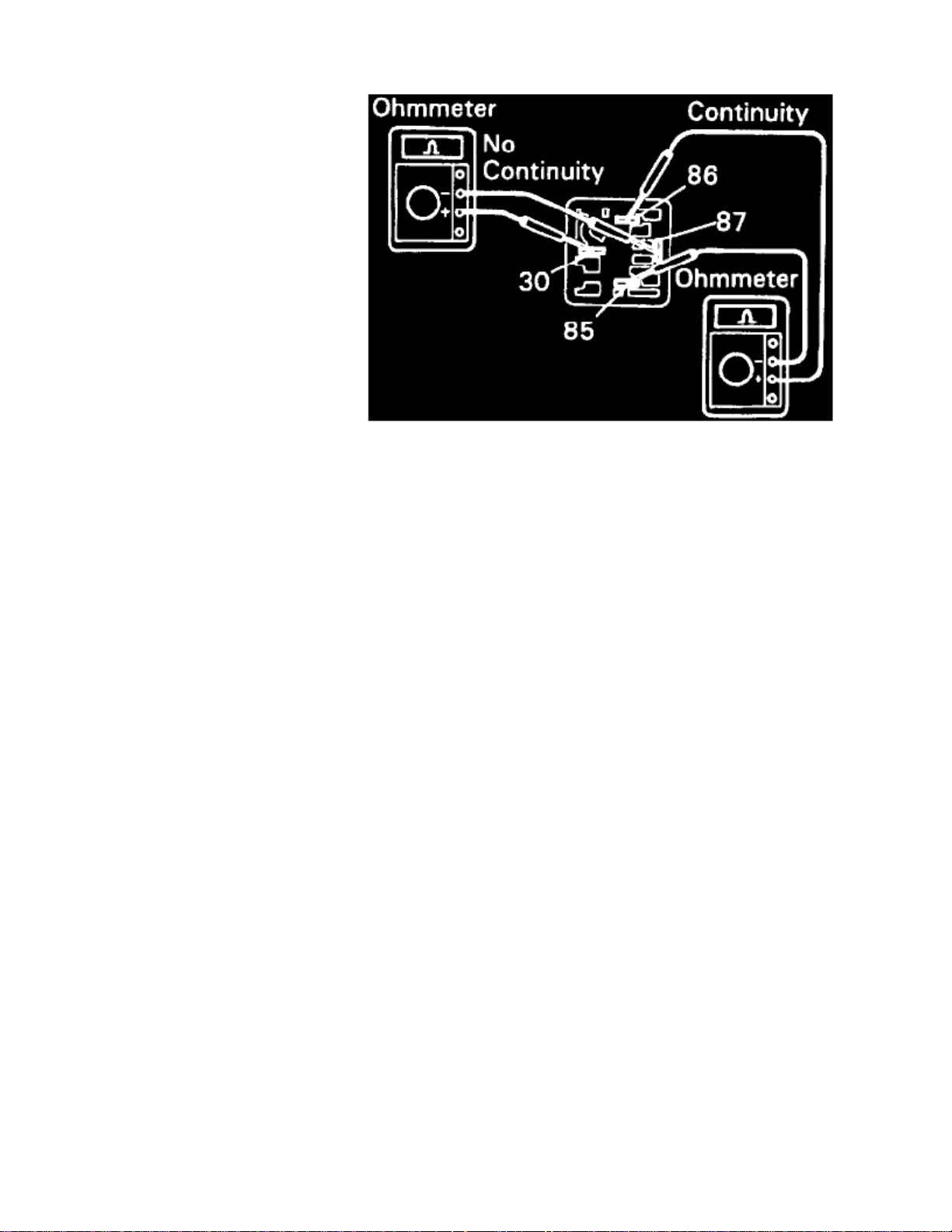

Fig. 3 No. 1 Cooling Fan Relay Inspection.
b. Ensure continuity exists between terminals 30 and 87.c. Apply battery voltage across terminals 85 and 86.d. Ensure continuity does not exist between terminals 30 and 87.e. If continuity is not as specified, replace relay.
2. Inspect No. 2 cooling fan relay as follows:
a. Ensure continuity exists between terminals 85 and 86, Fig. 15.
Page 35
> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 31
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Fig. 15 No. 2 Cooling Fan Relay Inspection.
b. Ensure continuity exists between terminals 30 and 87.c. Ensure continuity does not exist between terminals 30 and 87.d. Apply battery voltage across terminals 85 and 86.e. Ensure continuity does not exist between terminals 30 and 87.f.
Ensure continuity exists between terminals 30 and 87.
g. If continuity is not as specified, replace relay.
3. Inspect No. 3 cooling fan relay as follows:
a. Ensure continuity exists between terminals 85 and 86, Fig. 16.
Page 36
Fig. 5 No. 3 Cooling Fan Relay Inspection.
b. Ensure continuity does not exist between terminals 30 and 87.c. Apply battery voltage across terminals 85 and 86.d. Ensure continuity exists between terminals 30 and 87.e. If continuity is not as specified, replace relay.
Page 37
Page 38
> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations
Blower Motor Relay: Locations
Page 39
> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 36
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Fig 20
Page 40
Page 41
> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 37
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Location-Engine Room R/B, Engine Compartment Left (Fig 22)
Page 42
Location-Engine Room R/B No.5, Engine Compartment Left (Fig 23)
Details
Page 43
> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 38
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 44
Locations-Engine Compartment (Fig 18)
Page 45
> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 39
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 46
Locations-Instrument Panel (Fig 19)
Locations
Page 47
Page 48
> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations
Compressor Clutch Relay: Locations
Page 49
> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Page 43
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Fig 20
Page 50
Page 51
> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Page 44
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Location-Engine Room R/B, Engine Compartment Left (Fig 22)
Page 52
Location-Engine Room R/B No.5, Engine Compartment Left (Fig 23)
Details
Page 53
> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Page 45
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 54
Locations-Engine Compartment (Fig 18)
Page 55
> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Page 46
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 56
Locations-Instrument Panel (Fig 19)
Locations
Page 57
Page 58
> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Testing and Inspection > A/C Amplifier With P/S
Control Module HVAC: Testing and InspectionA/C Amplifier With P/S
ON-VEHICLE INSPECTION
INSPECT A/C AMPLIFIER CIRCUIT
Terminal Identification
Reference
a. Disconnect the connector from the amplifier and inspect connector on wire harness side. as shown in the chart.
ON
Test conditions:^ Ignition switch ^ Blower switch HI
Terminal Identification
Page 59
> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Testing and Inspection > A/C Amplifier With P/S > Page 51
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
If circuit is as specified, try replacing the amplifier with a new one. If the circuit is not as specified, inspect the circuits connected to otherparts.
Reference
b. Connect the connector to A/C amplifier and inspect wire harness side connector from the back side, as shown in the chart.
ON
Test conditions:^ Ignition switch ^ Temperature control lever MAX COOL
Page 60
^ Blower switch HI^ A/C switch ^ Install manifold gauge setON
If circuit is as specified, try replacing the amplifier with a new one. If the circuit is not as specified, inspect the circuits connected to otherparts.
Page 61
Page 62
> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Testing and Inspection > A/C Amplifier With P/S > Page 52
Control Module HVAC: Testing and InspectionA/C Amplifier Without P/S
ON -VEHICLE INSPECTION
INSPECT A/C AMPLIFIER CIRCUIT
Terminal Identification
Reference
a. Disconnect the connector from the amplifier and inspect connector on wire harness side, as shown in the chart.
ON
Test conditions:^ Ignition switch ^ Blower switch HI
If circuit is as specified, try replacing the amplifier with a new one. If the circuit is not as specified, inspect the circuits connected to otherparts.
Terminal Identification
Page 63
> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Testing and Inspection > A/C Amplifier With P/S > Page 53
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Reference
b. Connect the connector to A/C amplifier and inspect wire harness side connector from the back side, as shown in the chart.
ON
Test conditions:^ Ignition switch ^ Temperature control lever MAX COOL^ Blower switch HI
Page 64
^ A/C switch ^ Install manifold gauge setON
If circuit is as specified. try replacing the amplifier with a new one. If the circuit is not as specified, inspect the circuits connected to otherparts.
Page 65
Page 66
> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Testing and Inspection > Page 54
Control Module HVAC: Service and Repair
AMPLIFIER REMOVAL
REMOVE A/C AMPLIFIER
a. Remove glove compartment parts.b. Disconnect the connector from the amplifier.c. Remove the 2 screws and the amplifier.
AMPLIFIER INSTALLATION
Installation is in the reverse order of removal.
Page 67
Page 68
> Relays and Modules > Relays and Modules - Lighting and Horns > Daytime Running Lamp Relay > Component Information > Locations
Daytime Running Lamp Relay: Locations
Page 69
> Relays and Modules > Relays and Modules - Lighting and Horns > Daytime Running Lamp Relay > Component Information > Locations > Page 59
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Fig 20
Page 70
Page 71
> Relays and Modules > Relays and Modules - Lighting and Horns > Daytime Running Lamp Relay > Component Information > Locations > Page 60
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Location-Engine Room R/B, Engine Compartment Left (Fig 22)
Page 72
Location-Engine Room R/B No.5, Engine Compartment Left (Fig 23)
Details
Page 73
> Relays and Modules > Relays and Modules - Lighting and Horns > Daytime Running Lamp Relay > Component Information > Locations > Page 61
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 74
Locations-Engine Compartment (Fig 18)
Page 75
> Relays and Modules > Relays and Modules - Lighting and Horns > Daytime Running Lamp Relay > Component Information > Locations > Page 62
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 76
Locations-Instrument Panel (Fig 19)
Locations
Page 77
Page 78
> Relays and Modules > Relays and Modules - Lighting and Horns > Headlamp Dimmer Relay > Component Information > Locations
Headlamp Dimmer Relay: Locations
Page 79
> Relays and Modules > Relays and Modules - Lighting and Horns > Headlamp Dimmer Relay > Component Information > Locations > Page 66
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Fig 20
Page 80
Page 81
> Relays and Modules > Relays and Modules - Lighting and Horns > Headlamp Dimmer Relay > Component Information > Locations > Page 67
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Location-Engine Room R/B, Engine Compartment Left (Fig 22)
Page 82
Location-Engine Room R/B No.5, Engine Compartment Left (Fig 23)
Details
Page 83
> Relays and Modules > Relays and Modules - Lighting and Horns > Headlamp Dimmer Relay > Component Information > Locations > Page 68
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 84
Locations-Engine Compartment (Fig 18)
Page 85
> Relays and Modules > Relays and Modules - Lighting and Horns > Headlamp Dimmer Relay > Component Information > Locations > Page 69
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 86
Locations-Instrument Panel (Fig 19)
Locations
Page 87
Page 88
> Relays and Modules > Relays and Modules - Lighting and Horns > Horn Relay > Component Information > Locations
Horn Relay: Locations
Locations-Engine Compartment (Fig 18)
Page 89
> Relays and Modules > Relays and Modules - Lighting and Horns > Horn Relay > Component Information > Locations > Page 73
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 90
Page 91
Locations-Engine Room R/B, Engine Room Compartment Left (Fig 22)
Left side of engine compartment.
Page 92
> Relays and Modules > Relays and Modules - Lighting and Horns > Tail Lamp Relay > Component Information > Locations
Tail Lamp Relay: Locations
Page 93
> Relays and Modules > Relays and Modules - Lighting and Horns > Tail Lamp Relay > Component Information > Locations > Page 77
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Fig 20
Page 94
Page 95
> Relays and Modules > Relays and Modules - Lighting and Horns > Tail Lamp Relay > Component Information > Locations > Page 78
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Location-Engine Room R/B, Engine Compartment Left (Fig 22)
Page 96
Location-Engine Room R/B No.5, Engine Compartment Left (Fig 23)
Details
Page 97
> Relays and Modules > Relays and Modules - Lighting and Horns > Tail Lamp Relay > Component Information > Locations > Page 79
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 98
Locations-Engine Compartment (Fig 18)
Page 99
> Relays and Modules > Relays and Modules - Lighting and Horns > Tail Lamp Relay > Component Information > Locations > Page 80
Tercel Sedan 2-Door L4-1497cc 1.5L DOHC (5E-FE) (1995)
Page 100
Locations-Instrument Panel (Fig 19)
Locations
Loading...
