OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion xD.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Scion xD
operations. Every Scion xD owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Scion xD
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1 6
Light control-Instrument panel 7
Air Conditioning/Heating 12
Automatic Transmission 8
Bottle holders 15
Clock 13
Cruise control 11
Cup holders 15
Lights & turn signals 10
Multi-Information Display 14
Parking brake 8
Power outlet 15
Seat adjustments 9
Seat-Folding down rear seat 9
Seats-Head restraints 8
Steering wheel switches 14
Tilt steering wheel 12
USB port/AUX port 13
Windows 11
Windshield wipers & washers 10
Door locks 16
Doors-Child safety locks 16
Floor mat installation 19
Seat belts 16
Seat belts-Shoulder belt anchor 16
Spare tire & tools 17
Star Safety SystemTM 18-19
Tire Pressure Monitoring (warning) System 17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1
Visit your Toyota dealer for information on customizing this feature.
Page 3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2 3
OVERVIEW
Steering wheel audio controls*
Ignition switch
Cruise control
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Clock
Front passenger occupant classification indicator/Front passenger seat belt
reminder light
Air Conditioning controls
Rear window defogger button
12V DC Power outlet
USB port/AUX port*
Tilt steering lock release
Tire Pressure Monitoring (warning) System reset
Instrument panel light control
Power rearview mirror controls
*
For details, refer to the SCION Audio System Owner’s Manual or SCION Navigation
System Owner’s Manual.
Instrument panel
Page 4
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
4 5
OVERVIEW
Low engine oil pressure warning
1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning
1
Charging system warning
1
Malfunction/Check Engine indicator
1
Indicator symbols
Instrument cluster
Service indicator and reminder
Speedometer
MODE switch
Multi-Information Display
Tachometer
Shift position indicator
Fuel gauge
Anti-lock Brake System warning
1
Engine oil replacement reminder
1
Front passenger occupant classification indicator
Headlight low beam indicator
Turn signal indicator
Headlight high beam indicator
Cruise control indicator
2
Electric power steering system warning
1
Slip indicator
1
Vehicle Stability Control OFF indicator
1
Low fuel level warning
High engine coolant temperature warning
Low engine coolant temperature indicator
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2
If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Traction Control OFF indicator
1
Open door warning
Low Tire Pressure Warning
1
Airbag SRS warning
1
Low windshield washer fluid level warning
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual.
Page 5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
6 7
OVERVIEW

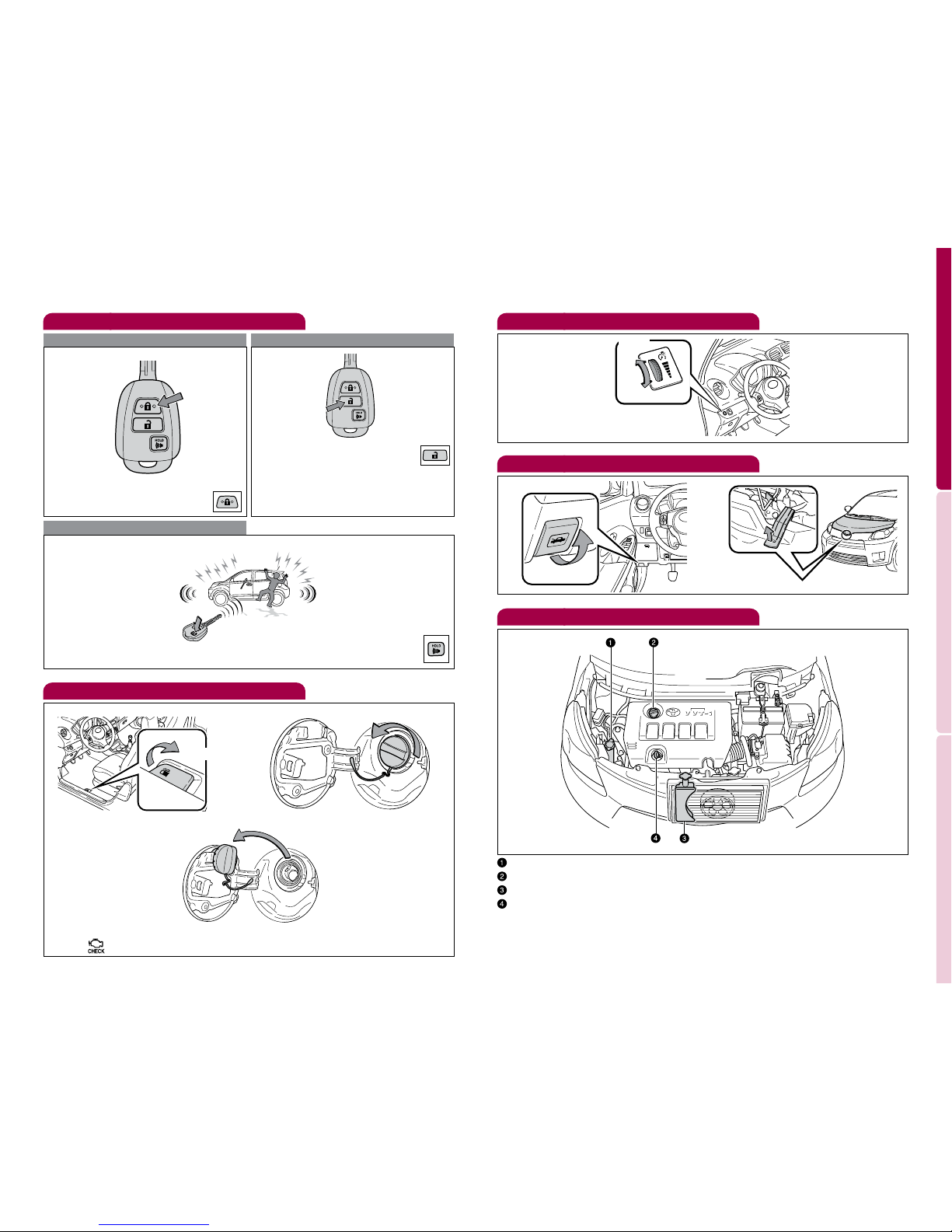

Fuel tank door release and cap
Store
Turn to open
Keyless entry
Locking operation
Unlocking operation
NOTE: If a door is not opened within
30 seconds of unlocking, all doors will
relock for safety.
Push
Push ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.
Hood release
Pull
Pull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Bright
Dark
Pull up
Page 6
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
8 9
FEATURES/OPERATIONS

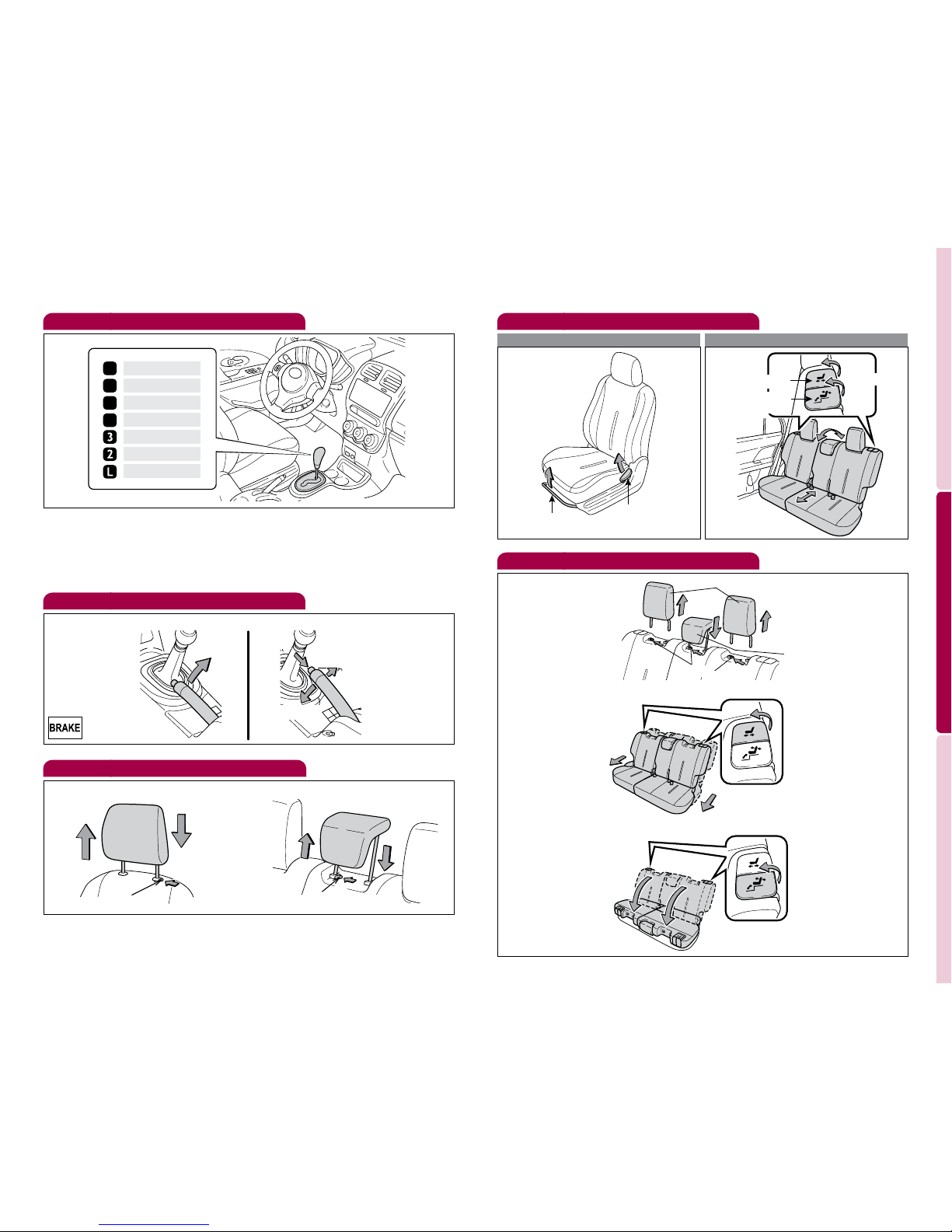

Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
Parking brake
Pull
(2) Push
(1) Pull slightly
(3) Lower
Set
Release
Park*
Reverse
Neutral
Drive
Third gear
Second gear
P
R
N
D
First gear
Seat adjustments
Seat-Folding down rear seat
(5) Slide forward
(4) Pull up
(7) Fold down
(6) Pull up
(3) Lower
(1) Push
Front Rear
Seat position
Seatback angle/
fold down
Pull up
Seatback angle
Seats-Head restraints
Lock release button
Lock release button
Front Rear
(2) Remove
Seat position
(forward/backward)
Page 7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1110
FEATURES/OPERATIONS

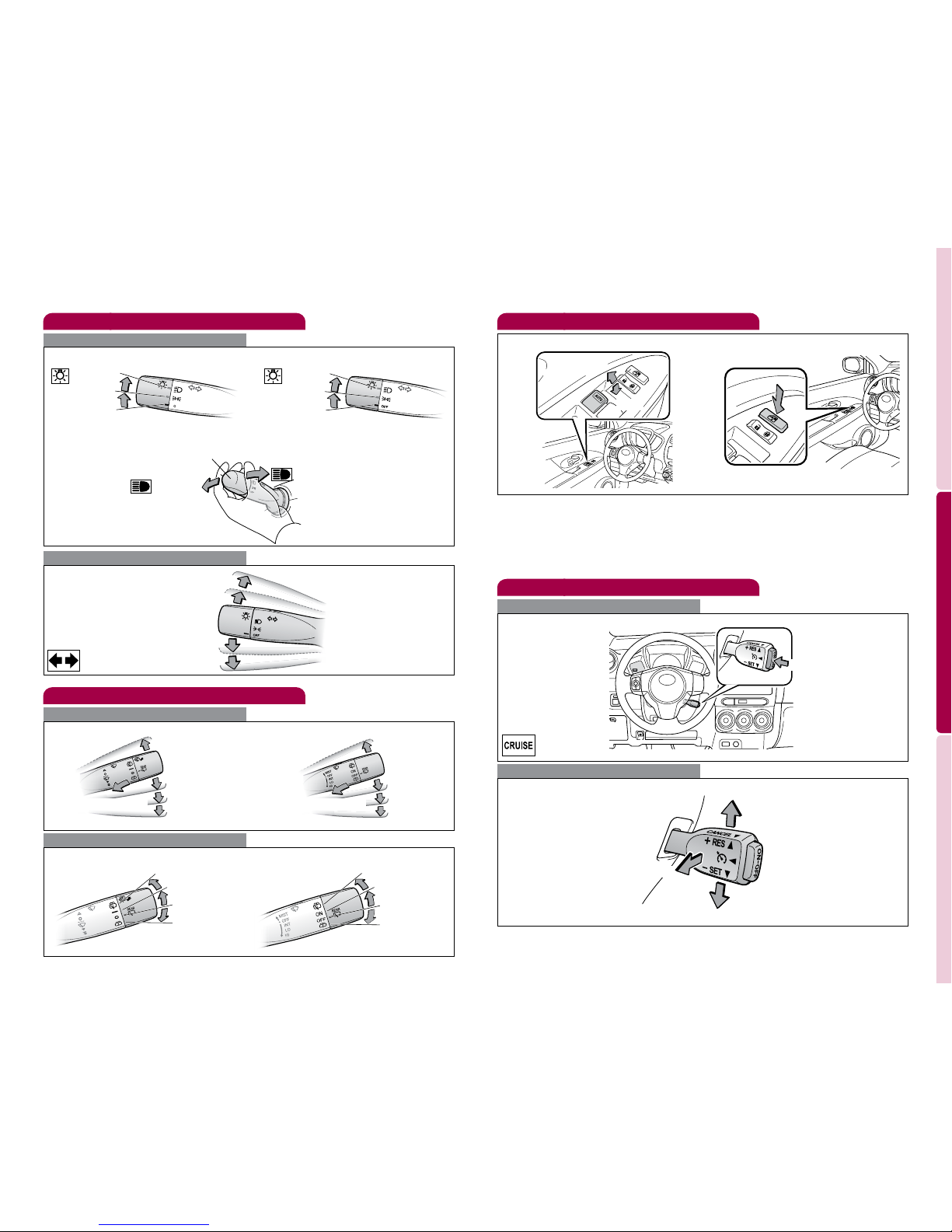

Windshield wipers & washers
Front
Rear
Wash and wipe
Wipe
Wash
Lights & turn signals
Turn signals
Headlights
Headlights
Parking lights
Right turn
Lane change
Lane change
Left turn
Low beam
High beam flasher
High beam
Windows
Automatic down operation (driver side only)
Push the switch completely down and release to fully open. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Up
Down
Driver side
Window lock switch
Cruise control
1
The set speed may also be cancelled by depressing the brake pedal.
2
The set speed may be resumed once vehicle speed reaches 25 mph.
System ON/OFF
Functions
Resume2/Increase speed
Set/Decrease speed
Cancel
1
Type A
Type B
Headlights
Parking lights
Type A
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Type B
Type A
Type B
System ON/OFF
Wash and wipe
Wipe
Wash
Page 8
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12 13
FEATURES/OPERATIONS

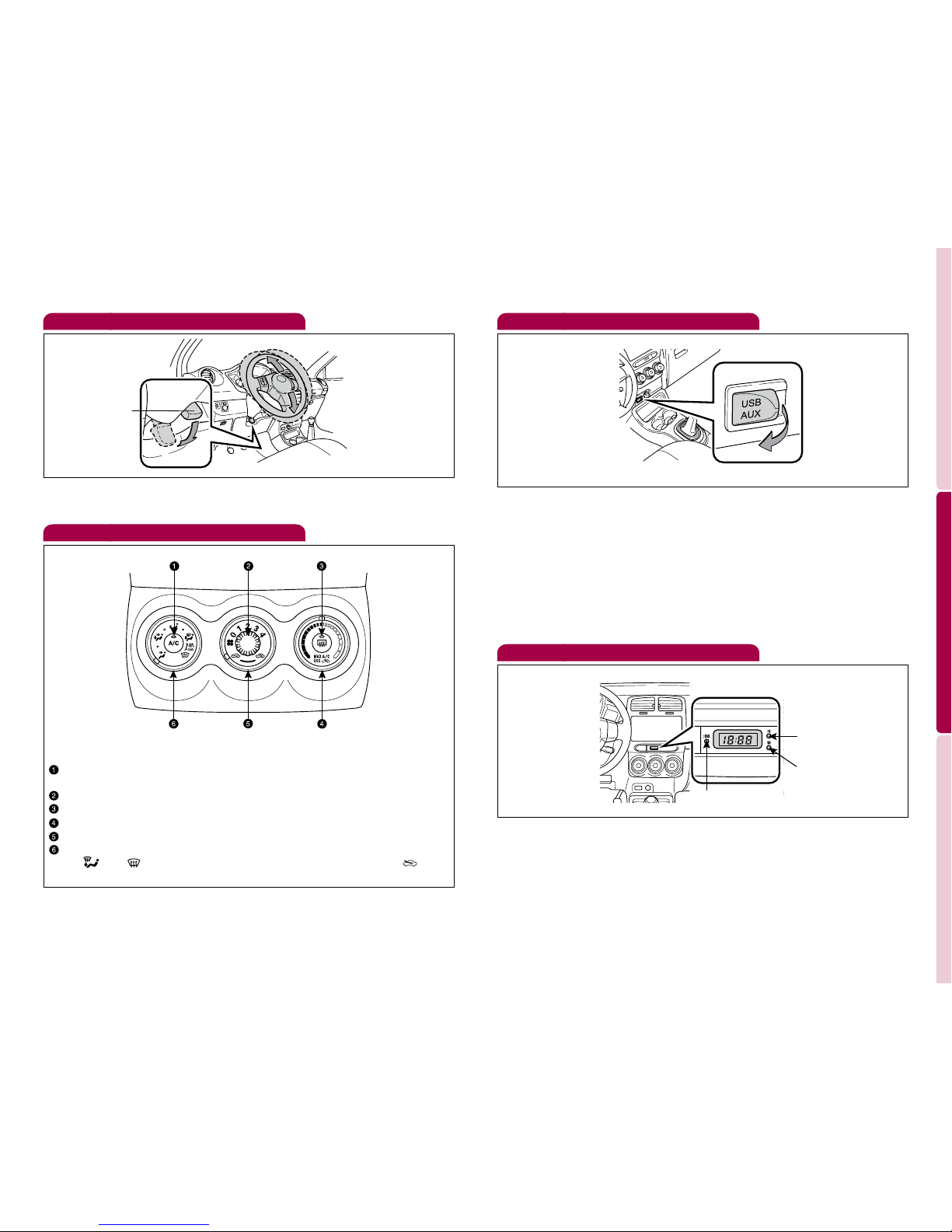

Air Conditioning/Heating
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for cooler air.
Fan speed
Rear window defogger
Temperature selector
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” or “ ” mode, use with the air intake selector position in “ ” to
reduce window fogging.
Clock
USB port/AUX port
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
If you do not have a SCION genuine audio system, you will not be able to use the
AUX port/USB port.
Refer to the SCION Audio or Navigation System Owner’s Manual for more details.
Lock release lever
Angle
:00-Round off
minutes
H-Hour set
M-Minute set
Page 9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
14 15
FEATURES/OPERATIONS

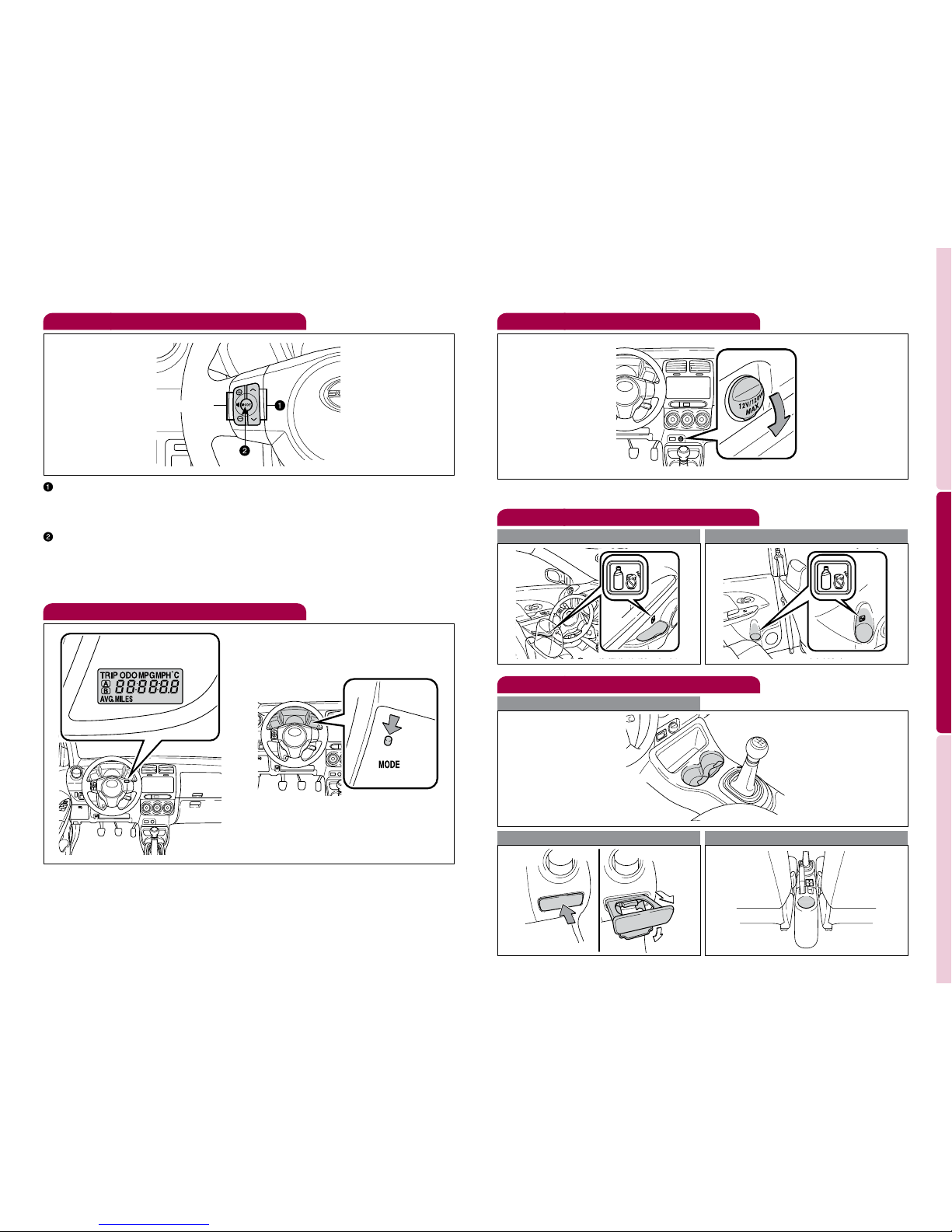

Power outlet
Designed for car accessories. Key must be in the “ACC” or “ON” position for use.
Bottle holders
Front Rear
Multi-Information Display
Push button to change information in the following succession:
(1) Odometer
(2) Trip meters
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Average vehicle speed from engine start (AVG/MPH)
(6) Miles left on remaining fuel (RANGE/MI)
Cup holders
Front passenger side Rear
Front
Steering wheel switches
“ ”
-In radio mode Push to select a preset station; push and hold to seek the next
strong station.
-In CD mode Push to skip up or down to a next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Refer to the SCION Audio or Navigation System Owner’s Manual for more details.
>
>
Volume control
Page 10
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
16 17
SAFETY AND EMERGENCY FEATURES

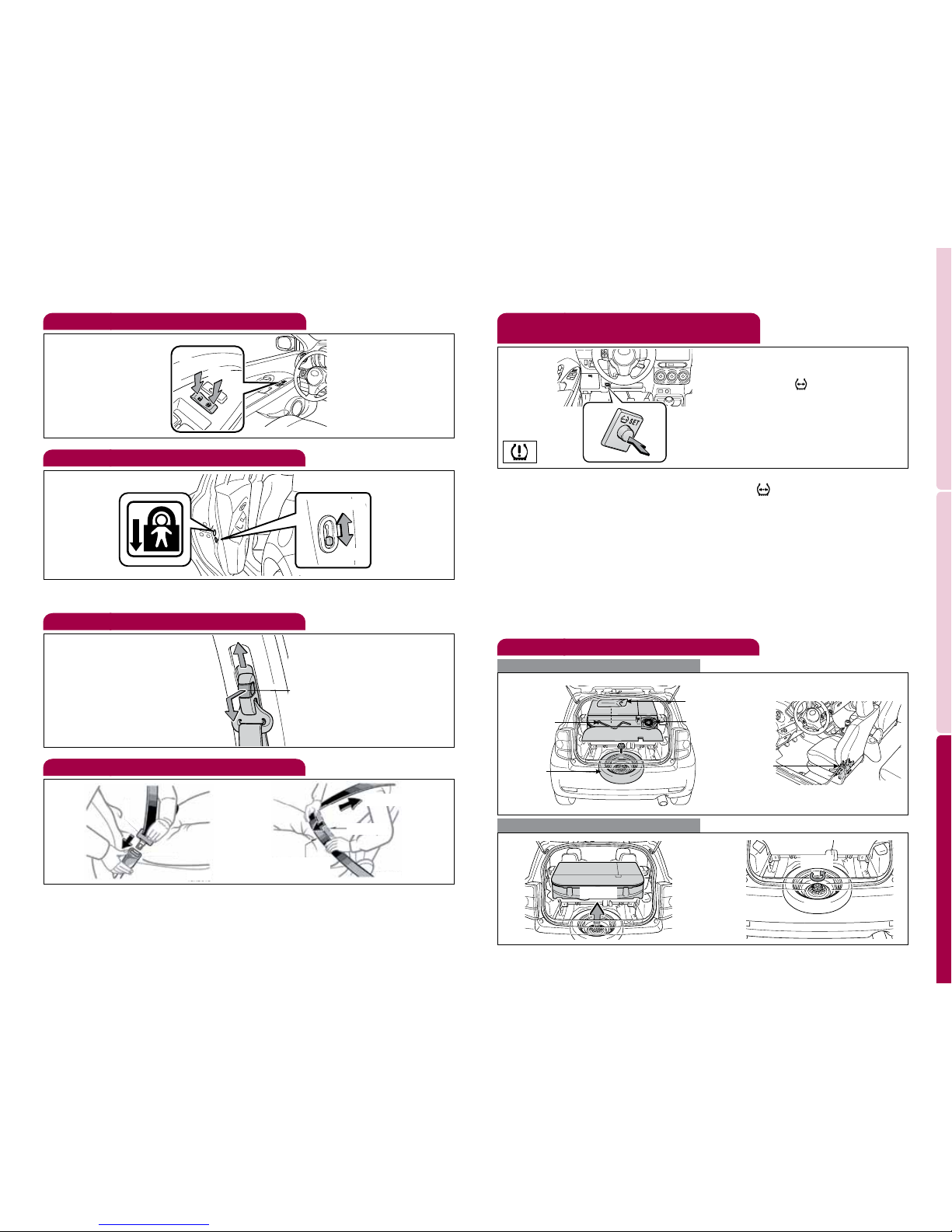

Doors-Child safety locks
Moving the lever to downward will allow the door to be opened only from the
outside.
Seat belts-Shoulder belt anchor
Push up, or pull lock
release to lower
Rear door
Door locks
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Spare tire & tools
Tool and spare tire location
Removing the spare tire
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
Tire Pressure Monitoring (warning)
System
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three times.
2. Wait several minutes to allow
initialization to complete.
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the ignition switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Scion dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the light.
Unlock
Lock
Loosen
Remove
Tool bag
Tire tie-down belt
Spare tire
Jack handle
Jack
Unlock
Lock
Page 11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1918
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.

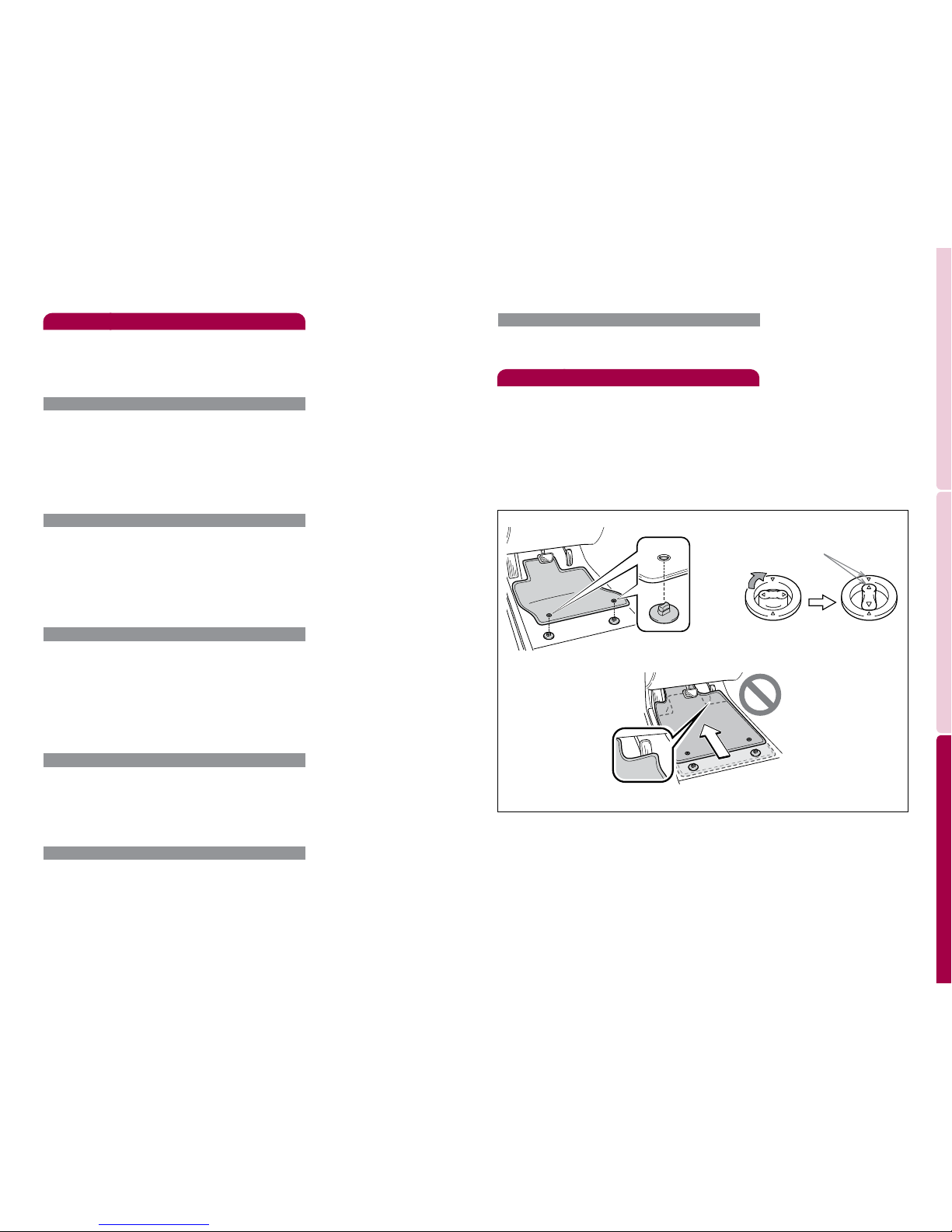

Floor mat installation
SAFETY AND EMERGENCY FEATURES
Smart Stop Technology automatically reduces driving torque when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
Smart Stop Technology (SST)
Star Safety System
TM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can.
VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
All new Toyota vehicles come standard with the Star Safety System
TM
, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
Always align the Δ marks
Page 12
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2120
NOTES
Page 13
MN 00505-QRG13-XB
Printed in the USA 8/12
Loading...
