2014 Corolla
Quick Reference Guide
Page 2
2014
INDEX
Corolla
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Corolla.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla
operations. Every Corolla owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1 6
Smart Key system
Air Conditioning/Heating 16
Audio 14
Auto lock/unlock2 11
Automatic Transmission 10
Auxiliary storage 20
Clock 18
Continuously Variable Transmission 10
Cruise control 17
Cup holders-Adjust size 20
Drive monitor display/Multi-Information Display 19
iPod®/USB/AUX port 15
Light control-Instrument panel 20
Lights & turn signals 13
Manual Transmission 10
Moonroof 19
Parking brake 11
Power outlet 14
Seat adjustments-Front 11
Seat adjustments-Rear 12
Seat heaters 17
Seats-Head restraints 12
Steering wheel switches 15
Telephone controls (Bluetooth®) 18
Tilt and telescopic steering wheel 19
Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 21
Floor mat installation 25
Seat belts 21
Seat belts-Shoulder belt adjustment 21
Spare tire & tools 23
Star Safety SystemTM 24-25
Tire Pressure Monitoring (warning) System 22
Trunk-Internal release 22
1
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
Visit your Toyota dealer for information on customizing this feature.
2
Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
1
Page 3
OVERVIEW
Instrument panel
Steering wheel controls
OVERVIEW
FEATURES/OPERATIONS
Steering wheel audio controls
Paddle shift switches*
Telephone controls
Voice command button*
“DISP” switch
Cruise control*
Power outside rearview mirror controls
Instrument panel light control dial
Headlight, turn signal and front fog light* controls
Meters
Drive monitor display* or Multi-Information Display*
Wiper and washer controls
Emergency flasher button
Clock
2 3
Audio system*, multimedia system* or navigation system*/Rearview monitor*
Air Conditioning controls
Shift lever
Parking brake
Engine switch
Tilt and telescopic steering control
Hood lock release lever
Tire Pressure Monitoring (warning) System reset
* If equipped
NOTE: For vehicles equipped with Entune
“Navigation System With Entune
®
App Suite Quick Reference Guide” or
®
App Suite, please consult the
www.toyota.com/entune.
SAFETY AND EMERGENCY FEATURES
Page 4
OVERVIEW
Instrument cluster
Type A
Type B
Electric power steering warning
Malfunction/Check Engine indicator
1
1
Low fuel level warning
Open door warning
SRS airbag warning
Low Tire Pressure Warning
1
1
Headlight high beam indicator
Turn signal indicator
Front fog light indicator
Slip indicator
1
Cruise control/Cruise control SET indicator
Anti-lock Brake System warning
1
Vehicle Stability Control OFF indicator
Low engine oil pressure warning
1
Maintenance/Service required indicator
OVERVIEW
FEATURES/OPERATIONS
1
1
Tachometer
Speedometer
Fuel gauge
Drive monitor display
Multi-Information Display
Display change button
Engine coolant temperature gauge
Indicator symbols
For details, refer to “Warning lights and indicators,” Section 2, 2014 Owner’s
Manual.
Brake system warning
Seat belt reminder
(alarm will sound if speed is over 12mph)
Charging system warning
“AIRBAG ON/OFF” indicator
1
1
4 5
Traction control OFF indicator
High engine coolant temperature warning
Master warning
1
1
1
Headlight indicator
Sport mode indicator
ECO driving indicator light
1
“ECO MODE” indicator
Smart key system indicator
Security indicator
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
SAFETY AND EMERGENCY FEATURES
Page 5
OVERVIEW
Keyless entry (if equipped)
Locking operation
Type A
Unlocking operation
Type A
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Trunk lid
Type A
Type B
Push
Type B
Push ONCE: Driver door
TWICE: All doors
Type B
Smart Key system (if equipped)
Start function
Vehicles without a Multi-Information Display
Vehicles with a Multi-Information Display
NOTE: Carry the electronic key to enable start function. Gear shift lever must be
in Park and brake pedal depressed.
Power (without starting engine)
Without depressing the brake pedal, pressing the engine switch will change the
operation mode in succession from:
ACC
ON
OFF
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
OVERVIEW
FEATURES/OPERATIONS
Panic button
Locking operation
Front door lock
Touch
Push and hold
Carry remote to lock Carry remote to unlock
Trunk open
Push
Carry remote to open
Push and hold
6 7
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Unlocking operation
Front door unlock*
Grasp
SAFETY AND EMERGENCY FEATURES
Page 6
OVERVIEW
Fuel tank door release and cap
Pull
Store
Hood release
Pull
Turn to open
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check Engine “
” indicator may
illuminate.
Pull up latch
and raise hood
Engine maintenance
OVERVIEW
FEATURES/OPERATIONS
Windshield washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
8 9
SAFETY AND EMERGENCY FEATURES
Page 7
FEATURES/OPERATIONS
S
B
P
R
D
M
3
L
P
R
D
Automatic Transmission (if equipped)
Park*
Reverse
Neutral
N
Drive
Third gear
Second gear
2
First gear
* The engine switch must be “ON” and the brake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Manual Transmission (if equipped)
Lift up ring to shift into reverse
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the engine switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the engine switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Seat adjustments-Front
Manual seat
Power seat* (driver side only)
OVERVIEW
FEATURES/OPERATIONS
Continuously Variable
Transmission (if equipped)
Type A Type B
+
Park*
Reverse
Neutral
N
Drive
Engine Braking
Maximum Engine Braking
P
R
N
D
Park*
Reverse
Neutral
Drive
“M” position
-
-
+
* The engine switch must be “ON” and the brake pedal depressed to shift from Park.
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Seatback angle
Parking brake
Set
Pull
Release
(2) Push
Changing gear steps in the M position
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
(3) Lower
1110
* If equipped
SAFETY AND EMERGENCY FEATURES
(1) Pull slightly
Page 8
FEATURES/OPERATIONS
Seat adjustments-Rear
Fold down
Seats-Head restraints
Front
Lock release button Lock release buttonLock release button
Windows-Power
Driver side
Up
Down
Pull
Rear (Type B)Rear (Type A)
Window lock switch
Windshield wipers & washers
Intermittent windshield wiper
frequency adjustment
Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
(if equipped)
Increase
Decrease
Lights & turn signals
Headlights
Low beam
*
Headlights
Parking lights
DRL OFF
* If equipped
High beam
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
Front fog lights (if equipped)
Turn signals
Right turn
Lane change*
High beam
flasher
OVERVIEW
FEATURES/OPERATIONS
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
12 13
Turn
Front fog lights come on only when
the headlights are on low beam.
Lane change*
Left turn
* Move lever partway and release;
signal will flash three times
SAFETY AND EMERGENCY FEATURES
Page 9
FEATURES/OPERATIONS
Power outlet
The engine switch must be in the “ACC” or “ON” position for use.
Audio (if equipped)
Type 1
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Preset buttons - functions in other
modes indicated above number
Station/CD
track select
Mode
View CD text
Turn to tune
radio stations
manually or
select tracks or
files
iPod®/USB/AUX port
iPod®/USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
Steering wheel switches
Type A
Volume control
Type B
Volume control
OVERVIEW
FEATURES/OPERATIONS
Type 2
Push to turn
ON/OFF
Push to display
audio screen
Eject CD
Touch screen display
Turn to tune radio
stations manually or
select tracks or files
Seeks station/
CD track select
CD player
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
To select a file (MP3/WMA only) Turn “TUNE.SCROLL.”
Radio
To preset stations Tune in the desired station and hold down a preset button (one
of
) until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
14 15
Volume control
Volume control
v
v
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®
, etc.).
“MODE/HOLD”
Push to select an audio mode. Press and hold this switch to mute or pause the
current operation.
SAFETY AND EMERGENCY FEATURES
Page 10
FEATURES/OPERATIONS
Air Conditioning/Heating
A
utomatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Temperature selector
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Fan speed
Airflow vent
In “
” or “ ” mode, use fresh air (“ ” indicator OFF) to reduce window
fogging.
Outside rearview mirror*/Rear defogger
Windshield airflow/defogger
Climate control OFF
* If equipped
M
anual Air Conditioning
Seat heaters (if equipped)
Cruise control (if equipped)
Turning system ON/OFF
Functions
Driver seat Front passenger seat
System ON/OFF
OVERVIEW
FEATURES/OPERATIONS
Airflow vent
In “
” or “ ” mode, use fresh air (“ ” indicator OFF) to reduce window
fogging.
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“
” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror defoggers*/Rear window defogger
Recirculate cabin air (fresh air when OFF)
* If equipped
16 17
Increase speed
1
Cancel
Set/Decrease speed
1
The set speed may also be cancelled by depressing the brake pedal.
2
The set speed may be resumed once vehicle speed exceeds 25 mph.
Resume
2
SAFETY AND EMERGENCY FEATURES
Page 11
FEATURES/OPERATIONS

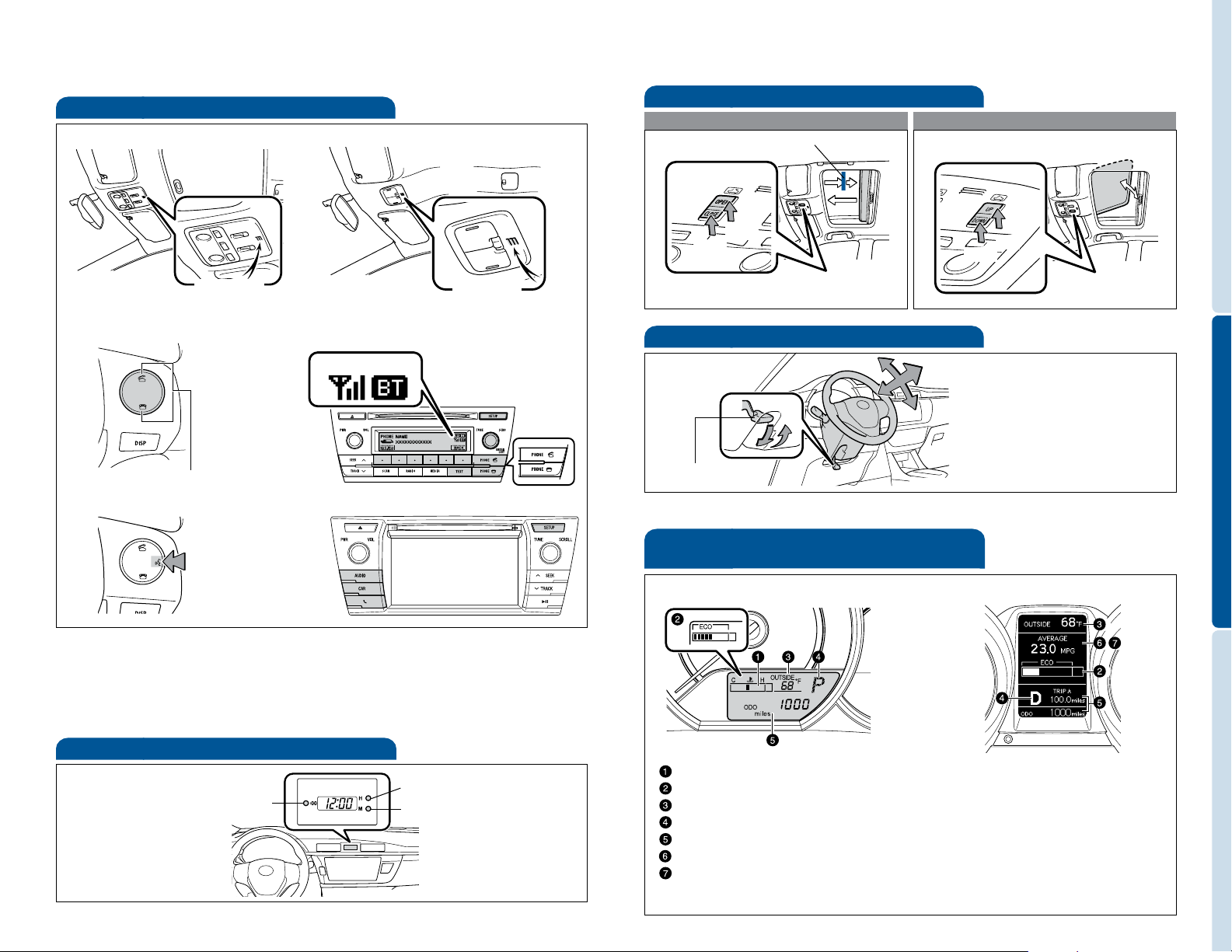

Telephone controls (Bluetooth®)
Vehicles with moonroof
Microphone
Steering wheel telephone switches
Type A
ON/OFF switches
Type B
Voice command
button
Vehicles without moonroof
Audio unit
Type A
Type B
Microphone
Start call
End call
Moonroof (if equipped)
Sliding operation
Recommended open position to
minimize wind noise.
Open
Close
Push once to open partway; again to
open completely.
Tilting operation
Tilt
Close
Tilt and telescopic steering wheel
Angle
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Hold wheel, push lever down,
set angle and length, and
return lever.
Drive monitor display/ Multi-Information Display
Drive monitor display Multi-Information Display
OVERVIEW
FEATURES/OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to Section 5 in the Owner’s Manual, for more information about phone
connections and compatibility.
Clock
Round off minutes
Adjusts the hour
Adjusts the minutes
SAFETY AND EMERGENCY FEATURES
Engine coolant temperature gauge
ECO Driving Indicator Zone Display*
Outside temperature display
Shift position and gear position indicator*
Trip information
Driving monitor
Warning messages
* Except vehicles with Manual Transmission.
1918
Page 12
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Light control-Instrument panel
Brighter
Brightness
control
Darker
Cup holders-Adjust size
Remove divider
Reinsert divider in different position
Seat belts
Take up slack
Too high
Keep as low on
hips as possible
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Seat belts-Shoulder belt adjustment
Push up, or
squeeze lock
release to lower
OVERVIEW
FEATURES/OPERATIONS
Auxiliary storage
Console box Upper level box
Pull up Pull up
Doors-Child safety locks
Rear door
SAFETY AND EMERGENCY FEATURES
Pushing down the lever will allow the door to be opened only from the outside.
2120
Page 13
SAFETY AND EMERGENCY FEATURES
Tire Pressure Monitoring (warning) System
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the engine switch to “ON” and press and hold the “
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
SET” button until indicator
Spare tire & tools
Tool location
Jack handle
Removing the spare tire
(1)
Spare tire
OVERVIEW
Luggage floor cover
Wheel nut wrench
Tool tray
Jack
FEATURES/OPERATIONS
(2)
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
Trunk-Internal release
Push
(3)
SAFETY AND EMERGENCY FEATURES
(1) Remove the luggage floor cover.
(2) Remove the tool tray.
(3) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
2322
Page 14
SAFETY AND EMERGENCY FEATURES
Star Safety System
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
TM
Vehicle Stability Control (VSC)
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Traction Control (TRAC)
VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Smart Stop Technology (SST)
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Onlyusefloormatsdesignedforyourspecificmodel.
• Useonlyonefloormatatatime,usingtheretaininghookstokeepthematin
place.
• Installfloormatsrightsideup.
Always align the Δ marks
OVERVIEW
FEATURES/OPERATIONS
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can.
SAFETY AND EMERGENCY FEATURES
2524
Page 15
00505-QRG14-COR
Printed in the USA 8/13
Loading...
