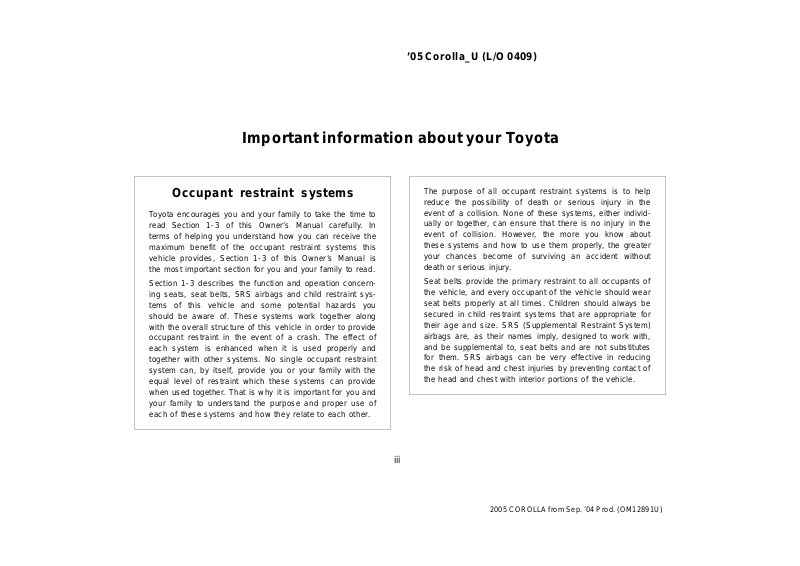

Important information about your Toyota

Occupant restraint systems

Toyota encourages you and your family to take the time to
read Section 1- 3 of this Owner’s Manual carefully. In
terms of helping you understand how you can receive the
maximum benefit of the occupant restraint systems this
vehicle provides, Section 1- 3 of this Owner’s Manual is
the most import ant sect ion for you and your family to read.

Section 1- 3 describes the function and operation concern­ing seats, seat belts, SRS airbags and child restraint sys­tems of this vehicle and some potential hazards you
should be aware of. These systems work together along
with the overall structure of this vehicle in order to provide
occupant restraint in the event of a crash. The effect of
each system is enhanced when it is used properly and
together with other systems. No single occupant restraint
system can, by itself, provide you or your family with the
equal level of restraint which these systems can provide
when used together. That is why it is important for y ou and
your family to understand the purpose and proper use of
each of these systems and how they relate to each other.

The purpose of all occupant restraint systems is to help
reduce the possibility of death or serious injury in the
event of a collision. None of these systems, either individ­ually or together, can ensure that there is no injury in the
event of collision. However, the more you know about
these systems and how to use them properly, the greater
your chances become of surviving an accident without
death or ser ious injury.

Seat belts provide the primary restraint to all occupants of
the vehic le, and every occupant of the vehicle shoul d wear
seat belts properly at all times. Children should always be
secured in child restraint systems that are appropriate for
their age and size. SRS (Supplemental Restraint System)
airbags are, as their names imply, designed to work with,
and be supplemental to, seat belts and are not substitutes
for them. SRS airbags can be very effective in reducing
the ris k of head and chest inj uries by prev enting cont act of
the head and chest wit h interior port ions of the vehic le.

iii

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

In order to be effectiv e, the SRS airbags must deploy wit h
tremendous speed. The rapid deployment of the SRS air­bags makes the SRS airbags themselves potential sources
of serious injury if an occupant is too close to an airbag,
or if an object or some part of his or her body has been
placed between the occupant and the airbag a t the t ime of
deployment. This is just one example of how the instruc­tions in Section 1- 3 of this Owner’s Manual will help en­sure proper use of the occupant restraint systems, and
increase the safety they can provide to you and your fami­ly in the ev ent of an accident.

Toyota recommends you to read the provisions in Section
1- 3 caref ully and refer to them as needed during your ti me
of ownershi p of this vehic le.

Event data recorder

Your vehicle has computers that monitor and control cer­tain aspects of your vehicle. These computers assist in
driving and maintaining optimal vehicle performance. Be­sides storing data useful for troubleshooting, there is a
system to record data in a crash or a near car crash
event. This is called an Event Data Recorder (EDR).

The SRS airbag sensor assembly contains the EDR. In a
crash or a near car crash event, this device records some
or all of the following information:

 Engine speed
 Whether the brake pedal was applied or not
 Vehicle speed
 To what extent the accelerator pedal was depressed
 Position of the transmission selector lever
 Whether the driver and front passenger wore the seat

belts or not

 Driver’s seat position
 Front passenger’s occupant classification

iv

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

 SRS airbag deployment data
 SRS airbag system diagnostic data

The information above is intended to be used for the
purpose of improving vehicle safety performance. Unlike
general data recorders, the EDR does not record sound
data suc h as conv ersati on between pass engers.

Toyota will not disclose the data recorded in an EDR to a
third par ty except w hen:

 An agreement from the vehicle’s owner (or the leas-

ing company for a leased vehicle) is obtained

 Officially requested by the police or other authorities
 Used as a defense for Toyota in a law suit
 Ordered by the court

However, if necessary Toyota will:

 Use the data for research on Toyota vehicle safety

performance

 Disclose the data to a third party for research pur-

poses without disclosing details of the vehicle owner,
and only when it is deemed necessary

 Disclose summarized data cleared of vehicle identifi-

cation information to a non- Toyota organization for
research purposes

New vehicle warranty

Your new vehicle is covered by the following Toyota limited
warranti es:

 New vehicle warranty
 Emission control systems warranty
 Others

For further information, please refer to the “Owner’s War­ranty Information Booklet” or “Owner’s Manual Supple­ment”.

v

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

Your responsibility for

maintenance

It is the owner’s responsibility to make sure that the speci­fied maintenance is performed. Section 6 gives details of
these maintenance requirements. Also included in Section
6 is general maintenance. For scheduled maintenance in­formation, please refer to the “Scheduled Maintenance
Guide” or “ Owner’s Manual Supplem ent”.

Important health and safety

information about your Toyota

CAUTION

 WARNING: Engine exhaust, some of its constitu-

ents, and a wide variety of automobile compo­nents contain or emit chemicals known to the
State of California to cause cancer and birth de­fects and other reproductive harm. In addition,
oils, fuels and fluids contained in vehicles as
well as waste produced by component wear con­tain or emit chemicals known to the State of
California to cause cancer and birth defects or

other reproductive harm.

 Battery posts, terminals and related accessories

contain lead and lead compounds. Wash your
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing

thoroughly with soap and water.

vi

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

Accessories, spare parts and

modification of your Toyota

A wide variet y of non- genui ne spare parts and ac cessori es
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod­ucts and is not respons ible for their performanc e, repair, or
replacement, or for any damage they may cause to, or
advers e effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non- genuine
Toyota products. Modification with non- genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi­tion, damage or performance problems resulting from the
modific ation may not be cover ed under warranty.

Spark ignition system of your

Toyota

The spark igni tion system in your Toyota meets all require­ments of the Canadian Interference- Causing Equipment
Standard.

Installation of a mobile

two- way radio system

As the installation of a mobile two-way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronic throttle control system, cruise
control system, anti- lock brake system, traction control
system, vehicle stability control system, SRS airbag sys­tem and seat belt pretensioner system, be sure to check
with your Toyota dealer for precautionary measures or
speci al instruct ions regarding instal lation.

vii

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

Tires and loading on your

Toyota

Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi ­cally and be sure to keep the load limits given in
this O wner’s M anual. For details a bout t ire i nflation
pressure and load limit s, see pages 197 and 261.

’05 Corolla_U (L/O 0409)

Scrapping of your Toyota

The SRS airbag a nd seat belt pr etensioner dev ices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten­sioner removed and disposed of by the qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.

viii

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

Leak detection pump

This pump performs fuel evaporation leakage check. This
check is done approximately five hours a fter the engine is
turned off. So you may hear sound coming from under­neath the trunk for several minutes. It does not indicate a
malfunction.

’05 Corolla_U (L/O 0409)

ix

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

x

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

SECTION 1-

OPERATION OF INSTRUMENTS AND
CONTROLS

Keys and Doors

Keys 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine immobilizer system 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wireless remote control 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trunk lid 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Toyota vehicle intrusion protection system (TVIP) 27. . . . . . . . . . . . . . .

Hood 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

11

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

Keys

Your vehicle is supplied with two kinds
of keys.

1. Master keys (black)—
These keys work in every lock. Your

Toyota dealer will need one of them to
make a new key with a built- in trans­ponder chip.

Since the doors and trunk lid can be
locked without a key, you should al­ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.

’05 Corolla_U (L/O 0409)

2. Sub key (gray)—
This key will not work in the trunk.
To protect items locked in the trunk

when using valet parking, leave the
sub key with the attendant.

A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.

NOTICE

When using a key containing a trans­ponder chip, observe the following
precautions:



When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.

12

2005 COROLLA from Sep. ’04 Prod. (OM12891U)



When starting the engine, do not
use the key with other transponder
keys around (including keys of oth­er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov­ing other transponder keys (includ­ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’05 Corolla_U (L/O 0409)



Do not bend the key grip.



Do not cover the key grip with any
material that cuts off electromagnet­ic waves.



Do not knock the key hard against
other objects.



Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.



Do not put the key in water or
wash it in an ultrasonic washer.



Do not use the key with electromag­netic materials.

13

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

Engine immobilizer system

KEY NUMBER PLATE
Your key number is shown on the plate.

Keep the plate in a safe place such as
your wallet, not in the vehicle.

If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.

We recommend writing down the key num­ber and storing it in a safe place.

14

The engine immobilizer system is a
theft prevention system. When you in­sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve­hicle. The engine will start only when
the electronic code in the chip corre­sponds to the registered ID code for
the vehicle.

Without Toyota vehicle intrusion protec­tion system

With Toyota vehicle intrusion protection
system

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.

If any of the following indicator conditions
occurs, contact your Toyota dealer.

 The indicator light stays on except

when the Toyota vehicle intrusion
protection system is setting or activat­ing. (See “Toyota vehicle intrusion
protection system (TVIP)” on page 27
in this Section.)

 The indicator light does not start flash-

ing when the key is removed from the
ignition switch.

 The indicator light flashes inconsistent-

ly.

Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.

For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.

If you make your own duplicate key,
you will not be able to cancel the sys­tem or start the engine.

NOTICE

Do not modify, remove or disas­semble the engine immobilizer sys­tem. If any unauthorized changes or
modifications are made, proper opera­tion of the system cannot be guaran­teed.

For vehicles sold in U.S.A.

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ­ing interference that may cause unde­sired operation.

CAUTION

Changes or modifications not ex­pressly approved by the party respon­sible for compliance could void the
user’s authority to operate the equip­ment.

For vehicles sold in Canada

This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:

(1) This device may not cause interfer­ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

15

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

Wireless remote control—

1. “LOCK” switch

2. “UNLOCK” switch

3. “PANIC” switch

The wireless remote control system is
designed to lock or unlock all the
doors or activate the “PANIC” mode
from a distance within approximately 1
m (3 ft.) of the vehicle.

When you operate any switch, push it
slowly and securely.

’05 Corolla_U (L/O 0409)

The wireless remote control transmitter is
an electronic component. Observe the fol­lowing instructions in order not to cause
damage to the transmitter.

 Do not leave the transmitter in places

where the temperature becomes high
such as on the dashboard.

 Do not disassemble it.
 Avoid knocking it hard against other

objects or dropping it.

 Avoid putting it in water.

You can use up to 4 wireless remote con­trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.

If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:

 Check for closeness to a radio trans-

mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.

 The battery may have been consumed.

Check the battery in the transmitter. To
replace the battery, see “—Replacing
transmitter battery” on page 18.

If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci­dent. (See “If you lose your wireless re­mote control transmitter” on page 232 in
Section 4.)

This complies with Part 15 of the FCC
rules. Operation is subject to the follow­ing two conditions:

(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ­ing interference that may cause unde­sired operation.

16

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

—Locking and unlocking
doors

Locking operation

Unlocking operation

’05 Corolla_U (L/O 0409)

To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.

To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time the turn signal lights will flash once.

Check to see that the doors are securely
locked.

If any door is not securely closed, locking
cannot be performed by the “LOCK”
switch.

To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, the
turn signal lights will flash twice.

When the “UNLOCK” switch is pressed,
the interior light comes on. The light re­mains on for about 15 seconds unless any
door is opened and closed. (For further
information, see “Interior/instrument panel
light control” on page 95 in Section 1- 5.)

You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.

If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera­tion is not repeated. Release the switch
and then push again.

17

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

—Activating panic mode

Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights, tail lights, turn signal lights
and interior light.

The “PANIC” mode is used to deter ve­hicle theft when you witness anyone at­tempting to break into or damage your
vehicle.

The alarm will last for one minute. To stop
the alarm midway, push any switch on the
transmitter or turn the ignition key from
the “LOCK” to “ON” position.

The “PANIC” mode does not work when
the ignition key is in the “ON” position.

’05 Corolla_U (L/O 0409)

—Replacing transmitter
battery

For replacement, use a CR2032 lithium
battery or equivalent.

CAUTION

Special care should be taken to pre­vent small children from swallowing
the removed transmitter battery or
components.

NOTICE



When replacing the transmitter bat­tery, be careful not to lose the com­ponents.



Replace only with the same or
equivalent type recommended by a
Toyota dealer.



Dispose of used batteries according
to the local laws.

Replace the transmitter battery by follow­ing these procedures:

1. Using a coin or equivalent, open the
transmitter case.

18

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)



Be careful not to bend the electrode
when inserting the transmitter bat­tery and that dust or oils do not
adhere to the transmitter case.



Close the transmitter case securely.

After replacing the battery, check that the
transmitter operates properly. If the trans­mitter still does not operate properly, con­tact your Toyota dealer.

2. Remove the discharged transmitter bat­tery.

NOTICE

Do not bend the terminals.

3. Put in a new transmitter battery with
positive (+) side up.

Close the transmitter case securely.

NOTICE



Make sure the positive side and
negative side of the transmitter bat­tery are faced correctly.



Do not replace the battery with wet
hands. Water may cause unexpected
rust.



Do not touch or move any compo­nents inside the transmitter, or it
may interfere with proper operation.

19

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

Side doors—

’05 Corolla_U (L/O 0409)

When the interior light control dial is in
the DOOR position and all the doors are
unlocked simultaneously using either the
key or the wireless remote control trans­mitter, the interior light will come on and
remain on for about 15 seconds before
fading out. (For further information, see
“Interior/instrument panel light control” on
page 95 in Section 1-5.)

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn

it.

To lock: Turn the key forward.
To unlock: Turn the key backward.

Vehicles with power door lock system—
All the doors lock and unlock simulta-

neously with either front door. In the driv­er’s door lock, turning the key once will
unlock the driver’s door and twice in suc­cession will unlock all the doors simulta­neously.

20

LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB

Move the lock knob.

To lock: Push the knob forward.
To unlock: Pull the knob backward.

The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

CAUTION

Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.

Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve­hicle.

Vehicles with power door lock system—
Doors cannot be locked when either front
door is open and the key is in the igni­tion.

Driver’s side

Passenger’s side

LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH

Push the switch.

To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.

Operating the switch simultaneously locks
or unlocks all the doors.

If you do either of the following, no door
can be unlocked with the power door lock
switch.

 Lock all the doors with the key or wire-

less remote control transmitter when all
the doors are closed.

 Open the driver’s door or front passen-

ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.

The power door lock switch can be reset
in the following ways.

 Turn the ignition key to “ON”.
 Unlock all the doors with the key or

wireless remote control transmitter.

 Unlock the driver’s door or front pas-

senger’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.

21

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

REAR DOOR CHILD- PROTECTORS
Move the lock lever to the “LOCK”

position as shown on the label.

When the child-protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.

’05 Corolla_U (L/O 0409)

CAUTION

Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve­hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve­hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

—Automatic door locking and
unlocking functions

Vehicles with automatic transmission
and power door lock system—You can
select the following modes of the
automatic locking and unlocking
functions. The initial mode is mode 1.

 Mode 1—Automatic locking linked

with the shift position

All doors are automatically locked when
the shift lever is moved out of the “P”
position with the ignition switch in the
“ON” position and all the doors are
closed.

 Mode 2—Functions cancelled

Automatic door locking and unlocking
functions do not activate in this mode.

 Mode 3—Automatic locking and un-

locking linked with the shift position

Locking function—All doors are auto­matically locked when the shift lever is
moved out of the “P” position with the
ignition switch in the “ON” position and
all doors are closed.

Unlocking function—All doors are auto­matically unlocked when the shift lever
is moved to the “P” position with the
ignition switch in the “ON” position.

22

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

 Mode 4—Automatic locking and un-

locking linked with the shift position
and ignition switch

Locking function—All doors are auto­matically locked when the shift lever is
moved out of the “P” position with the
ignition switch in the “ON” position and
all doors are closed.

Unlocking function—All doors are auto­matically unlocked when the ignition
switch is turned from the “ON” position
to the “ACC” or “LOCK” position.

CHANGING THE MODE
The mode toggles through from mode

1 to mode 4. To change the mode, do
the following:

1. Set the interior light control dial to the
door position. (See “Interior/instrument
panel light control” on page 95 in Sec­tion 1- 5.)

2. Shift the shift lever into the “P” posi­tion and close all doors.

3. Turn the ignition switch to the “ON”
position.

4. Within 5 seconds after the ignition
switch is turned to the “ON” position,
push and hold the power door lock
switch on the front side for about 5
seconds.

’05 Corolla_U (L/O 0409)

5. The interior light will flash to indicate
that the mode has been changed.

The flashing of the interior light indicates
the mode which has been selected.

 Flashing once, the function has

changed to mode 1.

 Flashing twice, the function has

changed to mode 2.

 Flashing three times, the function has

changed to mode 3.

 Flashing four times, the function has

changed to mode 4.

If the battery is disconnected or run down,
the mode is changed into initial mode
(mode 1).

Power windows

The windows can be operated with the
switch on each door.

The power windows work when the ignition
switch is in the “ON” position.

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as

long as you hold the switch.
To open: Lightly push down the switch.

To close: Pull up the switch.

23

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

Window lock
switch

Automatic operation (to open only):

Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.

24

OPERATING THE PASSENGERS’
WINDOWS

Use the switches on the passengers’
doors. The driver’s door also has
switches that control the passengers’
windows.

The window moves as long as you hold
the switch.

To open: Push down the switch.
To close: Pull up the switch.

If you push in the window lock switch on
the driver’s door, the passengers’ windows
cannot be operated.

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

Trunk lid—

CAUTION

To avoid serious personal injury, you
must do the following.

 Before you close the power win-

dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win­dows, make sure he or she oper­ates the windows safely.

 When small children are in the ve-

hicle, never let them use the power
window switches without supervi­sion. Use the window lock switch to
prevent them from making unex­pected use of the switches.

 Be sure to remove the ignition key

when you leave your vehicle.

 Never leave anyone (particularly a

small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat­tended person (particularly a small
child) can be involved in a serious
accident.

To open the trunk lid from the outside,
insert the master key and turn it clock­wise.

See “—Stowage precautions” on page 197
in Section 2 for precautions when loading
luggage.

To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.

25

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

CAUTION

Keep the trunk lid closed while driv­ing. This not only keeps the luggage
from being thrown out but also pre­vents exhaust gases from entering
the vehicle.

’05 Corolla_U (L/O 0409)

—Lock release lever

—Lock release lever
cancelling system

26

To open the trunk lid from the driver’s
seat, pull up on the lock release lever.

After closing the trunk lid, insert the
master key and turn it counterclockwise
to deactivate the lock release lever.

After closing the trunk lid, try pulling it up
to make sure it is securely locked.

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

—Intern al trunk release handle

’05 Corolla_U (L/O 0409)

Toyota vehicle intrusion
protection system (TVIP)

CAUTION

 Always lock the trunk lid and all

doors, and keep away the vehicle
keys out of children’s reach.

 Never leave children unattended in

the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.

If a person is locked in the trunk,
he/she can pull down the phosphores­cent handle on the inside of trunk lid
to open the trunk lid.

The phosphorescent (glow- in- the- dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.

TVIP is a theft deterrent system. If
someone attempts to damage or break
into your vehicle, the system sounds
the alarm while flashing the lights.

27

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

SETTING THE SYSTEM

You can set the system as follows.

1. Remove the key from the ignition
switch.

The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 14 for details.)

2. Have all passengers get out of the
vehicle.

3. Close all the doors and trunk lid secu­rely.

4. Lock all the doors with the key or wire­less remote control transmitter. At this
time, the TVIP indicator light comes
on.

The system will be set in 30 seconds.
When the system is set, the indicator
light will start to flashing again.

5. Make sure that the indicator light
flashes. Then you may leave the ve­hicle.

Never leave anyone in the vehicle when
you set the system because unlocking
from the inside activates the alarm.

Activating the alarm
If the system detects a threat to the

vehicle, it sounds the alarm for one
minute while flashing headlights and
turn signal lights.

At this time, the interior light also turns
on when the interior light dial is in the
DOOR position. (See “Interior/instrument
panel light control” on page 95 in Section
1- 5.)

The system detects a threat under any of
the following conditions:

 Either of the front doors is unlocked by

means other than the key or wireless
remote control transmitter.

If the key is not in the ignition switch,
all the doors will be automatically
locked again.

 Any of the doors or trunk lid are forci-

bly opened.
The alarm will activate when the trunk

lid is opened with a key. Cancel the
system before opening the trunk lid.

 The side windows are tapped or bro-

ken.

 The battery terminal is disconnected

and then reconnected.

 The ignition is hotwired.

After one minute, the alarm automatically
stops and the indicator light starts flashing
again.

28

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

Reactivating the alarm

Once set, until you cancel the system, the
system automatically resets the alarm af­ter the alarm has stopped.

The alarm will activate again under the
same circumstances described in “Activat­ing the alarm”.

Stopping the alarm

You can stop the alarm in either of the
following ways:

 Unlock any of the doors with the key

or wireless remote control transmitter.

 Place the ignition switch in the “ON”

position.

CANCELLING THE SYSTEM

You can cancel the system as described
in “Stopping the alarm”.

If you cancel the system by unlocking any
of the doors but no door is opened within
30 seconds, all the doors lock automati­cally and the system will be set again.

’05 Corolla_U (L/O 0409)

TESTING THE SYSTEM

You can check the system operation as
follows.

1. Open all the windows.

2. Set the system as described in
“SETTING THE SYSTEM”.

3. Unlock the driver’s door with the inside
lock knob. The system should activate
and the alarm should sound.

4. Stop the alarm as described in “Stop­ping the alarm”.

5. Repeat steps 2 to 4 for the other
doors. (For rear doors, unlock and then
open the doors as described in step 3.)

If the system does not work properly,
have it checked by your Toyota dealer.

Hood

To open the hood:

1. Pull the hood lock release lever. The
hood will spring up slightly.

CAUTION

Before driving, be sure that the hood
is closed and securely locked. Other­wise, the hood may open unexpected­ly while driving and an accident may
occur.

29

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.

’05 Corolla_U (L/O 0409)

3. Hold the hood open by inserting the
support rod into the slot.

To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.

Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.

CAUTION

After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.

NOTICE

Be sure to return the support rod to
its clip before closing the hood. Clos­ing the hood with the support rod up
could cause the hood to bend.

30

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

Fuel tank cap

’05 Corolla_U (L/O 0409)

This indicates that the fuel filler door
is on the left side of your vehicle.

1. To open the fuel filler door, pull the
lever up.

When refueling, turn off the engine.

CAUTION

 Do not smoke, cause sparks or al-

low open flames when refueling.
The fumes are flammable.

 When opening the cap, do not re-

move the cap quickly. In hot weath­er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re­moved.

2. To remove the fuel tank cap, turn
the cap counterclockwise by 90 de­grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.

It is not unusual to hear a slight swoosh
when the cap is opened.

31

2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)

When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.

If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.

The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.

Electric moon roof

3. The removed cap can be stored on
the back side of the fuel filler door.

Position the cap so that the hooks point
to the left and right, and set it in the
receptacle on the back side of the door.

32

CAUTION

 Make sure the cap is installed se-

curely to prevent fuel spillage in
the event of an accident.

 Use only a genuine Toyota fuel tank

cap for replacement. It is designed
to regulate fuel tank pressure.

NOTICE

To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.

Sliding operation

Tilting operation

2005 COROLLA from Sep. ’04 Prod. (OM12891U)
