Page 1
2014
Yaris Liftback
Quick Reference Guide
Page 2
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Yaris.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Yaris
operations. Every Yaris owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014
Yaris Liftback
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry*
6
Air Conditioning/Heating 13
Automatic Transmission 8
Clock 14
Cruise control 13
Cup holders 15
Door-Back 15
Light control-Instrument panel 9
Lights & turn signals 9
Multi-Information Display 15
Parking brake 8
Power outlet 11
Seat adjustments-Front 10
Seat-Folding rear seat 10-11
Seats-Head restraints 11
Steering wheel switches 14
Tilt steering wheel 8
USB port/AUX port 14
Windows-Power 12
Windshield wipers & washers
12
Door locks-Power 16
Floor mat installation 19
Seat belts 16
Spare tire & tools 17
Star Safety System
TM
18-19
Tire Pressure Monitoring (warning) System 16
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
* Visit your Toyota dealer for information on customizing this feature.
Page 3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2 3

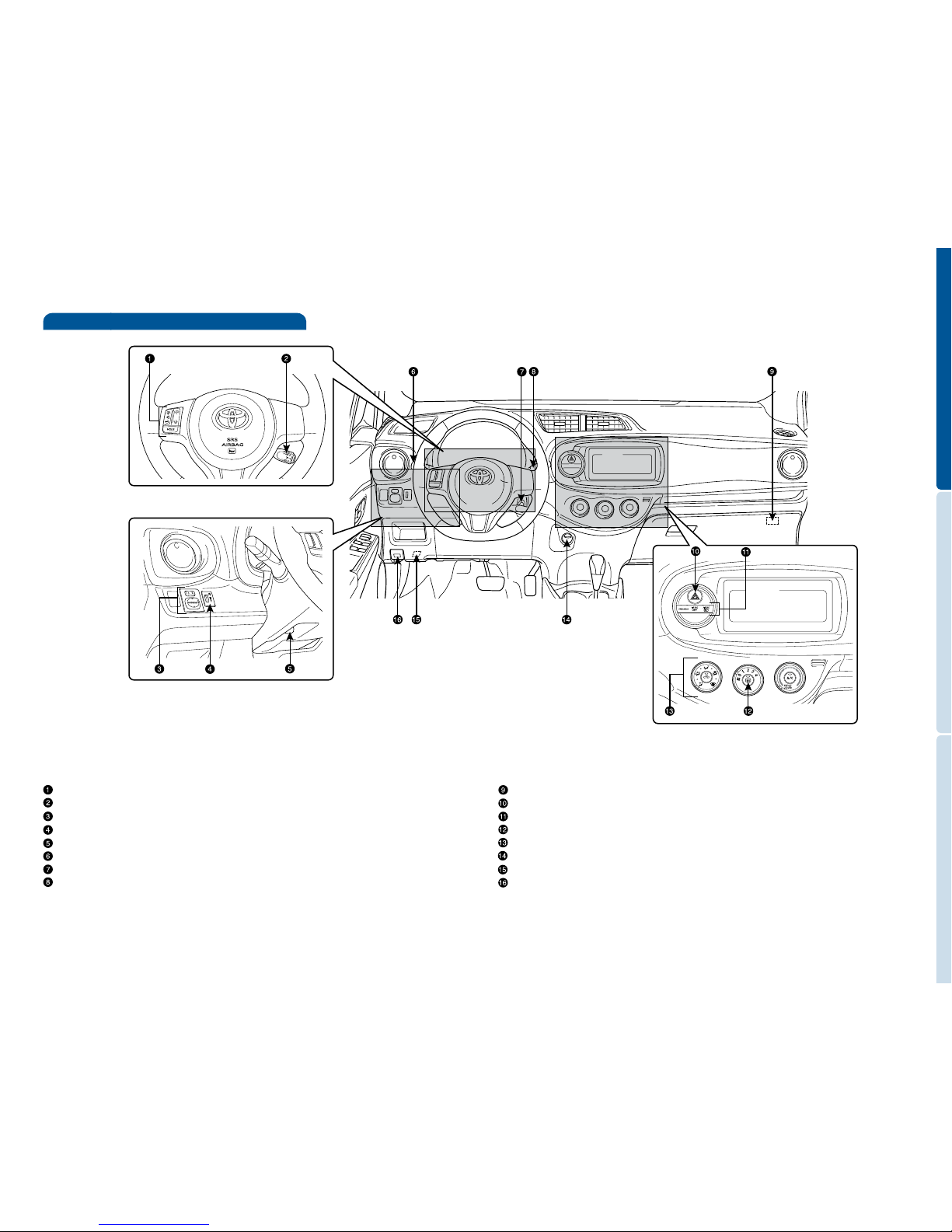

OVERVIEW
Steering wheel audio controls
1,2
Cruise control
1
Power outside rearview mirror control switches
1
Instrument panel light control
Tilt steering lock release lever
Headlight, turn signal and front fog light
1
controls
Ignition switch
Wiper and washer controls
Instrument panel
USB port/AUX port
1
Emergency flasher switch
“AIR BAG ON” and “AIR BAG OFF” indicator
Rear window defogger switch
Air Conditioning controls
12V DC Power outlet
Tire Pressure Monitoring (warning) System
Hood release
1
If equipped
2
Refer to the Toyota Audio System Owner’s Manual or the Navigation
System Owner’s Manual for more details.
Page 4
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
4 5
OVERVIEW
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning
1
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2
For details, refer to “Cruise control” Section 2-4, 2014 Owner’s Manual.

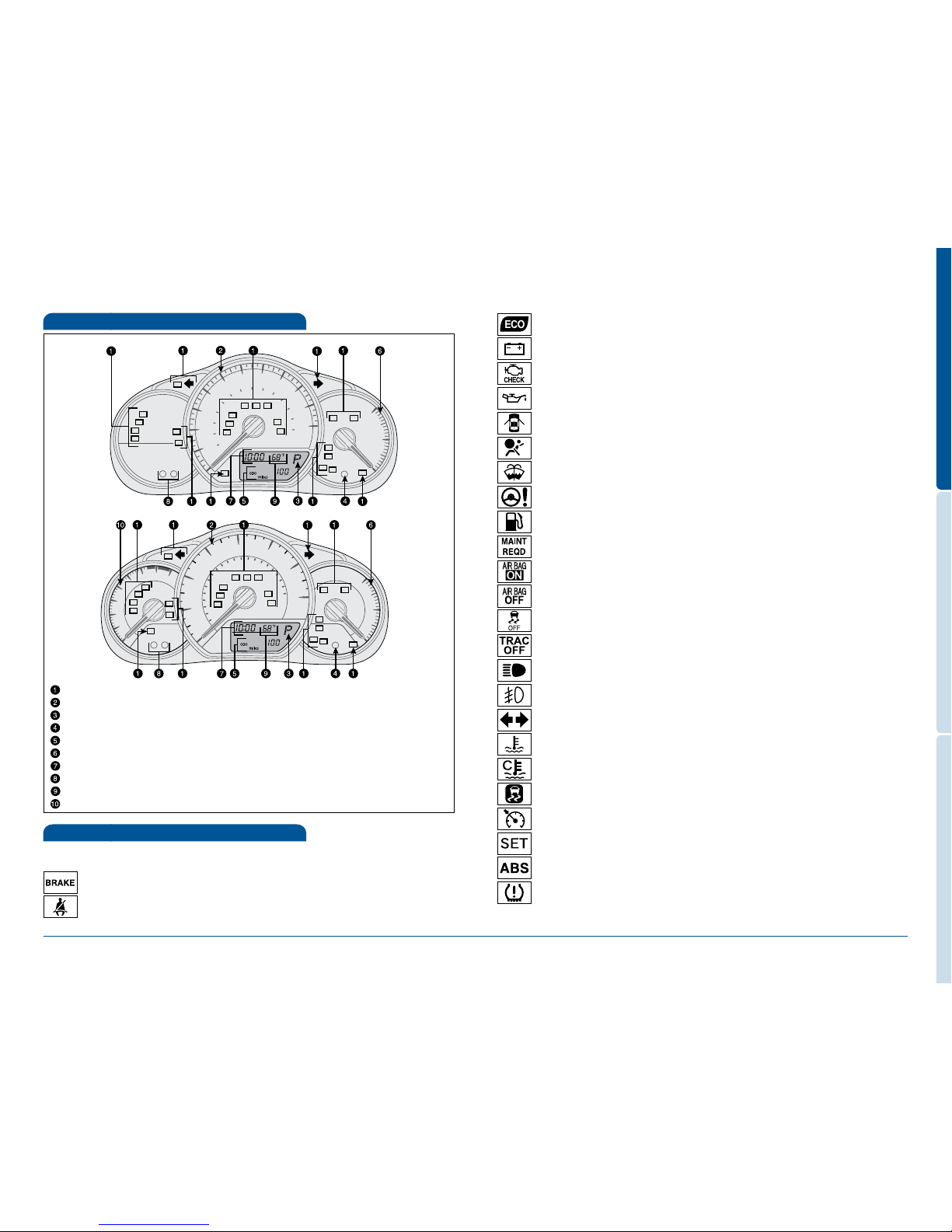

Indicator symbols
Service indicator and reminder
Speedometer
Automatic Transmission shift position indicator (if equipped)
Display change button
Odometer, trip meter and Multi-Information Display
Fuel gauge
Clock
Clock adjusting buttons
Outside temperature display
Tachometer
Instrument cluster
Without tachometer
With tachometer
Charging system warning
1
Low engine oil pressure warning
1
Anti-lock Brake System warning
1
Malfunction/Check Engine indicator
1
Open door warning
Low windshield washer fluid warning
Engine oil replacement reminder
1
AIR BAG ON indicator
AIR BAG OFF indicator
1
VSC OFF indicator
1
Turn signal indicator
Low fuel level warning
Headlight high beam indicator
High engine coolant temperature warning
1
Airbag SRS warning
1
Electric power steering system warning
1
Low engine coolant temperature indicator
Front fog light indicator
Low Tire Pressure Warning
1
Cruise control SET indicator
Cruise control indicator
2
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual.
Slip indicator
1
Eco Driving Indicator Light
1
TRAC OFF indicator
1
Page 5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
6 7
OVERVIEW

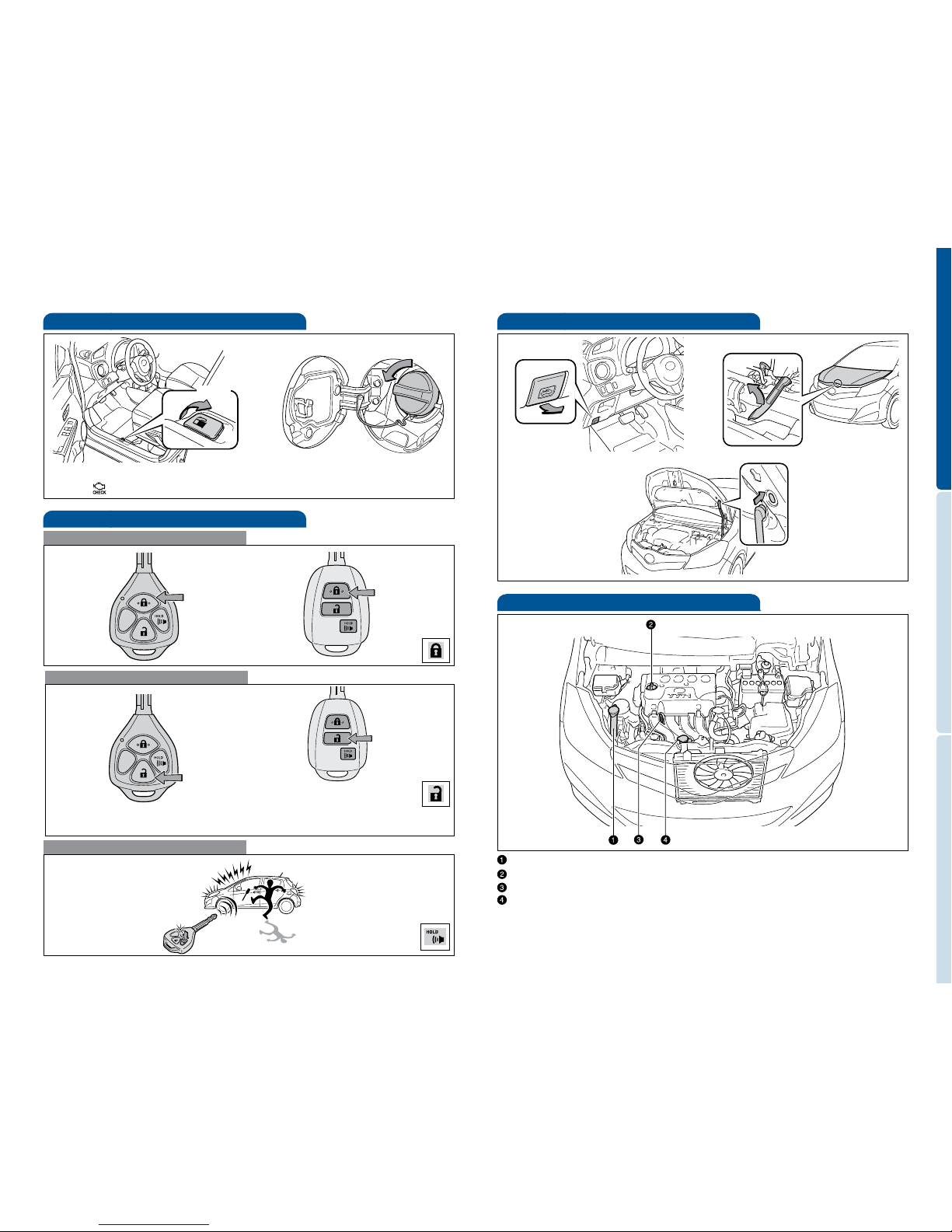

Fuel tank door release and cap
Pull up
Turn to open
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.
Keyless entry (if equipped)
Unlocking operation
Panic button
Push ONCE: Driver door
TWICE: All doors
Locking operation
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Hood release
Engine maintenance
Windshield washer and rear window washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Pull
Pull up latch
and raise hood
Engage support rod
Push
Type A
Type B
Type A
Type B
Page 6
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
8 9
FEATURES/OPERATIONS

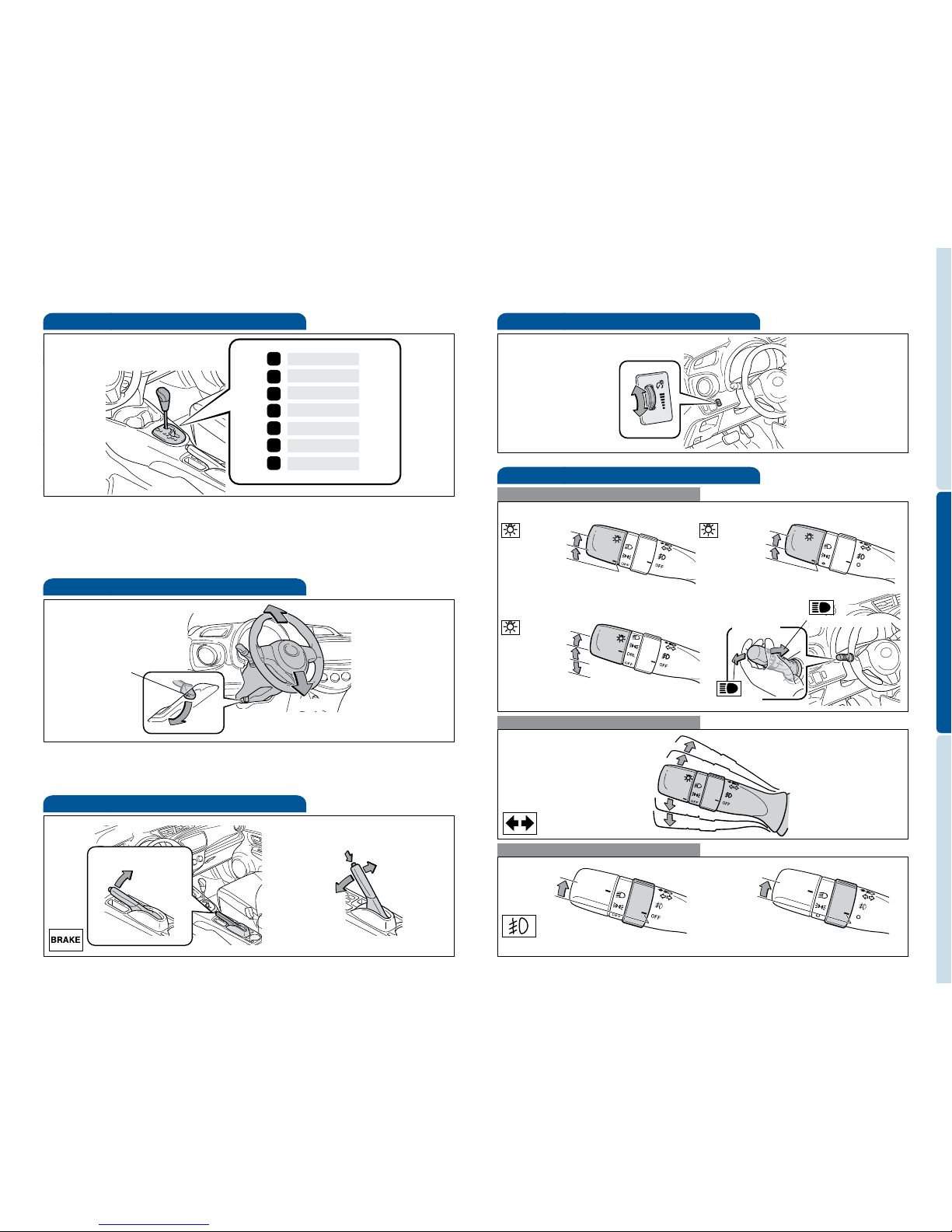

Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Park*
P
Reverse
R
Neutral
N
Drive
D
Third gear
3
Second gear
2
First gear
L
Tilt steering wheel
Angle
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Parking brake
Pull
(2) Push
Set
Release
(1) Pull slightly
(3) Lower
Light control-Instrument panel
Brightness
control
+
-
Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
Parking lights
High beam
Turn signals
Front fog lights (if equipped)
Front fog lights turn on only when the headlights are on low beam.
Headlights
Headlights
Parking lights
Parking lights
DRL ON
DRL OFF
Type A
Type C
Type B
Type A
Type B
Turn
Turn
Right turn
Lane change
Lane change
Left turn
Page 7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1110
FEATURES/OPERATIONS

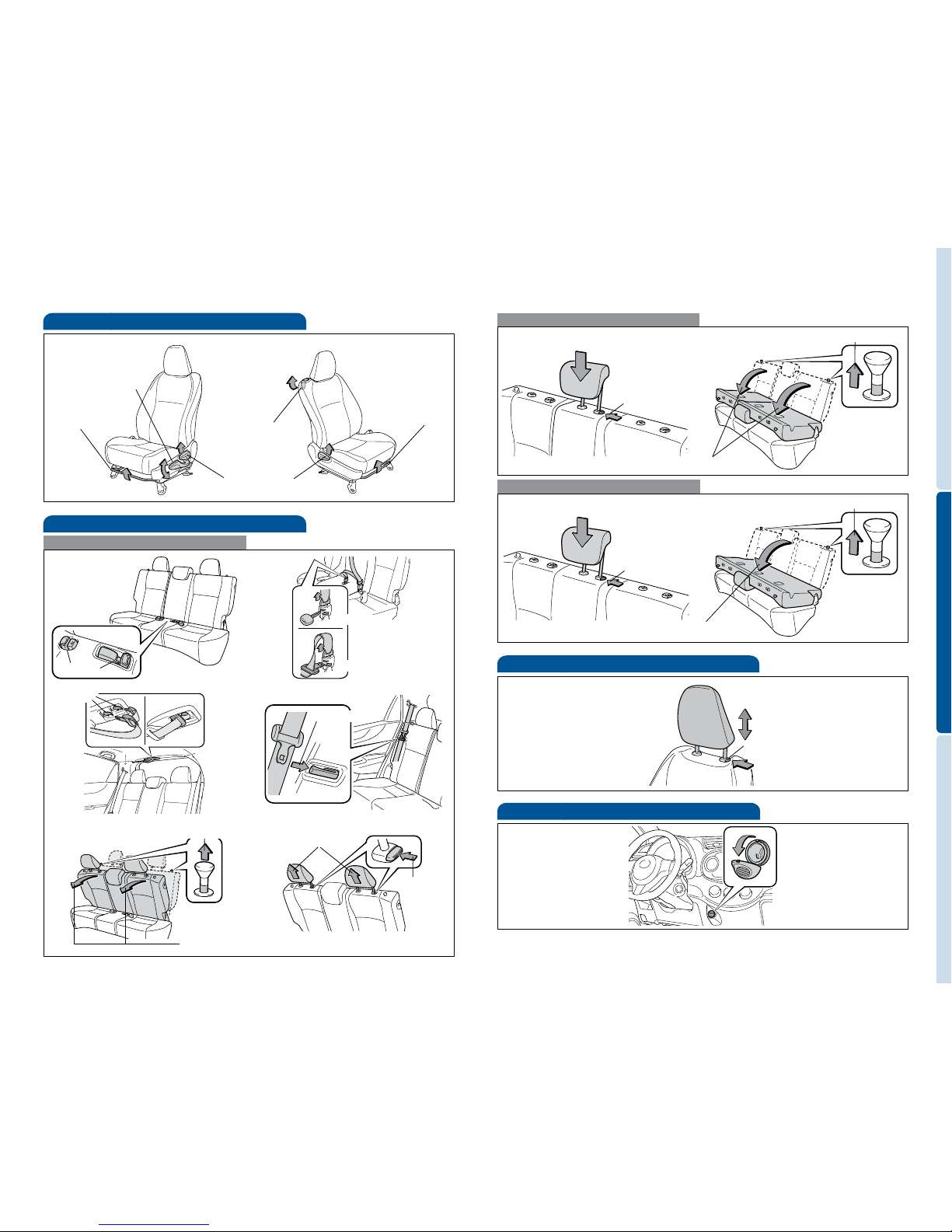

Seat-Folding rear seat
Before folding
Fold (split seat)
(1) Push
(3) Pull up
(2) Lower
(4) Fold down
Fold (non-split seat)
(1) Push
(3) Pull up
(2) Lower
(4) Fold down
Seat adjustments-Front
Seatback angle
Seat position
(forward/backward)
Lock release button
Seats-Head restraints
Seat position
(forward/backward)
Seatback lock release
(3-door models)
Driver seat
Passenger seat
Height crank
(if equipped)
(1) Store
(4) Store
(2) Push
(2) Push
(3) Store
(5) Pull up
(6) Fold down
(8) Pull up
(7) Push
Power outlet
Designed for 12V car accessories. Key must be in the “ACC” or “ON” position to
be used.
Page 8
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12 13
FEATURES/OPERATIONS

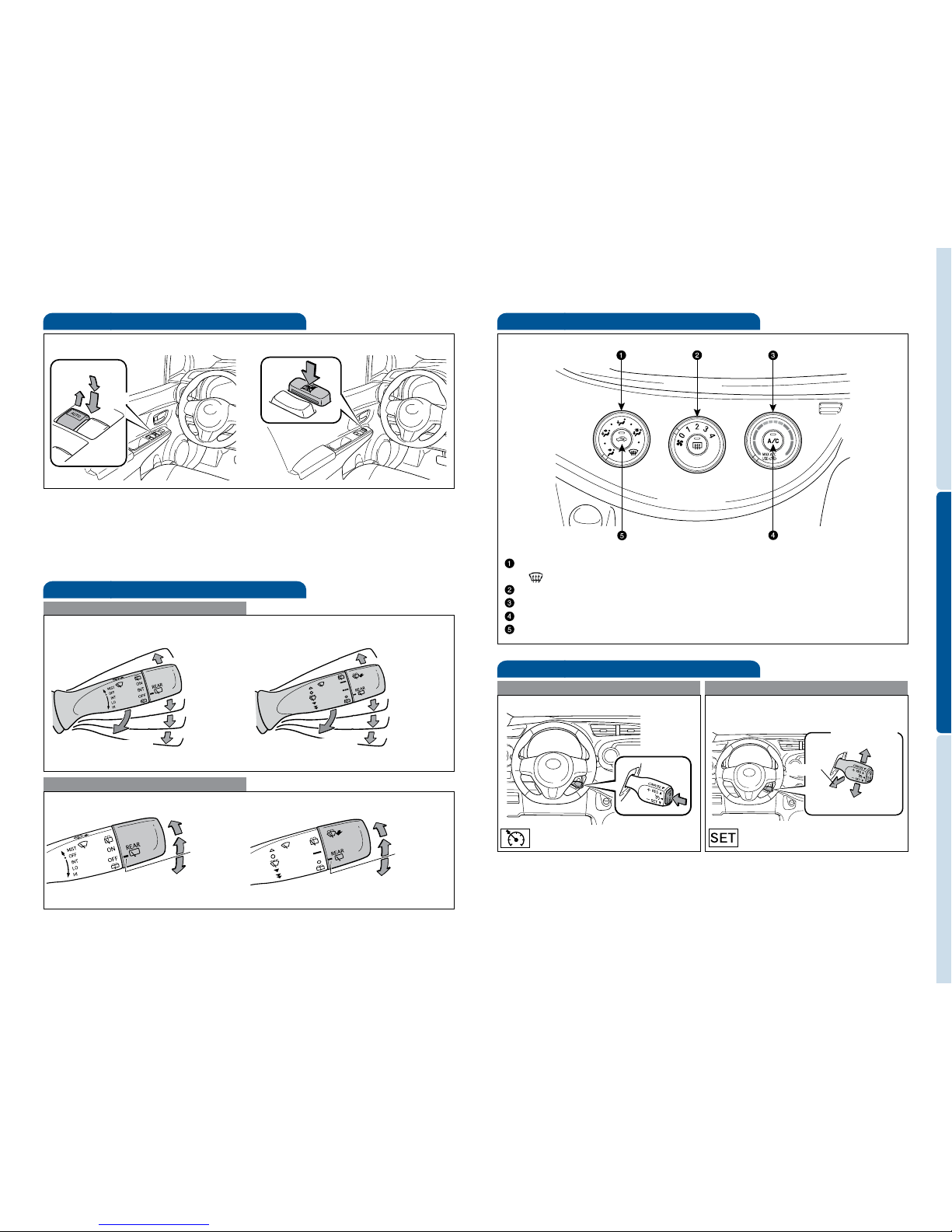

Windows-Power (if equipped)
Automatic operation (driver’s window only) Push the switch completely down
and release to fully open. To stop window partway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Window lock switch
Up
Driver side
Down
Windshield wipers & washers
Rear
Front
Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
Airflow vent
“
” mode uses fresh air to reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Air Conditioning/Heating
Cruise control (if equipped)
1
The set speed may also be cancelled by depressing the brake pedal or the clutch
pedal (Manual Transmission).
2
Unless vehicle speed drops below 10 mph, the set speed may be resumed once
vehicle exceeds 25 mph.
Refer to the Owner’s Manual for more details.
Turning system ON/OFF Functions
Resume2/
Increase speed
Set/Decrease speed
Cancel
1
System ON/OFF
Type A
Type B
Wipe
Wash and wipe
Wash
Type B
Wipe
Wash and wipe
Wash
Type A
Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
Page 9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
14 15
FEATURES/OPERATIONS

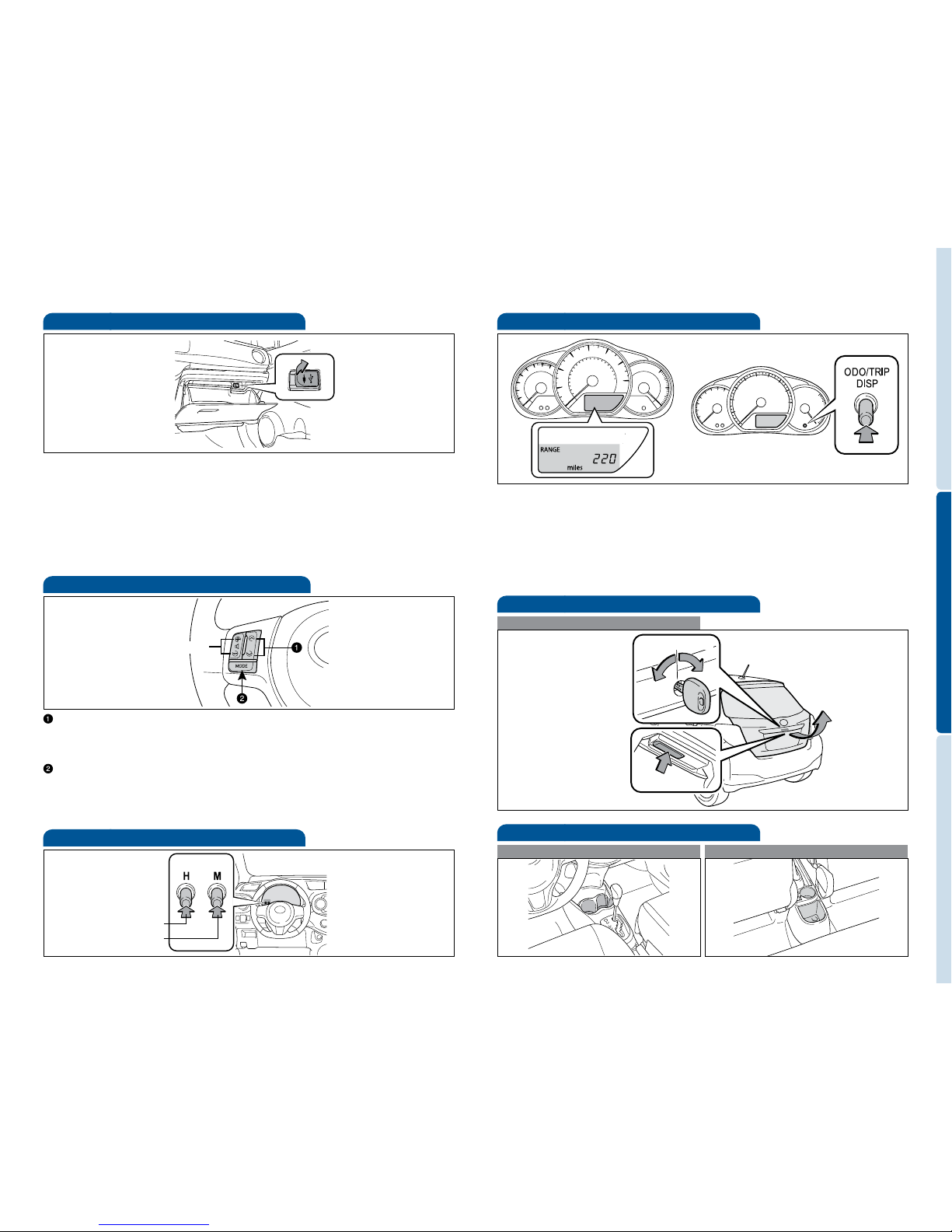

Door-Back
Open/Close
Unlock
*
Lock
*
USB port/AUX port (if equipped)
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
Refer to the Toyota Audio or Navigation System Owner’s Manual for more details.
Multi-Information Display
Push button to change information in the following succession:
(1) Odometer
(2) Trip meters
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Miles left on remaining fuel (RANGE/MI)
(6) Average vehicle speed from engine start (AVG/MPH)
Steering wheel switches (if equipped)
“ ”
-In radio mode Push to select a preset station; push and hold to seek the next
strong station.
-In CD mode Push to skip up or down to a next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Refer to the Toyota Audio or Navigation System Owner’s Manual for more details.
>
>
Volume control
Cup holders
Front Rear
Clock
Hour set
Minute set
* Vehicles with back door keyhole
Page 10
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
16 17
SAFETY AND EMERGENCY FEATURES
Keep as low on
hips as possible
Take up slack
Too high

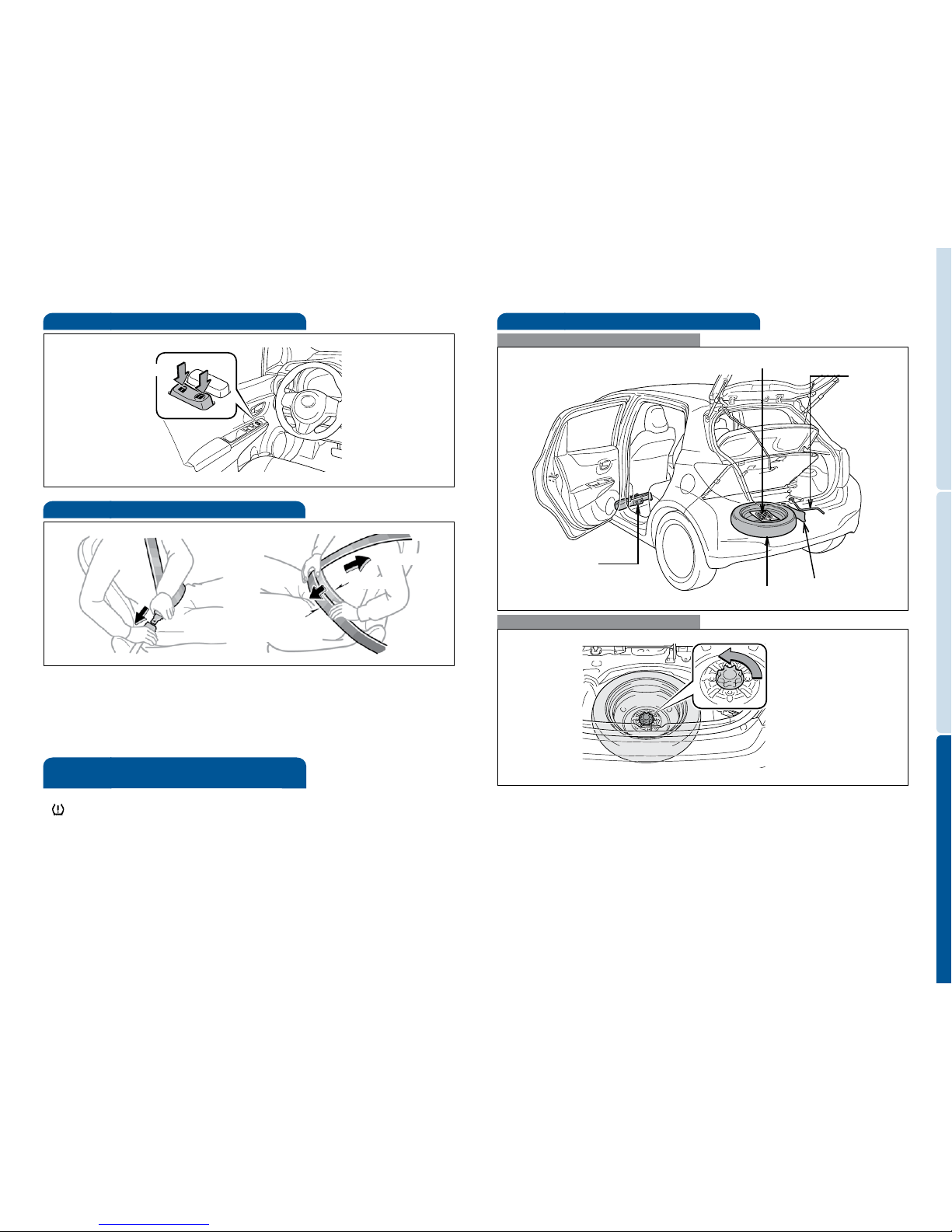

Seat belts
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Door locks-Power
Unlock
Lock
If tire pressure becomes critically low on any of the tires (excluding the spare),
“
” indicator will illuminate. Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn off, have the system checked
by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
Spare tire & tools
Tool location
Removing the spare tire
Loosen and remove
the bolt.
Tool bag
Tie-down belt
Jack handle
Spare tire
Jack
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Page 11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1918
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.

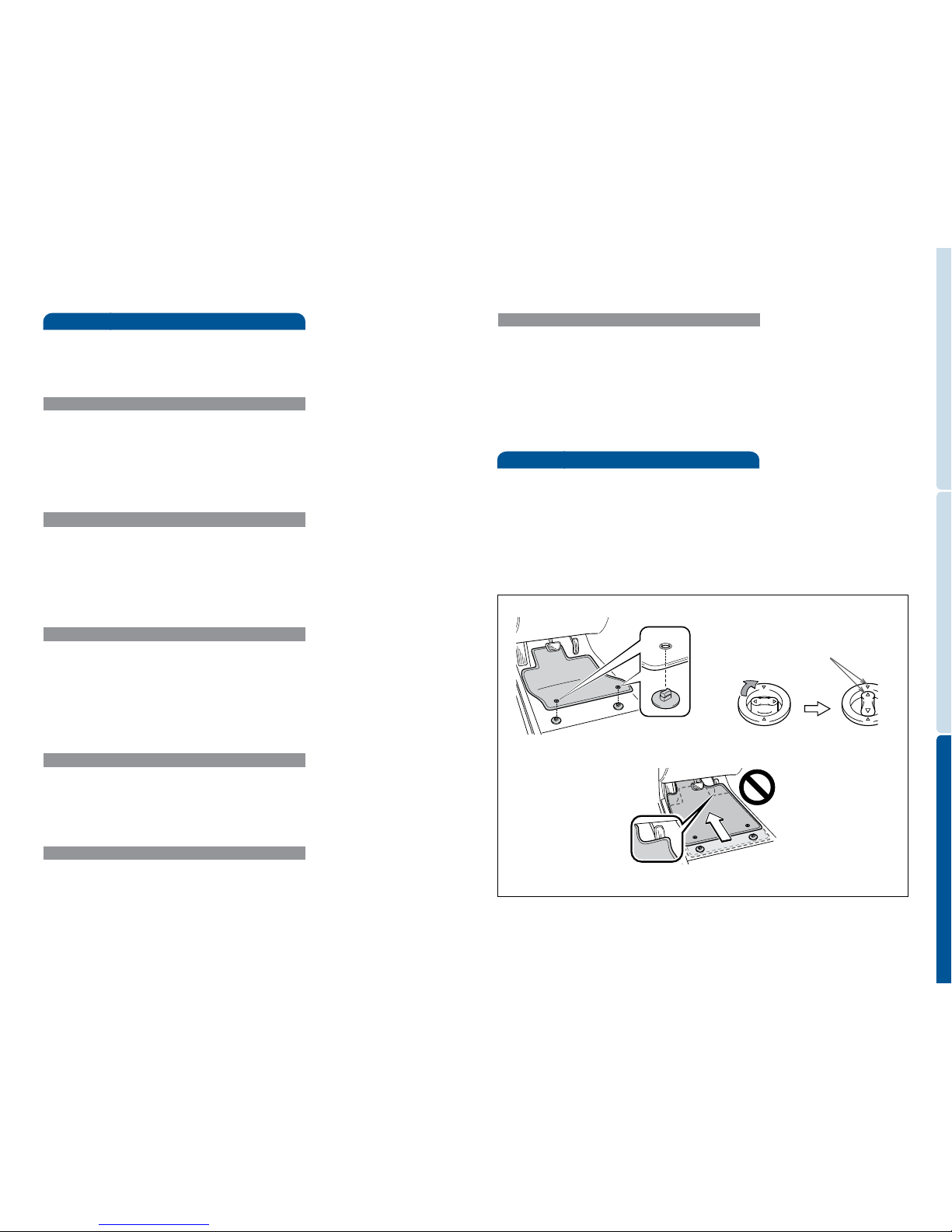

Floor mat installation
SAFETY AND EMERGENCY FEATURES
Smart Stop Technology automatically reduces driving torque when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)
Star Safety System
TM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can.
VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
All new Toyota vehicles come standard with the Star Safety System
TM
, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
Always align the Δ marks
Page 12
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2120
NOTES
Page 13
MN 00505-QRG14-YARLB
Printed in the USA 5/13
Loading...
