Page 1

QUICK REFERENCE GUIDE

2013

HigHlander

Page 2

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Highlander.

A word about safe vehicle operations

This Quick Reference Guide is not a full description of Highlander operations. Every Highlander owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

2013

Highlander

Page 3

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

INDEX

Engine maintenance 9 Fuel tank door release and cap 8 Hood release 8 Indicator symbols 4-5 Instrument cluster 4 Instrument panel 2-3

Keyless entry

Light control-Instrument panel 9

Smart Key system

1,2

Air Conditioning/Heating 20-22 Audio 24-25

Auto lock/unlock

Automatic Transmission 10 Bluetooth

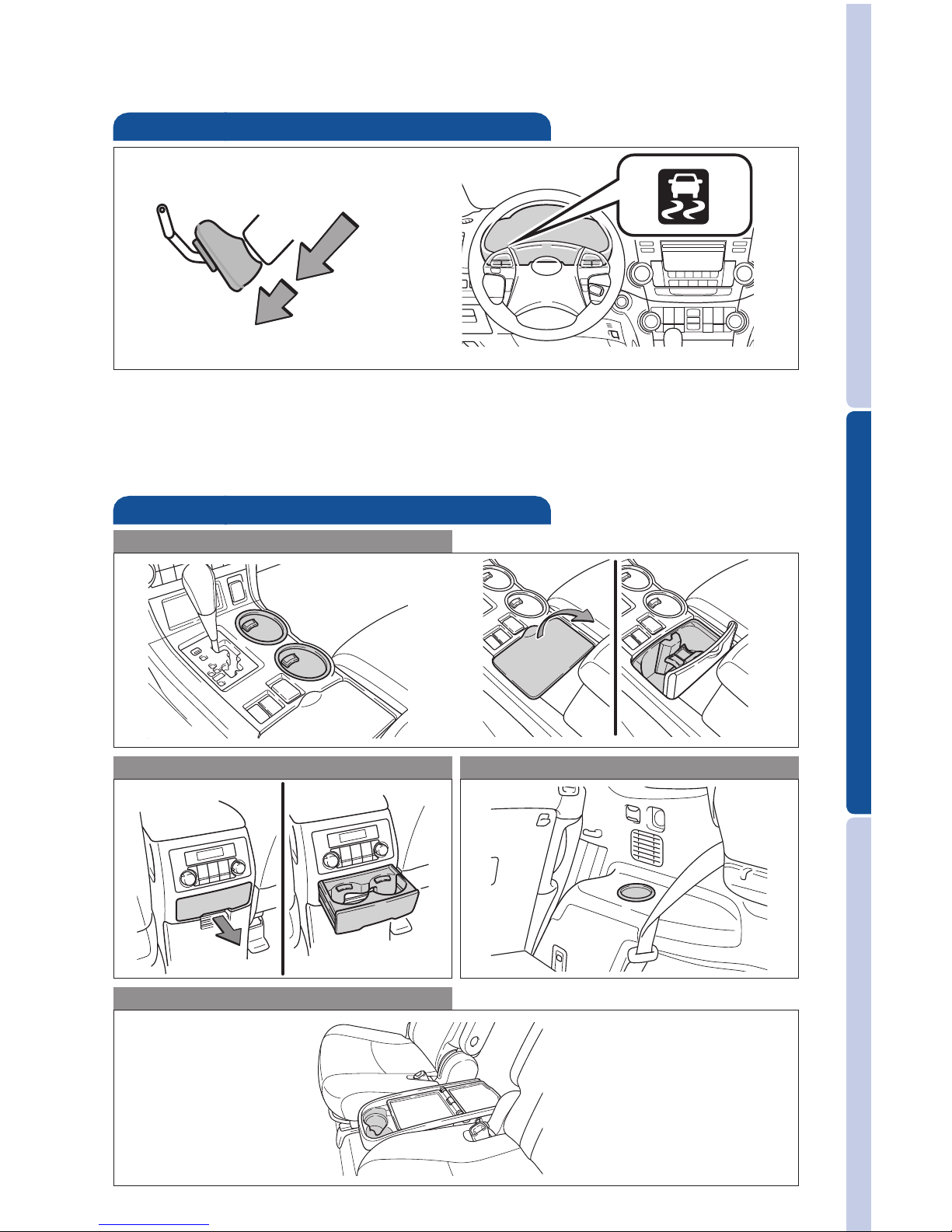

audio 25 Clock 22 Cruise control 23 Cup holders 27 Door locks 10 Door-Power back 12 Downhill Assist Control system (DAC) 26 Garage door opener (HomeLink®)

Hill-start Assist Control (HAC) 27

Lights1 & turn signals 16

Moonroof 12

Multi-Information Display

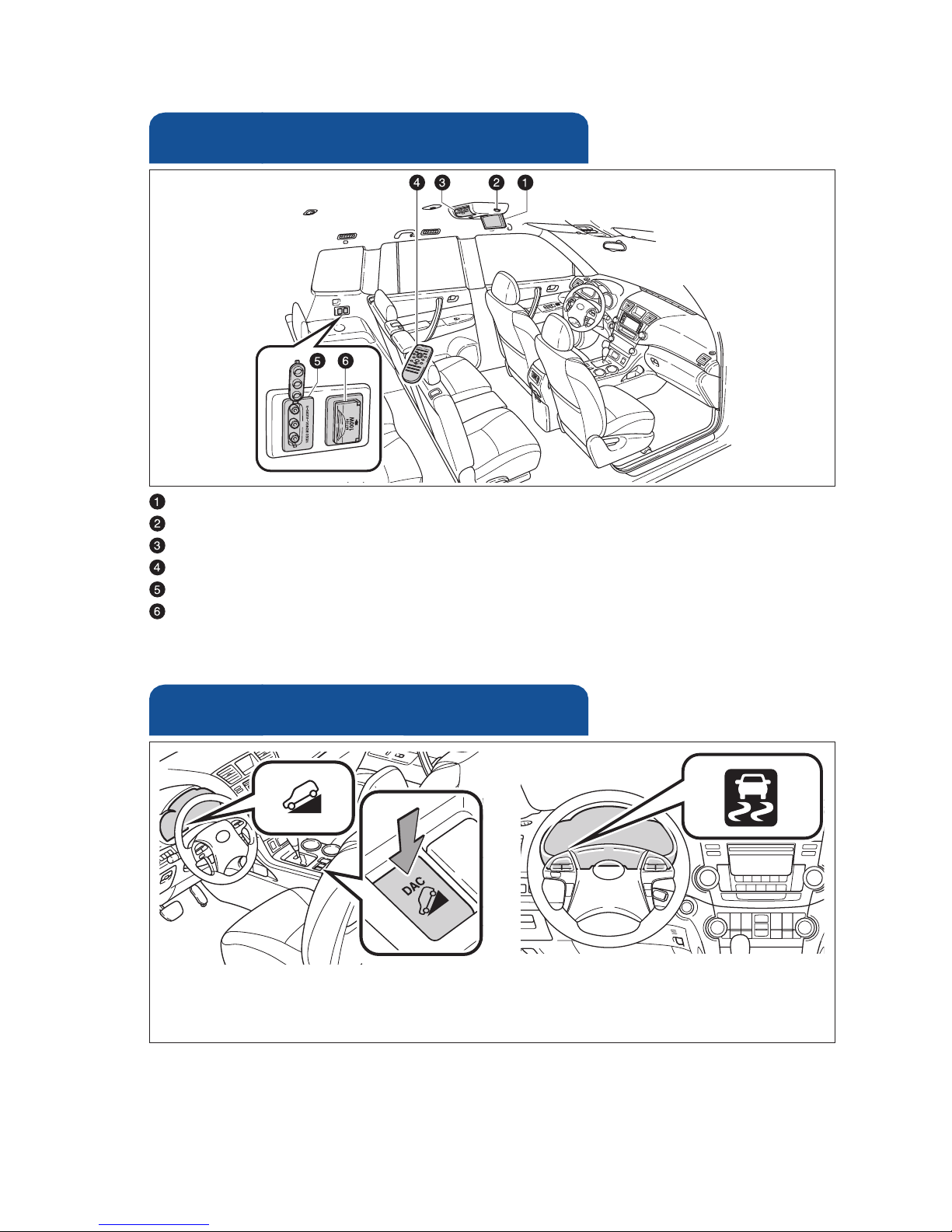

Parking brake 11 Power outlets-12V DC 17 Power outlet-120V AC 17 Rear seat entertainment system 26 Seat adjustments-Front 13 Seat adjustments-Rear 13 Seat heaters 22 Seats-Folding down second row seats 15 Seats-Head restraints 14 Seats-Removing Center-Stow second row seat 14 Seats-Returning third row seats 15 Seats-Stowing third row seats 14 Steering lock release 11 Steering wheel controls 19 Telephone controls (Bluetooth

) 19 Tilt and telescopic steering wheel 12 Windows-Power 18

Windshield wipers & washers 15

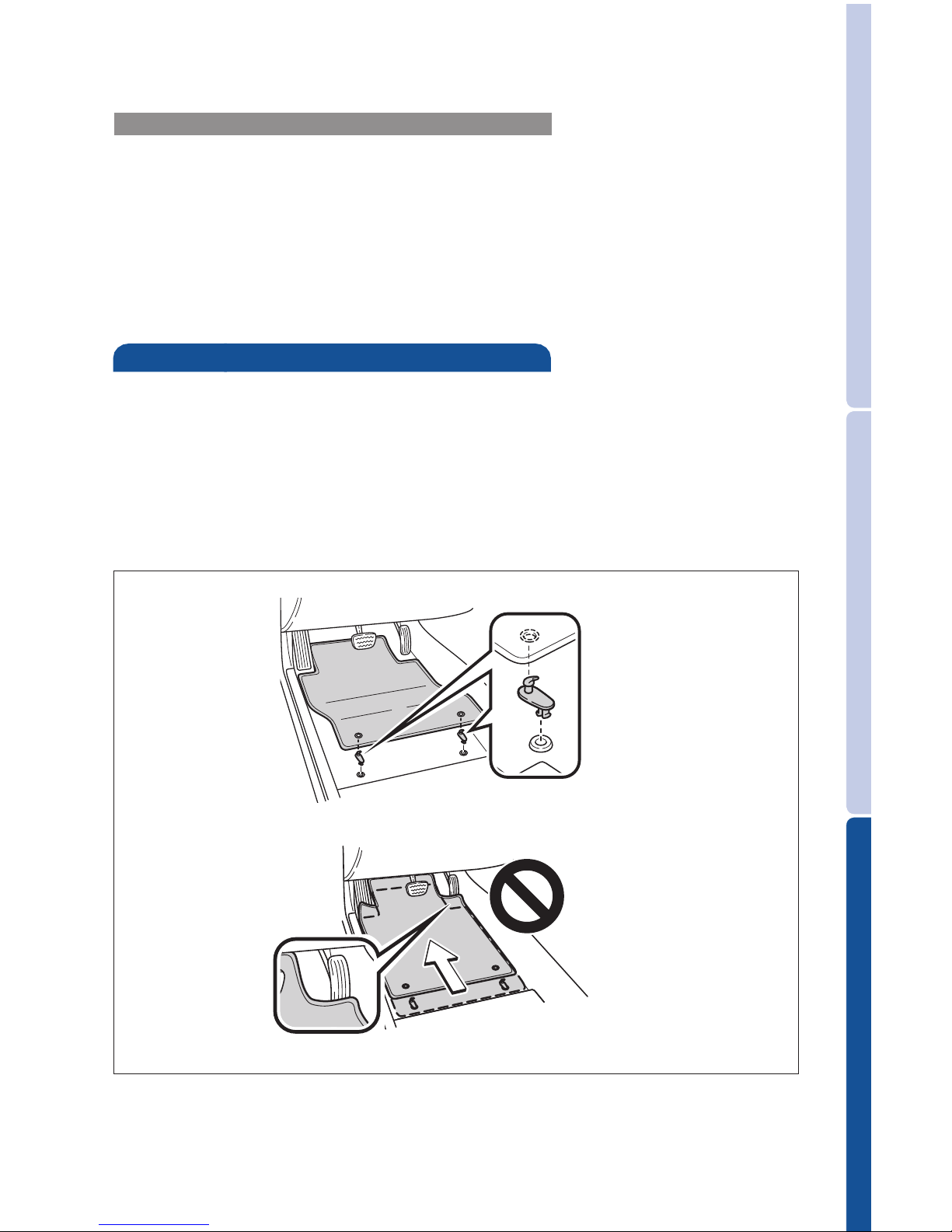

Doors-Child safety locks 29 Floor mat installation 31 Seat belts 28 Seat belts-Shoulder belt anchor 29 Spare tire & tools 29 Star Safety System

30-31

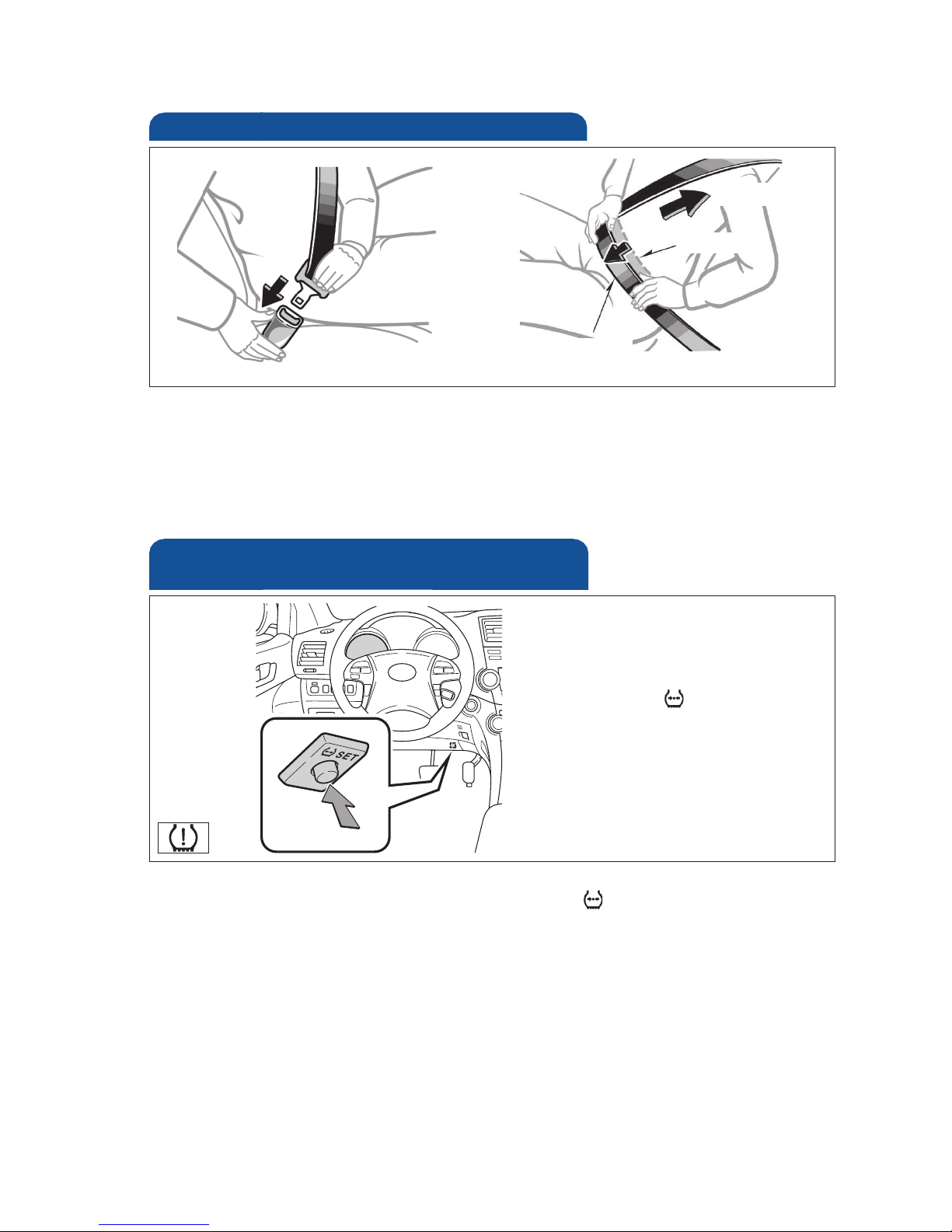

Tire Pressure Monitoring (warning) System 28

Visit your Toyota dealer for information on customizing this feature.

Programmable by customer. Refer to the Owner’s Manual for instructions and more information.

HomeLink® is a registered trademark of Johnson Controls, Inc.

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY

FEATURES

Page 4

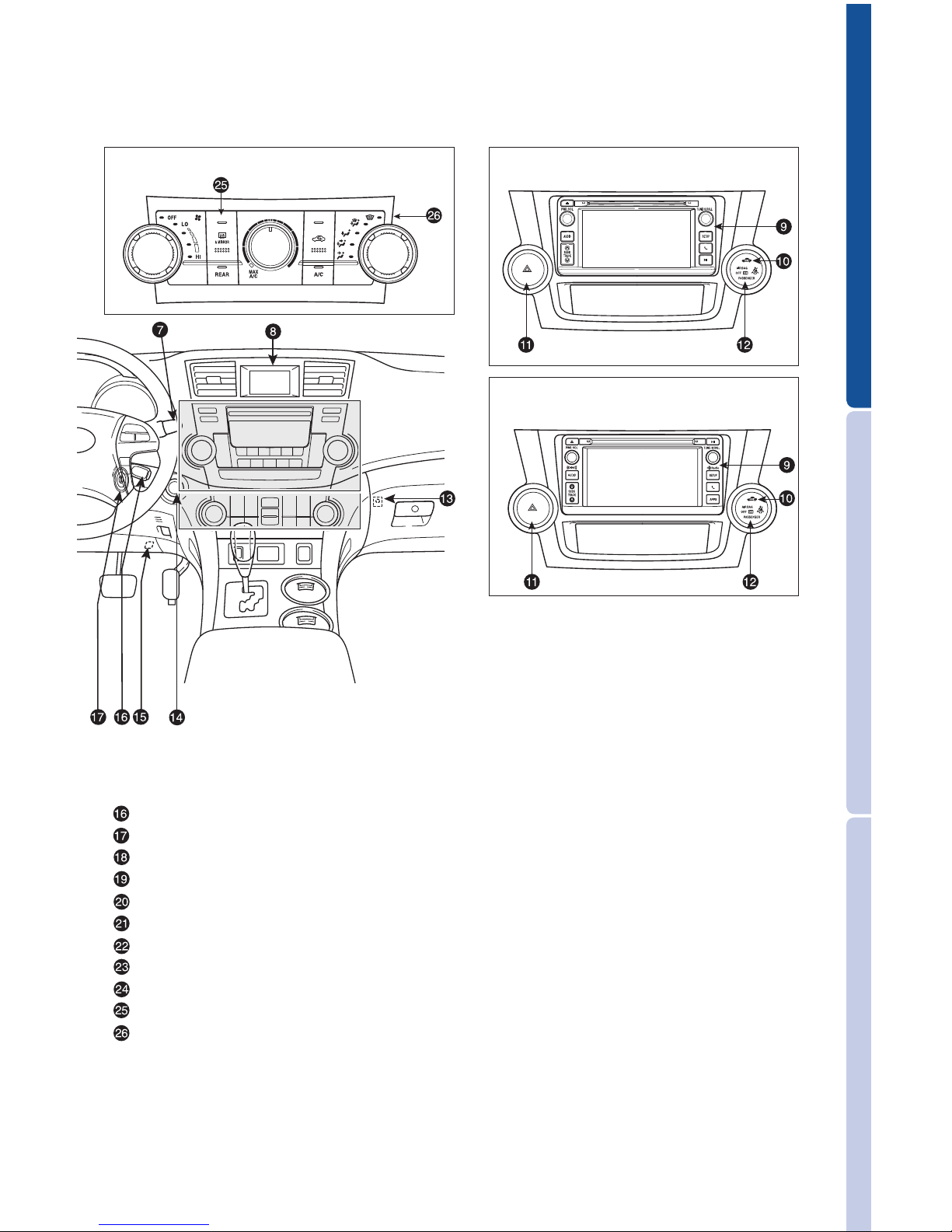

OVERVIEW

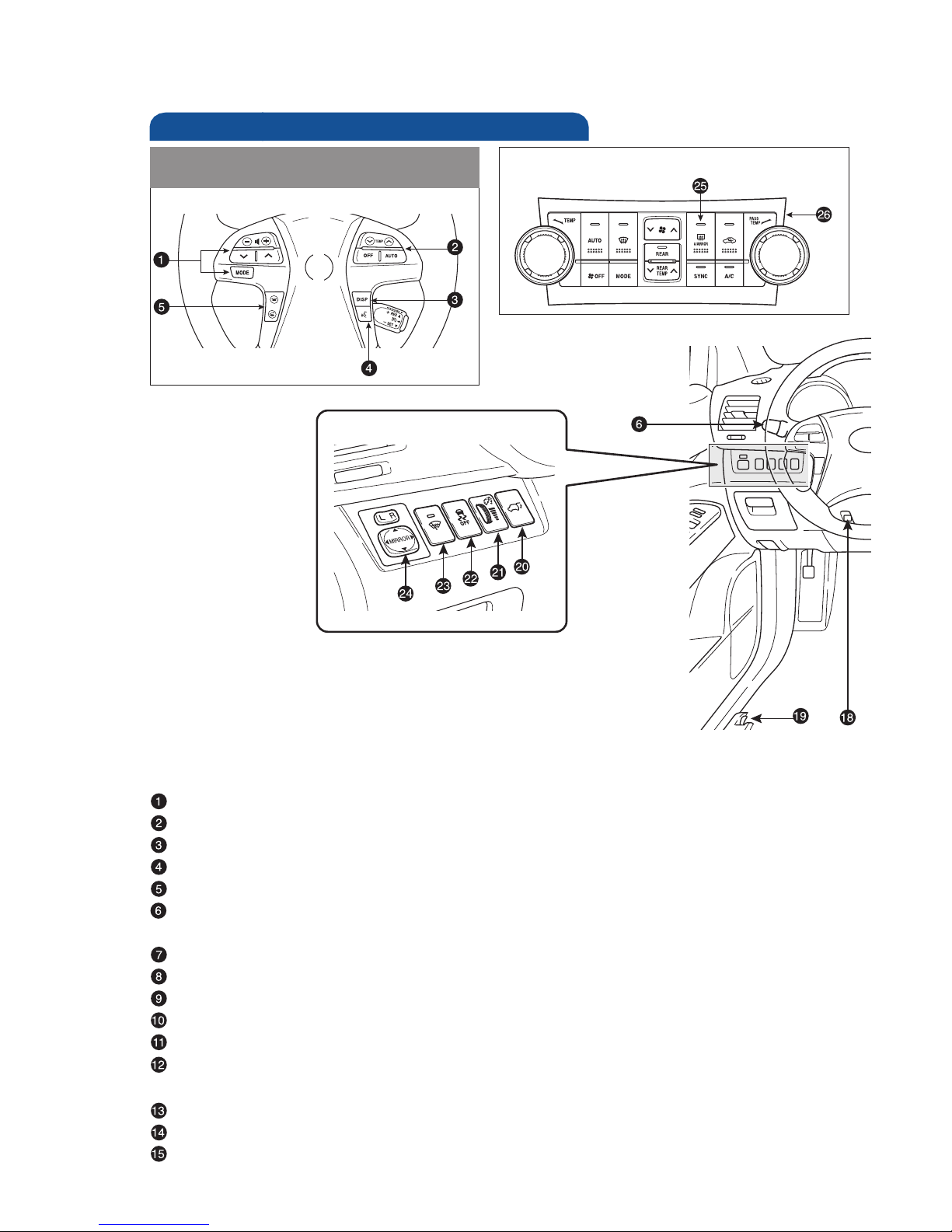

Instrument panel

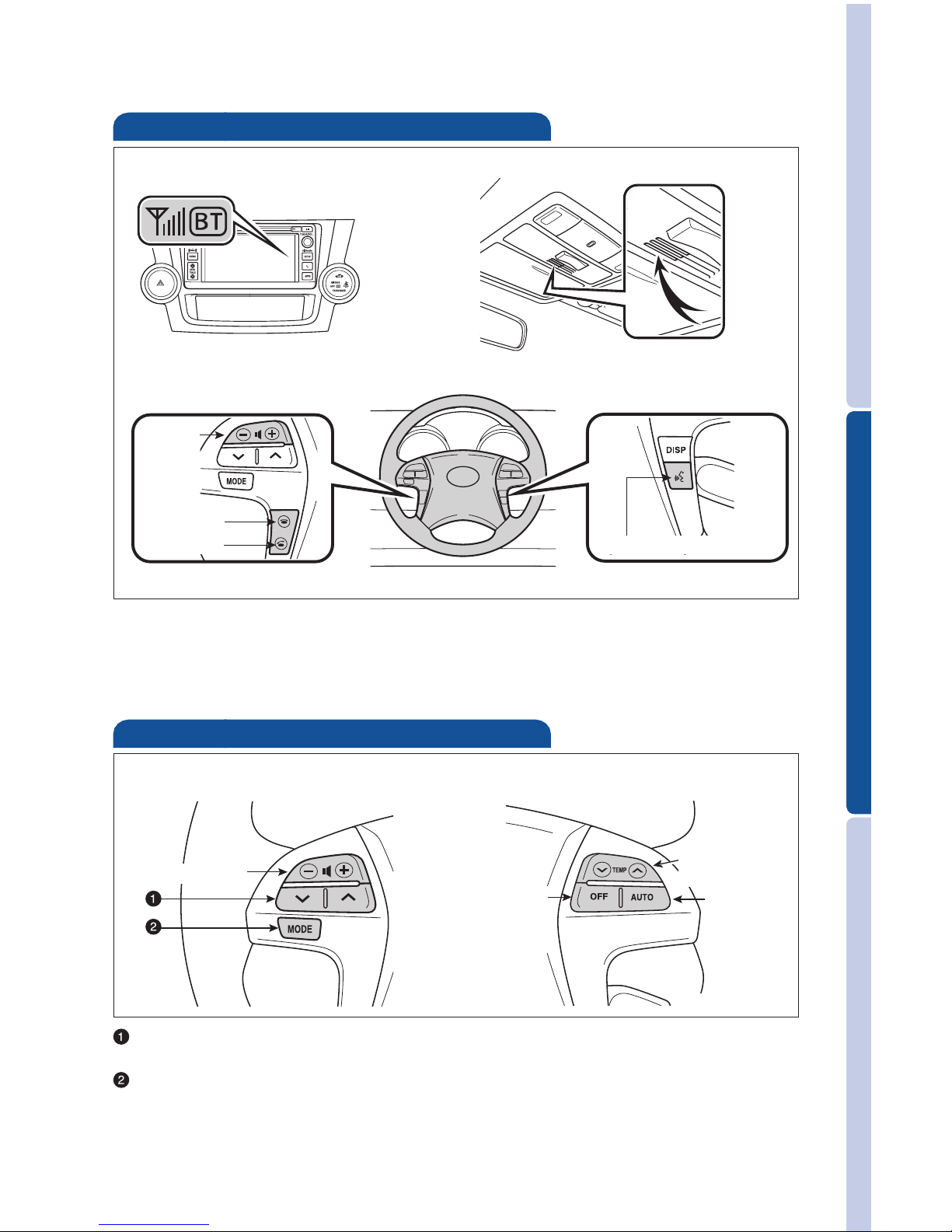

Steering wheel audio controls

Steering wheel climate controls

Multi-Information Display button Voice command button

1,2

Telephone controls

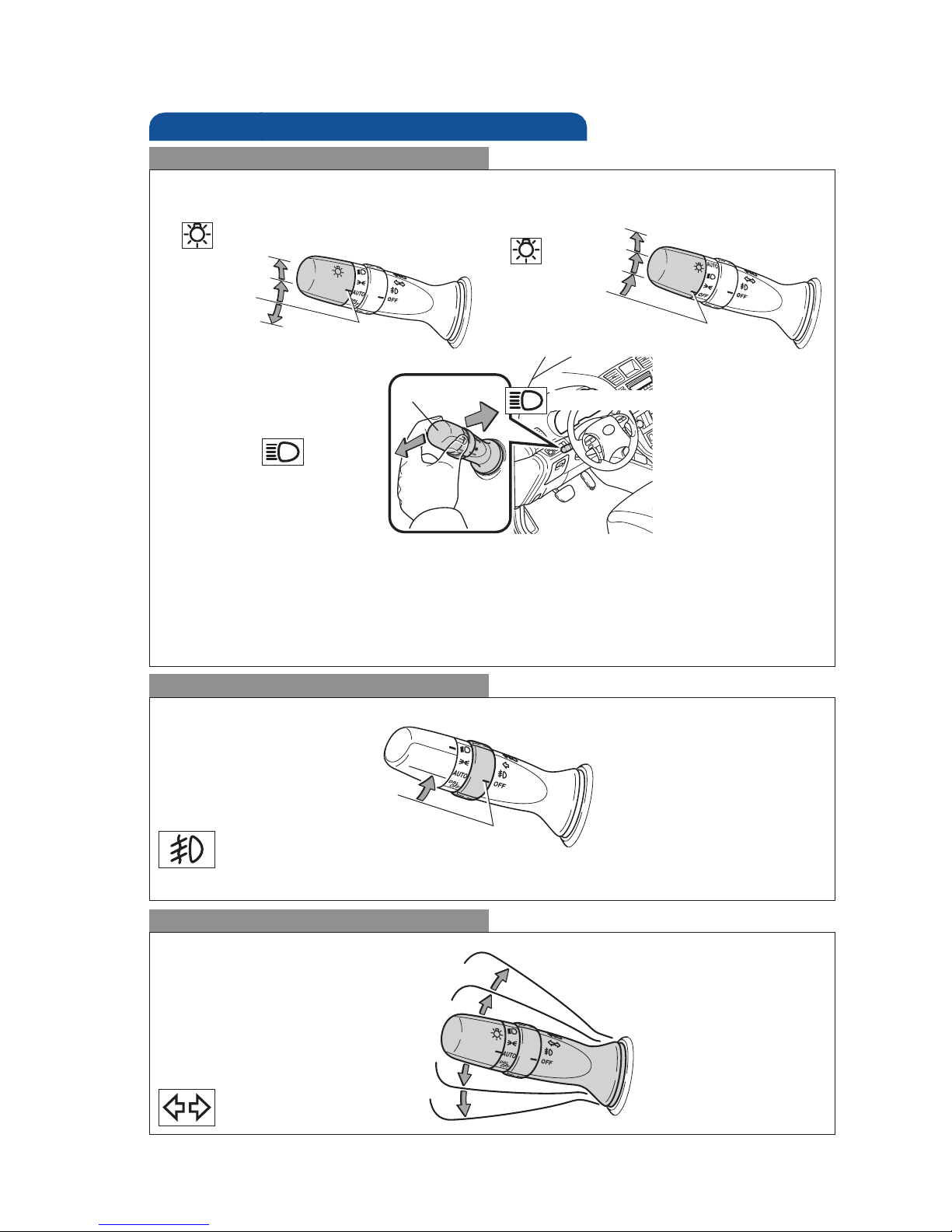

Headlight and turn signal controls/Headlight, turn signal and front fog light

controls

Wiper and washer controls Multi-Information Display Display Audio system

or Display Audio system with navigation and Entune

Theft deterrent system/Engine immobilizer indicator

Emergency flasher button “AIR BAG ON” and “AIR BAG OFF” indicator and front passenger seat belt reminder lights Power back door main switch

“ENGINE START STOP” button (Smart Key)

Tire Pressure Monitoring (warning) System

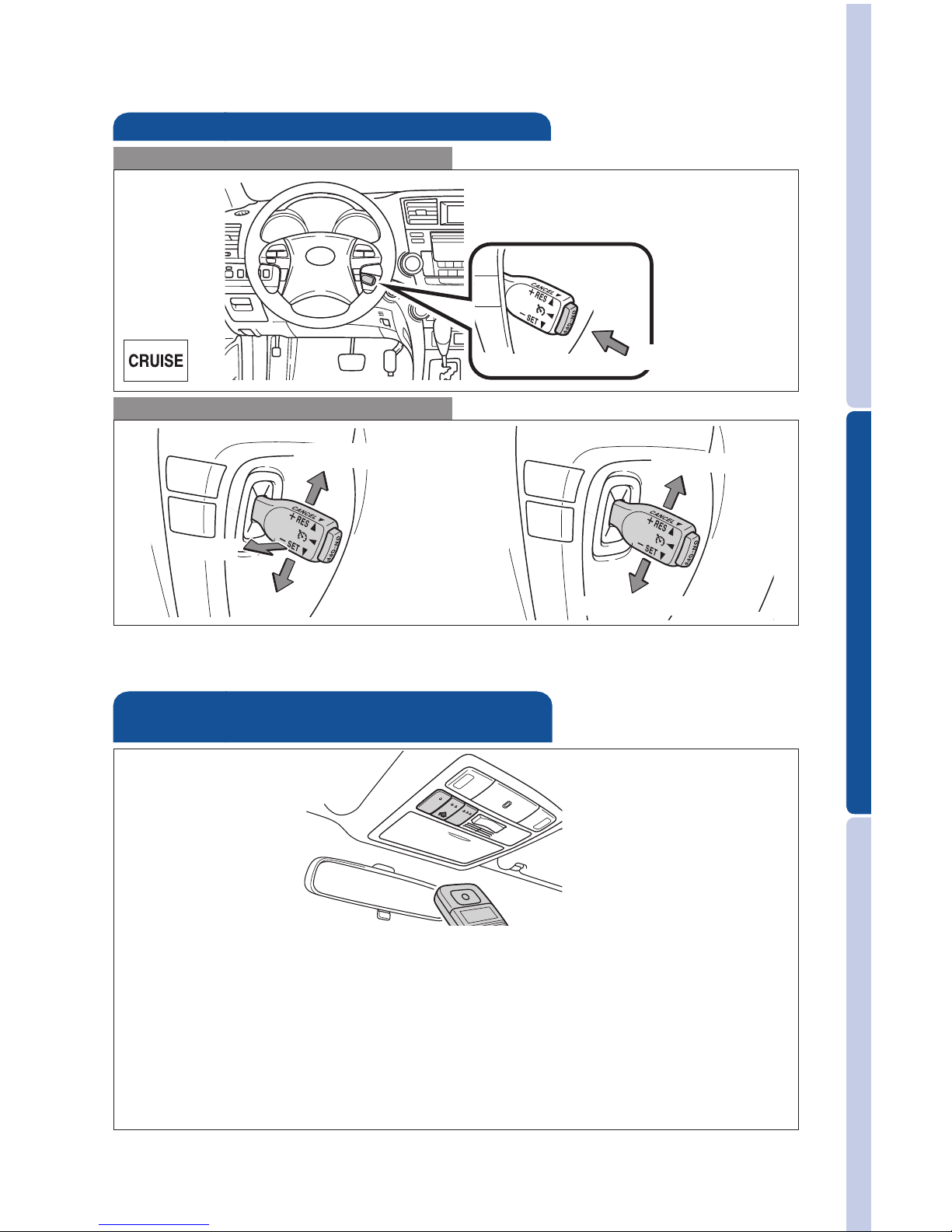

Cruise control Ignition (standard key) Tilt and telescopic steering lock release Fuel filler door opener Power back door button Instrument panel light control Enhanced VSC/TRAC OFF switch Windshield wiper de-icer switch Power outside rearview mirror controls Outside rearview mirror Air Conditioning controls

Refer to the “Display Audio System Owner’s Manual.”

If equipped

Steering wheel controls (if equipped)

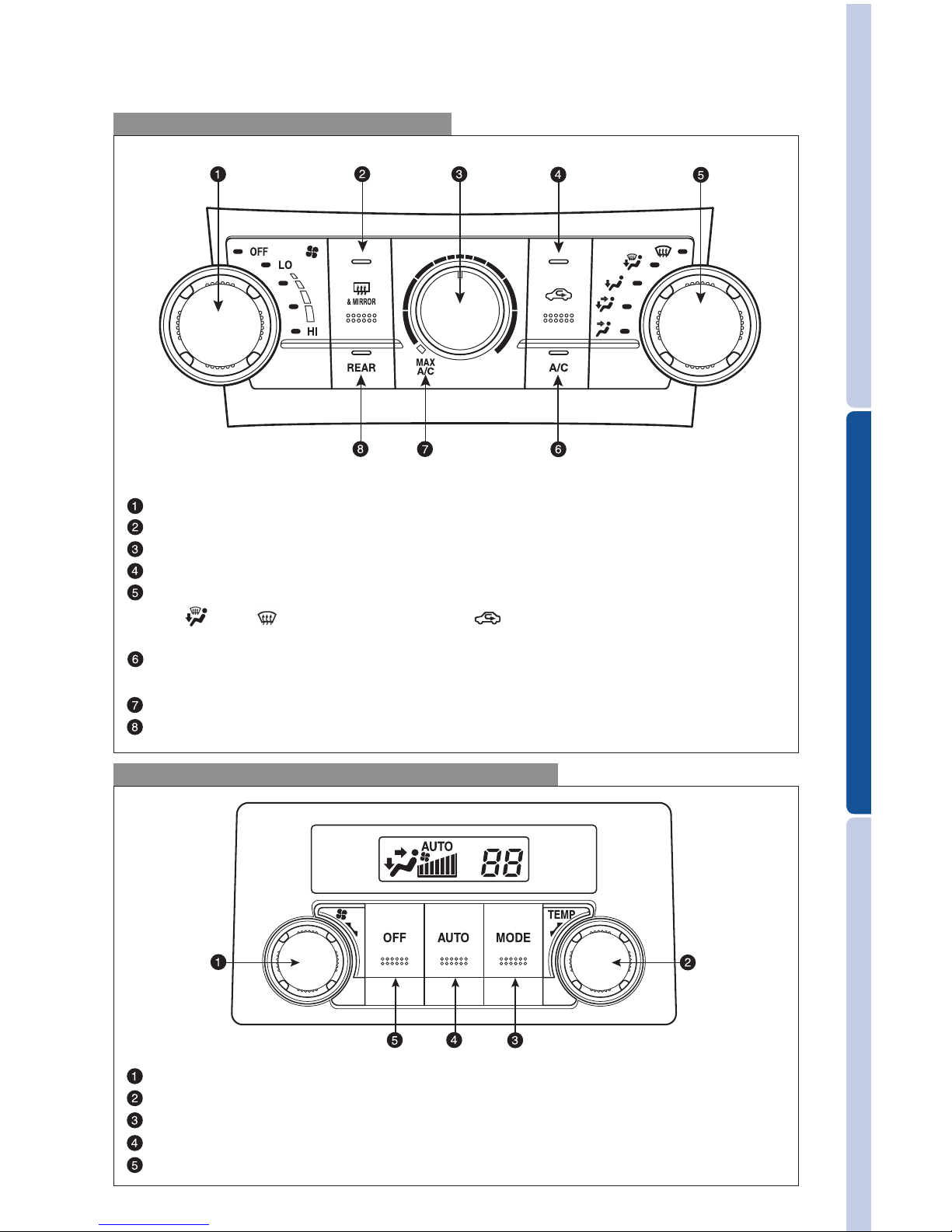

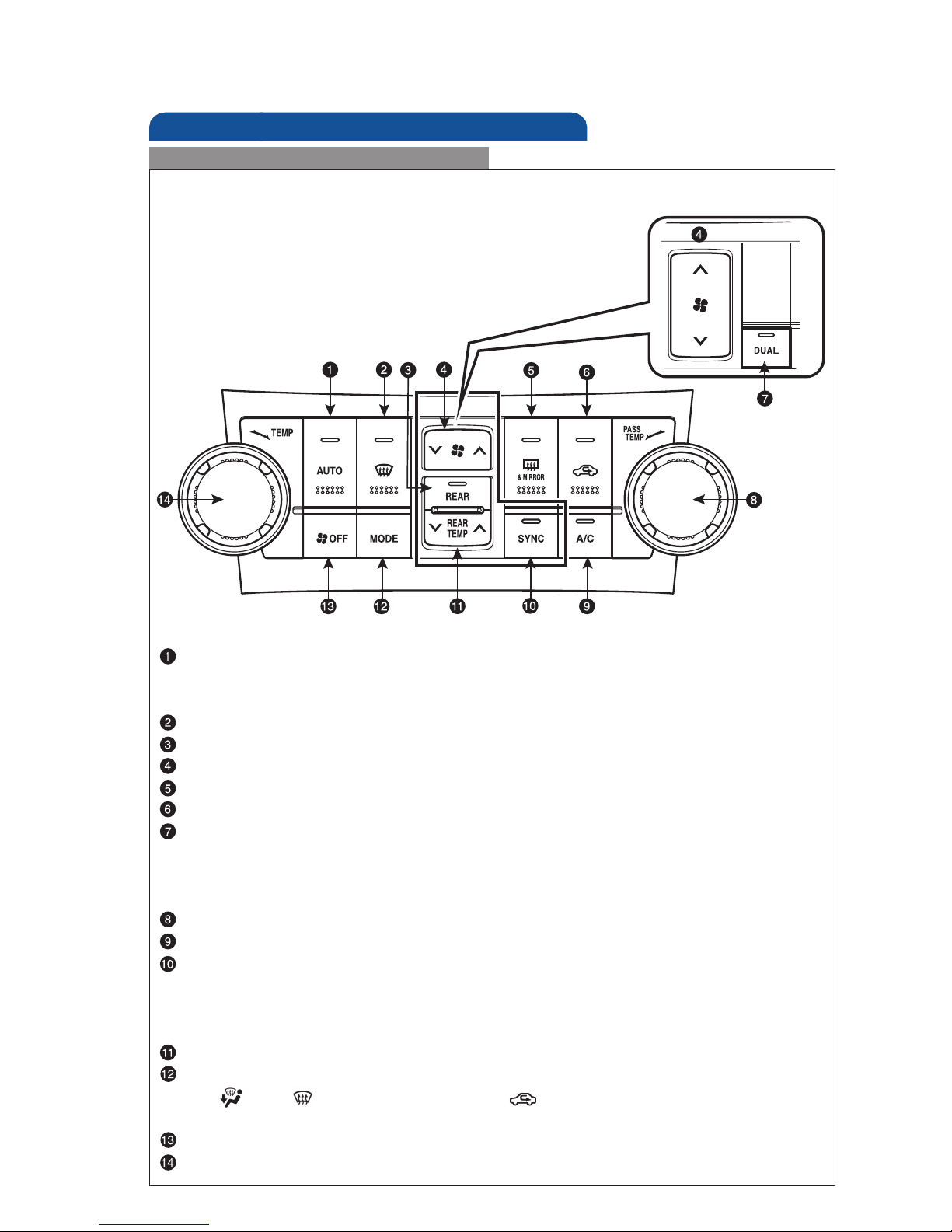

Automatic Air Conditioning Manual Air Conditioning

Page 5

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Cruise control Ignition (standard key)

Tilt and telescopic steering lock release Fuel filler door opener Power back door button

Instrument panel light control Enhanced VSC/TRAC OFF switch Windshield wiper de-icer switch

Power outside rearview mirror controls Outside rearview mirror

/Rear window defogger button

Air Conditioning controls

Refer to the “Display Audio System Owner’s Manual.”

If equipped

Vehicles with Display Audio system

Vehicles with Display Audio System with navigation and Entune

Page 6

OVERVIEW

Indicator symbols

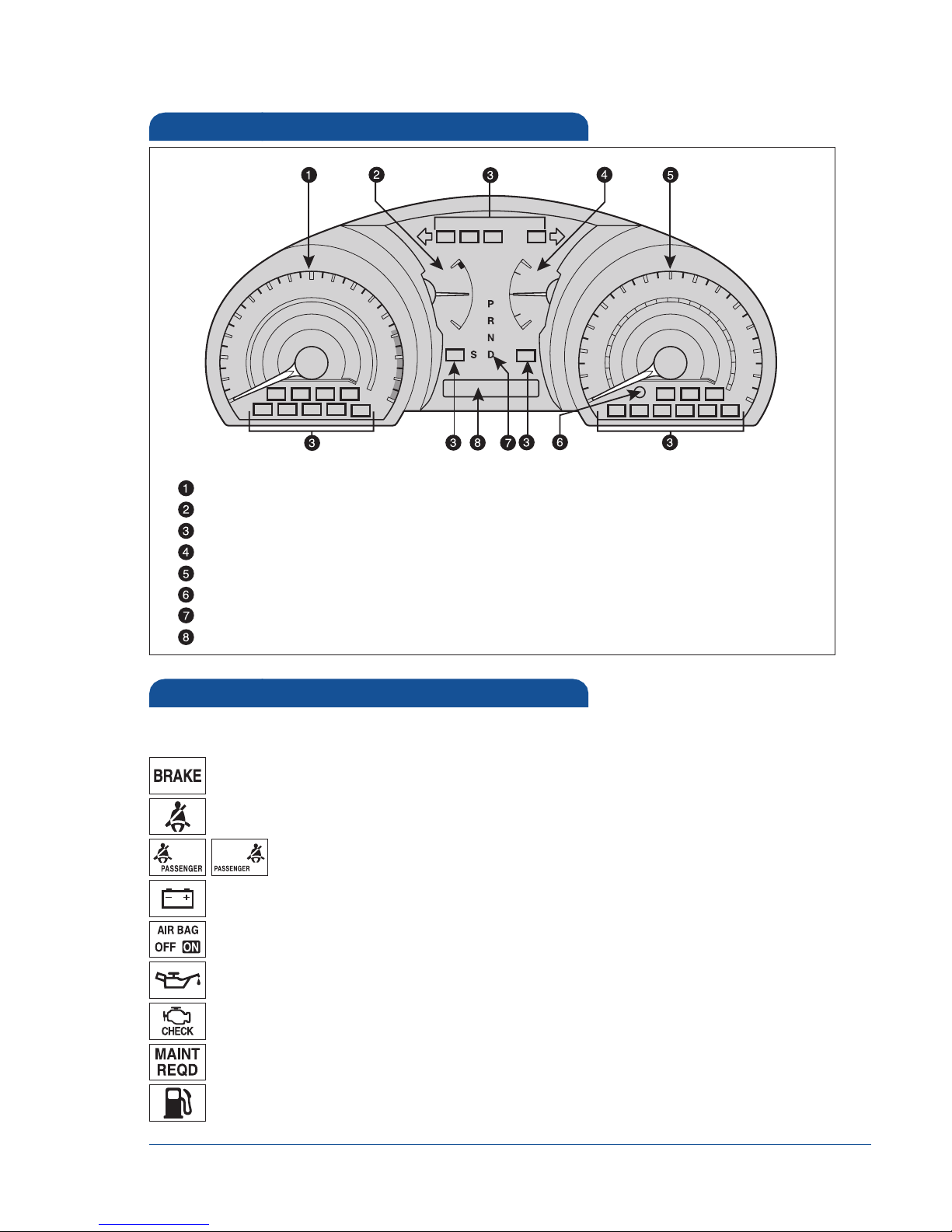

Instrument cluster

Tachometer Engine coolant temperature Service indicator and reminder Fuel gauge Speedometer Odometer/trip meter switch and trip meter resetting button Automatic Transmission shift position indicator Odometer and two trip meters

Charging system warning

Brake system warning

Front passenger occupant classification indicator

If indicator does not turn off within a few seconds of starting engine, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.

Driver seat belt reminder (alarm will sound if speed is over 12 mph)

Front passenger seat belt reminder (alarm will sound if speed is over 12 mph)

Low engine oil pressure warning

Malfunction/Check Engine indicator

Engine oil replacement reminder

Low fuel level warning

For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s Manual.

Page 7

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.

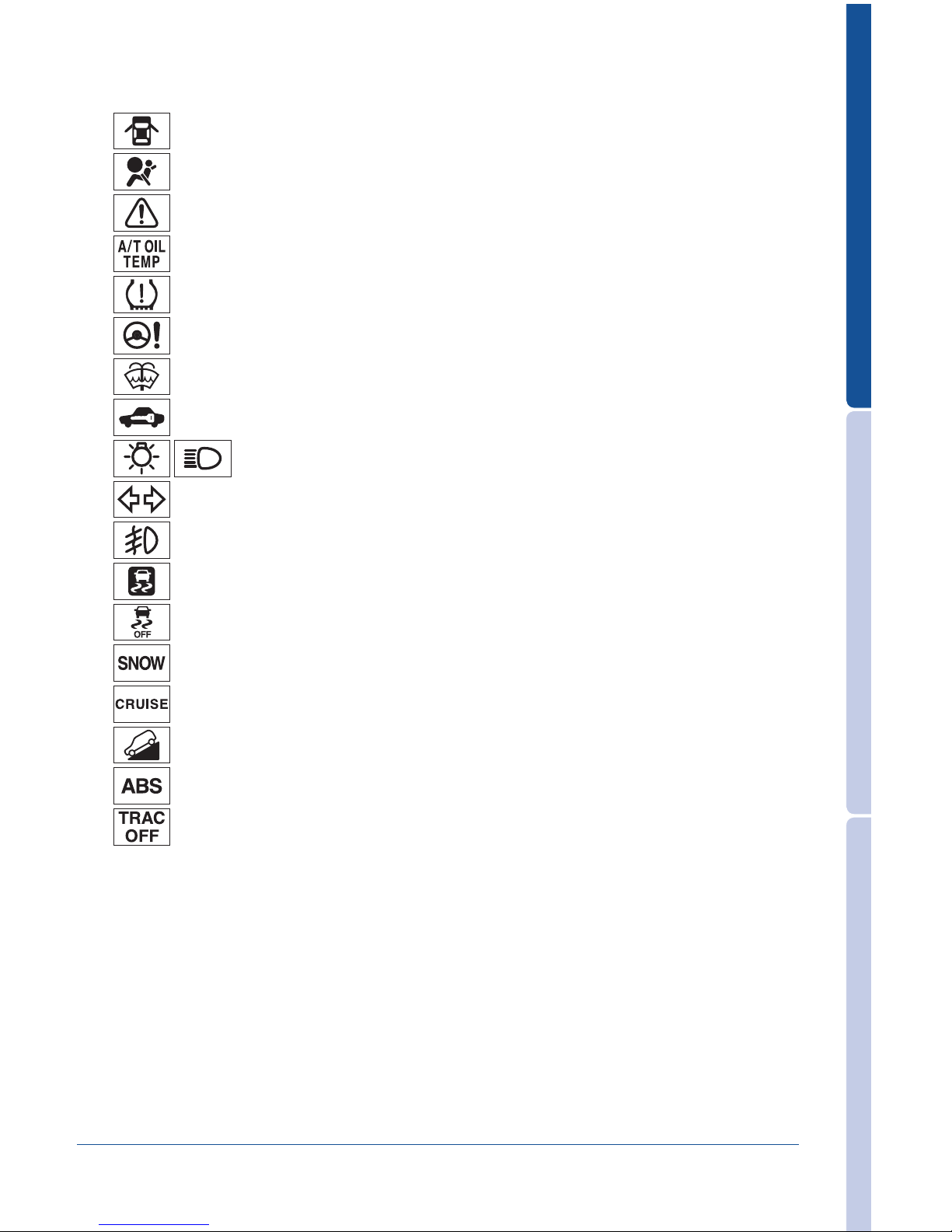

Anti-lock Brake System warning

Headlight low/high beam indicator

Turn signal indicator

Vehicle Stability Control OFF indicator

SNOW indicator

Cruise control indicator

Automatic Transmission fluid temperature warning

Low Tire Pressure Warning

Theft deterrent/Engine immobilizer system indicator

Open door warning

Airbag SRS warning

Master warning

Low windshield washer fluid level warning

Electric power steering system warning

Front fog light indicator

Downhill Assist Control indicator

Traction control OFF indicator

Slip indicator/Hill-start Assist Control indicator/Downhill Assist Control indicator

Page 8

OVERVIEW

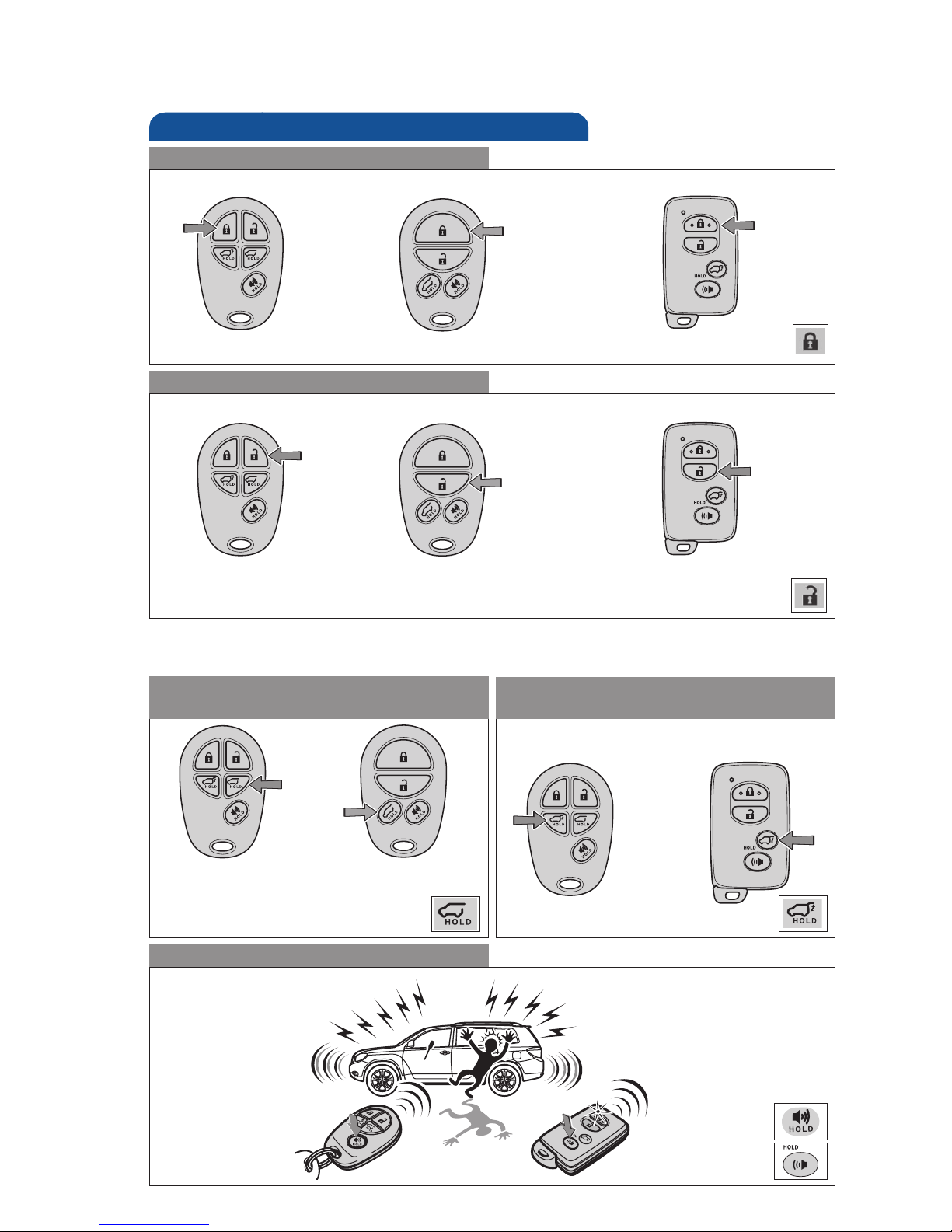

Keyless entry

Push

Push ONCE: Driver door TWICE: All doors

Locking operation

Unlocking operation

Without Smart Key system With Smart Key system

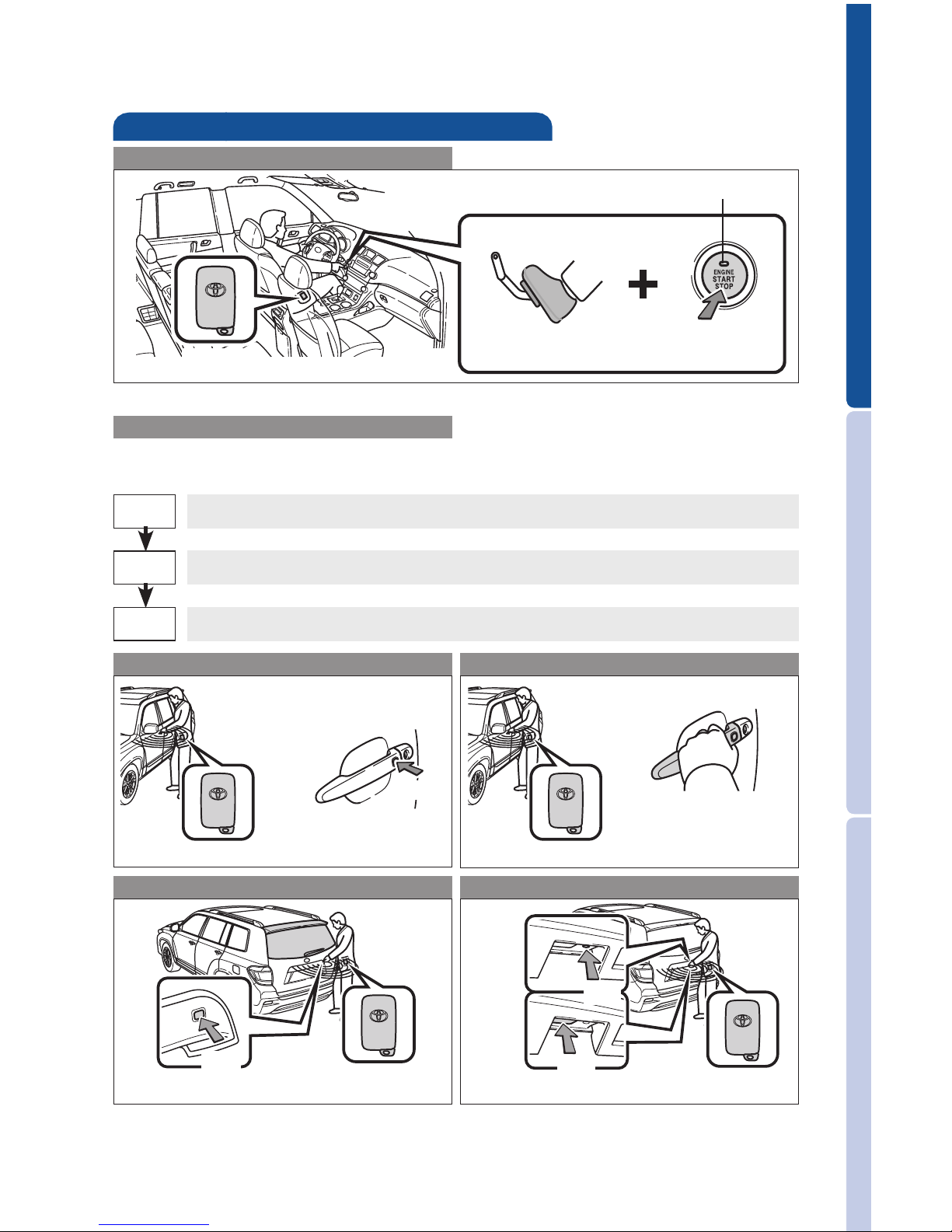

Smart Key system (if equipped)

Start function

ACC

OFF

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

Power (without starting engine)

Glass hatch operation (if equipped)

Power back door operation (if equipped)

Push and hold

Without Smart Key system

With Smart Key system

Panic button

Push and hold

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock

for safety.

With power back door

Without power back door

With power back door

Without power back door

* Driver door unlocking function can be programmed to unlock driver door only, or

all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

Glass hatch unlock

Locking operation

Carry remote to lock

Carry remote to unlock

With power back door

Without power back door

Page 9

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Smart Key system (if equipped)

Start function

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

ACC

OFF

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Push

Depress brake pedal

Carrying

Green indicator ON

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

Power (without starting engine)

* Driver door unlocking function can be programmed to unlock driver door only, or

all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

Glass hatch unlock

Locking operation

Unlocking operation

Carry remote to lock Carry remote to unlock

Front door lock

Front door unlock*

Push

Grasp

Push

Back door lock/unlock

Push

Lock

Push

Unlock

Carry remote to unlock Carry remote to lock/unlock

Page 10

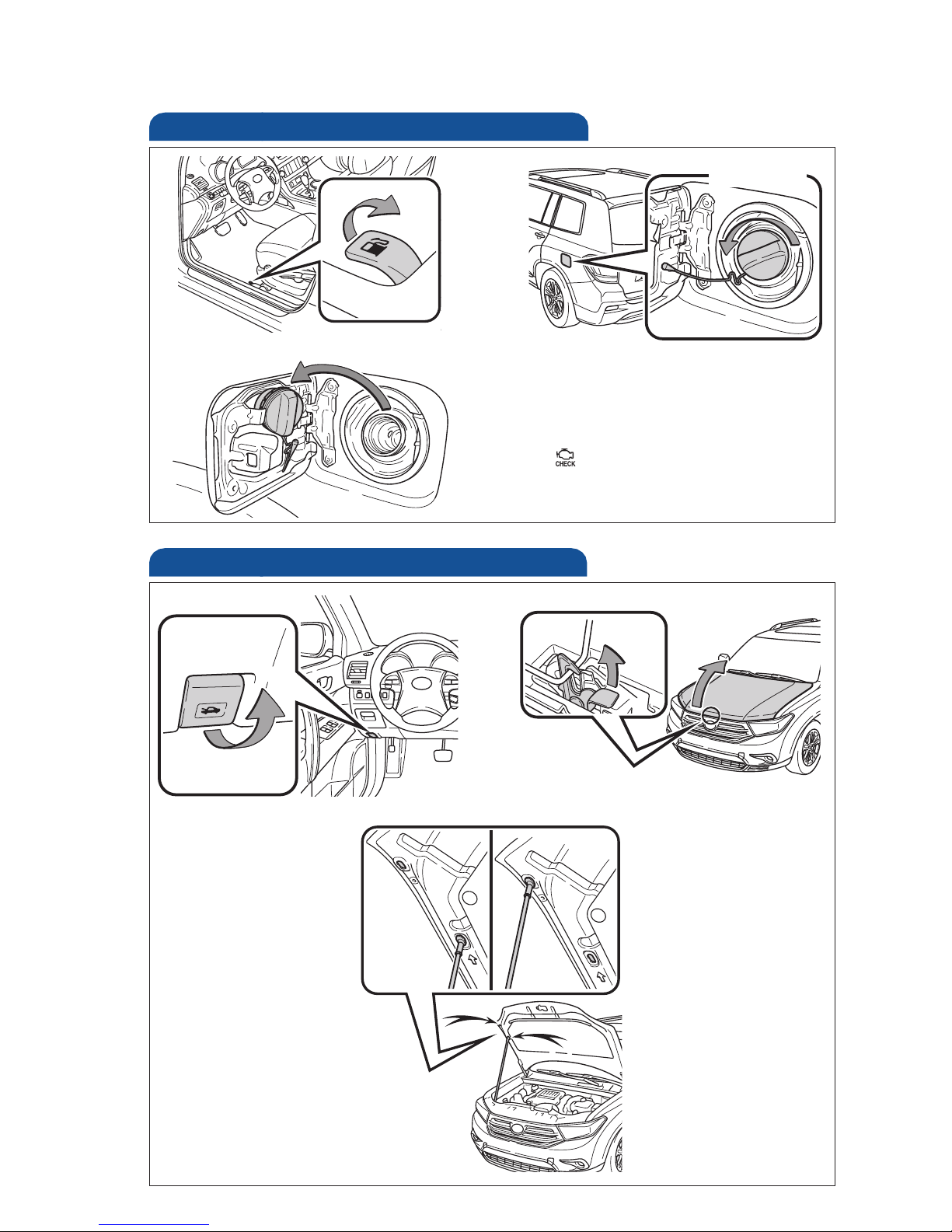

Hood release

Pull up latch and raise hood

Fuel tank door release and cap

NOTE: Tighten until one click is heard.

If the cap is not tightened enough, Check Engine “

” indicator may illuminate.

Pull

Turn to open

Store

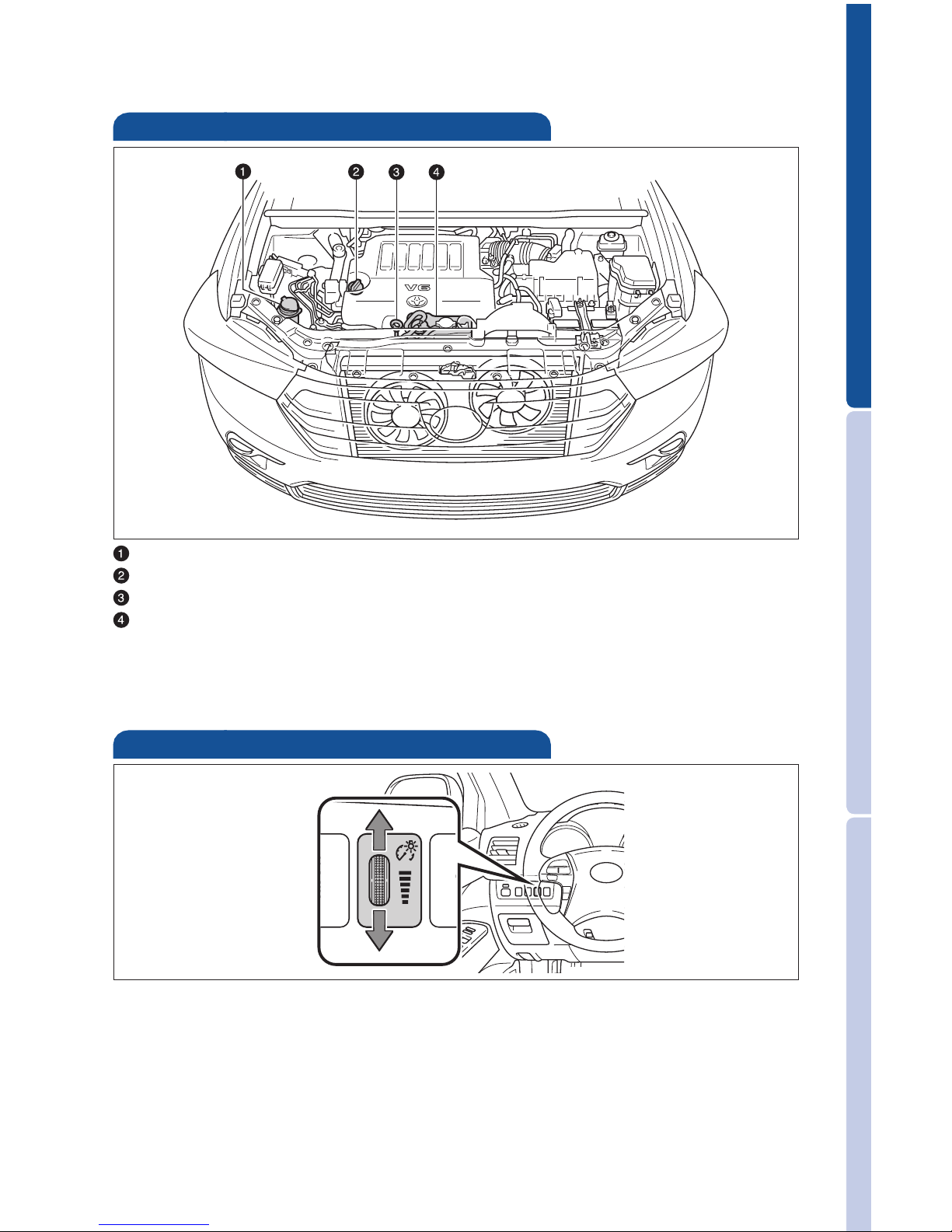

Windshield washer fluid tank Engine oil filler cap Engine oil level dipstick Engine coolant reservoir

NOTE: Regularly scheduled maintenance, including oil changes, will help

extend the life of your vehicle and maintain performance. Please refer to the “Warranty & Maintenance Guide.”

Engine maintenance

Light control-Instrument panel

Engage support rod (either position may be used)

OVERVIEW

Pull

Page 11

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Windshield washer fluid tank Engine oil filler cap Engine oil level dipstick Engine coolant reservoir

NOTE: Regularly scheduled maintenance, including oil changes, will help

extend the life of your vehicle and maintain performance. Please refer to the “Warranty & Maintenance Guide.”

Engine maintenance

Light control-Instrument panel

Brightness control

Page 12

FEATURES/OPERATIONS

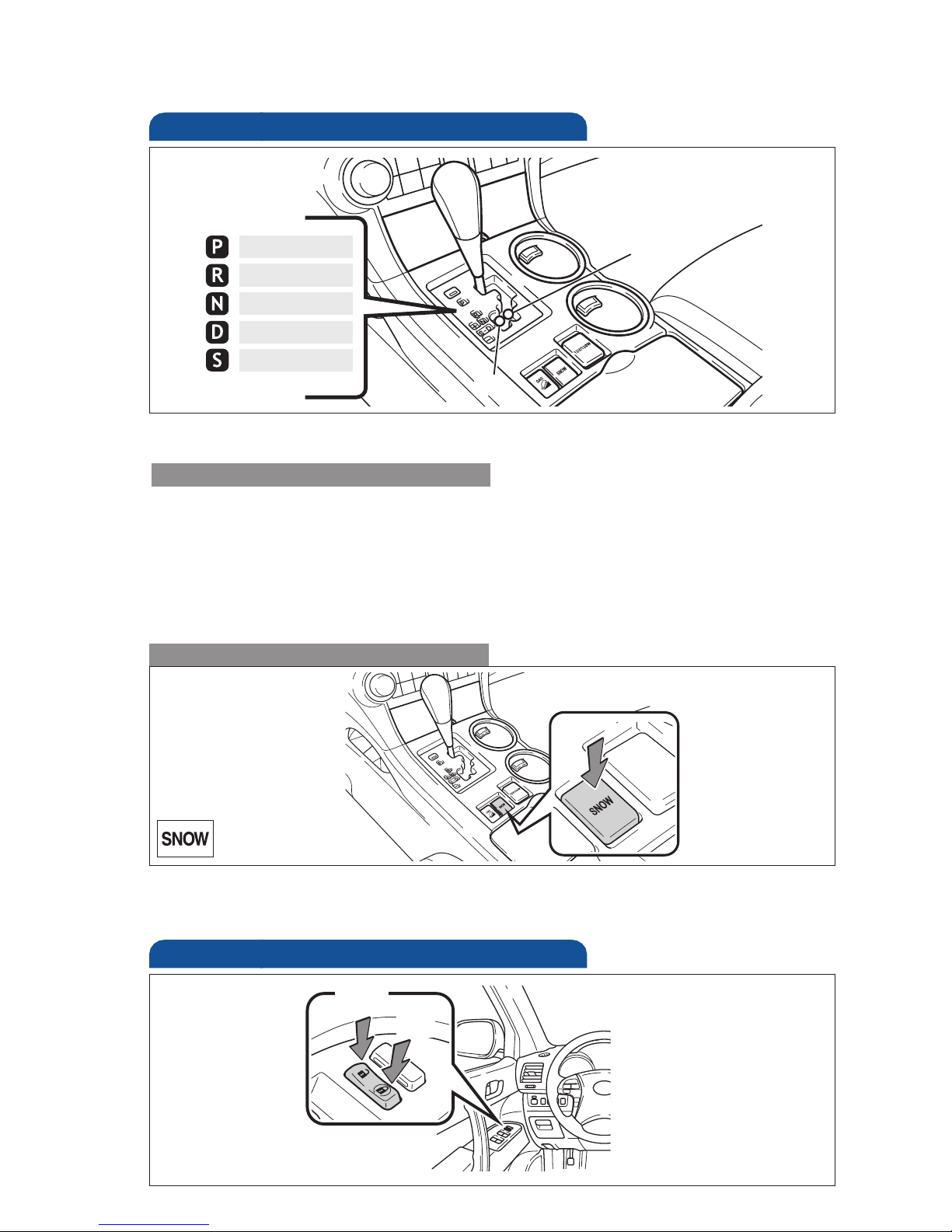

Automatic Transmission

* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedal

depressed to shift from Park.

Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

“S” (Sequential) mode

Park*

Reverse

Neutral

Drive

“S” mode

“D”

Snow mode

Push

Steering lock release

Door locks

With Smart Key system

Auto lock/unlock

Automatic door locks can be programmed to operate in two different modes, or turned OFF.

-Doors lock when shifting from Park.

-Doors lock when the vehicle speed goes above approximately 12 mph.

-Doors unlock when shifting into Park.

Vehicles without Smart Key system

-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and

driver’s door is opened.

Vehicles with Smart Key system

-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s

door is opened.

Refer to the Owner’s Manual for more details.

Parking brake

The snow mode prevents sudden acceleration on slippery surfaces. Use in snowy or icy road conditions.

“S”

Lock

Unlock

Page 13

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

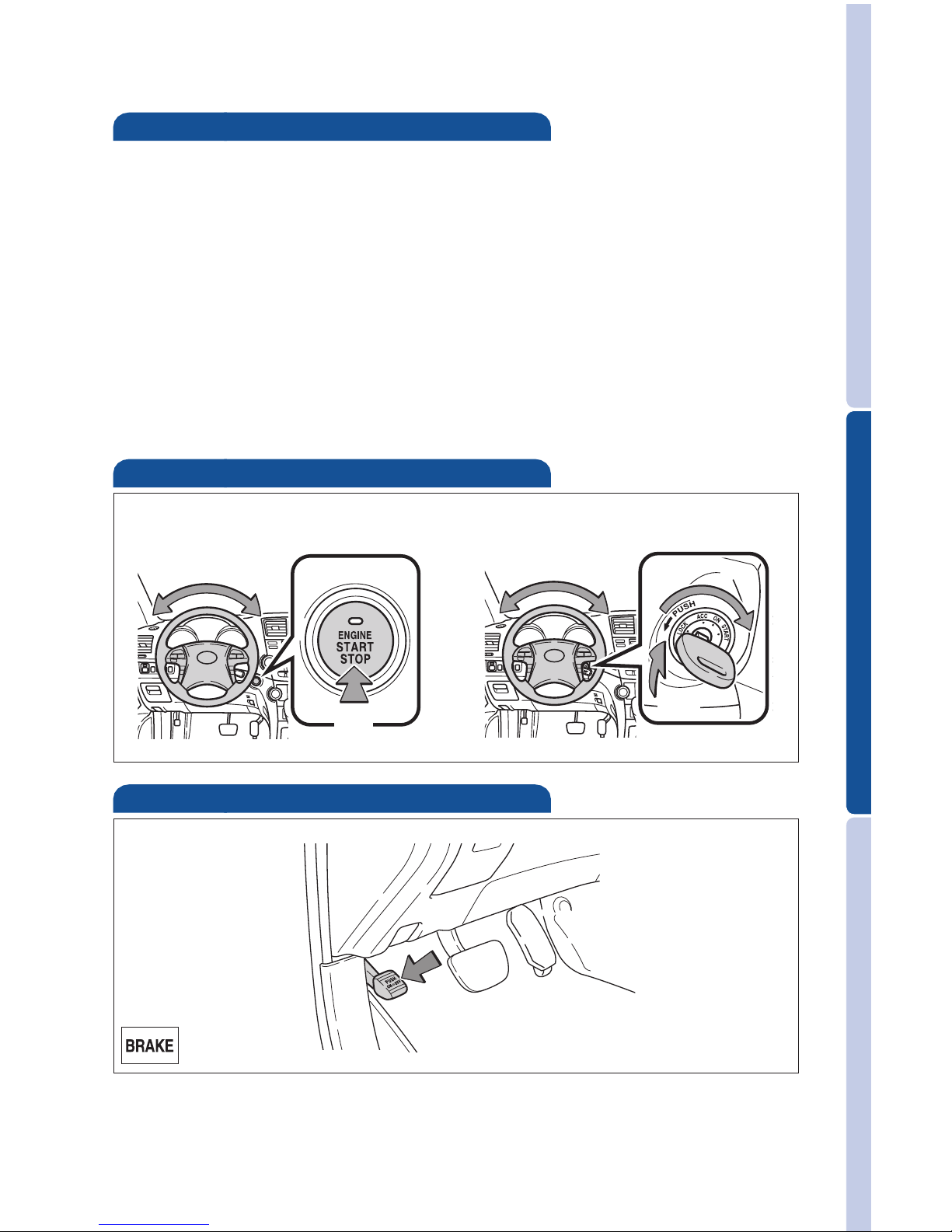

Steering lock release

Turn

With Smart Key system Without Smart Key system

Push

Turn

Auto lock/unlock

Automatic door locks can be programmed to operate in two different modes, or turned OFF.

-Doors lock when shifting from Park.

-Doors lock when the vehicle speed goes above approximately 12 mph.

-Doors unlock when shifting into Park.

Vehicles without Smart Key system

-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and

driver’s door is opened.

Vehicles with Smart Key system

-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s

door is opened.

Refer to the Owner’s Manual for more details.

Parking brake

Set: Depress Release: Depress again

Page 14

FEATURES/OPERATIONS

Hold wheel, push lever down, set angle and length, and return lever.

Angle

Length

Lock release lever

NOTE: Do not attempt to adjust while the vehicle is in motion.

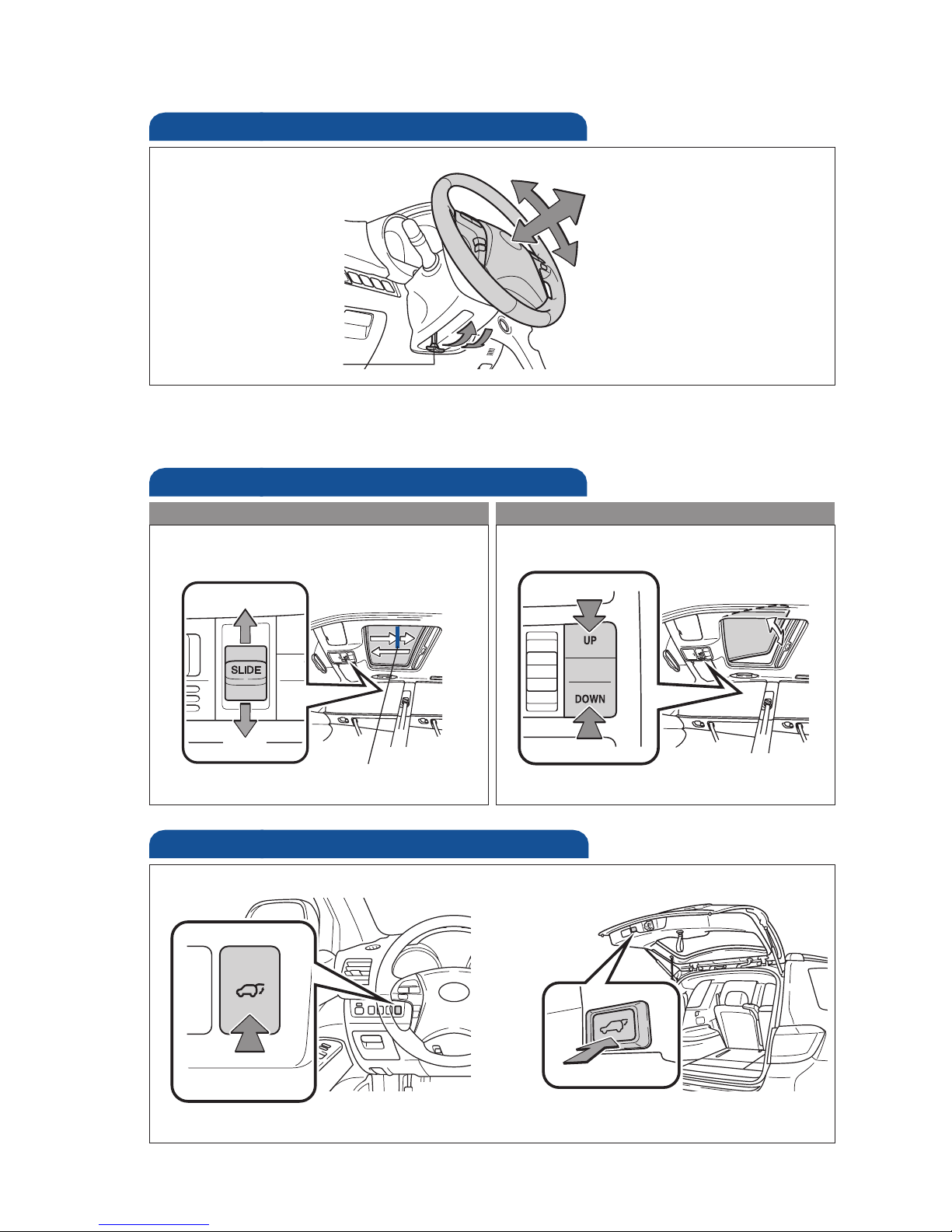

Tilt and telescopic steering wheel

Moonroof (if equipped)

Sliding operation

Tilting operation

Open

Tilt

Door-Power back (if equipped)

Push

Push and hold

Instrument panel Back door (close only)

Open: Push and hold Close: Push and hold again

NOTE: If battery is disconnected, the power back door needs to be reinitialized. Refer to the Owner’s Manual for more details.

Recommended open position to minimize wind noise.

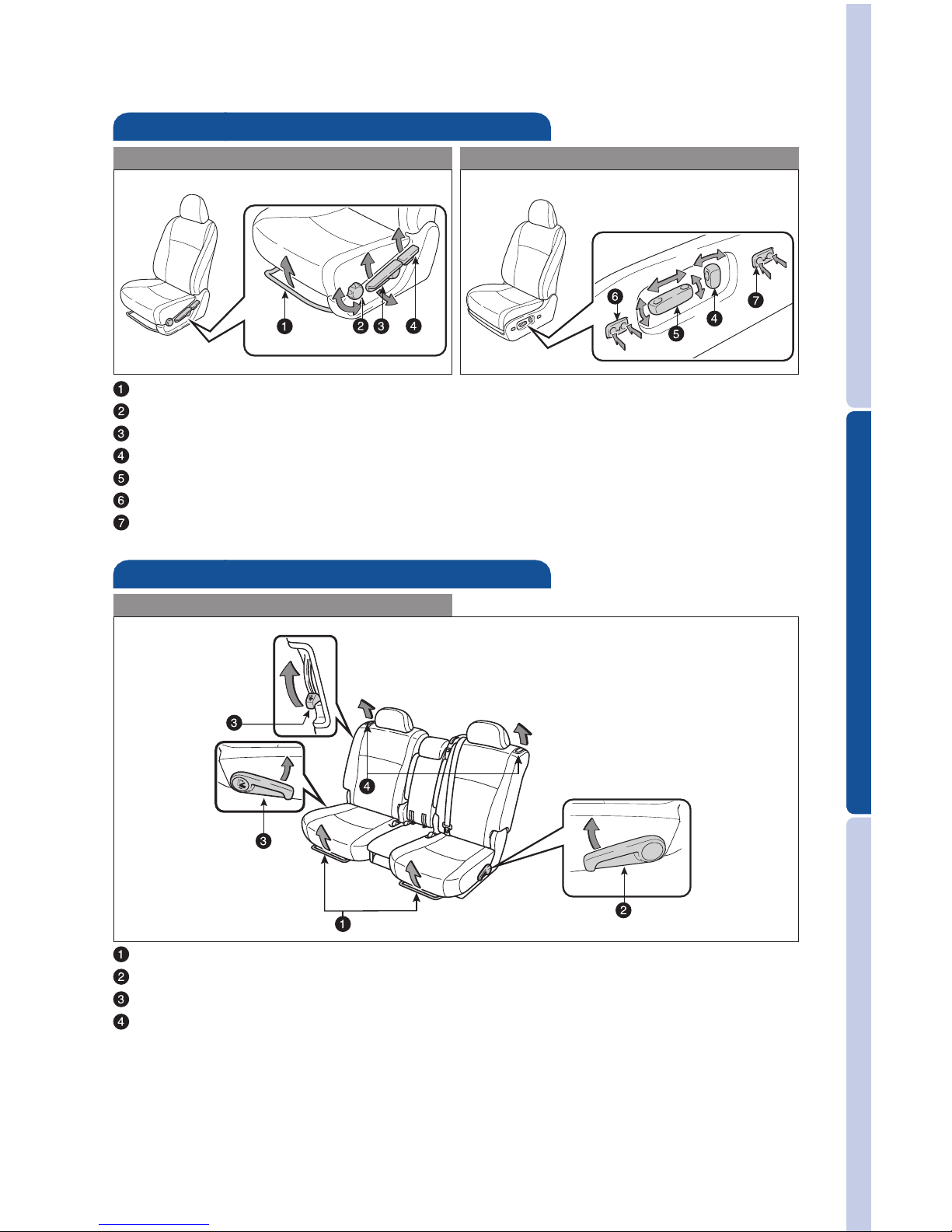

Seat adjustments-Rear

Second row seat

Seat position (forward/backward) Seatback angle Third seat access lever Seatback release

Refer to the Owner’s Manual for more details.

Seat adjustments-Front

Seat position (forward/backward) Seat cushion angle Height crank (driver side only) Seatback angle Seat position, cushion angle (driver side only) and height (driver side only) Driver seat leg support (if equipped) Lumbar support (driver side only)

Manual seat

Push once to open partway; again to open completely.

Page 15

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Seat adjustments-Rear

Second row seat

Seat position (forward/backward) Seatback angle Third seat access lever Seatback release

Refer to the Owner’s Manual for more details.

Seat adjustments-Front

Manual seat

Power seat

Page 16

FEATURES/OPERATIONS

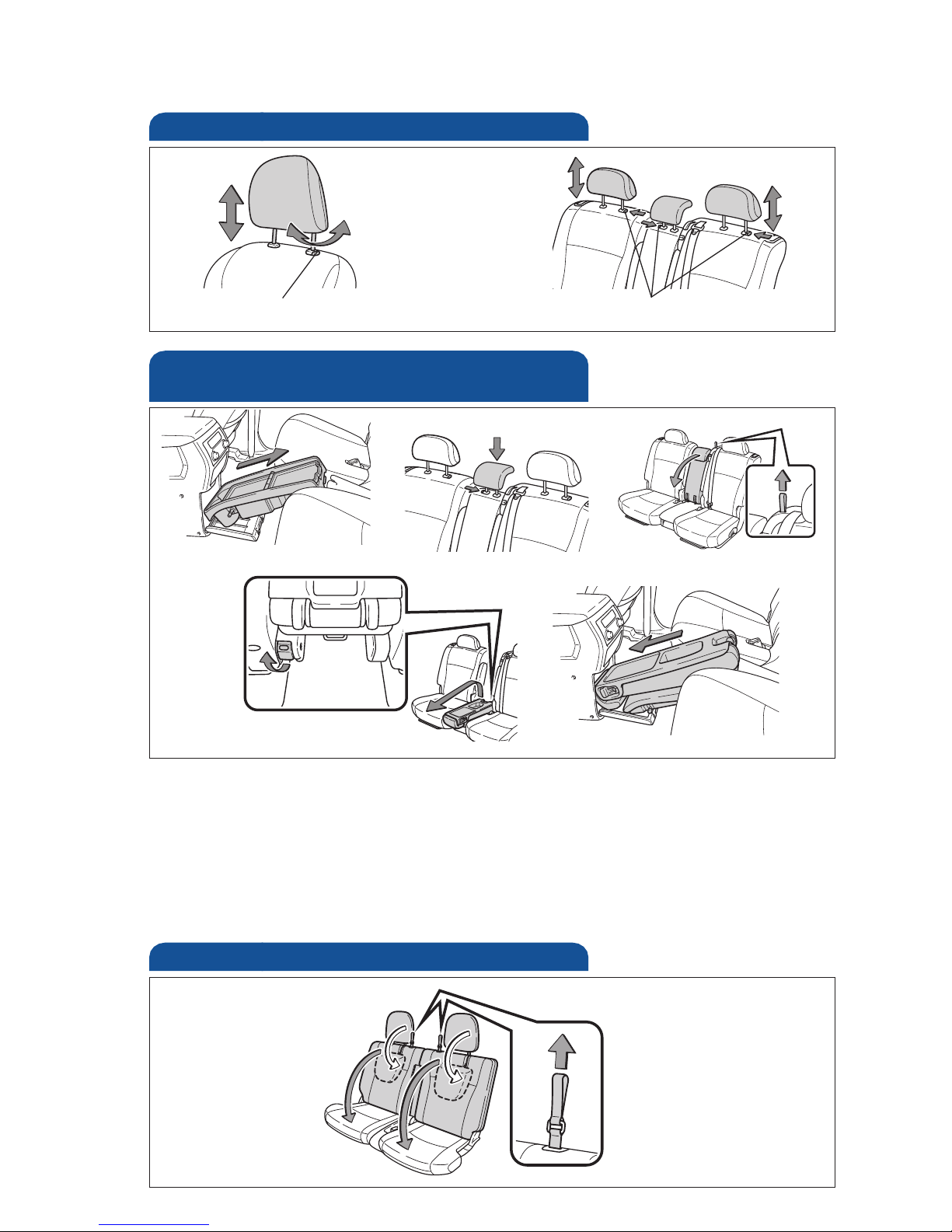

Seats-Head restraints

Front Rear

Lock release button

(1) Remove the second row console from the front center console box. (2) Lower the center head restraint. (3) Pull the strap, then fold down the seatback. (4) Pull the lever behind the second center seat and lift the rear of the seat to

remove.

(5) Stow the seat in the front center console box.

Pull

Windshield wipers & washers

Front

Rear

(1)

(5)(4)

(3)(2)

NOTE: The second-row console can now be installed between the second row seats.

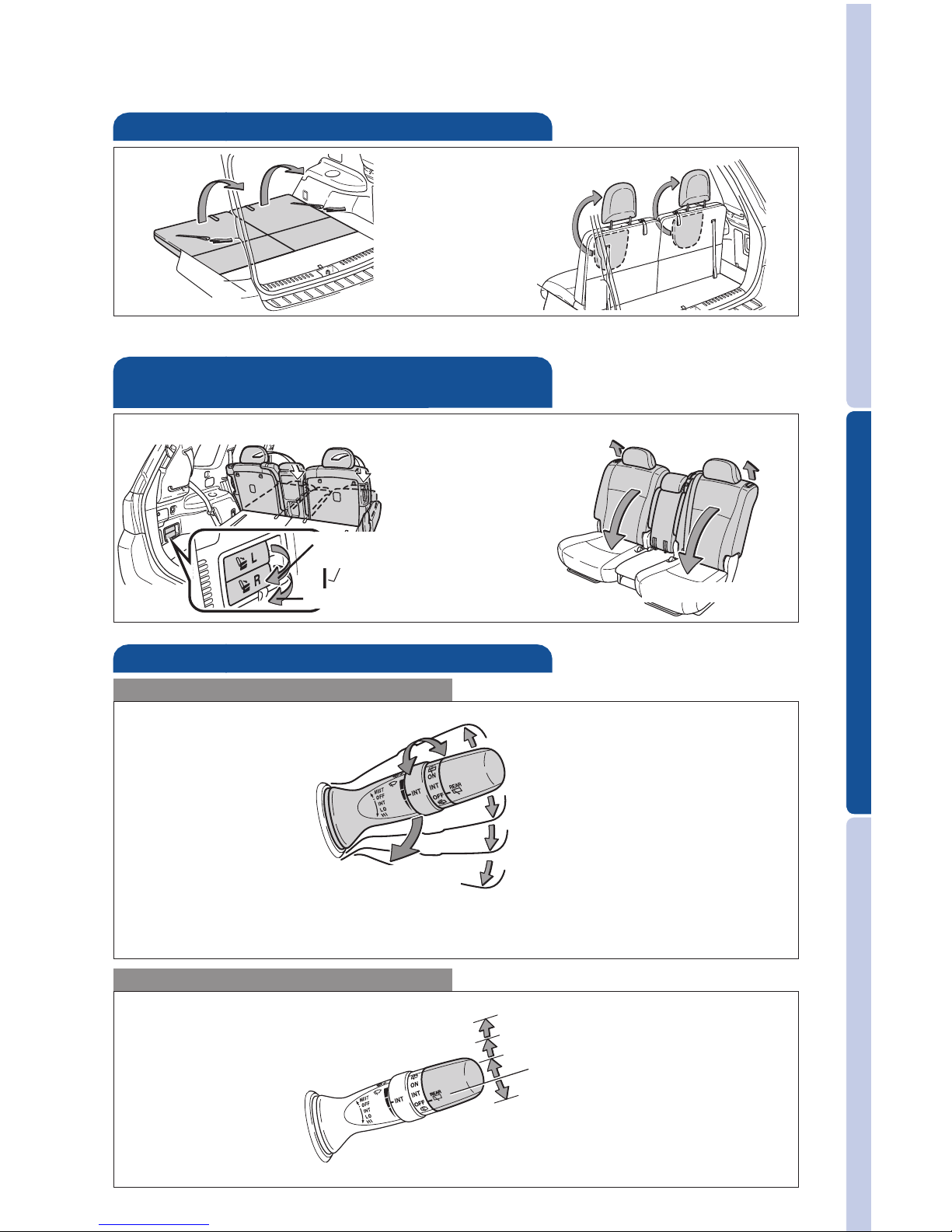

Seats-Removing Center-Stow second row seat

Seats-Folding down second row seats (if equipped)

Height

Angle (if equipped)

* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.

Seats -Stowing third row seats

From outside

Refer to the Owner’s Manual for more details.

Seats -Returning third row seats

(1) Pull

Page 17

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

(2) Fold down

Windshield wipers & washers

Front

Rear

(1) Pull up

Seats-Folding down second row seats (if equipped)

* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.

Left side/center remote seat release

Right side remote seat release

From outside

Refer to the Owner’s Manual for more details.

Seats -Returning third row seats

(1) Pull

(2) Raise

Interval wipe

Single wipe

Slow

Fast

Pull to wash and wipe

Adjust frequency*

Wash and wipe

Wipe

Interval wipe

Wash and wipe

From inside

Page 18

Lights & turn signals

Turn signals

Headlights

Front fog lights (if equipped)

-Daytime Running Light system (DRL) (if equipped) Automatically turns on the

headlights at a reduced intensity.

-Automatic light cut off system Lights automatically turn off after a delay of 30

seconds, or when lock switch on remote is pushed after all doors are locked.

Front fog lights come on only when the headlights are on low beam.

Power outlets-12V DC

Instrument panel (with seat heater)

The “ENGINE START STOP”/ignition switch must be in the “ACC” or “ON” position to be used.

Power outlet-120V AC (if equipped)

Beside second row seat

Center console

The “ENGINE START STOP”/ignition switch must be in the “ON” position to be used.

FEATURES/OPERATIONS

High beam flasher

Low beam

High beam

Headlights

Parking lights

Auto (if equipped)

Headlights

Parking lights

Auto

DRL OFF

With DRL OFF switch Without DRL OFF switch

Turn

Right turn

Lane change

Left turn

Page 19

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

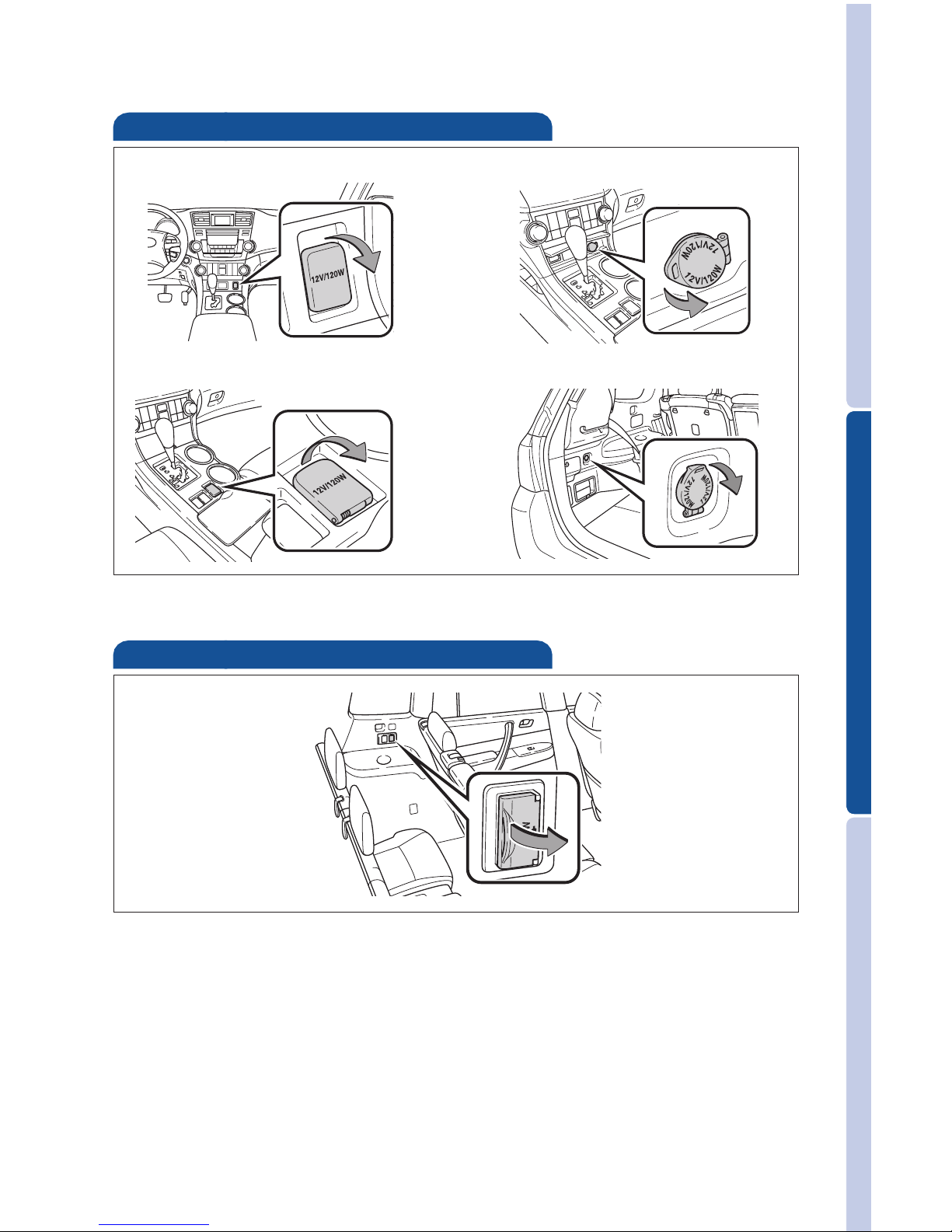

Power outlets-12V DC

Luggage compartment

Instrument panel (with seat heater)

Instrument panel (without seat heater)

The “ENGINE START STOP”/ignition switch must be in the “ACC” or “ON” position to be used.

Power outlet-120V AC (if equipped)

Beside second row seat

Center console

The “ENGINE START STOP”/ignition switch must be in the “ON” position to be used.

Page 20

FEATURES/OPERATIONS

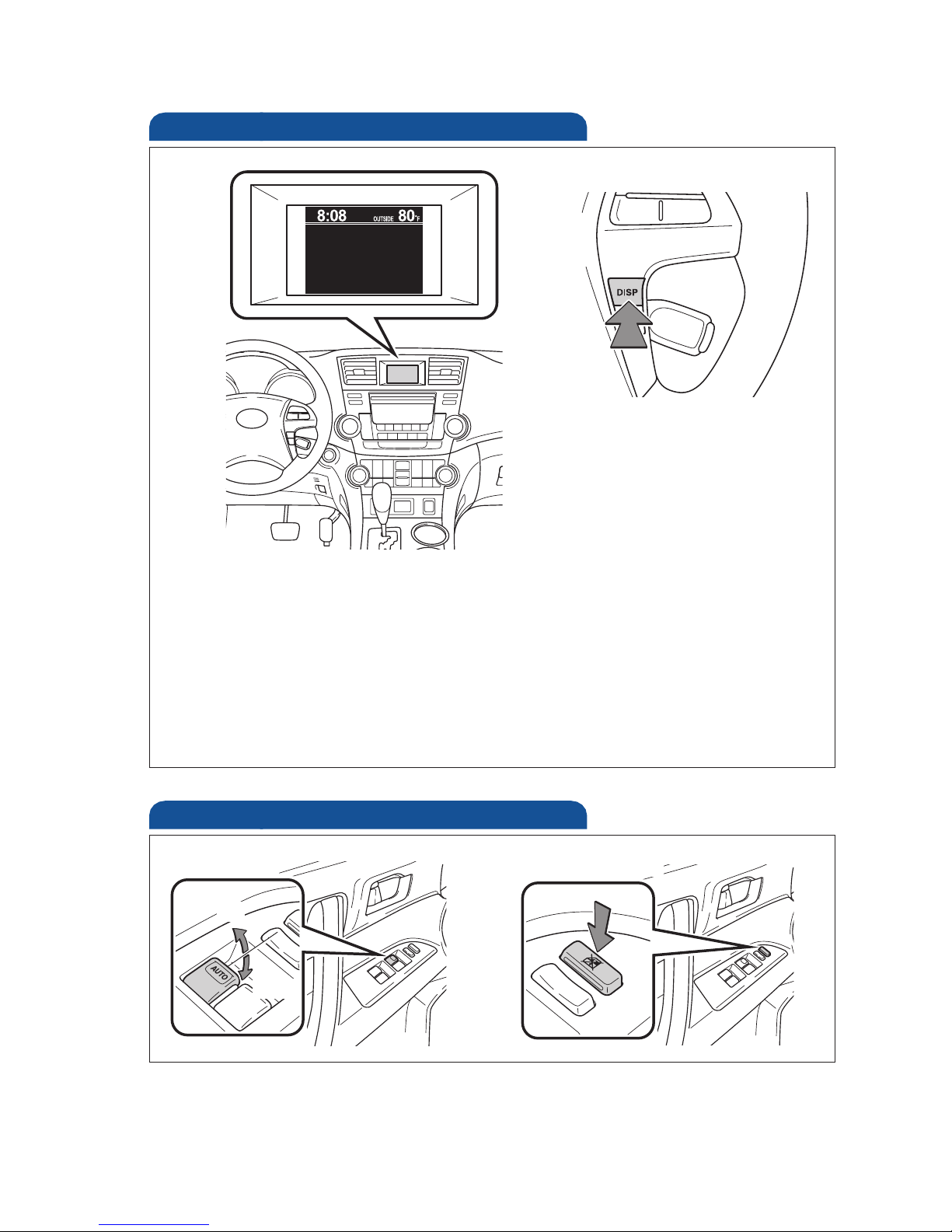

Multi-Information Display Telephone controls (Bluetooth

Push “DISP” to change information in the following:

(1) Average gas mileage after refueling (2) Current gas mileage (3) Miles left on remaining fuel (4) Driving distance from engine start (5) Average gas mileage (6) Average gas mileage history

Push and hold “DISP” to set up the displays and the rearview monitor displays.

Windows-Power

Down

Driver side

Window lock switch

Automatic operation (driver’s window only) Push the switch completely down or pull it completely up and release to fully open or close. To stop the window partway, operate the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

Bluetooth® technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the telephone and the system.

Refer to “Display Audio System Owner’s Manual” for more information about phone connections and compatibility.

Audio unit

Volume

Steering wheel controls

Audio control

“ ”

Use to search within the selected audio medium (radio, CD, iPod “MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio system OFF.

Volume control

Page 21

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Telephone controls (Bluetooth®)

Bluetooth® technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the telephone and the system.

Refer to “Display Audio System Owner’s Manual” for more information about phone connections and compatibility.

Microphone

Audio unit

Steering wheel telephone controls

Volume

Start call

End call

Voice command button*

* If equipped

Steering wheel controls

Audio control

A/C control*

“ ”

Use to search within the selected audio medium (radio, CD, iPod

, etc.).

“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio system OFF.

Volume control

Temperature selector

Auto A/C ON

A/C OFF

* If equipped

Page 22

FEATURES/OPERATIONS

Air Conditioning/Heating

Front

manual Air Conditioning

Fan speed Outside rearview mirror (if equipped)/Rear window defogger Temperature selector Recirculate cabin air (fresh air when OFF) Airflow vent In “

” or “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. Air Conditioning ON/OFF Use fresh air to quickly cool interior, then change to recirculate for cooler air. Use for quick cooling. Air intake will automatically be set to recirculate. Rear Air Conditioning ON/OFF (if equipped)

Front

automatic Air Conditioning

Automatic climate control ON Adjusting the temperature setting will cause the airflow vents, air intake and fan to adjust automatically. Windshield airflow/defogger Rear Air Conditioning ON/OFF Fan speed Outside rearview mirror (if equipped)/Rear window defogger Recirculate cabin air (fresh air when OFF) “DUAL” button Indicator ON: Separate temperature settings for driver, front passenger and rear passengers. Indicator OFF: Synchronize temperature settings for driver and all passengers. Temperature selector (front passenger side) Air Conditioning ON/OFF “SYNC” button Indicator ON: Synchronize temperature settings for driver and all passengers. Indicator OFF: Separate temperature settings for driver, front passenger and rear passengers. Temperature selector (rear) Airflow vent In “

” or “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. Climate control OFF Temperature selector (driver side)

With rear Air Conditioning

Without rear Air Conditioning

Rear automatic Air Conditioning

Fan speed Temperature selector Airflow vent Automatic climate control ON Climate control OFF

Page 23

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Front

manual Air Conditioning

Fan speed Outside rearview mirror (if equipped)/Rear window defogger Temperature selector Recirculate cabin air (fresh air when OFF) Airflow vent In “

Rear automatic Air Conditioning

(if equipped)

Fan speed Temperature selector Airflow vent Automatic climate control ON Climate control OFF

Page 24

FEATURES/OPERATIONS

Garage door opener (HomeLink (if equipped)

Garage door openers manufactured under license from HomeLink programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 3-8 in the Owner’s Manual for more details.

For programming assistance, contact HomeLink http://www.homelink.com.

* HomeLink® is a registered trademark of Johnson Controls, Inc.

Seat heaters (if equipped)

Push

Turn

Push knob to pop the controller out. Turn clockwise for heater.

Push

Clock

Press and hold “DISP” button. Select “CLOCK” on menu screen. Adjust as indicated on screen.

Cruise control

The set speed may also be cancelled by depressing the brake pedal.

The set speed may be resumed once vehicle speed exceeds 25 mph.

Turning system ON/OFF

Functions

Driver’s seat

Front passenger’s seat

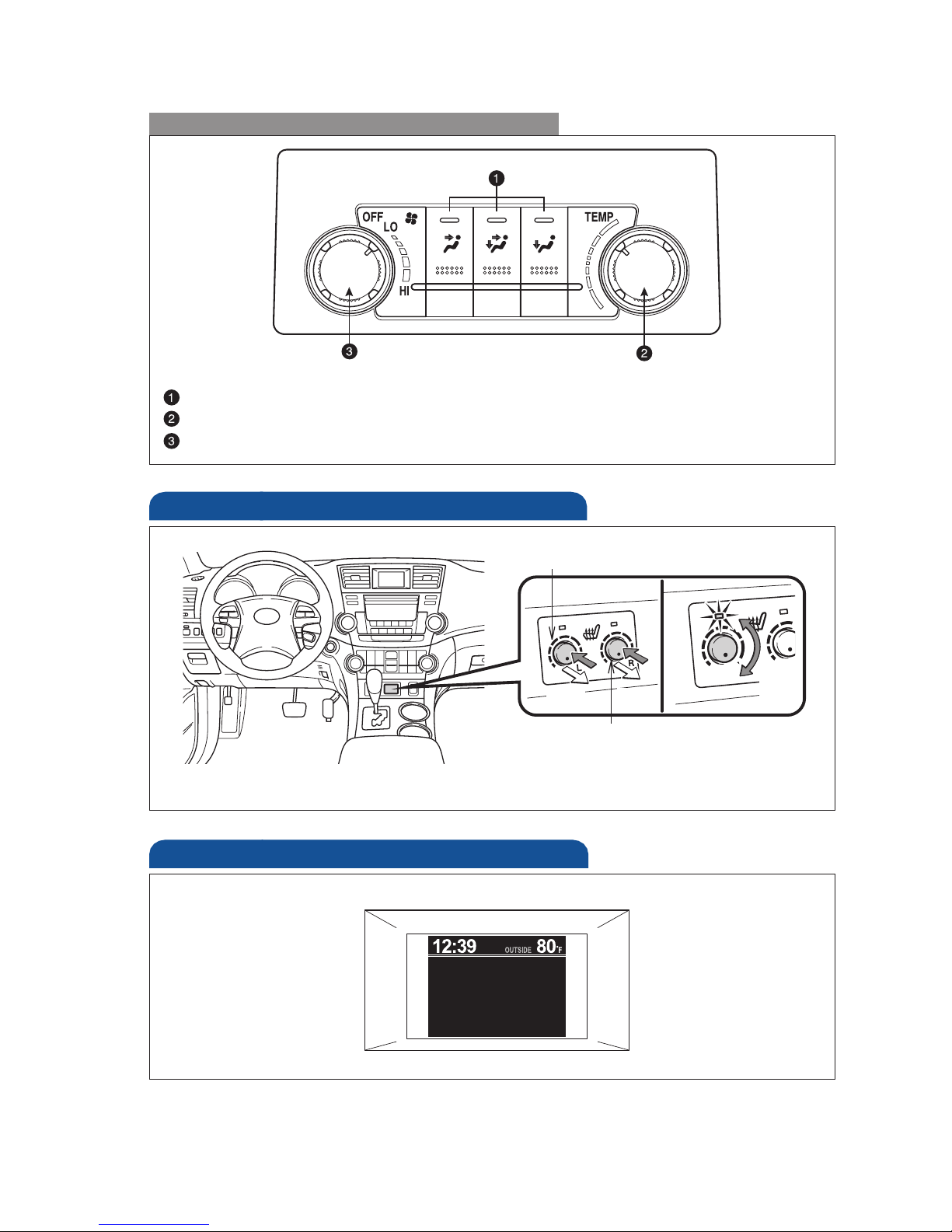

Rear manual

Air Conditioning (if equipped)

Airflow vent Temperature selector Fan speed

Page 25

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Garage door opener (HomeLink®)* (if equipped)

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 3-8 in the Owner’s Manual for more details.

For programming assistance, contact HomeLink

at 1-800-355-3515, or visit

http://www.homelink.com.

* HomeLink® is a registered trademark of Johnson Controls, Inc.

Cruise control

The set speed may also be cancelled by depressing the brake pedal.

The set speed may be resumed once vehicle speed exceeds 25 mph.

Turning system ON/OFF

Functions

System ON/OFF

Increase speed

Decrease speed

Cancel

Resume

Set

Page 26

FEATURES/OPERATIONS

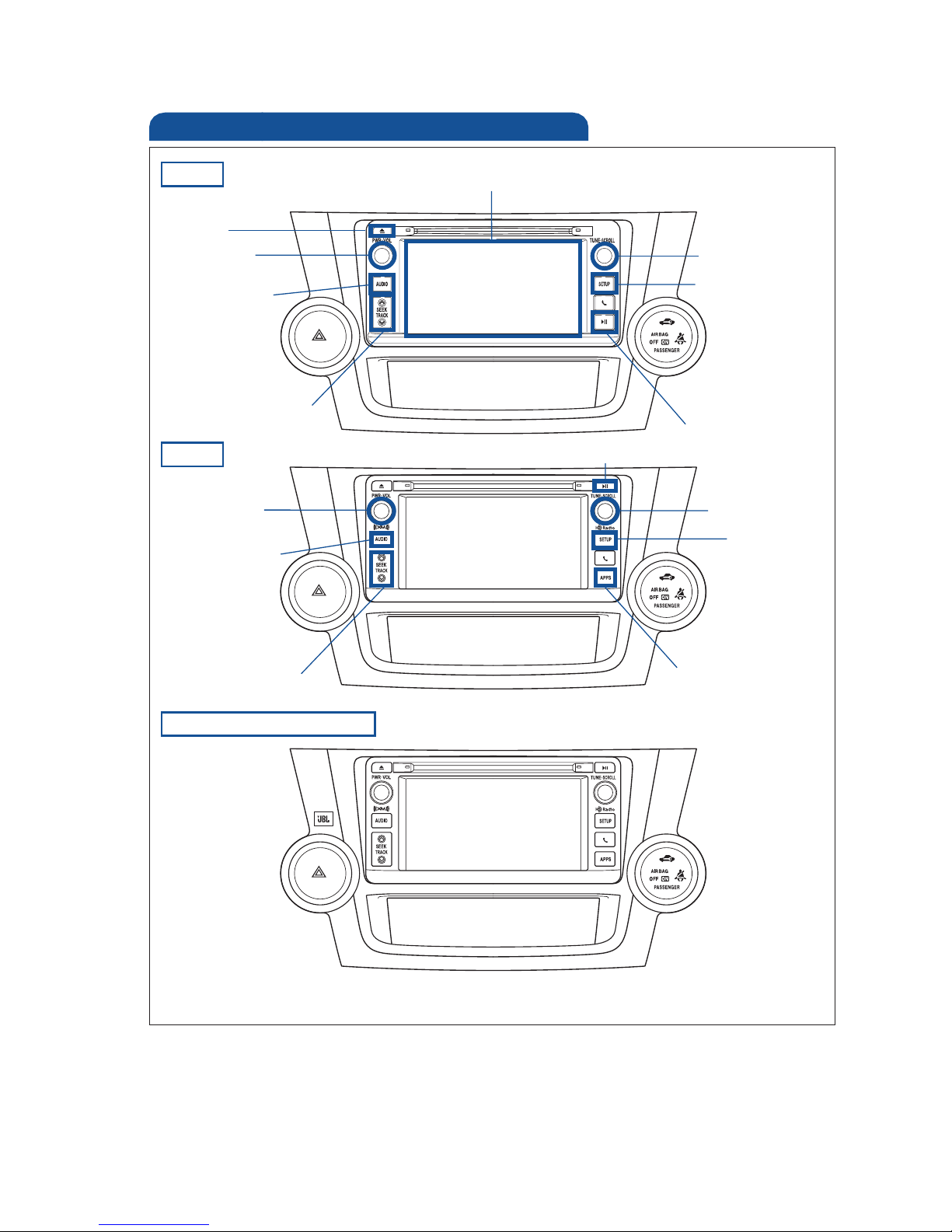

Type 2

Audio

Type 1

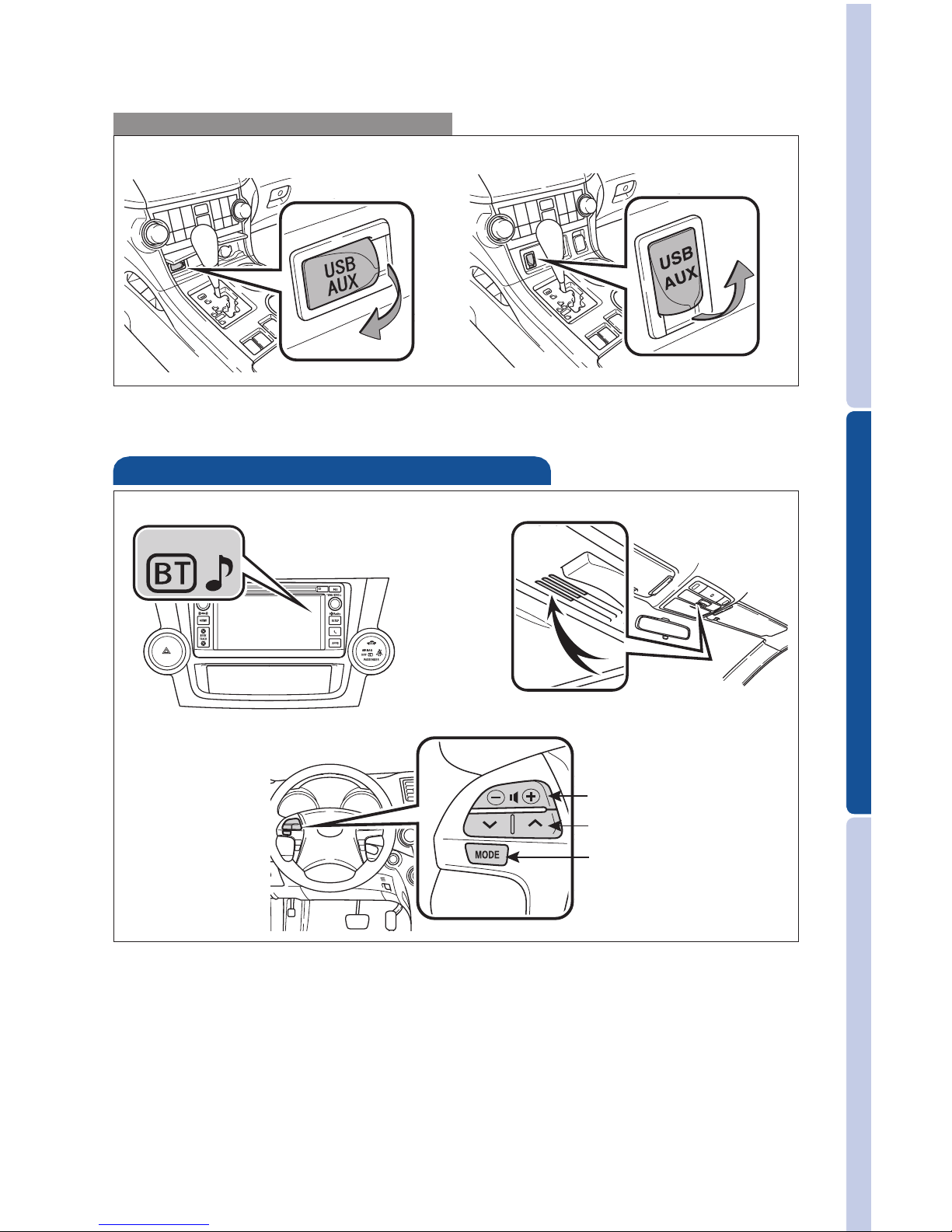

By inserting a mini plug into the USB/AUX port, you can listen to music from a portable audio device through the vehicle’s speaker system while in USB/AUX mode.

USB/AUX port

Without seat heater

The Bluetooth

digital audio player from the vehicle speaker via wireless communication.

Refer to “Display Audio System Owner’s Manual” for more details.

Bluetooth

Touch screen display

Turn to tune radio stations manually or select tracks or files

Eject CD Push to turn

ON/OFF

Seek station/ CD track select

Push to pause or resume playing

Push to display audio screen

Type 3 (with JBL speakers)

Push to turn ON/OFF

Seek station/ CD track select

Push to adjust tone & balance

Mute

Access to navigation system*

Push to display audio screen

* Refer to the “Navigation System with Entune Quick Reference Guide.”

Refer to the “Display Audio System Owner’s Manual” for instructions and more information.

Audio unit

Page 27

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

By inserting a mini plug into the USB/AUX port, you can listen to music from a portable audio device through the vehicle’s speaker system while in USB/AUX mode.

USB/AUX port

Without seat heater

With seat heater

The Bluetooth® audio system enables you to enjoy music played on a portable digital audio player from the vehicle speaker via wireless communication.

Refer to “Display Audio System Owner’s Manual” for more details.

Microphone

Steering wheel audio switches

Selects a track and album

Turns the power on, selects an audio source

Volume

Bluetooth® audio

Audio unit

Page 28

FEATURES/OPERATIONS

Cup holders

Front

Console box

Side table

Downhill Assist Control system helps the vehicle to descend steep hills while maintaining a low speed without brake pedal operation. Press the “DAC” button (system will engage only when shifter is in S1 or R mode, or vehicle speed is below 15 mph). Pressing the button again will turn system off.

Refer to the Owner’s Manual for more details.

HAC helps prevent rolling backwards on an incline. To engage, push further down on brake pedal while at a complete stop until a beep sounds and slip indicator illuminates. HAC holds for approximately two seconds after releasing brake pedal.

Refer to the Owner’s Manual for more details.

Hill-start Assist Control (HAC)

Downhill Assist Control system (DAC) (if equipped)

“DAC” indicator blinking = Downhill assist control system not engaged

Slip indicator blinking, “DAC” indicator solid = Downhill assist control system engaged

Refer to Section 3-5 of the Owner’s Manual for more information.

Display Headphone jacks and headphone volume control DVD player Remote control AV input port 120V AC power outlet

Rear seat entertainment system (if equipped)

Page 29

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Cup holders

Front

Console box

Rear

Side table

Refer to the Owner’s Manual for more details.

Brake pedal

Hill-start Assist Control (HAC)

Page 30

SAFETY AND EMERGENCY FEATURES

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.

Keep as low on hips as possible

Take up slack

Too high

Seat belts

System reset initialization

1. Push and hold “ SET” button until the indicator blinks three times.

2. Wait a few minutes to allow initialization to complete.

Tire Pressure Monitoring (warning) System

After adjusting tire pressures, or after tires have been rotated or replaced, turn the ignition switch to “ON” and press and hold the “

SET” button until indicator blinks three times. Let the vehicle sit for a few minutes to allow initialization to complete.

Refer to the load label on the door jamb or the Owner’s Manual for tire inflation specifications.

If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer.

NOTE: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

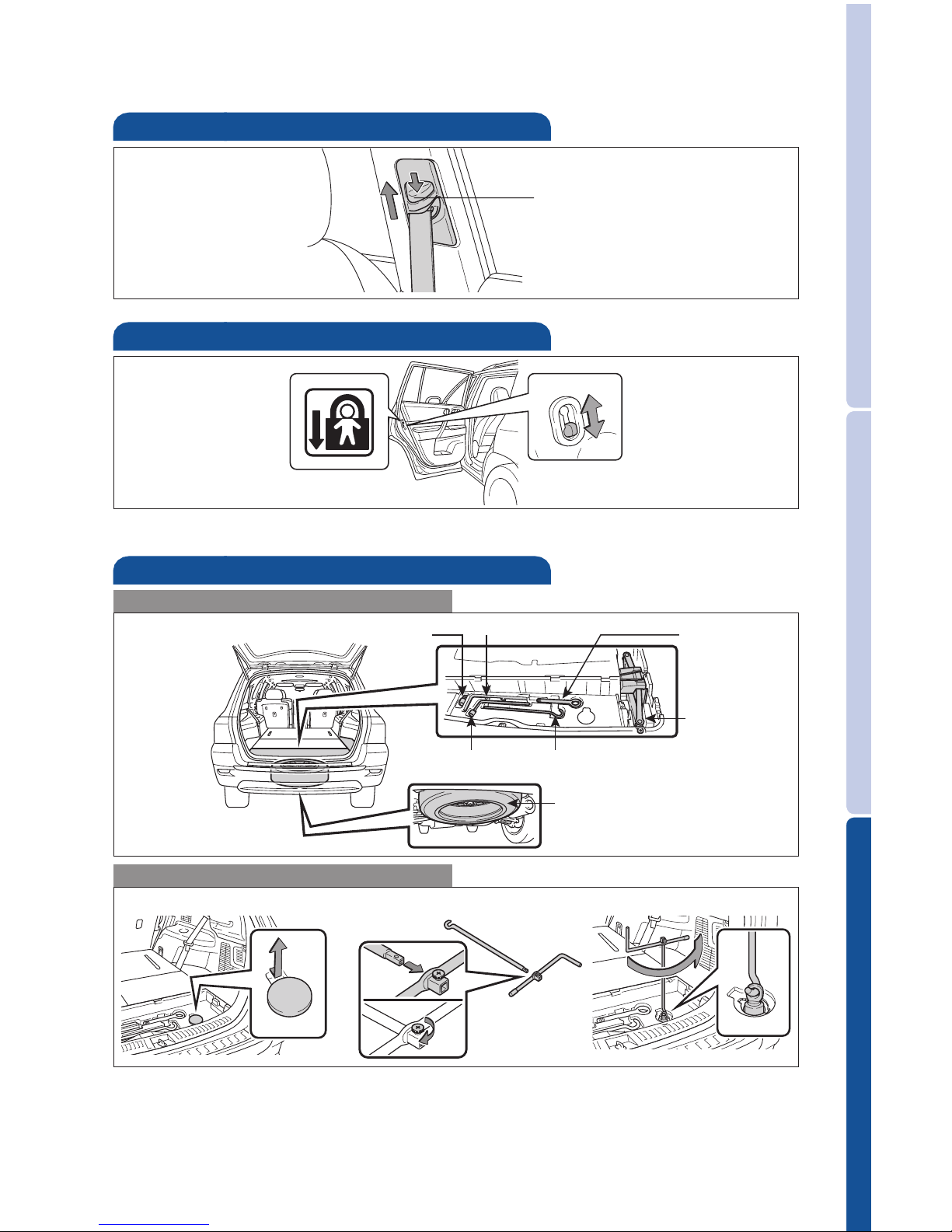

Spare tire & tools

Tool location

Removing the spare tire

(1) Remove the cover under the center deck board to find the spare tire clamp bolt. (2) Assemble the jack handle. (3) Put the socket adapter on the spare tire clamp bolt. Loosen the bolt by turning

it counterclockwise with the jack handle.

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

Moving the lever downward will allow the door to be opened only from the outside.

Rear door

Doors-Child safety locks

(1)

Seat belts-Shoulder belt anchor

Page 31

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Spare tire & tools

Tool location

Removing the spare tire

(1) Remove the cover under the center deck board to find the spare tire clamp bolt. (2) Assemble the jack handle. (3) Put the socket adapter on the spare tire clamp bolt. Loosen the bolt by turning

it counterclockwise with the jack handle.

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

Wrench

Spare tire

Towing eyelet

Jack handle

Jack

Socket adapter

Moving the lever downward will allow the door to be opened only from the outside.

Rear door

Doors-Child safety locks

(1) (3)

Push up, or squeeze lock release to lower

Seat belts-Shoulder belt anchor

(2)

Jack handle

Unlock

Lock

Page 32

Star Safety System

VSC helps prevent loss of traction during cornering by reducing engine power and applying brake force to selected wheels.

Toyota’s VSC monitors steering angle and the direction your vehicle is traveling. When it senses that the front or rear wheels begin to lose traction, VSC reduces engine power and applies braking to selected wheels. This helps restore traction and vehicle control.

Vehicle Stability Control (VSC)

Anti-Lock Brake System (ABS)

Brake Assist (BA)

ABS helps prevent brakes from locking up by “pulsing” brake pressure to each wheel. This limits brake lockup and helps provide directional control for the current road conditions.

Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure repeatedly for fractions of a second. This helps the tires attain the traction that current road conditions will allow, helping you to stay in directional control.

Brake Assist is designed to detect sudden or “panic” braking, and then add braking pressure to help decrease the vehicle’s stopping distance. When there’s only a split second to react, Brake Assist can add additional brake pressure more quickly than just the driver alone can.

VSC helps prevent loss of traction during cornering by reducing engine power, and Traction Control helps maintain traction on loose gravel and wet, icy, or uneven surfaces by applying brake force to the spinning wheel(s).

Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip. TRAC limits engine output and applies the brakes to the spinning wheel. This transfers power to the wheels that still have traction to help keep you on track.

Traction Control (TRAC)

Electronic Brake Force Distribution (EBD)

Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help maintain control and balance when braking. Abrupt stops can cause a vehicle to tilt forward, reducing the braking power of the rear wheels. EBD responds to sudden stops by redistributing brake force to enhance the braking effectiveness of all four wheels.

There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle has model-specific floor mats. Installation is easy.

To keep your floor mat properly positioned, follow these steps:

• Only use floor mats designed for your specific model.

• Use only one floor mat at a time, using the retaining hooks to keep the mat in

place.

• Install floor mats right side up.

Floor mat installation

SAFETY AND EMERGENCY FEATURES

All new Toyota vehicles come standard with the Star Safety SystemTM, which combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology (SST).

Smart Stop Technology automatically reduces engine power when the accelerator and brake pedals are pressed simultaneously under certain conditions.

SST engages when the accelerator is depressed first and the brakes are applied firmly for longer than one-half second at speeds greater than five miles per hour.

SST doesn’t engage if the brake pedal is depressed before the accelerator pedal, allowing vehicles to start on a steep hill and safely accelerate without rolling backward.

Smart Stop Technology (SST)

Page 33

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle has model-specific floor mats. Installation is easy.

To keep your floor mat properly positioned, follow these steps:

• Only use floor mats designed for your specific model.

• Use only one floor mat at a time, using the retaining hooks to keep the mat in

place.

• Install floor mats right side up.

Floor mat installation

Smart Stop Technology automatically reduces engine power when the accelerator and brake pedals are pressed simultaneously under certain conditions.

SST engages when the accelerator is depressed first and the brakes are applied firmly for longer than one-half second at speeds greater than five miles per hour.

SST doesn’t engage if the brake pedal is depressed before the accelerator pedal, allowing vehicles to start on a steep hill and safely accelerate without rolling backward.

Smart Stop Technology (SST)

Page 34

NOTES

Page 35

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Page 36

CUSTOMER EXPERIENCE CENTER

1-800-3 31- 4 3 31

00505-QRG13-HIG

Printed in U.S.A. 8/12

12-TCS-05892

HigHlander
