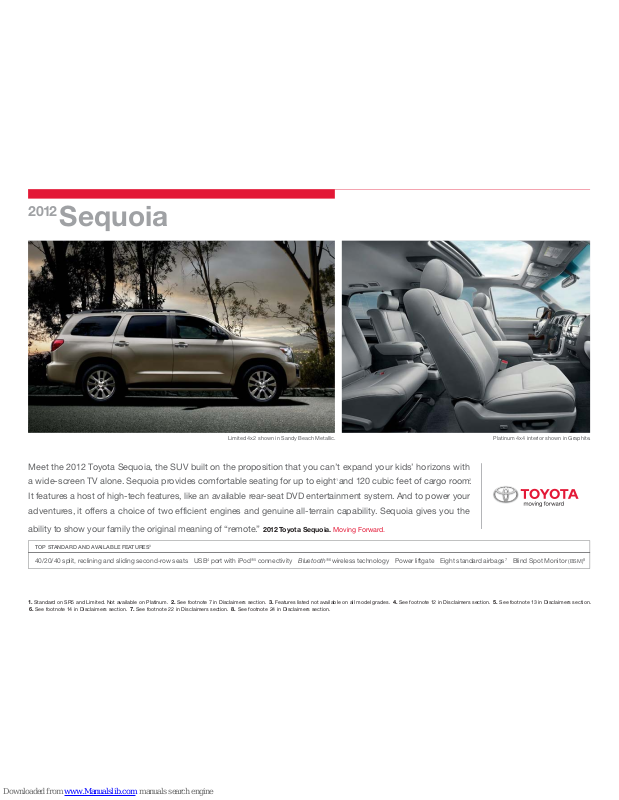

Toyota 2012 Sequoia Catalog

Page 1

Sequoia

2012

Limited 4x2 shown in Sandy Beach Metallic. Platinum 4x4 interior shown in Graphite.

1. Standard on SR5 and Limited. Not available on Platinum. 2. See footnote 7 in Disclaimers section. 3. Features listed not available on all model grades. 4. See footnote 12 in Disclaimers section. 5. See footnote 13 in Disclaimers section.

6. See footnote 14 in Disclaimers section. 7. See footnote 22 in Disclaimers section. 8. See footnote 24 in Disclaimers section.

Meet the 2012 Toyota Sequoia, the SUV built on the proposition that you can’t expand your kids’ horizons with

a wide-screen TV alone. Sequoia provides comfortable seating for up to eight

and 120 cubic feet of cargo room2.

It features a host of high-tech features, like an available rear-seat DVD entertainment system. And to power your

adventures, it offers a choice of two efficient engines and genuine all-terrain capability. Sequoia gives you the

ability to show your family the original meaning of “remote.”

2012 Toyota Sequoia. Moving Forward.

TOP STANDARD AND AVAILABLE FEATURES

40/20/40 split, reclining and sliding second-row seats USB4 port with iPod®5 connectivity Bluetooth®6 wireless technology Power liftgate Eight standard airbags7

Blind Spot Monitor (BSM)

Page 2

SAND BEIGE

GRAPHITE

RED ROCK

SAND BEIGE

GRAPHITE

RED ROCK

GRAPHITE

BLACK

RED ROCK

GRAPHITE

BLACK

SAND BEIGE

RED ROCK

Combinations

INTERIOR COLOR CHOICES

WHEELS

1. See numbered footnotes in Disclaimers section.

EXTERIOR/INTERIOR COLOR COMBINATIONS

EASY-CLEAN FABRIC

SR5

LEATHER TRIM

LIMITED

PERFORATED LEATHER TRIM

PLATINUM

BLACK GRAPHITE GRAPHITE GRAPHITESAND BEIGE SAND BEIGE SAND BEIGE RED ROCK

BLACK PYRITE MICA SIZZLING CRIMSON MICA SILVER SKY METALLIC

1234

1 SR5 standard 18-in. alloy wheel 2 SR5 available 20-in. Sport alloy wheel 3 Limited standard 20-in. alloy wheel 4 Platinum standard 20-in. diamond-

cut-ﬁ nish alloy wheel

BLIZZARD PEARL

SUPER WHITE

SANDY BEACH METALLIC MAGNETIC GRAY METALLIC

GRAPHITE

BLACK

SAND BEIGE

RED ROCK

SAND BEIGE

RED ROCK

GRAPHITE GRAPHITE

RED ROCK

Page 3

See numbered footnotes in Disclaimers section.

Speciﬁ cations

MECHANICAL AND PERFORMANCE SR5 LIMITED PLATINUM

Engine

4.6-Liter i-FORCE V8 DOHC 32-Valve with Dual Independent Variable Valve Timing with intelligence (VVT-i); 310 hp @ 5400 rpm; 327 lb.-ft. @ 3400 rpm Standard NA NA

5.7-Liter i-FORCE V8 DOHC 32-Valve with Dual Independent Variable Valve Timing with intelligence (VVT-i); 381 hp @ 5600 rpm; 401 lb.-ft. @ 3600 rpm Available Standard Standard

5.7-Liter i-FORCE V8 DOHC E85 Flex Fuel 32-Valve with Dual Independent Variable Valve Timing with intelligence (VVT-i); 381 hp @ 5600 rpm; 401 lb.-ft. @ 3600 rpm Available

Available4 Available

IGNITION SYSTEM

Electronic, with Toyota Direct Ignition (TDI) Standard Standard Standard

EMISSION RATING

Ultra Low Emission Vehicle II (ULEV-II) Standard Standard Standard

TRANSMISSION

6-speed Electronically Controlled automatic Transmission with intelligence (ECT-i); sequential shift mode and uphill/downhill shift logic; TOW/HAUL mode Standard Standard Standard

DRIVETRAIN

Rear-Wheel Drive Standard Standard Standard Multi-Mode 4WD with Torsen

limited-slip center differential with locking feature (4x4 only) Available Available Available

BODY CONSTRUCTION

Reinforced body-on-frame construction Standard Standard Standard

SUSPENSION

Front high-mounted coil-spring independent double-wishbone front suspension with low-pressure gas-ﬁ lled shock absorbers and hollow stabilizer bar; rear coil-spring independent double-wishbone suspension with low-pressure gas-ﬁ lled shock absorbers and hollow stabilizer bar Standard Standard NA

Electronic Modulated Air Suspension NA NA Standard Adaptive Variable Suspension (AVS) system NA NA Standard

STEERING

Engine speed-sensing Variable Flow Control (VFC) power-assisted rack-and-pinion Standard Standard Standard Turning circle diameter, curb to curb (ft.) 38.1 38.1 38.1

BRAKES

Power-assisted 4-wheel Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA)

and Star Safety System™ Standard Standard Standard

EXTERIOR DIMENSIONS (in.)

Overall width/height/length 79.9/77.0/205.1 79.9/77.0/205.1 79.9/77.0/205.1 Wheelbase 122.0 122.0 122.0 Track (front/rear) 67.9/69.1 67.9/69.1 67.9/69.1

INTERIOR DIMENSIONS (front/second-row/third-row seats) (in.)

Head room with moonroof 34.8/34.9/34.5 34.8/34.9/34.5 34.8/34.9/34.5 Shoulder room 66.4/65.6/65.7 66.4/65.6/65.7 66.4/65.6/65.7 Hip room 62.5/59.9/50.4 62.5/59.9/50.4 62.5/59.9/50.4 Leg room 42.5/40.9/35.3 42.5/40.9/35.3 42.5/40.9/35.3

OFF-HIGHWAY

Approach/departure angle (degrees) (4x2; 4x4) 27/20; 27/21 27/20; 27/21 27/20; 27/21 Ground clearance (in.) (4x2/4x4) 9.9/10.0 9.9/10.0 9.6/9.6

WEIGHTS AND CAPACITIES

Curb weight (lb.) (4x2/4x4) 5670/5970 (4.6L V8); 5730/5985 (5.7L V8) 5730/5985 5750/6000 Gross Vehicle Weight Rating (GVWR) (lb.) (4x2/4x4) 7000/7300 (4.6L V8); 7100/7300 (5.7L V8) 7100/7300 7100/7300 Gross Combined Weight Rating (GCWR) (lb.) (4x2/4x4)

13,000/13,000 (4.6L V8); 13,600/13,600 (5.7L V8)

13,600/13,500 13,400/13,500

Page 4

See numbered footnotes in Disclaimers section.

Speciﬁ cations

WEIGHTS AND CAPACITIES (continued) SR5 LIMITED PLATINUM

Cargo volume7 (cu. ft.) (behind front/second-row/third-row seats) 120.1/66.6/18.9 120.1/66.6/18.9 120.1/66.6/18.9 Fuel tank (gal.) 26.4 26.4 26.4 Seating capacity (standard/available) 8/7 8/7 7/NA

TOWING

Towing receiver hitch and wiring harness with 4/7-pin connector Standard Standard Standard Towing capacity

(lb.) (4x2/4x4) 6900/6600 (4.6L V8); 7400/7100 (5.7L V8) 7400/7100 7200/7000

TIRES

Type – Mud-and-Snow-rated radials Standard Standard Standard Spare – Full-size, mounted under body Standard Standard Standard

MILEAGE ESTIMATES (mpg city/highway/combined)

4.6L (4x2; 4x4) 14/20/16; 13/18/15 NA NA

5.7L (4x2; 4x4) 13/18/15; 13/17/14 13/18/15; 13/17/14 13/18/15; 13/17/14

Features

EXTERIOR

SR5 LIMITED PLATINUM

Multi-reflector halogen headlamps with auto-off feature and headlamp cleaners S S S Integrated fog lamps S S S Chrome grille surround S S S Color-keyed grille surround P — — Color-keyed heated power outside mirrors S — — Chrome auto-dimming heated power outside mirrors with power folding feature

and turn signal indicators

— S —

Chrome auto-dimming heated power outside mirrors with power folding, reverse tilt-down and memory features, turn signal indicators and puddle lamps

— — S

Color-keyed door handles S — — Chrome door handles — S S Power tilt/slide moonroof with sliding sunshade S S S 18-in. alloy wheels with P275/65R18 tires S — —

20-in. Sport alloy wheels with P275/55R20 tires P — — 20-in. alloy wheels with P275/55R20 tires — S — 20-in. diamond-cut-finish alloy wheels with P275/55R20 tires — — S Washer-linked variable intermittent windshield wipers and intermittent rear wiper S S S Windshield wiper de-icer S S S Privacy glass on rear side, quarter and liftgate windows S S S Power liftgate with jam protection — S S Color-keyed rear spoiler with LED center high-mount stop lamp S S S Roof rack S S S Running boards S S S Front and rear mudguards S S S Engine and transfer case skid plates (transfer case 4x4 only) S S S

INTERIOR

Three-zone automatic front and rear climate control with air filter S S S AM/FM CD player with MP3/WMA playback capability, eight speakers, SiriusXM

Satellite Radio

capability (includes three-month trial subscription to XM Select

Package), auxiliary audio jack, USB

port with iPod

®13

connectivity, hands-free

phone capability and music streaming via Bluetooth

®14

wireless technology S — —

JBL Synthesis® AM/FM 6-disc CD changer with MP3/WMA playback capability, 14 speakers including subwoofer, SiriusXM Satellite Radio

capability (includes

three-month trial subscription to XM Select Package), auxiliary audio jack, USB

port with iPod

®13

connectivity, hands-free phone capability and music streaming

via Bluetooth

®14

wireless technology — S —

Display Navigation15 with Entune™16 includes 6.1-in. high-resolution touch-screen with split-screen capability and integrated backup camera

display, AM/FM CD player with

MP3/WMA playback capability, eight speakers, SiriusXM

Satellite Radio11 compatibility

(additional hardware and subscription required), HD Radio™

with iTunes® Tagging,19

auxiliary audio jack, USB

port with iPod

®13

connectivity and control, hands-free phone

capability, phone book access, advanced voice recognition and music streaming via

Bluetooth

®14

wireless technology O — —

Voice-activated touch-screen DVD navigation system15 includes 7-in. high-resolution touch-screen with integrated backup camera

display, JBL Synthesis® AM/FM 4-disc CD changer with MP3/WMA playback capability, fourteen speakers including subwoofer, SiriusXM Satellite Radio capability with NavTraffic™

(includes three-month trial

subscription to XM Select Package and NavTraffic™

), auxiliary audio jack, USB12

port with iPod

®13

connectivity, hands-freephone capability and music streaming via

Bluetooth

®14

wireless technology — O S

Multi-Information Display with outside temperature, compass, instant/average fuel economy and distance to empty

S S S

Rear-seat DVD entertainment system with 9-in. display, RCA jacks, one 115V AC power outlet, remote and two wireless headphones

— O S

Easy-clean fabric-trimmed front seats; 8-way power-adjustable driver’s seat; 4-way adjustable front passenger seat

S — —

Leather-trimmed and heated front seats; 10-way power-adjustable driver’s seat; 4-way power-adjustable front passenger seat

P S —

Perforated leather-trimmed heated and ventilated front seats; 12-way power-adjustable driver’s seat with power thigh and lumbar support; 4-way power-adjustable front passenger seat

— — S

8-passenger seating with easy-clean fabric S — — 8-passenger seating with leather trim — S — 7-passenger seating with second-row captain’s chairs P O — 7-passenger seating with second-row captain’s chairs and multi-function center console — — S Easy-clean fabric-trimmed 40/20/40 split, sliding, reclining, fold-flat second-row seat

with one-touch access to third-row seat

S — —

S = Standard O = Optional – = Not Available P = Feature is available as part of an option package.

Page 5

Features

INTERIOR (continued)

SR5 LIMITED PLATINUM

Leather-trimmed 40/20/40 split, sliding, reclining, fold-flat second-row seat with one-touch access to third-row seat

P S —

Easy-clean fabric-trimmed 60/40 split, reclining, fold-flat third-row seat with folding headrests

S — —

Leather-trimmed power 60/40 split, reclining, fold-flat third-row seat with folding headrests

P S —

Perforated leather-trimmed power 60/40 split, reclining, fold-flat third-row seat with folding headrests

— — S

Cruise control S S S Dynamic Laser Cruise Control (DLCC)21 — — S Leather-trimmed tilt/telescopic steering wheel with audio and Bluetooth

®14

hands-free phone controls

S — —

Leather-trimmed tilt/telescopic steering wheel with audio, climate and Bluetooth

®14

hands-free phone controls

— S —

Leather-trimmed power tilt/telescopic steering wheel, wood-grain-style accents, memory, climate and Bluetooth

®14

hands-free phone controls — — S

Analog instrumentation with speedometer, tachometer and fuel gauge; LCD display with odometer and tripmeters

S — —

Optitron instrumentation with speedometer and tachometer; LCD display with odometer and tripmeters

— S S

Multi-function remote keyless entry system with remote illuminated entry S S S Power windows with driver and front passenger one-touch auto up/down

and jam protection

S S S

Power rear window with auto up/down, jam protection and defogger S S S Second- and third-row retractable window sunshades — S S Power door locks with shift-linked automatic lock/unlock feature S S S Auto-dimming rearview mirror with compass and HomeLink

universal transceiver P — S

Auto-dimming rearview mirror with integrated backup camera17 display, compass and HomeLink

universal transceiver P S — Overhead console with storage and maplamps S S S Multi-function center console with two front and two rear cup holders,

two 12V auxiliary power outlets, sliding covered armrest and storage compartment

S S S

Cargo area 12V auxiliary power outlet and grocery bag hooks S S S Dual extendable sun visors with vanity mirrors S — — Dual extendable sun visors with illuminated vanity mirrors and secondary visors — S S 16 (18 on Platinum) cup and bottle holders (total) S S S Digital quartz clock S S S

SAFETY AND CONVENIENCE

SR5 LIMITED PLATINUM

Star Safety System™ — includes Vehicle Stability Control (VSC),23 Traction Control (TRAC), Anti-lock Brake System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)

and Smart

Stop Technology (SST)

S S S Driver and front passenger Advanced Airbag System25 S S S Driver and front passenger seat-mounted side airbags, driver and front

passenger knee airbags and all-row side curtain airbags

S S S

Driver and front passenger seat-mounted side airbags, driver and front passenger knee airbags and all-row Roll-sensing Side Curtain Airbags (RSCA) with cutoff switch (4x4 models only)

S S S Driver and front passenger seatbelt warning sensor S S S 3-point seatbelts for all seating positions; driver-side Emergency Locking

Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger belts

S S S

Driver and front passenger seatbelt pretensioners with force limiters S S S

LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all second-row seats and tether anchors on all second-row seats and center third-row seat

S S S

Child-protector rear door locks and power window lockout S S S Front energy-absorbing crumple zone S S S Side-impact door beams S S S Energy-dissipating interior trim S S S Tire Pressure Monitor System (TPMS)26 S S S Daytime Running Lights (DRL) with on/off feature S S S Blind Spot Monitor (BSM)27 — — S Front and rear parking assist sonar — S S Trailer-Sway Control (TSC)28 S S S Anti-theft system with engine immobilizer29 S S S

S = Standard O = Optional – = Not Available P = Feature is available as part of an option package.

Packages and Options

SR5

Sport Package — includes 20-in. super chrome-ﬁ nish alloy wheels, color-keyed grille surround and 7-passenger seating with second-row captain’s chairs Premium Package — includes leather-trimmed and heated 10-way power-adjustable driver’s seat; 4-way power-adjustable front passenger seat; leather-trimmed 40/20/40 split, sliding, reclining, fold-ﬂ at second-row seat with

passenger-side one-touch access to third-row seat; leather-trimmed power 60/40 split, reclining, fold-ﬂ at third-row seat; and auto-dimming rearview mirror with integrated backup camera

display, compass, maplamps and

HomeLink

universal transceiver

Display Navigation

with Entune™16 includes 6.1-in. high-resolution touch-screen with split-screen capability and integrated backup camera17 display, AM/FM CD player with MP3/WMA playback capability, eight speakers, SiriusXM Satellite

Radio

compatibility (additional hardware and subscription required), HD Radio™18 with iTunes® Tagging,19 auxiliary audio jack, USB12 port with iPod

®13

connectivity and control, hands-free phone capability, phone book access, advanced voice

recognition and music streaming via Bluetooth

®14

wireless technology

LIMITED

Voice-activated touch-screen DVD navigation system15 with integrated backup camera17 display, JBL Synthesis® AM/FM 4-disc CD changer with MP3/WMA playback capability, 14 speakers including subwoofer, SiriusXM Satellite Radio with NavTrafﬁ c™

(includes three-month trial subscription to XM Select Package and NavTraffic™11), auxiliary audio jack, USB12 port with iPod

connectivity, hands-free phone capability and music streaming

via Bluetooth

wireless technology 7-passenger seating with leather-trimmed second-row captain’s chairs Rear-seat DVD entertainment system with 9-in. display, RCA jacks, one 115V AC power outlet, remote and two wireless headphones

For more information about our available audio systems, as well as Bluetooth

®14

-compatible features, please contact your local Toyota dealer.

See numbered footnotes in Disclaimers section.

Page 6

TOYOTA FINANCIAL SERVICES

Toyota helps you get more out of every dollar you spend. By rewarding you for every purchase you make, the Toyota Rewards Visa

adds even more value to doing the things you love.

Turn everything you buy into points to redeem toward parts, accessories or an eligible vehicle Toyota dealers and 1 point for every $1 spent everywhere else Visa is accepted.*

Visit www.toyotarewardsvisa.com for complete details.

Toyota Financial Services (TFS)† is a leading provider of automotive ﬁ nancial services, offering an extensive line of ﬁ nancing plans along with a variety of vehicle and payment protection products to Toyota customers and dealers in the U.S. For more information on TFS products and services, visit www.toyotaﬁ nancial.com

On approved credit. You must have a valid permanent home address in the 50 United States or the District of Columbia. Terms, conditions and restrictions apply and are fully described in the Toyota Rewards Visa Cardmember Agreement and the Toyota Rewards Program Terms and Conditions received with your card. Points earned are based on net purchases. Points-earning maximums apply and points will expire as described in the Rewards Terms and Conditions. Redemption only available at participating Toyota dealerships in the continental U.S. and Alaska. Points cannot be redeemed for cash. Please contact your participating Toyota dealer for information regarding restrictions your dealer may impose on the use of credit cards related to vehicle purchases or leases. The creditor and issuer of the Toyota Rewards Visa is Toyota Financial Savings Bank. Toyota Financial Services is a service mark used by Toyota Financial Savings Bank.

†

Toyota Financial Services is a service mark for Toyota Motor Credit Corporation and Toyota Motor Insurance Services, Inc.

WARRANTIES

Every Toyota Car, Truck and SUV is built to exceptional standards. And that’s not idle boasting. We back it up with these Limited Warranty Coverages:

Basic: 36 months/36,000 miles (all components other than normal wear and maintenance items). Powertrain:

60 months/60,000 miles (engine, transmission/transaxle, drive system, seatbelts and airbags).

Rust-Through:

60 months/unlimited miles (corrosion perforation of sheet metal).

Emissions: Coverages vary under Federal and California regulations. Refer to applicable Warranty and Maintenance

Guide for details.

Accessories: For Genuine Toyota Accessories purchased at the time of the new vehicle purchase, the Toyota Accessory Warranty coverage is in effect for 36 months/36,000 miles from the vehicle’s in-service date, which is the

same coverage as the Toyota New Vehicle Limited Warranty. For Genuine Toyota Accessories purchased after the new vehicle purchase the coverage is 12 months, regardless of mileage, from the date the accessory was installed on the vehicle, or the remainder of any applicable new

vehicle warranty, whichever provides greater coverage, with the exception of car covers. Car covers are warranted for 12 months from the date of purchase and do not assume any coverage under the Toyota New Vehicle Limited Warranty.

You may be eligible for transportation assistance if it’s necessary that your vehicle be kept overnight for repairs covered under warranty. Please see your authorized Toyota dealership for further details. For complete details about Toyota’s warranties, please visit www.toyota.com, refer to the applicable Warranty and Maintenance Guide or see your Toyota dealer.

Toyota Rewards Visa

DISCLAIMERS

1. SR5 models only. 2. Platinum models only. 3. Not available on Platinum models. 4. Flex Fuel Vehicles not available in every state. In states where available, all 5.7L V8 4x4 models are FFV. Flex Fuel Vehicles use E85, gasoline or a

combination of both. Estimated mileage will vary. Consult your dealer for nearest E85 filling stations or see toyota.com for further details.

5. Torsen

is a registered trademark of Zexel Torsen, Inc. 6. Brake Assist is designed to help the driver

take full advantage of the benefits of ABS. It is not a substitute for safe driving practices. Braking effectiveness also depends on proper brake-system maintenance and tire and road conditions.

7. Cargo and load capacity limited by weight

and distribution.

8. Before towing, confirm your vehicle and trailer are compatible, hooked up and loaded properly and that you have any necessary additional equipment. Do not exceed any Weight Ratings and follow all instructions in your

Owner’s Manual. The maximum you can tow depends on the total weight of any cargo, occupants and available equipment. Calculated with new SAE J2807 method.

9. 2011 EPA-estimated mileage. Actual mileage will vary. 10. Toyota

strives to build vehicles to match customer interest and thus they typically are built with popular options and option packages. Not all options/packages are available separately and some may not be available in all regions of the country. See toyota.com for information about options/packages commonly available in your area. If you would prefer a vehicle without any or with different options, contact your dealer to check for current availability or the possibility of placing a special order.

11. XM services require a subscription after trial period, and are sold separately or as a package. Subscriptions governed by SiriusXM Customer Agreement; see www.siriusxm.com. If you decide to continue your XM service

at the end of your complimentary trial, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. Fees and programming subject to change. Available only to those at least 18 years of age in the 48 contiguous United States and D.C.

12. May not be compatible with all mobile phones, MP3/WMA players and like models. 13. iPod

mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. Other trademarks and trade names are those of their respective owners. The Bluetooth

wireless technology

phones listed on toyota.com have been tested for compatibility with Toyota vehicles. Performance will vary based on phone software version, coverage and your wireless carrier. Phones are warranted by their manufacturer, not Toyota.

15. Availability and accuracy of the information provided by the navigation system or any XM services mentioned (if installed) are dependent upon many factors. Use common sense when relying on information provided. Services not available

in every city or roadway. Periodic navigation updates available at additional cost. See your Navigation System Owner’s Manual or contact XM for details.

16. Be sure to obey traffic regulations and maintain awareness of road and traffic

conditions. Message and data rates may apply. Features vary by phone and carrier. Not all apps and data services are available initially, see toyota.com/entune for the latest information regarding apps and service.

17. The backup camera

does not provide a comprehensive view of the rear area of the vehicle. You should also look around outside your vehicle and use your mirrors to confirm rearward clearance. Cold weather will limit effectiveness and view may become cloudy.

18. HD Radio™ Technology manufactured under license from iBiquity Digital Corporation U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital Corp. 19. iTunes

Tagging is a

20. Headphones are for passenger use only. Do not use while operating vehicle. 21. Dynamic Laser Cruise Control is designed to assist the driver and is not a substitute for safe and attentive

driving practices. Please see your Owner’s Manual for important instructions and cautions.

22. HomeLink

is a registered trademark of Johnson Controls, Inc. 23. Vehicle Stability Control (VSC) is an electronic system designed to help the driver maintain vehicle control under adverse conditions. It is not a substitute for safe driving practices. Factors including speed, road conditions and driver steering input can all affect whether VSC will be effective in preventing a loss of control. Please see your Owner’s Manual for further details.

24. Smart Stop Technology operates only in the event of certain simultaneous brake and gas pedal applications. When engaged, the system will reduce engine power to help the brakes bring the vehicle to

a stop. Factors including speed, road conditions and driver input can all impact stopping distance. Smart Stop Technology is not a substitute for safe and attentive driving and does not guarantee instant stopping. Please see your Owner’s Manual for further details.

25. All the airbag (AB) systems are Supplemental Restraint Systems. All ABs (if installed) are designed to inflate only under certain conditions and in certain types of severe collisions: frontal and knee ABs typically inflate in frontal

collisions; side and side curtain ABs in side collisions; Roll-Sensing Curtain ABs at a severe tilt degree, roll or lateral G-force. In all other accidents, the ABs will not inflate. To decrease the risk of injury from an inflating AB, always wear seatbelts, sit upright in the middle of the seat as far back as possible and do not lean against the door. Do not put objects in front of an AB or around the seatback. Do not use a rearward-facing child seat in any front passenger seat. The force of an inflating AB may cause serious injury or death. See your Owner’s Manual for further information/warnings.

26. The Toyota Tire Pressure Monitor alerts the driver when tire pressure is critically low. For optimal tire wear and performance, tire pressure should be

checked regularly with a gauge; do not rely solely on the monitor system. See your Owner’s Manual for details.

27. Do not rely exclusively on the Blind Spot Monitor to determine if a lane change is safe. Always look over your shoulder and use your

turn signal before changing lanes. There are several limitations to the function, detection, range and clarity of the monitor. For a complete list of limitations and directions regarding use of the monitor, please see the Owner’s Manual.

28. Trailer-Sway

Control (TSC) is an electronic system designed to help the driver maintain vehicle control under adverse conditions. It is not a substitute for safe driving practices. Factors including speed, road conditions and driver steering input can all affect whether TSC will be effective in preventing a loss of control. Please see your Owner’s Manual for further details.

29. The engine immobilizer is a state-of-the-art anti-theft system. When you insert your key into the ignition switch, the key transmits an electronic

code to the vehicle. The engine will only start if the code in the transponder chip inside the key matches the code in the vehicle’s immobilizer. Because the transponder chip is embedded in the key, it can be costly to replace. If you lose a key, your Toyota dealer can help, or you can find a qualified independent locksmith to replace your key or perform high-security key services at www.aloa.org

Toyota Sequoia is designed to meet most off-road driving requirements. Abusive use may result in bodily harm or damage. Toyota encourages responsible operation to protect you, your vehicle and the environment. Seatbelts should be worn at all times. Please do not allow passengers to ride in the cargo area. Towing receiver hitches/ball mount kits are not intended to provide crash protection.

For details on vehicle specifications, standard features and available equipment in your area, contact your Toyota dealer. A vehicle with particular equipment may not be available at the dealership. Ask your Toyota dealer to help locate a specifically equipped vehicle.

All information presented herein is based on data available at the time of posting, is subject to change without notice and pertains specifically to mainland U.S.A. vehicles only. Prototypes shown. Actual production vehicles may vary.
