Toyota 2012 4runner User Manual

Download

Page 1

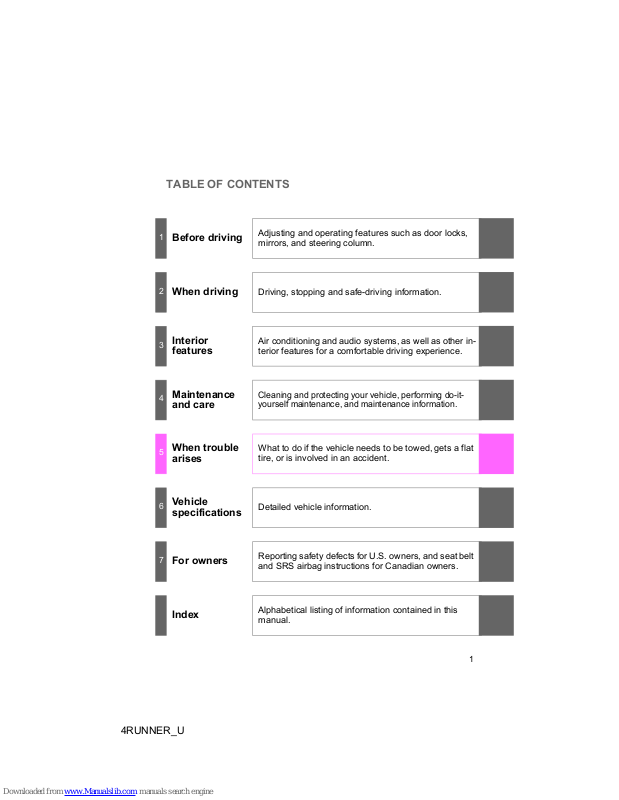

TABLE OF CONTENTS

4RUNNER_U

Before driving

Adjusting and operating features such as door locks, mirrors, and steering column.

When driving

Driving, stopping and safe-driving information.

Interior features

Air conditioning and audio systems, as well as other interior features for a comfortable driving experience.

Maintenance and care

Cleaning and protecting your vehicle, performing do-ityourself maintenance, and maintenance information.

When trouble arises

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

Vehicle specifications

Detailed vehicle information.

For owners

Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners.

Index

Alphabetical listing of information contained in this manual.

Page 2

4RUNNER_U

For your information

Main Owner’s Manual

Please note that this manual applies to all models and all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available on the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

Page 3

4RUNNER_U

Installation of a mobile two-way radio system

The installation of a mobile two-way radio system in your vehicle could affect electronic systems such as:

● Multiport fuel injection system/sequential multiport fuel injection system

● Cruise control system

● Anti-lock brake system

● SRS airbag system

● Seat belt pretensioner system

Be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation of a mobile two-way radio system.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may app ly, See www.dtsc. ca.gov/hazardousw aste/perchlorat e.

Your ve hi cl e h as co mpo ne nts th at ma y c on tai n p er chl or at e. Th es e c om ponents may include airbag, seat belt pretensioners, and wireless remote control batteries.

Page 4

4RUNNER_U

Vehicle control and operation data recordi ng

Your Toy ota is equi pp ed w ith s op hi st ic ate d com pu ter s tha t re co rd c er ta in information about your vehicle’s operation, such as:

•Engine speed

• Accelerator status

•Brake status

•Vehicle speed

•Shift position The data recorded varies according to the grade level and options the vehicle is equipped with. The computers do not record conversations, sound or pictures.

● Data usage

To yo t a m ay u se th e d at a r ec or d ed i n t he s e c o mp u te r s t o di ag n os e ma l fu n ctions, conduct research and development, and improve quality.

To yo t a w il l n o t d is c lo s e t he re c or d ed da ta t o a th i rd pa r ty ex c ep t :

• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased

•In response to an official request by the police, a court of law or a government agency

•For research purposes where the data is not tied to a specific vehicle or vehicle owner

Page 5

4RUNNER_U

● Event data recorder

Your vehicle has computers that monitor and control certain aspects of your vehicle. These computers assist in driving and maintaining optimal vehicle performance.

Besides storing data useful for troubleshooting, there is an event data recorder (EDR) that records data in a crash or near crash event.

The SRS airbag sensor assembly contains the EDR. In a crash or near crash event, this device may record the following information:

•Engine speed

•Whether the brake pedal was depressed or not

•Vehicle speed

•To what extent the accelerator pedal was depressed

•The transmission shift position

• Whether the driver and front passenger wore seat belts or not

•Driver’s seat position

•SRS airbag deployment data

•SRS airbag system diagnostic data

• Front passenger’s occupant classification

•Whether the “RSCA OFF” indicator was turned on or off The information above is intended to be used for the purpose of improving vehicle safety performance. Unlike general data recorders, the EDR does not record sound data such as conversation between passengers.

● Disclosure of the EDR data

To yo t a w i ll n ot di sc l os e th e da t a r e co r de d in a n E D R t o a t h ir d p ar t y e x ce p t when:

•An agreement from the vehicle’s owner (or the leasing company for a

leased vehicle) is obtained

•Officially requested to by the police or other authorities

•Necessary, for use as a defense for Toyota in a lawsuit

•Ordered to by a court of law However, if necessary, Toyota will:

•Use the data for research on Toyota vehicle safety performance

•Disclose the data to a third party for research purposes without disclosing

details of the vehicle owner, and that only when deemed necessary

•Disclose summarized data cleared of vehicle identification information to a

non-Toyota organization for research purposes

Page 6

4RUNNER_U

● Safety Connect

If your Toyota has Safety Connect and if you have subscribed to those services, please refer to the Safety Connect Telematics Subscription Service Agreement for information on data collected and its usage.

CAUTION

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

Page 7

4RUNNER_U

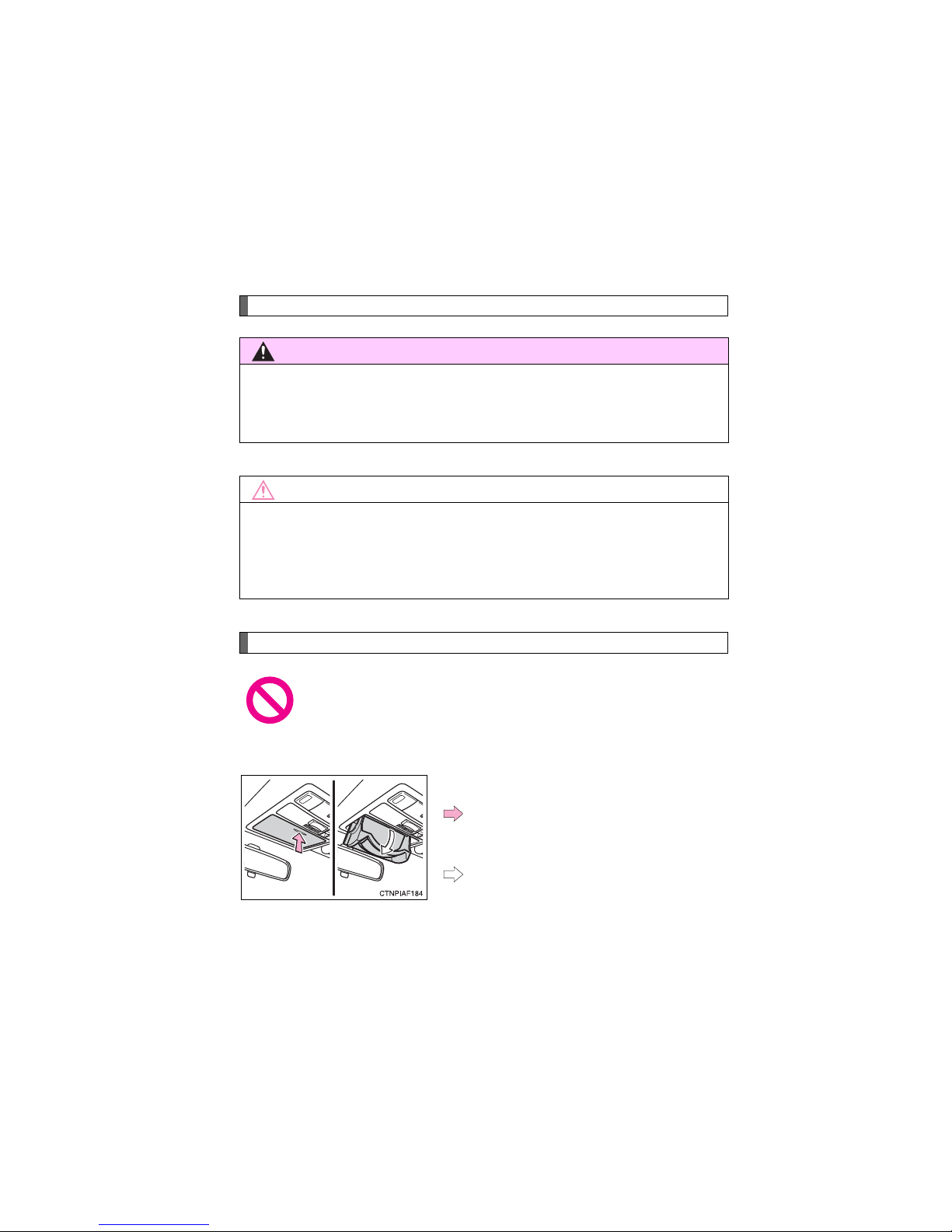

Symbols used throughout this manual

Cautions & Notices

Symbols used in illustrations

CAUTION

This is a warning against something which, if ignored, may cause death or serious injury to people. You are informed about what you must or must not do in order to reduce the risk of death or serious injury to yourself and others.

NOTICE

This is a warning against something which, if ignored, may cause damage to the vehicle or its equipment. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning,

etc.) used to operate switches and other devices.

Indicates the outcome of an operation

(e.g. a lid opens).

Page 8

4RUNNER_U

Page 9

4RUNNER_U

1-1. Key information

Keys

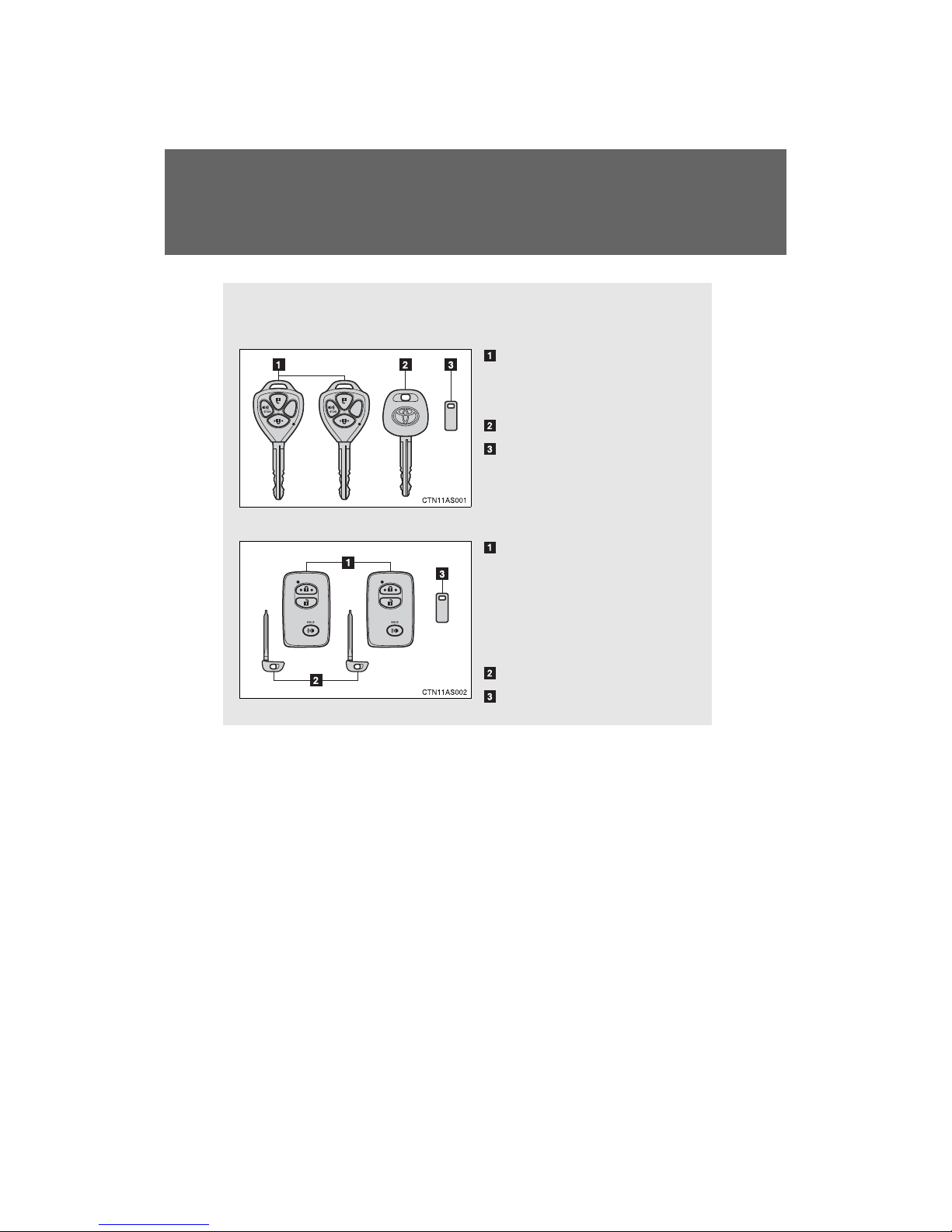

The following keys are provided with the vehicle.

Vehicle s without a smart key s ystem

Master keys

Operating the wireless remote control function (→P. 4 9)

Valet key

Key number plate

Vehicle s with a smart key system

Electronic keys

•Operating the smart key

system (→P. 3 5 )

•Operating the wireless

remote control function

(→P. 4 9 )

Mechanical keys

Key number plate

Page 10

1-1. Key information

Before driving

4RUNNER_U

Using the mechanical key (vehicles with a smart key system)

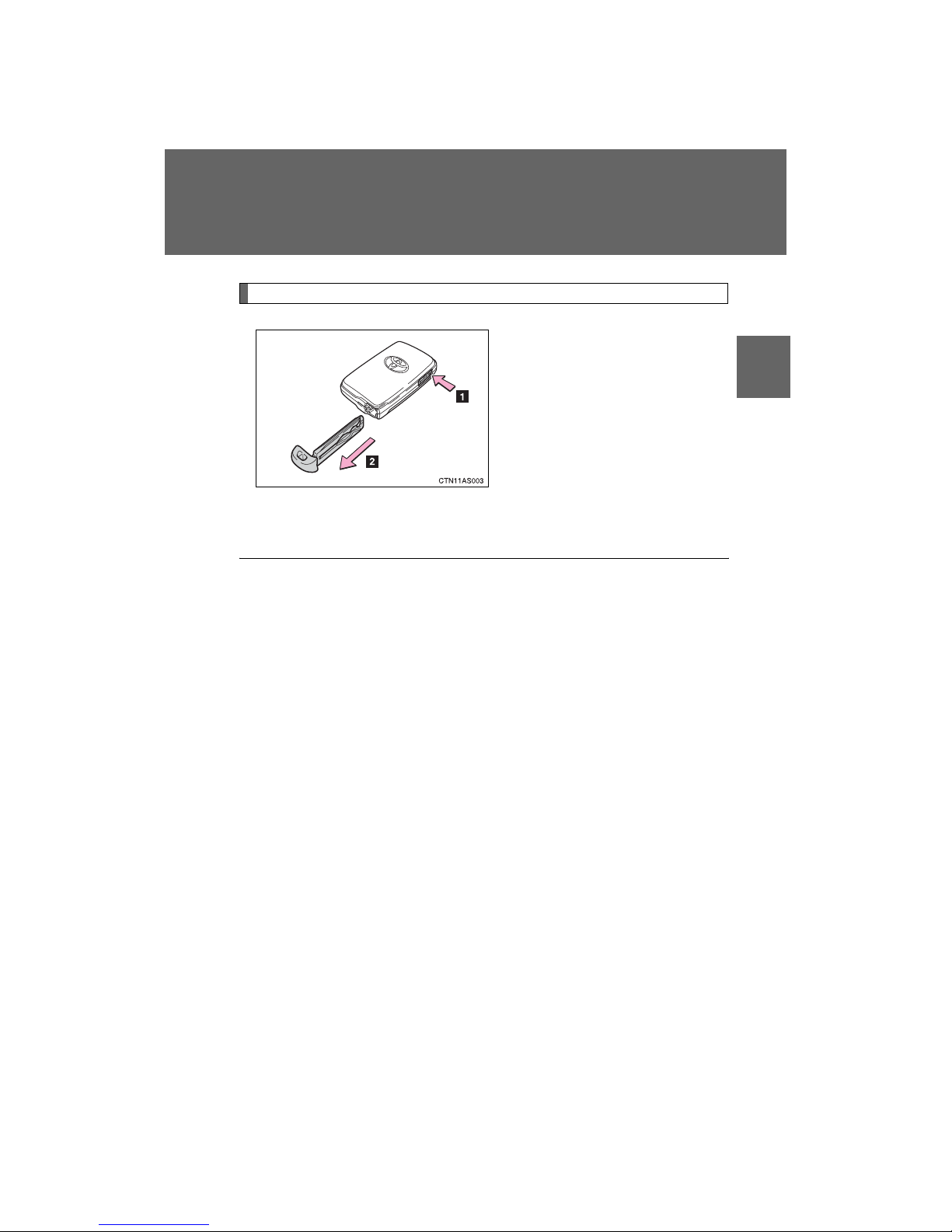

To ta ke o ut th e m ec ha ni ca l ke y, push the release button and take the key out.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will need the mechanical key. (→P. 6 2 1 )

■ When required to leave the vehicle’s key with a parking attendant

Lock the glove box as circumstances demand. (→P. 44 2 )

Vehicles without a smart key system: Ca rry the master ke y for y our own use and provide the attendant with the valet key.

Vehicles with a smart key system: Remove the mechanical key for your own use and provide the attendant with the electronic key only.

■ Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key (without a smart key system) or mechanical key (with a smart key system) is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 6 1 9)

■ When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft, make sure you do not press any buttons on the key while inside the aircraft cabin. If you are carrying the key in your bag etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.

Page 11

1-1. Key information

4RUNNER_U

NOTICE

■ To p r event key da mage

Observe the following:

● Do not drop the keys, subject them to strong shocks or bend them.

● Do not expose the keys to high temperatures for a long period of time.

● Do not get the keys wet or wash them in an ultrasonic washer etc.

● Do not attach metallic or magnetic materials to the keys or place the keys

close to such materials.

● Do not disassemble the keys.

● Do not attach a sticker or anything else to the surface of the electronic key.

● Do not place the keys near objects that produce magnetic fields, such as

TVs, audio systems, glass top ranges, or medical electrical equipment, such as low-frequency therapy equipment.

■ Carrying the electronic key on your person (vehicles with a smart key

system)

Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that are turned on.

■ In case of a smart key system malfunction or other key-related prob-

lems (vehicles with a smart key system)

Ta ke y o ur v eh i cl e w it h al l th e e le c tr o ni c ke ys p r ov i de d w i th y ou r ve h ic l e to your Toyota dealer.

■ When a vehicle key is lost (vehicles with a smart key system)

If the key remains lost, the risk of vehicle theft increases significantly. Visit your Toyota dealer immediately with all remaining electronic keys that was provided with your vehicle.

Page 12

Before driving

4RUNNER_U

1-2. Opening, closing and locking the doors

Smart key system

∗

∗: If equipped

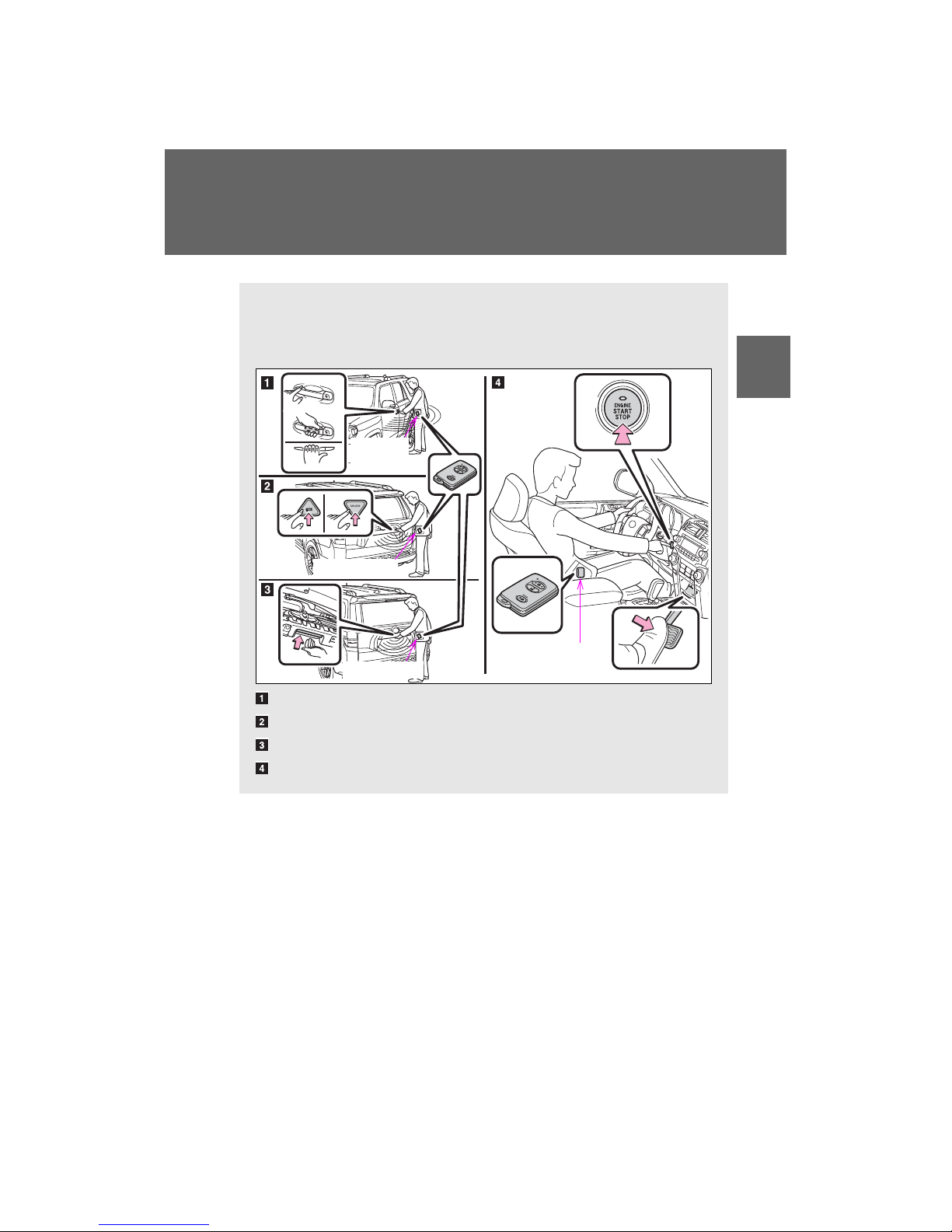

The following operations can be performed simply by carrying the

electronic key on your person, for example in your pocket.

(The driver should always carry the electronic key.)

Locks and unlocks the side doors (→P. 3 6 )

Locks, unlocks and opens the back door (→P. 3 7 )

Opens the back door (→P. 3 6 )

Starts the engine (→P. 1 7 3 )

CTH12AS053

Electronic key

Page 13

1-2. Opening, closing and locking the doors

4RUNNER_U

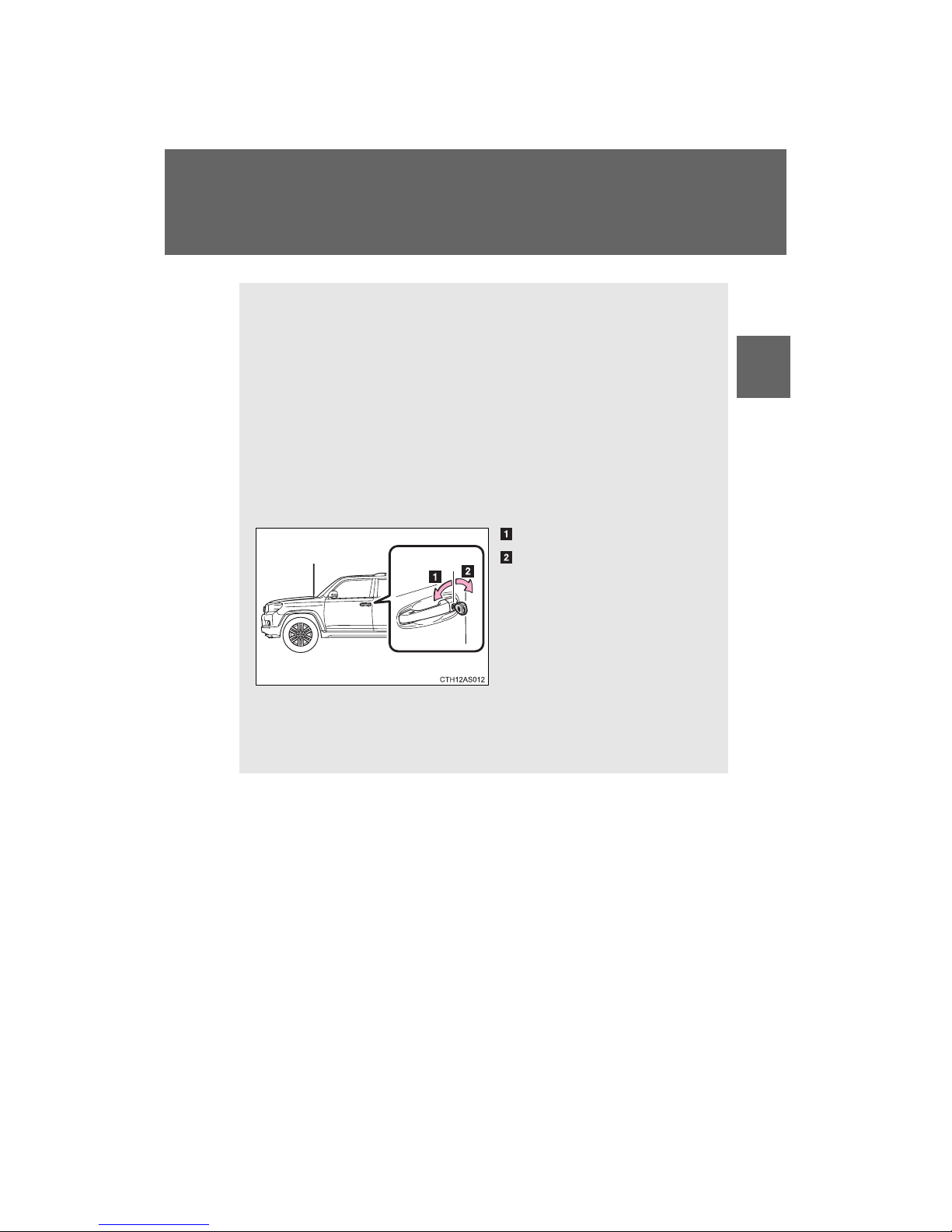

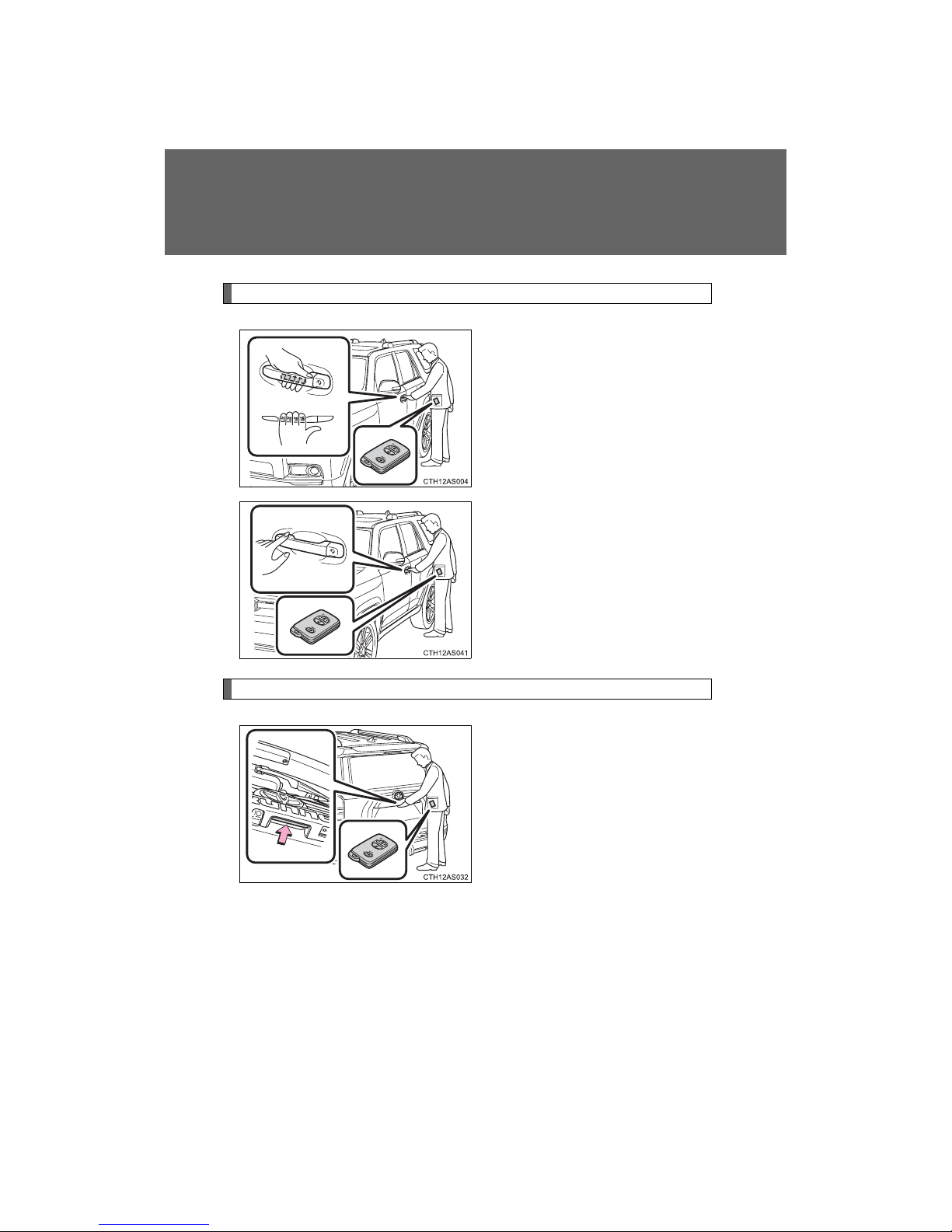

Unlocking and locking the side doors (front door handles only)

Grip the handle to unlock the door.

Make sure to touch the sensor on the back of the handle.

The doors cannot be unlocked for 3 seconds after the doors are locked.

To uc h t he l oc k se ns o r ( th e indentation on the upper part of the door handle) to lock the doors.

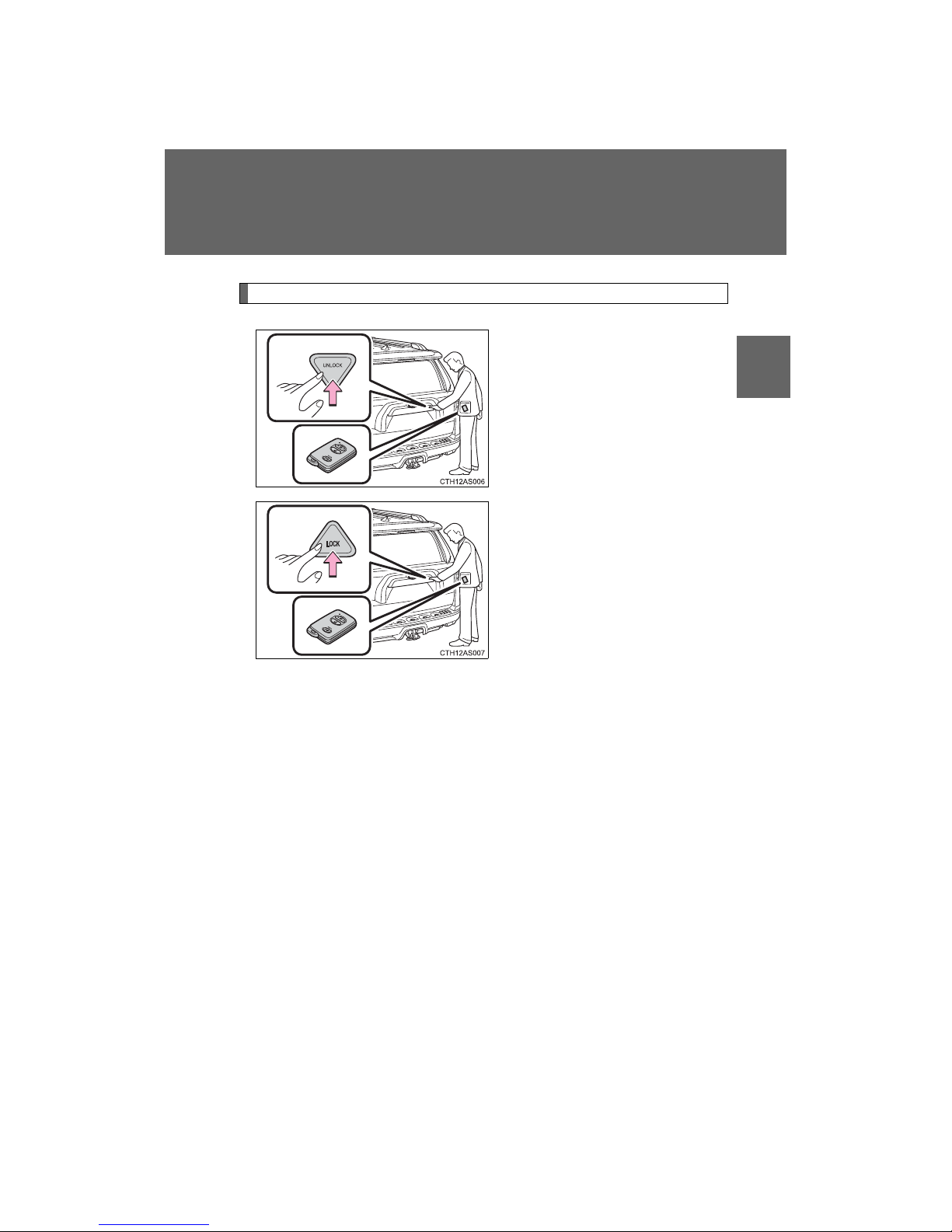

Opening the back door

Press the back door opener.

The back door can be opened even if it is locked.

Page 14

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

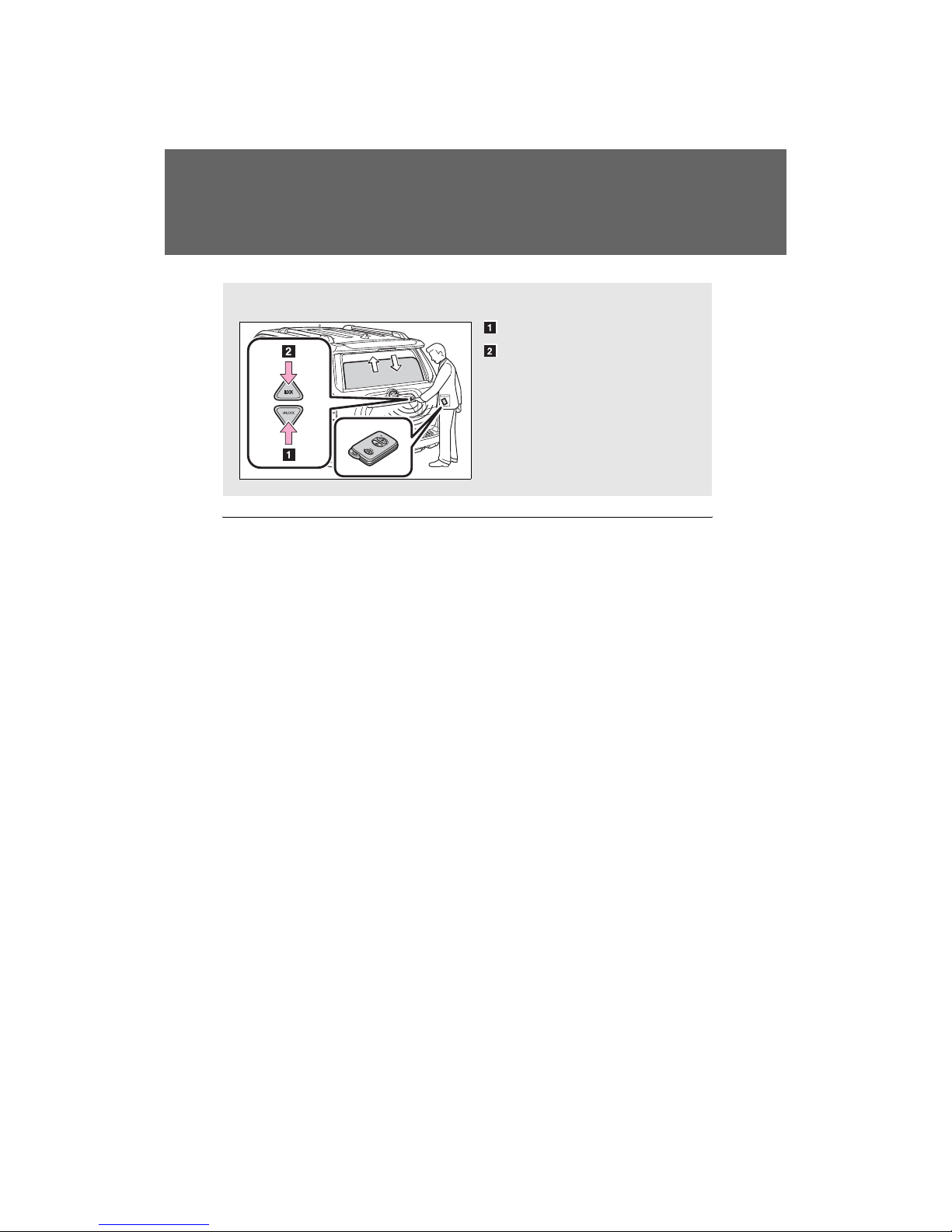

Unlocking and locking the back door

Press the button to unlock the door.

The back window can be opened by pressing and holding this button. (→P. 1 0 1)

Press the button to lock the door.

The back window can be closed by pressing and holding this button. (→P. 1 0 1)

Page 15

1-2. Opening, closing and locking the doors

4RUNNER_U

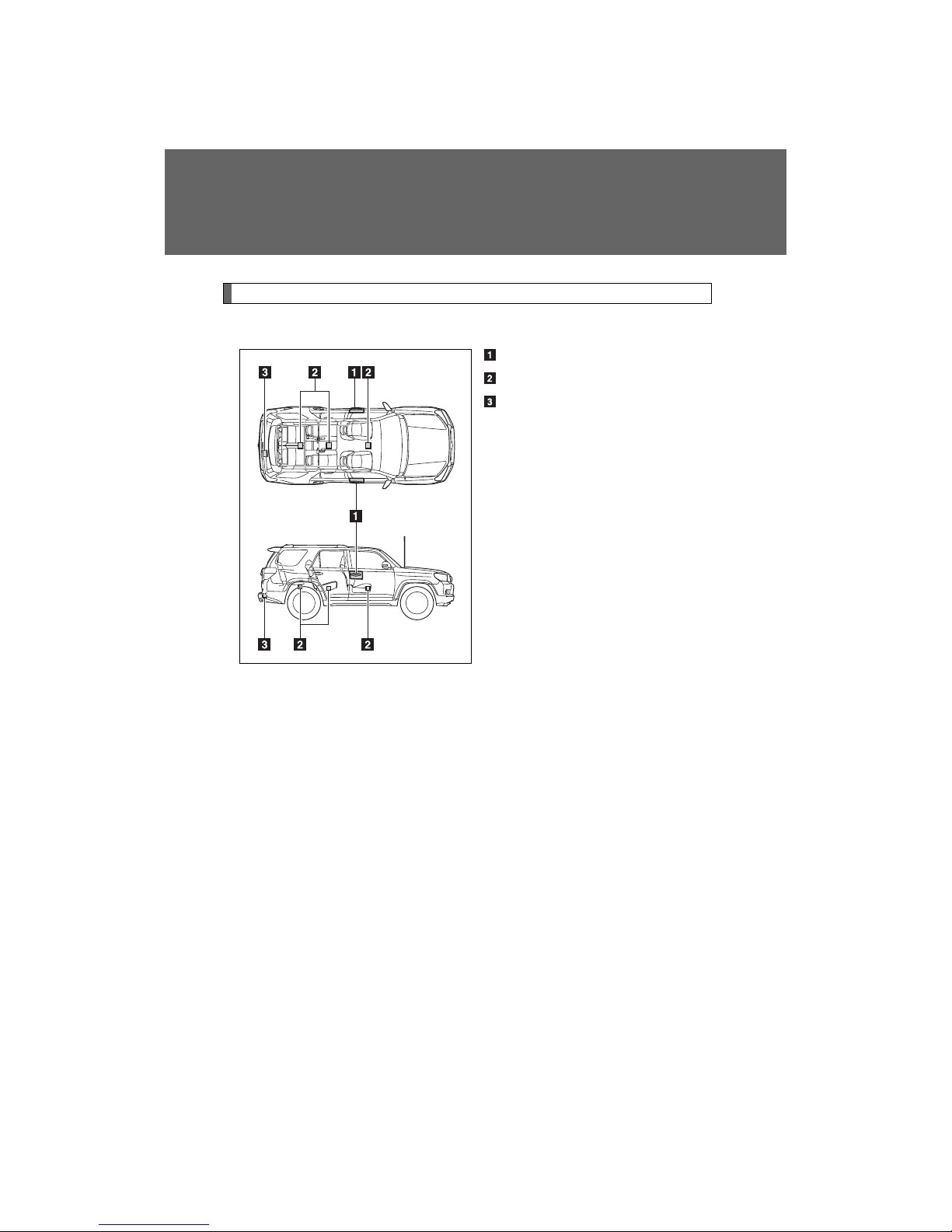

Antenna location and effective range

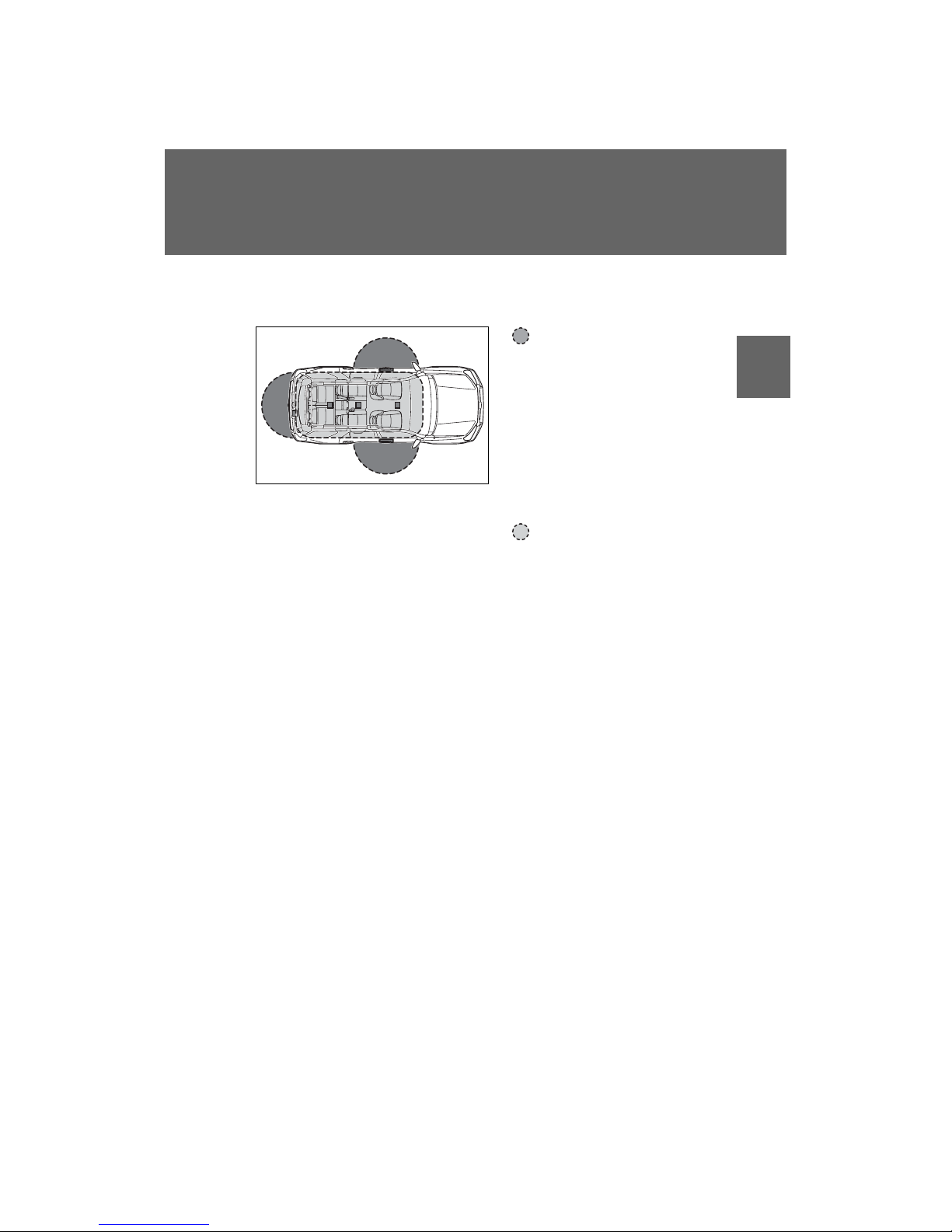

■ Antenna location

Antennas outside the cabin

Antennas inside the cabin

Antenna outside the luggage compartment

CTH12AS058

Page 16

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

■ Effective range (areas within which the electronic key is

detected)

When locking or unlocking the doors

The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) either of the outside front door handles and back door. (Only the doors detecting the key can be operated.)

When starting the engine or changing “ENGINE START STOP” switch modes

The system can be operated when the electronic key is inside the vehicle.

CTH12AS051

Page 17

1-2. Opening, closing and locking the doors

4RUNNER_U

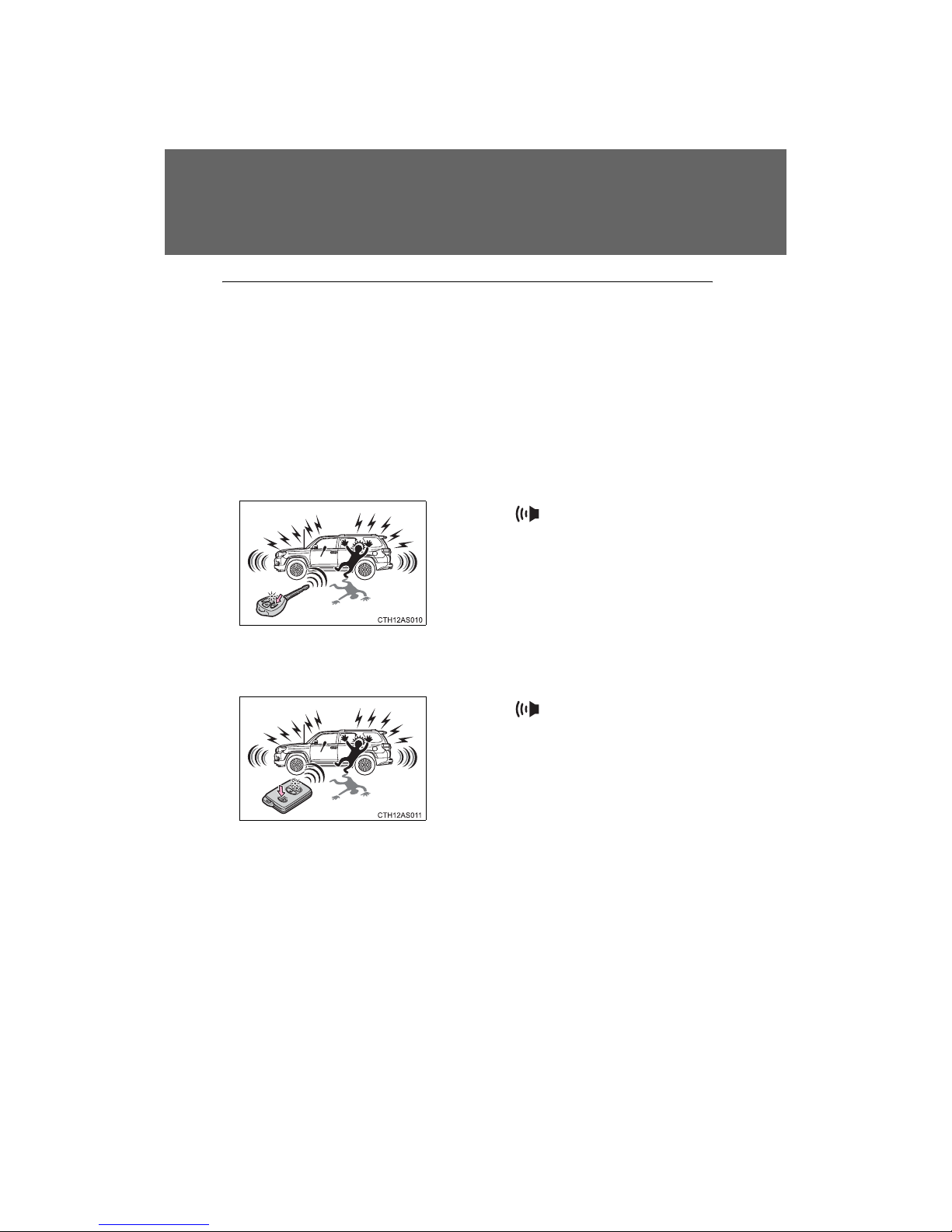

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: once; Unlocked: twice)

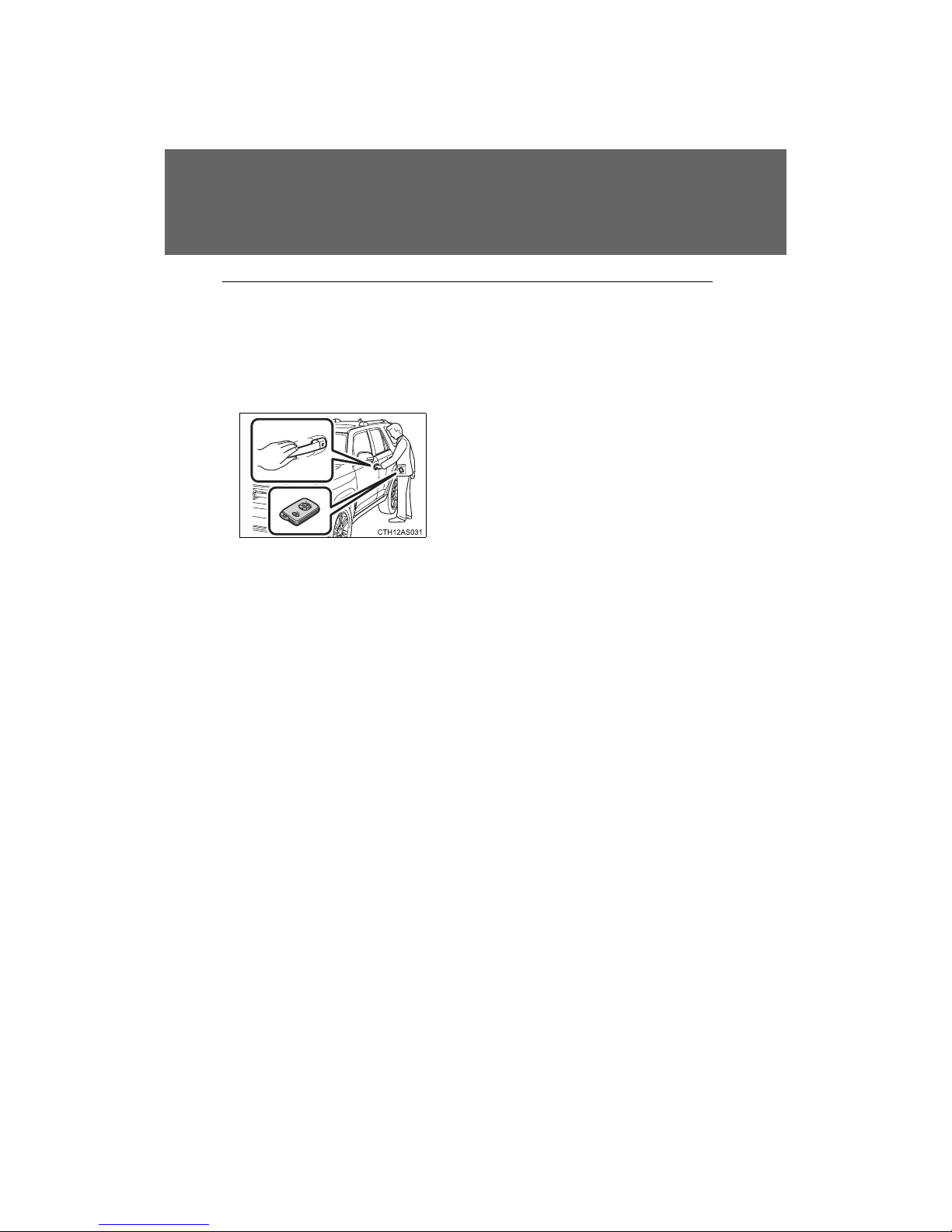

■ When the door cannot be locked by the lock sensor on the upper part

of the door handle

■ Alarms and warning indicators

A combination of exterior and interior alarms as well as warning lights is used to prevent theft of the vehicle and accidents resulting from erroneous operation.

When any warning lights come on, take appropriate measures depending on which warning light comes on. (→P. 5 8 7)

To uc h b ot h lo ck se n so r s on th e u pp er a nd lower part of the door handle simultaneously.

Page 18

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

The following table describes circumstances and correction procedures when only alarms are sounded.

Alarm Situation Correction procedure

Exterior alarm sounds once for 5 seconds

An attempt was made to lock the doors using the entry function while the electronic key was still inside the vehicle.

Retrieve the electronic key from the vehicle and lock the doors again.

An attempt was made to lock either front door by opening a door and putting the inside lock button into the lock position, then closing the door by pulling on the outside door handle with the electronic key still inside the vehicle.

Exterior alarm sounds once for 5 seconds

An attempt was made to lock the vehicle using the entry function while a door was open.

Close all of the doors and lock the doors again.

Interior alarm sounds continuously

An attempt was made to open the door and exit the vehicle when the shift lever was not in P.

Shift the shift lever to P.

Interior alarm pings repeatedly

The “ENGINE START STOP” switch was turned to ACCESSORY mode while the driver's door was open (The driver's door was opened when the “ENGINE START STOP” switch was in ACCESSORY mode.)

Turn the “ENGINE START STOP” switch off and close the driver's door.

Page 19

1-2. Opening, closing and locking the doors

4RUNNER_U

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■ Battery-saving function

In the following circumstances, the entry function is disabled in order to prevent the vehicle battery from discharging and the electronic key battery from depleting.

● When the entry function has not been used for 5 days or more

● When the electronic key has been left within approximately 6 ft. (2 m) of

the vehicle for 10 minutes or more

● If the entry function has not been used for 14 days or more, the vehicle

cannot be unlocked by a door other than the driver's door. To unlock the vehicle, grip the driver's door handle or use the wireless remote control or the mechanical key.

The system will resume operation when

● The vehicle is locked using the door handle lock switch when carrying the

electronic key on your person.

● The vehicle is locked/unlocked using the wireless remote control.

(→P. 49 )

● The vehicle is locked/unlocked using the mechanical key. (→P. 6 2 1 )

Alarm Situation Correction procedure

Interior alarm sounds once.

The “ENGINE START STOP” switch was pressed after the doors were unlocked with the mechanical key.

To uc h t h e e le c tr o ni c key to the “ENGINE START STOP” switch while depressing the brake pedal.

The “ENGINE START STOP” switch was pressed two consecutive times without the electronic key being present.

Page 20

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

■ Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system, wireless remote control and immobilizer system from operating properly. (Way of coping →P. 62 1 )

● When the electronic key battery is depleted

● Near a TV tower, electric power plant, gas station, radio station, large dis-

play, airport or other facility that generates strong radio waves or electrical noise

● When carrying a portable radio, mobile phone, cordless phone or other

wireless communication device

● When the electronic key is in contact with, or is covered by the following

metallic objects

•Cards to which aluminum foil is attached

•Cigarette boxes that have aluminum foil inside

•Metallic wallets or bags

•Coins

•Hand warmers made of metal

•Media such as CDs and DVDs

● When multiple electronic keys are in the vicinity

● When other wireless keys (that emit radio waves) are being used nearby

● When carrying the electronic key together with the following devices that

emit radio waves

•Another vehicle's electronic key or a wireless key that emits radio waves

•Personal computers or personal digital assistants (PDAs)

•Digital audio players

•Portable game systems

● If window tint with a metallic content or metallic objects are attached to

the back window

Page 21

1-2. Opening, closing and locking the doors

4RUNNER_U

■ Note for the entry function

● Even when the electronic key is within the effective range (detection

areas), the system may not operate properly in the following cases:

•The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.

•The electronic key is on the instrument panel or floor, in the glove box, or in the auxiliary box of the instrument panel.

● Do not leave the electronic key on top of the instrument panel or near the

door pockets when exiting the vehicle. Depending on the radio wave reception conditions, it may be detected by the antenna outside the cabin and the door will become lockable from the outside, possibly trapping the electronic key inside the vehicle.

● As long as the electronic key is within the effective range, the doors may

be locked or unlocked by anyone. However, only the doors detecting the electronic key can be used to unlock the vehicle.

● The doors may lock or unlock if the electronic key is within the effective

range and a large amount of water splashes on the door handle, such as in the rain or in a car wash. The doors will automatically be locked after approximately 60 seconds if a door is not opened and closed.

● If the wireless remote control is used to lock the doors when the elec-

tronic key is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)

■ Notes for locking the doors

● To uc hi n g th e d oo r l oc k se ns o r wh il e w e ar in g g lo v es m a y d el a y or pr e ve n t

lock operation. Remove the gloves and touch the lock sensor again.

● When the lock operation is performed using the lock sensor, recognition

signals will be shown up to two consecutive times. After this, no recognition signals will be given.

● If the door handle becomes wet while the electronic key is within the

effective range, the door may lock and unlock repeatedly. Place the key in a position 6 ft. (2 m) or more separate from the vehicle while the vehicle is being washed. (Take care to ensure that the key is not stolen.)

Page 22

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

● If the electronic key is inside the vehicle and a door handle becomes wet

during a car wash, a buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.

● The lock sensor may not work properly if it comes into contact with ice,

snow, mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock sensor on the lower part of the door handle.

● Fingernails may scrape against the door during operation of the door

handle. Be careful not to injure fingernails or damage the surface of the door.

■ Notes for the unlocking function

● Gripping the door handle when wearing a glove may not unlock the door.

● A sudden approach to the effective range or door handle may prevent the

doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.

● If there is another electronic key in the detection area, it may take slightly

longer to unlock the doors after the door handle is gripped.

■ When the vehicle is not driven for extended periods

To pr ev en t th e ft of t he ve hi c le , do no t l e av e t he el ec t ro n ic k ey wi th i n 6 ft . (2 m) of the vehicle.

■ To o perate the system prope rly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention function may not operate.)

■ If the smart key system does not operate properly

● Locking and unlocking the doors: Use the mechanical key. (→P. 6 2 1 )

● Start ing t he engine: →P. 6 2 2

Page 23

1-2. Opening, closing and locking the doors

4RUNNER_U

■ Electronic key battery depletion

● The standard battery life is 1 to 2 years.

● As the electronic key always receives radio waves, the battery will

become depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery may be depleted. Replace the battery when necessary. (→P. 5 52 )

•The smart key system or the wireless remote control does not operate.

•The detection area becomes smaller.

•The LED indicator on the key surface does not turn on.

● To av o id se r io u s d et er i or a ti o n, do no t l ea ve th e e le c tr o ni c k ey wi th i n 3 ft .

(1 m) of the following electrical appliances that produce a magnetic field:

•TVs

•Personal computers

•Cellular phones, cordless phones and battery chargers

•Recharging cellular phones or cordless phones

•Glass top ranges

•Table lamps

■ Precautions when disconnecting the battery

● In some cases, it may not be possible to unlock the doors using the smart

key system immediately after the battery has been disconnected. Use the wireless remote control or the mechanical key to lock or unlock the doors.

● The engine may not start on the first attempt after reconnecting the bat-

tery but will start normally after the second attempt. This is not a malfunction.

● The “ENGINE START STOP” switch mode is memorized by the vehicle.

When the battery is reconnected, the system will return to the mode it was in before the battery was disconnected. Before disconnecting the battery, turn the “ENGINE START STOP” switch off.

If you are unsure what mode the “ENGINE START STOP” switch was in when the battery was disconnected, be especially careful when reconnecting the battery.

Page 24

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

■ When the electronic key battery is fully depleted

→P. 5 5 2

■ Customization that can be configured at Toyota dealer

Settings (e.g. smart key system) can be changed. (Customizable features →P. 6 6 0)

■ Certification for the smart key system

For vehicles sold in the U.S.A.

FCC ID: NI4TMIMB-2

FCC ID: NI4TMLF8-14

FCC ID: HYQ14ACX

FCC ID: HYQ13CZD

FCC ID: HYQ14ADF

FCC ID: HYQ13CZE

NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Page 25

1-2. Opening, closing and locking the doors

4RUNNER_U

CAUTION

■ Caution regarding interference with electronic devices

● People with implanted pacemakers or cardiac defibrillators should keep

away from the smart key system antennas. (→P. 3 8) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Toyota dealer for details, such as the frequency of radio waves and timing of emitting the radio waves. Then, consult your doctor to see if you should disable the entry function.

● Users of any electrical medical device other than implanted pacemakers

and implanted cardiac defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medical devices.

Ask your Toyota dealer for details on disabling the entry function.

Page 26

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

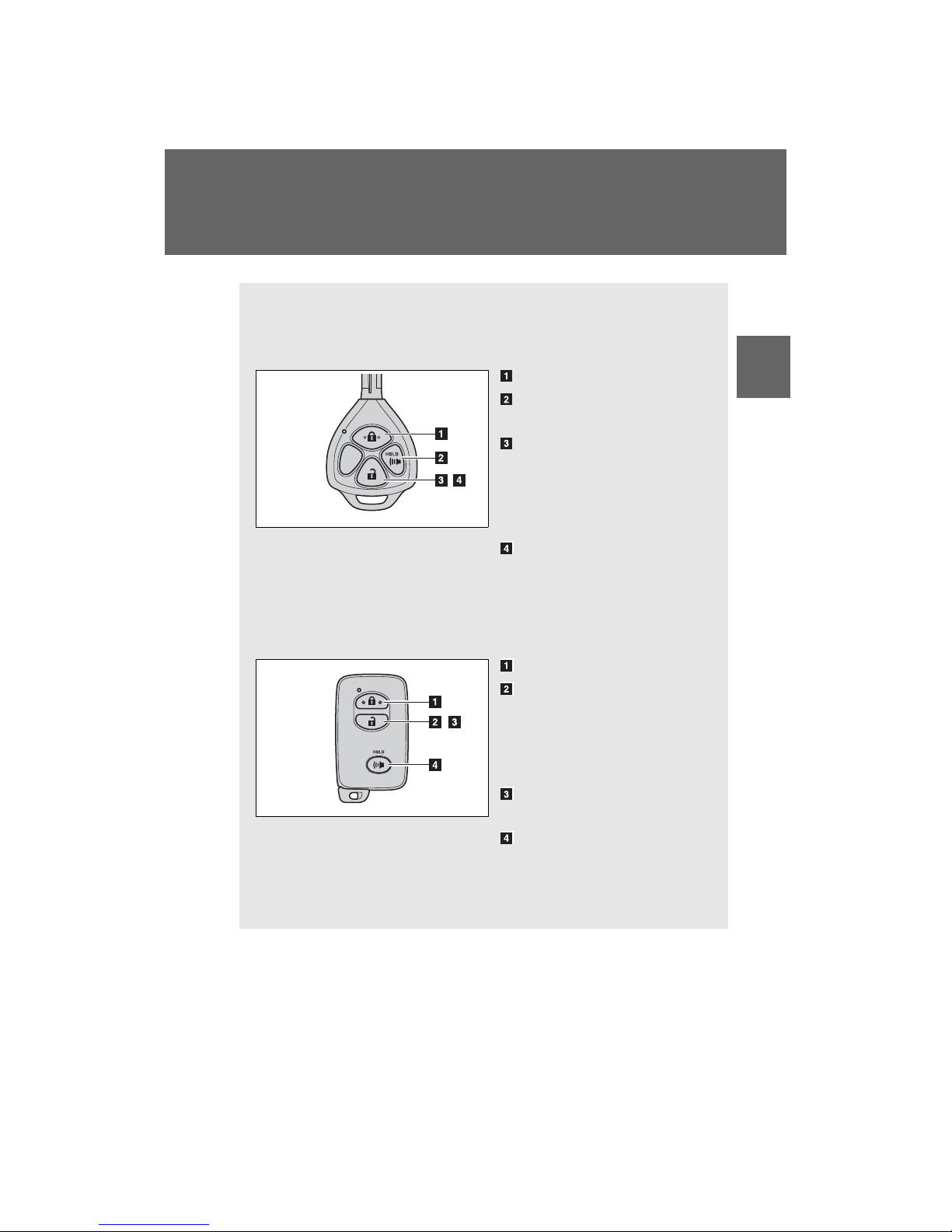

Wireless remote control

The wireless remote control can be used to lock and unlock the vehi-

cle.

Vehicle s without a smart key s ystem

Locks all the doors

Sounds the alarm (press and hold) (→P. 5 0 )

Unlocks all the doors

Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

Opens the windows and moon roof (press and hold)

:This setting must be custom-

ized at your Toyota dealer.

Vehicle s with a smart key system

Locks all the doors

Unlocks all the doors

Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

Opens the windows and moon roof (press and hold)

Sounds the alarm (press and hold) (→P. 5 0 )

*:This setting must be custom-

ized at your Toyota dealer.

CTH12AS045

CTH12AS046

Page 27

1-2. Opening, closing and locking the doors

4RUNNER_U

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: once; Unlocked: twice)

■ Door lock buzzer

If an attempt to lock the doors is made when a door is not fully closed, a buzzer sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle once more.

■ Panic mode

Vehicles wit hout a smart key system

Vehicles wit h a smart key sy stem

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■ Alarm

Using the wireless remote control to lock the doors will set the alarm system. (→P. 11 6 )

When is pressed for longer

than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.

To st o p t h e a l ar m , p r es s an y b u tt o n o n the wireless remote control.

When is pressed for longer

than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.

To st o p t h e a l ar m , p r es s an y b u tt o n o n the electronic key.

Page 28

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

■ Conditions affecting operation

Vehicles wit hout a smart key system

The wireless remote control function may not operate normally in the following situations:

● Near a TV tower, radio station, electric power plant, airport or other facil-

ity that generates strong radio waves

● When carrying a portable radio, cellular phone or other wireless commu-

nication devices

● When multiple wireless keys are in the vicinity

● When the wireless key is in contact with, or is covered by, a metallic

object

● When a wireless key (that emits radio waves) is being used nearby

● When the wireless key has been left near an electrical appliance such as

a personal computer

Vehicles wit h a smart key sy stem

→P. 4 3

■ If the wireless remote control does not operate properly (vehicles with

a smart key system)

Locking and unlocking the doors: Use the mechanical key. (→P. 6 21 )

■ Key battery depletion

Vehicles wit hout a smart key system

If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 5 52 )

Vehicles wit h a smart key sy stem

→P. 4 6

■ When the electronic key battery is fully depleted

→P. 5 5 2

■ When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft, make sure you do not press any buttons on the key while inside the aircraft cabin. If you are carrying the key in your bag etc, ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.

Page 29

1-2. Opening, closing and locking the doors

4RUNNER_U

■ Customization that can be configured at Toyota dealer

Settings (e.g. wireless remote control system) can be changed. (Customizable features →P. 66 0 )

■ Certification for wireless remote control

For vehicles sold in the U.S.A.

FCC ID: HYQ14ACX

FCC ID: HYQ13CZD

FCC ID: HYQ14ADF

FCC ID: HYQ13CZE

FCC ID: HYQ12BBY

FCC ID: HYQ13BDC

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

Page 30

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

Side doors

The vehicle can be locked and unlocked using the entry function,

wireless remote control, key or door lock switch.

■ Entry function (vehicles with a smart key system)

→P. 35

■ Wireless remote control

→P. 49

■ Key

Turning the key operates the doors as follows:

Vehicle s without a smart key s ystem

Locks all the doors

Unlocks all the doors

Turning the key unlocks the driver's door. Turning the key again unlocks the other doors.

Vehicle s with a smart key system

The doors can also be locked and unlocked with the mechanical key. (→P. 6 2 1 )

Page 31

1-2. Opening, closing and locking the doors

4RUNNER_U

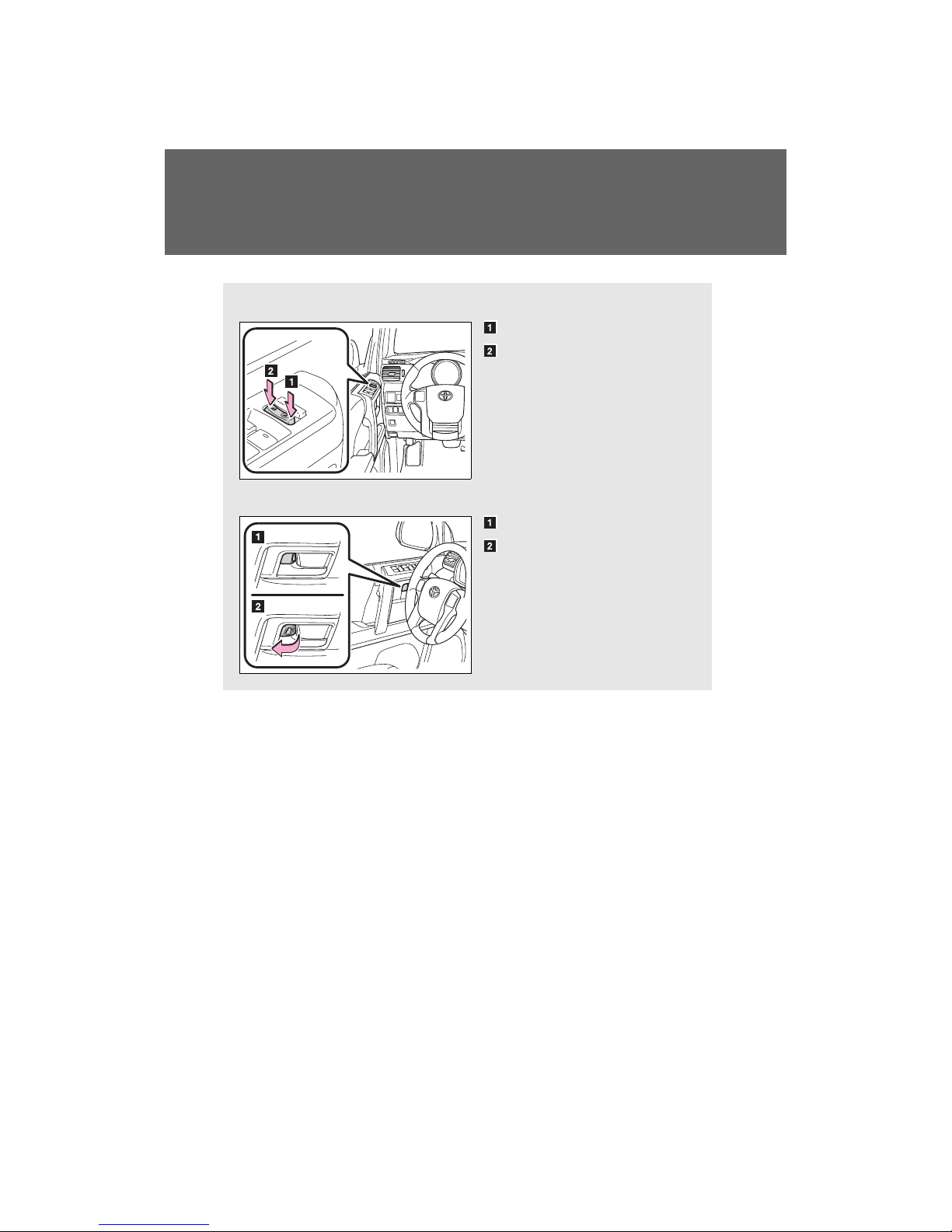

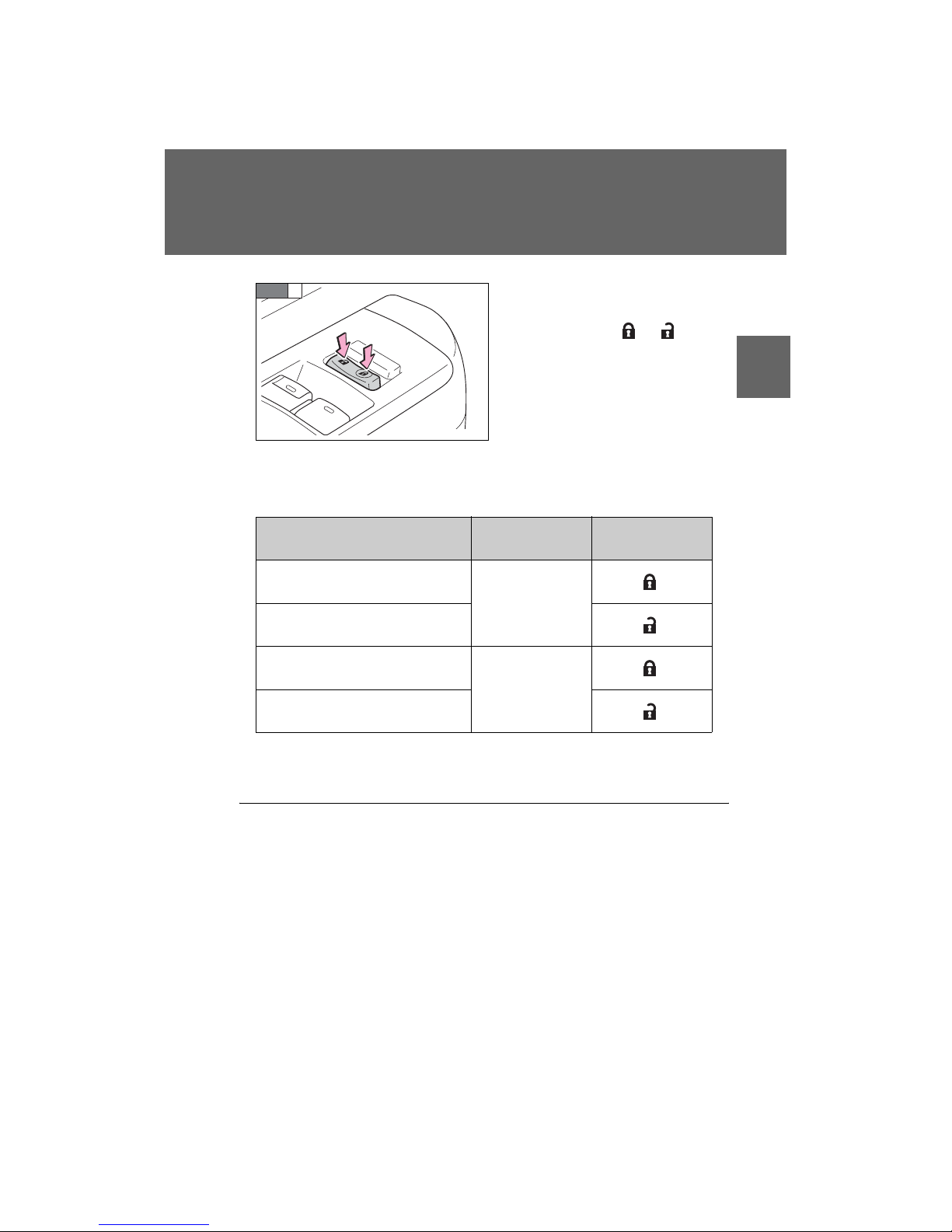

■ Door lock switch

Locks all the doors

Unlocks all the doors

■ Inside lock buttons

Locks the door

Unlocks the door

The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

CTH12AS013

CTH12AS014

Page 32

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

Locking the doors from the outside without a key

Move the inside lock button to the lock position.

Close the door.

Vehicle s without a sm art k ey system

The door cannot be locked if either of the front doors is open and the key is in the engine switch.

Vehicle s with a smart key system

The door cannot be locked if the “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

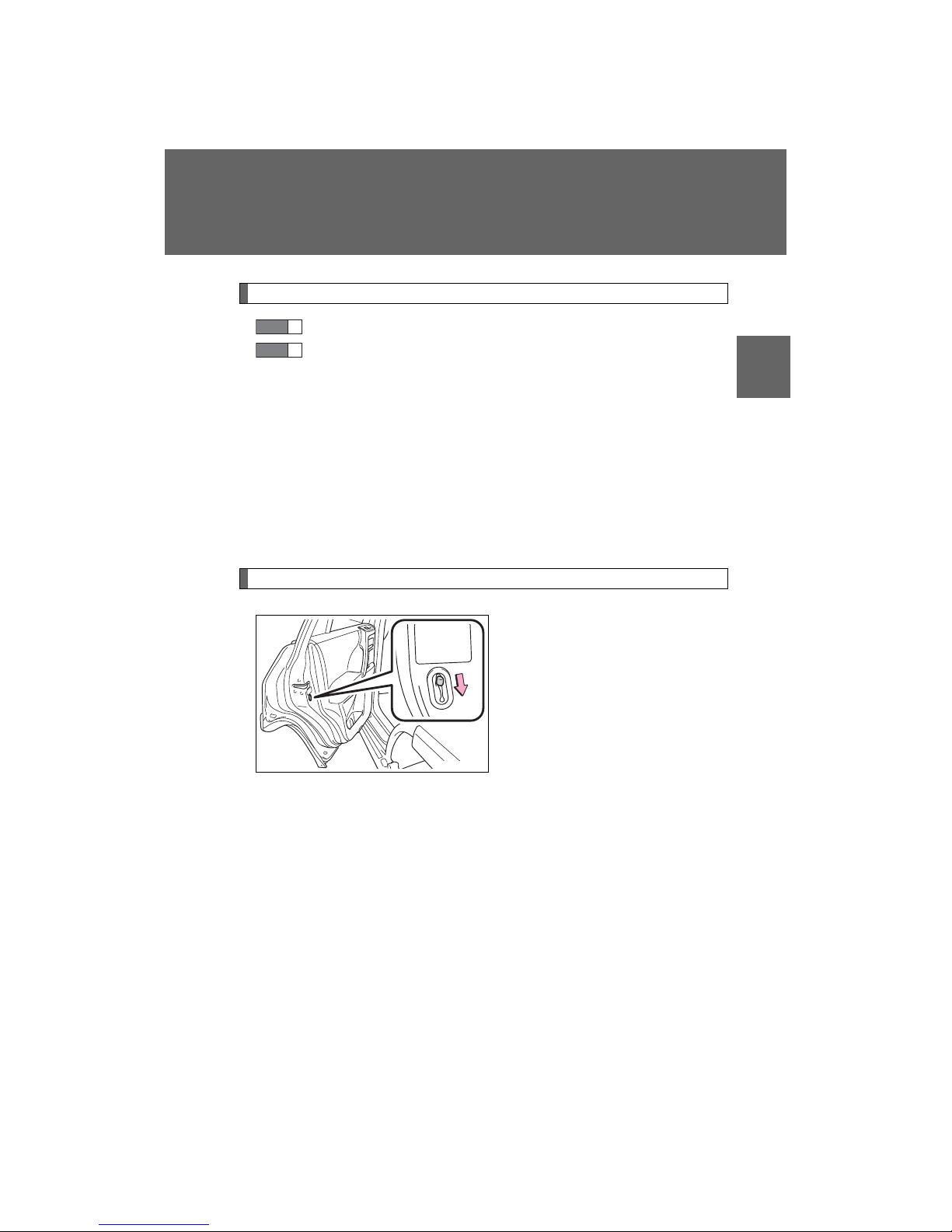

Rear door child-protector lock

The door cannot be opened from inside the vehicle when the lock is set.

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

STEP

CTH12AS015

Page 33

1-2. Opening, closing and locking the doors

4RUNNER_U

Automatic door locking and unlocking systems

The following functions can be set or canceled:

■ Setting and canceling the functions

To s w it c h b e tw e en s et ti ng a n d c a nc e li ng , f o ll ow t he p r oc e du r e below:

Vehicle s without a sm art k ey system

Close all the doors and turn the engine switch to the “ON” position. (Perform step 2 within 20 seconds.)

Vehicle s with a smart key syste m

Close all the doors and turn the “ENGINE START STOP” switch to IGNITION ON mode. (Perform step 2 within 20 seconds.)

Function Operation

Shift position linked door locking function

Shifting the shift lever out of P locks all the doors.

Shift position linked door unlocking function

Shifting the shift lever to P unlocks all the doors.

Speed linked door locking function

All

the

doors are locked when the vehicle speed is approximately 12 mph (20 km/h) or higher.

Driver's door linked door unlocking function (

vehicles without a

smart key system

)

All

the

doors are unlocked when the driver's door is opened within 10 seconds after turning the engine switch to “ACC” or “LOCK”.

Driver's door linked door unlocking function (

vehicles with a smart

key system

)

All

the

doors are unlocked when the driver's door is opened within 10 seconds after turning the “ENGINE START STOP” switch off.

STEP

Page 34

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

Shift the shift lever to P or N, and press and hold the driver's door lock switch (

or ) for

approximately 5 seconds and then release.

The shift lever and switch positions corresponding to the desired function to be set are shown in the following table.

Use the same procedure to cancel the function.

When the setting or canceling operation is complete, all the doors are locked and then unlocked.

CTH12AS016

STEP

Function

Shift lever

position

Driver’s door lock

switch position

Shift position linked door locking function

Shift position linked door unlocking function

Speed linked door lockin g f unction

Driver's door linked door unlocking function

■ Using the mechanical key (vehicles with a smart key system)

The doors can also be locked and unlocked with the mechanical key. (→P. 6 2 1)

■ Customization that can be configured at Toyota dealer

Settings (e.g. door unlocking function) can be changed. (Customizable features →P. 6 6 0)

Page 35

1-2. Opening, closing and locking the doors

4RUNNER_U

CAUTION

■ To p r event an acc ident

Observe the following precautions while driving the vehicle. Failure to do so may result in a door opening and an occupant falling out, resulting in death or serious injury.

● Always use a seat belt.

● Always lock all the doors.

● Ensure that all doors are properly closed.

● Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehicle and it may result in serious injury or death.

Be especially careful for the front doors, as the doors may be opened even if the inside lock buttons are in locked position.

● Set the rear door child-protector locks when children are seated in the rear

seats.

Page 36

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

Automatic running boards

∗

∗: If equipped

The Automatic running boards are linked to the side door opera-

tions, extending and retracting when a side door is opened and

closed. When a door is opened or closed, the board on the same

side extends or retracts.

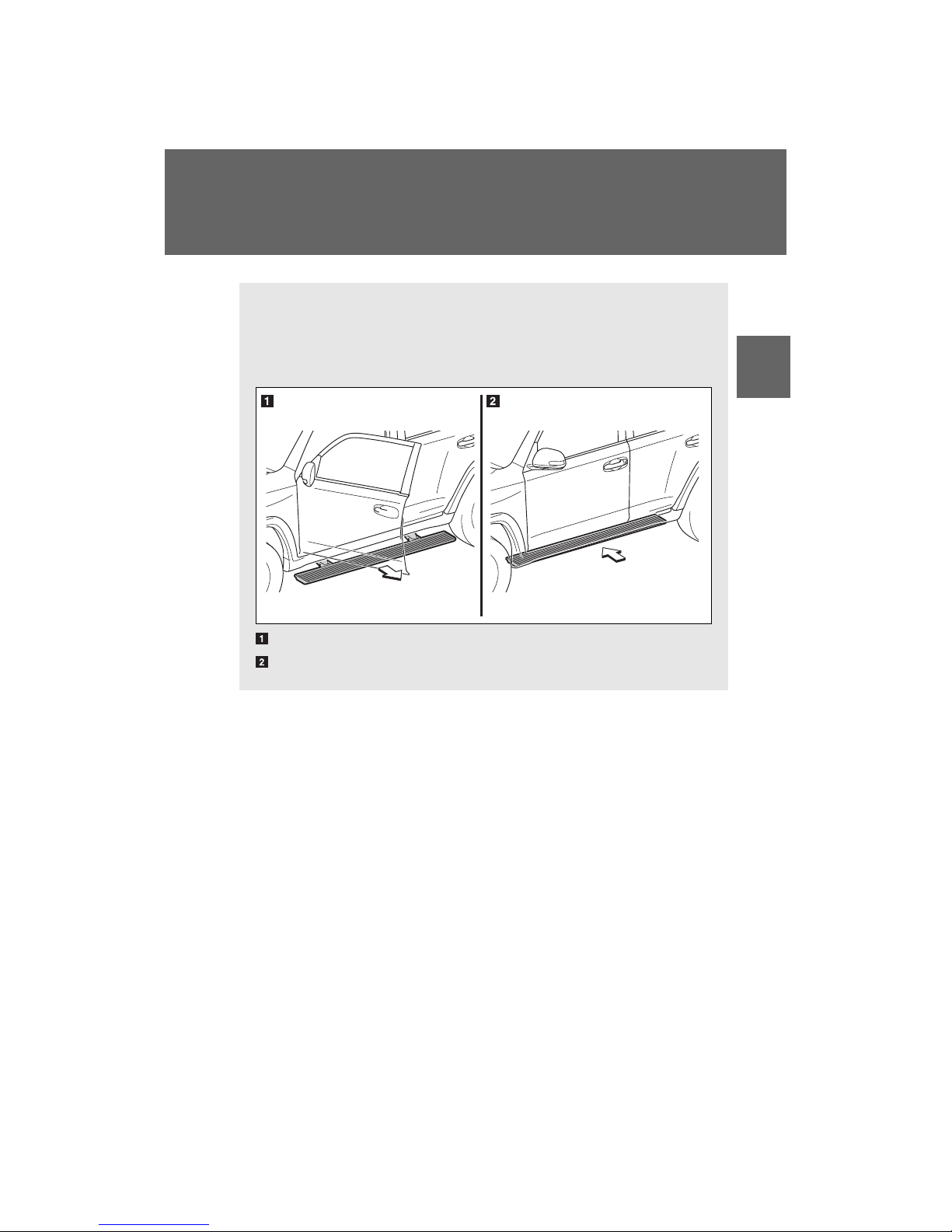

Opening a door: The appropriate board extends

Closing a door: The appropriate board retracts

CTH12AS059

Page 37

1-2. Opening, closing and locking the doors

4RUNNER_U

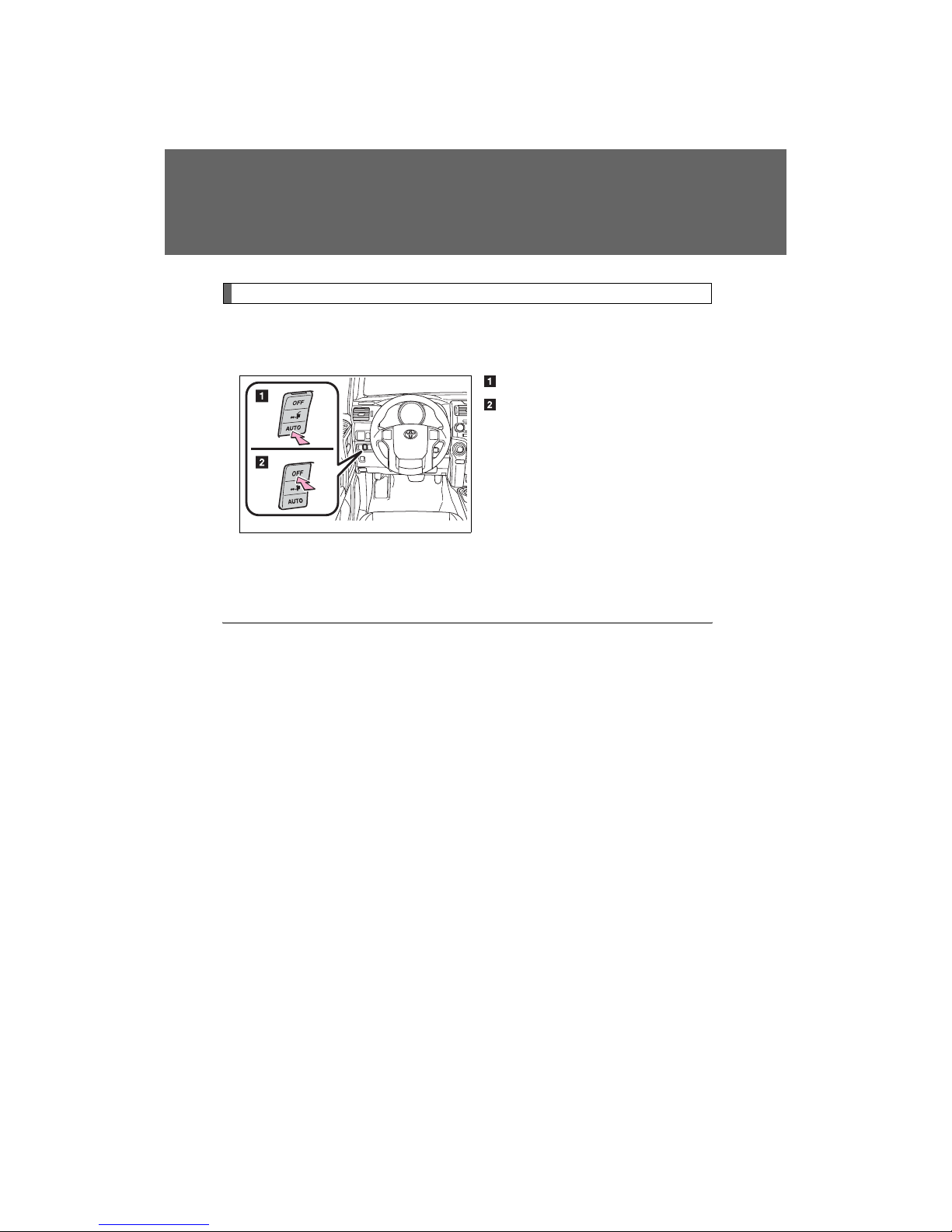

Turning off the A u t o m a t ic running boar d s s y s t em

Press “OFF” on the Automatic running boards switch to turn off the Automatic running boards system.

On (Automatic mode)

Off

The orange line at the top of the switch illuminates to indicate that the Automatic running boards system is on.

When extension of the boards is not necessary, or extension of a board is not desirable due to an obstacle, turn the Automatic running boards switch off before opening the side door.

CTH12AS056

■ Jam protection function

During Automatic running boards operation:

If a board contacts an obstacle when extending, it will retract. If an obstacle gets caught between a board and the vehicle when retracting, the board will extend.

If an obstacle is detected 3 times in a row during Automatic running boards operation, the board will stop at the position it contacts the obstacle. When a side door on the same side as the board is opened and closed one more time, the board will extend and retract, or retract and extend. After this, the board will resume normal operation.

Page 38

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

■ Automatic retraction function

The boards will be automatically retracted, for safety, under the following conditions:

● A board is not completely retracted

● Vehi cle s peed is appro xima tely 5 mp h (8 km/ h) o r hi g her

The boards will not automatically extend again when vehicle speed returns to less than 5 mph (8 km/h).

■ If the Automatic running boards indicator comes on when driving first

commences

A board has not completely retracted. Check that no obstacles are caught between a board and the vehicle.

■ If the Automatic running boards indicator light flashes

There may be a malfunction in the Automatic running boards system. Have the vehicle inspected by your Toyota dealer immediately.

■ When snow or mud is attached to the board or the board is frozen

The Automatic running boards may not operate correctly. Before stepping on a board, check that it is completely extended. If the Automatic running boards are not operating correctly, turn the Automatic running boards switch off and refrain from use.

When removing snow or mud, turn the Automatic running boards switch off.

■ After recharging/reconnecting the battery

If the Automatic running boards have not completely extended or retracted, the boards may not move in the intended direction the first time they are operated. However, from the second time onwards, the boards will resume normal operation.

■ When getting in and out of the vehicle

Ta ke ca r e b ec au s e c lo t he s a n d s ho es ma y b e co m e d ir ty du e t o c on t ac t w i th the lower part of the vehicle body.

Page 39

1-2. Opening, closing and locking the doors

4RUNNER_U

CAUTION

■ Jam protection function

Observe the following precautions. Failure to do so may cause serious injury.

Never use any part of your body to intentionally activate the jam protection function.

The jam protection function may not work depending on the shape of the object that is caught. Be careful not to get fingers or other body parts caught.

■ Cautions regarding the Automatic running boards

Observe the following precautions. Failure to do so may cause serious injury.

● Check to make sure that all passengers and people in the vehicle’s sur-

rounding area do not have a hand on a board or any part of their body in a position where it could be caught between a board and the vehicle when an Automatic running board is being operated.

● Confirm that the boards have completely extended or retracted before get-

ting in or out of the vehicle. If someone gets in or out of the vehicle during Automatic running board operation, the boards may stop extending or retracting.

● Drive the vehicle after confirming that the boards have completely

retracted. Driving with a board extended is dangerous because it may hit other people or objects.

● Ta ke c ar e w h en pr es s in g t he Au to m atic running boards switch. The board

will extend or retract and may hit other people or objects.

● Always check that the Automatic running boards switch is turned off when

cleaning a board.

● Do not allow children to operate the Automatic running boards.

Operating Automatic running boards in a manner so that a board contacts someone can cause serious injury, and in some instances, even death.

Page 40

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

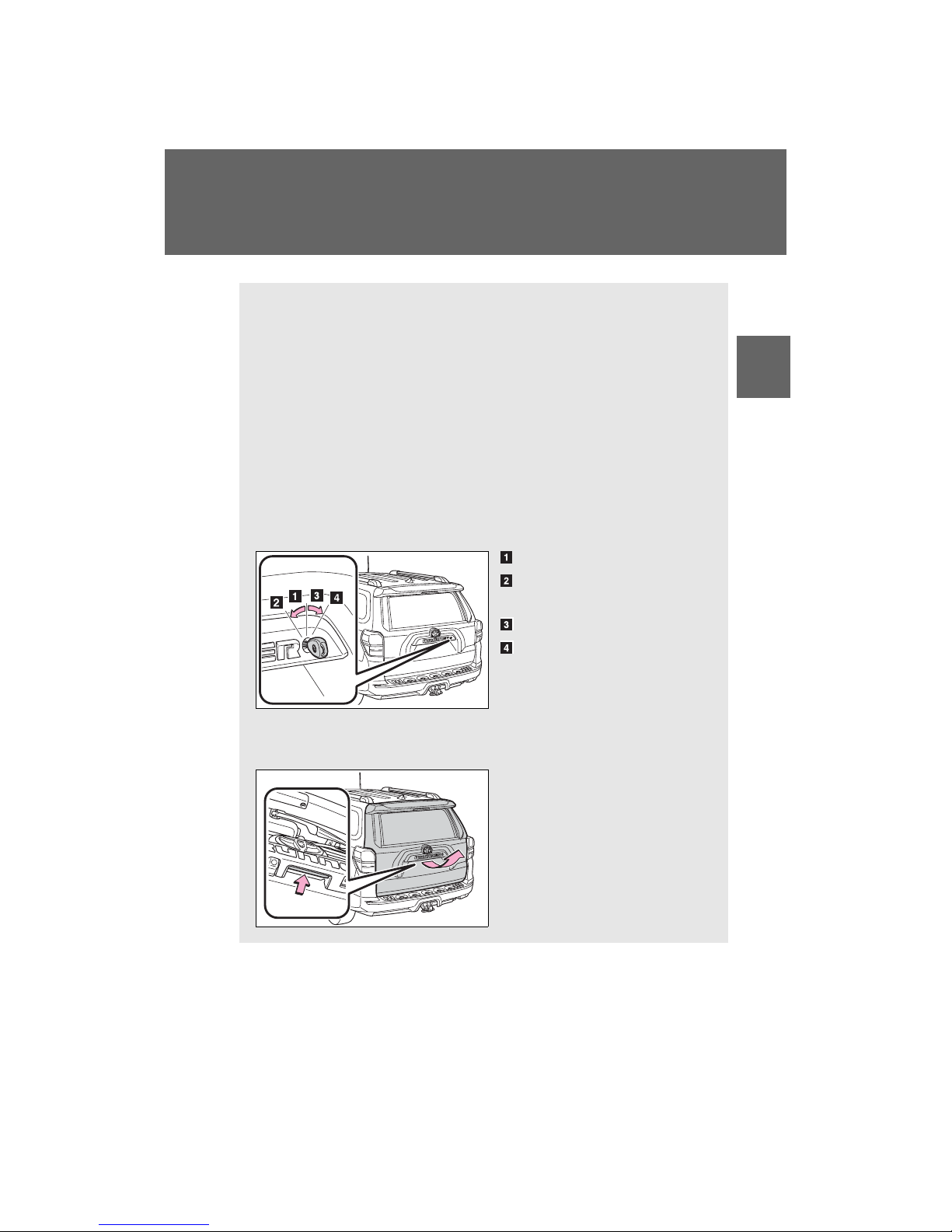

Back door

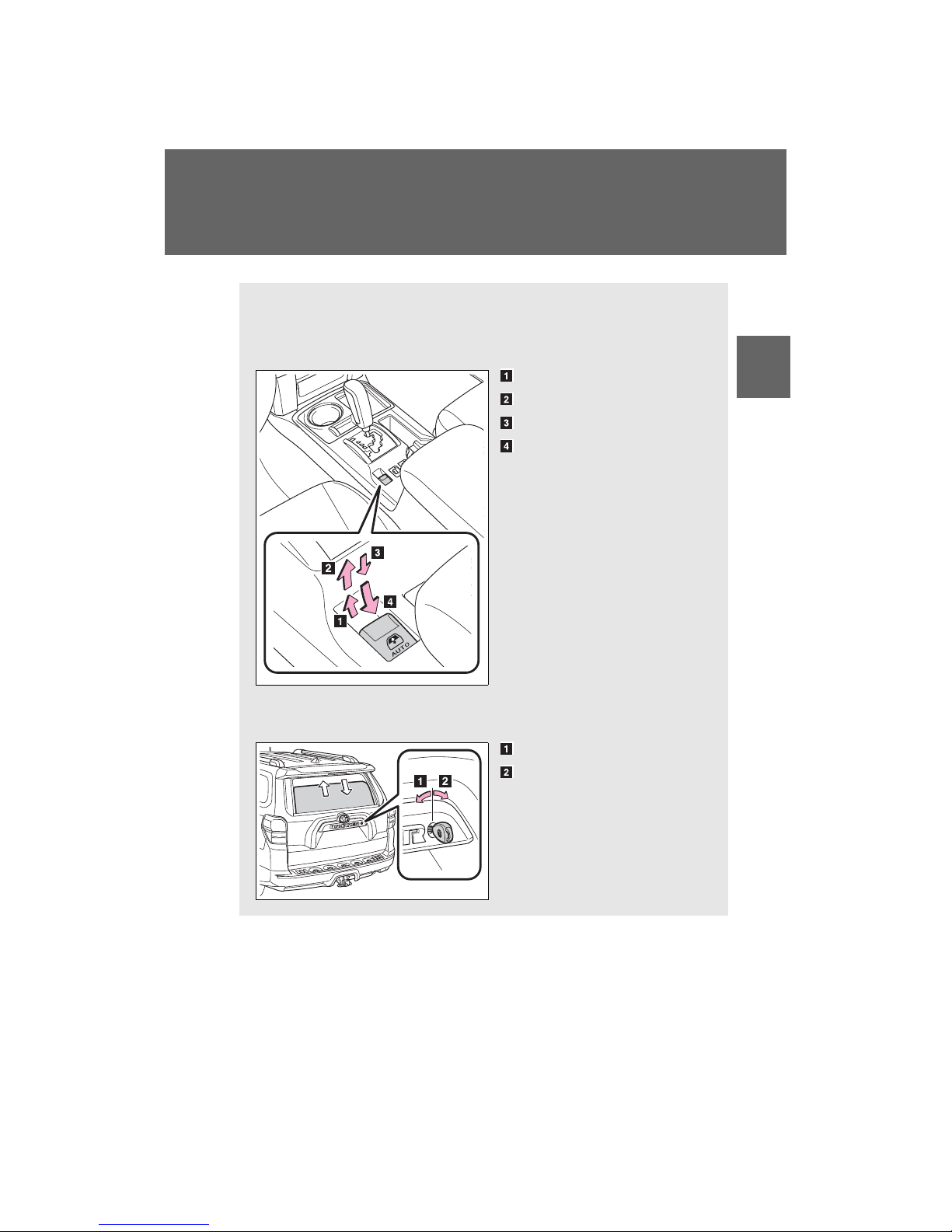

The back door can be locked/unlocked and opened by the following

procedures:

■ Locking and unlocking the back door

Entry function (vehicles with a smart key system)

→P. 36

Wireless remote control

→P. 49

Door lock switch

→P. 54

Keys (vehicles without a smart key system)

Unlocks all the doors

Opens the back window (turn and hold) (→P. 1 0 1)

Locks all the doors

Closes the back window (turn and hold) (→P. 1 0 1)

■ Opening the back door from outside the vehicle

Back door opener

Raise the back door while pushing up the back door opener switch.

CTH12AS018

CTH12AS038

Page 41

1-2. Opening, closing and locking the doors

4RUNNER_U

Rear step bumper

The rear step bumper is intended for rear end protection and easier step-up loading.

CTH12AS019

■ When closing the back door

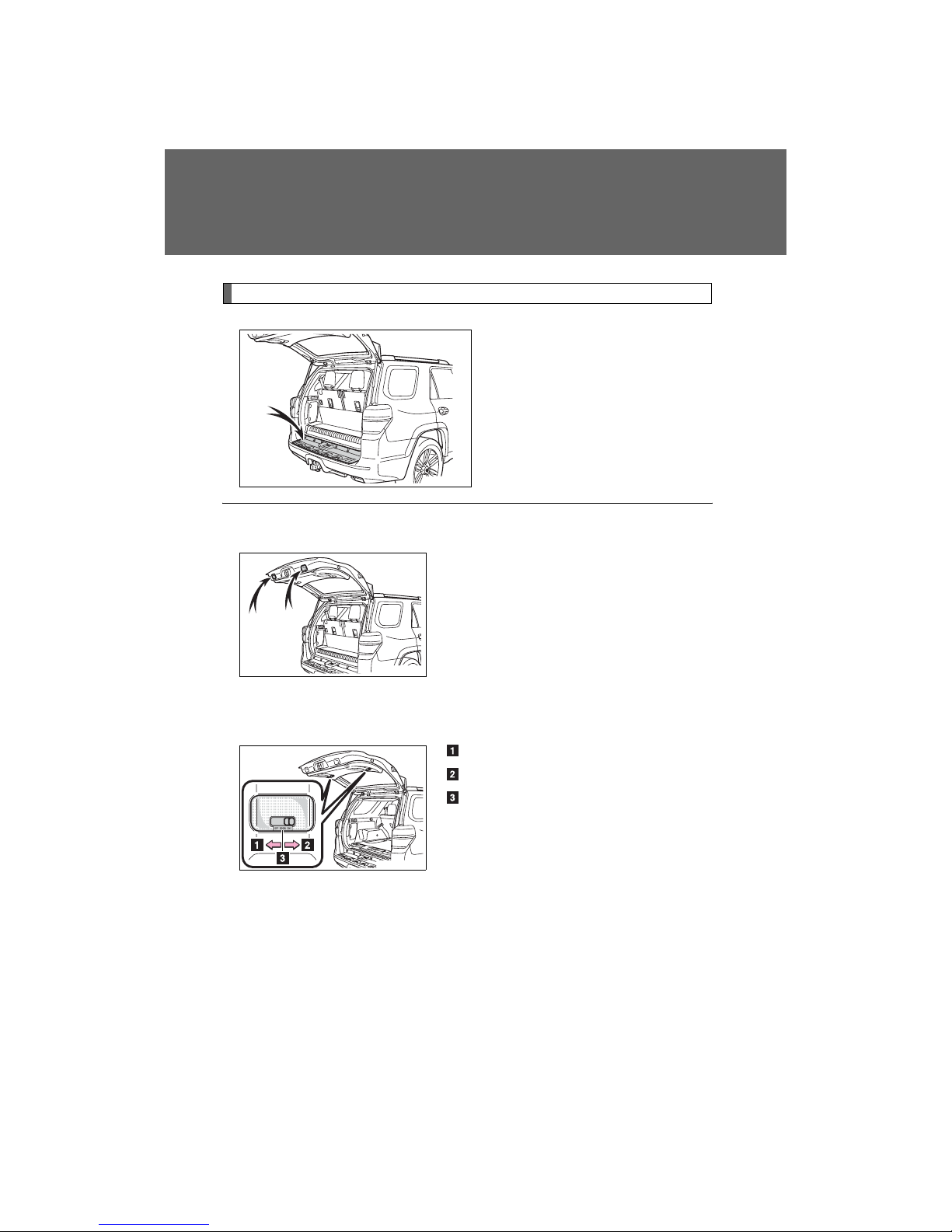

■ Luggage compartment lights

Each luggage compartment light has the following 3 positions:

If the luggage compartment lights remain on when the back door is not fully closed and the luggage compartment light switch is in the “DOOR” position, the lights will go off automatically after 20 minutes.

■ If the back door opener is inoperative or the battery is discharged

→P. 6 2 0

Lower the back door using the back door handle, and make sure to push the back door down from the outside to close it.

CTH12AS029

Turns the light off

Turns the light on

Turns the light on/off linked to back door position

CTH12AS054

Page 42

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

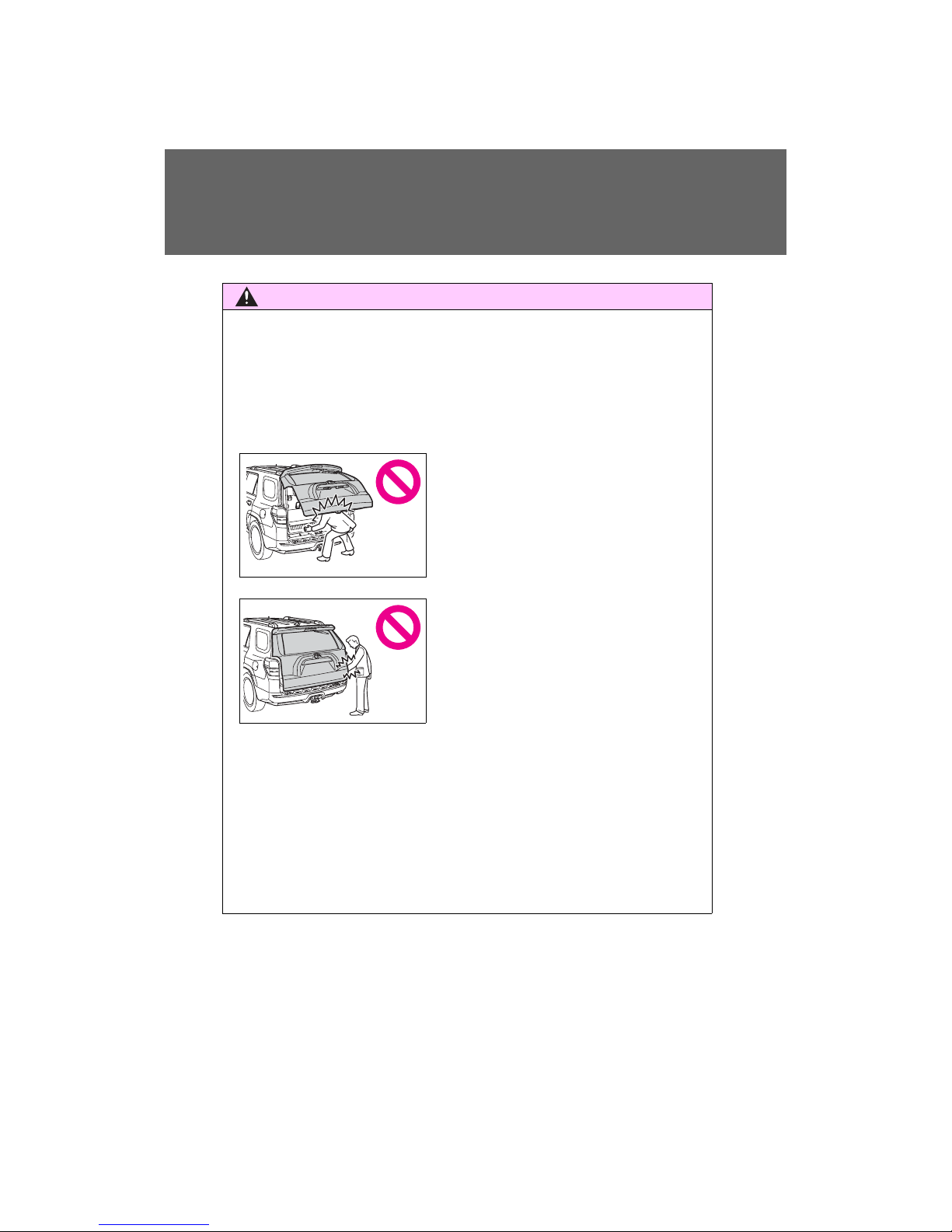

CAUTION

■ Caution while driving

● Keep the back door closed.

If the back door is left open, it may hit nearby objects while driving or luggage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard. Make sure to close the back door before driving.

● Before driving the vehicle, make sure that the back door is fully closed. If

the back door is not fully closed, it may open unexpectedly while driving, causing an accident.

● Never let anyone sit in the luggage compartment. In the event of sudden

braking or a collision, they are susceptible to death or serious injury.

● Do not get on the rear step bumper.

■ When children are in the vehicle

Observe the following precautions. Failure to do so may result in death or serious injury.

● Do not leave children alone in the luggage compartment.

If a child is accidentally locked in the luggage compartment, they could have heat exhaustion.

● Do not allow a child to open or close the back door.

Doing so may cause the back door to move unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing back door, which may result in death or serious injury of the child.

■ Operating the back door

Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in death or serious injury.

● Remove any heavy loads, such as snow and ice, from the back door

before opening it. Failure to do so may cause the back door to fall closed again after it is opened.

Page 43

1-2. Opening, closing and locking the doors

4RUNNER_U

CAUTION

● When opening or closing the back door, thoroughly check to make sure

the surrounding area is safe.

● If anyone is in the vicinity, make sure they are safe and let them know that

the back door is about to open or close.

● Use caution when opening or closing the back door in windy weather as it

may move abruptly in strong wind.

● Do not pull on the back door damper stay to close the back door, and do

not hang on the back door damper stay. Doing so may cause hands to be caught or the back door damper stay to break, causing an accident.

● If a bicycle carrier or similar heavy object is attached to the back door, it

may fall closed again after being opened, causing someone’s hands, head or neck to be caught and injured. When installing an accessory part to the back door, using a genuine Toyota part is recommended.

● The back door may fall if it is not

opened fully. It is more difficult to open or close the back door on an incline than on a level surface, so beware of the back door unexpectedly opening or closing by itself. Make sure that the back door is fully open and secure before using the luggage compartment.

● When closing the back door, take extra

care to prevent your fingers etc. from being caught.

● When closing the back door, make sure

to press it lightly on its outer surface. If the back door handle is used to fully close the back door, it may result in hands or arms being caught.

CTH12AS035

CTH12AS037

Page 44

1-2. Opening, closing and locking the doors

Before driving

4RUNNER_U

NOTICE

■ To p r event dama ge to th e back door components

Do not allow more than one person to get on the rear step bumper at a time.

■ Back door damper stays

The back door is equipped with damper stays that hold the back door in place.

Observe the following precautions. Failure to do so may cause damage to the back door damper stay, resulting in malfunction.

● Do not attach any foreign objects, such

as stickers, plastic sheets, or adhesives to the damper stay rod.

● Do not touch the damper stay rod with

gloves or other fabric items.

● Do not attach any accessories other

than genuine Toyota parts to the back door.

● Do not place your hand on the damper

stay or apply lateral forces to it.

CTH12AS036

Page 45

4RUNNER_U

1-3. Adjustable components (seats, mirrors, steering wheel)

Front seats

Manual seat

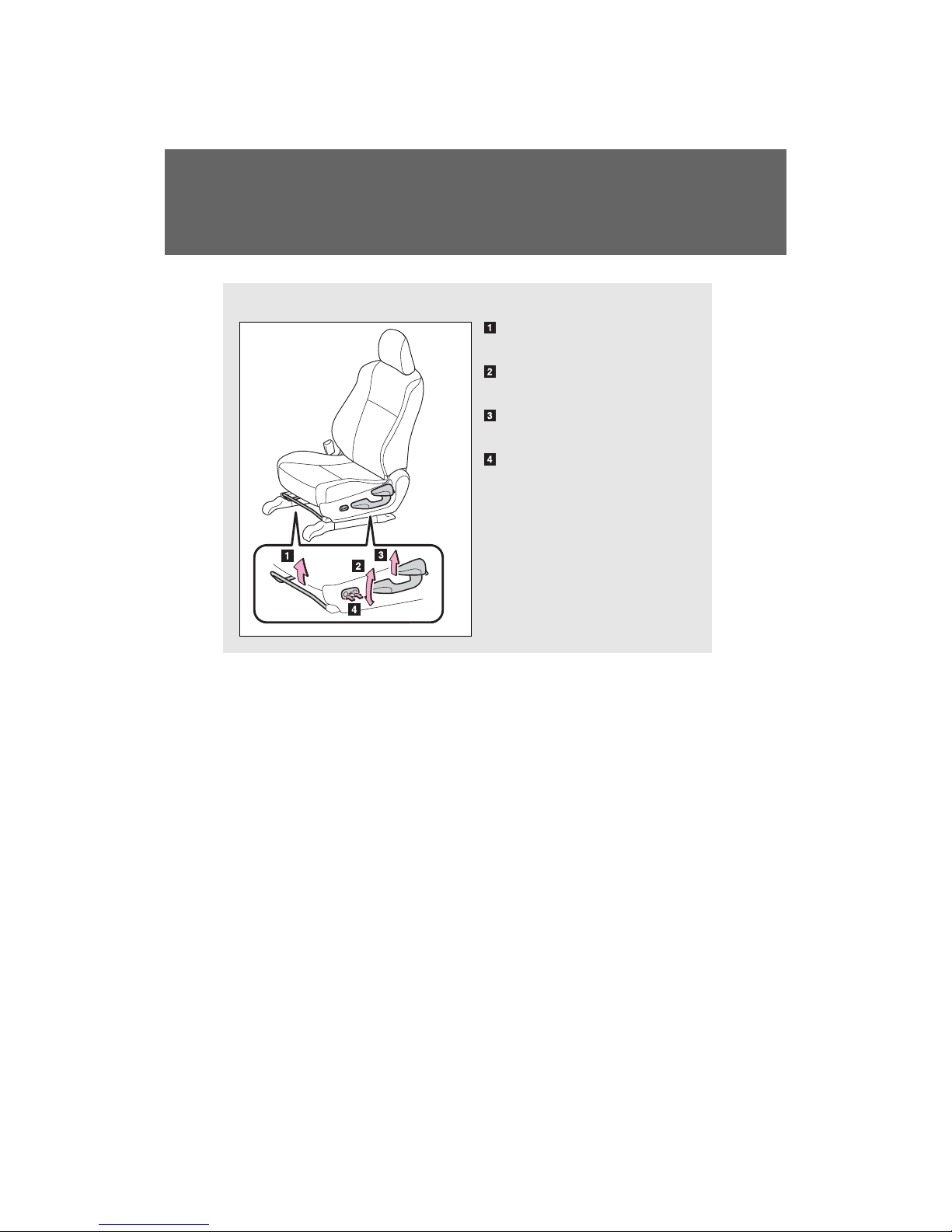

Seat position adjustment lever

Vertical height adjustment lever (driver’s side only)

Seatback angle adjustment lever

Lumber support adjustment switch (driver’s side only)

CTH13AS055

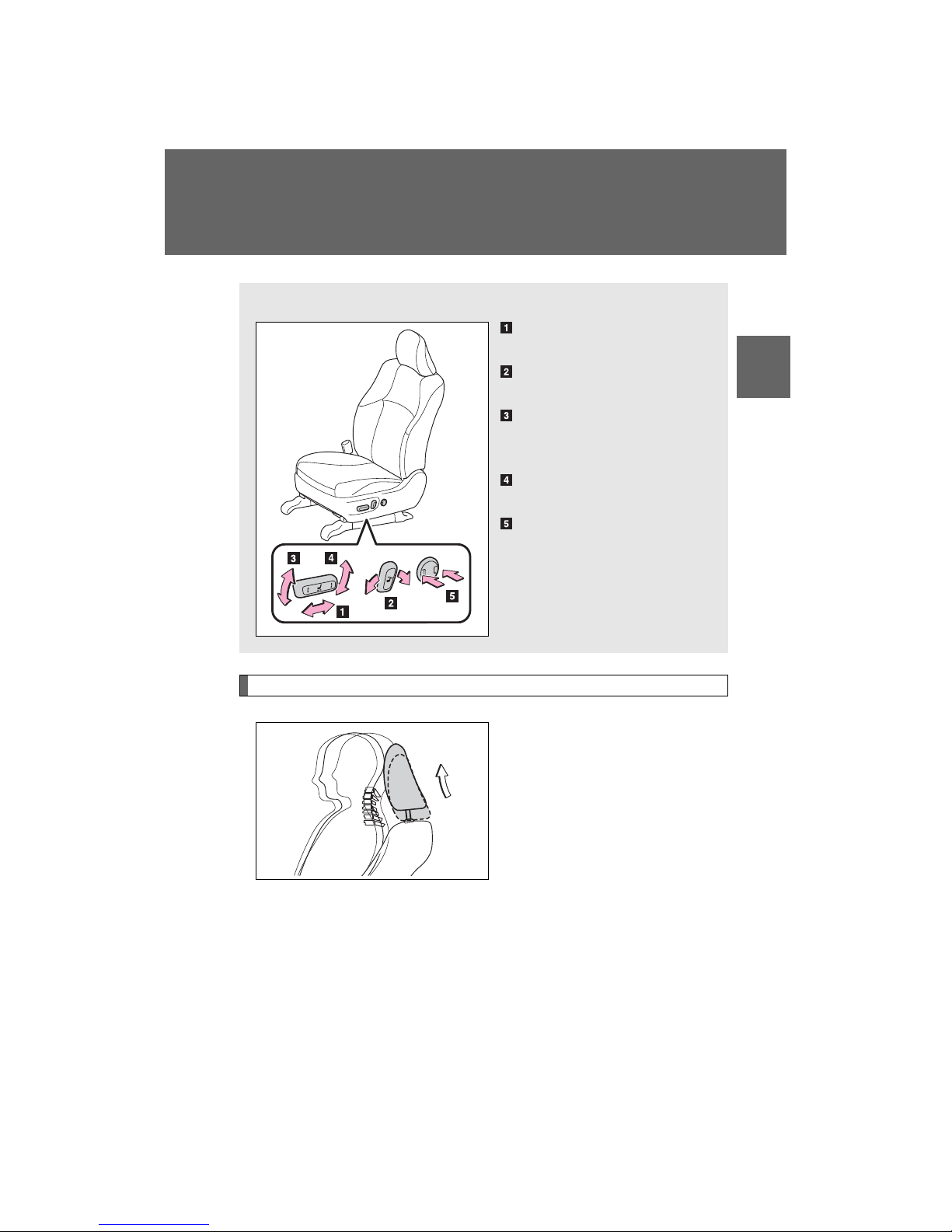

Page 46

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

Active head restraints

When the occupant’s lower back presses against the seatback during a rear-end collision, the head restraint moves slightly forward and upward to help reduce the risk of whiplash to the seat occupant.

Power seat

Seat position adjustment switch

Seatback angle adjustment switch

Seat cushion (front) angle adjustment switch (driver’s side only)

Vertical height adjustment switch (driver’s side only)

Lumber support adjustment switch (driver’s side only)

CTH13AS010

CTH13AS011

Page 47

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

■ The auto away function for exiting the driver seat

If the seat is already close to the rearmost position, the auto away function may not operate when the driver exits the vehicle.

■ Active head restraints

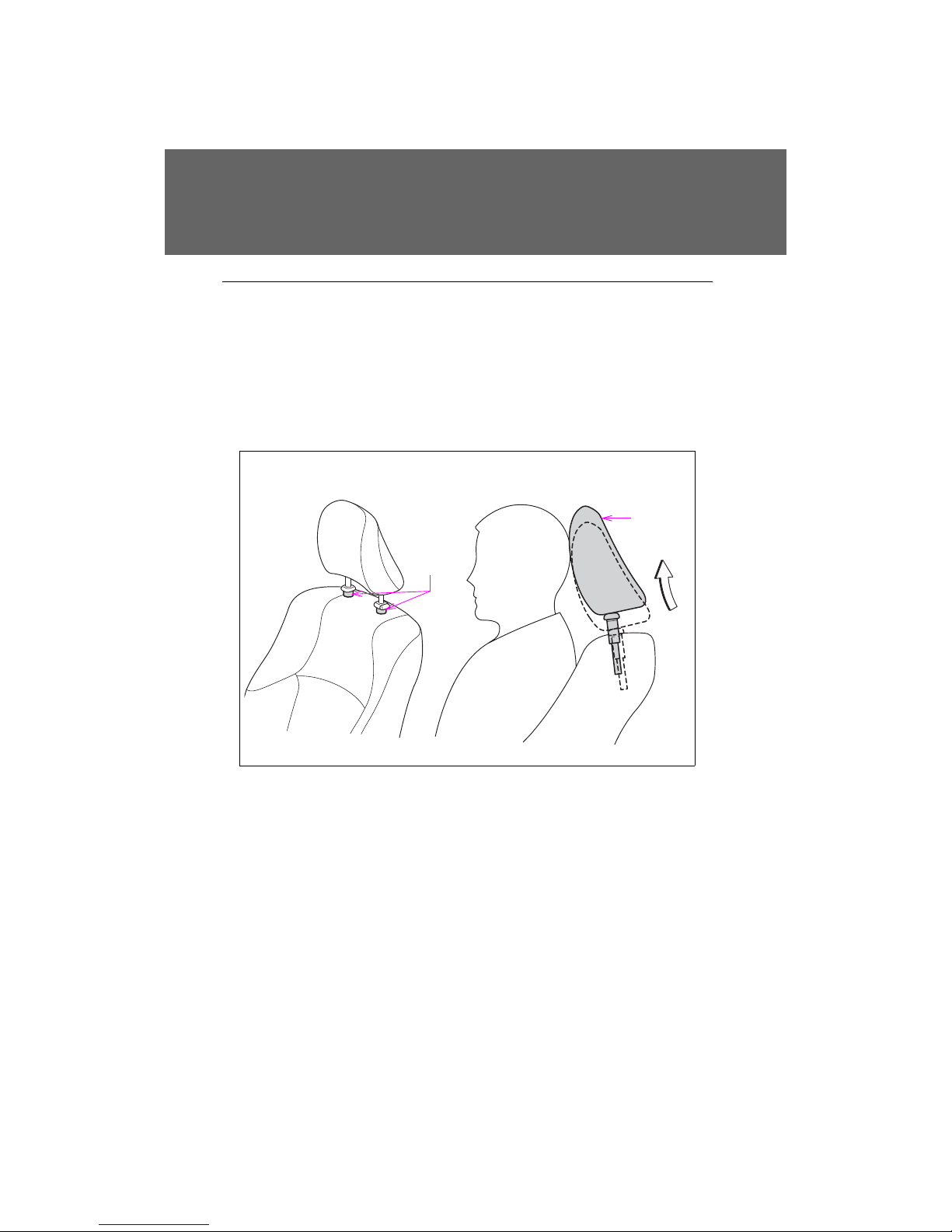

Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may appear the head restraint inner structure. These do not indicate problems.

CTH13AS012

Inner structure

During rear-end collision

Page 48

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

CAUTION

■ Seat adjustment

● To r ed uc e t he r i sk o f s li d in g u nd e r th e l ap b e lt d u ri n g a co ll i si o n, d o n ot

recline the seat more than necessary. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident. Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.

● After adjusting the seat, make sure that the seat is locked in position.

Page 49

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

Rear seats

Vehicle s without third row sea ts

■ Rear seat

Pull up the seatback angle adjustment lever until the lock is released.

CTH13AS081

Page 50

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

Vehicle s with third r ow se ats

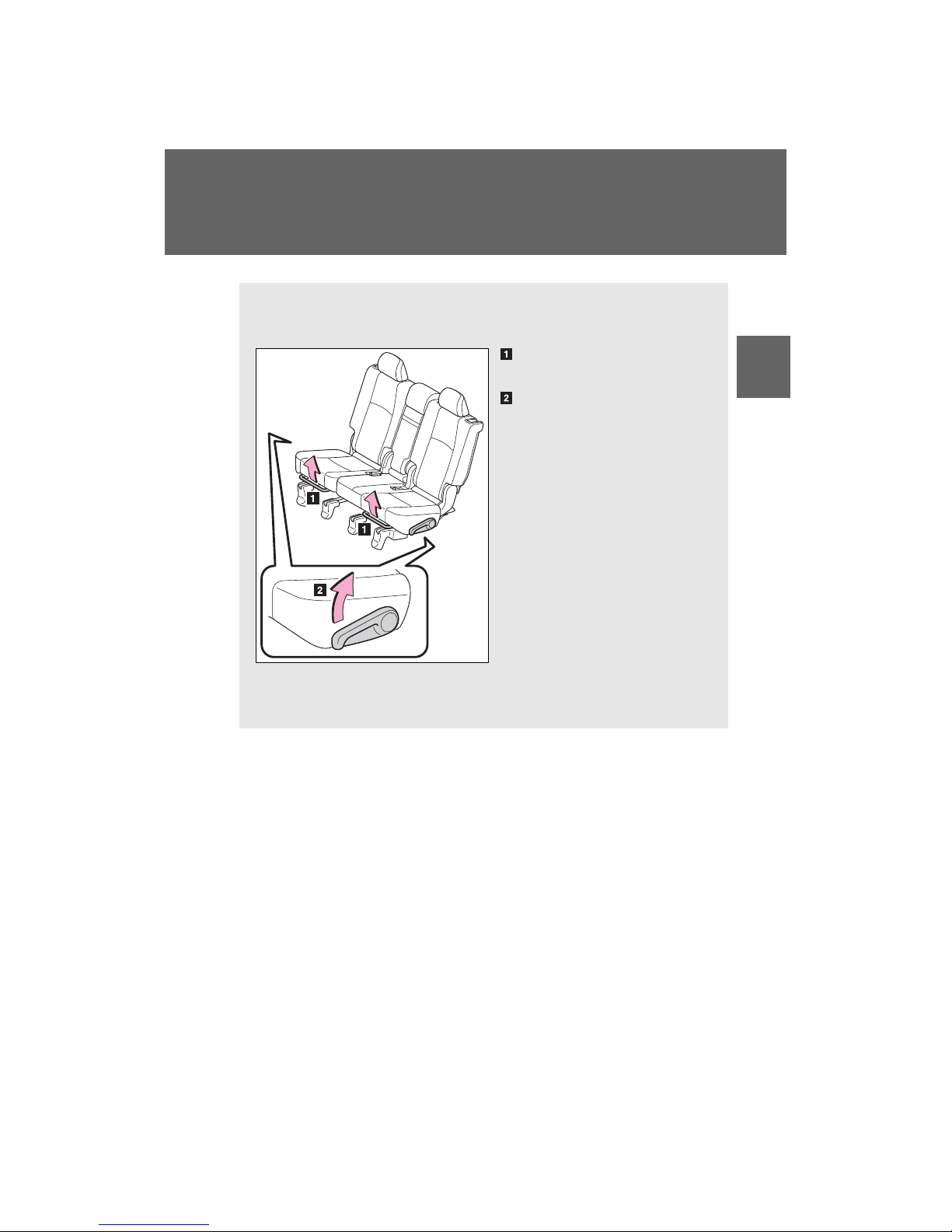

■ Second row seats

Seat position adjustment lever

Seatback angle adjustment lever

■ Third row seats

The third row seats do not have a seat adjustment function.

CTH13AS053

Page 51

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

Folding down the rear seats (vehicles without third row seats)

■ Before folding down the rear seats

Adjust the head restraints to the downmost position.

Fold down the head restraints.

When returning the head restraints to their original positions, make sure they are locked securely.

Stow the rear seat belt buckles.

STEP

Page 52

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

■ Folding down the rear seats

Swing the bottom cushions up by pulling the lock release strap.

When returning the rear seat cushions to their original positions, make sure they are locked securely.

Push the lock release button and fold down the seatbacks.

To re tu rn t he r ea r s ea tb a ck s t o their original positions, lift them up until they lock.

■ Folding down rear center seatback only

Pull the center seatback angle lever behind the seatback and fold the seatback down.

To r et ur n th e r ea r ce nt e r se a tb ac k to its original position, lift it up until it locks.

STEP

Page 53

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

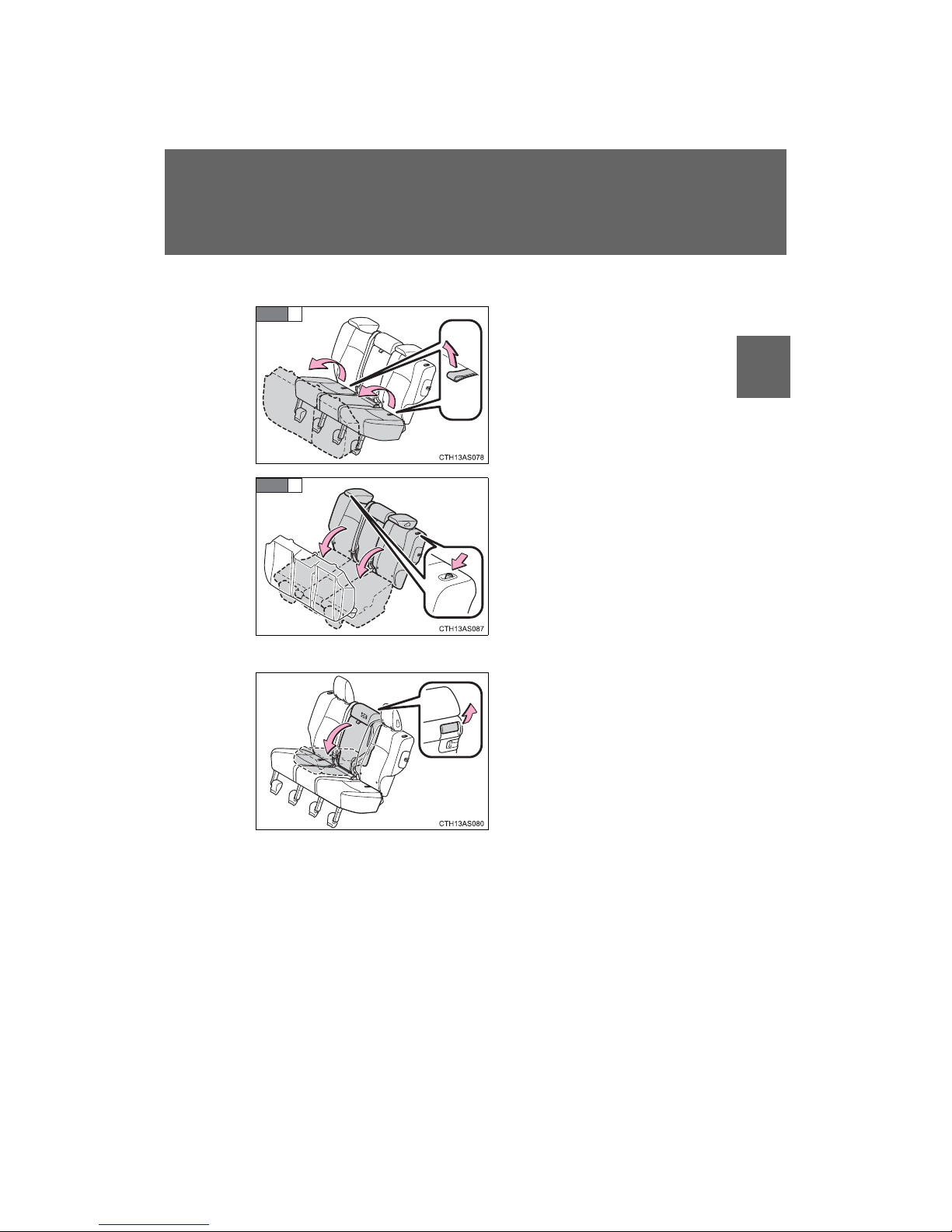

Folding down the second row seats (vehicles with third row seats)

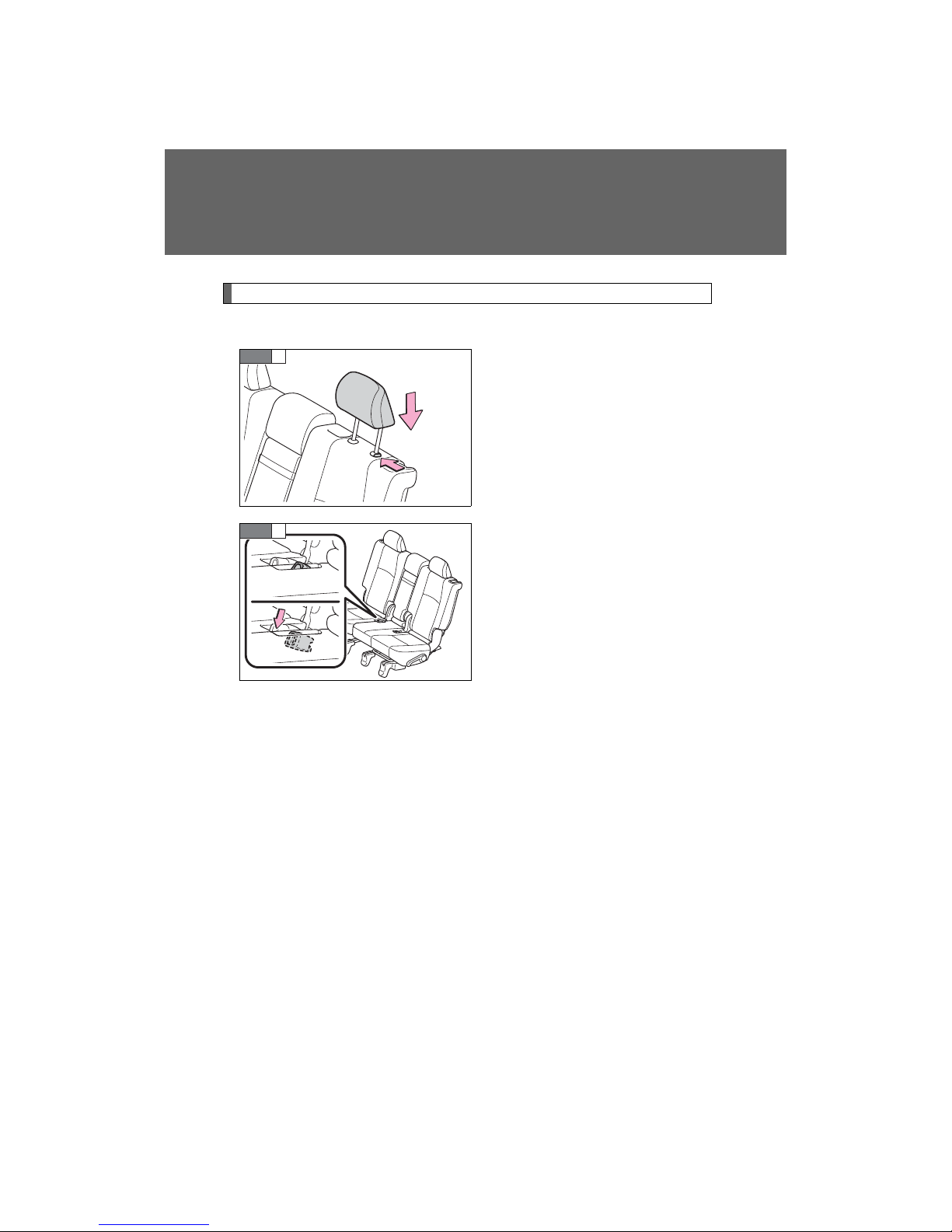

■ Before folding down the second row seats

Adjust the head restraints to the downmost position.

Stow the second row seat belt buckles.

CTH13AS045

STEP

CTH13AS071

STEP

Page 54

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

■ Folding down the second row seats

Pull the seatback lock release lever and fold the seatback down.

To r et ur n t he s e co nd r o w s ea t backs to their original positions, lift them up until they lock.

■ Folding down the second row center seatback only

Pull the center seatback angle lever behind the seatback and fold the seatback down.

To r et u rn t h e s ec on d r ow c en t er seatback to its original position, lift it up until it locks.

CTH13AS051

CTH13AS052

Page 55

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

Moving a second row seat for access to the third row seats (vehicles with third row seats)

■ Getting in the vehicle (right side only)

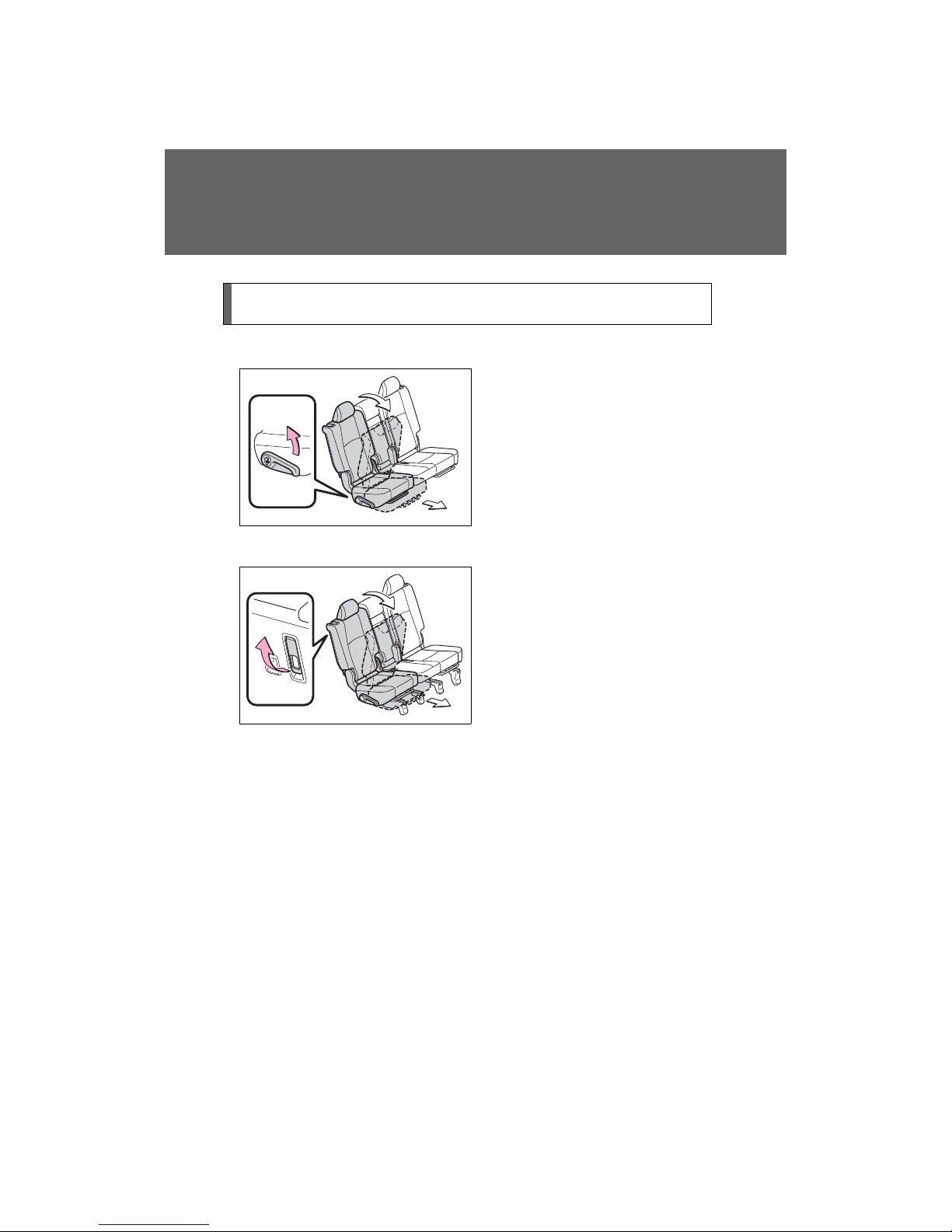

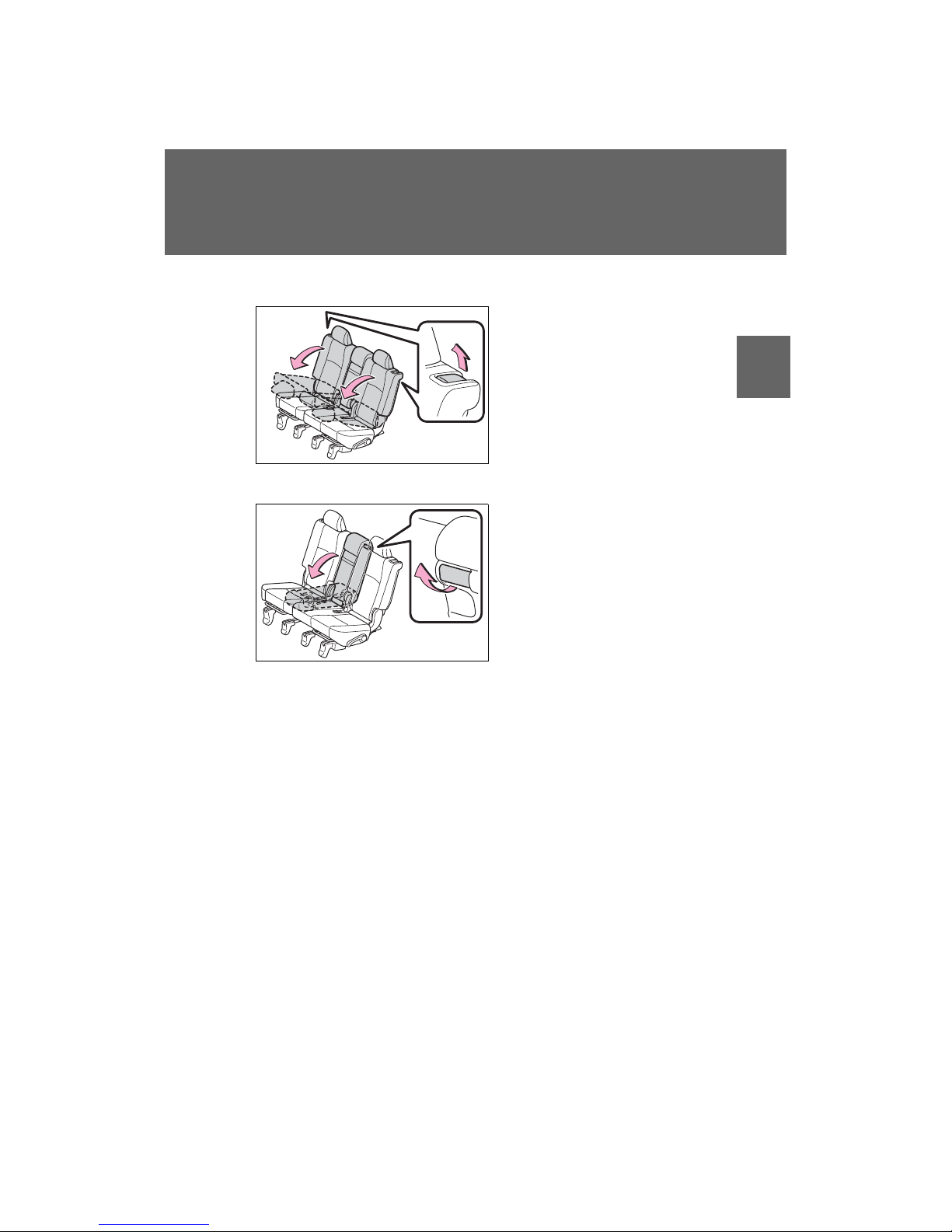

Pull up the lever and fold down the seatback. The seat will slide forward.

Move the seat to the front-most position.

■ Getting out of the vehicle (right side only)

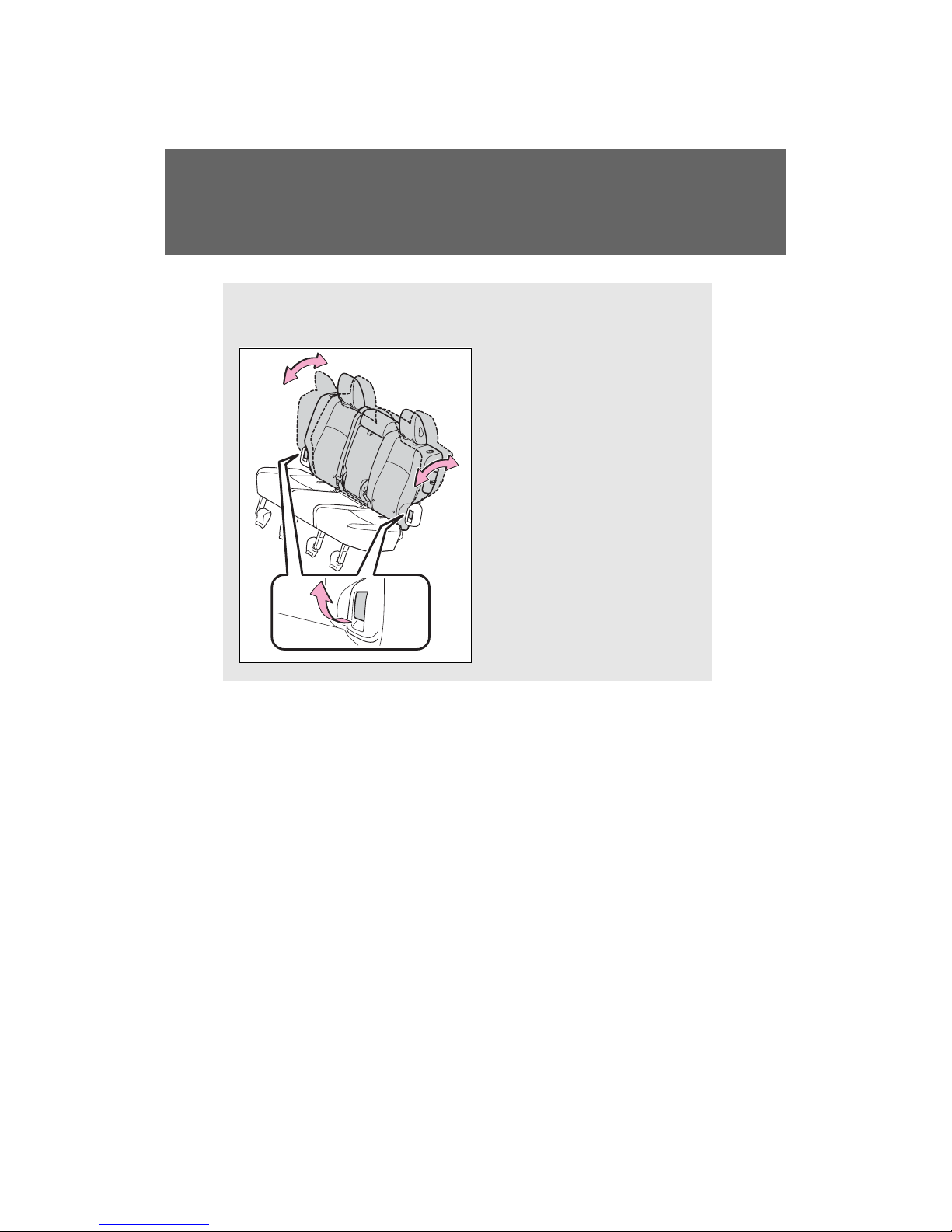

Lift the lever on the back of the seatback and fold down the seatback. The seat will slide forward.

Move the seat to the front-most position.

■ After passengers have entered/exited the vehicle

Lift up the seatback and slide the seat backward until it locks.

CTH13AS057

CTH13AS058

Page 56

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

Folding down the third row seats (vehicles with third row seats)

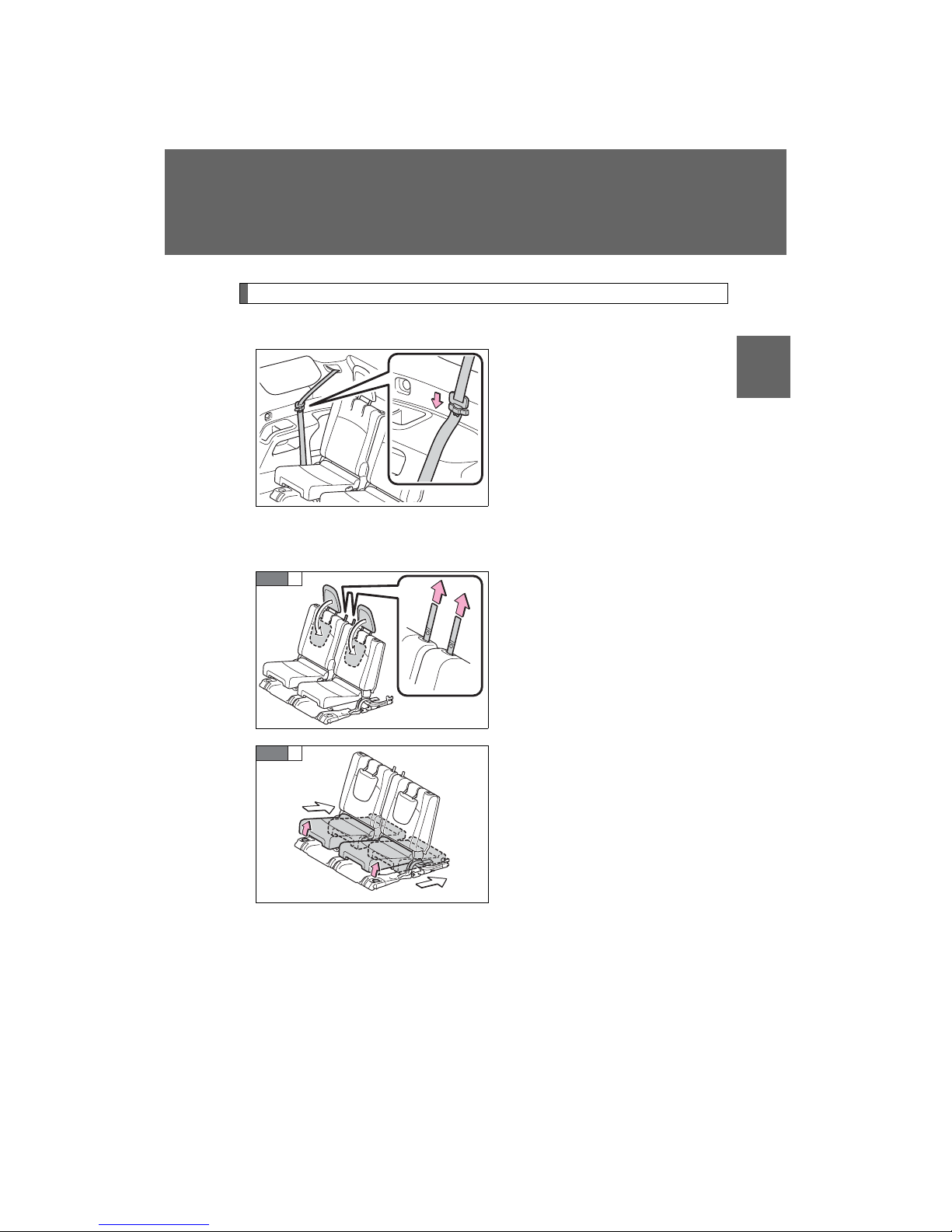

■ Before folding down the third row seats

Pass the seat belts through the seat belt hangers and secure the seat belt plates.

This prevents the shoulder belts from being damaged.

Make sure that the seat belts are removed from the hangers before using them.

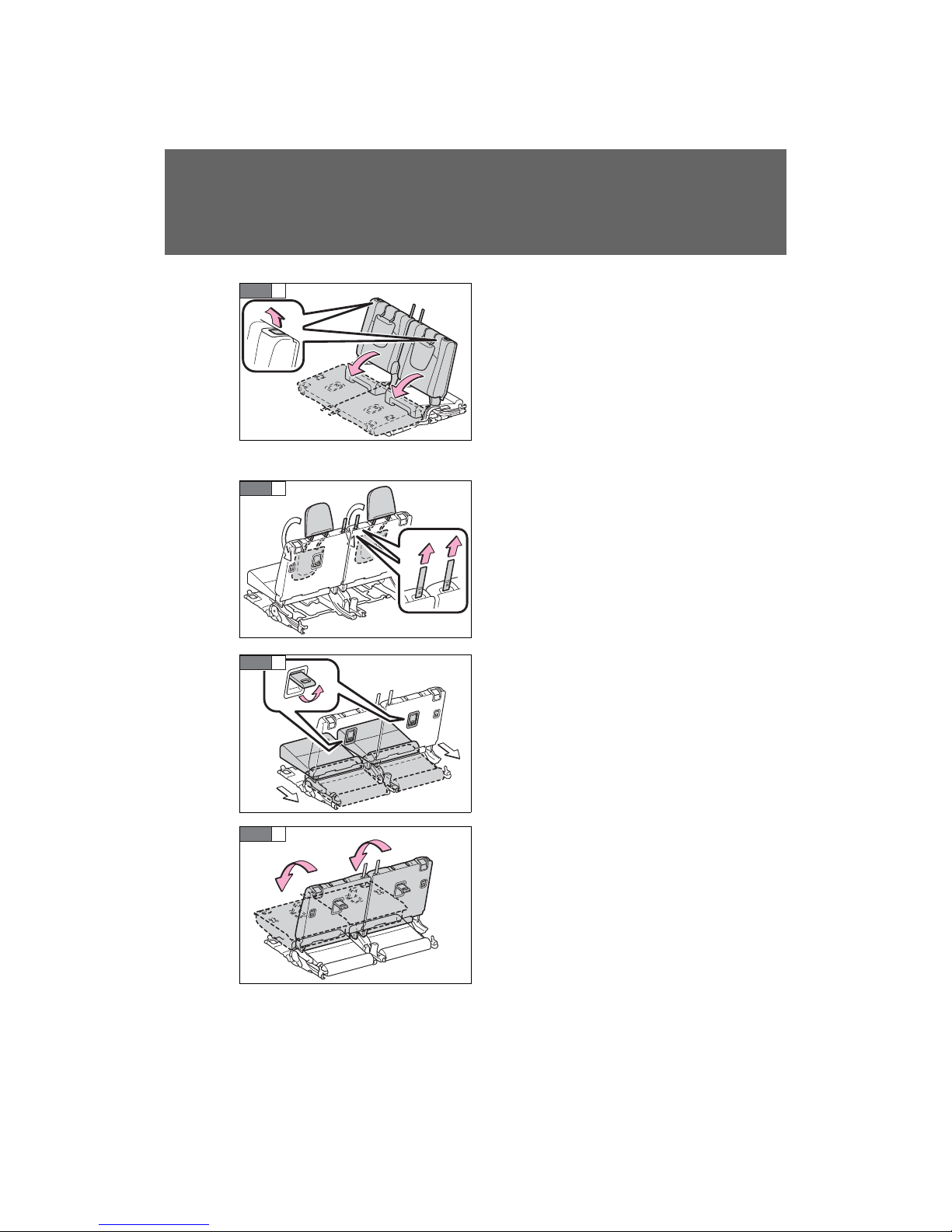

■ Folding down the third row seats

From inside

Pull the strap to fold down the head restraint.

Pull the lever up.

The seat cushion will slide backward.

CTH13AS072

CTH13AS025

STEP

CTH13AS026

STEP

Page 57

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

Pull the lever to unlock the seatback and then fold the seatback down.

From outside

Pull the strap to fold down the head restraint.

Pull the lever up.

The seat cushion will slide backward and the seatback will be unlocked.

Fold the seatback down.

CTH13AS027

STEP

CTH13AS028

STEP

CTH13AS029

STEP

CTH13AS064

STEP

Page 58

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

■ Returning the third row seats

As the seat cushions cannot be pulled forward from outside, this operation can only be performed from inside.

Raise the seatbacks to their original positions.

Make sure they are locked securely.

Pull the seat cushions forward.

Raise the head restraints.

CTH13AS061

STEP

CTH13AS062

STEP

CTH13AS063

STEP

Page 59

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

CAUTION

■ When folding the rear seatbacks down

Observe the following precautions. Failure to do so may result in death or serious injury.

● Do not fold the seatbacks down while driving.

● Stop the v ehicle on level g round, set the parking brake and shift the s hift

lever to P.

● Do not allow anyone to sit on a folded seatback or in the luggage compart-

ment while driving.

● Do not allow children to enter the luggage compartment.

■ Seat adjustment

To r e du c e t he r i sk o f s li d in g u n de r t h e l ap b e lt d ur i ng a c ol li s io n , d o no t recline the seat more than necessary. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident. Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.

■ After returning the rear seatback to the upright position

Observe the following precautions. Failure to do so may result in death or serious injury.

● Make sure the seatback is securely locked by pushing it forward and rear-

ward on the top.

● Check that the seat belts are not twisted or caught in the seatback.

NOTICE

■ Stowing the seat belts

The seat belts and the buckles must be stowed before you fold down the rear seatbacks.

Page 60

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

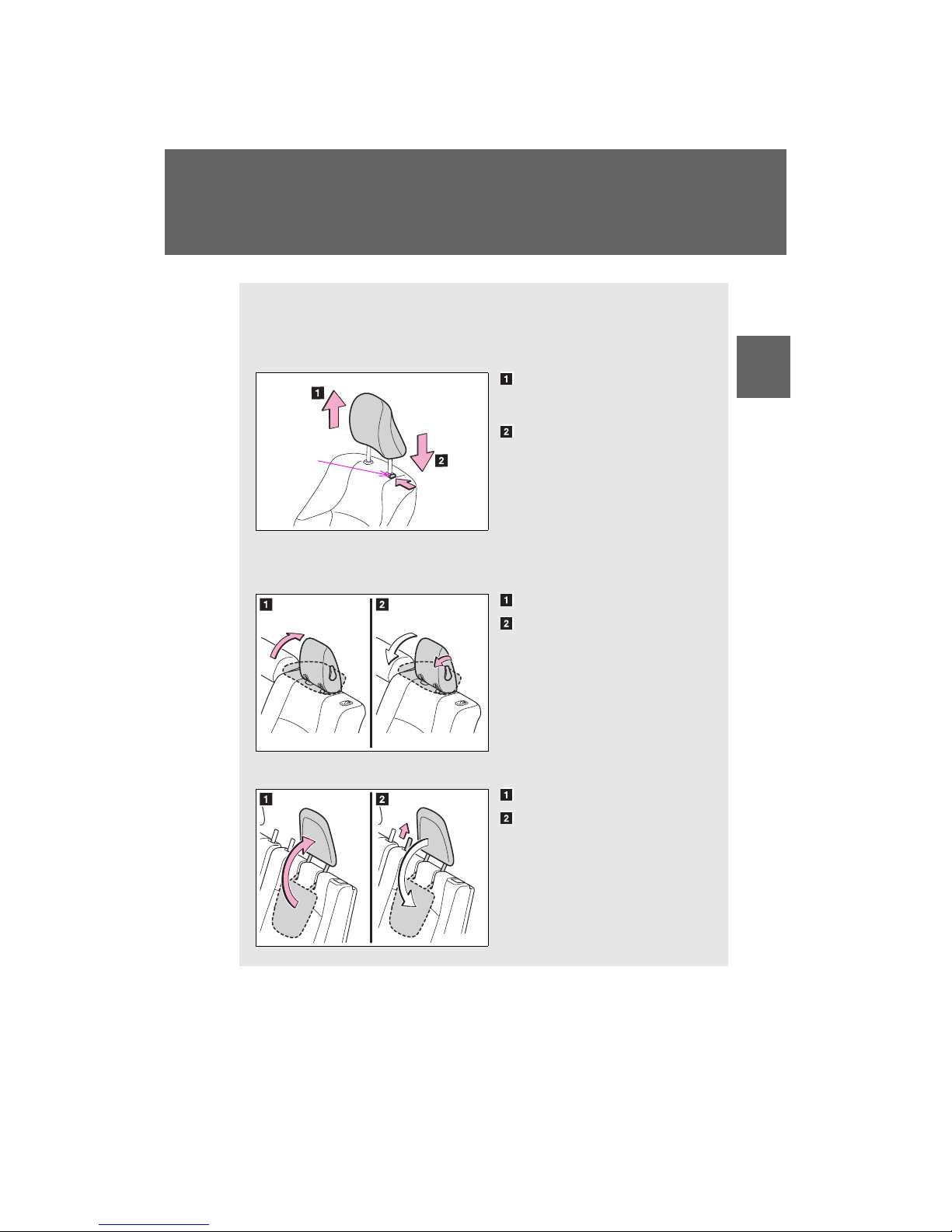

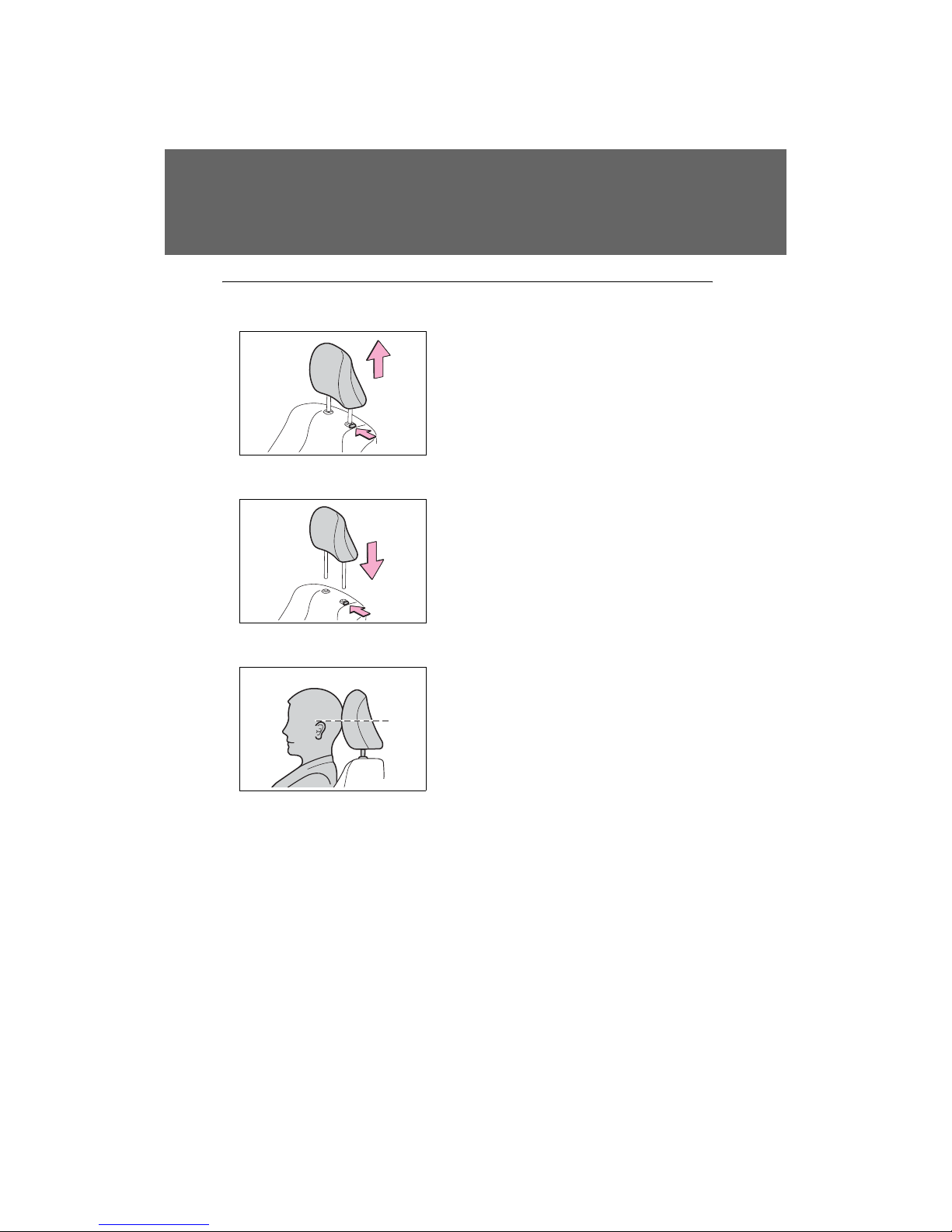

Head restraints

Head restraints are provided for all seats.

■ Adjusting the head restraints

Front and second seats

Pull the head restraints up.

Down

Push the head restraint down while pushing the lock release button.

■ Folding the head restraints

Second seats (vehicles without third row seats)

To u se

To f ol d

Third seats (vehicles with third row seats)

To u se

To f ol d

CTH13AS031

Lock release button

CTH13AS082

CTH13AS034

Page 61

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

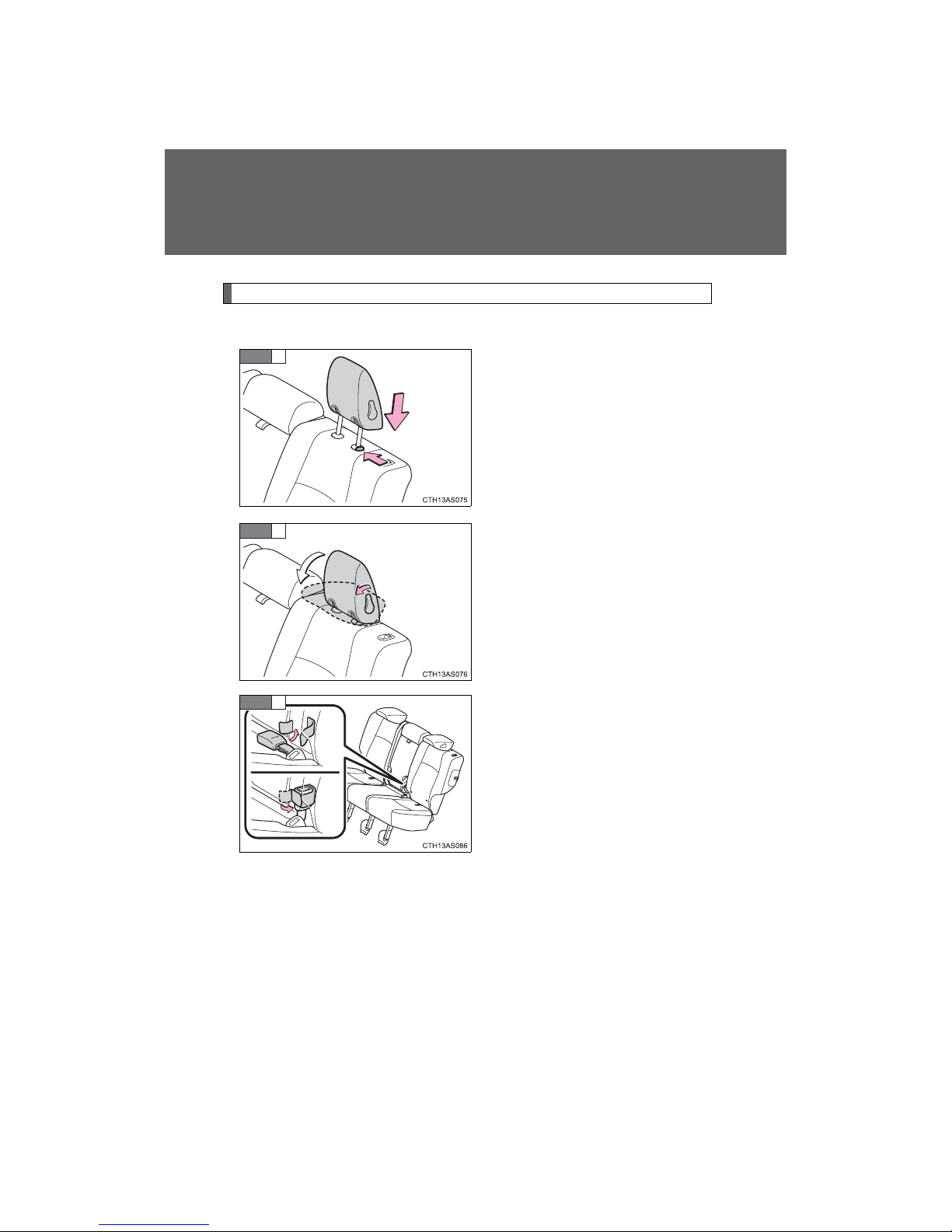

■ Removing the head restraints (except third row seats)

■ Installing the head restraints (except third row seats)

■ Adjusting the height of the head restraints

■ Adjusting the second center seat head restraint

Always raise the head restraint one level from the stowed position when using.

Pull the head restraint up while pressing the lock release button.

CTH13AS036

Align the head restraint with the installation holes and push it down to the lock position.

Press and hold the lock release button when lowering the head restraint.

CTH13AS037

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

CTH13AS035

Page 62

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

CAUTION

■ Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury.

● Use the head restraints designed for each respective seat.

● Adjust the head restraints to the correct position at all times.

● After adjusting the head restraints, push down on them and make sure

they are locked in position.

● Do not drive with the head restraints removed.

Page 63

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

Seat belts

Make sure that all occupants are wearing their seat belts before driv-

ing the vehicle.

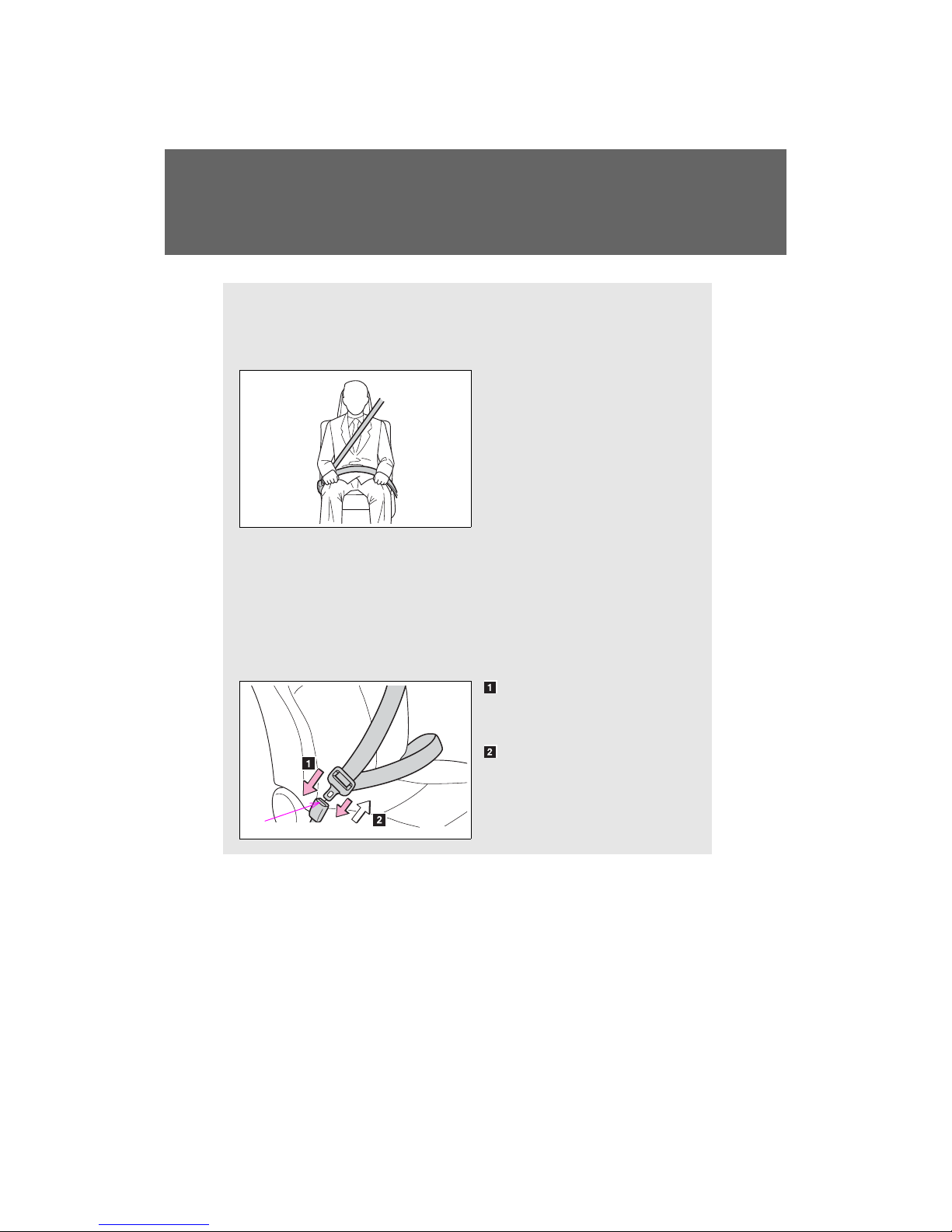

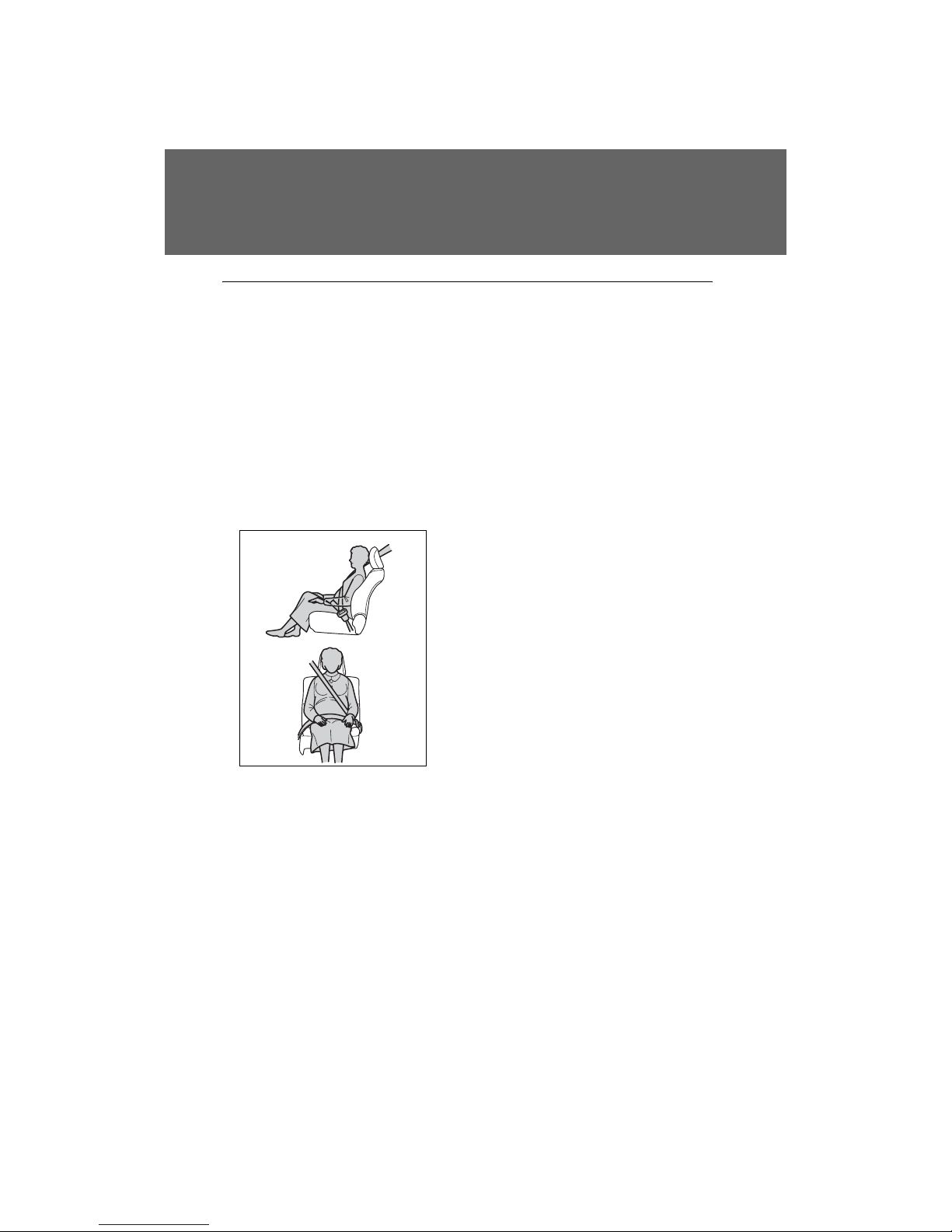

■ Correct use of the seat belts

● Extend the shoulder belt so

that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.

● Position the lap belt as low as possible over the hips.

● Adjust the position of the seatback. Sit up straight and well back in the seat.

● Do not twist the seat belt.

■ Fastening and releasing the seat belt

To f as te n th e s ea t be lt , pu sh the plate into the buckle until a click sound is heard.

To r e le as e t he s ea t b e lt , press the release button.

CTH13AS038

CTH13AS083

Release button

Page 64

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

Seat belt pretensioners (front seats)

The pretensioner helps the seat belt to quickly restrain the occupant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal and side collision or a vehicle rollover.

The pretensioner may not activate in the event of a minor frontal or side impact or a rear impact.

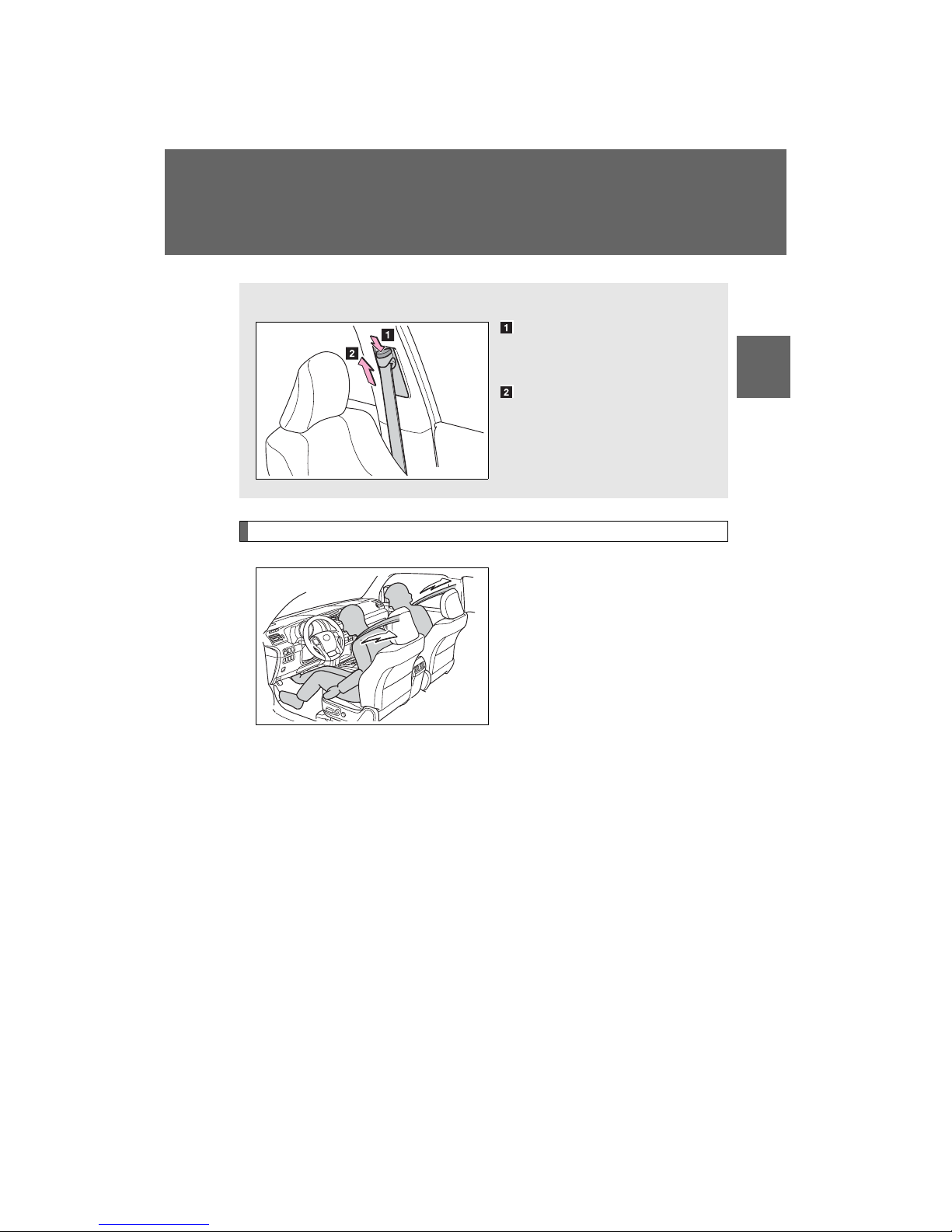

■ Adjusting the seat belt shoulder anchor height (front seats)

Push the seat belt shoulder anchor down while pressing the release button.

Push the seat belt shoulder anchor up.

Move the height adjuster up and down as needed until you hear a click.

CTH13AS084

CTH13AS041

Page 65

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

■ Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.

■ Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To f re e t he b el t ag ai n , fu l ly r e tr a ct t h e be l t an d th e n pu ll t h e be l t ou t on c e more. (→P. 1 4 6)

■ Pregnant women

■ People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (→P. 8 6)

Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occupants. Extend the shoulder belt completely over the shoulder and position the belt across the chest. Avoid belt contact over the rounding of the abdominal area.

If the seat belt is not worn properly, not only the pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.

CTH13AS085

Page 66

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

■ Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

● Use a child restraint system appropriate for the child, until the child

becomes large enough to properly wear the vehicle’s seat belt. (→P. 1 4 2 )

● When the child becomes large enough to properly wear the vehicle’s

seat belt, follow the instructions on P. 86 regarding seat belt usage.

■ Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.

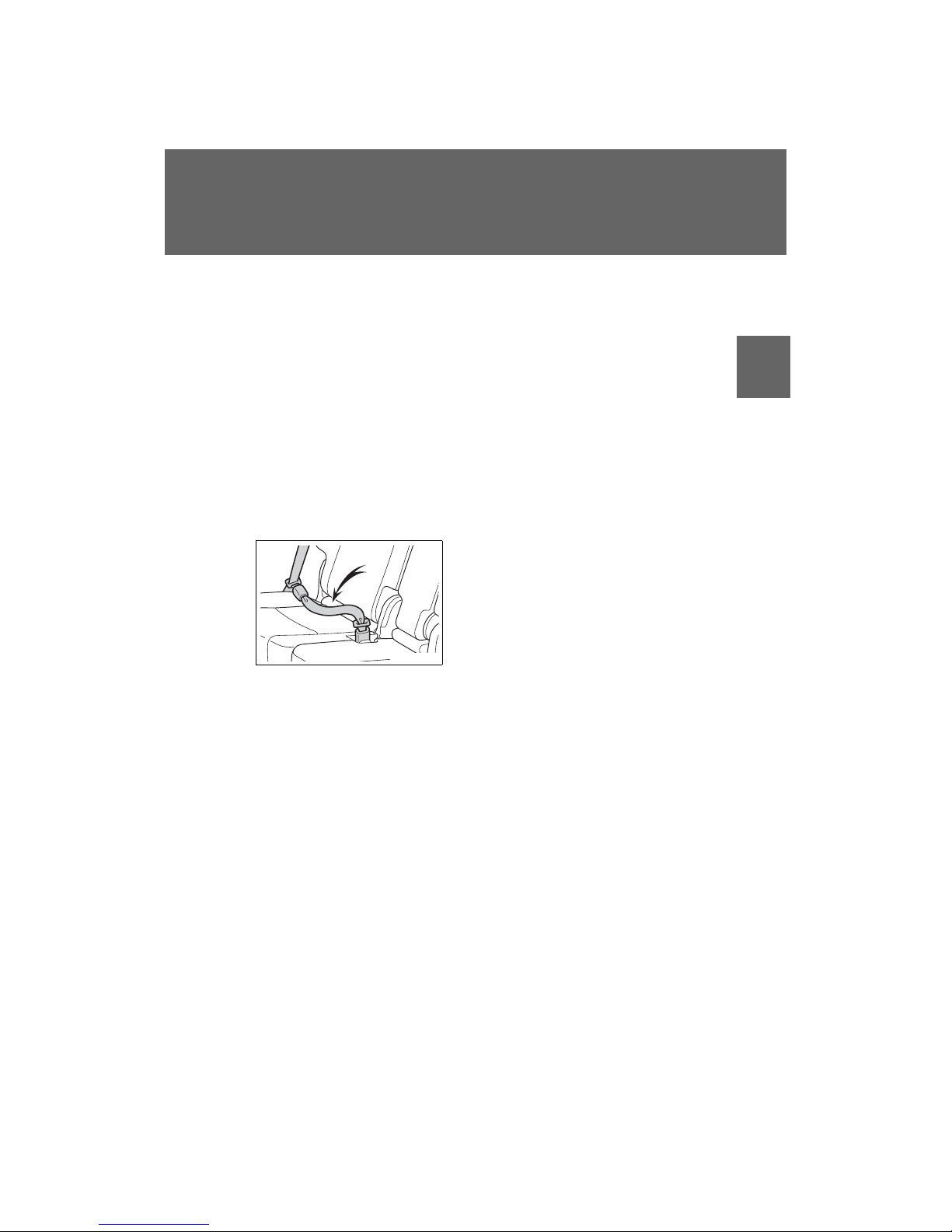

■ Seat belt extender

If your seat belts cannot be fastened securely because they are not long enough, a personalized seat belt extender is available from your Toyota dealer free of charge.

CTH13AS044

Page 67

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

CAUTION

Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failure to do so may cause death or serious injury.

■ Wearing a seat belt

● Ensure that all passengers wear a seat belt.

● Always wear a seat belt properly.

● Each seat belt should be used by one person only. Do not use a seat belt

for more than one person at once, including children.

● To yo ta r e co m me nd s th at c h il d re n be s ea t ed i n th e re a r se at a n d a l wa y s

use a seat belt and/or an appropriate child restraint system.

● To a c hi e ve a p r op e r s ea t in g p os i ti o n, d o n ot r ec li n e t he s e at m o re t h an

necessary. The seat belt is most effective when the occupants are sitting up straight and well back in the seats.

● Do not wear the shoulder belt under your arm.

● Always wear your seat belt low and snug across your hips.

■ When children are in the vehicle

Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or other serious injuries that could result in death. If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.

■ Seat belt pretensioners

● Do not place anything, such as a cushion, on the front passenger's seat.

Doing so will disperse the passenger's weight, which prevents the sensor from detecting the passenger's weight properly. As a result, the seat belt pretensioner for the front passenger's seat may not activate in the event of a collision.

● If the pretensioner has activated, the SRS warning light will come on. In

that case, the seat belt cannot be used again and must be replaced at your Toyota dealer.

Page 68

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

CAUTION

■ Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or accident. (→P. 8 7 )

■ Seat belt damage and wear

● Do not damage the seat belts by allowing the belt, plate, or buckle to be

jammed in the door.

● Inspect the seat belt system periodically. Check for cuts, fraying, and loose

parts. Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an occupant from death or serious injury.

● Ensure that the belt and plate are locked and the belt is not twisted.

If the seat belt does not function correctly, immediately contact your Toyota dealer.

● Replace the seat assembly, including the belts, if your vehicle has been

involved in a serious accident, even if there’s no obvious damage.

● Do not attempt to install, remove, modify, disassemble or dispose of the

seat belts. Have any necessary repairs carried out by your Toyota dealer. Inappropriate handling of the pretensioner may prevent it from operating properly, resulting in death or serious injury.

■ Using a seat belt extender

● Do not wear the seat belt extender if you can fasten the seat belt without

the extender.

● Do not use the seat belt extender when installing a child restraint system

because the belt will not securely hold the child restraint system, increasing the risk of death or serious injury in the event of an accident.

● The personalized extender may not be safe on another vehicle, when

used by another person, or at a different seating position other than the one originally intended.

Page 69

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

NOTICE

■ When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.

Page 70

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

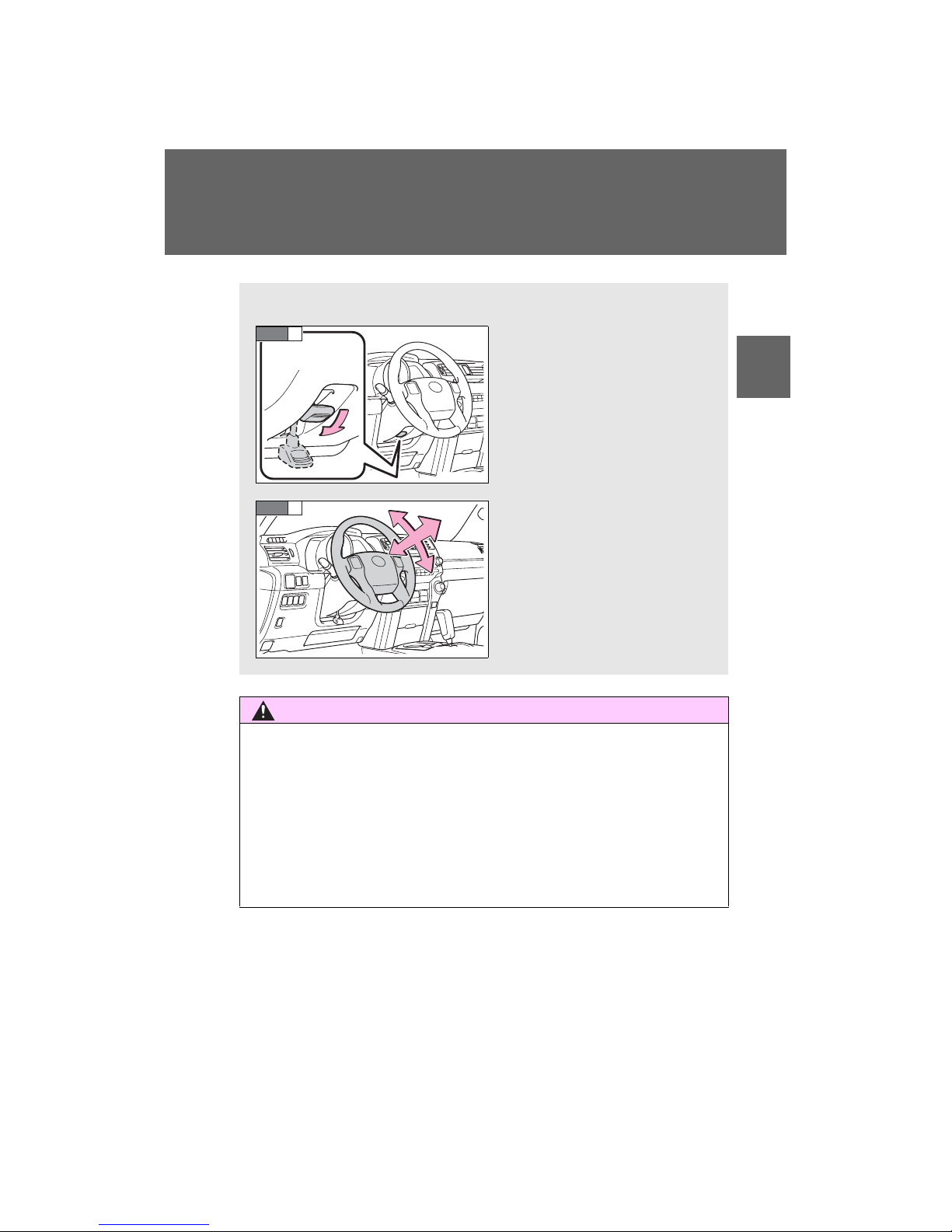

Steering wheel

CAUTION

■ Caution while driving

Do not adjust the steering wheel while driving. Doing so may cause the driver to mishandle the vehicle and cause an accident, resulting in death or serious injury.

■ After adjusting the steering wheel

Make sure that the steering wheel is securely locked. Otherwise, the steering wheel may move suddenly, possibly causing an accident, and resulting in death or serious injury.

The steering wheel can be adjusted to a comfortable position.

Hold the steering wheel and push the lever down.

Adjust to the ideal position by moving the steering wheel horizontally and vertically.

After adjustment, pull the lever up to secure the steering wheel.

CTH13AS007

STEP

CTH13AS008

STEP

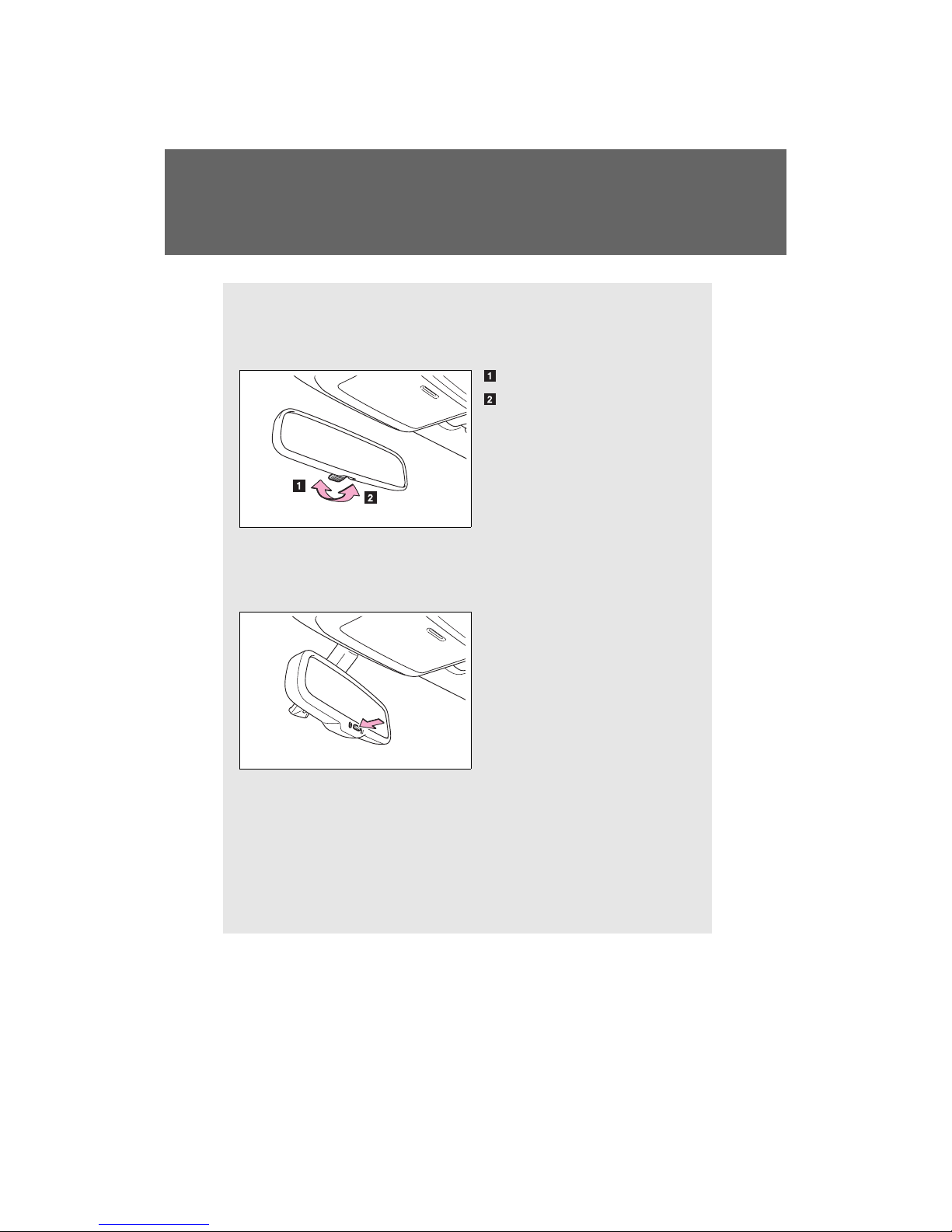

Page 71

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

Inside rear view mirror

Glare from the headlights of vehicles behind can be reduced by

using the following functions:

Manual anti-glare inside rear view mirror (if equipped)

Normal position

Anti-glare position

Auto anti-glare inside rear view mirror (if equipped)

In automatic mode, sensors are used to detect the headlights of vehicles behind and the reflected light is automatically reduced.

Turns automatic mode on/off

The indicator comes on when automatic mode is turned on.

Vehicles w ith out a sma rt key system

The mirror will revert to the automatic mode each time the engine switch is turned to the “ON” position.

Vehicles with a smart key system

The mirror will revert to the automatic mode each time the “ENGINE START STOP” switch is turned to IGNITION ON mode.

CTH13AS001

CTH13AS054

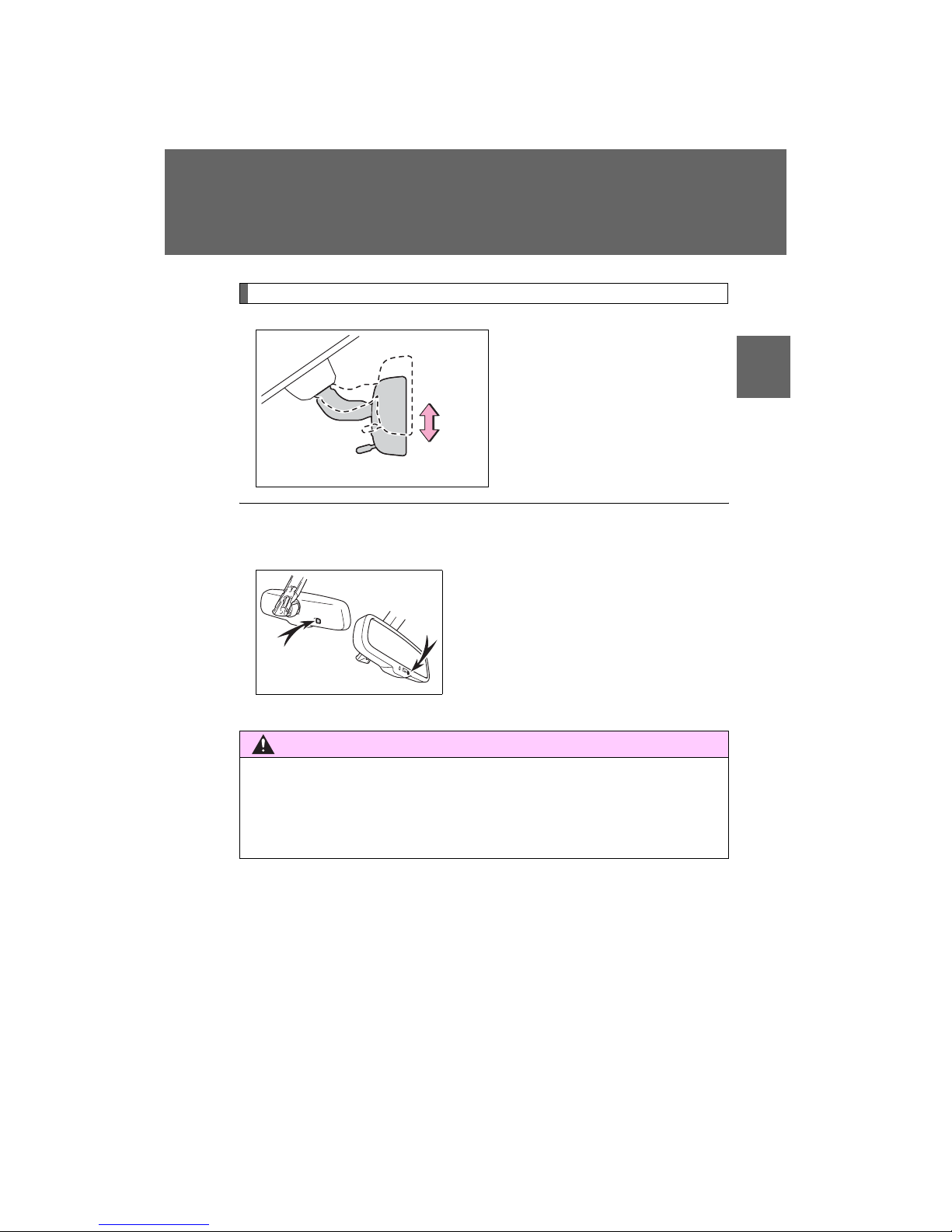

Page 72

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

Adjusting the height of rear view mirror

Adjust the height of the rear view mirror by moving it up and down.

CTH13AS074

■ To pr e v ent sensor error (v ehicle s with auto anti-glare inside rear view

mirror)

CAUTION

■ Caution while driving

Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and cause an accident, resulting in death or serious injury.

To en s ur e th a t t h e s e ns o rs o pe r at e p ro p erly, do not touch or cover them.

CTH13AS088

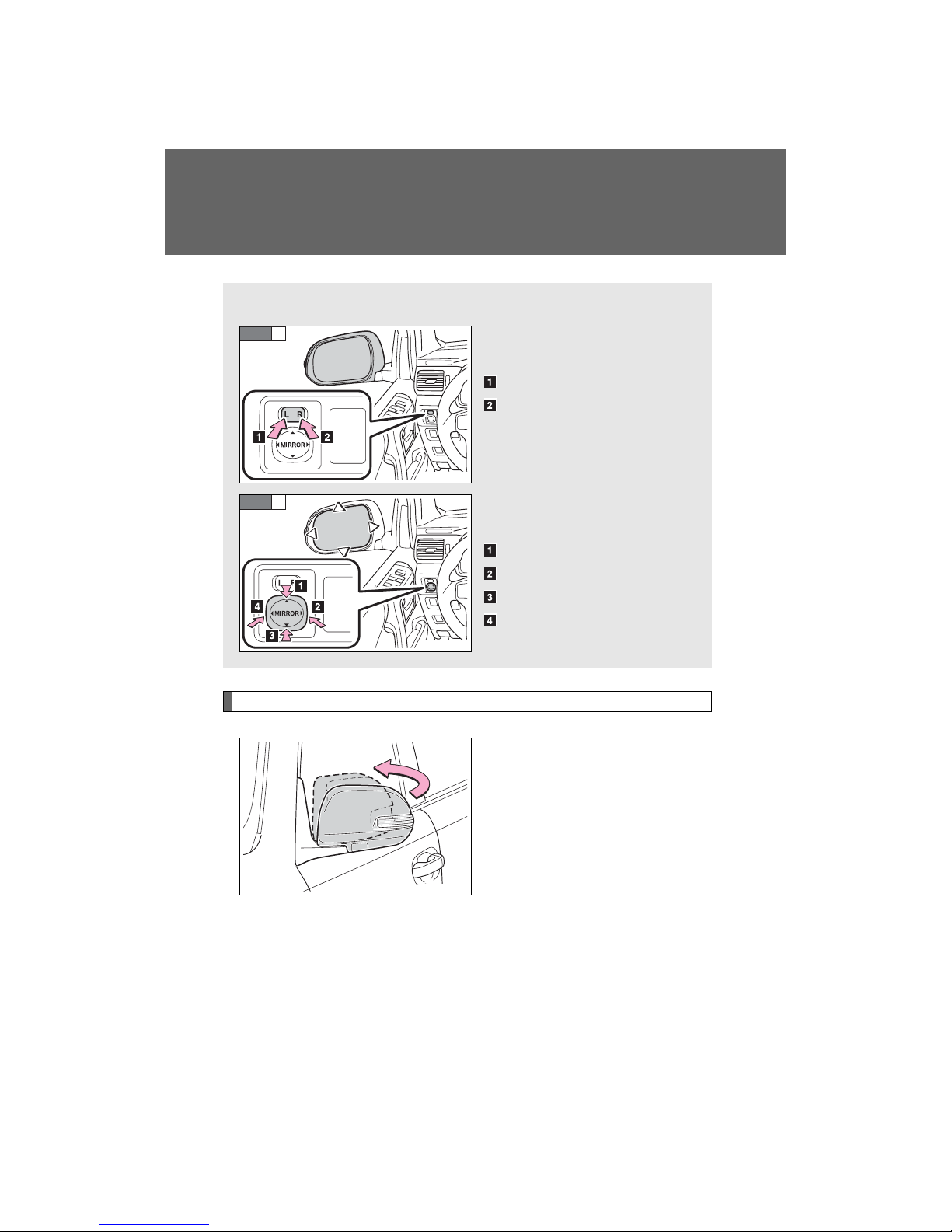

Page 73

1-3. Adjustable components (seats, mirrors, steering wheel)

4RUNNER_U

Outside rear view mirrors

Folding the mirrors

Push the mirror back in the direction of the vehicle's rear.

Mirror angle can be adjusted using the switch.

To s el ec t a m ir ro r t o a d ju st , press the switch.

Left

Right

To ad ju st th e m ir ro r, pr es s th e switch.

Right

Down

Left

CTH13AS004

STEP

CTH13AS005

STEP

CTH13AS006CTH13AS066

Page 74

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

4RUNNER_U

■ Mirror angle can be adjusted when

Vehicles wit hout a smart key system

The engine switch is in the “ACC” or “ON” position.

Vehicles wit h a smart key sy stem

The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.

■ When the mirrors are fogged up

Turn on the mirror defoggers to defog the mirrors. (→P. 3 2 8)

CAUTION

■ When driving the vehicle

Observe the following precautions while driving. Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.

● Do not adjust the mirrors while driving.

● Do not drive with the mirrors folded.

● Both the driver and passenger side mirrors must be extended and properly

adjusted before driving.

■ When a mirror is moving

To a vo i d pe r so n al i n ju r y an d mi rr o r ma l fu n ct i on , be c a re f ul n o t to g e t yo ur hand caught by the moving mirror.

■ When the mirror defoggers are operating

Do not touch the rear view mirror surfaces, as they can become very hot and burn you.

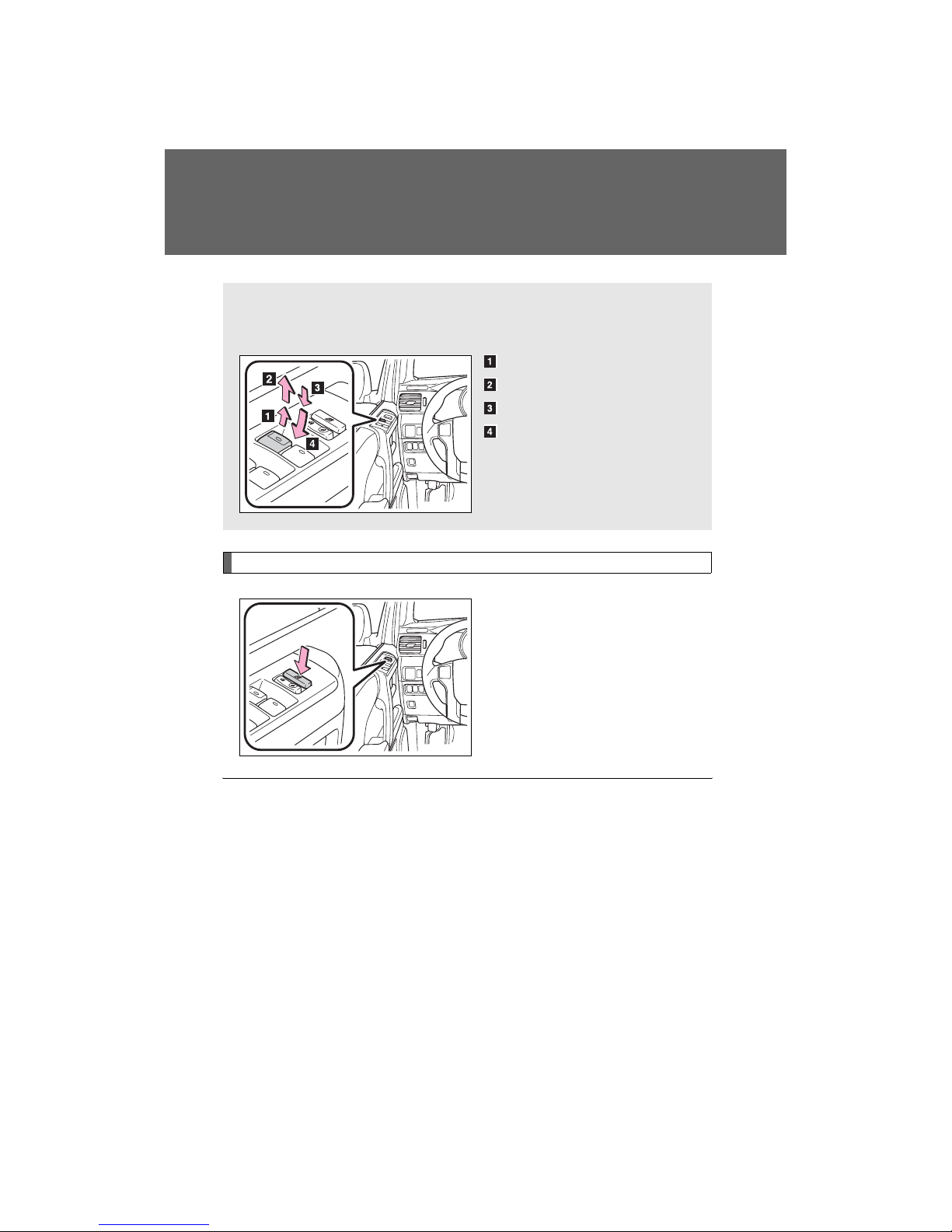

Page 75

4RUNNER_U

1-4. Opening and closing the windows and moon roof

Power windows

Window lock switch

Press the switch down to lock the passenger window switches and back window switch.

Use this switch to prevent children from accidentally opening or closing a passenger window and back window.

The power windows can be opened and closed using the switches.

Operating the switch moves the windows as follows:

Closing

One-touch closing

Opening

One-touch opening

:Pushing the switch in the

opposite direction will stop window travel partway.

CTH14AS010

CTH14AS002

■ The power windows can be operated when

Vehicles wit hout a smart key system

The engine switch is in the “ON” position.

Vehicles wit h a smart key sy stem

The “ENGINE START STOP” switch is in IGNITION ON mode.

Page 76

1-4. Opening and closing the windows and moon roof

Before driving

4RUNNER_U

■ Operating the power windows after turning the engine off

Vehicles wit hout a smart key system

The power windows can be operated for approximately 45 seconds even after the engine switch is turned to the “ACC” or “LOCK” position. They cannot, however, be operated once either front door is opened.

Vehicles wit h a smart key sy stem

The power windows can be operated for approximately 45 seconds even after the “ENGINE START STOP” switch is turned to ACCESSORY mode or turned off. They cannot, however, be operated once either front door is opened.

■ Jam protection function

If an object becomes caught between the window and the window frame, window travel is stopped and the window is opened slightly.

■ When the power window does not close normally

If the jam protection function is operating abnormally and a window cannot be closed, perform the following operations using the power window switch on the relevant door.

● After stopping the vehicle, the window can be closed by holding the

power window switch in the one-touch closing position while the engine switch is turned to the “ON” position (vehicles without a smart key system) or the “ENGINE START STOP” switch is turned to IGNITION ON mode (vehicles with a smart key system).

● If the window still cannot be closed even by carrying out the operation

explained above, initialize the function by performing the following procedure.

Hold the power window switch in the one-touch closing position. Continue holding the switch for a further 6 seconds after the window has closed.

Hold the power window switch in the one-touch opening position. Continue holding the switch for a further 2 seconds after the window has opened completely.

STEP

Page 77

100

1-4. Opening and closing the windows and moon roof

4RUNNER_U

Hold the power window switch in the one-touch closing position once again. Continue holding the switch for a further 2 seconds after the window has closed.

If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after performing the above procedure correctly, have the vehicle inspected by your Toyota dealer.

■ Customization that can be configured at Toyota dealer

Settings (e.g. linked door lock operation) can be changed. (Customizable features →P. 66 0 )

CAUTION

■ Closing the windows

Observe the following precautions. Failure to do so may result in death or serious injury.

● Check to make sure that all passengers do not have any part of their body

in a position where it could be caught when a window is being operated.

● Do not allow children to operate the power windows.

Closing a power window on someone can cause serious injury, and in some instances, even death.

■ Jam protection function

● Never use any part of your body to intentionally activate the jam protection

function.

● The jam protection function may not work if something gets caught just

before the window fully closes.

STEP

Page 78

101

1-4. Opening and closing the windows and moon roof

Before driving

4RUNNER_U

Power back window

The power back window can be opened and closed using the switch

or key.

From inside the vehicle

Closing

One-touch closing

Opening

One-touch opening

:Pressing the switch in the

opposite direction will stop window travel partway.

From outside the vehicle (vehicles without a smart key system)

Opening

Closing

Turn the key fully and hold it.

CTH14AS019

CTH14AS012

Page 79

102

1-4. Opening and closing the windows and moon roof

4RUNNER_U

■ The power back window can be operated from inside the vehicle when

Vehicles wit hout a smart key system

The engine switch is in the “ON” position.

Vehicles wit h a smart key sy stem

The “ENGINE START STOP” switch is in IGNITION ON mode.

● The power back window can be opened when the rear window wiper is

working, but the wiper stops working until the window is closed again. If the power back window is not fully closed, the rear window wiper, washer, and defogger will not work.

● If the back door is not fully closed, the power back window cannot be

opened using the switch located in the cabin. (It is still possible to close the window.)

● If the back door is opened while the power back window is opening or

closing, window operation will stop.

■ The power back window can be operated from outside the vehicle

when (vehicles with a smart key system)

● The “ENGINE START STOP” switch is off.

● The back door is closed.

From outside the vehicle (vehicles with a smart key system)

Opening (push and hold)

Closing (push and hold)

This operation can only be performed when the electronic key is within the detection range.

CTH14AS018

Page 80

103

1-4. Opening and closing the windows and moon roof

Before driving

4RUNNER_U

■ Operating the power back window from inside the vehicle after turning

the engine off

Vehicles wit hout a smart key system

The power back window can be operated for approximately 45 seconds even after the engine switch is turned to the “ACC” or “LOCK” position. It cannot, however, be operated once either front door is opened.

Vehicles wit h a smart key sy stem

The power back window can be operated for approximately 45 seconds even after the “ENGINE START STOP” switch is turned to ACCESSORY mode or turned off. It cannot, however, be operated once either front door is opened.

■ Jam protection function

If an object becomes caught between the window and the window frame, window travel is stopped and the window is opened slightly.

■ When the power back window does not close normally

If the jam protection function is operating abnormally and a window cannot be closed, perform the following operations using the power back window switch.

● After stopping the vehicle, the window can be closed by holding the

power back window switch in the one-touch closing position while the engine switch is turned to the “ON” position (vehicles without a smart key system) or the “ENGINE START STOP” switch is turned to IGNITION ON mode (vehicles with a smart key system).

● If the window still cannot be closed even by carrying out the operation

explained above, initialize the function by performing the following procedure.

Hold the power back window switch in the one-touch closing position. Continue holding the switch for a further 6 seconds after the window has closed.

Hold the power back window switch in the one-touch opening position. Continue holding the switch for a further 2 seconds after the window has opened completely.

Hold the power back window switch in the one-touch closing position once again. Continue holding the switch for a further 2 seconds after the window has closed.

STEP

Page 81

104

1-4. Opening and closing the windows and moon roof

4RUNNER_U

■ Customization that can be configured at Toyota dealer

Settings (e.g. linked operation) can be changed. (Customizable features →P. 66 0 )

CAUTION

■ Caution while driving

Keep the back door and back window closed while driving. If the back door or the back window is left open, the back door may hit nearby objects while driving or luggage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard. Make sure to close the back door and back window before driving.

■ Closing the power back window

Observe the following precautions. Failure to do so may result in death or serious injury.

● Check to make sure that all passengers do not have any part of their body

in a position where it could be caught when a window is being operated.

● Do not allow children to operate the power back window.

Closing a power back window on someone can cause serious injury, and in some instances, even death.

■ Jam protection function

● Never use any part of your body to intentionally activate the jam protection

function.

● The jam protection function may not work if something gets caught just

before the window fully closes.

Page 82

105

1-4. Opening and closing the windows and moon roof

Before driving

4RUNNER_U

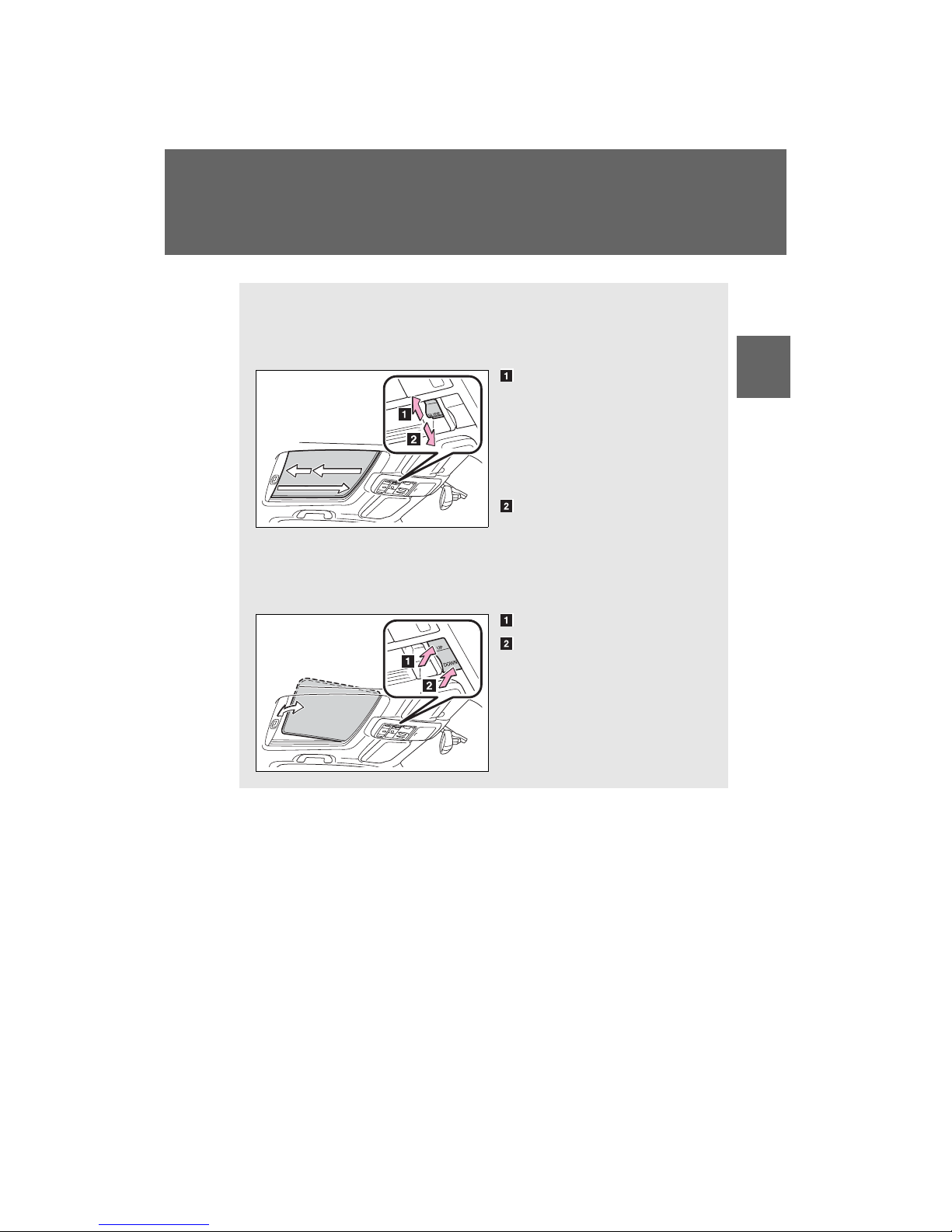

Moon roof

∗

∗: If equipped

Use the overhead switches to open and close the moon roof and tilt

it up and down.

■ Opening and closing

Opens

the moon roof

The moon roof stops slightly before the fully open position to reduce wind noise.

Press the switch again to fully open the moon roof.

Closes

the moon roof

:Lightly press the switch in

either direction to stop the moon roof partway.

■ Tilting up and down

Tilts the moon roof up

Tilts the moon roof down*

:Lightly press either of the

moon roof switches to stop the moon roof partway.

CTH14AS020

CTH14AS008

Page 83

106

1-4. Opening and closing the windows and moon roof

4RUNNER_U

■ The moon roof can be operated when

Vehicles wit hout a smart key system

The engine switch is in the “ON” position.

Vehicles wit h a smart key sy stem

The “ENGINE START STOP” switch is in IGNITION ON mode.

■ Operating the moon roof after turning the engine off

Vehicles wit hout a smart key system

The moon roof can be operated for approximately 45 seconds even after the engine switch is turned to the “ACC” or “LOCK” position. It cannot, however, be operated once either front door is opened.

Vehicles wit h a smart key sy stem

The moon roof can be operated for approximately 45 seconds even after the “ENGINE START STOP” switch is turned to ACCESSORY mode or turned off. It cannot, however, be operated once either front door is opened.

■ Jam protection function

If an object is detected between the moon roof and the frame while the moon roof is closing or tilting down, travel is stopped and the moon roof opens slightly.

■ To r educe moon r oof w ind nois e

When the moon roof is opened automatically, it will stop slightly before the fully open position. Driving with the moon roof in this position can help reduce wind noise.

■ Sunshade

The sunshade can be opened and closed manually. However, the sunshade will open automatically when the moon roof is opened.

Page 84

107

1-4. Opening and closing the windows and moon roof

Before driving

4RUNNER_U

■ When the moon roof does not close normally

Perform the following procedure:

● If the moon roof closes but then re-opens slightly

Stop the vehicle.

Press and hold the “SLIDE (open/close)” switch in the close position.*

The moon roof will close, reopen and pause for approximately 10 seconds.*

Then it will close again, tilt up and pause for approxi-

mately 1 second. Finally, it will tilt down, open and close.

Check to make sure that the moon roof is completely closed and then release the switch.

● If the moon roof tilts down but then tilts back up

Stop the vehicle.

Press and hold the “UP” switch*

until the moon roof moves into the

tilt up position and stops.

Release the “UP” switch once and then press and hold the “UP” switch again.*

The moon roof will pause for approximately 10 seconds in the tilt up position.*

Then it will adjust slightly and pause for approximately 1

second. Finally, it will tilt down, open and close.

Check to make sure that the moon roof is completely closed and then release the switch.

:If the switch is released at the incorrect time, the procedure will have to

be performed again from the beginning.

:If the switch is released after the above mentioned 10 second pause,

automatic operation will be disabled. In that case, press and hold the “UP” or “DOWN” switch, and the moon roof will tilt up and pause for approximately 1 second. Then it will tilt down, open and close. Check to make sure that the moon roof is completely closed and then release the switch.

If the moon roof does not fully close even after performing the above procedure correctly, have the vehicle inspected by your Toyota dealer.

STEP

Page 85

108

1-4. Opening and closing the windows and moon roof

4RUNNER_U

■ Moon roof open reminder function

Vehicles wit hout a smart key system

An alarm will sound when the driver’s door is opened with the moon roof not fully closed and the engine switch off.

Vehicles wit h a smart key sy stem

An alarm will sound when the driver’s door is opened with the moon roof not fully closed and the “ENGINE START STOP” switch off.

■ Customization that can be configured at Toyota dealer

Settings (e.g. linked door lock operation) can be changed. (Customizable features →P. 66 0 )

CAUTION

■ Opening the moon roof

Observe the following precautions. Failure to do so may cause death or serious injury.

● Do not allow any passengers to put their hands or heads outside the vehi-

cle while it is moving.

● Do not sit on top of the moon roof.

■ Closing the moon roof

Observe the following precautions. Failure to do so may result in death or serious injury.

● Check to make sure that all passengers do not have any part of their body

in a position where it could be caught when the moon roof is being operated.

● Do not allow children to operate the moon roof.

Closing the moon roof on someone can cause death or serious injury.

■ Jam protection function

● Never use any part of your body to intentionally activate the jam protection

function.

● The jam protection function may not work if something gets caught just

before the moon roof fully closes.

Page 86

109

Before driving

4RUNNER_U

1-5. Refueling

Opening the fuel tank cap

Perform the following steps to open the fuel tank cap:

■ Before refueling the vehicle

Vehicle s without a smart key syste m

Turn the engine switch off and ensure that all the doors and windows are closed.

Vehicle s with a smart key system

Turn the “ENGINE START STOP” switch off and ensure that all the doors and windows are closed.

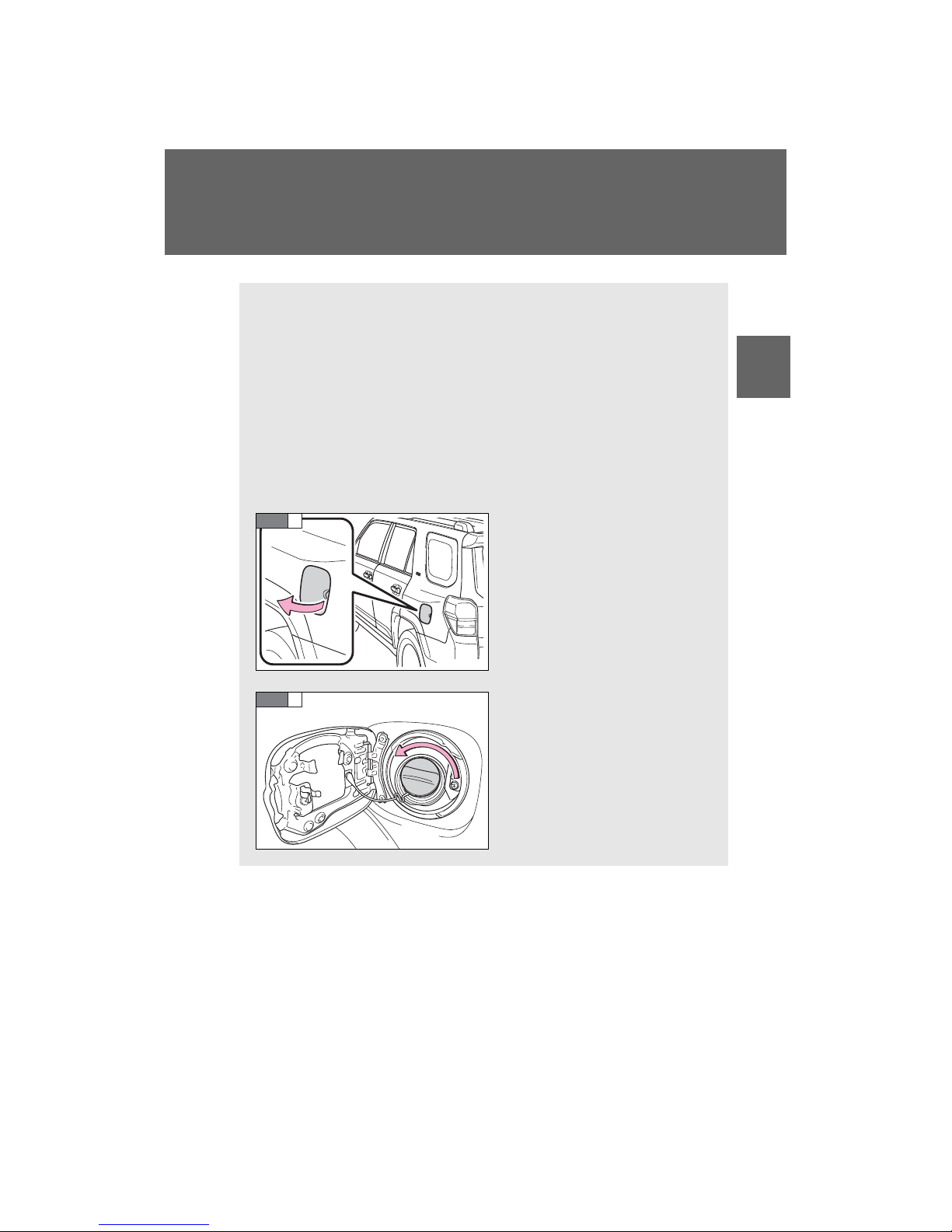

■ Opening the fuel tank cap

Open the fuel filler door.

Turn the fuel tank cap slowly to open.

CTH15AS001

STEP

CTH15AS002

STEP

Page 87

110

1-5. Refueling

4RUNNER_U

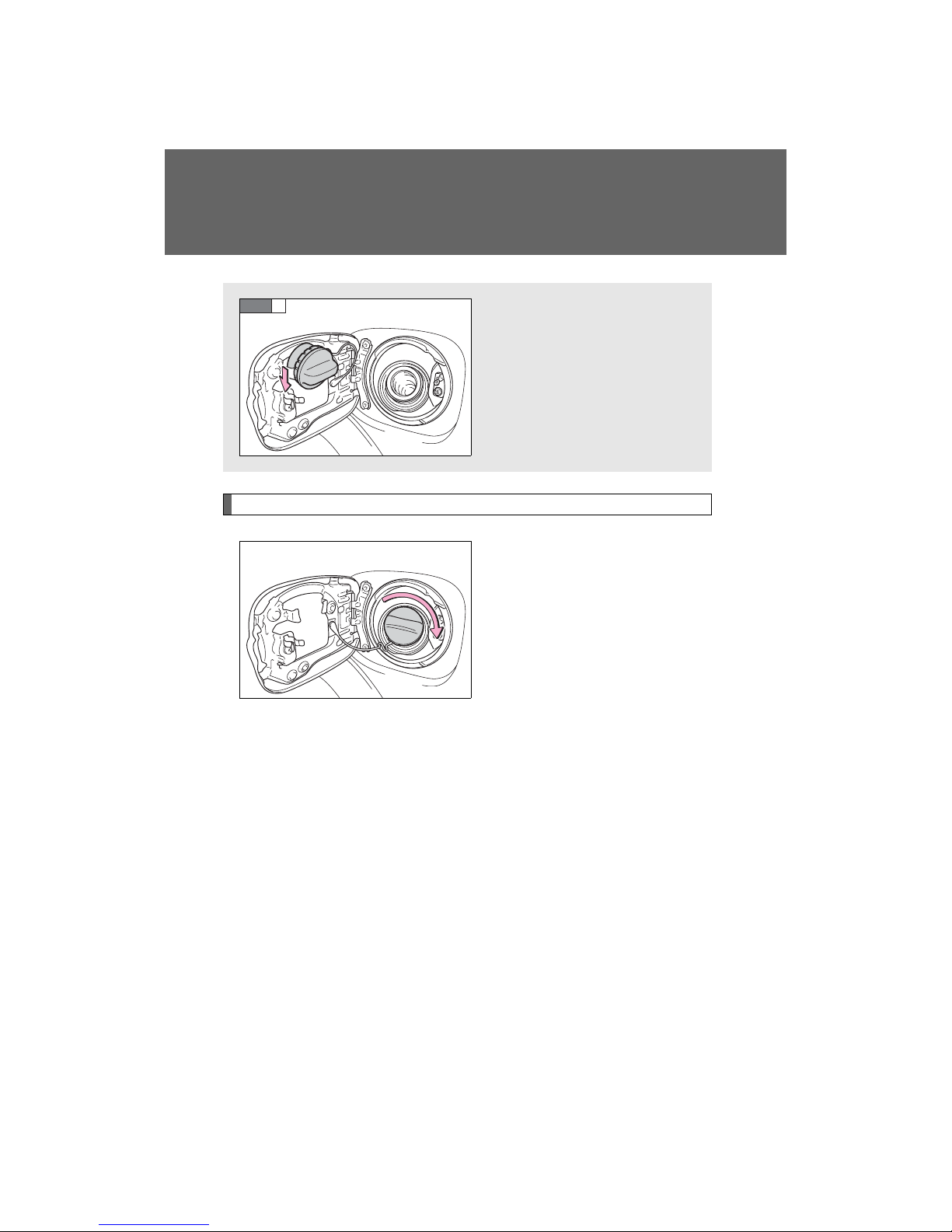

Closing the fuel tank cap

After refueling, turn the fuel tank cap until you hear a click. Once the cap is released, it will turn slightly in the opposite direction.

Hang the fuel tank cap on the back of the fuel filler door.

CTH15AS003

STEP

CTH15AS004

Page 88

111

1-5. Refueling

Before driving

4RUNNER_U

CAUTION

■ When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury.

● After exiting the vehicle and before opening the fuel door, touch an

unpainted metal surface to discharge any static electricity. It is important to discharge static electricity before refueling because sparks resulting from static electricity can cause fuel vapors to ignite while refueling.

● Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened. Wait until the sound cannot be heard before fully removing the cap. In hot weather, pressurized fuel may spray out the filler neck and cause injury.

● Do not allow anyone that has not discharged static electricity from their

body to come close to an open fuel tank.

● Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

● Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

● Do not return to the vehicle or touch any person or object that is statically

charged. This may cause static electricity to build up, resulting in a possible ignition hazard.

■ When refueling

Securely insert the fuel nozzle into the fuel filler neck. If fuel is added with the nozzle slightly lifted away from the fuel filler neck, the automatic shut off function may not operate, resulting in fuel overflowing from the tank.

■ When replacing the fuel cap

Do not use anything but a genuine Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.

Page 89

112

1-5. Refueling

4RUNNER_U

NOTICE

■ Refueling

Do not spill fuel during refueling. Doing so may damage the vehicle, such as causing the emission control system to operate abnormally or damaging fuel system components or the vehicle's painted surface.

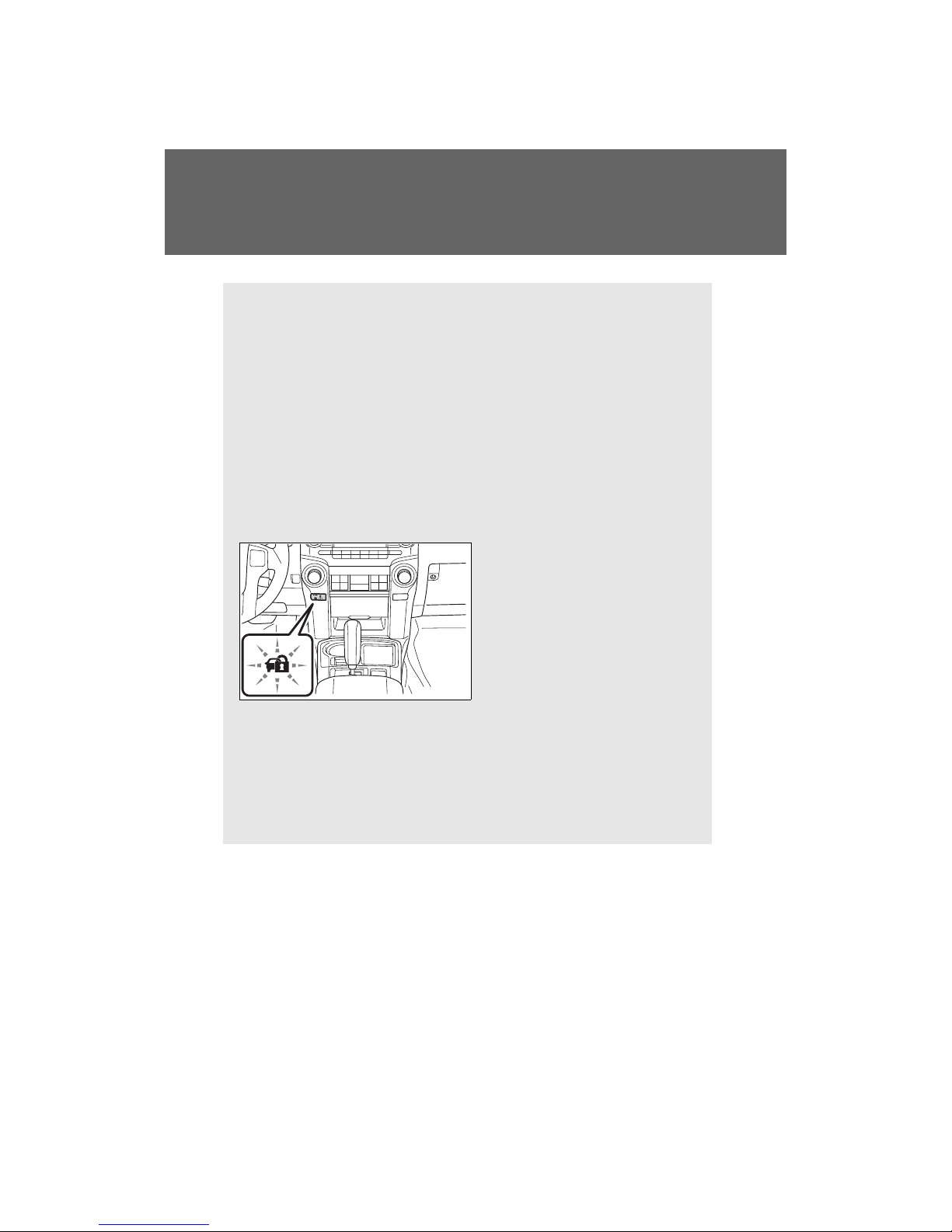

Page 90

113

Before driving

4RUNNER_U

1-6. Theft deterrent system

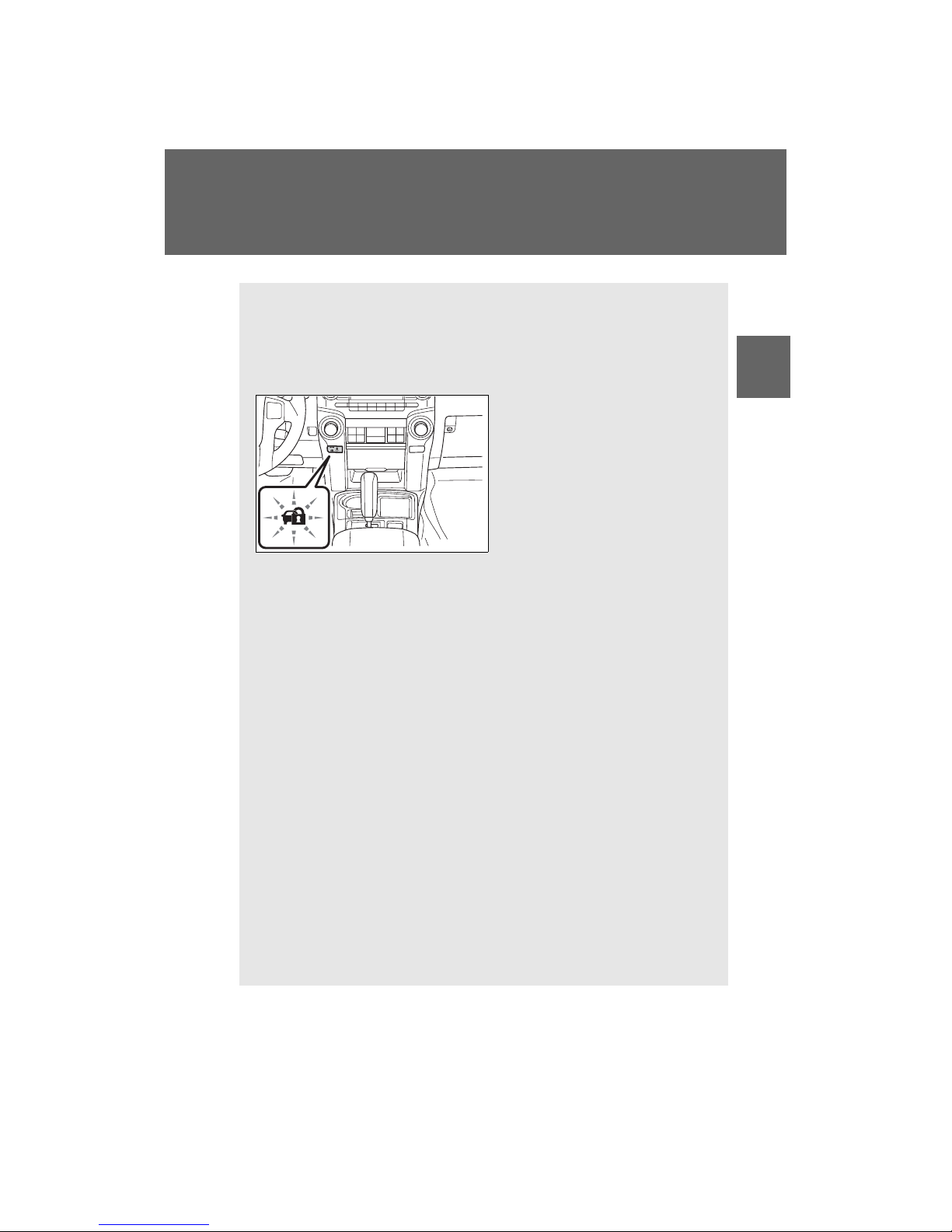

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent the

engine from starting if a key has not been previously registered in

the vehicle’s on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

Vehicles with out a smart key system

The indicator light flashes after the key has been removed from the engine switch to indicate that the system is operating.

The indicator light stops flashing after the registered key has been inserted into the engine switch to indicate that the system has been canceled.

Vehicle s with a smar t key system

The indicator light flashes after the “ENGINE START STOP” switch has been turned off to indicate that the system is operating.

The indicator light stops flashing after the “ENGINE START STOP” switch has been turned to ACCESSORY or IGNITION ON mode to indicate that the system has been canceled.

CTH16AS004

Page 91

114

1-6. Theft deterrent system

4RUNNER_U

■ System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■ Conditions that may cause the system to malfunction

● If the grip portion of the key is in contact with a metallic object

● If the key is in close proximity to or touching a key to the security system

(key with a built-in transponder chip) of another vehicle

■ Certifications for the engine immobilizer system (vehicles without a

smart key system)

● For vehicles sold in the U.S.A.

FCC ID: MOZRI-33BTY

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

● For vehicles sold in Canada

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Page 92

115

1-6. Theft deterrent system

Before driving

4RUNNER_U

CAUTION

■ Certifications for the immobilizer system

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTICE

■ To ensure the system operates correc tly

Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.

Page 93

116

1-6. Theft deterrent system

4RUNNER_U

Alarm

∗

∗: If equipped

The system sounds the alarm and flashes the lights when forced

entry is detected.

■ Triggering of t he al arm

The alarm is triggered in the following situations when the alarm is set:

● A locked door is unlocked or opened in any way other than using the entry function, wireless remote control or mechanical key. (The doors will lock again automatically.)

● The hood is opened.

■ Setting the alarm system

Close the doors and hood, and lock all the doors. The system will be set automatically after 30 seconds.

The indicator light changes from being on to flashing when the system is set.

■ Deactivating or stopping the alarm

Do one of the following to deactivate or stop the alarms:

● Unlock the doors.

● Start the engine. (The alarm will be deactivated or stopped

after a few seconds.)

CTH16AS004

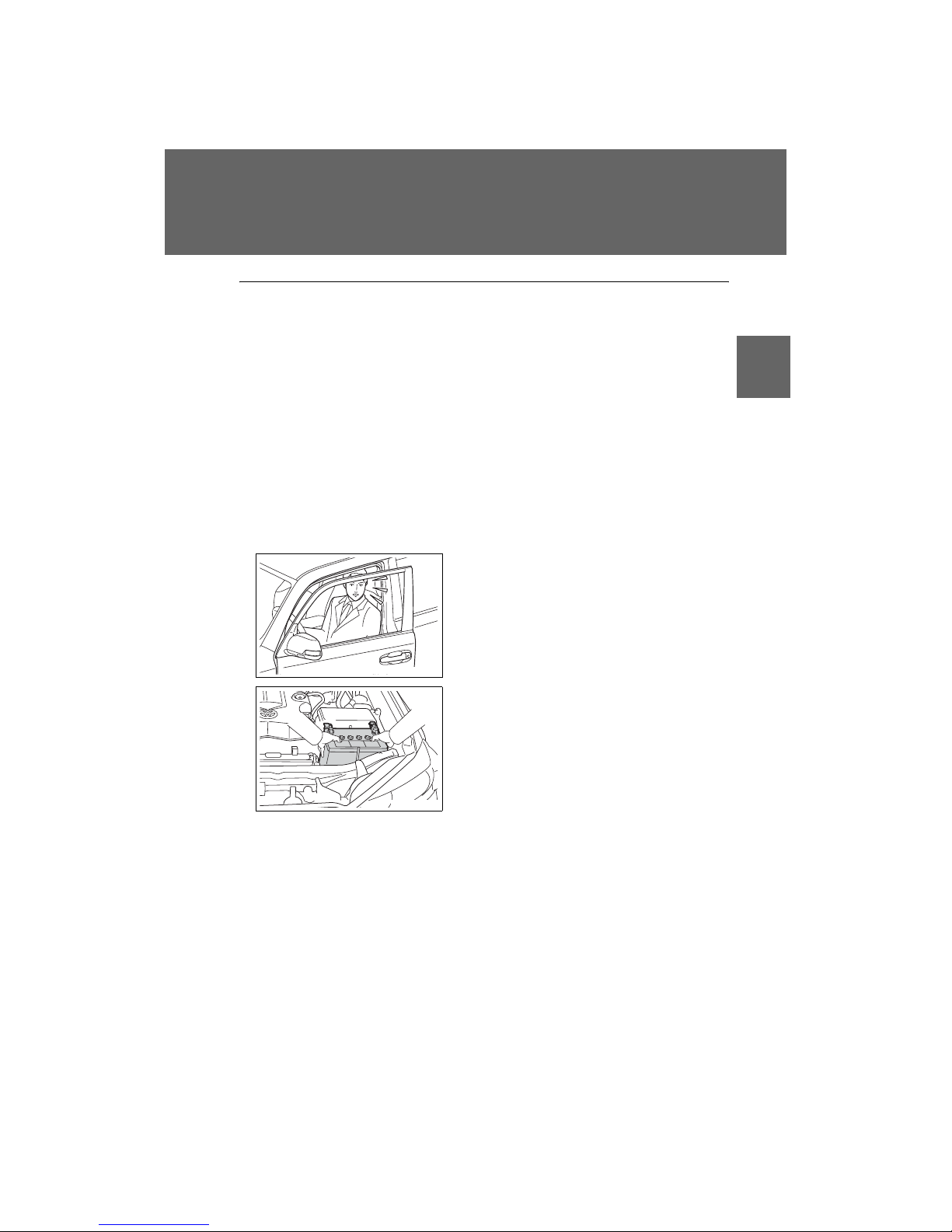

Page 94

117

1-6. Theft deterrent system

Before driving

4RUNNER_U

■ System maintenance

The vehicle has a maintenance-free type alarm system.

■ Items to check before locking the vehicle

To pr e ve n t u n ex p ec t ed t ri g ge r in g of th e al a rm a nd ve h ic l e t h ef t , m a ke s ur e of the following:

● Nobody is in the vehicle.

● The windows and moon roof are closed before the alarm is set.

● No valuables or other personal items are left in the vehicle.

■ Triggeri ng of the alarm

The alarm may be triggered in the following situations: (Stopping the alarm deactivates the alarm system.)

■ Alarm-operated door lock

● When the alarm is operating, the doors are locked automatically to pre-

vent intruders.

● Do not leave the key inside the vehicle when the alarm is operating, and

make sure the key is not inside the vehicle when recharging or replacing the battery.

● A person inside the vehicle opens a

door or the hood.

● The battery is recharged or replaced

when the vehicle is locked.

CTH16AS006

CTH16AS007

Page 95

118

1-6. Theft deterrent system

4RUNNER_U

NOTICE

■ To ensure the system operates correc tly

Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.

Page 96

119

Before driving

4RUNNER_U

1-7. Safety information

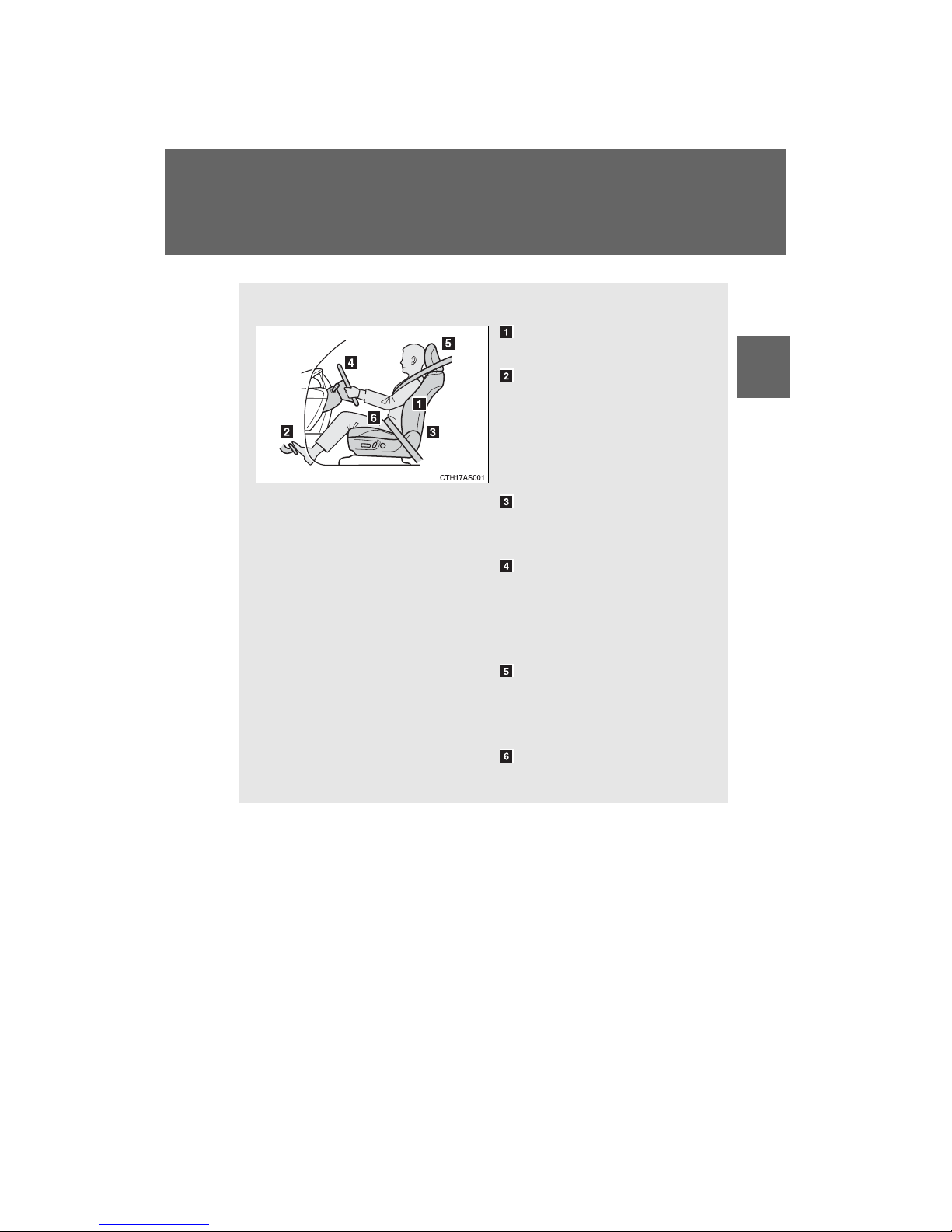

Correct driving posture

Drive with a good posture as follows:

Sit upright and well back in the seat. (→P. 6 8 )

Adjust the position of the seat forward or backward to ensure the pedals can be reached and easily depressed to the extent required. (→P. 6 8 )

Adjust the seatback so that the controls are easily operable.

Adjust the tilt and telescopic positions of the steering wheel downward so the airbag is facing your chest. (→P. 9 3)

Lock the head restraint in place with the center of the head restraint closest to the top of your ears. (→P. 8 3 )

Wear the seat belt correctly. (→P. 8 6)

Page 97

120

1-7. Safety information

4RUNNER_U

CAUTION

■ While driving

● Do not adjust the position of the driver’s seat.

Doing so could cause the driver to lose control of the vehicle.

● Do not place a cushion between the driver or passenger and the seatback.

A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint, increasing the risk of death or serious injury to the driver or passenger.

● Do not place anything under the front seats.

Objects placed under the front seats may become jammed in the seat tracks and stop the seat from locking in place. This may lead to an accident, resulting in death or serious injury. The adjustment mechanism may also be damaged.

■ Adjusting the seat position

● Ta ke c ar e w he n ad ju s ti n g th e s ea t p os i ti o n t o e ns u re t h at o t he r p a ss e n-

gers are not injured by the moving seat.

● Do not put your hands under the seat or near the moving parts to avoid

injury. Fingers or hands may become jammed in the seat mechanism.

Page 98

121

1-7. Safety information

Before driving

4RUNNER_U

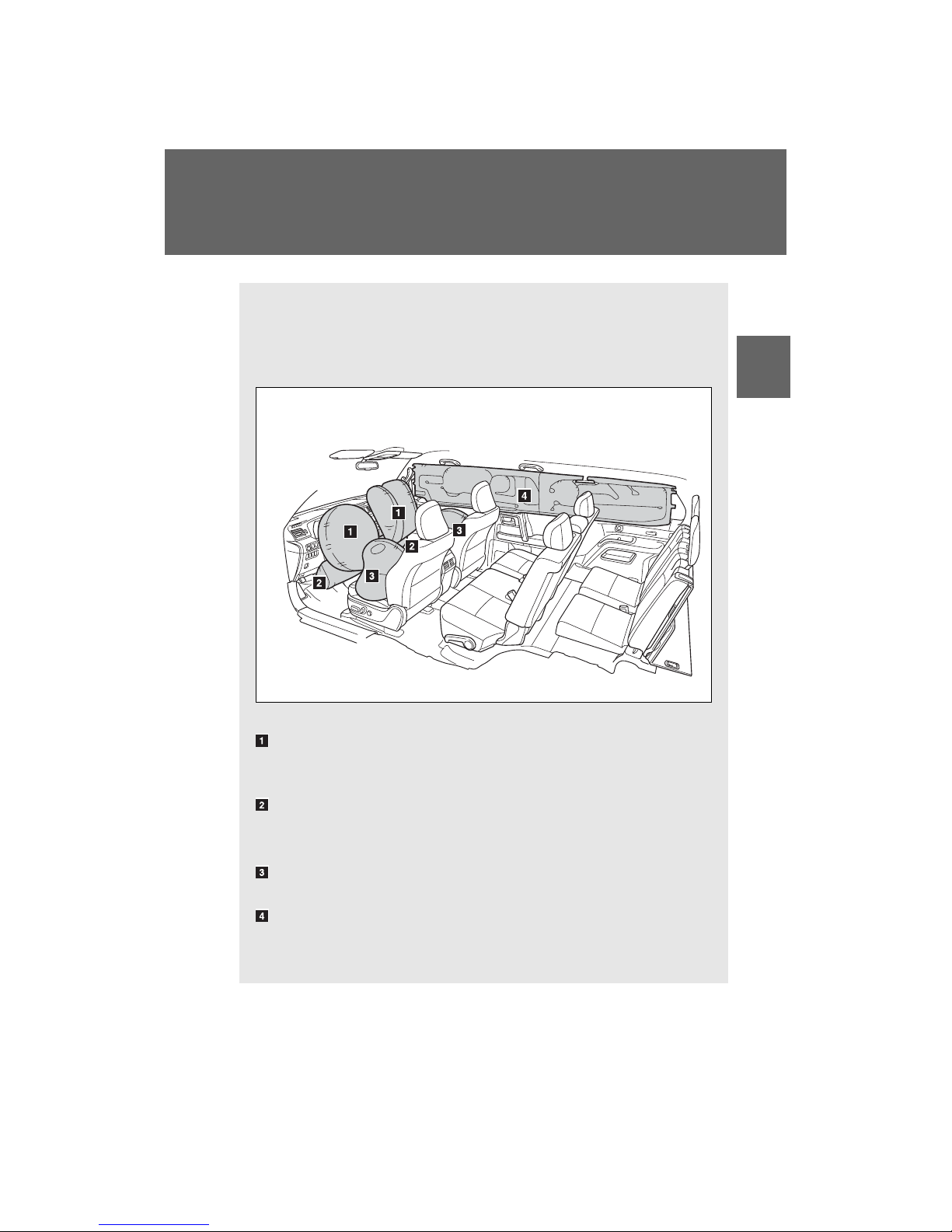

SRS airbags

The SRS airbags inflate when the vehicle is subjected to certain

types of severe impacts that may cause significant injury to the

occupants. They work together with the seat belts to help reduce the

risk of death or serious injury.

SRS front airbags

SRS driver airbag/front passenger airbag Can help protect the head and chest of the driver and front passenger from impact with interior components

SRS knee airbags Can help provide driver and front passenger protection

SRS side and curtain shield airbags

SRS side airbags Can help protect the torso of the front seat occupants

SRS curtain shield airbags Can help protect primarily the head of occupants in the outer seats

CTH17AS103

Page 99

122

1-7. Safety information

4RUNNER_U

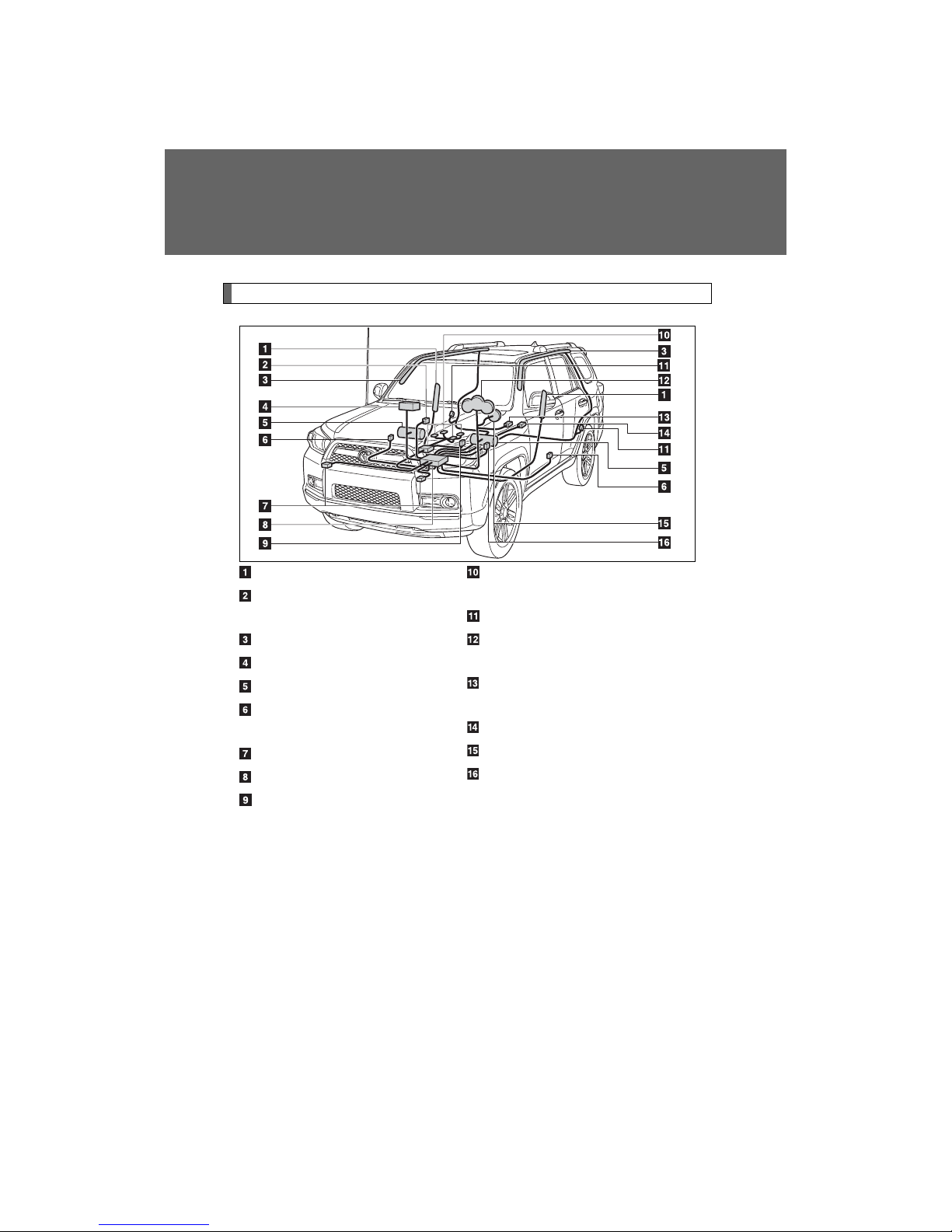

SRS airbag system components

Side airbags

“AIR BAG ON” and “AIR BAG OFF” indicator lights

Curtain shield airbags

Front passenger airbag

Knee airbags

Side and curtain shield airbag sensors

Front airbag sensors

Airbag sensor assembly

Front passenger’s seat belt buckle switch

Occupant detection system (ECU and sensors)

Curtain shield airbag sensors

SRS warning light and “RSCA OFF” indicator light

Roll sensing of curtain shield airbags off switch

Floor sensor

Driver airbag

Driver’s seat belt buckle switch

CTH17AS100

Page 100

123

1-7. Safety information

Before driving

4RUNNER_U

Your veh ic le i s e q ui pp ed w it h ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag system controls airbag deployment power for the driver and front passenger. The driver airbag system consists of the driver’s seat belt buckle switch etc. The front passenger’s airbag system consists of the front passenger occupant classification sensor etc.

The main SRS airbag system components are shown above. The SRS airbag system is controlled by the airbag sensor assembly. The airbag sensor assembly consists of a safing sensor and an airbag sensor.

In certain types of severe frontal or side impacts, the SRS airbag system triggers the airbag inflators. A chemical reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of the occupants.

■ If the SRS airbags deploy (inflate)

● Bruising and slight abrasions may result from contact with a deploying

(inflating) SRS airbag.

● A loud noise and white powder will be emitted.

● Parts of the airbag module (steering wheel hub, airbag cover and inflator)

as well as the front seats, parts of the front and rear pillars, and roof side rails, may be hot for several minutes. The airbag itself may also be hot.

● The windshield may crack.

● For Safety Connect subscribers, if the SRS airbags deploy or in the event

of a severe rear-end collision, the system is designed to send an emergency call to the response center, notifying them of the vehicle’s location (without needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the level of emergency and assistance required. If the occupants are unable to communicate, the agent automatically treats the call as an emergency and helps to dispatch the necessary emergency services. (→P. 4 9 3)
