Page 1

QUICK REFERENCE

GUIDE

YARIS LB

2010

Page 2

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Engine maintenance 7 Fuel tank door release and cap 6 Hood release 7 Indicator symbols 4-5 Instrument cluster 4 Instrument panel 2-3

Keyless entry* 6

Air Conditioning/Heating 13 Audio 14 Automatic Transmission 8 Clock 14 Cruise control 13 Door-Back 15 Light control-Instrument panel 9 Lights & turn signals 9 Luggage storage box 15 Parking brake 8 Power outlet 15 Seat adjustments-Front 10 Seat adjustments-Rear 10 Seat-Folding rear seat 11 Seats-Head restraints 10 Tilt steering wheel 8 VSC OFF button 15 Windows-Power 12 Windshield wipers & washers 12

Child comfort guide 17 Door locks-Power 16 Seatbelts 16 Spare tire & tools 17 Tire Pressure Monitoring (warning) System 16

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

INDEX

* Visit your Toyota dealer for information on customizing this feature.

2010

Yaris Liftback

A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Yaris.

This Quick Reference Guide is not a full description of Yaris operations. Every Yaris owner should review the

Owner’s

Manual

that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the

Owner’s Manual. Each box contains safe

operating instructions to help you avoid injury or equipment malfunction.

All information in this

Quick Reference Guide is current at

the time of printing. Toyota reserves the right to make changes at any time without notice.

Page 3

2 3

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

OVERVIEW

Instrument panel light control Power rearview mirror control switches* Headlight, turn signal and front fog light* controls Wiper and washer controls Emergency flasher switch “AIR BAG ON” and “AIR BAG OFF” indicator Front passenger seatbelt reminder light Audio system*

Instrument panel

Air Conditioning controls Rear window/Outside rearview mirror defogger switch* 12V DC Power outlet Cruise control* Ignition switch Tilt steering lock release lever Hood release

* If equipped

Page 4

4 5

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

OVERVIEW

Driver seatbelt reminder

(alarm will sound if speed is over 12 mph)

Front passenger seatbelt reminder

(alarm will sound if speed is over 12 mph)

Brake system warning

1,2

If indicator does not turn off within a few seconds of starting engine, there may

be a malfunction. Have vehicle inspected by your Toyota dealer.

For details, refer to “If a warning light turns on or a warning buzzer sounds,” Section 5-2, 2010 Owner’s Manual.

For details, refer to “If your vehicle overheats,” Section 5-2, 2010 Owner’s Manual.

Indicator symbols

Service indicator and reminder Speedometer Automatic Transmission shift position indicator Odometer/Trip meter switch and trip meter reset button Odometer and two trip meters Fuel gauge Clock Clock reset button Tachometer

Instrument cluster

ithout tachometer

With tachometer

Charging system warning

1,2

Low engine oil pressure warning

Anti-lock Brake System warning

1,2

Malfunction/Check Engine indicator

Open door warning

Low windshield washer fluid level warning

Engine oil replacement reminder

1,2

AIR BAG ON indicator

AIR BAG OFF indicator

Headlight low beam indicator

Turn signal indicator

Low fuel level warning

Headlight high beam indicator

High engine coolant temperature warning

1,2

Airbag SRS warning

Electric power steering system warning

1,2

Low engine coolant temperature indicator

Front fog light indicator

Low Tire Pressure Warning

1,2

Cruise control SET indicator

Cruise control indicator

For details, refer to “Indicators and warning lights,” Section 2-2, 2010 Owner’s Manual.

Slip indicator

1,2

Vehicle Stability Control OFF indicator

Traction Control OFF indicator

Page 5

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

OVERVIEW

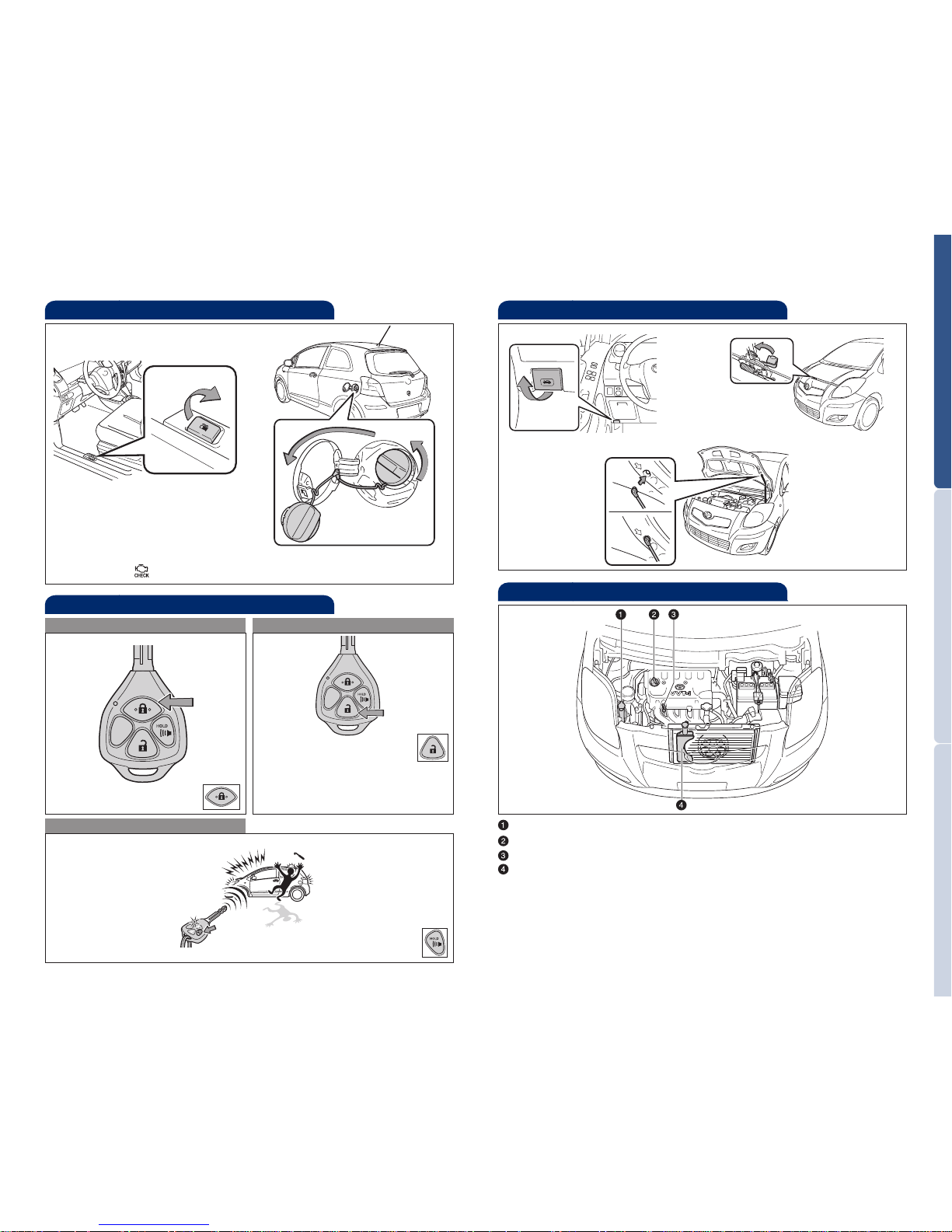

Fuel tank door release and cap

Pull up

Turn

Hang

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.

Keyless entry (if equipped)

Unlocking operation

Panic button

Push ONCE: Driver door

TWICE: All doors

Locking operation

Push and hold

NOTE: If a door is not opened

within 30 seconds of unlocking, all doors will relock for safety.

Hood release

Engine maintenance

Windshield washer and rear window washer fluid tank Engine oil filler cap Engine oil level dipstick Engine coolant reservoir

NOTE: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”

Pull

Pull up latch and raise hood

Engage support rod

Push

Page 6

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

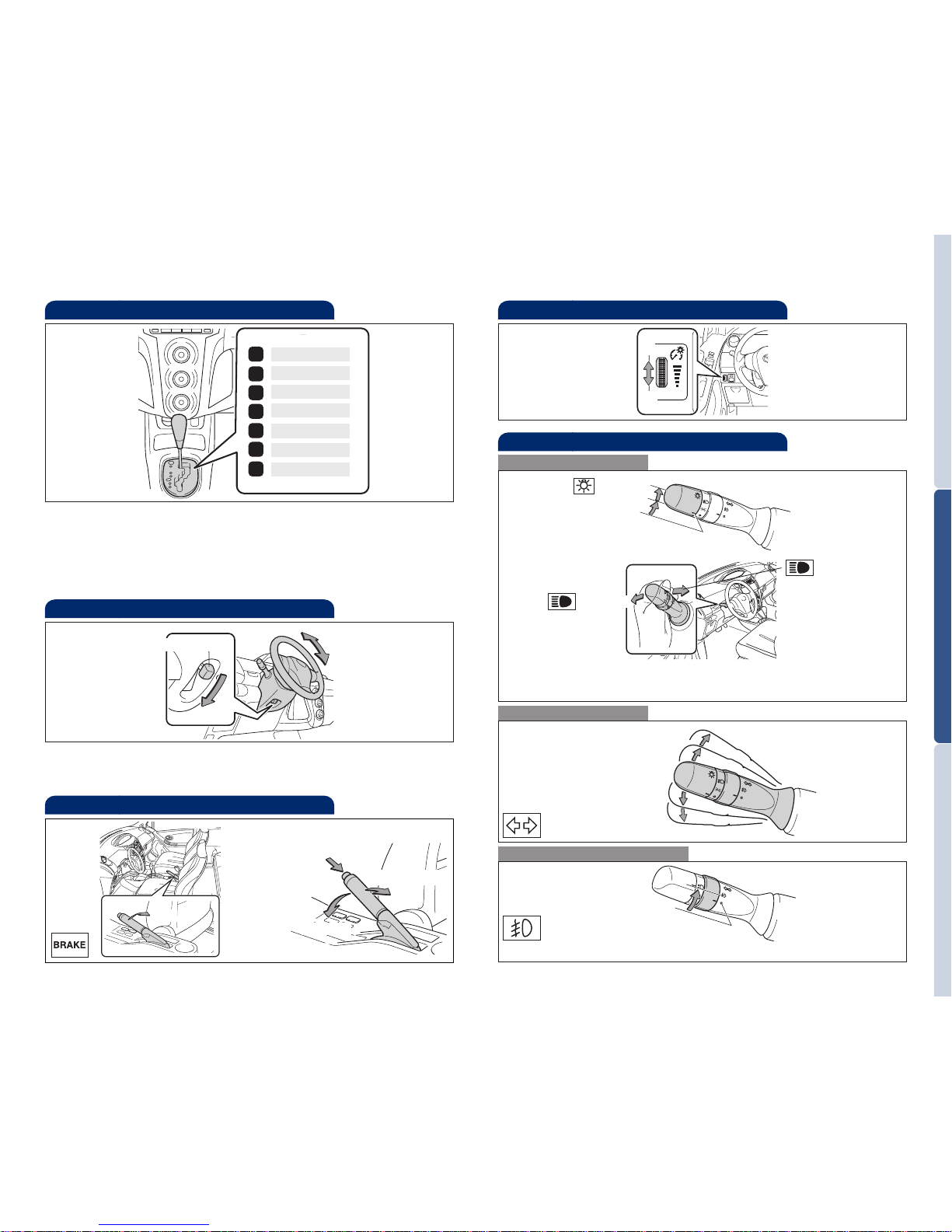

Automatic Transmission (if equipped)

* The ignition switch must be “ON” and the brake pedal depressed to shift

from Park.

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

RND

32L

Tilt steering wheel

Angle

Hold wheel, push lever down, set angle and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.

Lock release lever

Parking brake

Pull

(2) Push

Set

Release

(1) Pull slightly

(3) Lower

Light control-Instrument panel

Brightness control

Lights & turn signals

Headlights

High beam flasher

Low beam

Headlights

Parking lights

High beam

Daytime Running Light system (DRL)(if equipped) Automatically turns on the headlights at a reduced intensity.

Turn signals

Right turn

Lane change

Left turn

Front fog lights (if equipped)

Turn

Front fog lights turn on only when the headlights are on low beam.

Page 7

10 11

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

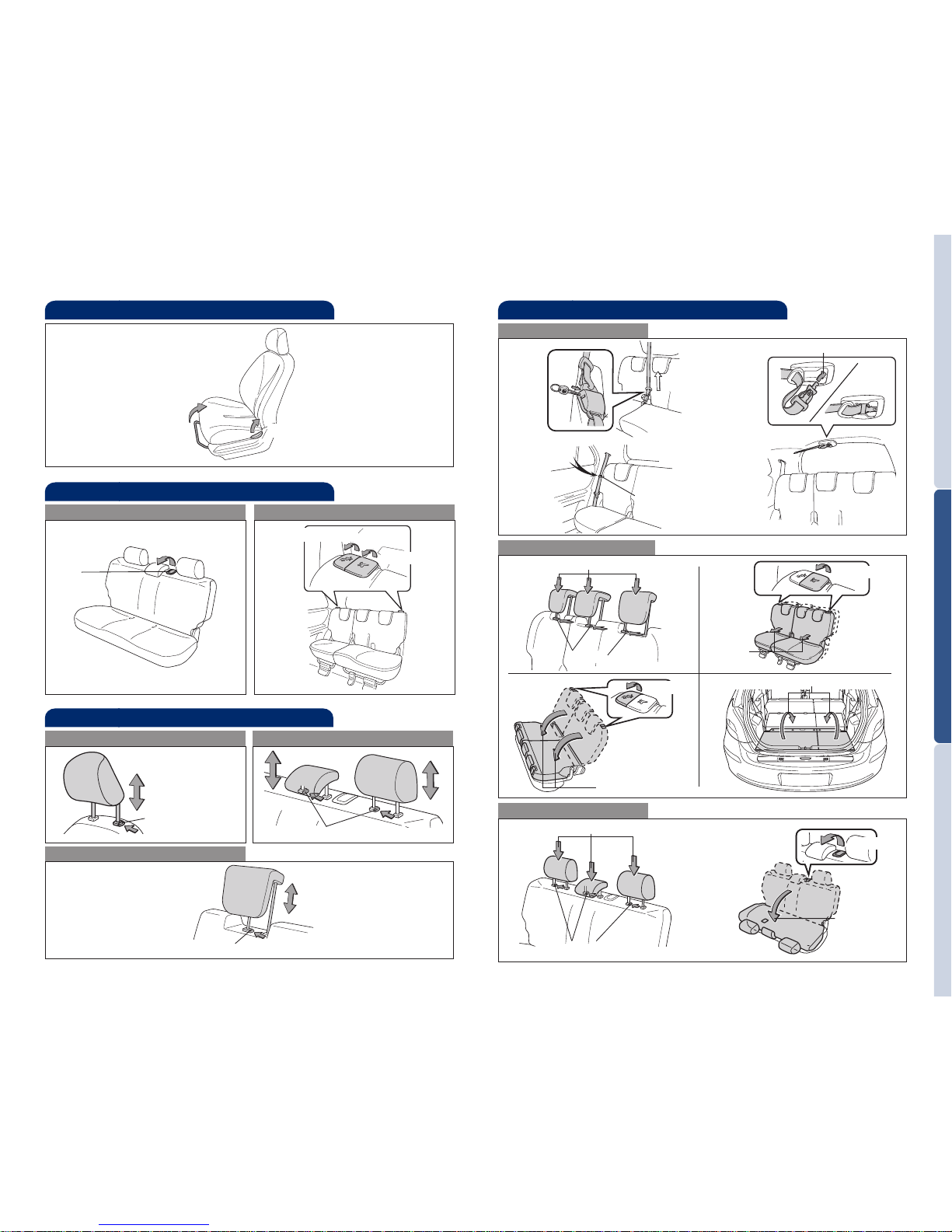

Seat-Folding rear seat

Before folding

(1) Push

(3) Hook

(2) Store

Fold (split seat)

(1) Push

(3) Pull up

(2) Lower

(4) Slide

(5) Pull up

(7) Flip over deck board

(6) Fold down

Fold (non-split seat)

(1) Push

(3) Pull up

(2) Lower

(4) Fold down

Seat adjustments-Front

Seat adjustments-Rear

Non-split seat

Seatback angle

Seat position (forward/backward)

Angle

Split seat

Position

Seatback angle/Fold

Lock release button

Height

Rear seat (split seat)

Front seats

Seats-Head restraints

Rear seats (non-split seat)

Lock release button

Page 8

12 13

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

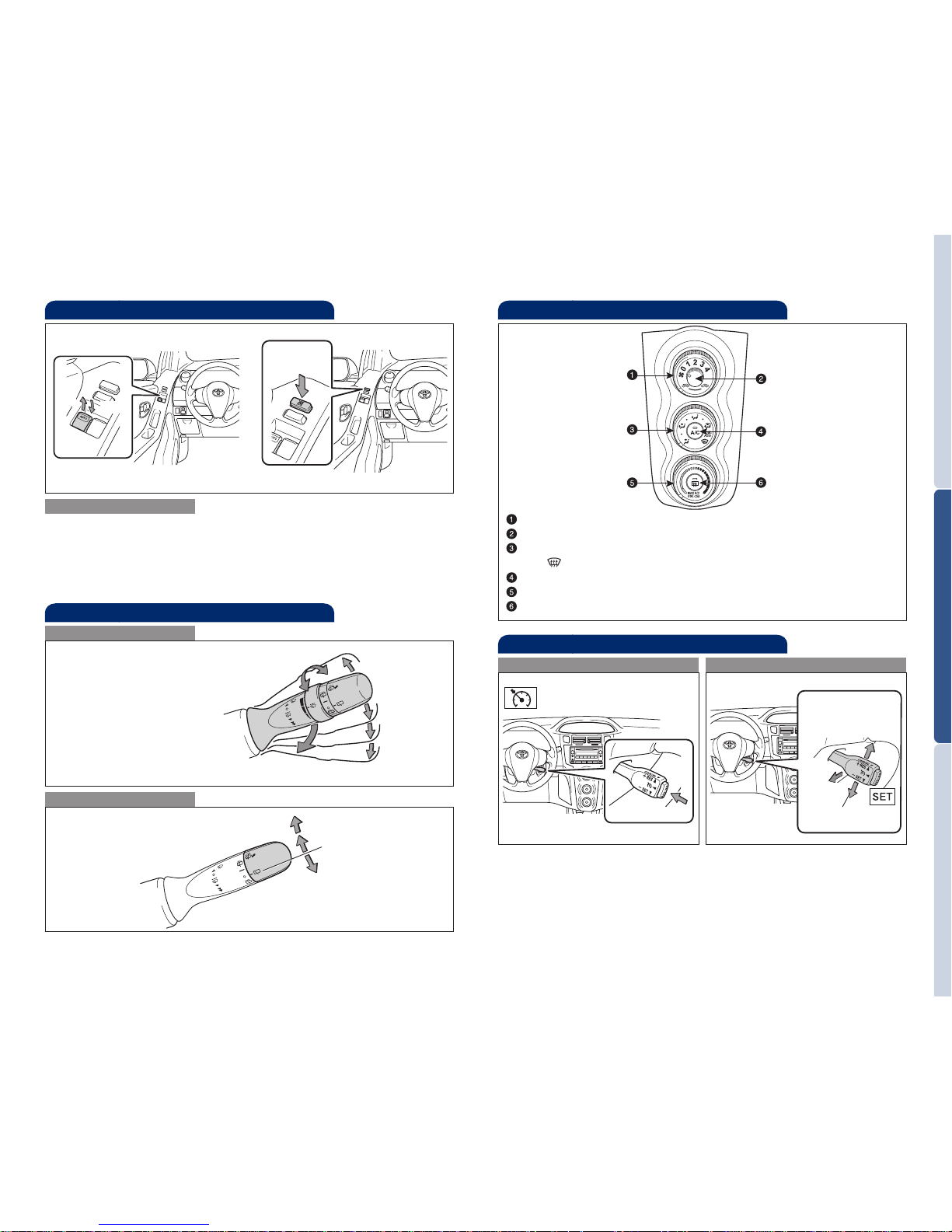

Windows-Power (if equipped)

Window operation

Automatic operation (driver’s window only) Push the switch completely

down and release to fully open. To stop window midway, lightly pull the switch up.

Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

Window lock switch

Driver side

Down

Windshield wipers & washers

Wipe

Wash and wipe

Wash

Rear (if equipped)

Front

Single wipe

Interval wipe

Slow

Fast

Pull to wash and wipe

Fresh or recirculated cabin air Fan speed Airflow vent In “ ” mode, use fresh air to reduce window fogging. Air Conditioning ON/OFF Temperature selector Rear window defogger

Air Conditioning/Heating

Adjust frequency*

* Intermittent windshield

wiper frequency adjustment (if equipped)

Rotate to increase/decrease wipe frequency.

Cruise control (if equipped)

The set speed may also be cancelled by depressing the brake pedal or

the clutch pedal (Manual Transmission).

Unless vehicle speed drops below 10 mph, the set speed may be resumed

once vehicle exceeds 25 mph.

Refer to the

Owner’s Manual for more details.

Turning system ON/OFF Functions

Resume2/ Increase speed

Set/Decrease speed

Cancel

System ON/OFF

Page 9

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

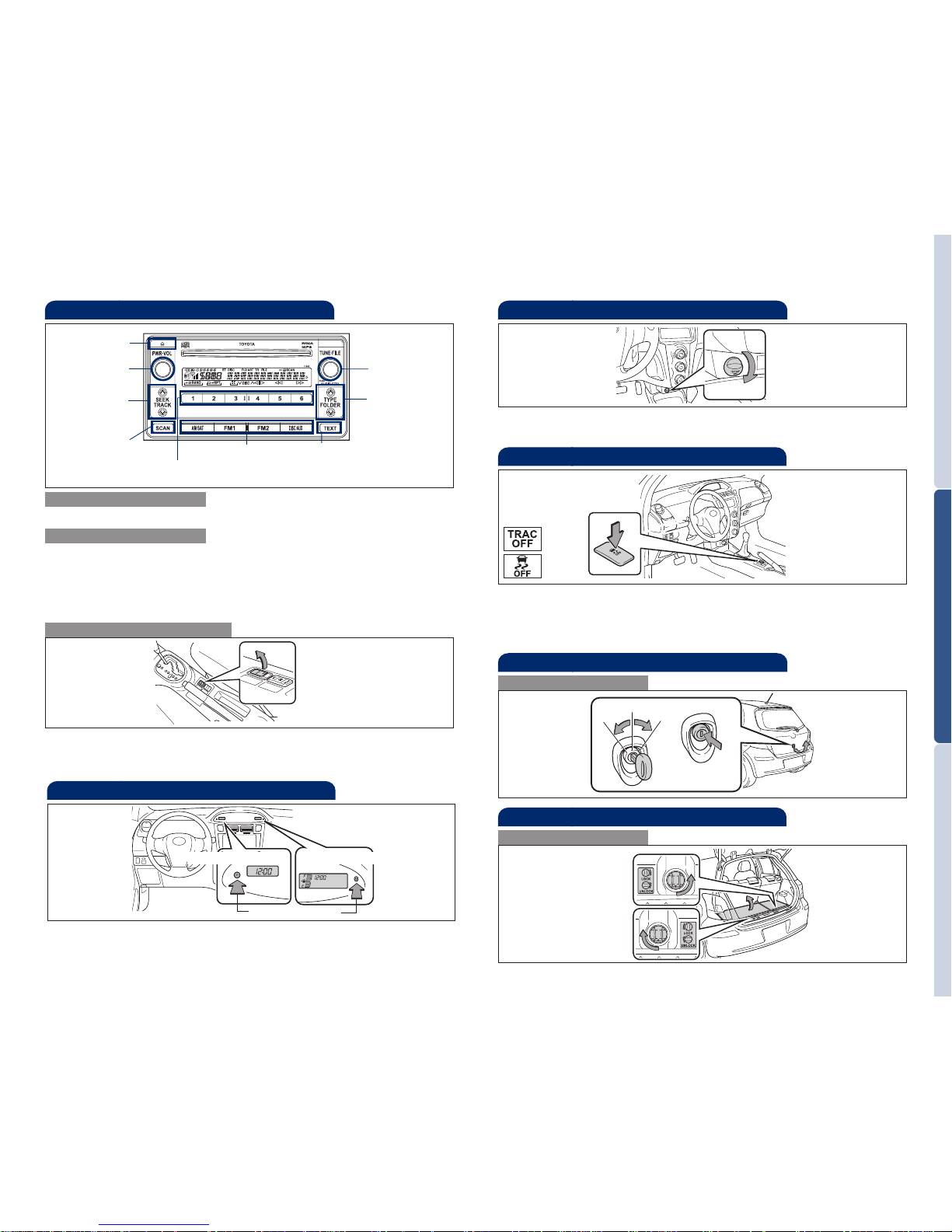

Audio (if equipped)

To scan tracks on a disc Push “SCAN.” Push again to hold selection.

RADIO

To preset stations Tune in the desired station and hold down a preset

button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection.

CD PLAYER

Preset buttons - functions in other modes indicated above number.

View CD text

Push to skip up /down folder

Eject CD

Push to turn ON/OFF

Push to adjust tone & balance

Mode

Seek station/ CD track select

Station/CD track scan

By inserting a mini plug of a commercially available component into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode.

AUX audio jack (if equipped)

Luggage storage box

Open

Right side: Turn to unlock

Left side: Turn to unlock

Power outlet

Designed for 12V car accessories. Key must be in the “ACC” or “ON” position to be used.

Door-Back

Open/Close

Unlock

Lock

Push to open

Clock

Press and hold clock reset button for adjustment mode. P

ress again to

adjust minutes and hours, waiting 5 seconds after each.

Refer to the

Owner’s Manual for adjustment instructions.

Clock reset button

Without tachometer

With tachometer

The VSC OFF button is used to switch between modes related to the TRAC and VSC.

Refer to Section 2-4 of the

Owner’s Manual for more information.

VSC OFF button

Page 10

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

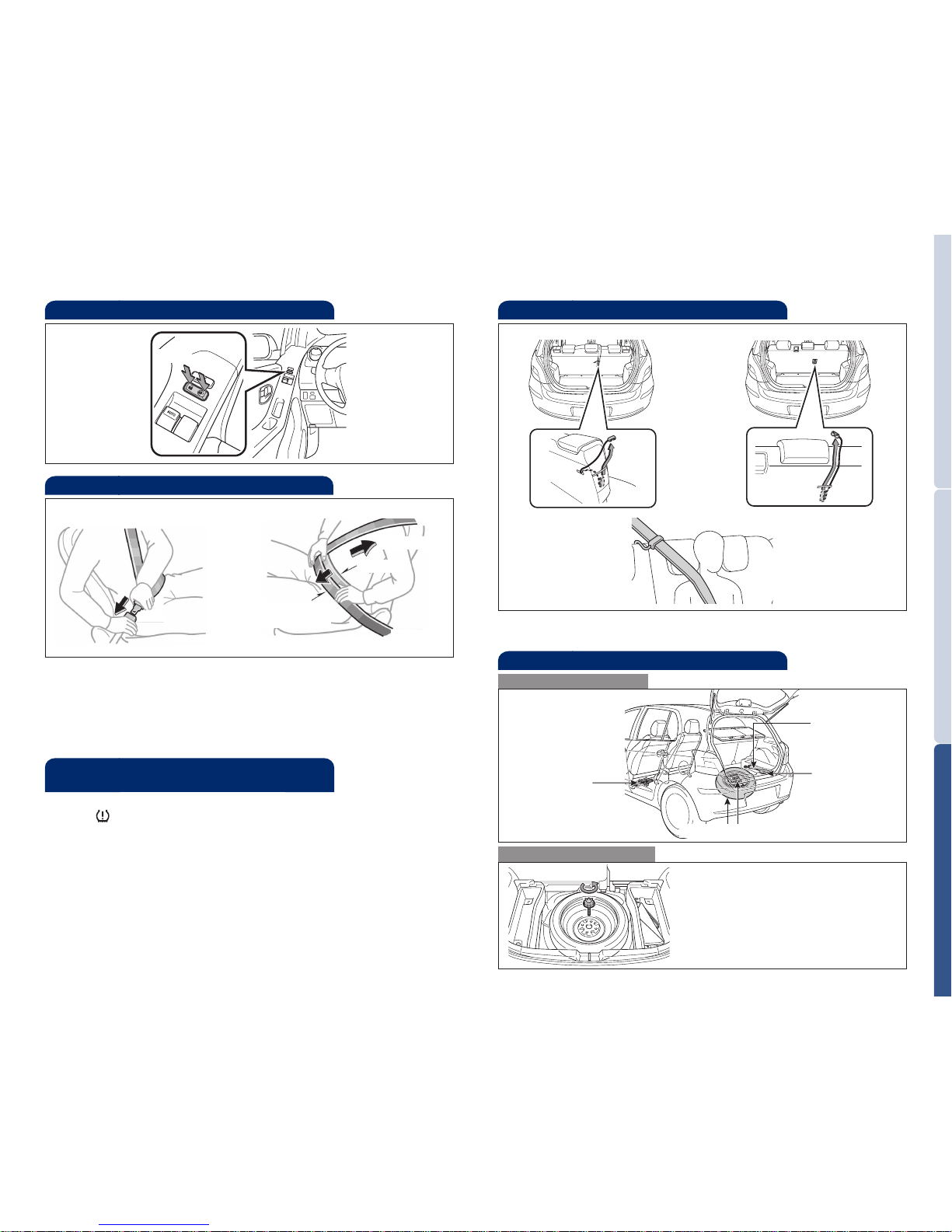

Keep as low on hips as possible

Take up slack

Too high

Seatbelts

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seatbelts, and how to install a child restraint system, refer to the

Owner’s Manual.

Door locks-Power (if equipped)

Unlock

Lock

If tire pressure becomes critically low on any of the tires (excluding the spare), “ ” indicator will illuminate. Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer.

Refer to the

Owner’s Manual for more details.

Tire Pressure Monitoring (warning) System

Spare tire & tools

Tool location

Removing the spare tire

Loosen and remove the bolt.

Refer to the

Owner’s Manual for tire changing and jack positioning procedures.

Tool bag

Tie-down belt

Jack handle

Spare tire

Jack

Child comfort guide

Rear seat center position guides provide added comfort for children who have outgrown child restraints.

Split seat Non-split seat

Page 11

CUSTOMER EXPERIENCE CENTER

1- 800 - 331-4 331

00505-QRG10-YARLB

Printed in U.S.A. 8/09

08-TCS-03083

10%

Cert no. SGS-COC-005612
