Seat belts-Shoulder belt anchor
Squeeze lock release to lower

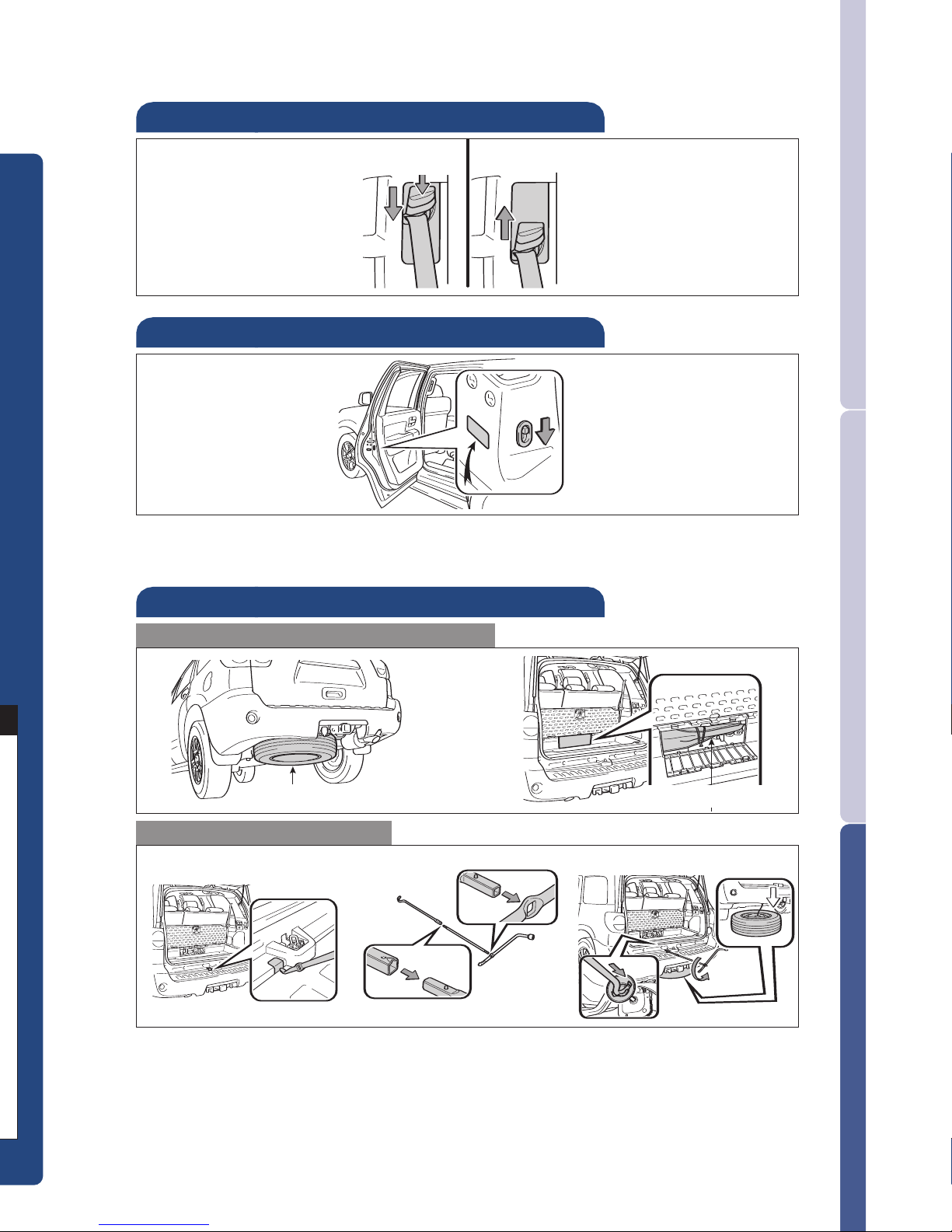

Spare tire & tools
Spare tire, jack and tool location
Removing the spare tire
(1) Remove the cover.
(2) Assemble the jack handle.
(3) Insert the jack handle extension into the lowering screw
spare tire completely to the ground.
R
efer to the
Owner
procedures.
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
(1)
Spare tire
2009
Sequoia
!
A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Sequoia.
This Quick Reference Guide is not a full description of
Sequoia operations. Every Sequoia owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the
Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this
Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
Page 3
1
OVERVIEW
FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance 10
Fuel tank door release and cap 9
Hood release 9
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Keyless entry
1
8
Light control-Instrument panel 10
Accessory meter 31
Air Conditioning/Heating 22-23
Audio 24-25
Auto lock functions
1
12
Automatic Transmission 11
Cruise control 20
Cup holders 31
Door locks 28
Door-Power back 19
Dynamic Laser Cruise Control 27
Four-wheel drive 12
Garage door opener (HomeLink®)
3
26
Lights1& turn signals 17
Moonroof 20
Multi-information display
2
28
Parking brake 15
Power outlets-12V DC 30
Power outlets-115V AC 30
Rear seat entertainment system 25
Seat adjustments-Front 13
Seat adjustments-Rear 14
Seat ventilators/Heaters 23
Seats-Folding second row seats 15
Seats-Folding third row seats 16
Seats-Head restraints 13
Steering wheel switches 26
Telephone controls (Bluetooth®) 29
Tilt and telescopic steering wheel 21
“TOW/HAUL” switch 11
VSC OFF button 21
Window-Back 19
Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33
Seat belts 32
Seat belts-Shoulder belt anchor 33
Spare tire & tools 33
T
ire P
ressure Monitoring (warning) System
32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1
Visit your Toyota dealer for information on customizing this feature.
2
Programmable by customer
. Refer to the Owner’s Manual for instructions and
more information.
3
HomeLink®is a registered trademark of Johnson Controls, Inc.
INDEX
Page 4
2 3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
OVERVIEW

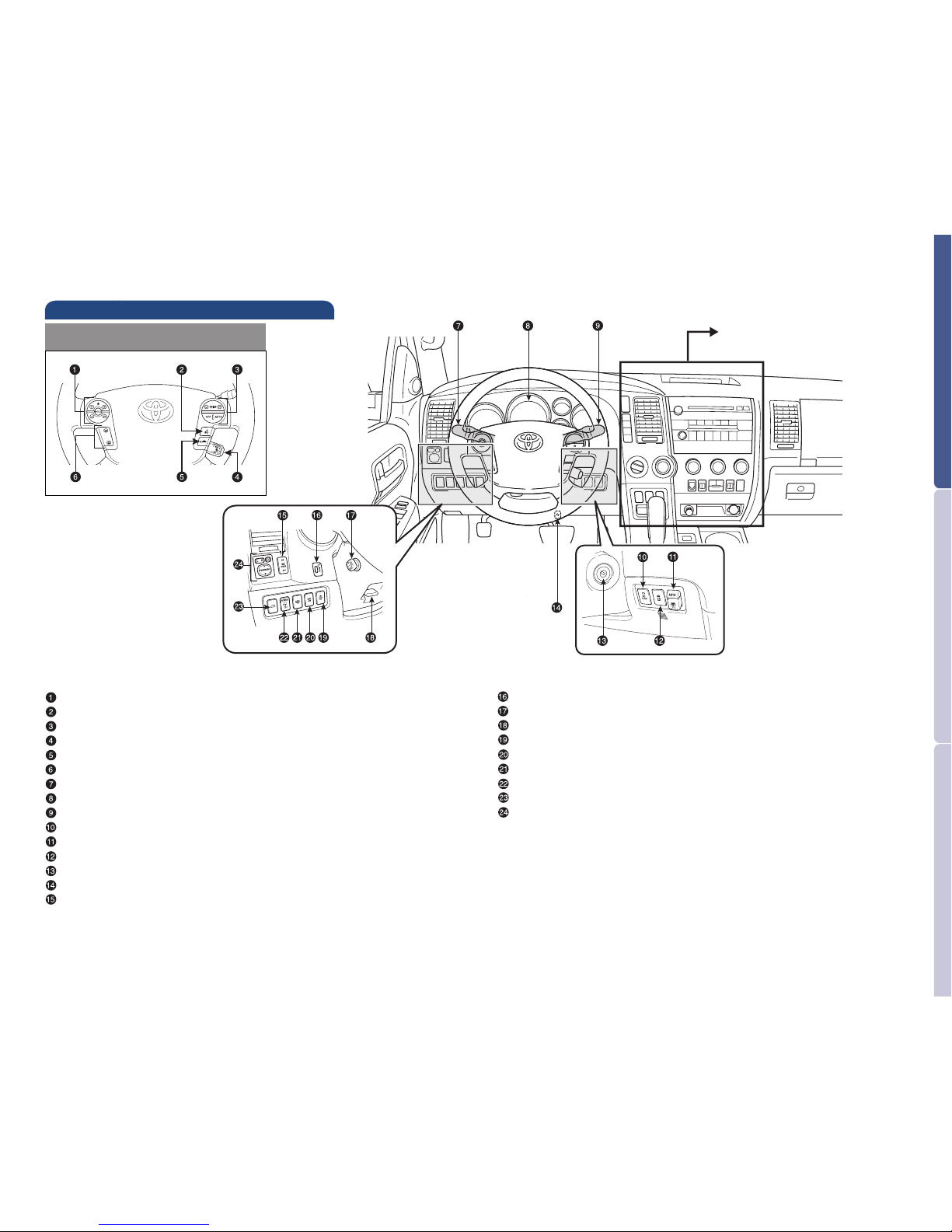

Instrument panel
Steering wheel audio controls
1
Voice command button
1
Steering wheel climate controls
1
Cruise control
Dynamic Laser Cruise Control distance switch
1
Telephone controls
1,2
Headlight, turn signal and front fog light1controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch
1
Power back window switch
VSC OFF switch
Engine (ignition) switch
Tire Pressure Warning System reset
Personal/Interior light main switch
Instrument panel light control
Tilt and telescopic steering control switch
1
Tilt and telescopic steering control lever
1
Power back door main switch
1
Roll Sensing of Curtain shield Airbag OFF switch
Headlight cleaner
1
REVERSE TILT (side mirrors) switch
1
Power back door button
1
Power rearview mirror controls
1
If equipped
2
Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual
.”
Steering wheel controls
(if equipped)
Details on the center panel
area on next page
Page 5
4

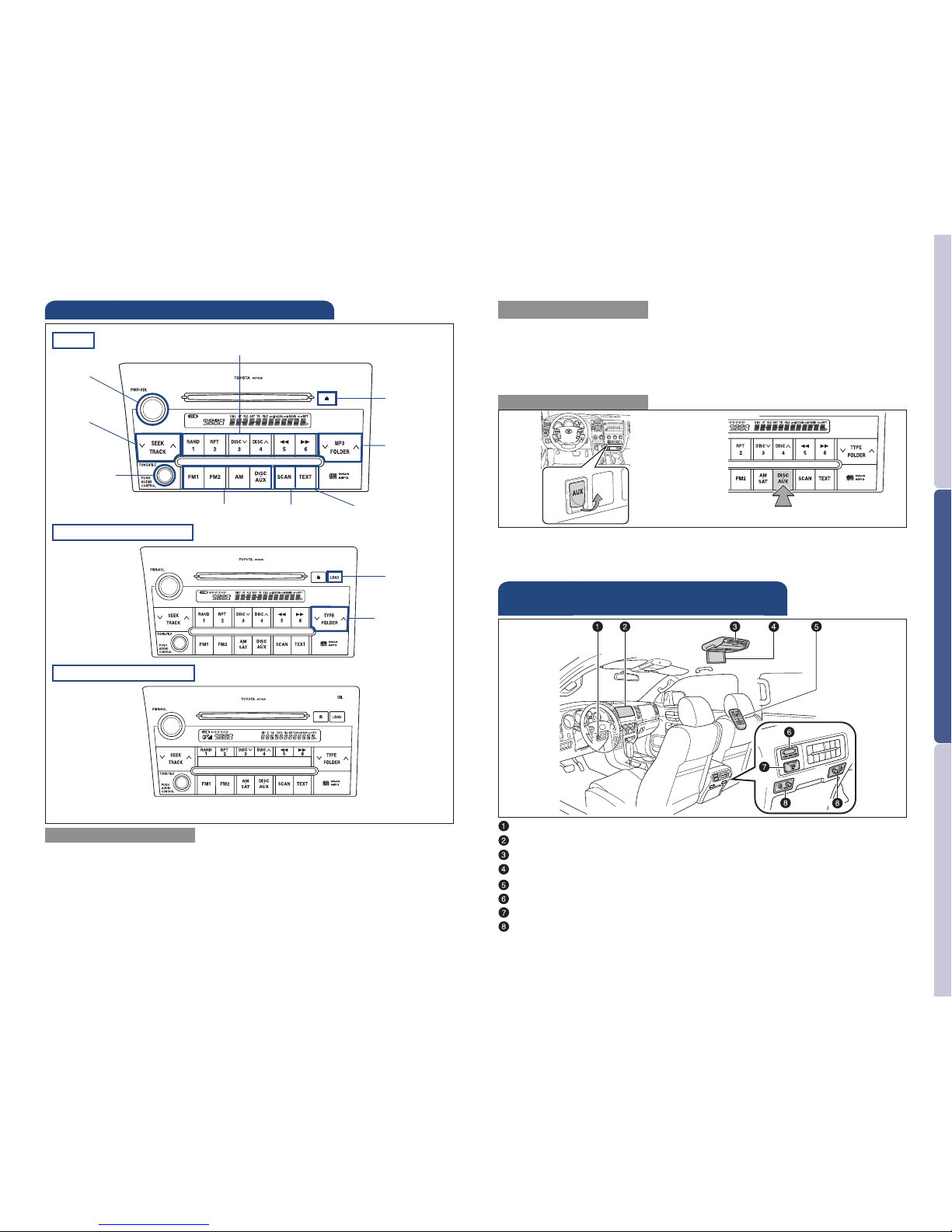

Accessory meter
Theft deterrent system/Engine immobilizer indicator
Audio system
2
Air Conditioning controls
Outside rearview mirrors
1
/Back window defogger/Windshield wiper
de-icer
1
button
12V DC Power outlet
Seat heater
1
and ventilator1controls
Cigarette lighter
AUX audio jack
Height control switch
1
AVS button
1
“TOW/HAUL” button
1
Center differential lock/unlock switch
1
Four-wheel drive control switch
1
Intuitive parking assist button
1
Multi-information display control button1and/or accessory meter
control button
1
Emergency flasher button
1
If equipped
2
Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual
.”
5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
OVERVIEW

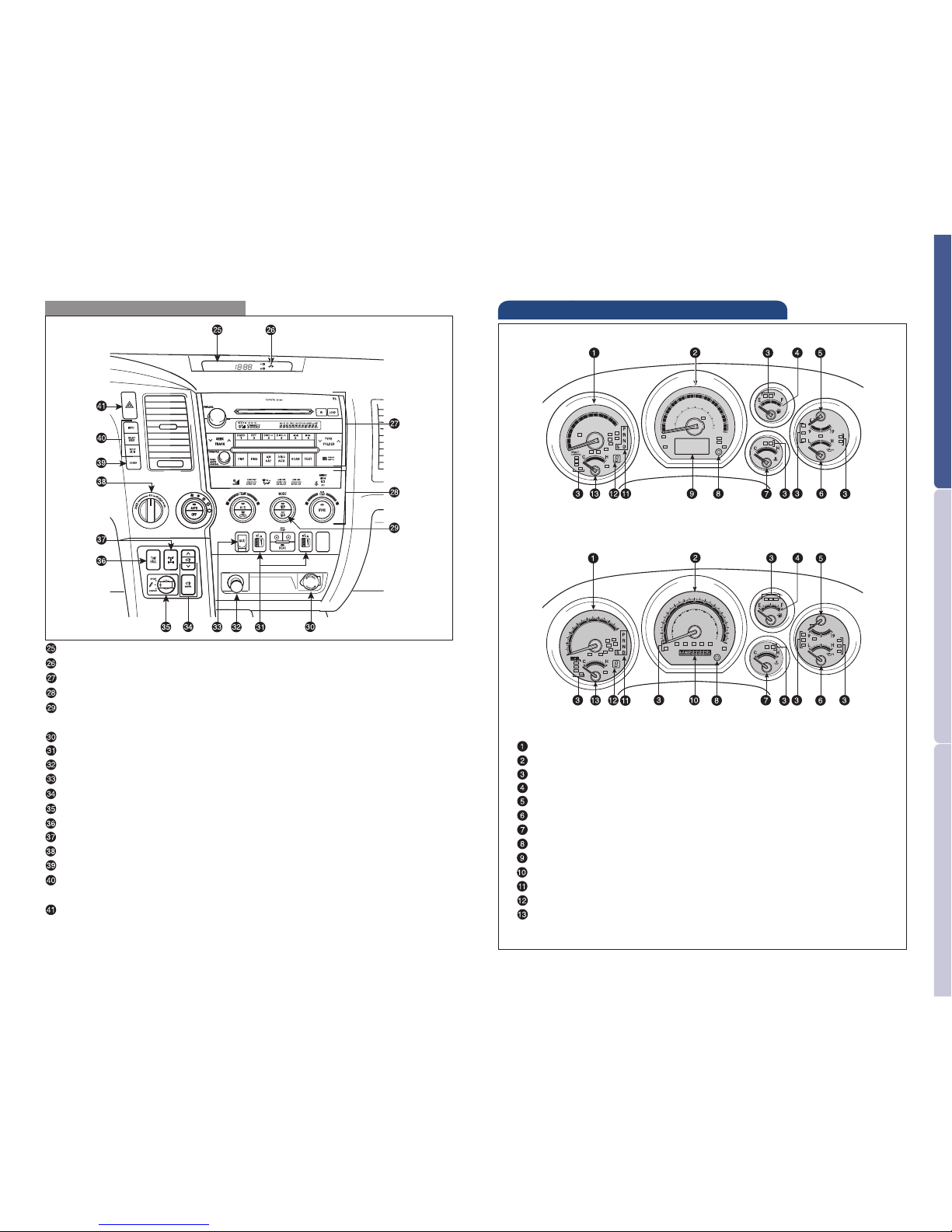

Instrument cluster
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Voltmeter
Engine oil pressure gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button
Multi-information display
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic T
ransmission fluid temperature gauge
With multi-information display
Without multi-information display
Center panel area
Page 6
6 7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

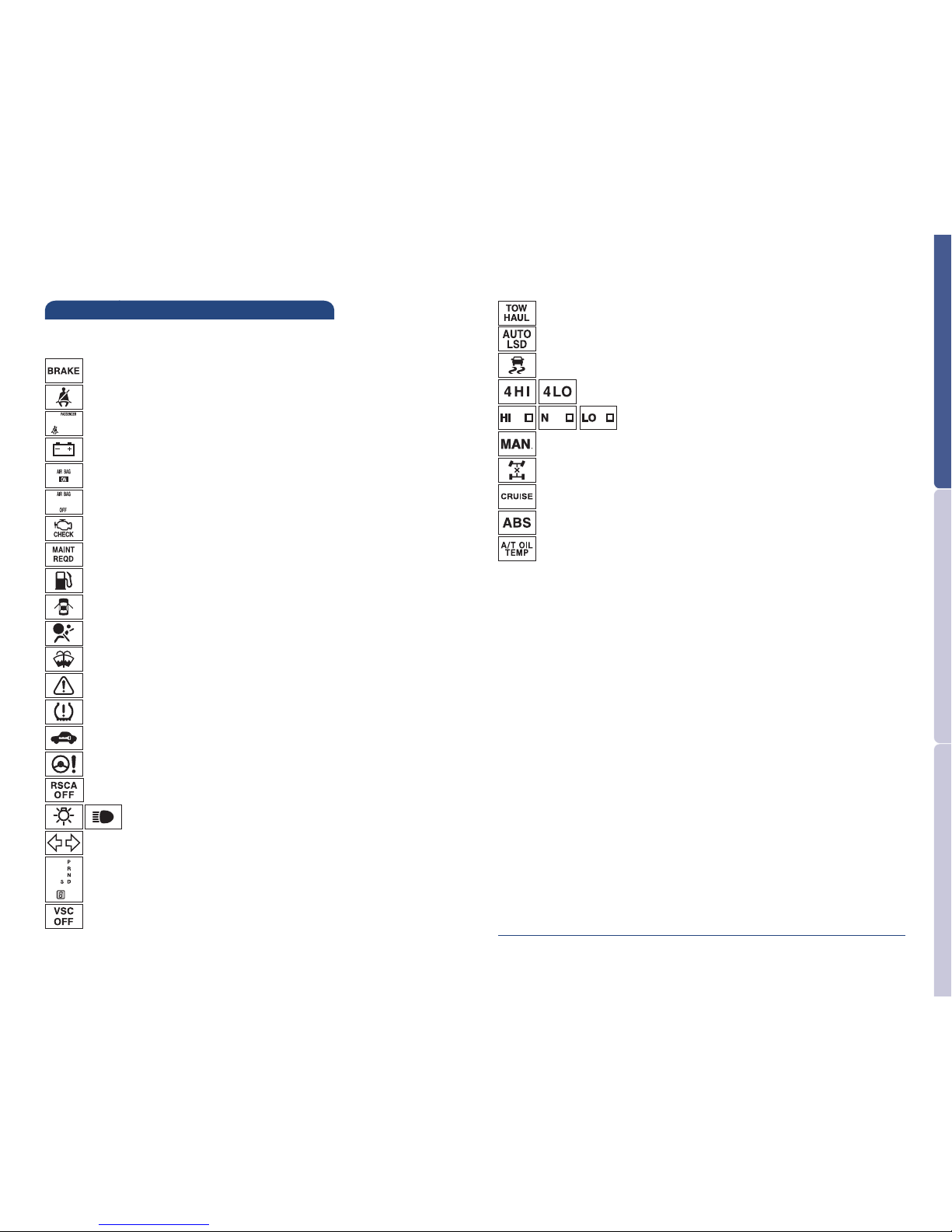

Indicator symbols
Charging system warning
1
Brake system warning
1
AIR BAG ON indicator
1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
AIR BAG OFF indicator
1
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.
Anti-lock Brake System warning
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator
Low Tire Pressure Warning
1
Power steering warning
1
Open door warning
Airbag SRS warning
1
Master warning
Theft deterrent/Engine immobilizer system indicator
Malfunction/Check Engine indicator
1
Engine oil replacement reminder
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator
Shift position and shift range indicators
AUTO Limited Slip Differential indicator
1
Vehicle Stability Control OFF indicator
1
TOW/HAUL mode indicator
Height control indicator
1
Height control/MANUAL indicator
1
Low windshield washer fluid level warning
OVERVIEW
1
If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your T
oyota dealer
.
Automatic Transmission fluid temperature warning
Page 7
8 9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
OVERVIEW

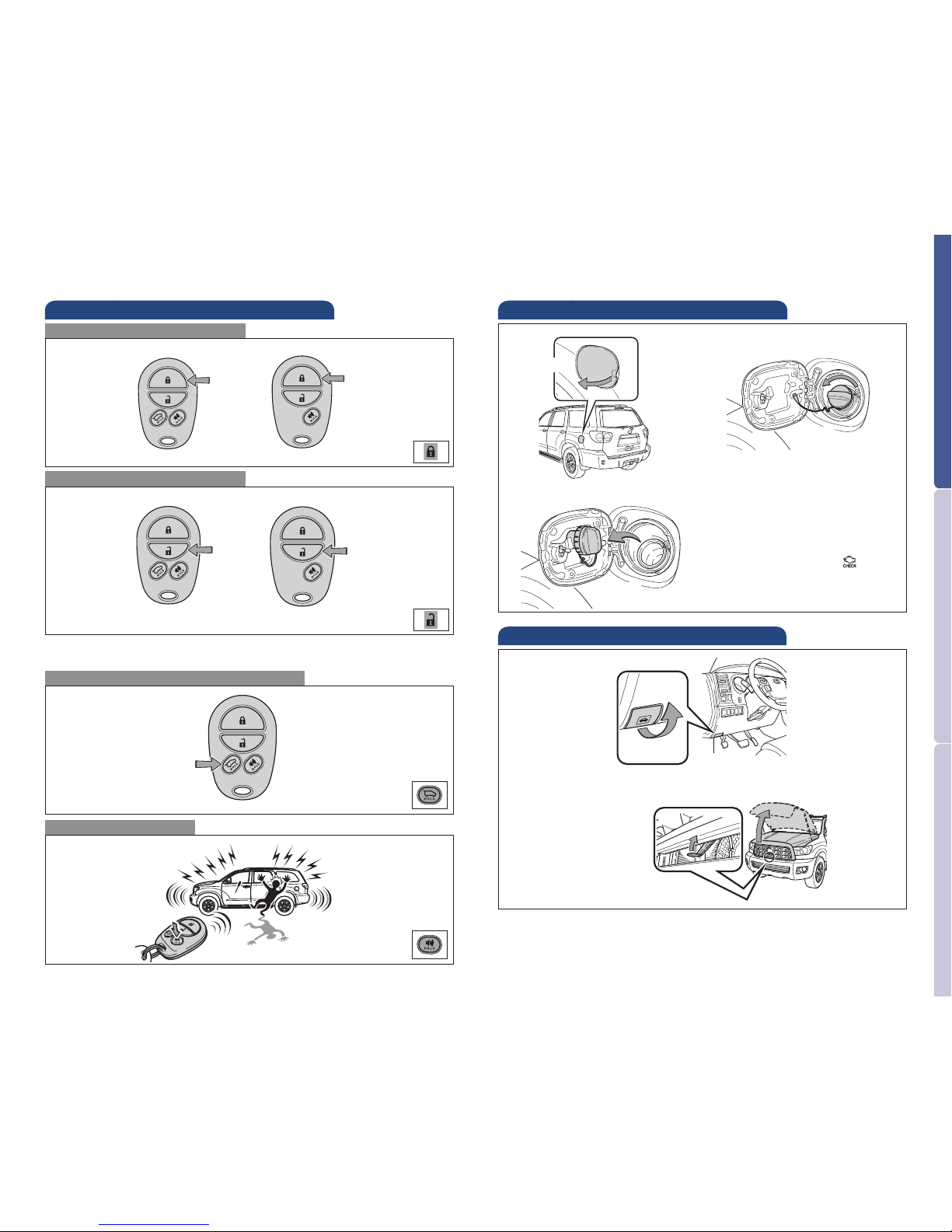

Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Power back door operation (if equipped)
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
With power back door
Without power back door
With power back door
Without power back door
Panic button
Push and hold
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Turn
Pull
Store
Pull
Page 8
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
10
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”

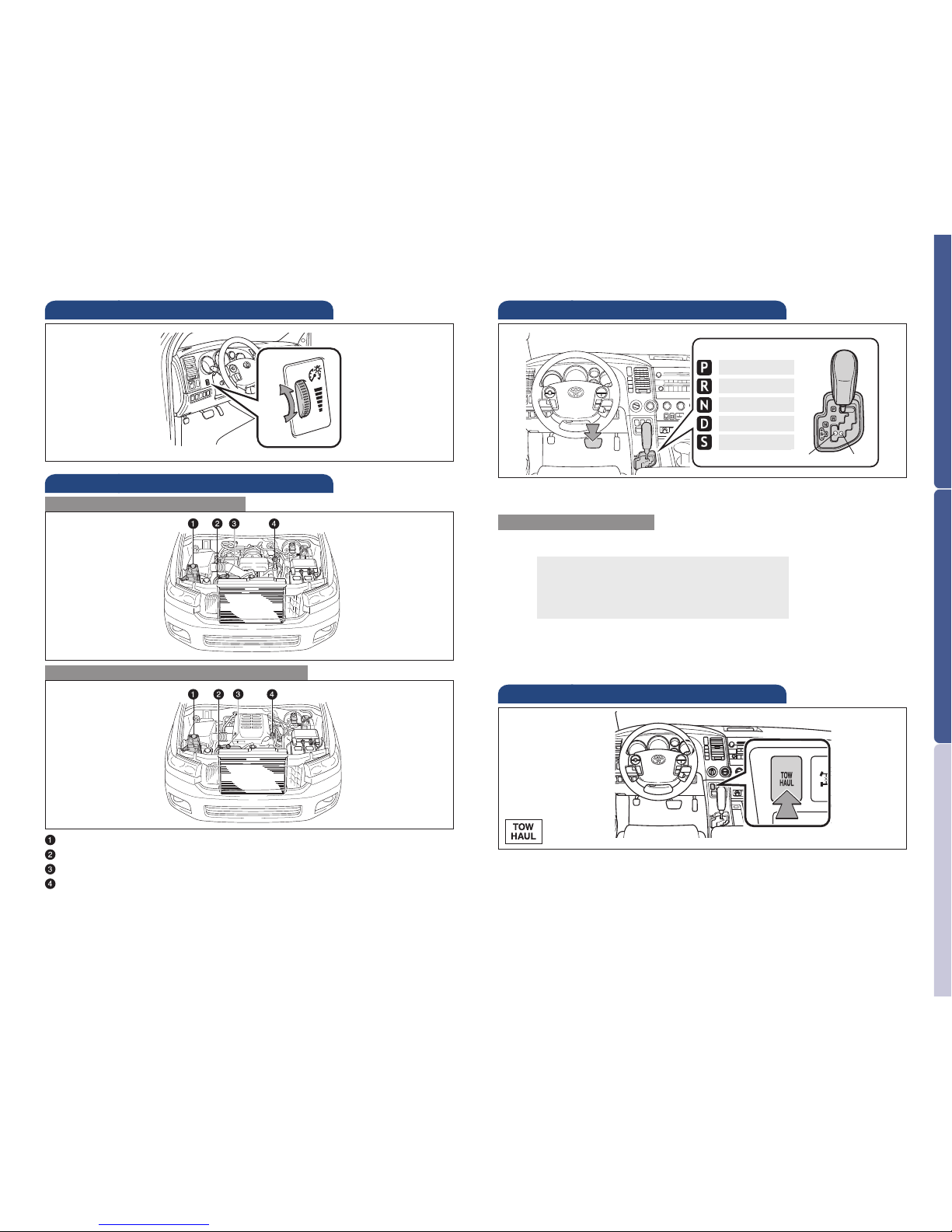

Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
OVERVIEW
4.7L 8 cylinder (2UZ-FE) engine
5.7L 8 cylinder (3UR-FE, 3UR-FBE) engine
FEATURES/OPERATIONS
Automatic Transmission
* The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
“TOW/HAUL” switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel
economy is reduced while in “TOW/HAUL” mode, deactivating when
driving without a load is recommended.
Refer to the Owner‘s Manual for more details on this system before
attempting to use it.
System ON/OFF
Page 9
12 13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the engine switch to the “ACC” or “LOCK” position.
Refer to the
Owner’s Manual for more details.
Lock the center differential when your vehicle’
s wheels get stuck in a
ditch or when driving on a slippery or bumpy surface.
Center differential lock/unlock switch

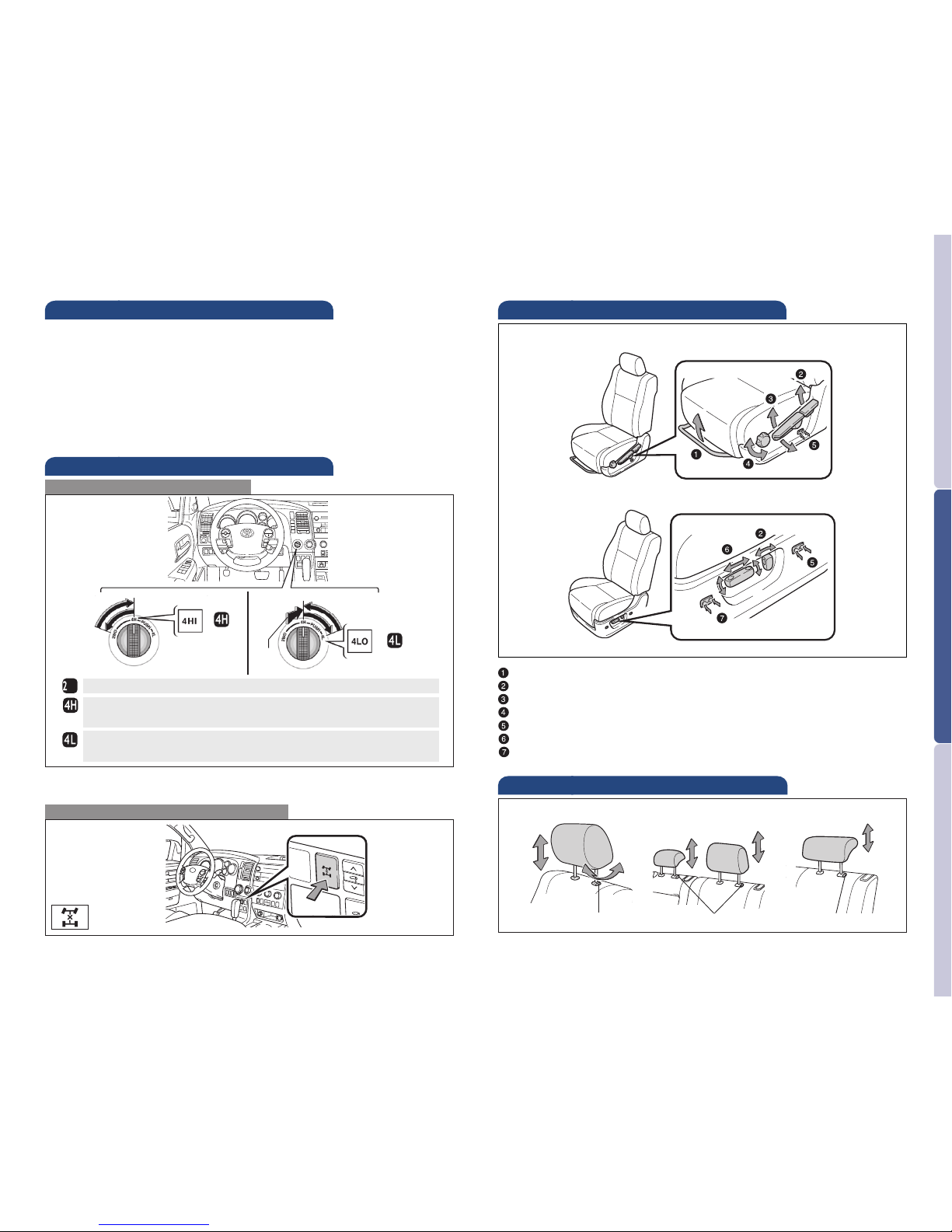

Four-wheel drive
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Turn
Turn
Push
Four-wheel drive control switch
Seat adjustments-Front
Position
Seatback angle
Seat height
Seat cushion angle
Lumbar support (if equipped)
Position, cushion angle and height
Leg support
Manual seat
Power seat
Seats-Head restraints
Front
Third row
Lock release button
Lock release button
Height
Angle
Second row
Height
Height
Lock release button
Height
Page 10
14 15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

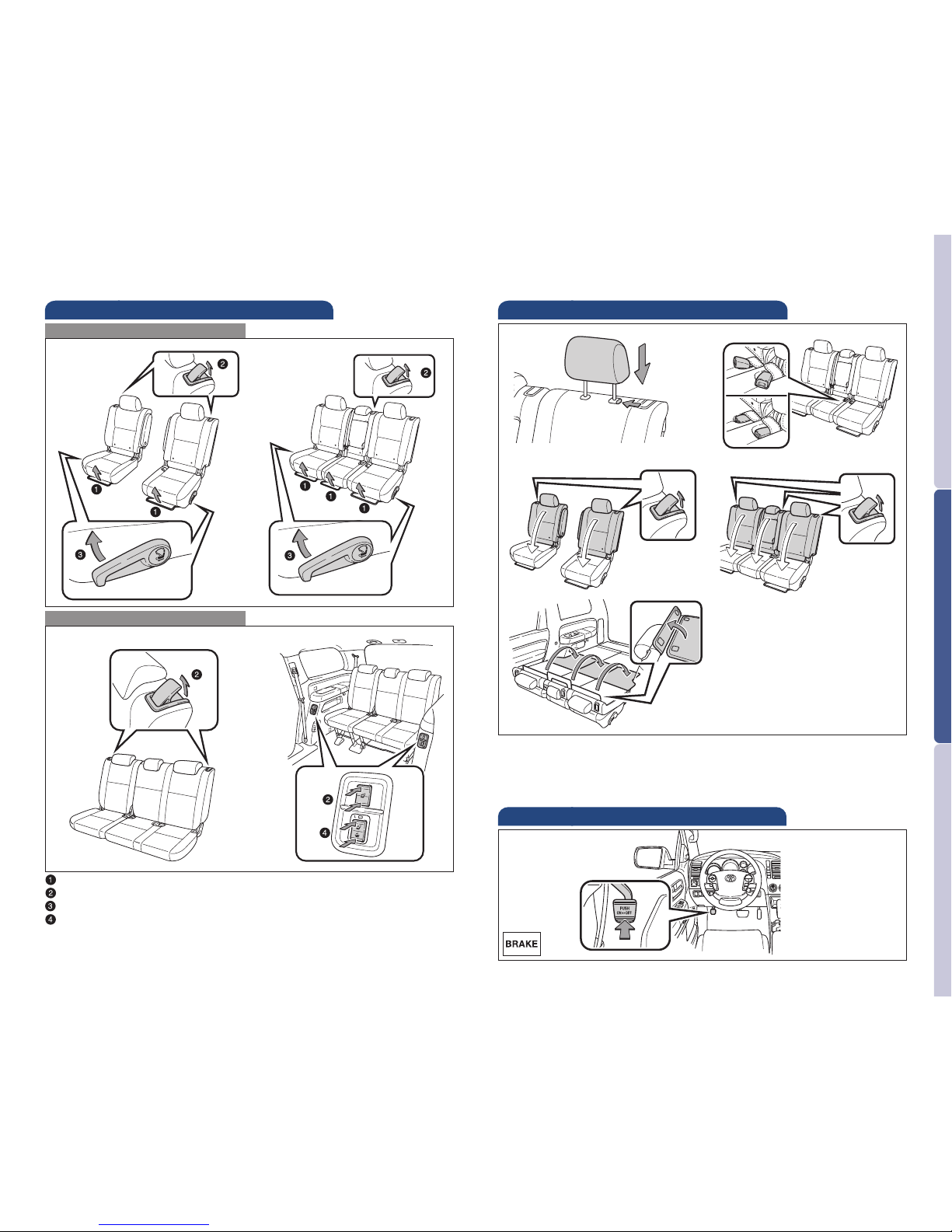

Seat adjustments-Rear
Position
Seatback angle
Seatback lock release and slide
Seatback folding/returning
Refer to the
Owner’s Manual for more details.
(1) Lower the head restraints.
(2) Stow the seat belt buckles.
(3) Fold down the seatback.
(4) Fold out the board (if equipped) from the seatback.
(1)
(3)
(2)
Seats-Folding second row seats
(4)
Pull
Second row
Third row
Pull
Separated seat
Bench seat
Separate seat
Bench seat
Manual seat
Power seat
Parking brake
Set: Depress
Release: Depress again
Page 11
16 17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

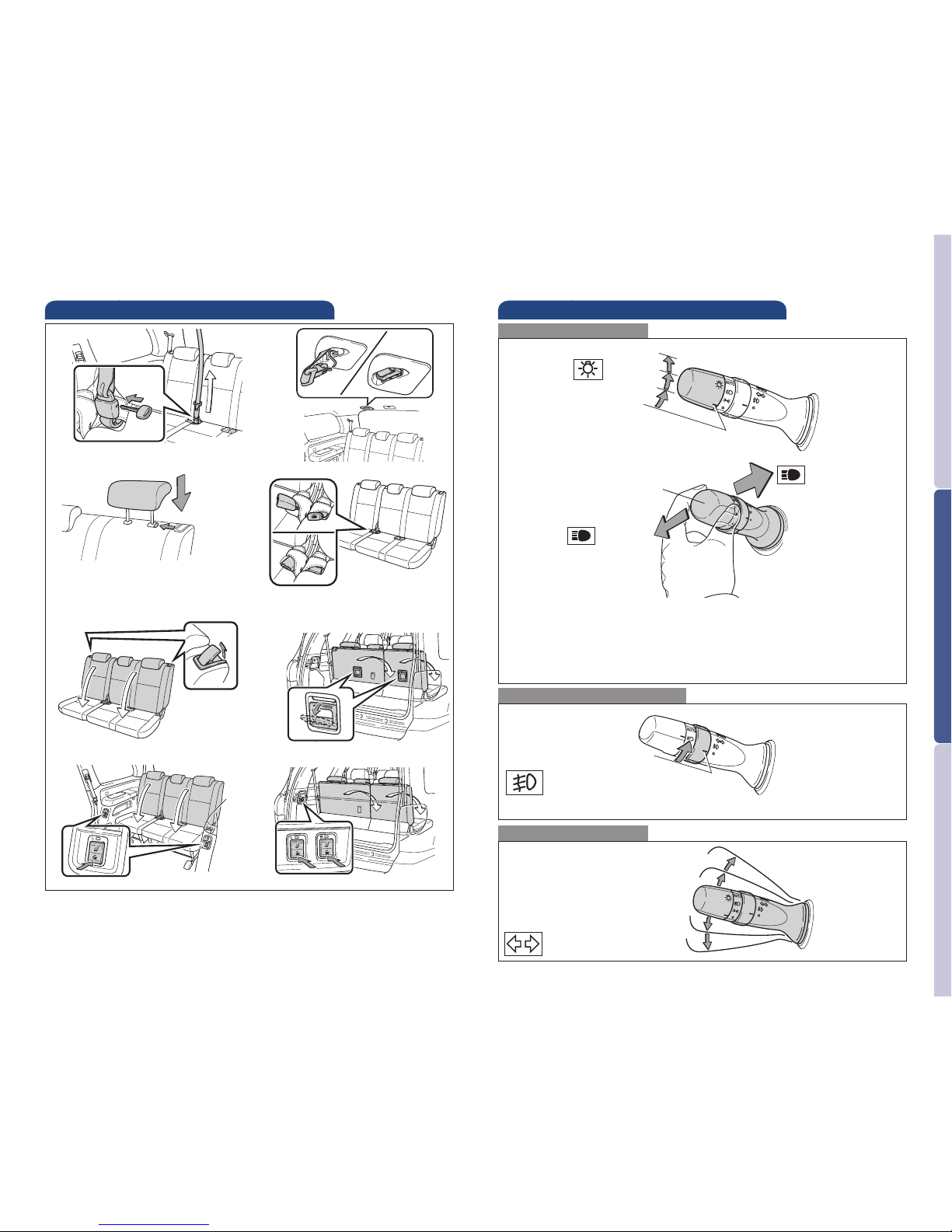

(1) Release the center seat belt tab.
(2) Stow the center seat belt tab.
(3) Lower the head restraint.
(4) Stow the seat belt buckles.
(5) Fold the seats.
(1)
(5)
(3)
(2)
Seats-Folding third row seats
(4)
Power seat
Lights & turn signals
Turn signals
Headlights
High beam
Low beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed
after locking.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam flasher
Auto
Headlights
Parking lights
Turn
Pull
Insert
From back door side
From rear door side
Power seat
Manual seat Manual seat
Page 12
19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
18

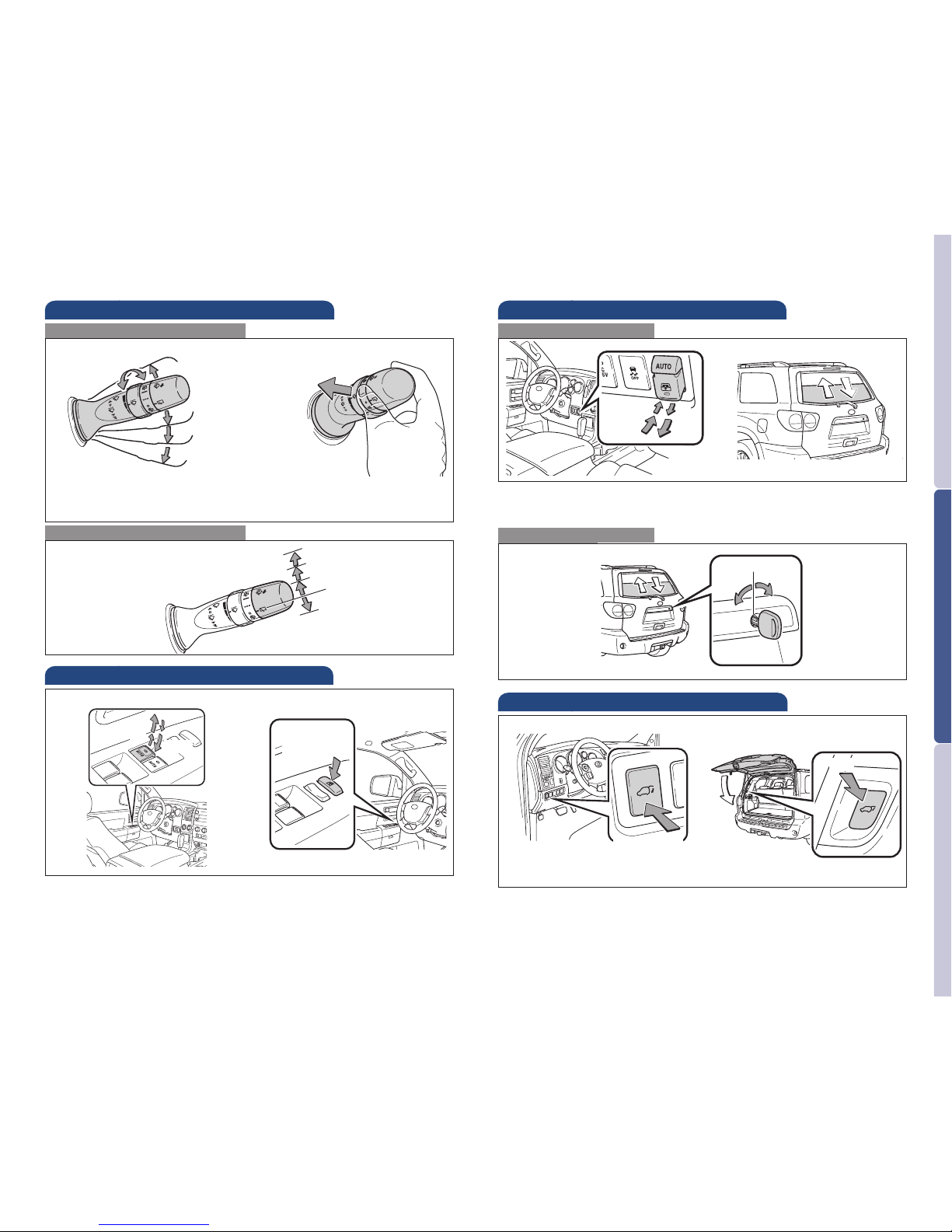

Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
FEATURES/OPERATIONS
Windows
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
Up
Down
Driver side
Window-Back
Operating from inside
Operating from outside
Automatic operation Push the switch completely in or pull it completely
out and release to fully open or close. To stop window midway, lightly
push the switch in the opposite direction.
Open
Close
Open
Close
Door-Power back (if equipped)
Push
Push and hold
Back door (close only)
Open: Push and hold
Close: Push and hold again
NOTE: If battery is disconnected, the power back door needs to be
reinitialized. R
efer to the
Owner
’
s Manual
for more details.
Instrument panel
Adjust interval*
* Intermittent windshield wiper interval adjustment
Rotate to increase/decrease wipe frequency.
Page 13
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
20

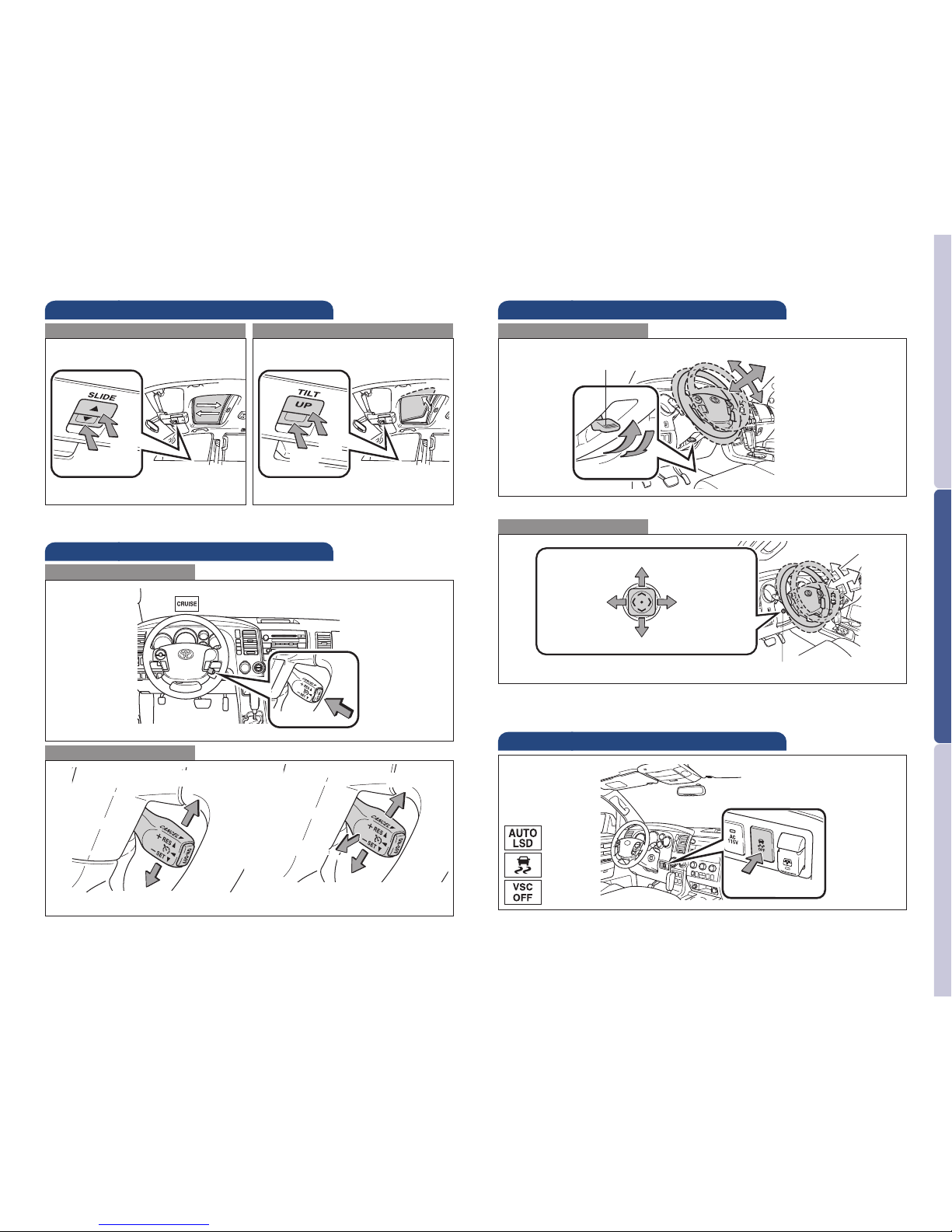

Moonroof
Sliding operation
Tilting operation
Open
Tilt
Close
Close
Cruise control
1
The set speed may also be cancelled by depressing the brake pedal.
2
The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel
1
Resume
2
FEATURES/OPERATIONS
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
Manual
Lock release lever
Angle
Toggle the control switch to set angle and length.
Note: Do not attempt to adjust while the vehicle is in motion.
Power
Up
Control switch
Away from
the driver
Length
Toward the
driver
Down
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the
Owner’s Manual for more information.
VSC OFF button
VSC OFF button
Push once to open/close completely. To stop partway, press the switch
lightly.
Set
Page 14
Front

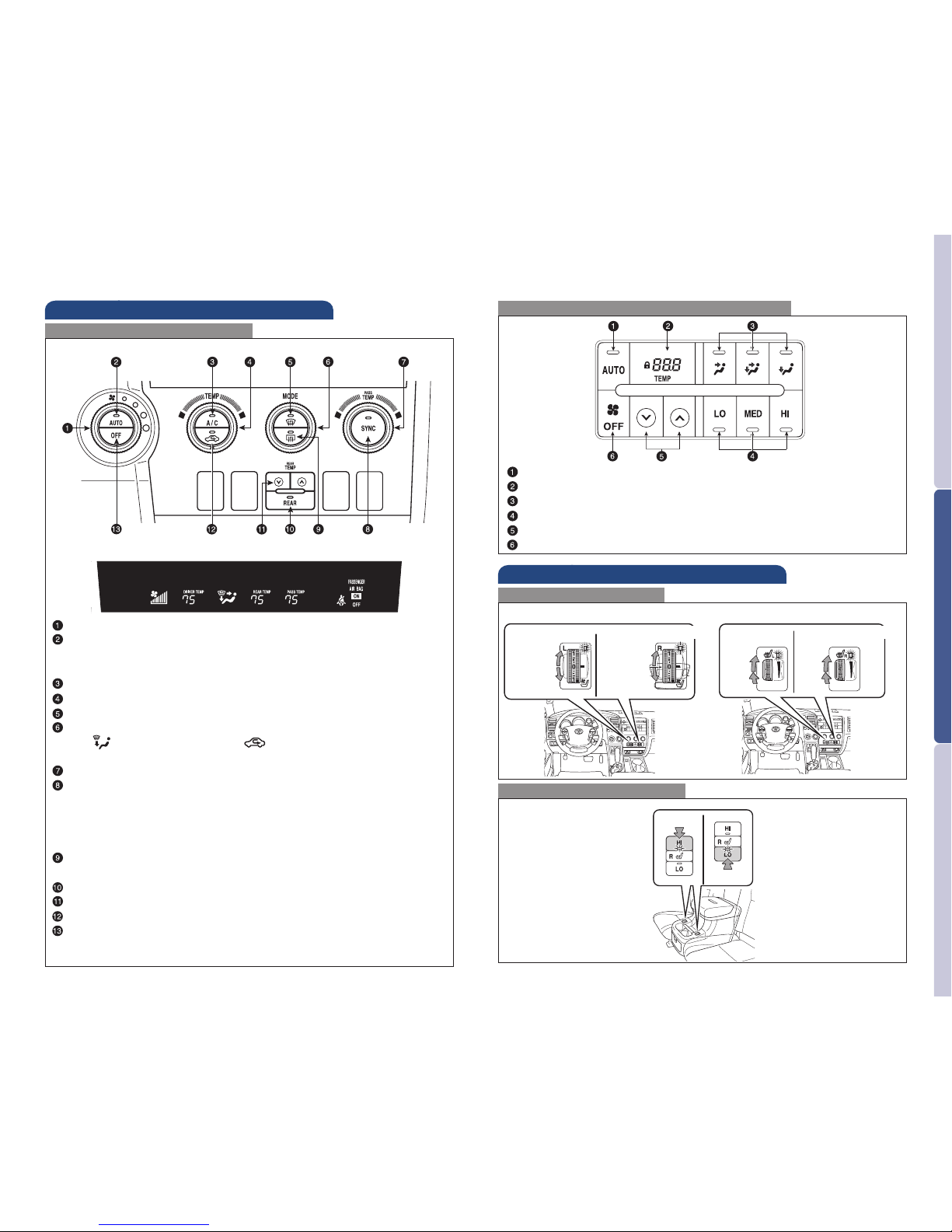

Air Conditioning
Fan speed
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Air Conditioning ON/OFF
Temperature selector (driver side)
Windshield defogger (fresh air only)
Airflow vent
In “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce
window fogging.
Temperature selector (front passenger side)
“SYNC” button
Indicator ON: Synchronize temperature settings for driver, front
passenger and rear seats.
Indicator OFF: Separate temperature settings for driver, front
passenger and rear seats.
Outside rearview mirror/Back window defogger or windshield wiper
de-icer (if equipped)
Rear Air Conditioning ON/OFF
Temperature selector (rear passenger area*)
Fresh or recirculated cabin air
Climate control OFF
* To change the rear seat setting, press the “REAR” button.
22 23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Air Conditioning/Heating
Rear Air Conditioning
Automatic climate control ON
Display
Airflow vent
Fan speed
Temperature selector
Climate control OFF
Seat ventilators/Heaters (if equipped)
Front
seats
Second seats
Ventilator
Driver’s seat
Front passenger’s seat
Heater
Ventilator
Heater
Turn
Driver’s seat
Front passenger’s seat
ON
Turn
ON
Heater only
With ventilators
Push
Push
Control panel
Display
Driver side
Passenger side
Page 15
24 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Audio
Rear seat entertainment system
(if equipped)
115V AC Power outlet main switch
Front audio system
DVD player
DVD screen
Remote control
A/V input adapter
115V AC P
ower outlet
Headphone volume controls and headphone jacks
V
ehicles with navigation system: for details, refer to the “
Navigation
System Owner’s Manual
.”
Type 2 additional functions
Type 3 (with JBL speakers)
Eject CD
Push to turn
ON/OFF
View CD
information
Push to adjust
tone, balance
& ASL*
Seek
station/
CD track
select
Station/CD
track scan
Mode
View MP3
folder and/or
Satellite Radio
category type
Preset buttons - functions in other
modes indicated above number
Load CD(s)
Type 1
Push to skip
up/down
MP3 folder
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Types 2 and 3 only)
-To load one disc
Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) T
urn “TUNE
.
FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
* Automatic Sound Leveling
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6)
to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
AUX audio jack
Push
Page 16
26 27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the
Owner’s Manual for
more details.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Steering wheel switches (if equipped)
Volume control
A/C controlAudio control
Temperature
selector
Auto A/C ON
A/C OFF
“”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-
In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
v
v
Garage door opener (HomeLink®)*
(if equipped)
Distance control mode will cruise at a set speed, decelerate to maintain
selected distance from a slower vehicle traveling in front of you, and
accelerate back up to the selected speed if the vehicle traveling in front
of you changes lanes or speeds up.
(1)
To select distance control mode Push the ON-OFF button. The
“CRUISE” indicator will come on.
(2) To set, cancel and resume a speed Refer to instructions for Cruise
Control on page 20.
Note: Once vehicle speed is set, pushing lever up toward “+ RES” will
increase speed to the nearest 5 mph, and then in 5 mph increments.
Pushing lever down toward “- SET” will reduce speed in the same way.
(3) T
o
change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will
change progressively from LONG to MIDDLE to SHORT.

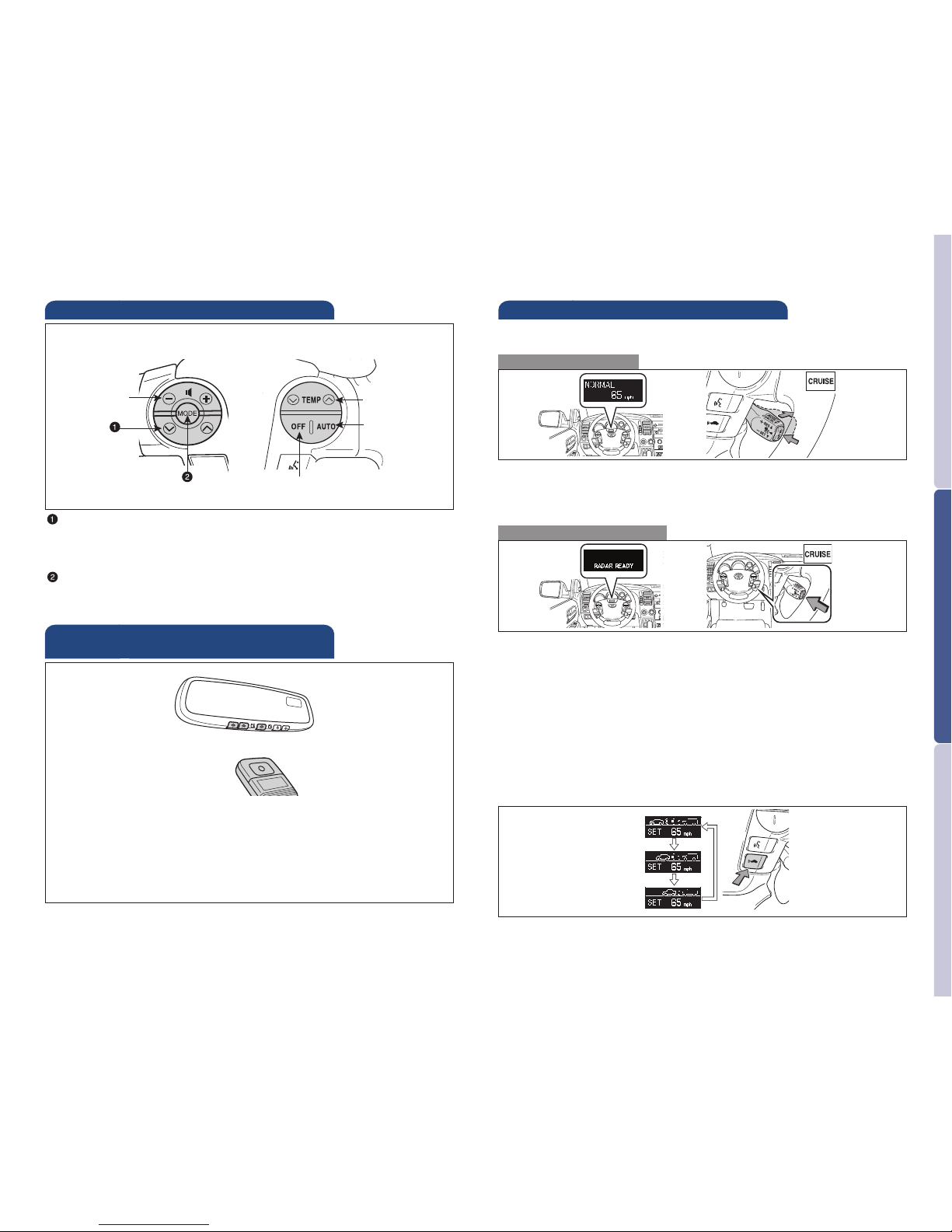

Dynamic Laser Cruise Control (if equipped)
(1) To select conventional/fixed speed control Push the ON-OFF button.
Push the lever forward and hold.
(2) To set, cancel and resume a speed Refer to instructions for Cruise
Control
on page 20.
Fixed speed mode
Refer to the Owner’s Manual for more details and complete safety
precautions before attempting to use “Dynamic Laser Cruise Control.”
Distance control mode
LONG
MIDDLE
SHORT
Page 17
28 29
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Telephone controls (Bluetooth®)
(if equipped)
Door locks
Lock
Unlock

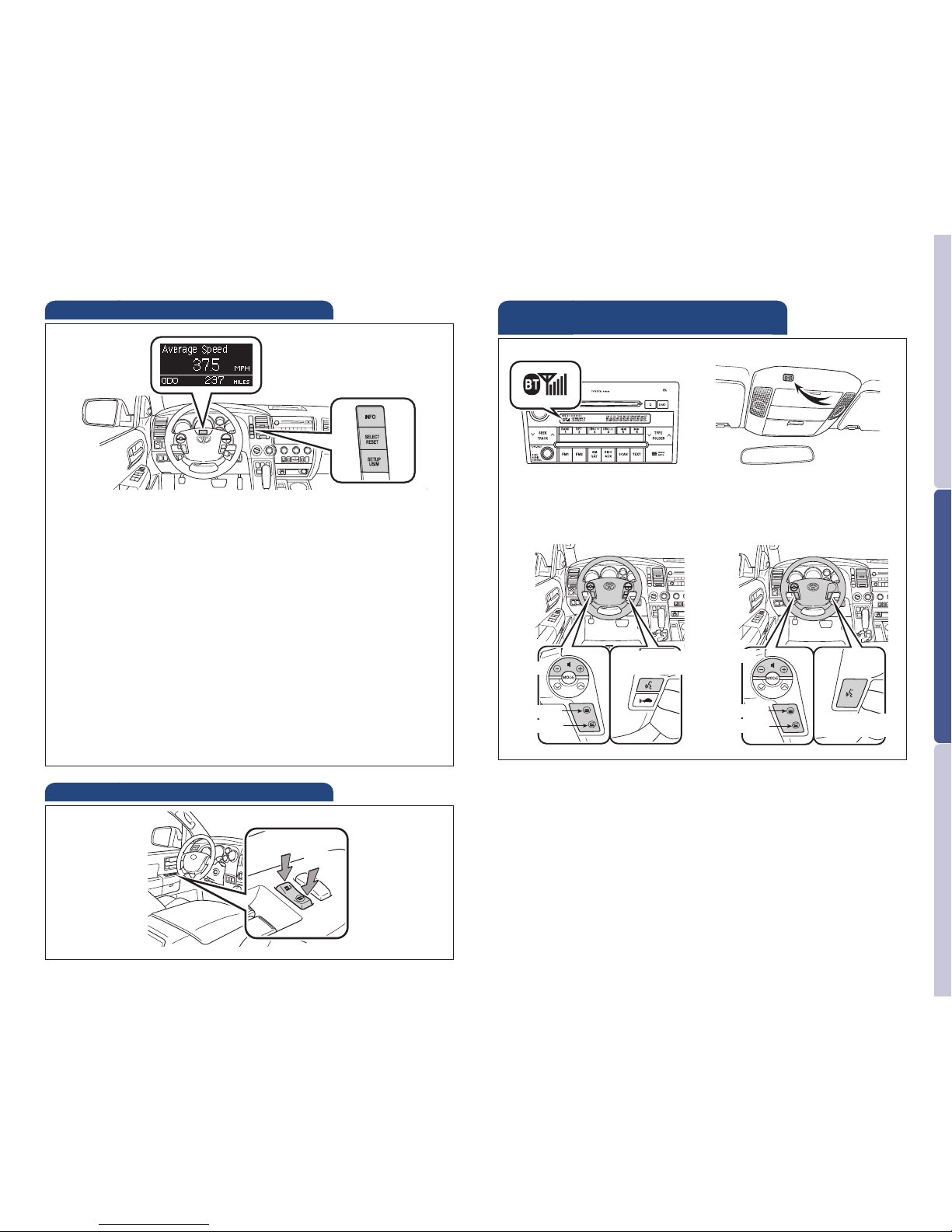

Multi-information display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP US/M” to customize to the following settings:
(1) UNIT
(2) KEYLESS ENTRY FEEDBACK
(3) KEYLESS ENTRY RELOCK TIMER
(4) KEYLESS ENTRY ALL DOORS UNLOCK
(5) DOOR AUTO LOCKING
(6) DOOR AUTO UNLOCKING
(7) HEADLAMPS AUTO OFF TIMER
(8) COURTESY LAMPS OFF TIMER
(9) DEFAULT SETTING
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Hands-free phone system (for cellular phones),” Section 3-4 in
the
Owner’s Manual for more details.
Microphone
Audio unit
Steering wheel telephone switches
Volume
Voice command
button
End call
Start call
End call
Start call
Volume
Voice command
button
Type B
Type A
Page 18
31
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
30

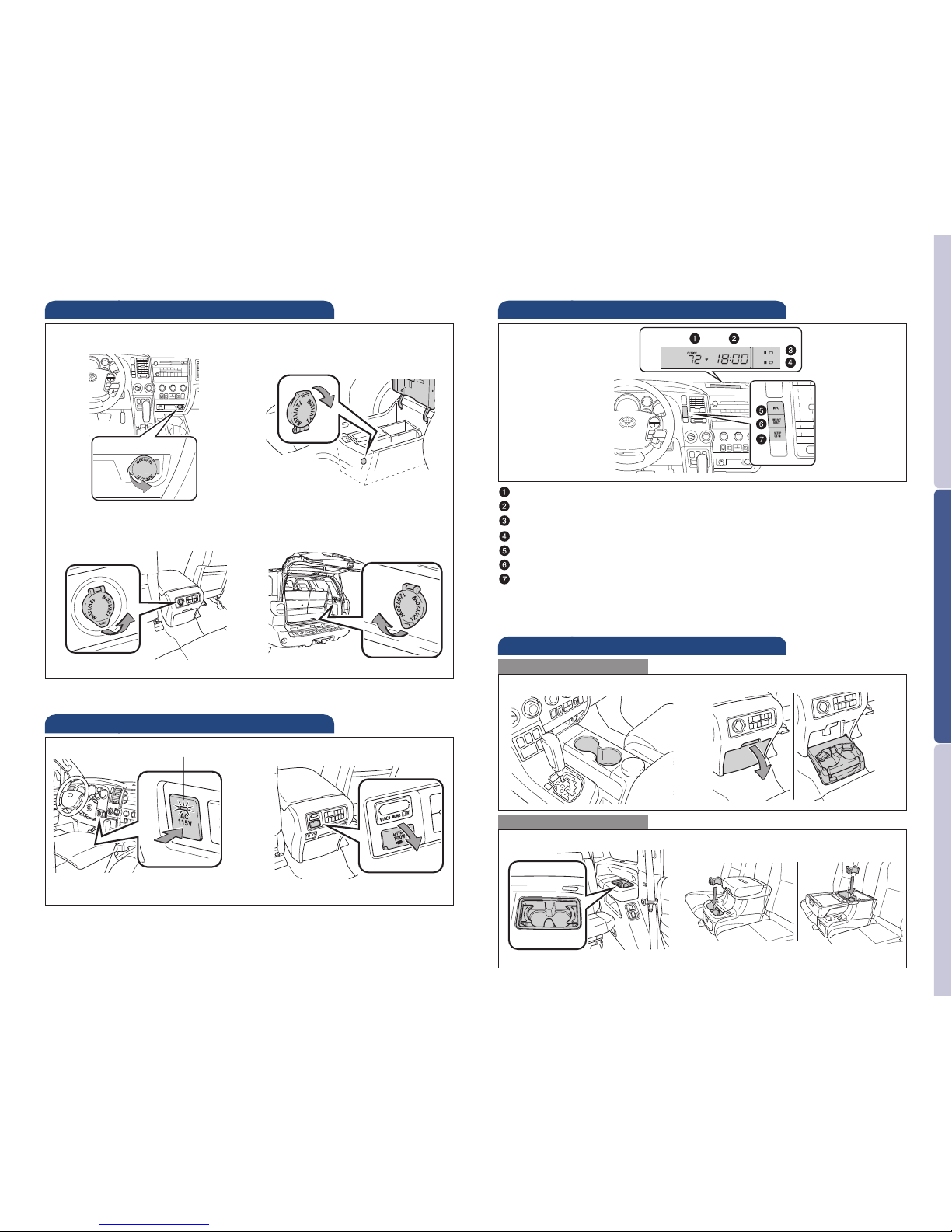

Cup holders
Front
Rear
Front console
Back of the front console
Rear side trim
Rear console box (if equipped)
FEATURES/OPERATIONS
Power outlets-115V AC
ON/OFF switch
Engine switch must be in the “ON” position
to be used.
Power outlets-12V DC (if equipped)
Luggage compartment
Instrument panel
Inside of the
center console box
Back of the center console box
Engine switch must be in the “ACC” or “ON” position to be used.
Accessory meter
Outside temperature/Cruise information display (if equipped)
Clock
Hour set
Minute set
Change information (if equipped)
“SELECT RESET” button (if equipped)
“SETUP US/M” button to customize unit (if equipped)
Refer to your
Owner’s Manual for complete details on this system before
attempting to use it.
Page 19
32
SAFETY AND
EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the
Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.

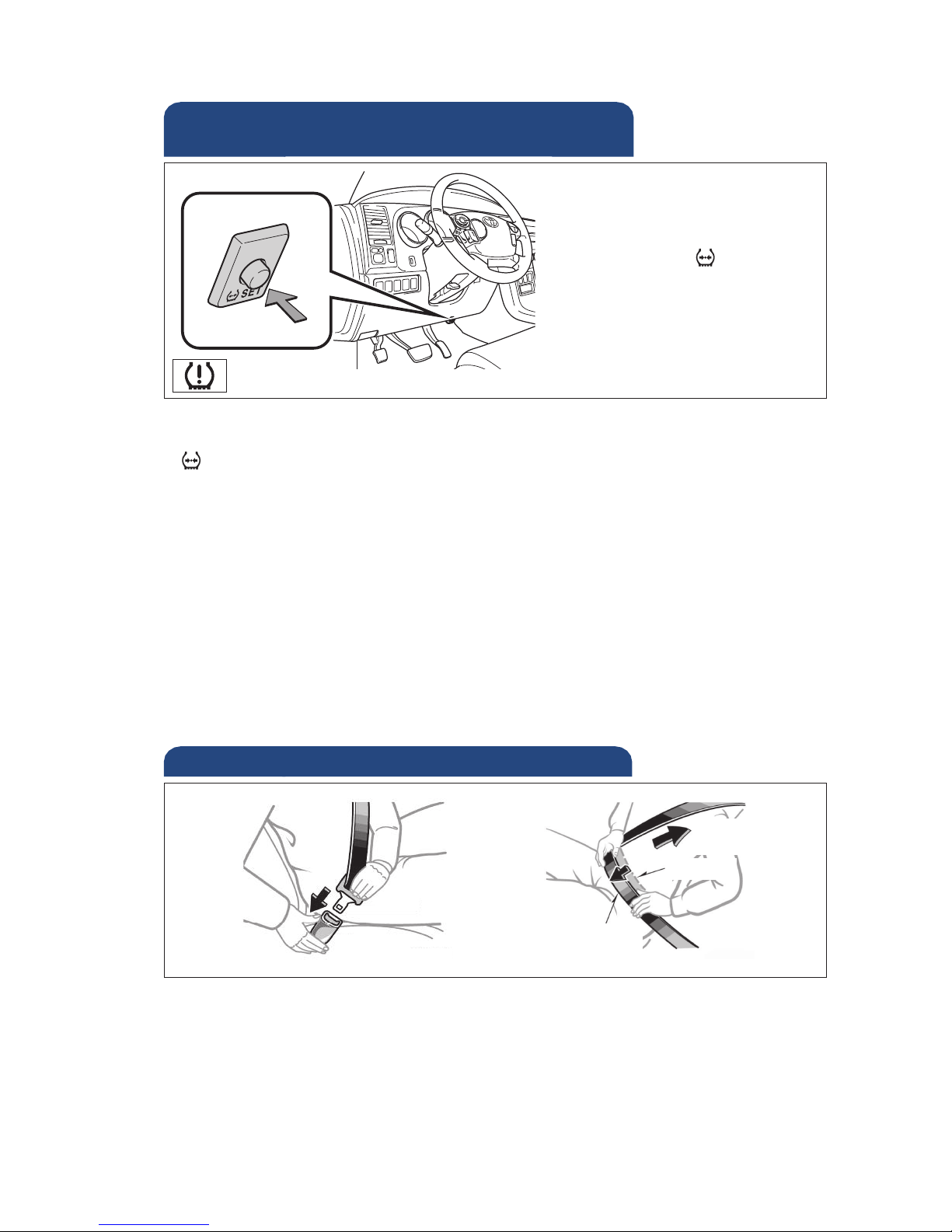

Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the
Owner’s Manual for tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Note: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Page 20
33
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Push up
Seat belts-Shoulder belt anchor
Squeeze lock release to lower
Spare tire & tools
Spare tire, jack and tool location
Removing the spare tire
(1) Remove the cover.
(2) Assemble the jack handle.
(3) Insert the jack handle extension into the lowering screw
. Lower the
spare tire completely to the ground.
R
efer to the
Owner
’
s Manual
for tire changing and jack positioning
procedures.
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
(1)
(2) (3)
Spare tire
Jack and tool
Page 21
MN 00505-QRG09-SEQ
Printed in the USA 7/08
Loading...
