Page 1
2009
Quick Reference Guide
POWERED
BY
Page 2
Page 3
Page 4
2 3
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
BASIC HYBRID VEHICLE OPERATION

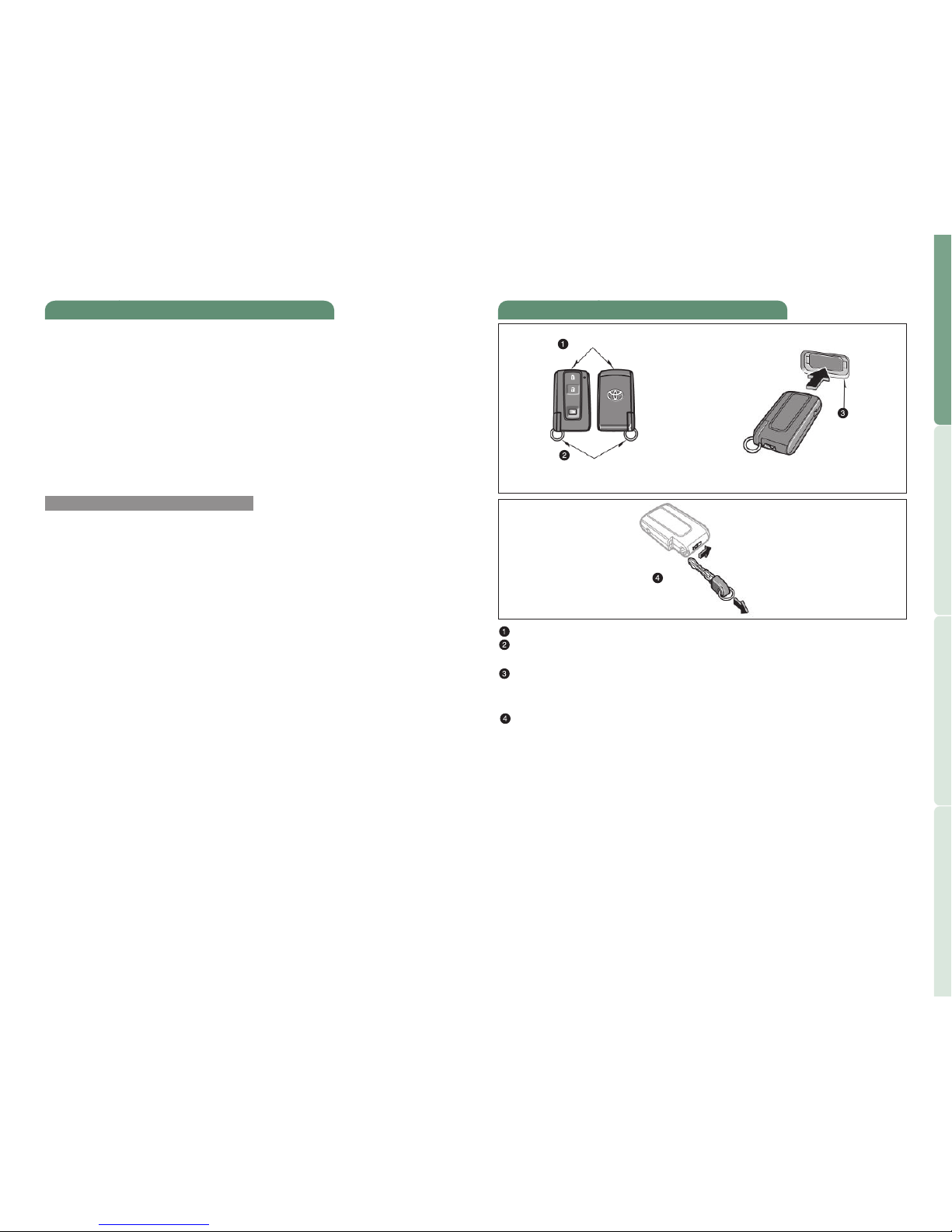

Master key Ignition key & wireless remote. Mechanical key Fits into master key and can be removed to manually
lock/unlock driver door only. Ignition key slot When inserting, push completely in. When removing, gently pull; key will be pushed out by a spring.
DO NOT FORCE THE KEY.
If it cannot be removed, push it all the way in again, then pull it out. To remove or replace mechanical key Slide the lock knob in the direction of the arrow.
Key fob
Master key
Mechanical key*
Ignition key (key fob) slot
* Lock/Unlock the driver’s door only
Slide
Pull out
Hybrid Synergy Drive System
The Hybrid Synergy Drive System utilizes a computer controlled gasoline engine and electric motor to provide the most efficient combination of power for the vehicle. To conserve energy, when the brakes are applied, braking force generates electricity which is then sent to the traction battery. In addition, the engine shuts off when the vehicle is stopped. The benefits are better fuel economy, reduced vehicle emissions and improved performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display. Refer to this screen for important driving information and feedback to maximize energy use/creation and conserve fuel.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner's Manual.
-If possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the Air Conditioning.
Refer to the
Owner’s Manual for more details.
Page 5
4 5
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
BASIC HYBRID VEHICLE OPERATION
Locking operation
Front door
Rear hatch
Smart Key system (if equipped)
Carrying a Smart Key allows the vehicle to be locked, unlocked and the Hybrid System engaged without handling the key.
Push
Push
Unlocking operation
Front door
NOTE: After unlocking, if a door is not opened within 60 seconds, all doors
will relock for safety. Refer to your
Owner’s Manual and the following
section of this guide for Smart Key unlocking programmable options.
Rear hatch
Smart Key unlock functions
(if equipped)
The Smart Key unlocking function can be programmed to operate in three different modes when Smart Key is activated. In all modes, grasping the front passenger’s door handle will unlock all doors.
-To unlock driver’s door only, grasp driver’s door handle.
-To unlock all doors, grasp any door handle except rear doors.
-To unlock driver’s door or hatch independently, grasp the handle.
Refer to the Owner’s Manual for more information on this feature, and how to change modes.
Smart Key system cancel switch
NOTE: To conserve battery power, turn the Smart Key system “OFF” when
not using the vehicle for prolonged periods of time. For more battery saving information, refer to the
Owner’s Manual.
Enabled
Disabled
Push
Page 6
7
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
6
BASIC HYBRID VEHICLE OPERATION

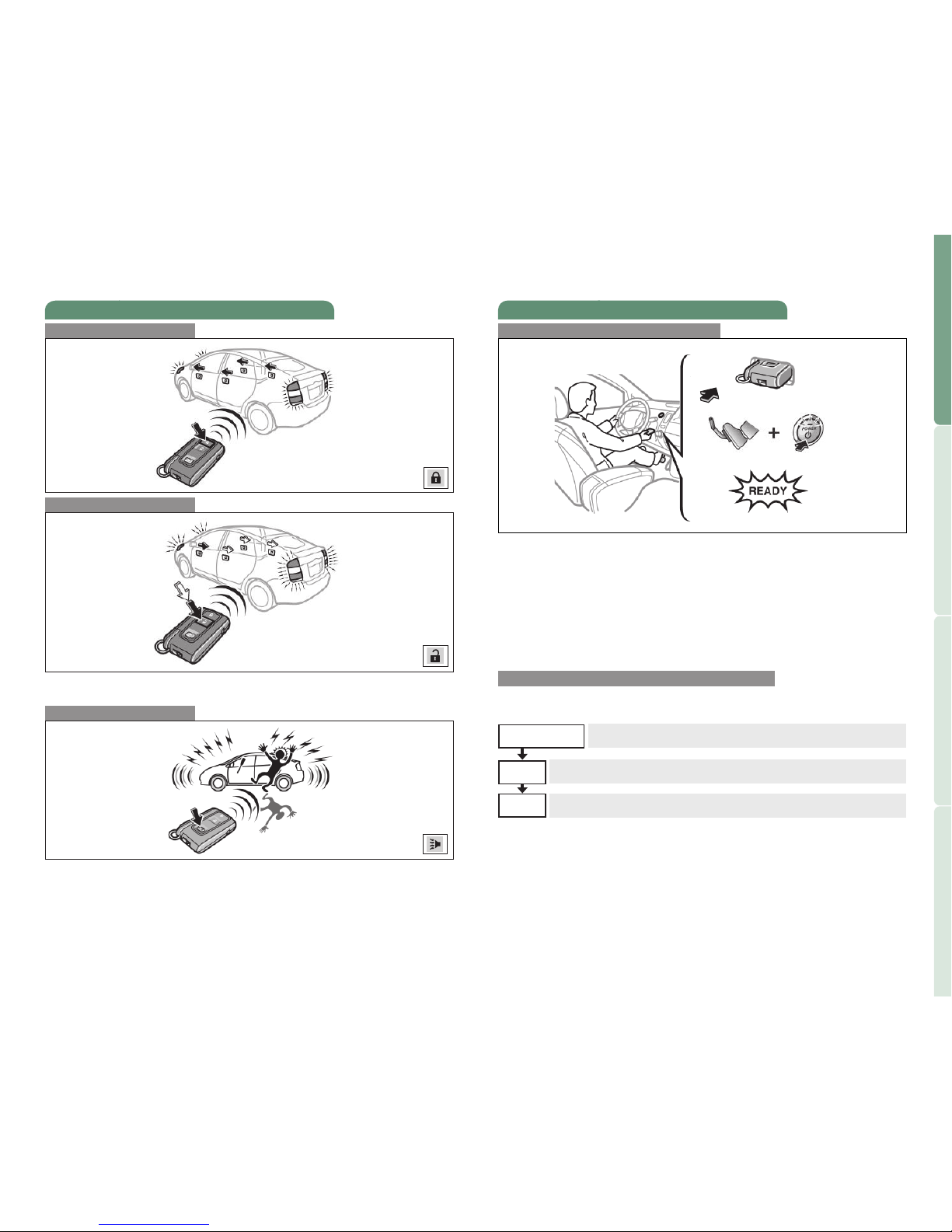

Panic button
Push and hold
Keyless entry
Locking operation
Unlocking operation
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Push
Push ONCE: Driver door
TWICE: All doors
(1) Insert key.* (2) Depress the brake pedal and push the “POWER” button briefly and
firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains ON and a beep sounds, you may begin driving.
Note: The brake pedal must be depressed to turn the Hybrid System on.
* It is not necessary to insert the ignition key (key fob) if Smart Key
system is installed and activated.
Turning the Hybrid System ON
Changing operation modes
Pressing “POWER” without depressing the brake pedal while the Hybrid System is OFF will change the operation mode in succession from:
Start function
ACCESSORY
ON
OFF
Accessories such as the radio will operate.
Ignition is on; Hybrid System is not engaged.
All systems OFF.
(1)
(2)
(3)
Page 7
98
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
BASIC HYBRID VEHICLE OPERATION
Shifting
Park button
Shift lever
Brake pedal must be depressed when shifting to or from the Park position. If brake is not applied, a beep will sound and the vehicle cannot be shifted.
NOTE: The shift lever will always return to its original position after shifting.
ALWAYS CONFIRM SHIFT POSITION BY CHECKING INDICATOR
SYMBOLS ON THE INSTRUMENT CLUSTER.
* The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park button
Reverse (buzzer sounds)
Neutral
Drive
Engine brake
Shift position
*
(1) When the vehicle is at a complete stop, keep brake pedal depressed
and push Park button above the shift lever. (2) Push the “POWER” button to turn off the system. (3) Fully depress the parking brake. (4) Remove the key fob if inserted.*
Information
In some instances when the engine starts, and/or on a short trip after the engine is stopped, the engine water pump may continue operating for a short time. This is a standard operation of the vehicle to ensure optimum performance and shouldn’t be a concern.
WARNING: If the “POWER” button is held for longer than three seconds while the vehicle is moving, the Hybrid System will shut off.
* It is not necessary to insert the ignition key (key fob) if Smart Key
system is installed and activated.
Parking & turning OFF the Hybrid System
(1)
(2)
(3)
(4)
Page 8
10 11
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Headlight, turn signal and front fog light1controls Wiper and washer controls “POWER” button Clock “AUDIO” switch (multi-information display control) “CLIMATE” switch (multi-information display control) Multi-information display “DISPLAY” switch (multi-information display control) “INFO” switch (multi-information display control) Mph or km/h button Trip meter reset Emergency flasher button
Audio system 12V DC Power outlet
Park button Electronic shift lever Ignition key (key fob) slot Cruise control
1
Tire Pressure Monitoring (warning) System Smart Key system cancel
1
Steering wheel climate control Instrument panel light control Steering wheel audio control
1
If equipped
2
For details, refer to the Navigation System Owner’s Manual.

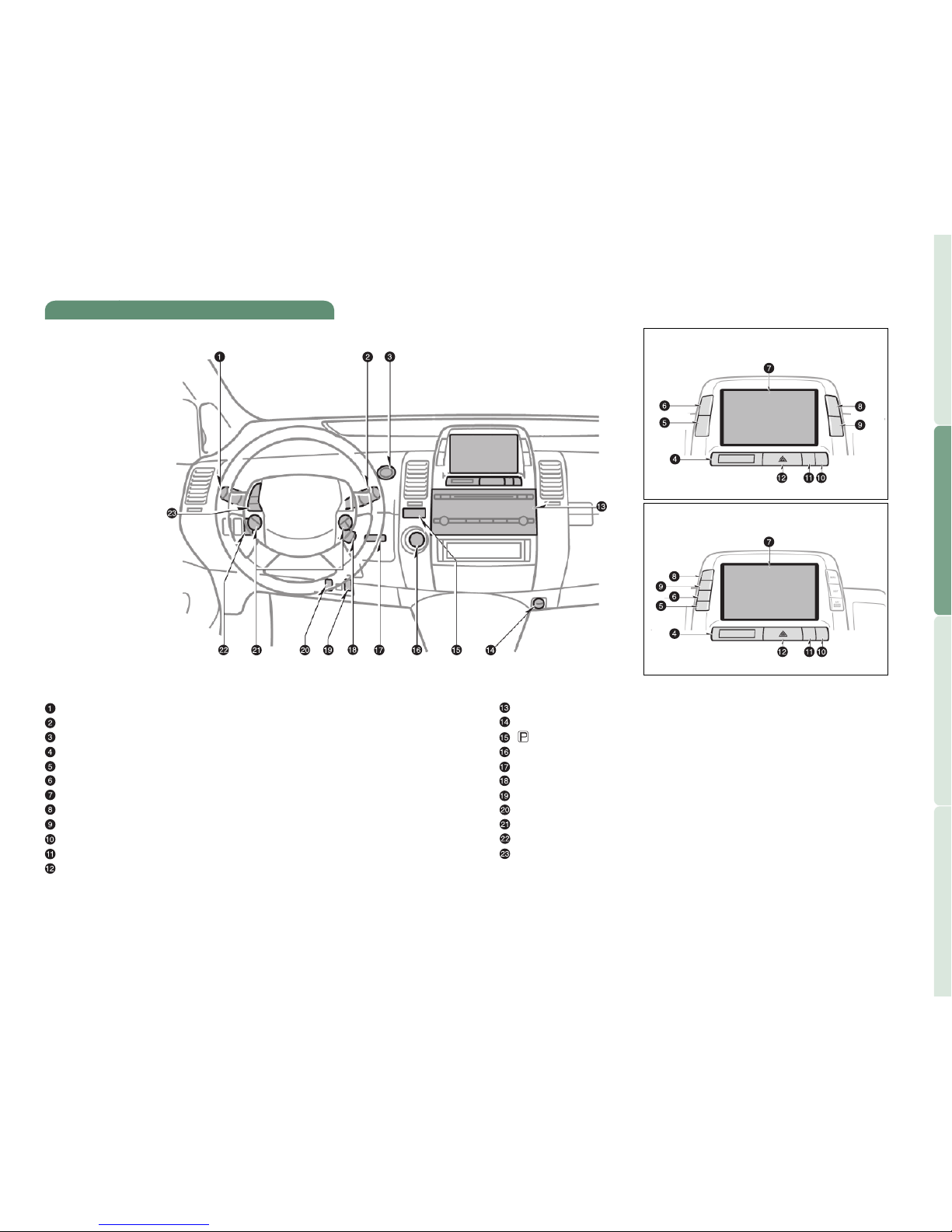

Instrument panel
With navigation system
1
,2
W
ithout navigation system
Page 9
12 13
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Headlight indicator
Low engine oil pressure warning
1
Service indicators and reminder Speedometer Fuel gauge Odometer and two trip meters

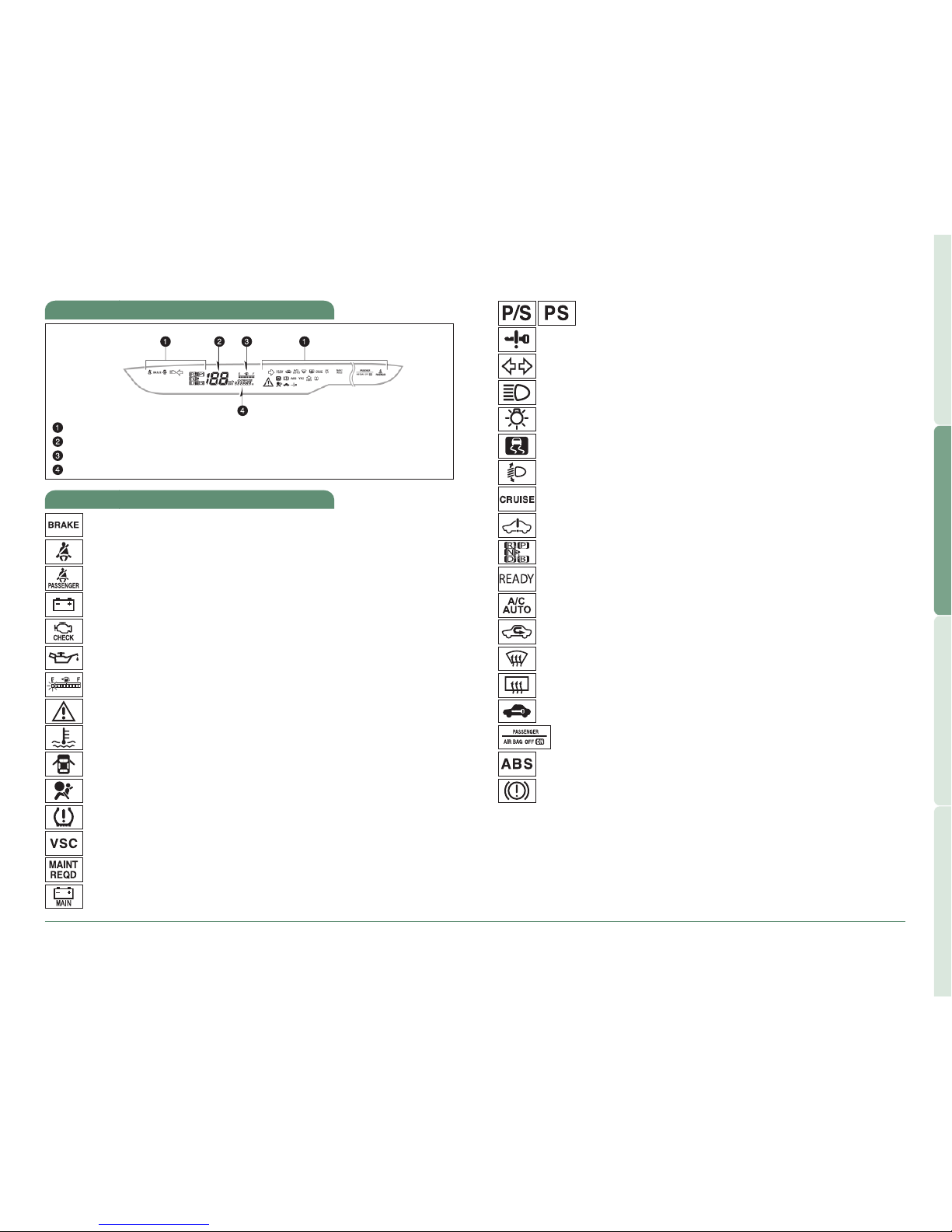

Instrument cluster
Driver seat belt reminder
1
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder
1
(alarm will sound if speed is over 12 mph)
Brake system warning
1
Charging system warning
1
Low fuel level indicator
1
Anti-lock Brake System warning
1
Malfunction/Check Engine indicator
1
Indicator symbols
Master warning
1
High coolant temperature warning
1
Open door warning
1
Airbag SRS warning
1
1
For details, refer to Section 5-2, 2009 Owner
’
s Manual.
2
If this light flashes, see “Cruise control” Section 2-4, 2009 Owner’s Manual.
3
For details, refer to “Transmission” Section 2-1, 2009 Owner’s Manual.
Driving ready light
Engine oil replacement reminder
1
Turn signal indicator
Headlight high beam indicator
Cruise control indicator
2
Slip indicator
Hybrid System warning
1
Vehicle Stability Control warning
1
Traction battery warning
1
Electric power steering system warning
1
Smart Key system warning
1
Automatic headlight leveling system warning
1
Running mode position indicator
3
Automatic Air Conditioner indicator
Recirculate mode indicator
Windshield airflow indicator
Rear window and outside rearview mirror defogger indicator
Hybrid vehicle immobilizer/Theft deterrent system indicator
Low Tire Pressure Warning
1
Front passenger occupant classification indicator
Yellow: Brake System warning
1
Page 10
1514
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW

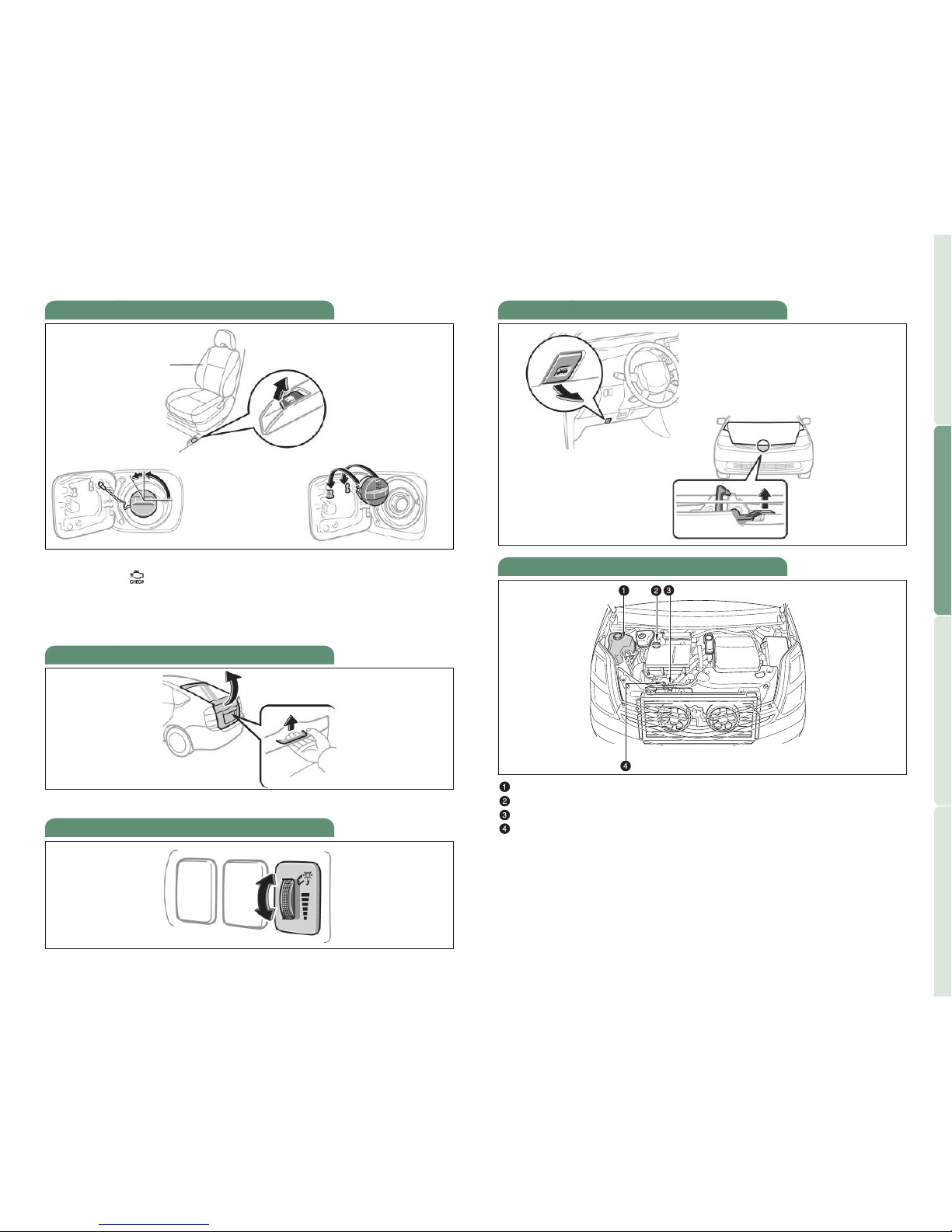

Rear hatch
Pull
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.
NOTE: MAINTAIN GASOLINE IN THE TANK AT ALL TIMES. SERIOUS
DAMAGE TO THE HYBRID SYSTEM CAN OCCUR IF THE VEHICLE RUNS OUT OF GASOLINE.
Fuel tank door opener and cap
Turn
Driver seat
Pull up
Store
To open the rear hatch, grasp the handle and pull up.
Light control-Instrument panel
Brightness control
+
-
Hood release
Engine maintenance
Windshield washer fluid tank Engine oil filler cap Engine coolant reservoir Engine oil level dipstick
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’
s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”
Pull up latch and raise hood
Pull
Page 11
1716
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Lights & turn signals
Headlights
Automatic light cutoff system Automatically turns off lights when the
driver’s door is opened with the Hybrid System “OFF.”
Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Low beam
AUTO*
Head lights
High beam
High beam flasher
Parking light
Turn
Right turn
Left turn
Lane change
Lane change
Garage door opener (HomeLink®) (if equipped)
Indicator
Buttons
Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the
Owner’s Manual for more details.
For programming assistance, contact the T
oyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Windshield wipers & washers
Front
Rear
Wash and wipe
Wash and wipe
Interval wipe
Wipe
Adjust interval*
Single wipe
Interval wipe
Slow
Fast
* Intermittent windshield wiper interval adjustment
Rotate to increase/decrease wipe frequency.
Pull to wash and wipe
* If equipped
Page 12
1918
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

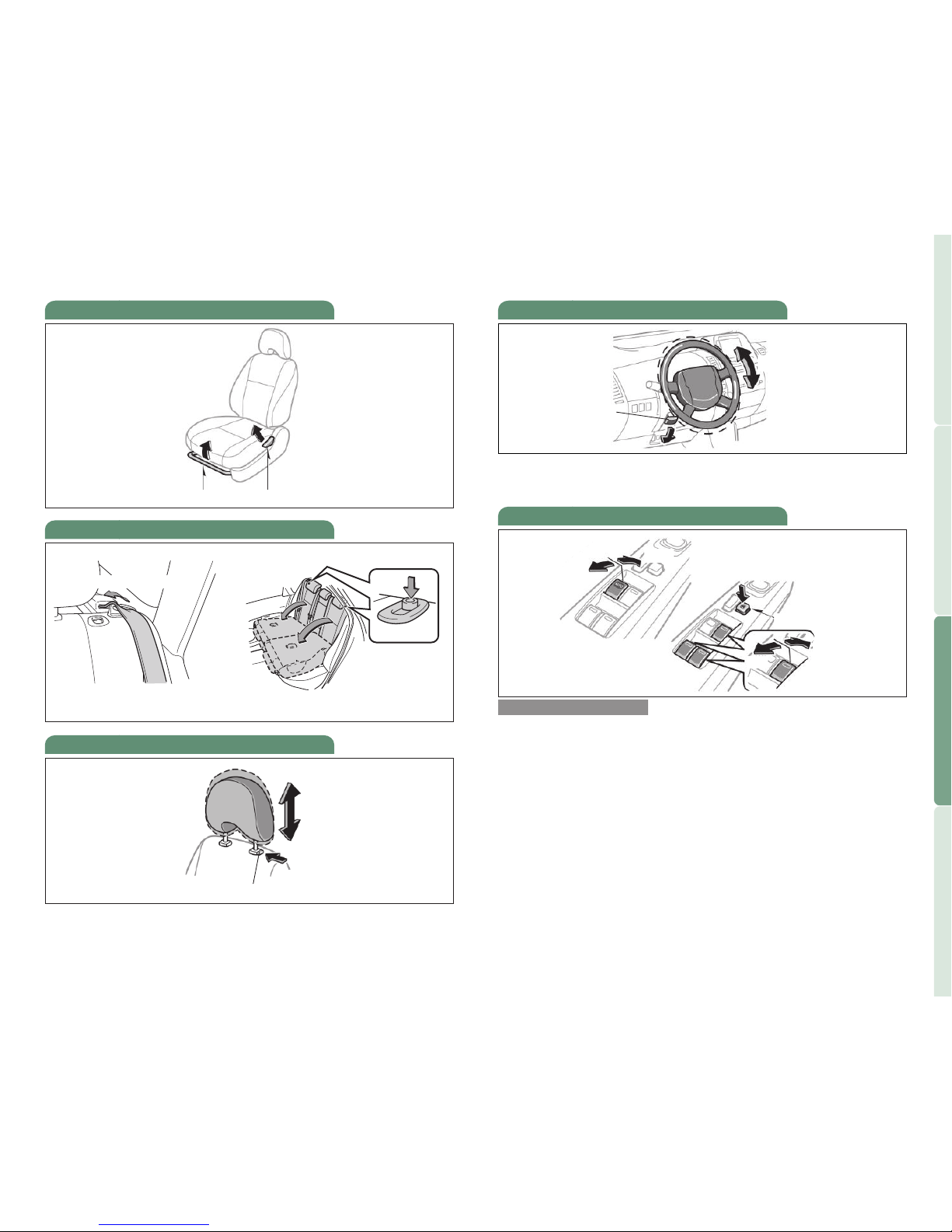

Seats-Head restraints
Lock release button
Seat adjustments-Front
Seat adjustments-Rear
Position
Seatback angle
Windows
Window operation
Automatic operation (driver side only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
NOTE: If 12V battery is disconnected, the driver’s window will need to be reinitialized. Refer to the
Owner’s Manual for more details.
Window lock switch
Up
Down
Driver side
Down
Up
Tilt steering wheel
Hold wheel, push lever down, set angle and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Angle
Lock release lever
(1) Remove the seat belt
(3) Fold down
(2) Push down
Page 13
2120
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

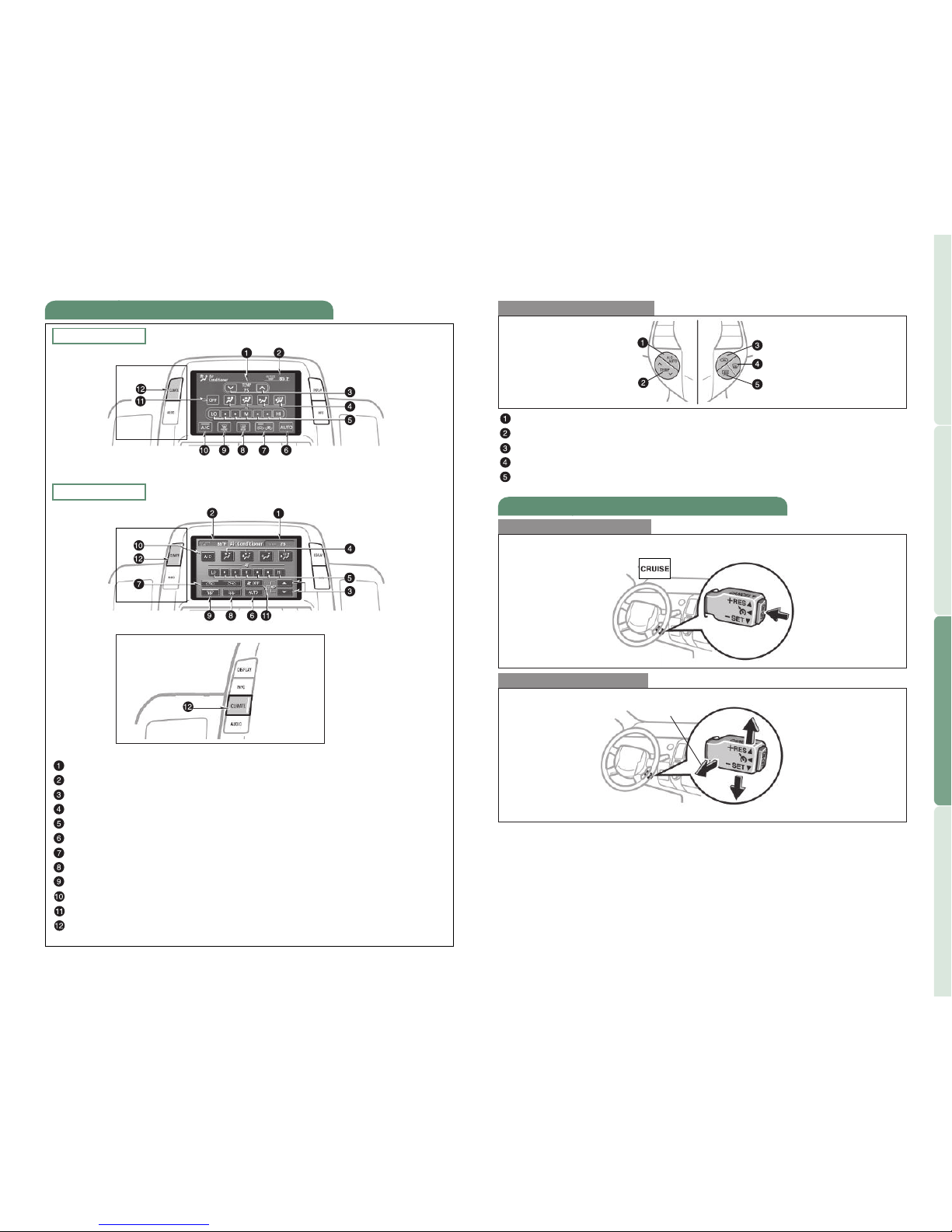

Passenger compartment temperature Outside temperature Temperature selector Airflow vent Fan speed Automatic climate control ON Fresh or recirculated cabin air Rear window and outside rearview mirror defogger Windshield airflow Air Conditioning ON/OFF Climate control OFF Display the operation screen
Air Conditioning/Heating
* For details, refer to the “Navigation System Owner’s Manual.”
Type 2 functions
Type 1 functions
Setting a speed
System ON/OFF
Resume
2
/Increase speed
Cancel
1
Set/Decrease speed
Cruise control (if equipped)
Auto A/C ON/OFF Temperature selector Air intake selector Windshield vent Rear window and outside rearview mirror defogger
1
The set speed may also be cancelled by depressing the brake pedal.
2
If vehicle speed falls below 25 mph, the set speed will not be resumed.
Turning system ON/OFF
Steering wheel switches
With navigation system*
Page 14
2322
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

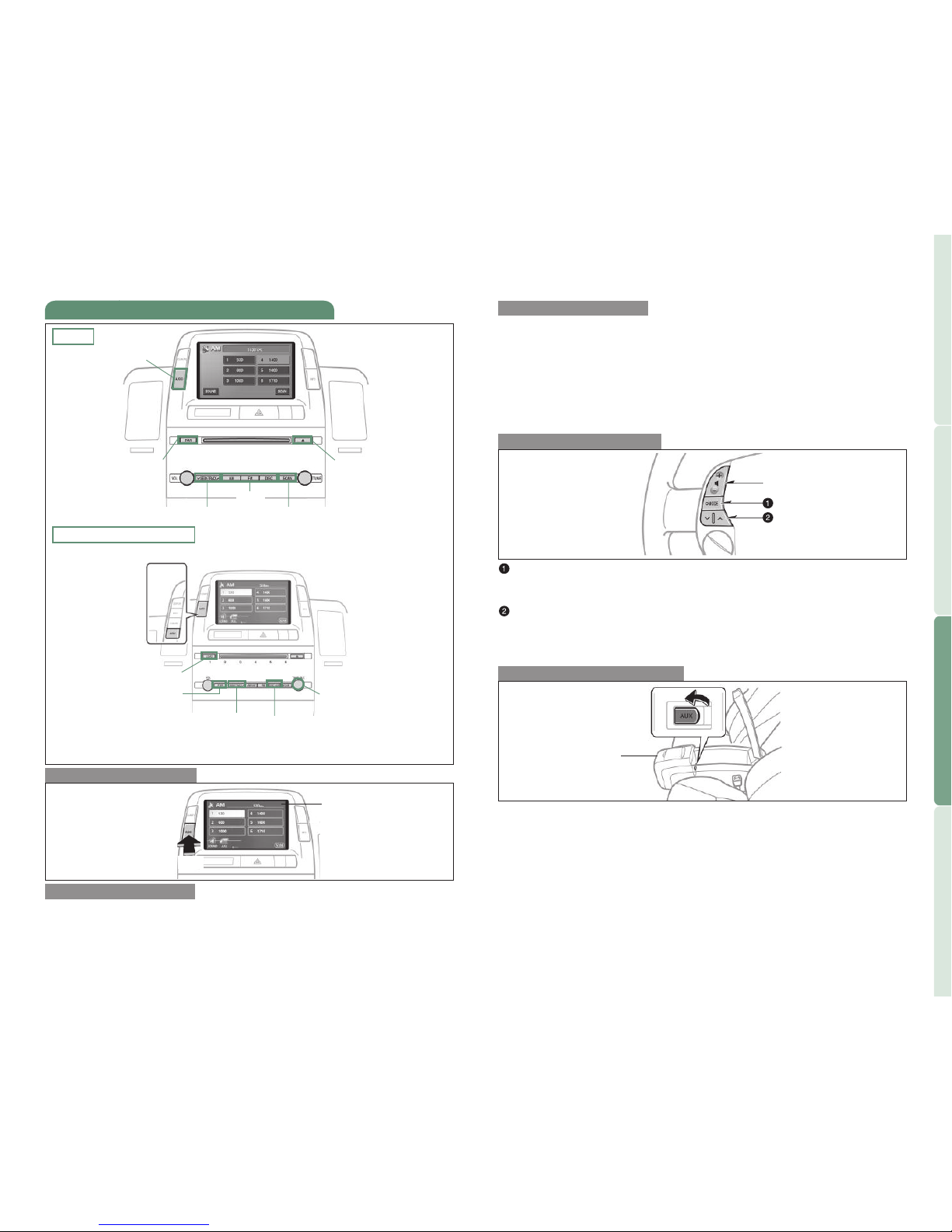

RADIO
To preset a station Tune in the desired station and touch a station
selector icon (1-6) until you hear a beep.
To scan for stations Push “SCAN.” Push again to hold selection.
Audio
Audio operation screen
Push
Audio operation screen
Type 1
Eject CD
Push to turn ON/OFF
Audio
Type 2 additional functions
Audio file search
With navigation system*
Load CD(s)
Push to turn ON/OFF
Mode
Station/CD track scan
Seek station/CD track select
Seek station/CD track or audio file select
CD/AUX mode select
* For details, refer to the “Navigation System Owner’s Manual.”
CD PLAYER
To scan tracks on a disc Touch “SCAN” icon on the display. Push again to
hold selection.
CD changer (Type 2 only)
-To load one disc
Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE•FILE.”
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the audio system OFF.
“ ” switch In radio mode
Push to select a preset station; push and hold to seek
the next strong station. In CD mode Push to skip up or down to next/previous track.
>
>
Steering wheel switches
By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode.
AUX audio jack (if equipped)
Center console
Volume control
Page 15
25
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
24
FEATURES/OPERATIONS

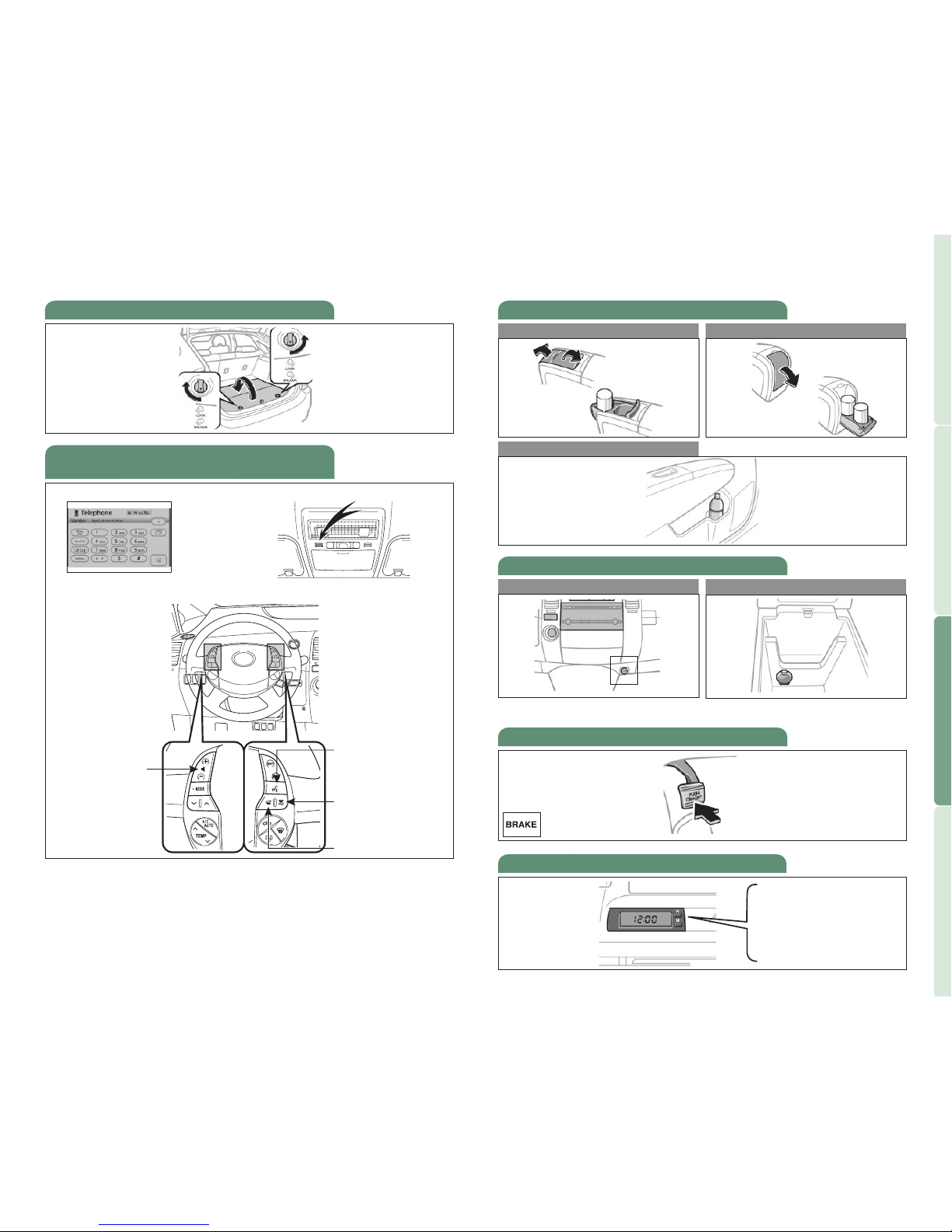

Luggage storage box
Unlock
Unlock
Bluetooth®technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the telephone and the system.
Refer to “Hands-free system (for cellular phone),” Section 3-4 in the Owner’s Manual for more details.
Telephone controls (Bluetooth®) (if equipped)
Microphone
Display
Steering wheel telephone switches
Volume
Start call
End call
Voice command button
Clock
H-Hour set M-Minute set
Cup and bottle holders
Cup holder-Front Cup holder-Rear
Bottle holder
Front door
Power outlets
Instrument panel (12V)
Center console box (12V)
The Hybrid System must be in “ACC” or “IG-ON.”
Parking brake
Set: Depress Release: Depress again
Page 16
27
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
26

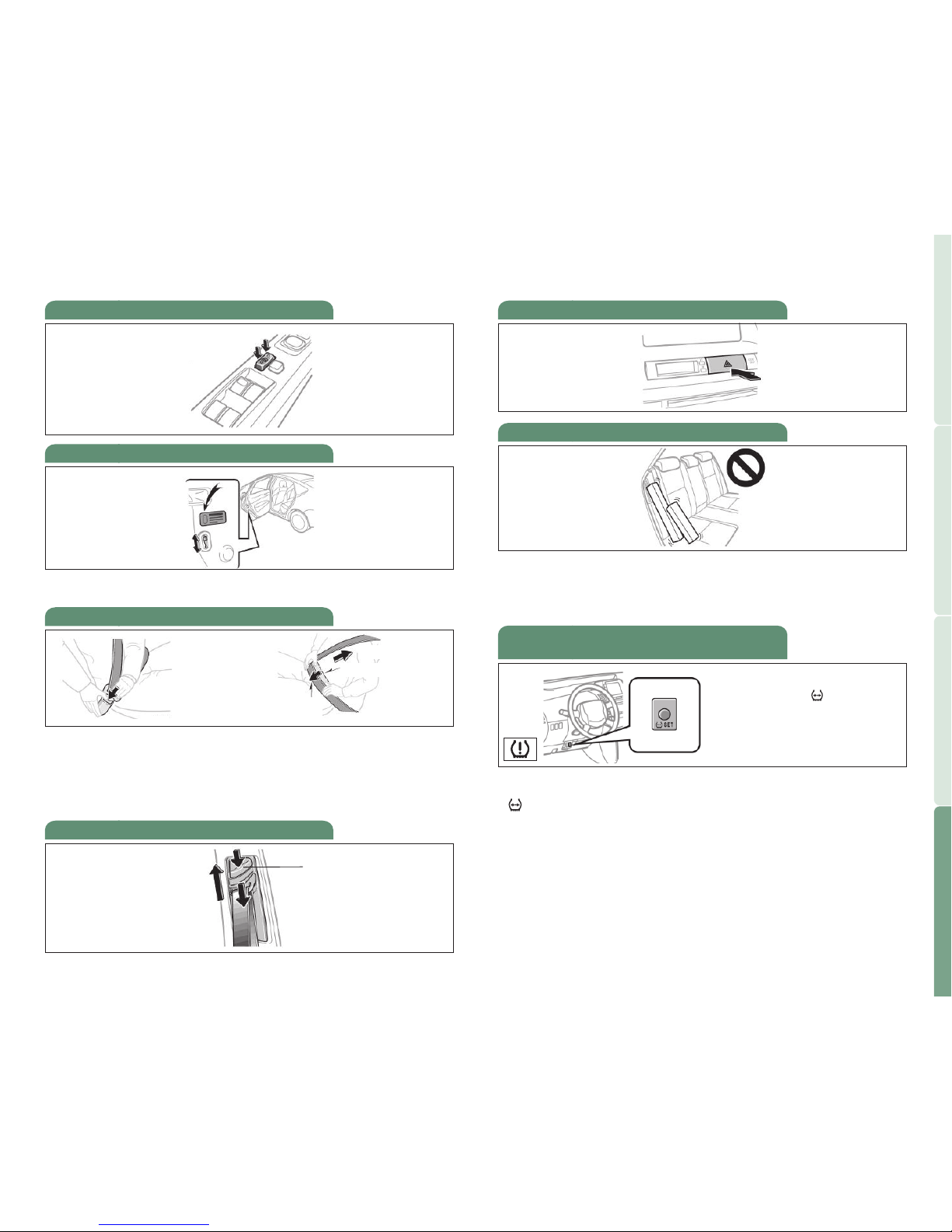

SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child restraint system, refer to the
Owner’s Manual.
Keep as low on hips as possible
Take up slack
Too high
Seat belts
Moving the lever to “LOCK” will allow the door to be opened only from the outside.
Doors-Child safety locks
Door locks
Seat belts-Shoulder belt anchor
Unlock
Rear door
Push up, or squeeze lock release to lower
Lock
Emergency flashers
Note: The air vent on the right side of the rear seatback is designed
to assist in cooling the Hybrid vehicle battery. DO NOT BLOCK OR COVER THIS VENT, as it may cause overheating, resulting in reduced vehicle performance.
Rear air vent
Push
System reset initialization
1. Push and hold “ SET” button until the indicator blinks three times.
2. Wait a few minutes to allow initialization to complete.
Tire Pressure Monitoring (warning) System
After adjusting tire pressures, or after tires have been rotated or replaced, turn the ignition switch to “ON” and press and hold the “ SET” button until indicator blinks three times. Let the vehicle sit for a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the
Owner’s Manual for tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer.
Note: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

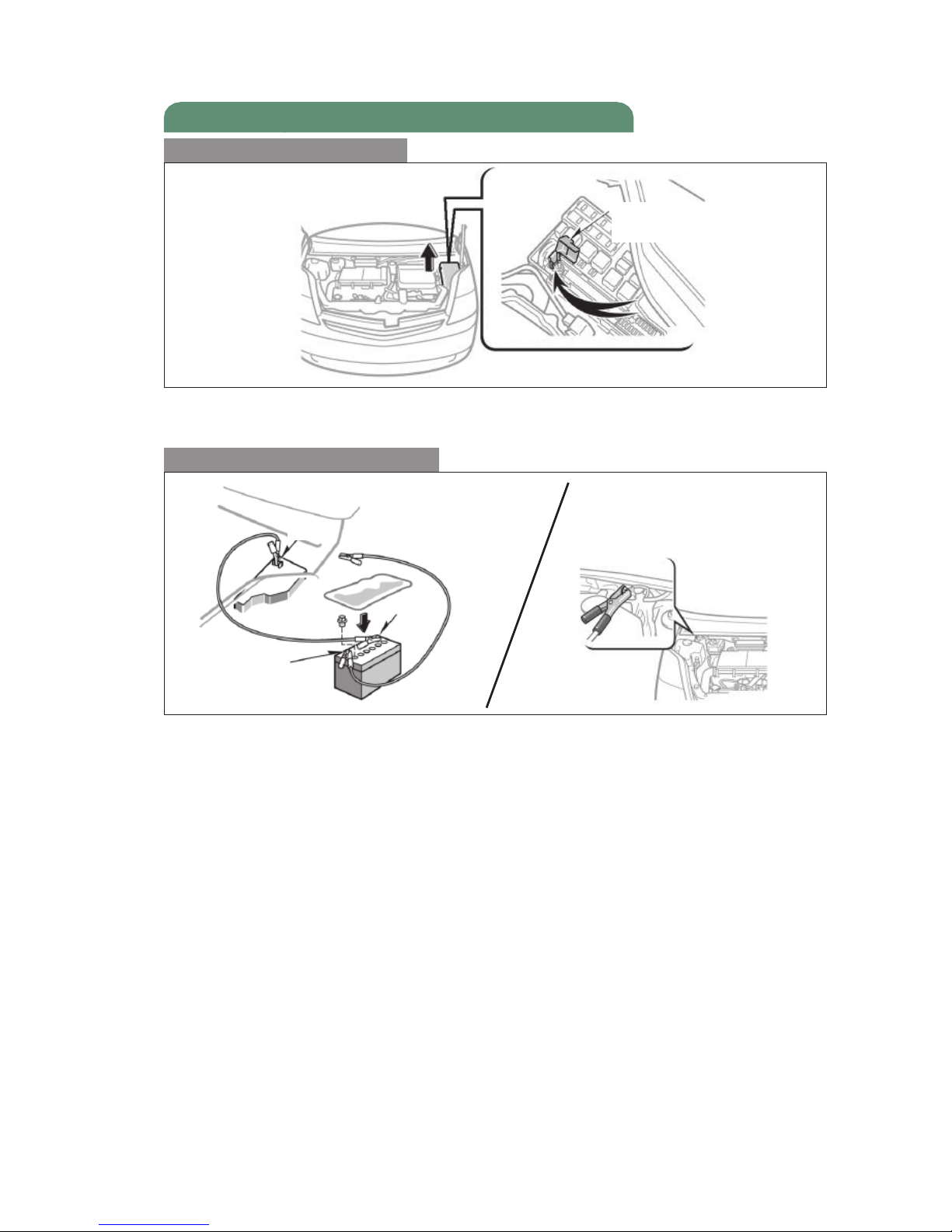

Page 17
Page 18
29
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

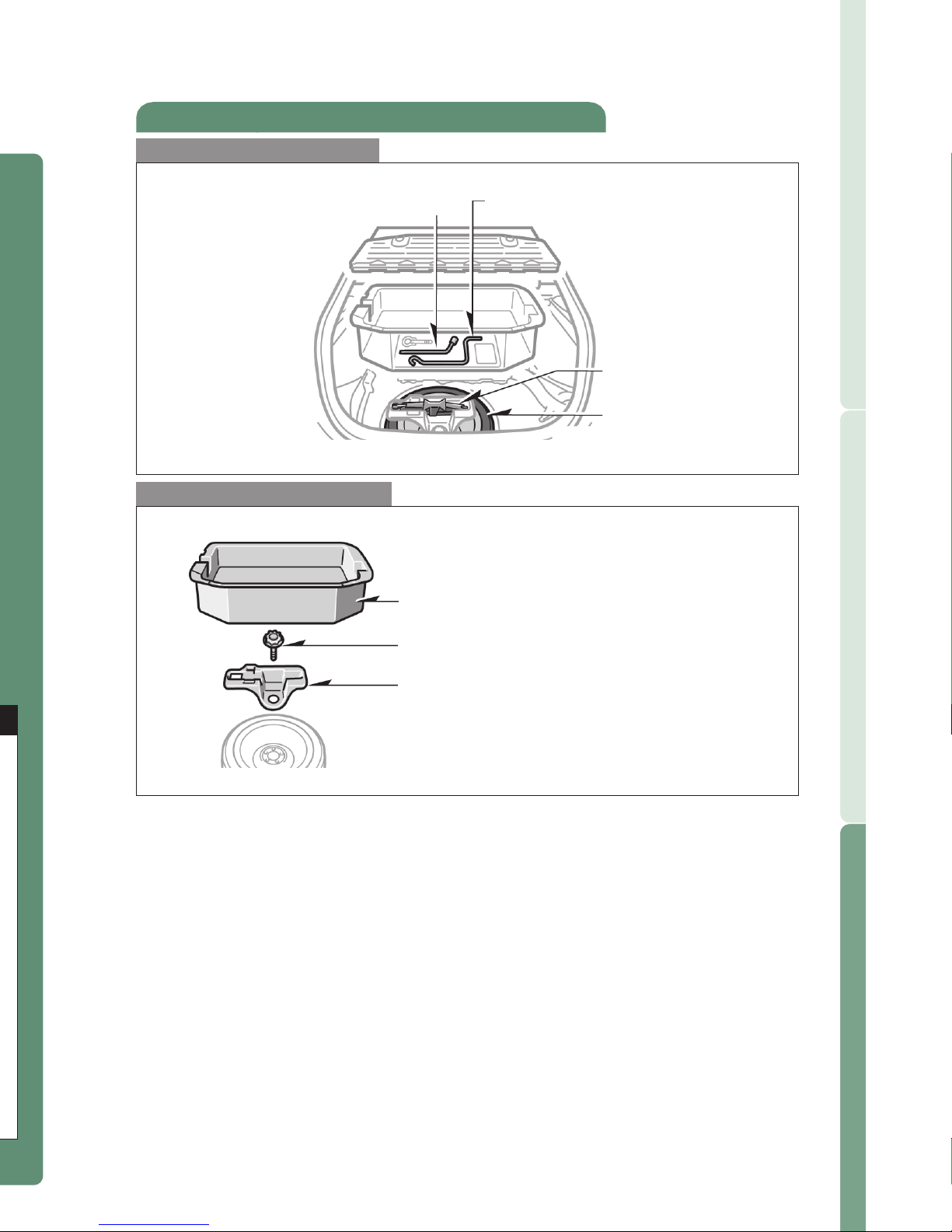

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the luggage storage box. (2) Loosen the bolt and remove it. (3) Remove the jack box.
Refer to the “
Owner’s Manual” for tire changing and jack positioning procedures.
Wheel nut wrench Jack handle
Jack
Spare tire
(1)
(3)
(2)
Page 19
MN 00505-QRG09-PRI
Printed in the USA 7/08
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
