2007 Pocket Reference Guide

Customer Experience Center 1-800-331-4331

2007 Camry

Open This and Really Get into

Your New Toyota

The Ultimate

Interactive Owner’s Guide

Flip this over to see your

Pocket Reference Guide.

MN 00452-PRG07-CAMi Printed in USA 05/06

Flip this over to see your

iGuide.

Page 2

2007

Camry

A word about safe vehicle operations

This Pocket Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Pocket Reference Guide is not intended as a substitute for the Owner’s Manual located in your vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Camry.

This Pocket Reference Guide is not a full description of Camry operations. Every Camry owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in yellow throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Pocket Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

Camry

iGuide

WINDOWS 98

PENTIUM III 600MHZ

64MB OF RAM

800 X 600 MONITOR

16-BIT COLOR

CD-ROM DRIVE

MACINTOSH

SYSTEM 9.X,

OS X 10.2

POWERPC

64MB OF RAM

24-BIT COLOR

CD-ROM DRIVE

MINIMUM REQUIREMENTS

This iGuide is designed to be played on

any computer—PC or Macintosh.

Page 3

INDEX

Engine maintenance 8 Fuel tank door release and cap 6 Hood release 8 Indicator symbols 4-5 Instrument cluster 4 Instrument panel 2-3

Keyless entry

1,2

Light control-Instrument panel 6 Trunk release 7

Air Conditioning/Heating 18-19 Audio 16-17

Auto lock functions

Automatic transmission 10 Clock 15 Cruise control 13 Cup holders 20 Garage door opener (HomeLink®)

Lights2& turn signals 14

Multi-information display 20 Moonroof 13 Parking brake 11 Power outlets 19 Seat adjustments-Front 12 Seat adjustments-Rear 12 Seat heaters 19 Seats-Head restraints 13 Sunshade-Rear 15 Smart Key 9 Telephone controls (Bluetooth®)17 Tilt and telescopic steering wheel 11 Windows 11 Windshield wiper & washer 14

Child comfort guide 22 Door locks 21 Doors-Child safety locks 21 Seat belts 21 Seat belts-Shoulder belt anchor 22 Spare tire & tools 23 Tire Pressure Warning System reset 22 Trunk-Internal release 23

Programmable by customer

. Refer to the Owner’s Manual for instructions and

more information.

Visit your Toyota dealer for information on customizing this feature.

HomeLink®is a registered trademark of Johnson Controls, Inc.

OVERVIEW

FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

Page 4

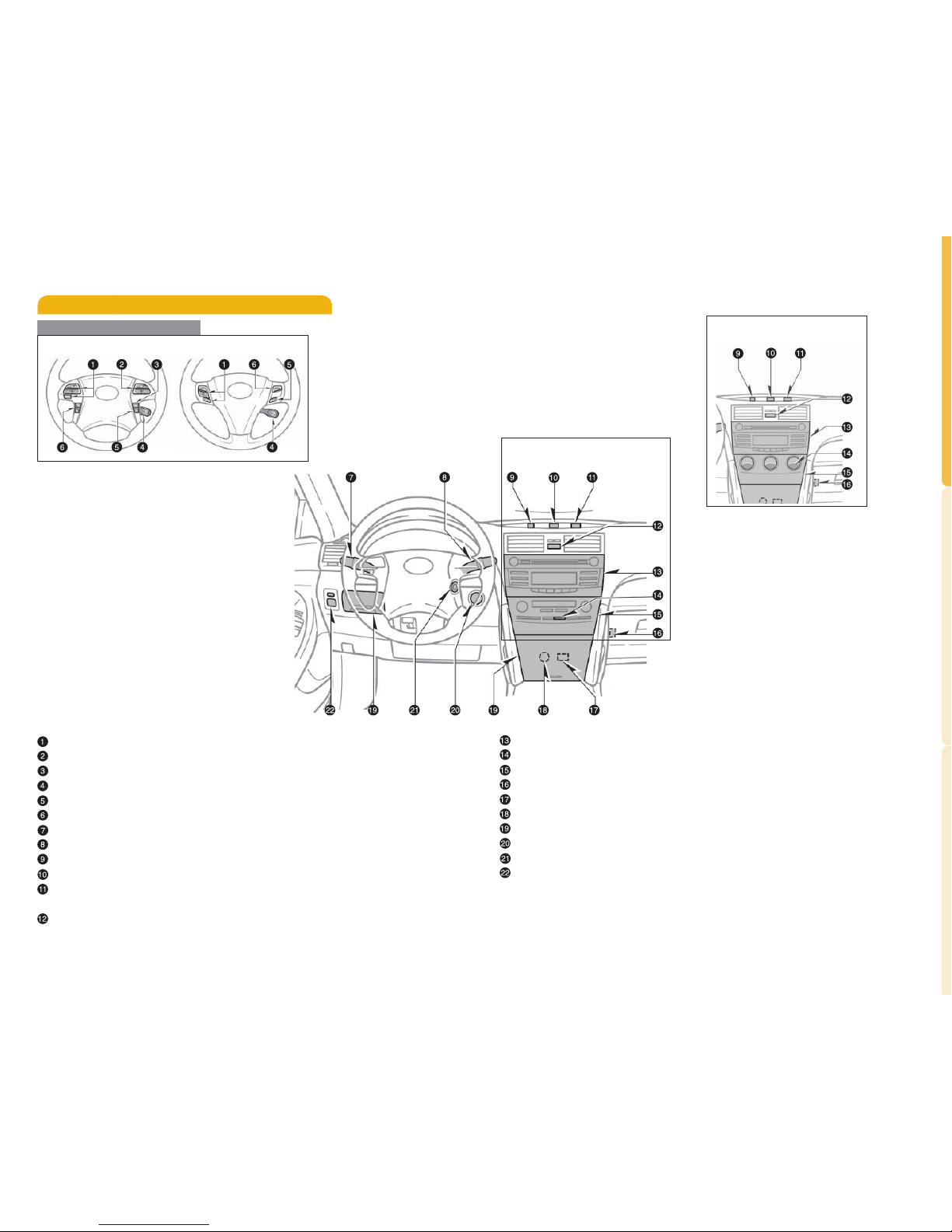

OVERVIEW

Steering wheel audio control Steering wheel climate control Multi-information display switch

Cruise control Navigation voice command button

1,2

Telephone controls

Headlight, turn signal and front fog light controls Wiper and washer controls Theft deterrent system/Engine immobilizer system indicator light Clock “AIRBAG ON” and “AIRBAG OFF” indicator and front passenger’s seat belt reminder lights Emergency flasher switch

Audio system or navigation system with integrated audio system

1,2

Rear window and outside rear view mirror defogger switch

Air Conditioning controls Tire Pressure Warning System reset switch (in glove box) AUX adapter 12V DC Power outlet Auxiliary boxes

Ignition switch (Smart Key)

Ignition switch (mechanical key) Power rear view mirror control switches

If equipped

For details, refer to the “Navigation System Owner’s Manual.”

Instrument panel

Steering wheel controls

With manual Air Conditioning controls

With automatic Air Conditioning controls

XLE and LE models

SE model

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Page 5

OVERVIEW

Driver seat belt reminder

(Alarm will sound if speed is over 12 mph) Front passenger’s seat belt reminder

(Alarm will sound if speed is over 12 mph)

Brake system warning

Charging system warning

Low engine oil pressure warning

Anti-lock brake system warning

Malfunction/Check Engine indicator

For details, refer to “Service reminder indicators and warning buzzers,” Section 1-6, 2007

Owner’s Manual.

If this light flashes, refer to “Cruise control,” Section 1-7, 2007 Owner’s Manual.

When the anti-lock brake system (ABS) function is in action, you may feel the brake pedal pulsating and hear a noise. In this situation, to let the anti-lock brake system work for you, just hold the brake pedal down more firmly. Do not pump the brake as this will result in reduced braking performance.

Indicator symbols

Open door warning

Low windshield washer fluid level warning

Engine oil replacement reminder

“AIRBAG ON” indicator

“AIRBAG OFF” indicator

Headlight low beam indicator

Tail light indicator

Turn signal indicator

Low fuel level warning

Master warning1(See multi-information display)

Headlight high beam indicator

Cruise Control indicator

Front fog light indicator

Slip indicator

Airbag SRS warning

Vehicle Stability Control/Traction Control warning

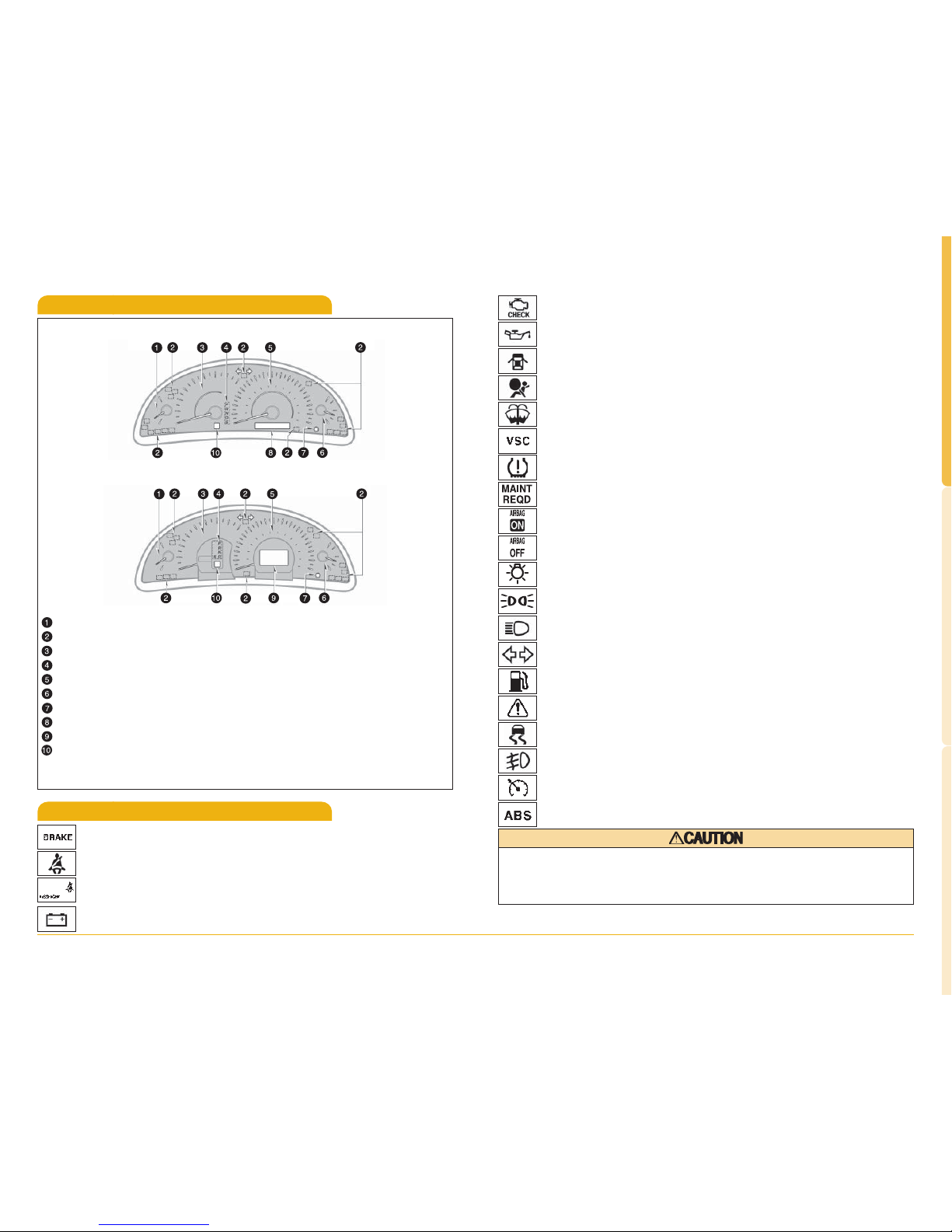

Engine coolant temperature Service indicator and reminder Tachometer Gear shift position indicator Speedometer Fuel gauge Trip meter reset/Instrument panel light control Odometer and two trip meters and outside temperature display Multi-information display Sequential shift display*

* If equipped

Instrument cluster

Low tire pressure warning

Without multi-information display (LE and SE models)

With multi-information display (XLE model)

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Page 6

OVERVIEW

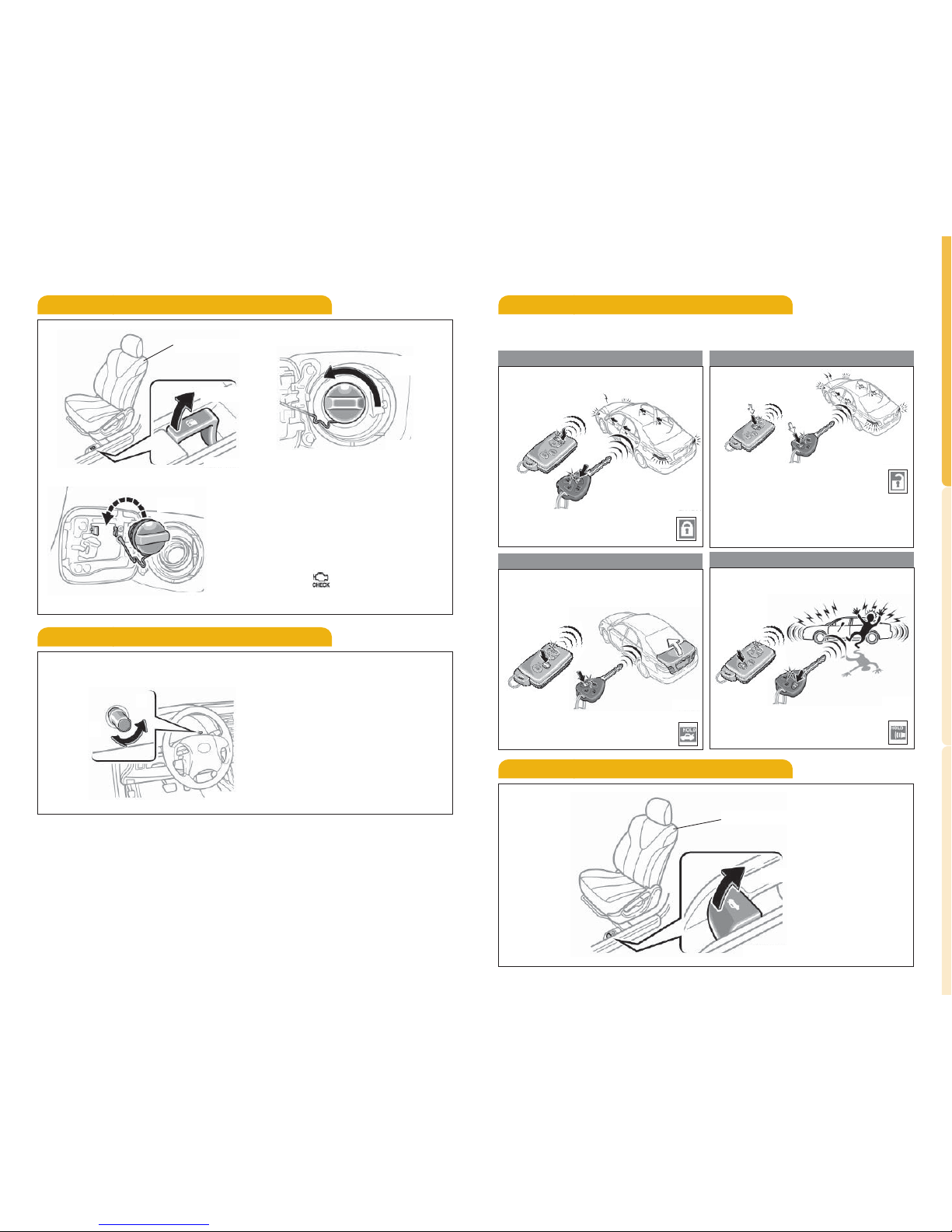

Fuel tank door release and cap

Trunk release

Driver seat

Pull up

Driver seat

Tu r n

Store

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ ” indicator may illuminate.

Keyless entry

NOTE: After unlocking, if a door is

not opened within 60 seconds, all doors will relock for safety.

Unlocking operation

Trunk lid operation

Alarm operation

Beep sound can be switched “ON” or “OFF.” Refer to the Owner’s Manual for more details.

Push ONCE: Driver door

TWICE: All doors

Locking operation

Push and hold

Push

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

With the knob turned fully clockwise, instrument panel lights will not dim when the headlights are turned on.

Light control-Instrument panel

Brightness control

NOTE: This is also the trip

meter reset button.

Page 7

OVERVIEW

FEATURES/OPERATIONS

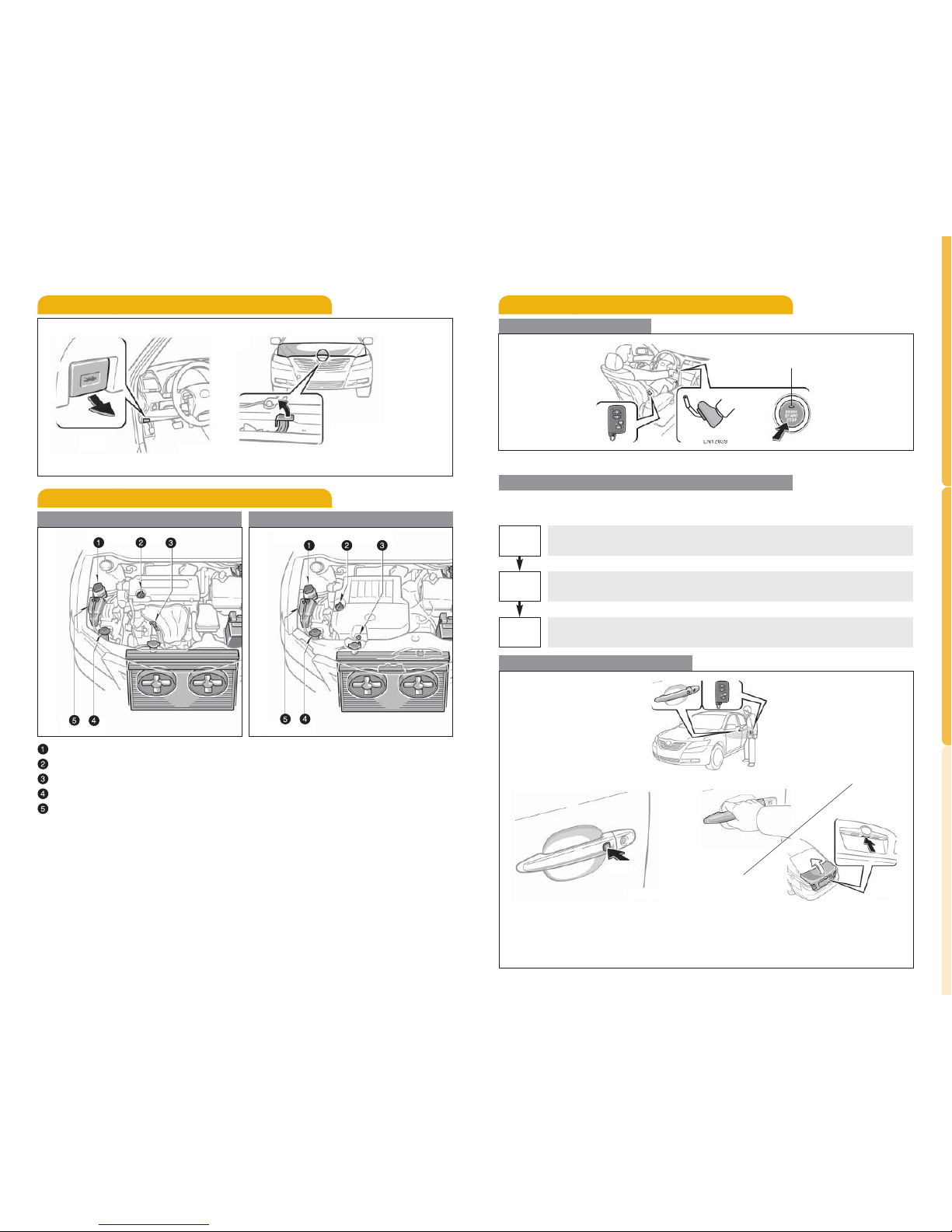

Engine maintenance

4 cylinder (2AZ-FE) engine

cylinder

(2GR-FE) engine

Power steering fluid reservoir Engine oil filler cap Engine oil level dipstick Windshield washer fluid tank Engine coolant reservoir

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Owner’s Warranty Information Booklet,” “Scheduled Maintenance Guide” or “Owner’s Manual Supplement.”

Smart Key* (if equipped)

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Start function

Without depressing the brake pedal

Pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

Accessories such as the radio will operate.

Power ON; engine not running.

All systems OFF.

ACC

OFF

Depress

Carrying

Green indicator ON

Push

Locking/Unlocking operation

Carry remote to Lock/Unlock

Push

Trunk open

Front door unlock

Grasp

Front door lock

* Driver door unlocking function can be programmed to unlock driver door

only, or all doors. Grasping front passenger handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

Push

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Hood release

Pull up latch and raise hood

Pull

Page 8

FEATURES/OPERATIONS

Auto lock functions

Automatic door locks can be programmed to operate in 4 different modes, or turned OFF.

-Doors lock when shifting from Park.*

-Doors lock when the vehicle speed goes above approximately 12 mph.

-Doors unlock when shifting into Park.*

-Doors unlock when the ignition switch is set from ON to ACC or OFF and

driver’s door is opened.

* Automatic transmission only

Refer to the Owner’s Manual for more details.

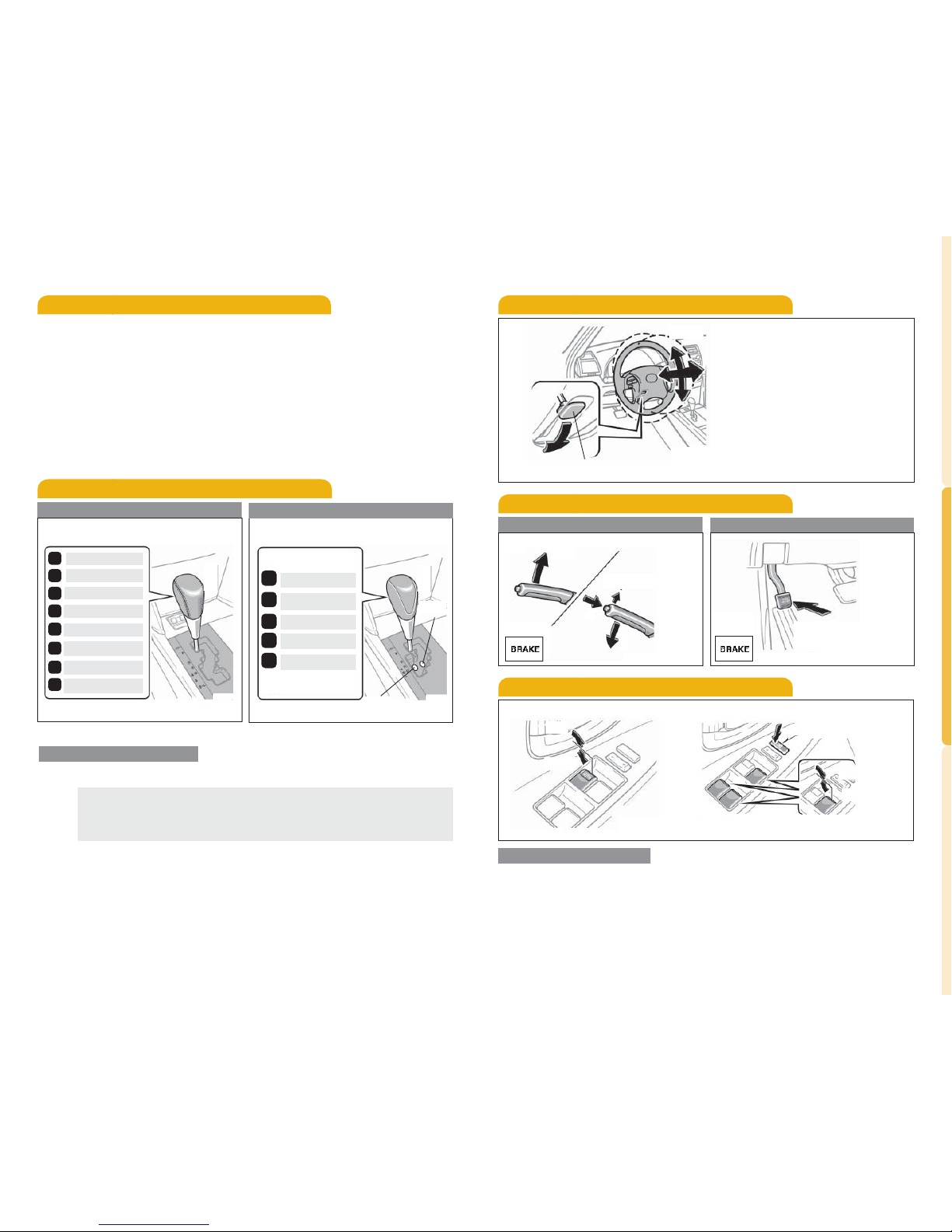

Automatic transmission (if equipped)

4 cylinder (2AZ-FE) engine

6 cylinder (2GR-FE) engine

Park

Reverse

Neutral

Drive

N D

“S” mode

“S” position:

Upshift (Push and release) Downshift (Pull and release)

“S” (Sequential) mode

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Push to shift lever to the left from “D” position.

The ignition switch must be ON, and the brake pedal depressed.

Tilt and telescopic steering wheel

Lock release lever

Angle

Length

Park

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Fourth gear

Hold wheel, push lever down, set angle and length, then return lever.

Note: Do not attempt to adjust

while the vehicle is in motion.

Lever type

Parking brake

Pedal ty pe

Set: Depress Release: Depress again

Pull

(2) Push

Set

Release

(1) Pull slightly

(3) Lower

1110

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

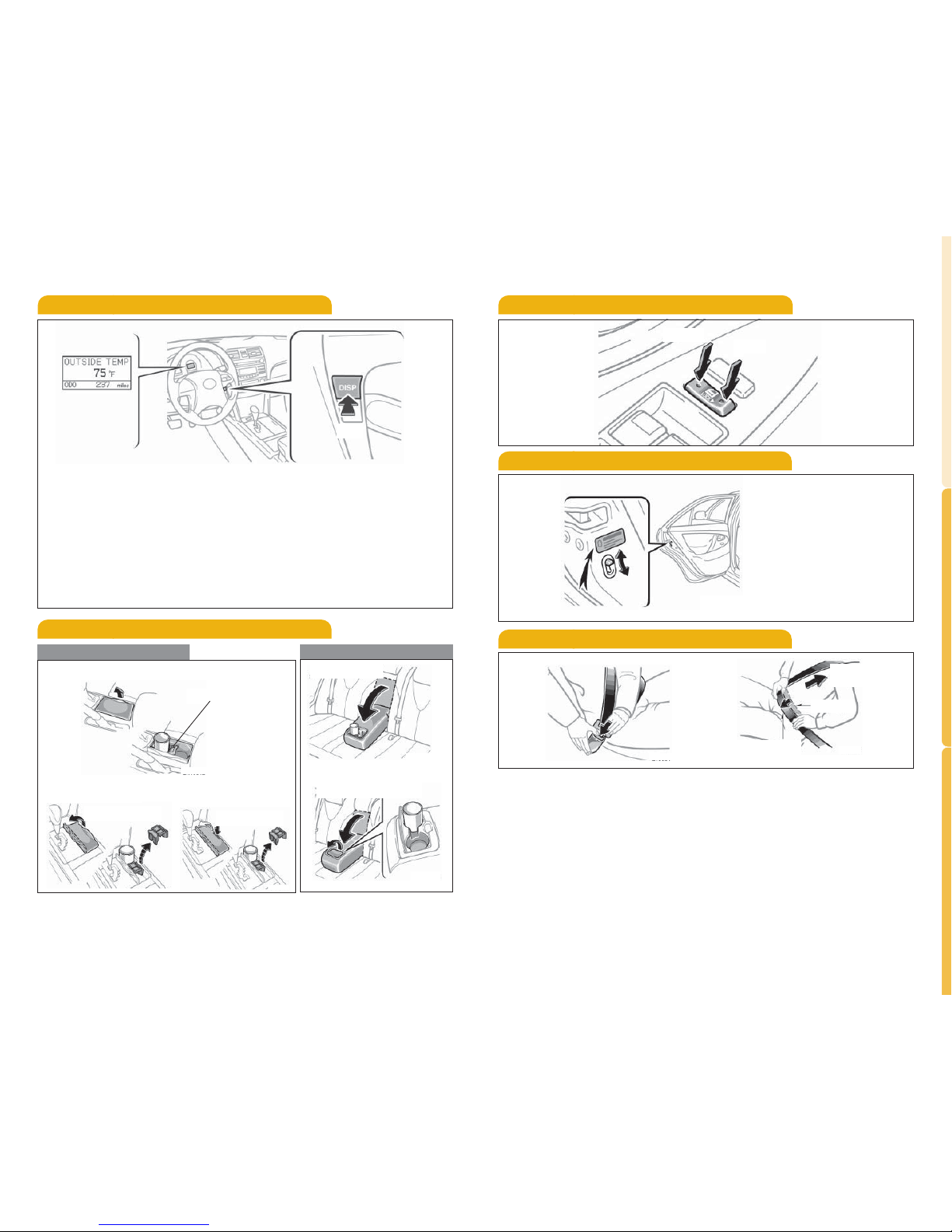

Windows

Window operation

Automatic operation (Driver side only) Push the switch completely down

or pull it completely up and release to fully open or close*. To stop window mid-way, lightly push the switch in the opposite direction.

* Auto close on XLE model only

Window lock switch

Driver side

Down

“S”

Window lock switch Deactivates all passenger windows. Driver’s window

remains operable.

“D”

Page 9

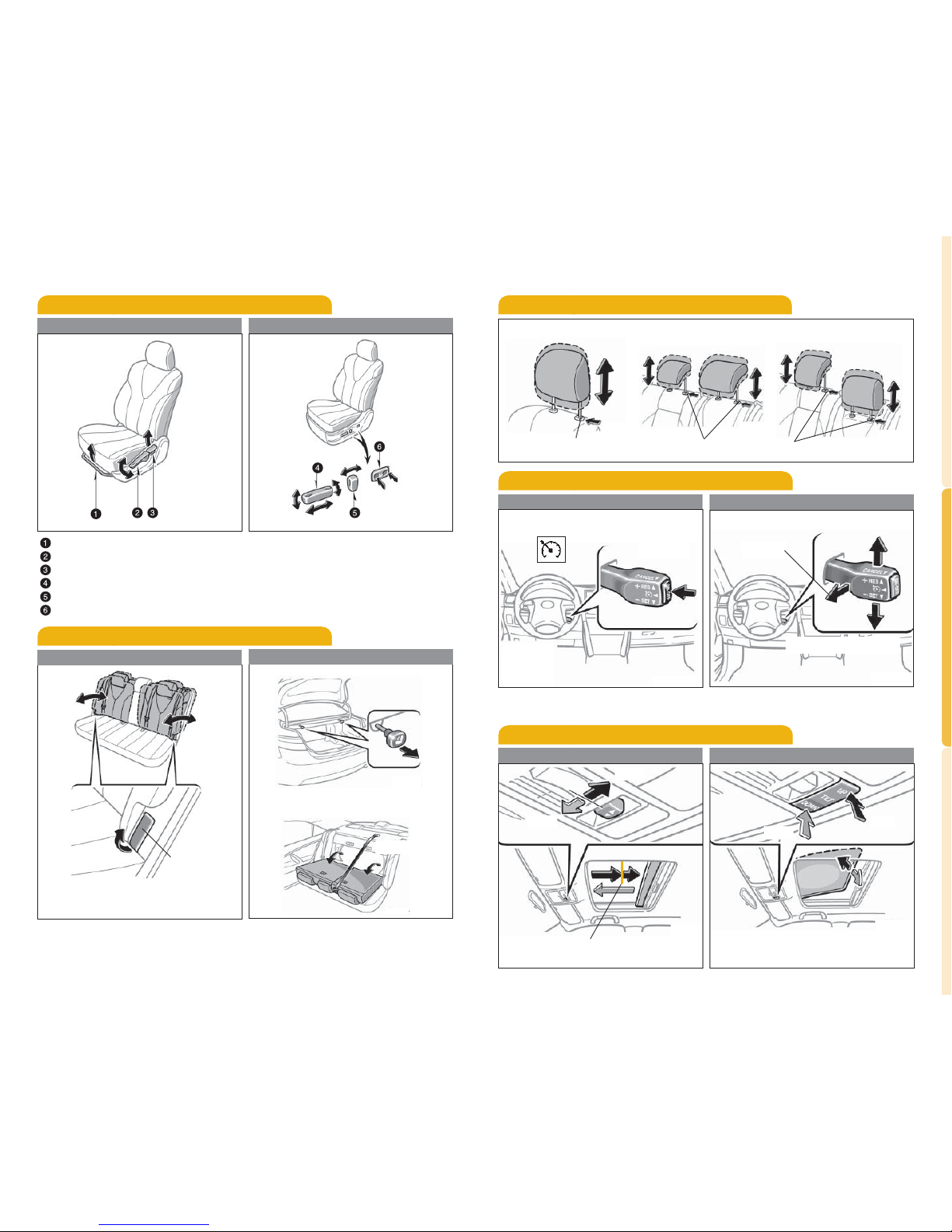

Seat adjustments-Rear (if equipped)

Seat adjustments-Front

Manual seat

Power seat

Position Height crank (driver side only) Seatback angle Position and height Seatback angle Lumbar support (driver side only)

FEATURES/OPERATIONS

Lock release button

Seats-Head restraints

Height

Reclining type (XLE model)

Seatback angle lever

Fold down type (LE model)

Pull

Fold down

Front

Rear (LE model)

Rear (XLE and SE models)

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Cruise control

The set speed may also be cancelled by depressing the brake pedal.

The set speed may be resumed once vehicle speed exceeds 25 mph.

Turning system ON/OFF

Functions

Resu me2/Increase speed

Set/Decrease speed

Cancel

System ON/OFF

Moonroof (If equipped)

Sliding operation Tilting operation

Open

Tilt

Recommended driving position to minimize wind noise.

Lock release button

Page 10

1514

FEATURES/OPERATIONS

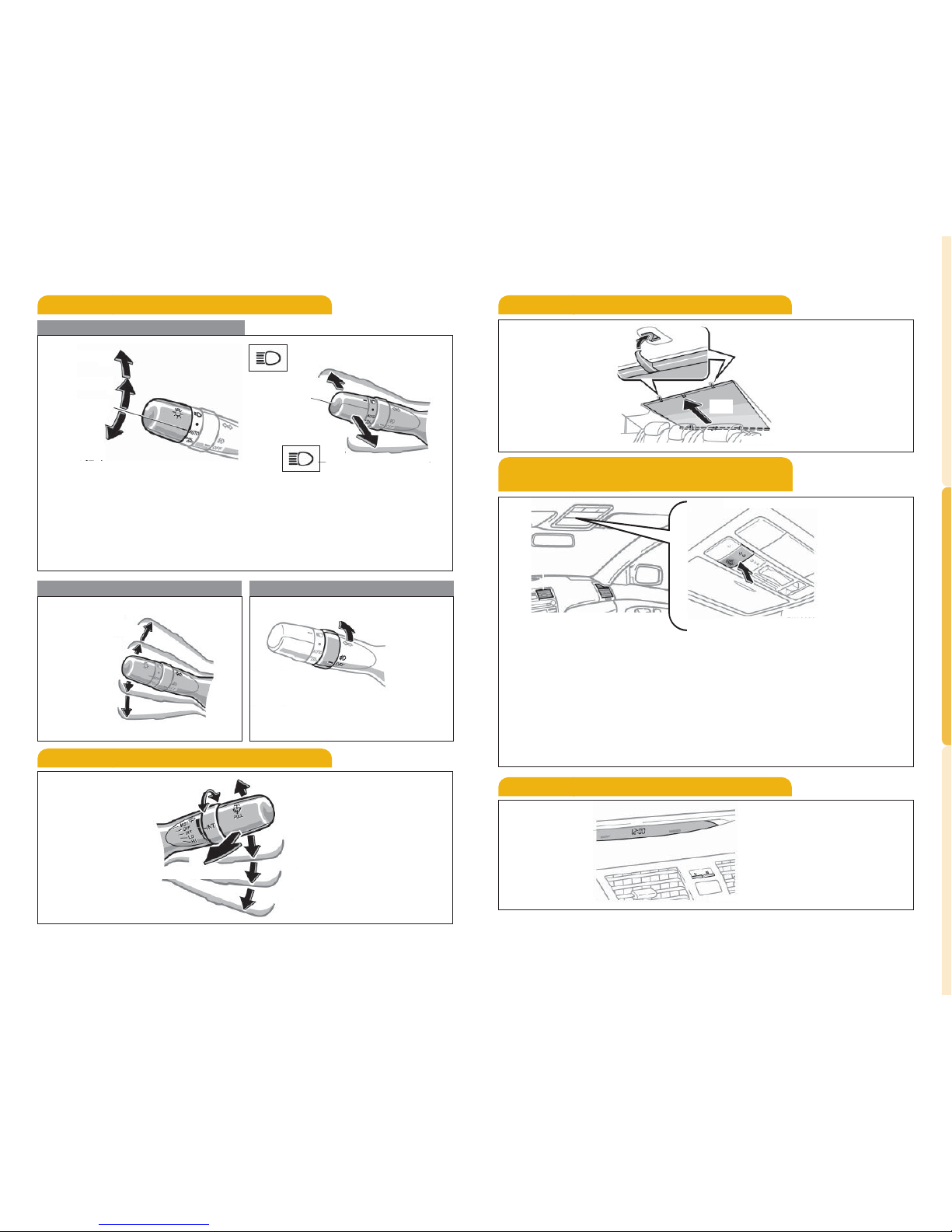

Lights & turn signals

Headlights

-Daytime Running Light system (DRL) Automatically turns on the

headlights at a reduced intensity.

-Automatic light cut off system Will automatically turn lights off after

a delay of thirty (30) seconds, or push the lock switch on remote.

Turns DRL OFF

Turn signals

High beam flasher

Right turn

Lane change

Left turn

Low beam

Front fog lights (if equipped)

Tu rn

Headlights

DRL OFF

Parking lights

AUTO

High beam

Front fog lights come on only when the headlights are on low beam.

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Sunshade-Rear (if equipped)

Hook

Pull

Garage door openers manufactured under license from HomeLink®*can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to the Owner’s Manual for more details. For programming assistance, contact the Toyota Customer Experience Center at 1-800-331-4331, or visit http://www.homelink.com.

* HomeLink®is a registered trademark of Johnson Controls, Inc.

Garage door opener (HomeLink®)* (if equipped)

Clock

H-Hour set M- Minute set

Windshield wiper & washer

Adjust interval

Pull to wash and wipe

Single wipe

Interval wipe

Slow

Fast

Page 11

1716

FEATURES/OPERATIONS

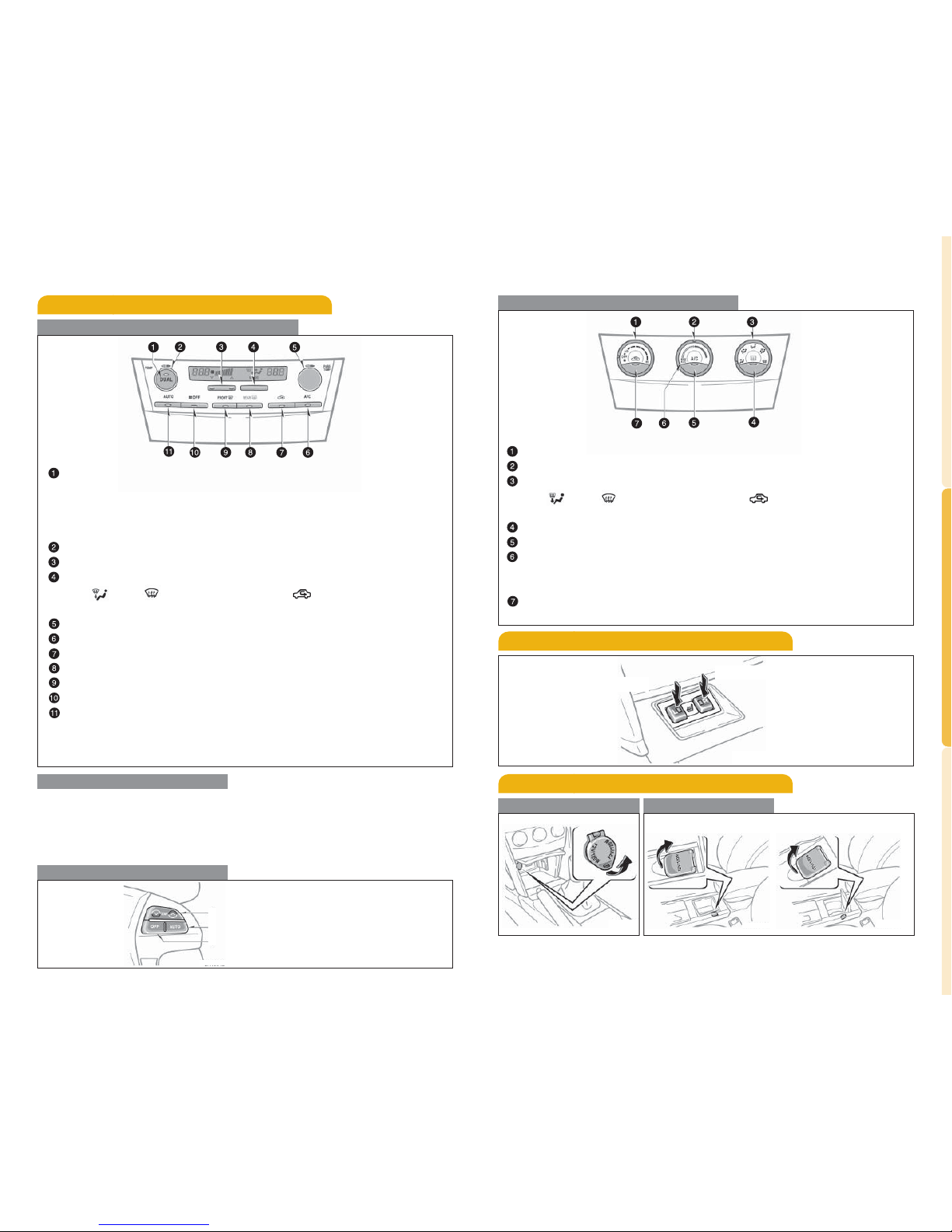

Type 2 other functions

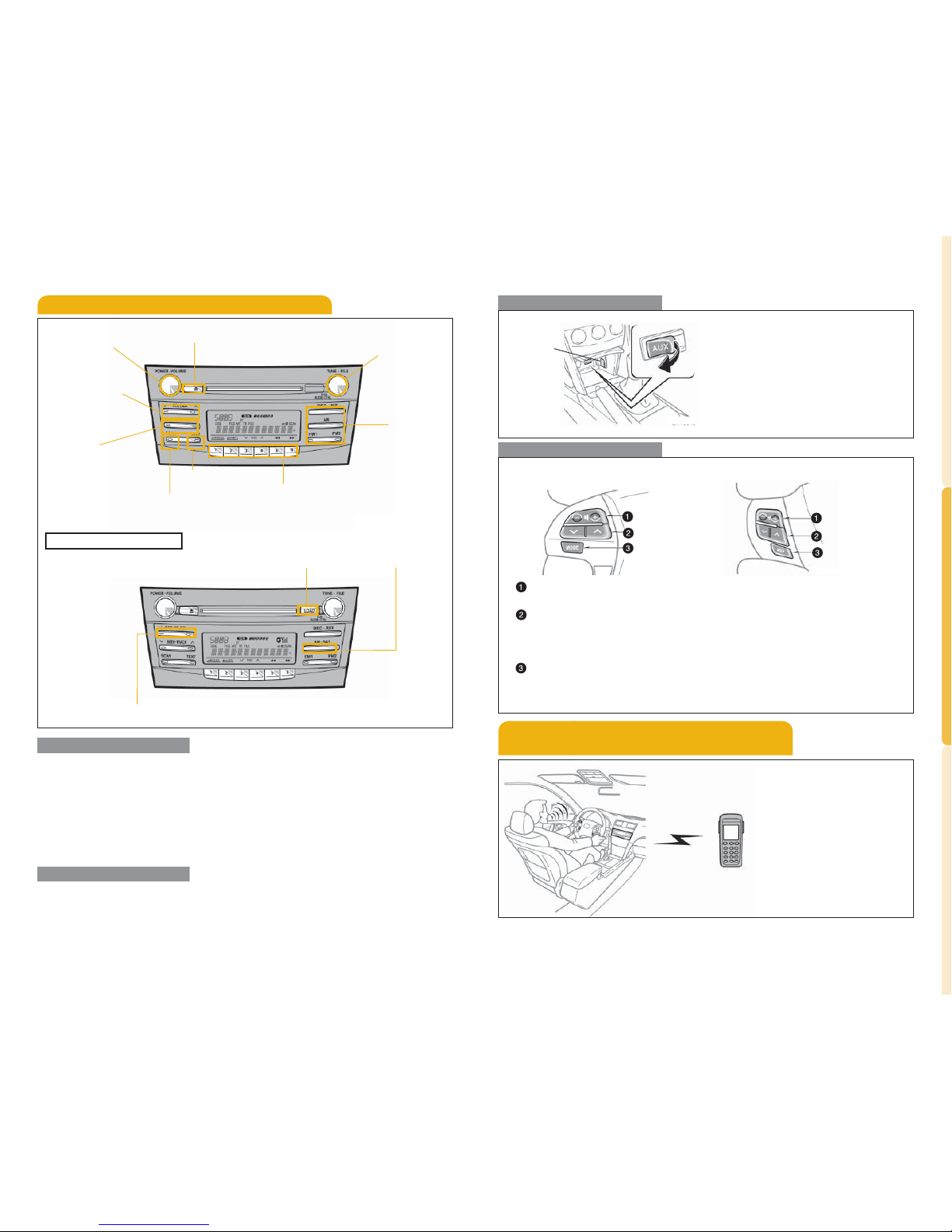

Audio

Eject CD

Push to turn ON/OFF

Push to adjust tone & balance

Seek station/ CD track select

Station/CD track scan

Mode

Preset buttons - button functions in other modes indicated above number

Load CD(s)

To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection.

CD Changer (Type 2 only)

-To load one disc Push “LOAD” and insert one disc.

-To load multiple discs Push and hold “LOAD” until you hear a beep.

Insert one disc. Wait until the green indicator illuminates and shutter opens to insert next disc.

RADIO

To preset stations Tune in the desired station and hold down a preset

button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection.

Steering wheel controls

XLE and LE models

SE model

“-+”

Volume control

“”

-In radio mode Push to select a preset station; push and hold to

seek the next strong station.

-In CD mode Push to skip up or down to next/previous track. “MODE”

Push to turn audio ON and select an audio mode. Push and hold to turn the audio system “OFF.”

CD PLAYER

Push to skip up /down folder

View CD text

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system.

AUX audio jack

View genre/Push to skip up/down folder

AM/Satellite radio

Wire pass through

Bluetooth®technology allows placement or receipt of calls without taking your hands from the steering wheel or using a cable to connect the telephone and the system.

Telephone controls (Bluetooth®)* (if equipped)

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Refer to the Owner’s Manual for more details.

Page 12

1918

FEATURES/OPERATIONS

Fan speed Temperature Air flow vent

Rear defogger Air Conditioning ON/OFF Use for quick cooling. MAX A/C changes air intake to recirculate. It is not possible to change intake to fresh, or to turn A/C OFF in this mode. Fresh or recirculate cabin air

Air Conditioning/Heating

Manual Air Conditioning

Automatic Air Conditioning

In “ ” or “ ” mode, use fresh air (“ ” indicator light “OFF”) to reduce window fogging.

Steering wheel controls

Temperature selector Auto A/C ON A/C OFF

Plasmacluster

* (XLE model)

* This system adopts the plasmacluster technology, manufactured under license from SHARP Corporation. “Plasmacluster

” is a trademark of SHARP Corporation.

Improves air quality by emitting positive and negative ions into the cabin. This system operates from the driver side vent and a low system noise is normal.

“DUAL” button Indicator ON: Separate temperature settings for driver and passenger. Indicator OFF: Synchronize temperature settings for driver and passenger. Driver temperature Fan speed Air flow vent

Passenger temperature Air Conditioning ON/OFF Fresh or recirculate cabin air Rear defogger Windshield defogger Climate control OFF Automatic climate control ON Adjust the temperature setting, and airflow vents and fan will adjust automatically.

Seat heaters (if equipped)

Left front seat

Right front seat

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Power outlets

Center console

Designed for 12V car accessories. Key/Engine switch must be in the “ACC” or “ON” position to be used.

Front console

LE model

XLE and SE models

In “ ” or “ ” mode, use fresh air (“ ” indicator light “OFF”) to reduce window fogging.

Page 13

20 21

SAFETY AND EMERGENCY FEATURES

Multi-information display (if equipped)

Push to change information in the following succession:

(1) Outside temperature (2) Miles left on remaining fuel (3) Current gas mileage (4) Running distance from engine start (5) Average vehicle speed from engine start (6) Multi-information display OFF (7) Zoom display of odometer and trip meter

FEATURES/OPERATIONS

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Cup holders

Front

Rear

LE model

XLE and SE models

Manual transmission models

Automatic transmission models

LE model

XLE and SE models

Not removable

Pull to open

Push to open

Keep as low on hips as possible

Take up slack

Too high

Seat belts

Doors-Child safety locks

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

If belt is fully extended, then retracted even slightly, it cannot be reextended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.

Rear door

Door locks

Unlock

Lock

Push

Page 14

SAFETY AND EMERGENCY FEATURES

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

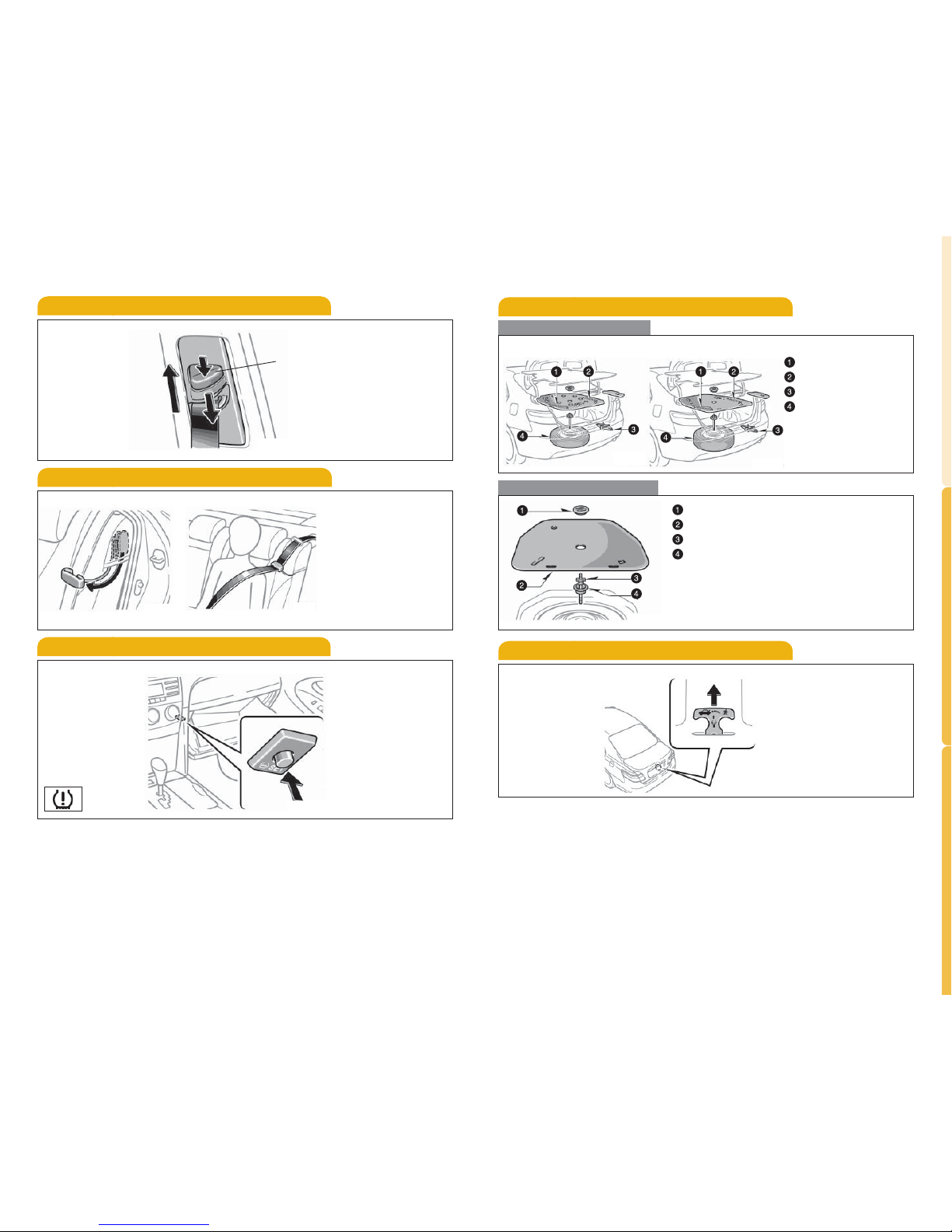

Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

Rear seat outside position guides provide added comfort for children who have outgrown child restraints.

Child comfort guide

Tire Pressure Warning System reset

If tire pressure becomes low on any of the tires (including spare/excluding compact spare), indicator comes on. Pushing reset button should not turn off the light. Correctly adjusting tire inflation will turn off the light after a few minutes. Push and hold reset button, until the indicator light blinks 3 times, after replacing tire or wheels.

Spare tire & tools

Tool location

Removing the spare tire

Jack handle Wheel nut wrench Jack Spare tire

Loosen and remove the nut. Remove the spare tire cover. Loosen and remove the bolt. Remove the spacer (with aluminum wheels).

Refer to the

Owner’s Manual for tire

changing and jack positioning procedures.

Trunk-Internal release

With compact spare tire

Pull up

Without compact spare tire

Page 15

Now that you’re the proud owner of a new Toyota vehicle, you

may have questions about some of its controls and features. This

interactive iGuide is filled with easy-to-understand explanations of

all its key components. Full of helpful demonstrations and tips, its

user-friendly format makes learning all about your new vehicle fun

and easy. (There’s even a copy of your Owner’s Manual on the CD.)

For added convenience, you can also access all of this information as

well as links to additional sources, by going to www.toyotaiguide.com.

Of course, your Toyota dealer is always there to help you with quality

service and support. For additional assistance, please call our toll-free

customer number at 1-800-331-4331.

Thank you for choosing Toyota. We hope this iGuide will help you enjoy

many years of safe and pleasant driving.

Note: All of the information contained in this iGuide and more is also available at

www.toyotaiguide.com

The Answers to Your Questions

Are Just a Click Away.

Page 16

2007

Camry

A word about safe vehicle operations

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Camry.

This Pocket Reference Guide is not a full description of Camry operations. Every Camry owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in yellow throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Pocket Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

Camry

iGuide

WINDOWS 98

PENTIUM III 600MHZ

64MB OF RAM

800 X 600 MONITOR

16-BIT COLOR

CD-ROM DRIVE

MACINTOSH

SYSTEM 9.X,

OS X 10.2

POWERPC

64MB OF RAM

24-BIT COLOR

CD-ROM DRIVE

MINIMUM REQUIREMENTS

This iGuide is designed to be played on

any computer—PC or Macintosh.
