2004 COROLLA from Oct. ’03 Prod. (OM12859U)
SPECIFICATIONS
Specifications
Dimensions and weights 252. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 252. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel 252. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications 253. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires 255. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses 255. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8
Page 2
’04 Corolla_U (L/O 0306)
252
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
mm (in.)
Overall lengt h
4530 (178.3)
Overall widt h 1700 (66.9)
Overall height
∗
1480 (58.3)
Wheelbase 2600 (102.4)
Front tread 1480 (58.3)
Rear tread 1460 (57.5)
∗
: Unladen vehicl e
Vehicle capacity weight (occupant s + luggage), kg (lb. ):
385 (850)
Towing capacity (t railer weight + cargo
weight), kg (lb. ):
680 (1500)
Model:
1ZZ−FE
Type:
4 cylinder in li ne, 4 cycle, gasoline
Bore and stroke, mm (in.):
79.0 91.5 (3.11 3.60)
Displacement, cm
3
(cu. in.):
1794 (109.5)
Fuel type:
Unleaded gasoline, Oc tane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.):
50 (13.2, 11.0)
Dimensions and weights Engine Fuel
Page 3
’04 Corolla_U (L/O 0306)
253
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
ENGINE
Valve clearance (engine cold), mm (in. ):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm(in.):
1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.):
With filter 3.7 ( 3.9, 3.3)
Without filter 3.5 ( 3.7, 3.1)
“Toyota Genuine Motor Oil” is filled in
your Toyota vehicle. Us e Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade:
API grade SL “Energy−Conserving” or
ILSAC multigrade engine oil is recommended.

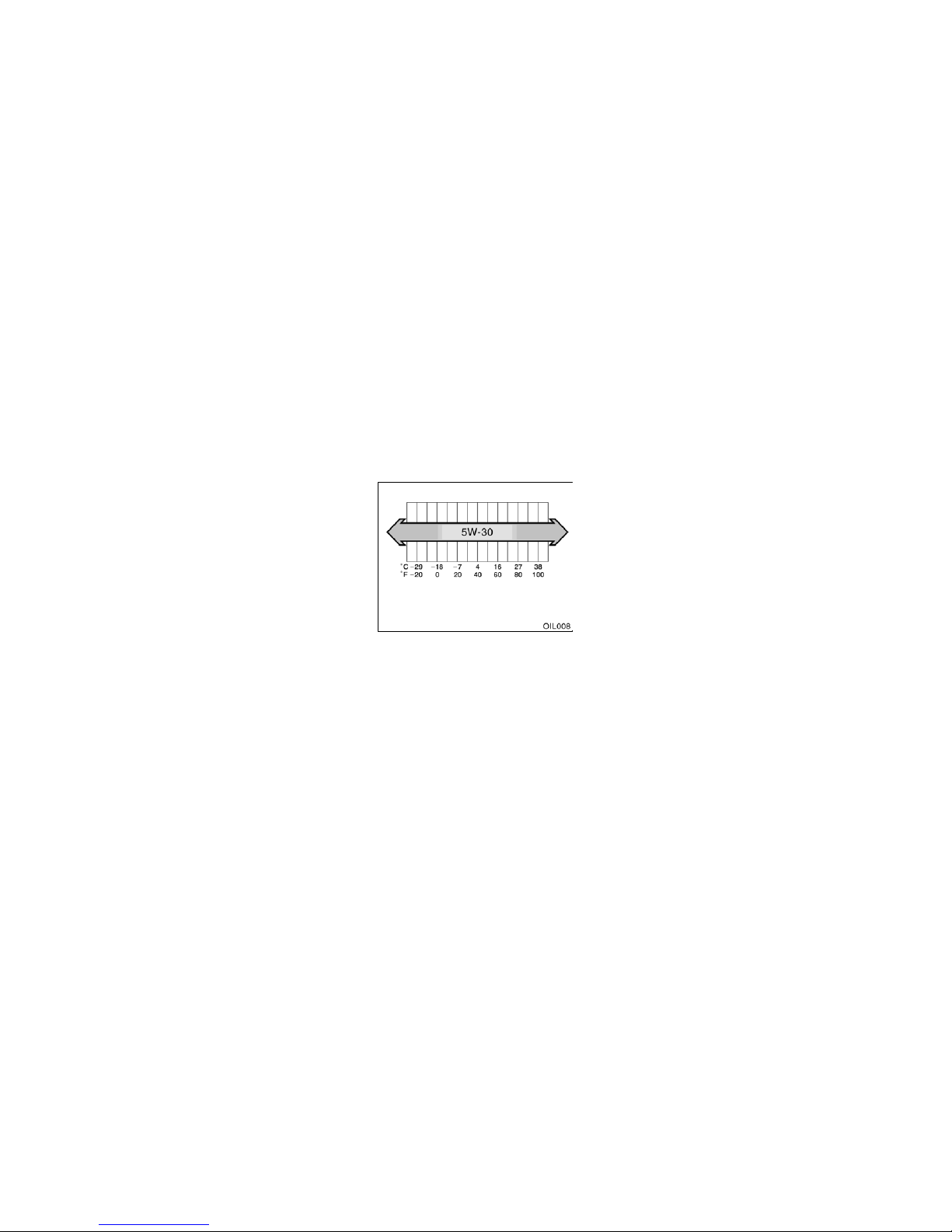

Recommended oil viscosit y:
SAE 5W−30
Outside temperature
Please contact your Toyota dealer for further detail s.
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
6.5 (6.9, 5. 7)
Coolant type:
“Toyota Genuine Long Life Coolant” is
filled in your Toyota vehicle. In order to
avoid technic al problems, we strongly
recommend using “ Toyota Genuine Long
Life Coolant” or equi valent.
With ethyl ene−glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
Please contact your Toyota dealer for
further details.
Service specifications
Page 4
’04 Corolla_U (L/O 0306)
254
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
BATTERY
Open voltage
∗
at 20_C (68_F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗
: Voltage that is checked 20 minutes af-
ter the key is removed with all the
lights tur ned off.
Charging rates:
5 A max.
CLUTCH
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacit y, L (qt., Imp. qt.):
1.9 (2.0, 1. 7)
Oil type:
Gear oil API GL−4 or GL−5
Recommended oil viscosity:
SAE 75W−90
AUTOMATIC TRANSAXLE
Fluid capacit y (drain and refill),
L (qt., Imp. qt.):
Up to 3.0 (3.2, 2.6)
Fluid type:
Toyota Genuine ATF Type T−IV
Change automatic transmiss ion fluid only
as necessary.
Generally, it is necessary to change
automatic tr ansmission fluid only if your
vehicle is driv en under one of the Special
Operating Conditions list ed in your
“Scheduled Maintenance Guide” or
“Owner’s Manual Supplement”. When
changing the automatic transmis sion fluid,
use only “Toyota Genuine ATF Type T−IV”
(ATF JWS3309 or NWS6500) to aid in
assuring opt imum transax le performanc e.
Notice: Using automatic transmission
fluid other t han “Toyota Genuine ATF
Typ e T −IV” may cause deterioration in
shift quality, locking up of your transmission accompanied by vibration, and
ultimately damage the automatic transmission of your vehicle.
Please contact your Toyota dealer for further detail s.
BRAKES
Minimum pedal cl earance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
70 (2.8)
Pedal free play, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brak e adjustment when pul led with
the force of 196 N (20 kgf, 44 lbf):
6—9 clicks
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmissi on fluid DEXRONrII
or III
Page 5
’04 Corolla_U (L/O 0306)
255
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
Engine compartment
Tires
Tire size
P185/65R15 86S
Front
P195/65R15 89S
210 (2.1, 30)
210 (2.1, 30)
Rear
210 (2.1, 30)
210 (2.1, 30)
Wheel size
15 6 JJ
15 6 JJ
Compact spare tire kPa (kgf/cm
2
or bar, psi) Wheel size
T125/70R16 96M 420 (4.2, 60) 16 4T
Wh eel nut torque, N·m (kgf· m, ft·l bf):
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing
wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 229 through 237, in Section 7−2.
Tire size and cold tire inflation pressure:
kPa (kgf/cm
2
or bar, psi)
Fuses
Page 6
’04 Corolla_U (L/O 0306)
256
2004 COROLLA from Oct. ’03 Prod. (OM12859U)

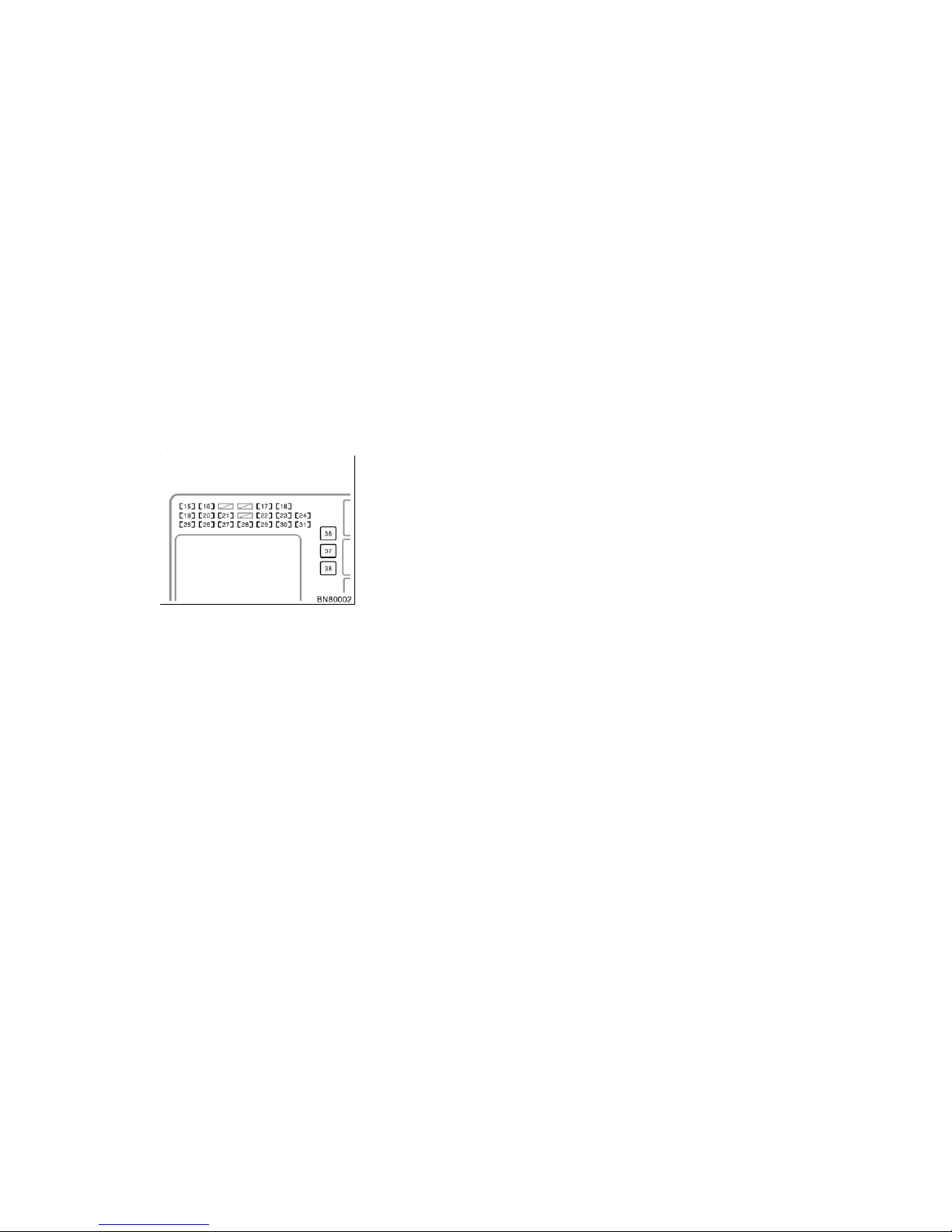

Instrument panel
Fuses (type A)
1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), high beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. MAIN 30 A: Starting system, “AM2”
fuse
8. DOME 15 A: Car audio sy stem, cloc k,
personal light s, interior light, trunk light,
open door warning light, wireless remote control system
9. HORN 10 A: Horn
10. HAZARD 10 A: Emergency flashers,
turn signal light s
11. EFI 15 A: Multiport fuel inj ection sys-
tem/sequential multiport fuel injection
system, emission control system
12. ALT−S 5 A: Charging system
13. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
14. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
15. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights, instru-
ment cluster lights
16. OBD 7.5 A: On−board diagnosis s ys-
tem
17. WIPER 25 A: Windshield wiper s
18. AM2 15 A: Charging system, multipor t
fuel inject ion system/sequential mul tiport fuel injection system, starti ng system, SRS airbag system
19. STOP 15 A: Stop lights, high mounted
stoplight , anti−lock brake system, shift
lock contr ol system, engine contr ol system, cruis e control syst em
20. DOOR 25 A: Power door lock system
21. AM1 25 A: “CIG” fuse
22. ECU−IG 10 A: Electric cooling fan,
anti−lock brake system, shift lock control system, cruise control syst em
23. RR WIPER 15 A: No circuit
24. A/C 10 A: Air condit ioning system
25. INV 15 A: No circui t
26. P/POINT 15 A: Power outlet (in the
rear console box)
27. ECU−B 10 A:
Daytime running light
system
28. CIG 15 A: Power outlet (on the instrument panel) or cigar ette lighter, car audio system, clock, power rear view mirror control, shift lock control system
29. GAUGE 10 A: Gauges and meters , air
conditioni ng system, daytime running
light sys tem, charging sys tem, auto
anti−glare insi de rear view mirror, power windows, cruise contr ol syst em, rear
window defogger, back−up lights, front
passenger’s seat belt reminder light
Page 7
’04 Corolla_U (L/O 0306)
257
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
30. WASHER 15 A: Windshield was her
31. M−HTR/DEF I−UP 10 A: Engine control
system

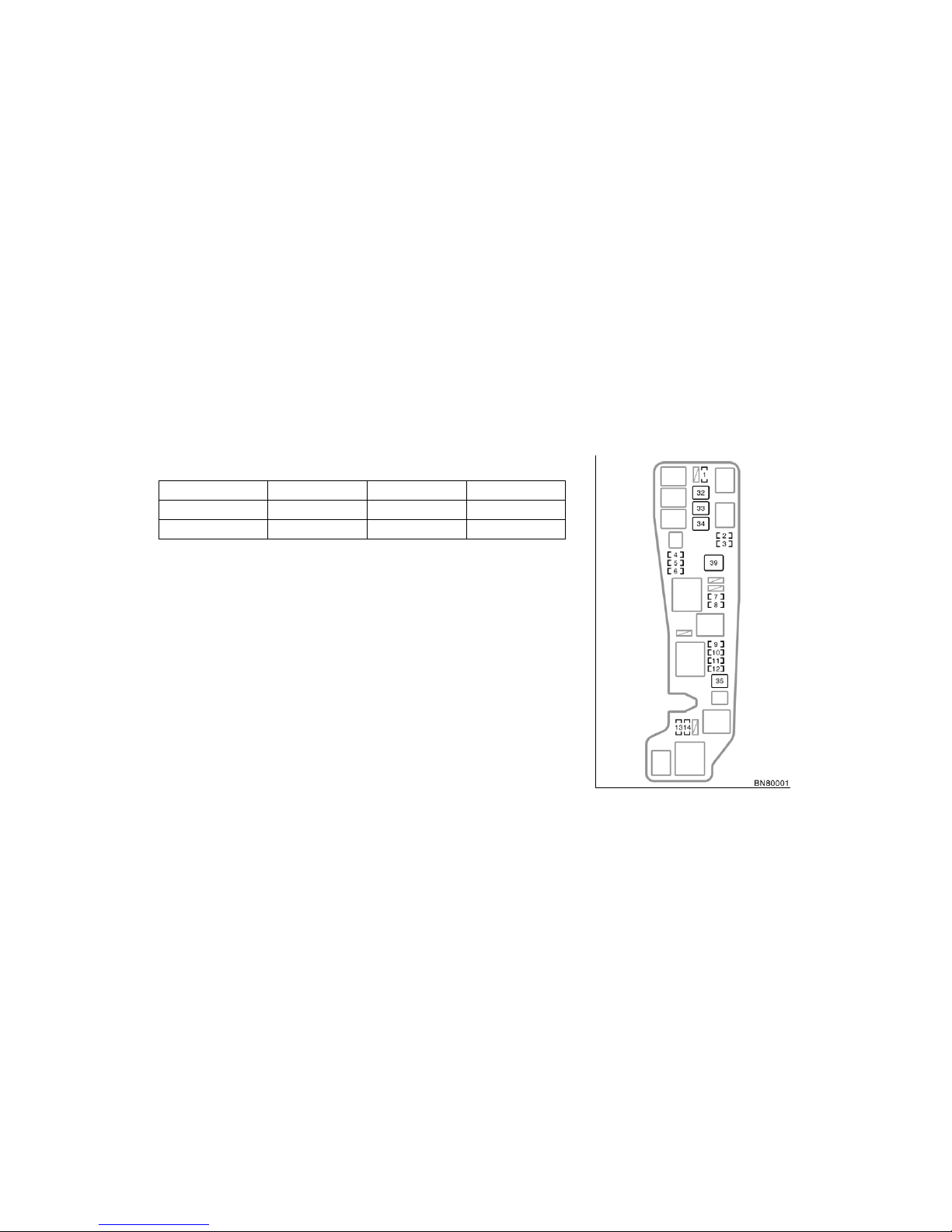

Fuses (type B)
32. ABS NO.1 30 A: Anti−lock brake sys-
tem
33. RDI FAN 30 A: Electric cooling fan
34. ABS NO.2 40 A: Anti−lock brake sys-
tem
35. HEAD MAIN 40 A: “HEAD LH UPR”,
“HEAD RH UPR”, “HEAD LH LWR” and
“HEAD RH LWR” fuses
36. HTR 40 A: Air conditi oning system
37. DEF 40 A: Rear window defogger,
“M−HTR/DEF I−UP” fuse
38. POWER 30 A: Power windows, elec tric
moon roof
Fuse (type C)
39. ALT 100 A: Charging system, “ABS
NO.1”, “ABS NO.2”, “RDI FAN”, “FOG”,
“HTR”, “AM1”, “POWER”, “DOOR”,
“ECU−B”, “TAIL”, “STOP”, “P/POINT”,
“INV” and “OBD” fuses
Page 8
’04 Corolla_U (L/O 0306)
258
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
