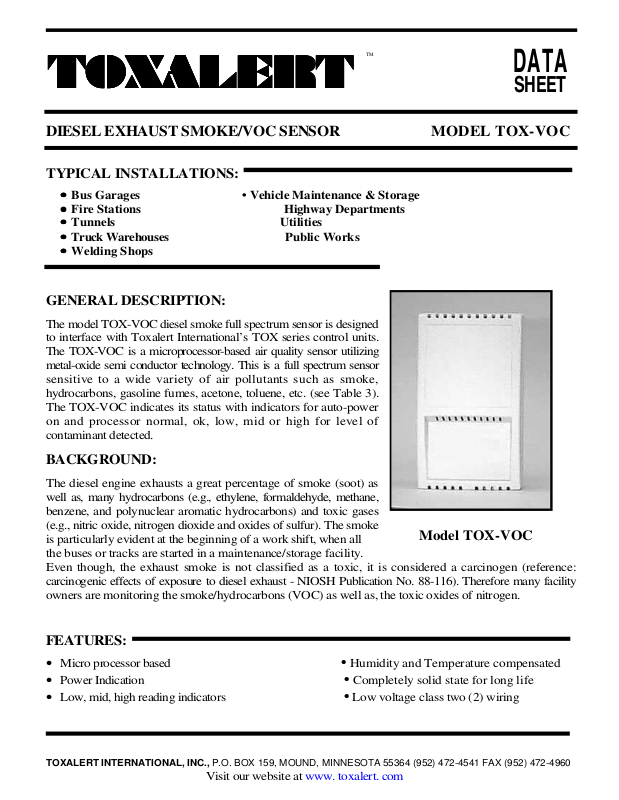

DIESEL EXHAUST SMOKE/VOC SENSOR MODEL TOX-VOC

TYPICAL INSTALLATIONS:

•••• Bus Garages • Vehicle Maintenance & Storage

•••• Fire Stations Highway Departments

•••• Tunnels Utilities

•••• Truck Warehouses Public Works

•••• Welding Shops

GENERAL DESCRIPTION:

The model TOX-VOC diesel smoke full spectrum sensor is designed
to interface with Toxalert International’s TOX series control units.
The TOX-VOC is a microprocessor-based air quality sensor utilizing
metal-oxide semi conductor technology. This is a full spectrum sensor
sensitive to a wide variety of air pollutants such as smoke,
hydrocarbons, gasoline fumes, acetone, toluene, etc. (see Table 3).
The TOX-VOC indicates its status with indicators for auto-power
on and processor normal, ok, low, mid or high for level of
contaminant detected.

SHEET

BACKGROUND:

The diesel engine exhausts a great percentage of smoke (soot) as
well as, many hydrocarbons (e.g., ethylene, formaldehyde, methane,
benzene, and polynuclear aromatic hydrocarbons) and toxic gases
(e.g., nitric oxide, nitrogen dioxide and oxides of sulfur). The smoke
is particularly evident at the beginning of a work shift, when all
the buses or tracks are started in a maintenance/storage facility.
Even though, the exhaust smoke is not classified as a toxic, it is considered a carcinogen (reference:
carcinogenic effects of exposure to diesel exhaust - NIOSH Publication No. 88-116). Therefore many facility
owners are monitoring the smoke/hydrocarbons (VOC) as well as, the toxic oxides of nitrogen.

FEATURES:

• Micro processor based

• Power Indication

• Low, mid, high reading indicators

•

Humidity and Temperature compensated

•

Completely solid state for long life

•

Low voltage class two (2) wiring

Model TOX-VOC

TOXALERT INTERNATIONAL, INC.,

P.O. BOX 159, MOUND, MINNESOTA 55364 [phone] FAX [phone]

Visit our website at

www. toxalert

. com

SPECIFICATIONS

•••• Type:

•••• Input voltage:

•••• Operating Temperature:

•••• Display:

•••• Sample Method:

•••• Supply Current:

•••• Operating Humidity:

•••• Enclosure:

Metal semi conductor

20- 30VAC from TOX controller

32° to 104°F (0-40°C)

5 indicators ok, low, mid, high

Diffusion

220 MA(max)

0-85% non-condensing

AE wall mount

2.75”W x 4.65”H x 1.25”D
(70 x 118 x 32mm)

TABLE 1

PARTIAL LIST OF CONTAMINATES DETECTED BY TOXALERT INTERNATIONAL TOX­VOC SENSOR.

CHEMICAL COMMON SOURCE

Ethylene Diesel exhaust
Benzene, Toluene, Xylene Diesel exhaust, solvents and motor fuels
Methane Diesel exhaust, decomposition and synthesis
Formaldehyde Diesel exhaust, disinfectants and preservatives
Methyl Ethyl Ketone Solvents and cleaning products
Acetone Solvents and organic synthesis
Ethyl Alcohol Solvents and liquor fermentation
Hydrogen Used in synthetics
Hydrogen Sulfide Water and putrefying matter
Methyl Alcohol Solvents, antifreeze and synthetics
Methyl Chloride Solvents, paints and refrigerants
Vinyl Chloride Textiles and polymers
Trichloroethylene Solvents and cleaning agents
Propane Fuels and chemical synthesis
Carbon Monoxide Combustion of carbon
Freon-22 Refrigerants and aerosols
Ammonia Solvents and refrigerants
