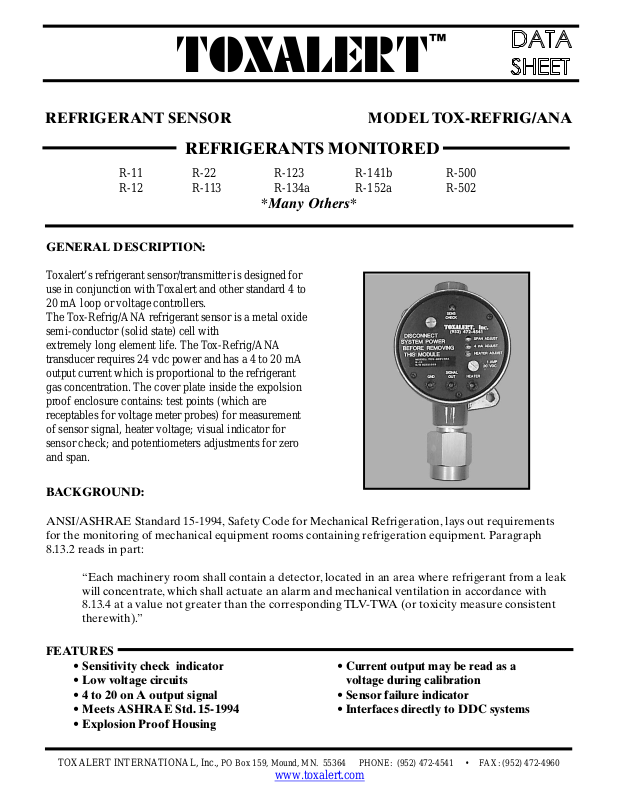

TOXALERT

REFRIGERANT SENSOR MODEL TOX-REFRIG/ANA

REFRIGERANTS MONITORED

R-11 R-22 R-123 R-141b R-500
R-12 R-113 R-134a R-152a R-502

*Many Others*

GENERAL DESCRIPTION:

Toxalert’s refrigerant sensor/transmitter is designed for
use in conjunction with Toxalert and other standard 4 to
20 mA loop or voltage controllers.
The Tox-Refrig/ANA refrigerant sensor is a metal oxide
semi-conductor (solid state) cell with
extremely long element life. The Tox-Refrig/ANA
transducer requires 24 vdc power and has a 4 to 20 mA
output current which is proportional to the refrigerant
gas concentration. The cover plate inside the expolsion
proof enclosure contains: test points (which are
receptables for voltage meter probes) for measurement
of sensor signal, heater voltage; visual indicator for
sensor check; and potentiometers adjustments for zero
and span.

BACKGROUND:

ANSI/ASHRAE Standard 15-1994, Safety Code for Mechanical Refrigeration, lays out requirements
for the monitoring of mechanical equipment rooms containing refrigeration equipment. Paragraph

8.13.2 reads in part:

“Each machinery room shall contain a detector, located in an area where refrigerant from a leak
will concentrate, which shall actuate an alarm and mechanical ventilation in accordance with

8.13.4 at a value not greater than the corresponding TLV-TWA (or toxicity measure consistent
therewith).”

FEATURES

• Sensitivity check indicator • Current output may be read as a

• Low voltage circuits voltage during calibration

• 4 to 20 on A output signal • Sensor failure indicator

• Meets ASHRAE Std. 15-1994 • Interfaces directly to DDC systems

• Explosion Proof Housing

TOXALERT INTERNATIONAL, Inc., PO Box 159, Mound, MN. 55364 PHONE: [phone] • FAX: [phone]

www.toxalert.com

Also paragraph 7.4.2, Rules:

“(d) detectors (refrigerant, oxygen, etc.) are located in area where refrigerant vapor leak will be concen­trated so as to provide warning at a concentration not exceeding the refrigerant(s) TLV-TWA (detectors
are not required for ammonia due to its self-alarming character);”

&

“(f) when the quantity of refrigerant, expect Groups A1 and B1 and ammonia exceeds Table 1 quantities,
the area shall be classified as a hazardous location and all electrical equipment shall conform to the
requirements of Class 1, Division 2, of the National Electrical Code. 9.”

Because of the requirements in Rule 3(f), all of Toxalert’s refrigerant sensors are supplied in an
explosion proof housing.

TABLE #1

*REFRIG. *SAFETY TLV AEL PEL
ID# CLASSIF. (PPM) (PPM) (PPM) IDHL

R-11 A-1 1000 1000
R-12 A-1 1000 1000
R-22 A-1 1000
R-113 A-1 ***C1000
R-123 B-1 30 1000
R-134a A-1 1000 1000
R-142b A-2 1000
R-152a A-2 1000
R-500 A-1 1000
R-502 A-1 1000 1000
**R-717(NH3)
AMMONIA B-2 25

* The Refrigerant designation number and Safety Classification are from ANSI/ASHRAE
Standards 34-1992.

** Toxalert has Ammonia Sensors to monitor for ammonia refrigerant (model TOX-NH

3

/ANA).

*** The concentration that should not be exceeded during any part of the working exposure.

TLV - Threshold Limit Value, established for industrial chemicals by American Conference of
Government Industrial Hygienists, is the time weighted average concentration of an airborn
chemical to which nearly all workers may be exposed during an 8 hour day, 40 hour week without
adverse effect.

TOXALERT INTERNATIONAL, Inc., PO Box 159, Mound, MN. 55364 PHONE: [phone] • FAX: [phone]

www.toxalert.com

AEL - Acceptable Exposure Limit - TWA - 8 hours/day, 40 hours/week.
PEL - Permissible Exposure Limit - TWA - 8 hours/day, 40 hours/week.
IDHL - (Immediately Dangerous to Life and Health) the maximum concentration from which

unprotected persons are able to escape within 30 minutes without impairing symptoms or irreversible health
effects.

UNIT INDICATORS:

Refer to Figure 1.

The Tox-Refrig/ANA has the following to assist in
installation and system diagnostics:

1. Test points (which are receptables for voltage meter probes):

- Signal out (voltage)

- Heater voltage

2. Visual indicator (LED) of sensor check

3. Potentiometer adjustments for

- Zero

- Span

- Heater voltage

SPECIFICATIONS

•Type: Metal oxide semi conductor sensor

•Range: 10 to 500 PPM

•Response Time: 80% in less than 30 seconds

• Sensing Element Life: 4 years in normal service

•Electrical Data:

Input voltage: 24VDC nominal (14 to 30VDC)
Input power: 2.1 Watts
Output signal: 4-20 mA DC non-linear

•Operating Temperature: 14°F to 104°F
(-10°C to 40°C)

• Storage Temperature: -67°F to 185°F
(-55°C to 85°C)

•Relative Humidity: 5 to 95% non-condensing

Loop Resistance: 800 ohms maximum
Input current: 86 mA at 29VDC
Wiring: 3 wire non-isolated

•Unit Construction:

Housing: Division 1, Class 1, Group C & D
Physical: 6.75” x 4” x 3.5” (HxWxD)

(17.1cm x 10.2cm x 8.9cm)

TOXALERT INTERNATIONAL, Inc., PO Box 159, Mound, MN. 55364 PHONE: [phone] • FAX: [phone]

Mounting style: Surface
Weight: 2 pounds (0.9kg)
Material: Cast aluminum epoxy painted

www.toxalert.com

SAMPLE GUIDE SPECIFICATIONS

Provide a refrigerant leak detection sensor(s) to monitor for R-xxx refrigerant leaks. The sensing element shall be
solid state metal oxide semiconductor type and have a typical life of at least 4 years. The sensor shall be powered
by 24 vdc and have a 4 to 20 mA output signal.

The sensor shall be housed in an industrial style, explosion proof housing and have explosion proof conduit
connections to the housing to maintain system integrity.

NOTE:

1. Refrigerant R744 is Carbon Dioxide (CO
to 20 mA output. See catalog section 3.

2. Refrigerant R717 is Ammonia (NH

3

See catalog section 6.

3. Refrigerant R764 is Sulfur Dioxide (SO
output. See catalog section 6.

How to order

R-11 = T ox-Rfg/1/M/A R-113 = Tox-Rfg/1/R/A

) - Use a Toxalert CO220 sensor which has both a digital and a 4

2

) - Use a Toxalert Tox-NH3/ANA sensor which as a 4 to 20 mA output.

) - Use a Toxalert Tox-SO2/ANA sensor which has a 4 to 20 mA

2

R-12 = Tox-Rfg/1/N/A R-142b = Tox-Rfg/1/S/A
R-22 = Rox-Rfg/1/O/A R-152a = Tox-Rfg/1/T/A
R-123 = Tox-Rfg/1/P/A R-500 = Tox-Rfg/1/U/A
R-134a = Tox-Rfg/1/Q/A R-502 = Tox-Rfg/1/V/A

* For other refrigerants consult factory *

Tox Refrig/ANA Revised 8/03TM
