Toxalert INDUST-SCBA User Manual

y

™

TOXALERT

SELF-CONTAINED BREATHING APPARATUS

MODEL:

INDUST-SCBA

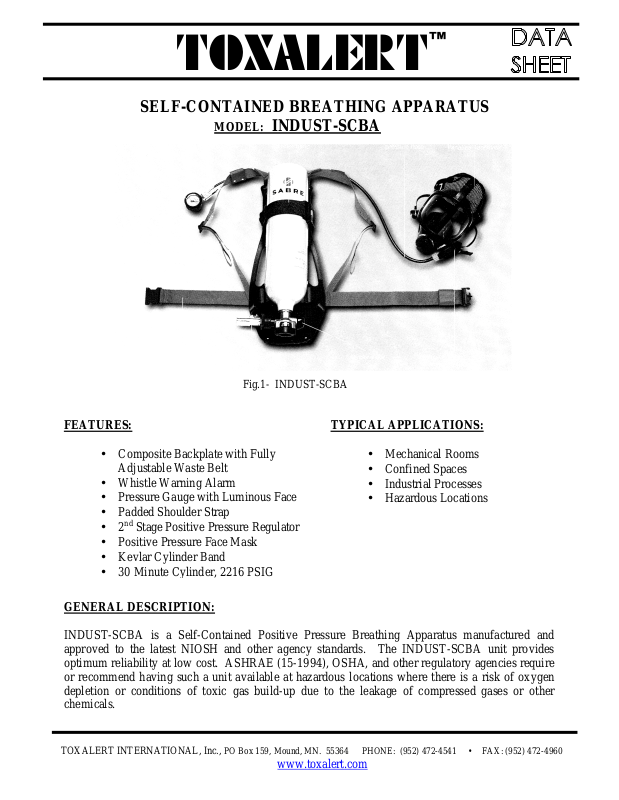

Fig.1- INDUST-SCBA

FEATURES:

• Composite Backplate with Fully

Adjustable Waste Belt

• Whistle Warning Alarm

• Pressure Gauge with Luminous Face

• Padded Shoulder Strap

nd

• 2

• Positive Pressure Face Mask

• Kevlar Cylinder Band

• 30 Minute C

GENERAL DESCRIPTION:

INDUST-SCBA is a Self-Contained Positive Pressure Breathing Apparatus manufactured and
approved to the latest NIOSH and other agency standards. The INDUST-SCBA unit provides
optimum reliability at low cost. ASHRAE (15-1994), OSHA, and other regulatory agencies require
or recommend having such a unit available at hazardous locations where there is a risk of ox ygen
depletion or conditions of toxic gas build-up due to the leakage of compressed gases or other
chemicals.

Stage Positive Pressure Regulator

linder, 2216 PSIG

TYPICAL APPLICATIONS:

• Mechanical Rooms

• Confined Spaces

• Industrial Processes

• Hazardous Locations

TOXALERT INTERNATIONAL, Inc., PO Box 159, Mound, MN. 55364 PHONE: [phone] • FAX: [phone]

www.toxalert.com

(Cont.)

The combined pressure reducer and cylinder connector assembly features only two moving parts
to ensure efficiency and reliability. The fully automatic operation of the reducer requires no
adjustment when using cylinders up to 4500 psi*.

The shoulder mounted pressure indicator and warning whistle assembly features photo­luminescent face markings for low light legibility and a heavy-duty stainless steel case with
additional rubber shroud. The warning whistle indicates when 25% cylinder air is remaining.

All INDUST-SCBA breathing apparatus components are designed to be user serviceable,
requiring the minimum of special skills and equipment.

SELF-CONTAINED BREATHING APPARATUS- ORDERING INFORMATION

MODEL/
PART NUMBER DESCRIPTION

INDUST-SCBA Standard Industrial Self-Contained Breathing Apparatus (SCBA), NIOSH

Approved.

ACCESSORIES for STANDARD INDUSTRIAL TYPE SCBA
SCBAWALLCASE SCBA Wall mount Cabinet

CYVAU30L Spare 30 minute aluminum cylinder, 2216 psig

*Refer to NFPA-SCBA Data Sheet for information on our NFPA approved Self-Contained Breathing Apparatus

INDUST-SCBA

TOXALERT INTERNATIONAL, Inc., PO Box 159, Mound, MN. 55364 PHONE: [phone] • FAX: [phone]

www.toxalert.com
