Page 1
Rev 08102020

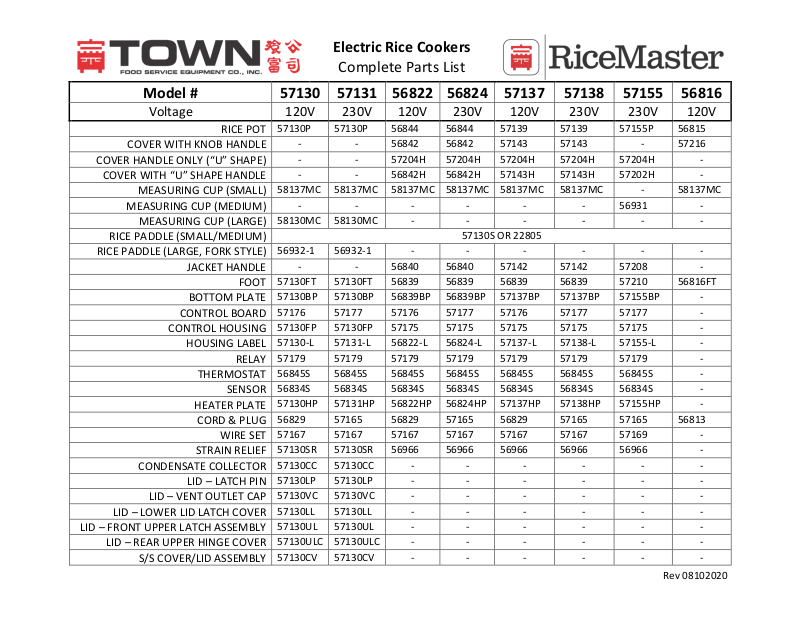

Electric Rice Cookers
Complete Parts List
Model #
57130
57131
56822
56824
57137
57138
57155
56816
Voltage
120V
230V
120V
230V
120V
230V
230V
120V
RICE POT
57130P
57130P
56844
56844
57139
57139
57155P
56815
COVER WITH KNOB HANDLE
-
-
56842
56842
57143
57143
-
57216
COVER HANDLE ONLY (“U” SHAPE)
-
-
57204H
57204H
57204H
57204H
57204H
-
COVER WITH “U” SHAPE HANDLE
-
-
56842H
56842H
57143H
57143H
57202H
-
MEASURING CUP (SMALL)
58137MC
58137MC
58137MC
58137MC
58137MC
58137MC
-
58137MC
MEASURING CUP (MEDIUM)
- - - - -
-
56931
-
MEASURING CUP (LARGE)
58130MC
58130MC
- - - - -
-
RICE PADDLE (SMALL/MEDIUM)
57130S OR 22805
RICE PADDLE (LARGE, FORK STYLE)
56932-1
56932-1 - - - - - -
JACKET HANDLE
-
-
56840
56840
57142
57142
57208
-
FOOT
57130FT
57130FT
56839
56839
56839
56839
57210
56816FT
BOTTOM PLATE
57130BP
57130BP
56839BP
56839BP
57137BP
57137BP
57155BP
-
CONTROL BOARD
57176
57177
57176
57177
57176
57177
57177
-
CONTROL HOUSING
57130FP
57130FP
57175
57175
57175
57175
57175
-
HOUSING LABEL
57130-L
57131-L
56822-L
56824-L
57137-L
57138-L
57155-L
-
RELAY
57179
57179
57179
57179
57179
57179
57179
-
THERMOSTAT
56845S
56845S
56845S
56845S
56845S
56845S
56845S
-
SENSOR
56834S
56834S
56834S
56834S
56834S
56834S
56834S
-
HEATER PLATE
57130HP
57131HP
56822HP
56824HP
57137HP
57138HP
57155HP
-
CORD & PLUG
56829
57165
56829
57165
56829
57165
57165
56813
WIRE SET
57167
57167
57167
57167
57167
57167
57169
-
STRAIN RELIEF
57130SR
57130SR
56966
56966
56966
56966
56966
-
CONDENSATE COLLECTOR
57130CC
57130CC
- - - - -
-
LID – LATCH PIN
57130LP
57130LP
- - - - -
-
LID – VENT OUTLET CAP
57130VC
57130VC
- - - - -
-
LID – LOWER LID LATCH COVER
57130LL
57130LL - - - - - -
LID – FRONT UPPER LATCH ASSEMBLY
57130UL
57130UL
- - - - -
-
LID – REAR UPPER HINGE COVER
57130ULC
57130ULC
- - - - -
-
S/S COVER/LID ASSEMBLY
57130CV
57130CV
- - - - -
-
