TOWA1375
INSTRUCTION MANUAL
724912
Created 06/23
Page 2
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For upto-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury
OR create a high probability of supercial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to
operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical
ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other
property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or
alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety,
operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or
use, in order to operate correctly and avoid damage or serious injury.
AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in
damage to the product or the property of others.
• Always keep a safe distance in all directions around your model
to avoid collisions or injury. This model is controlled by a radio
signal subject to interference from many sources outside your
control. Interference can cause momentary loss of control.
• Always operate your model in open spaces away from full-size
vehicles, trafc and people.
• Always carefully follow the directions and warnings for this and
any optional support equipment (chargers, rechargeable battery
packs, etc.).
• Always keep all chemicals, small parts and anything electrical
out of the reach of children.
• Always avoid water exposure to all equipment not specically
designed and protected for this purpose. Moisture causes
damage to electronics.
• Never place any portion of the model in your mouth as it could
cause serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
Table of Contents
Specications .................................................................................. 3
Box Contents .................................................................................. 3
Components .................................................................................... 3
Assembly ......................................................................................... 4
Control Throws .............................................................................. 15
Propeller and Spinner Installation ................................................. 16
Center Of Gravity (CG) .................................................................. 17
Before Every Flight ........................................................................ 18
Flying Tips ..................................................................................... 18
Repairs .......................................................................................... 19
Electronic Speed Control Calibration ............................................ 19
Troubleshooting ............................................................................. 19
Replacement Parts ........................................................................ 20
Important Federal Aviation Administration (FAA) Information ....... 20
AMA National Model Aircraft Safety Code .................................... 20
Recommended Parts .................................................................... 20
Optional Parts ................................................................................ 20
Limited Warranty ........................................................................... 21
Warranty and Service Contact Information ................................... 22
FCC Information ............................................................................ 22
IC Information ................................................................................ 22
2
Page 3
Specifications Components
• Wingspan: 59.5” (1510mm)
• Length: 38.5” (980mm)
• Flying Weight: 1360-1470g
Box Contents
Before assembly, take an
inventory of this kit to make sure
it is complete, and inspect the
parts to make sure they are of
acceptable quality. If any parts are
missing or are not of acceptable
quality, or if you need assistance
with assembly, contact Horizon
Hobby product support.

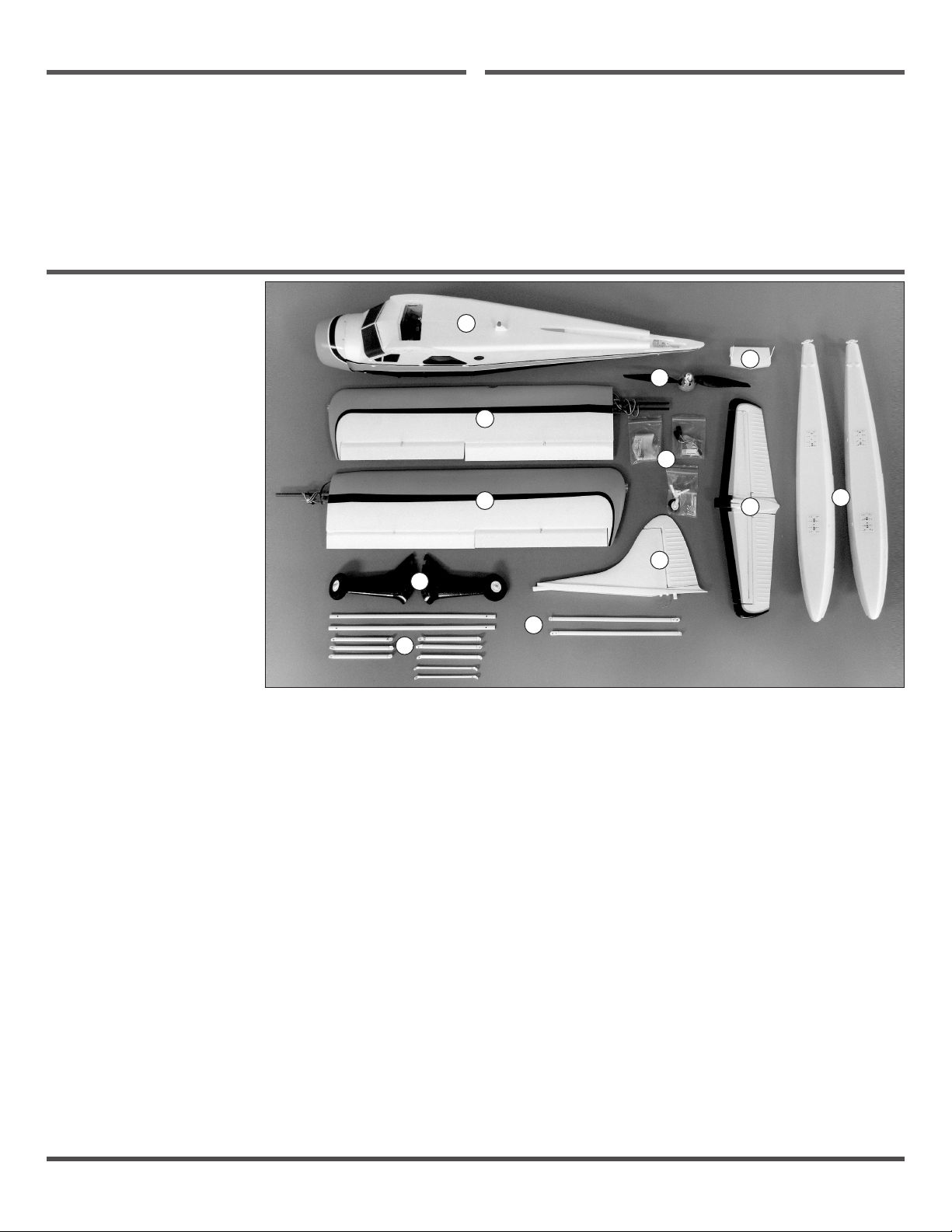

1. Fuselage
2. Left Wing
3. Right Wing
4. Main Landing Gear
5. Float Brackets
6. Wing Struts
7. Vertical Stabilizer
8. Hardware
9. Propeller/Spinner Assembly
10. Top Hatch
11. Horizontal Stabilizer
12. Floats
• Motor: 4011-850Kv (TOWA137516)
• ESC: 40A, EC3 (TOWA137517)
• Servos: 9g, Sub-Micro (5) (TOWA137519)
• Propeller: 12 x 6 (TOWA137508)
• Transmitter: 6+ Channel (not included)
• Receiver: Spektrum™ AR637T (SPMAR637T) recommended
(not included)
• Battery: 2200mAh 3S 11.1V 30C
(SPMX22003S30, not included)
1
10
9
2
8
3
7
4
6
5
11
12
3
Page 4
Assembly
The Tower DHC-2 Beaver may be assembled with either the
conventional landing gear or the included oats.
If installing the conventional landing gear, complete the following
two steps, then skip ahead to the Horizontal Tail Installation section.
If installing the oats, skip ahead to the Floats Installation section.
Landing Gear Installation

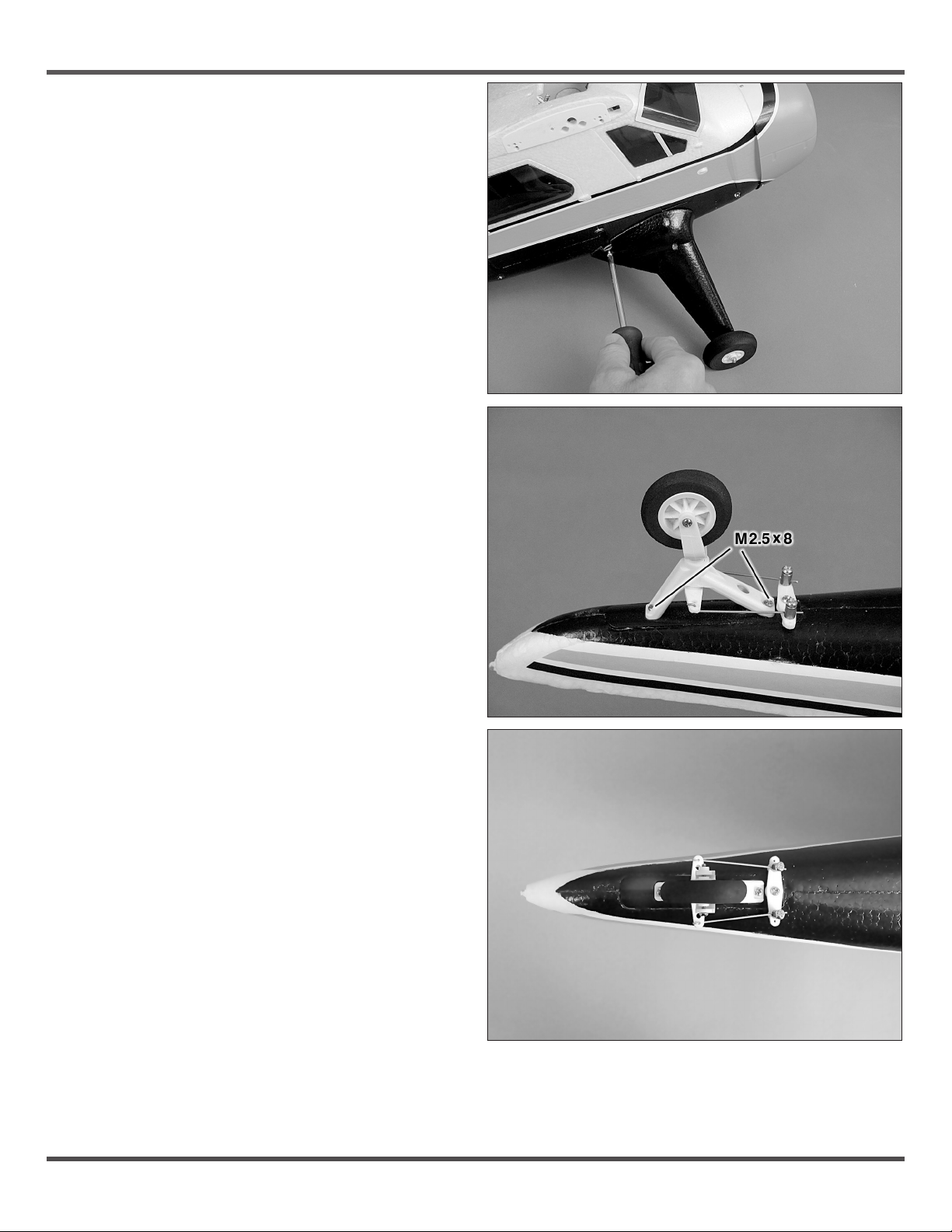

1. Use a #2 Phillips screwdriver to fasten both main landing gears
to the fuselage with three M3x16 screws in each side.
2. Mount the tail gear with two M2.5x8 screws, then fasten
the pushrod wires as shown. Make sure the tail wheel is
perpendicular with the steering arm and tighten the screws.
4
Page 5
Floats Installation

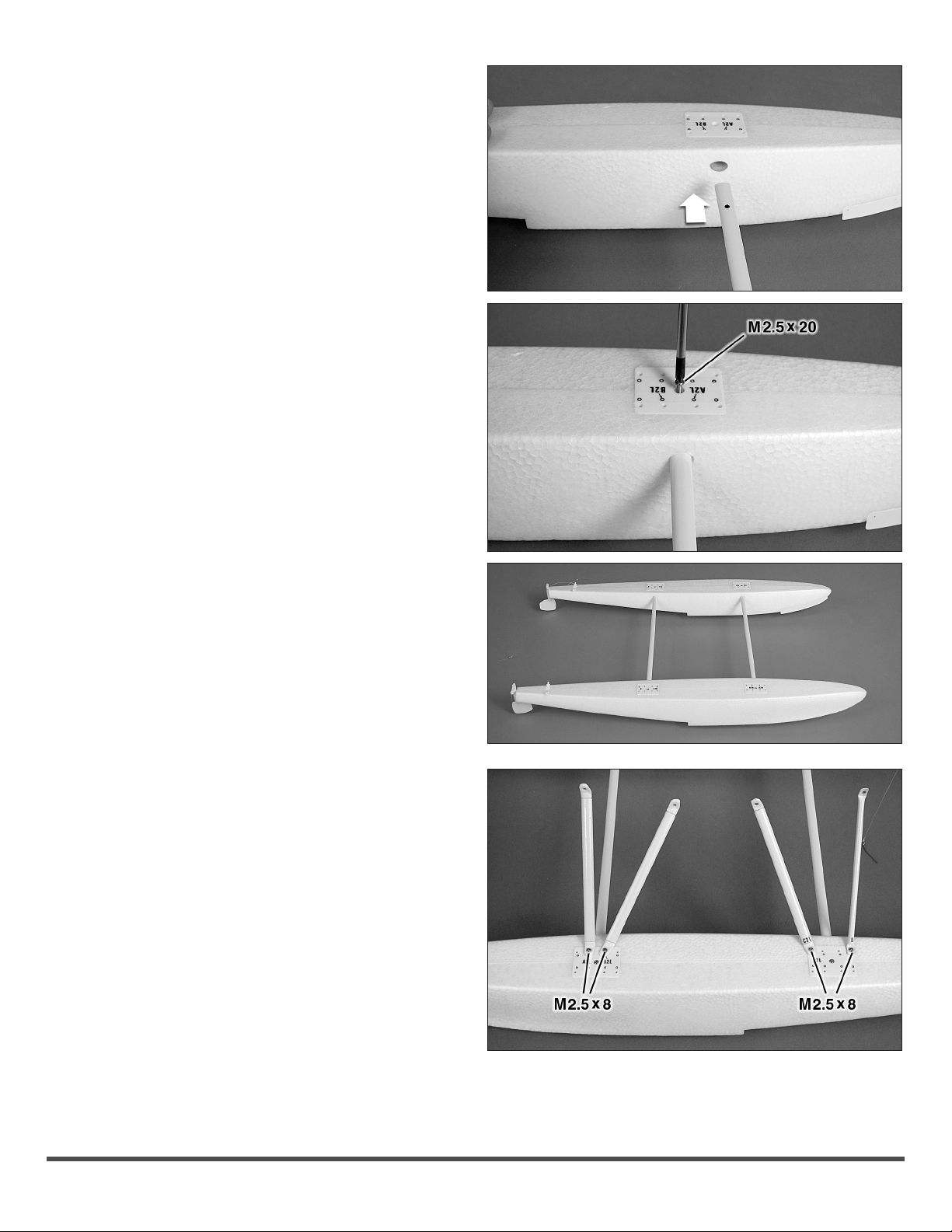

1. Connect the oats to each other with the horizontal struts and
four M2.5x20 machine-thread screws.
2. Use eight M2.5x8 screws to fasten the braces to the oats,
matching the labels printed or molded into the end of each
brace to the mount location on each oat.
5
Page 6

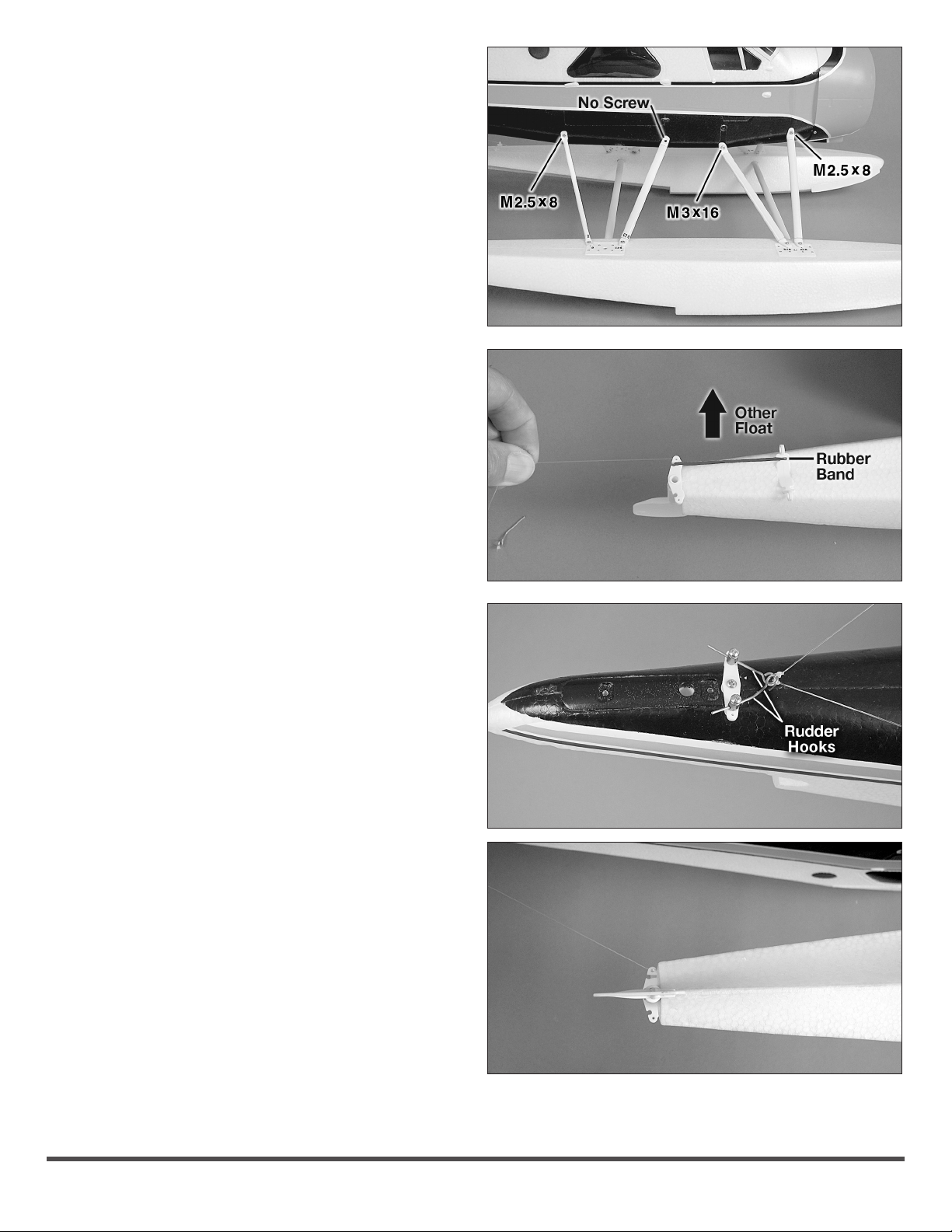

3. Fasten the oat braces to the fuselage with one M3x16mm
screw and two M2.5x8mm screws in each side of the fuselage.
No screw is installed in the third strut at this time.
4. Connect a small rubber band to the inner side of each oat and
water rudder as shown.
5. Fasten the wire hooks on the end of each rudder line to the
connectors in the steering arm. Adjust the tension in the lines to
center the water rudders.
6
Page 7

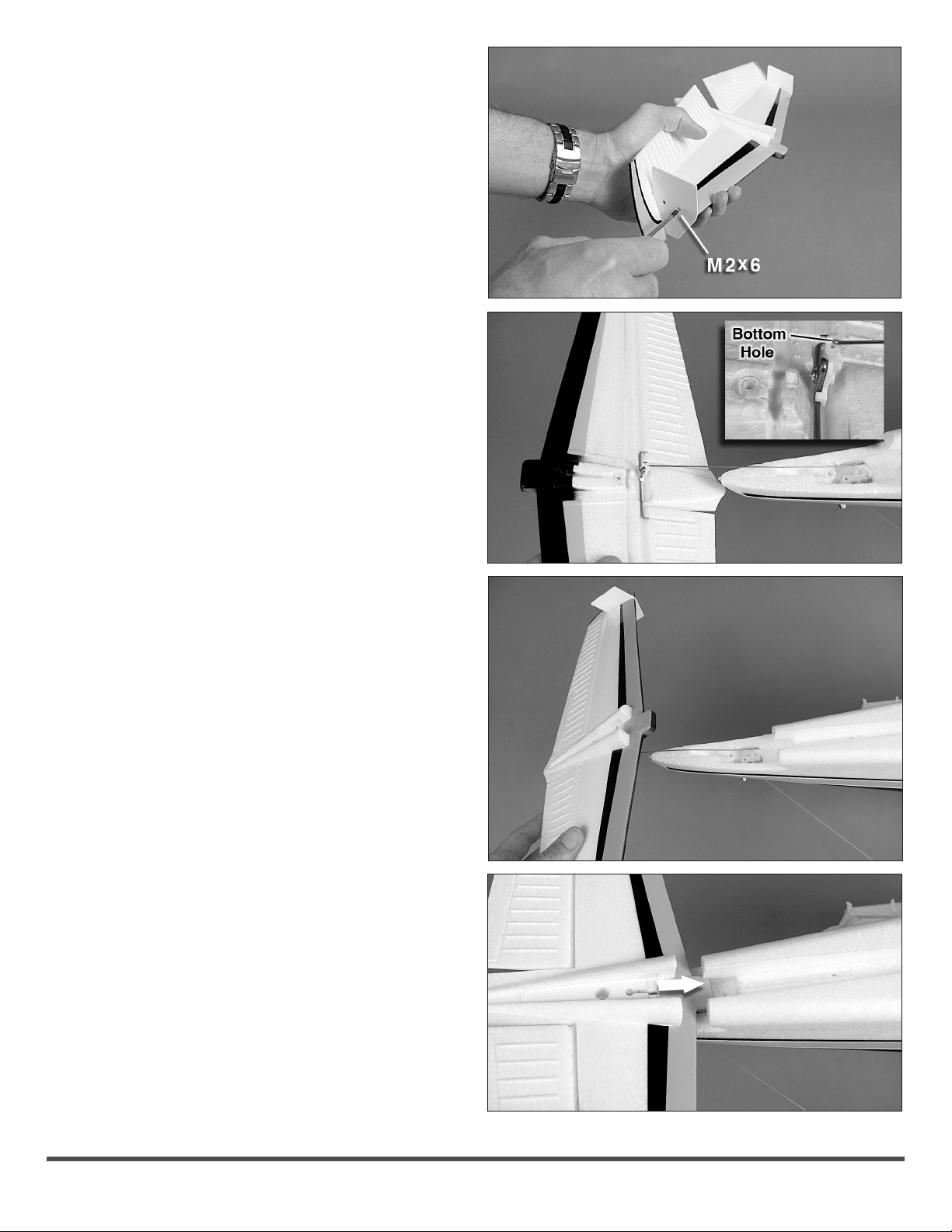

Horizontal Stabilizer Installation
1. Fasten the ns to each end of the horizontal stabilizer (stab) with
M2x6 screws.
2. Connect the elevator pushrod to the bottom hole in the elevator
horn as shown.
3. Rotate the stab upward and key it into the fuselage.
7
Page 8

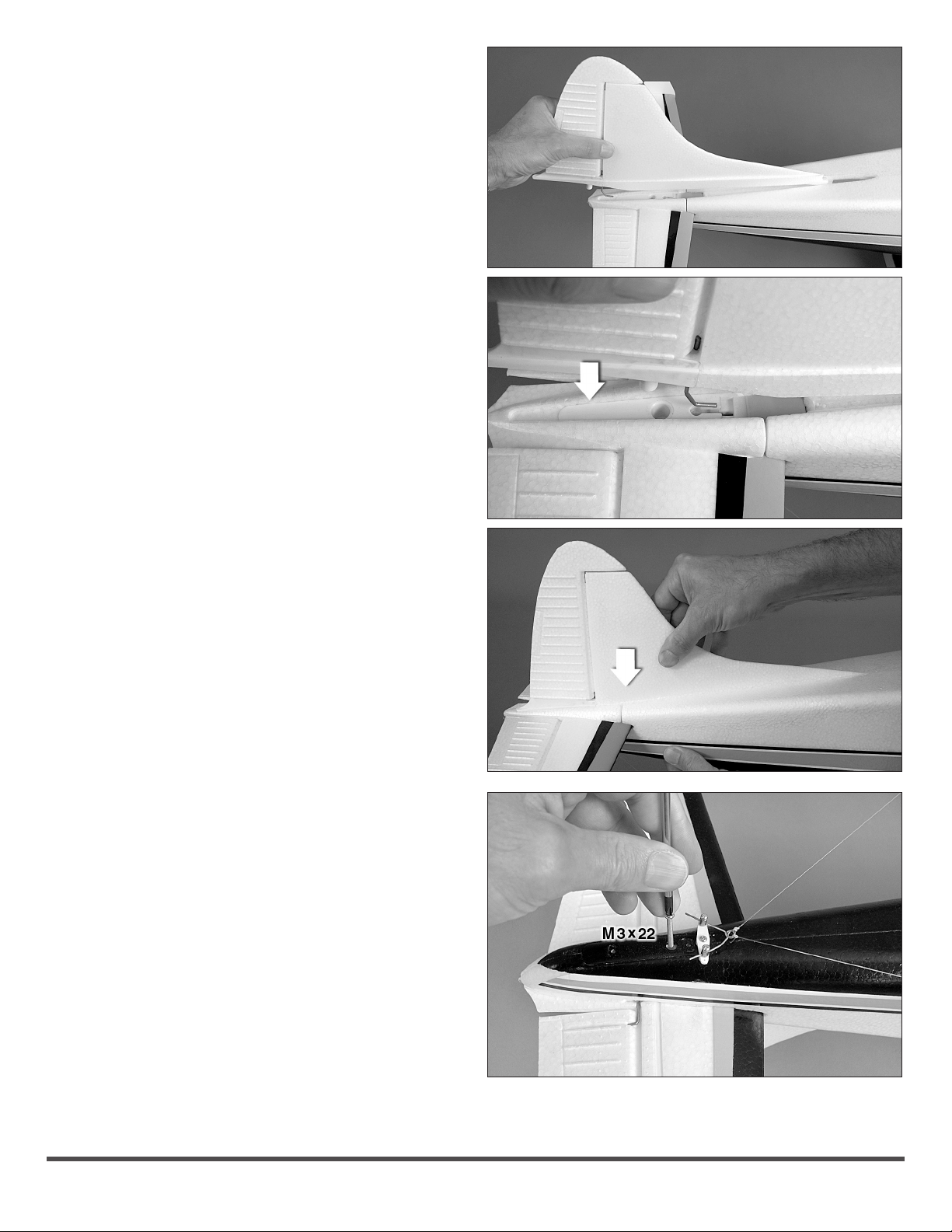

Vertical Stabilizer Installation
1. Key the rudder torque rod down into the receptacle while tting
the vertical stabilizer (n) into the fuselage. Tightly press the
assembly down into position.
2. Secure the horizontal and vertical stabilizers with the
M3x22 screw.
8
Page 9

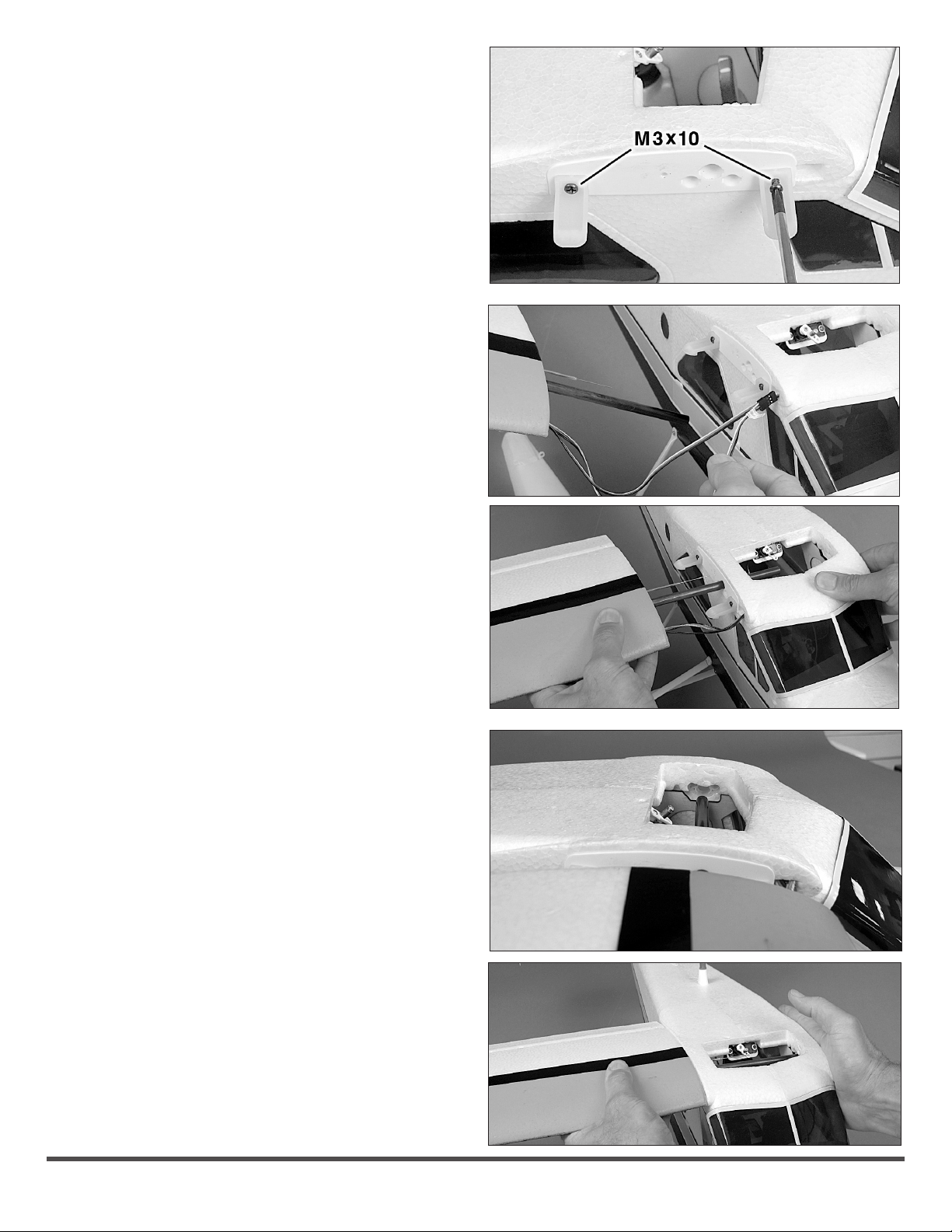

Wing Installation
1. Fasten the wing clips to both sides of the fuselage with four
M3x10 screws.
2. Guide the wires from the right wing into the fuselage, then slide
the wing joiner tube and the ap pushrod wire through the
corresponding holes. Also guide the ap pushrod wire into the
screw-lock connector on the ap servo.
3. Guide the joiner tube through the hole in the left side of the
fuselage, then tightly click the wing onto the wing clips.
9
Page 10
4. Mount the left wing the same way.

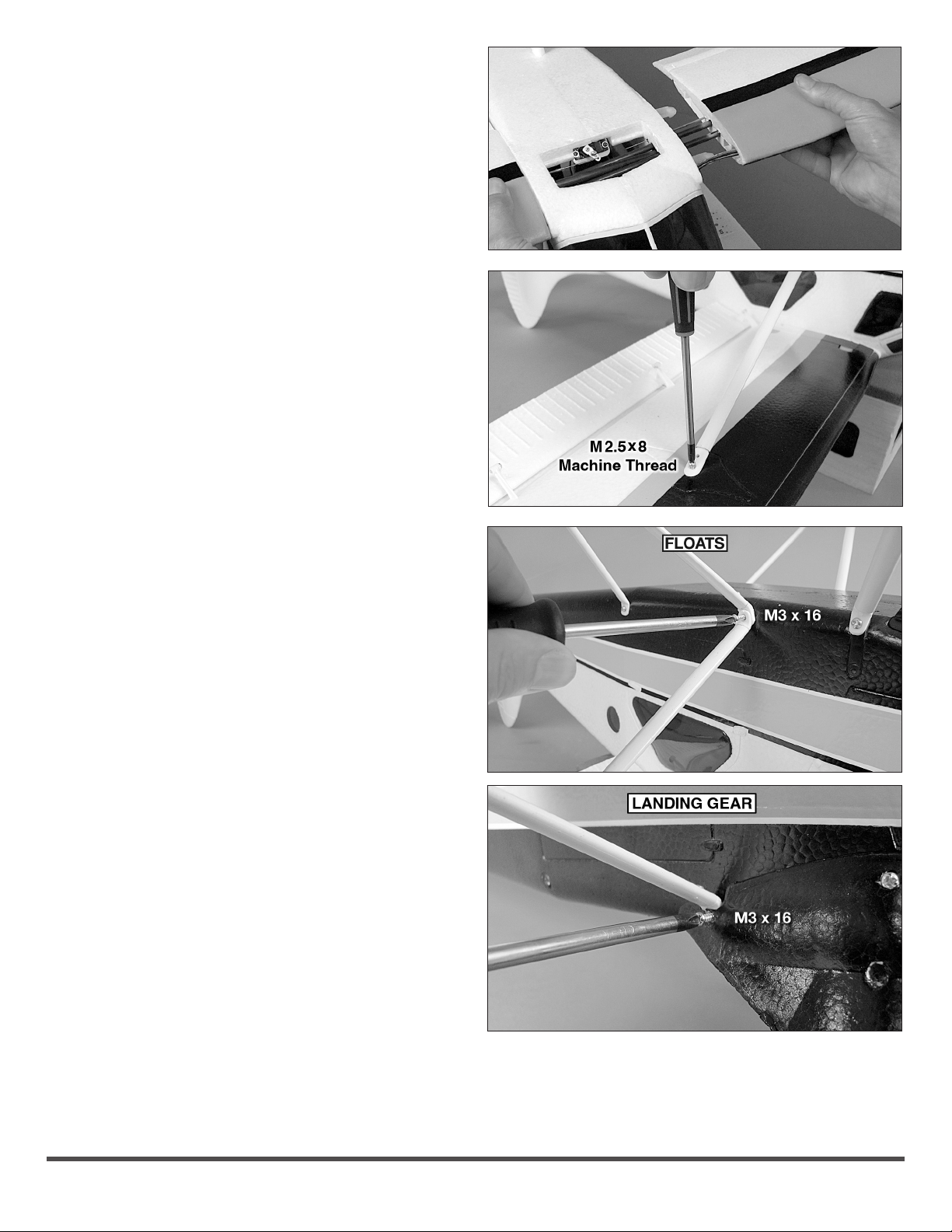

5. Mount the top of each wing strut to the wing with a M2.5x8
machine-thread screw.
6. Mount the bottom of each strut to the fuselage over the third
oat strut (or over the main landing gear) with a M3x16 screw.
10
Page 11
Receiver Installation
Install your receiver on the right side of the compartment in the
front of the fuselage, opposite of the electronic speed control,
connecting the servos according to the labels attached to the
wires. Follow the receiver manual recommendations for setup.

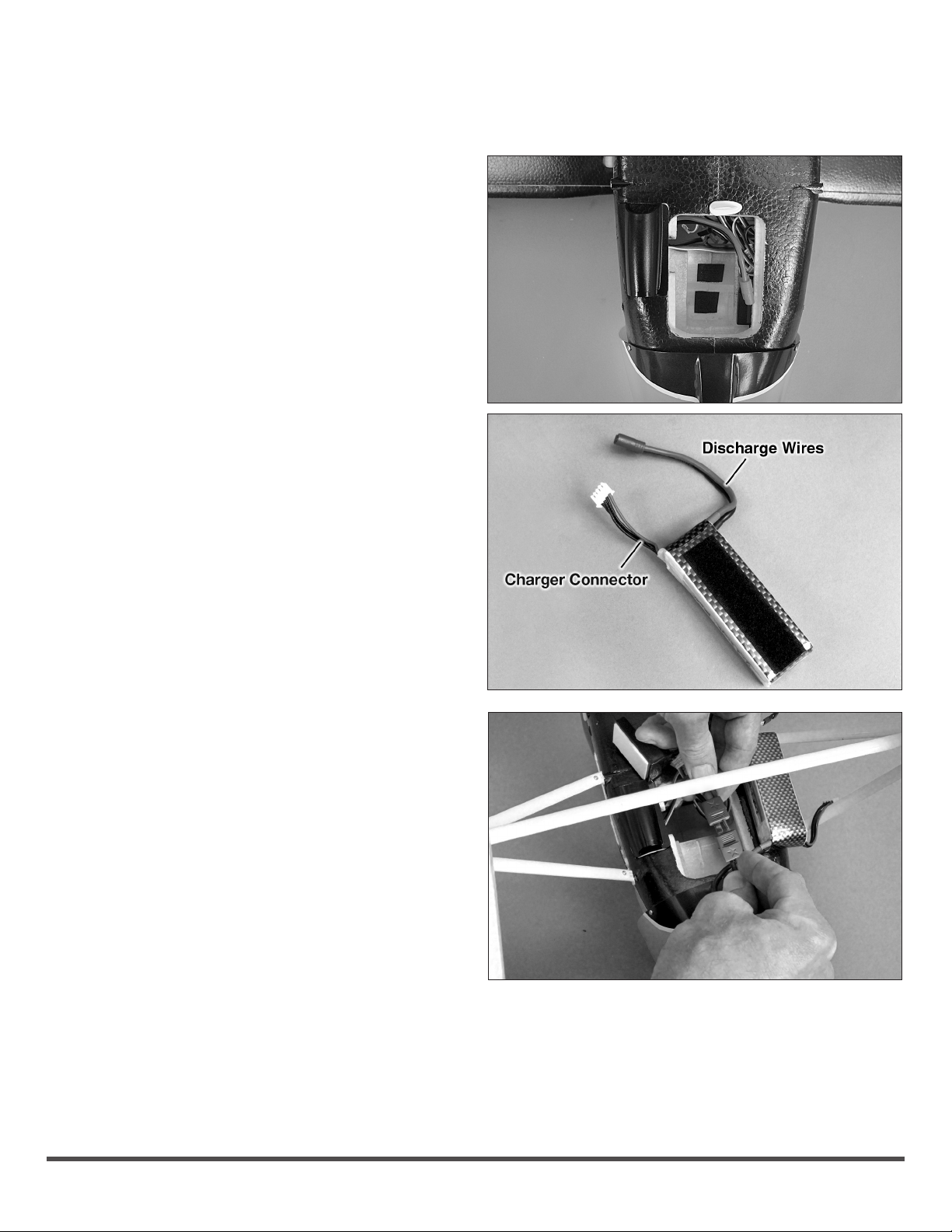

Battery Installation
The ight battery is installed in the angled middle section of the
front fuselage compartment and is held in place by the included
adhesive back hook and loop material.
1. Cut two 1-inch (25mm) strips from the rough, “hook” side of the
included adhesive back hook and loop material.
2. Apply the strips inside the fuselage where shown and press
them down tightly to adhere.
3. Cut a 3-inch (76mm) strip from the soft, “loop” side and attach it
to the battery
ESC Operation
1. Move the throttle stick to the lowest position.
2. Connect battery pack to the ESC.
The motor emits one low, long tone, the respective number
of medium-length mid-tones indicating the battery cell count,
followed by three rising tones to indicate the ESC is armed.
11
Page 12

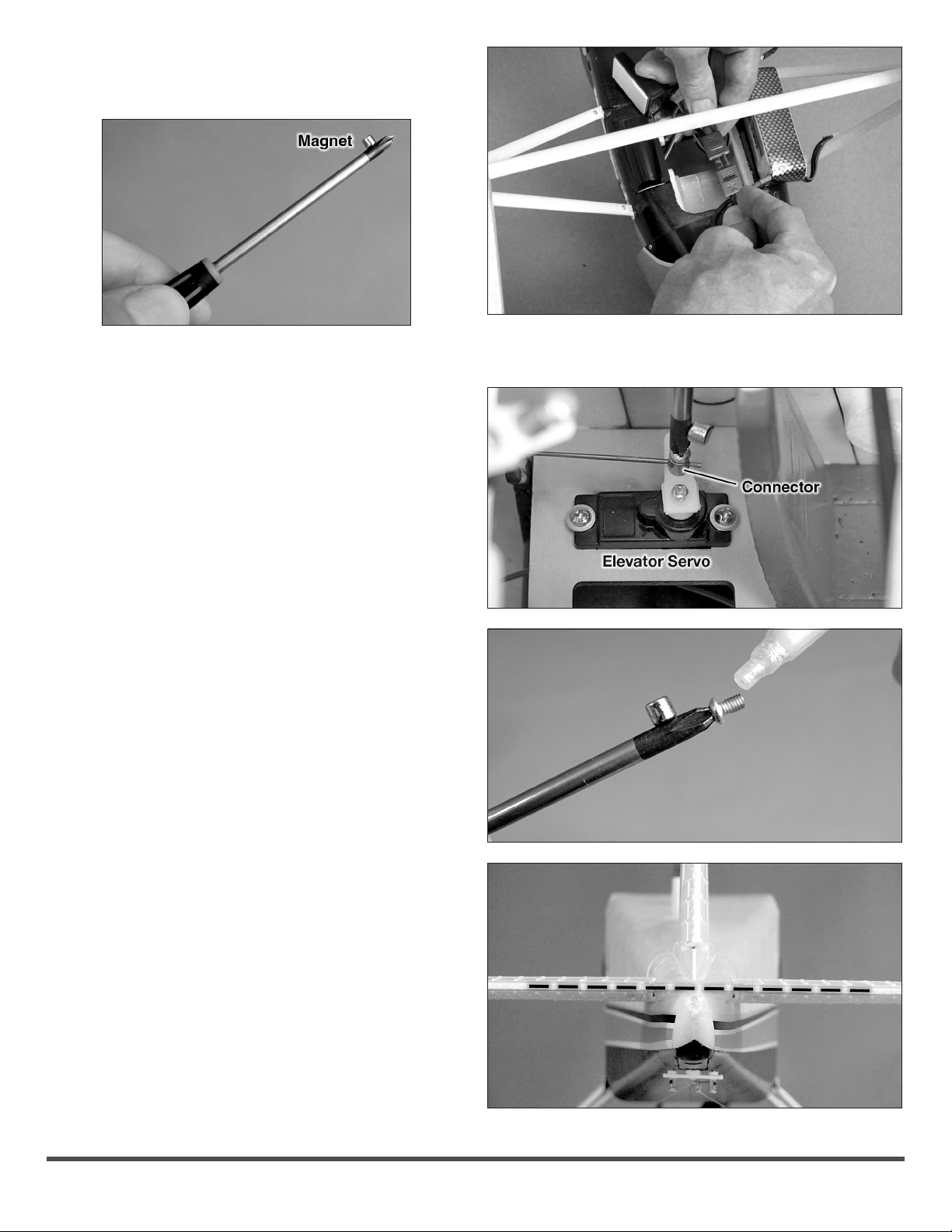

Connect the Rudder and Elevator
1. Power on the transmitter, fully lower the throttle stick, and center
the trims.
2. Connect the battery to the ESC.
TIP: A magnetic screwdriver, or a small magnet stuck to a screw
driver to make it magnetic, will be helpful for the next couple of
steps.
3. Remove the screw from the connector on the elevator servo arm.
4. Lightly wet the threads of the screw with threadlocker.
5. Reinstall the screw, but do not tighten yet. With the transmitter
and receiver on, center the elevator and tighten the screw to
secure the pushrod.
12
Page 13
6. Repeat the same procedure for the rudder, making sure it is
centered. Lock the pushrod in place on the servo arm with the
screw and threadlocker.
7. Disconnect the battery and power off the transmitter.
Connect the Lights, Flaps, and Ailerons

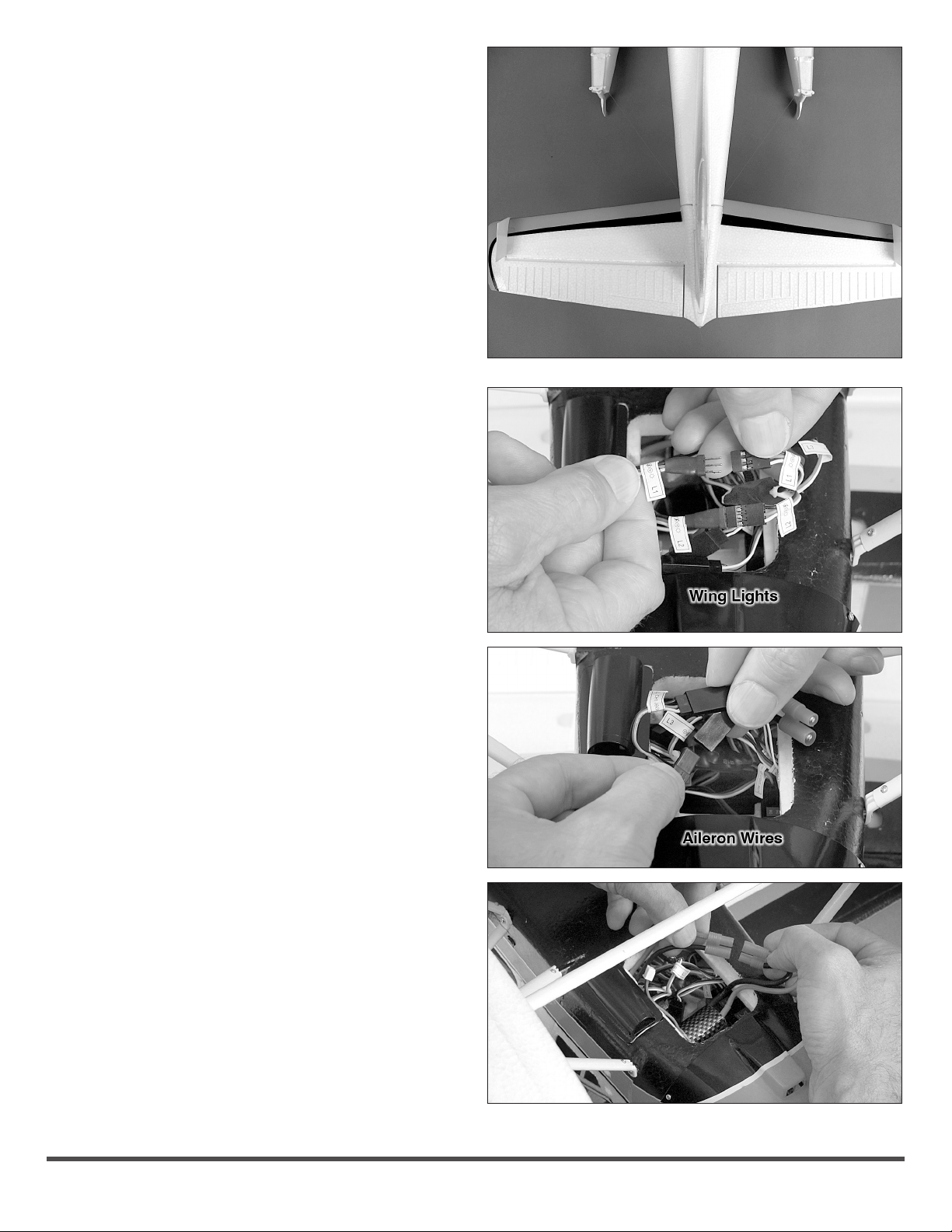

1. Connect the wing lighting wires and the aileron servo wires to
the lighting aileron and ap wiring harnesses coming from the
receiver.
2. Turn on the transmitter and install and connect the battery. Then
install and secure the hatch.
13
Page 14

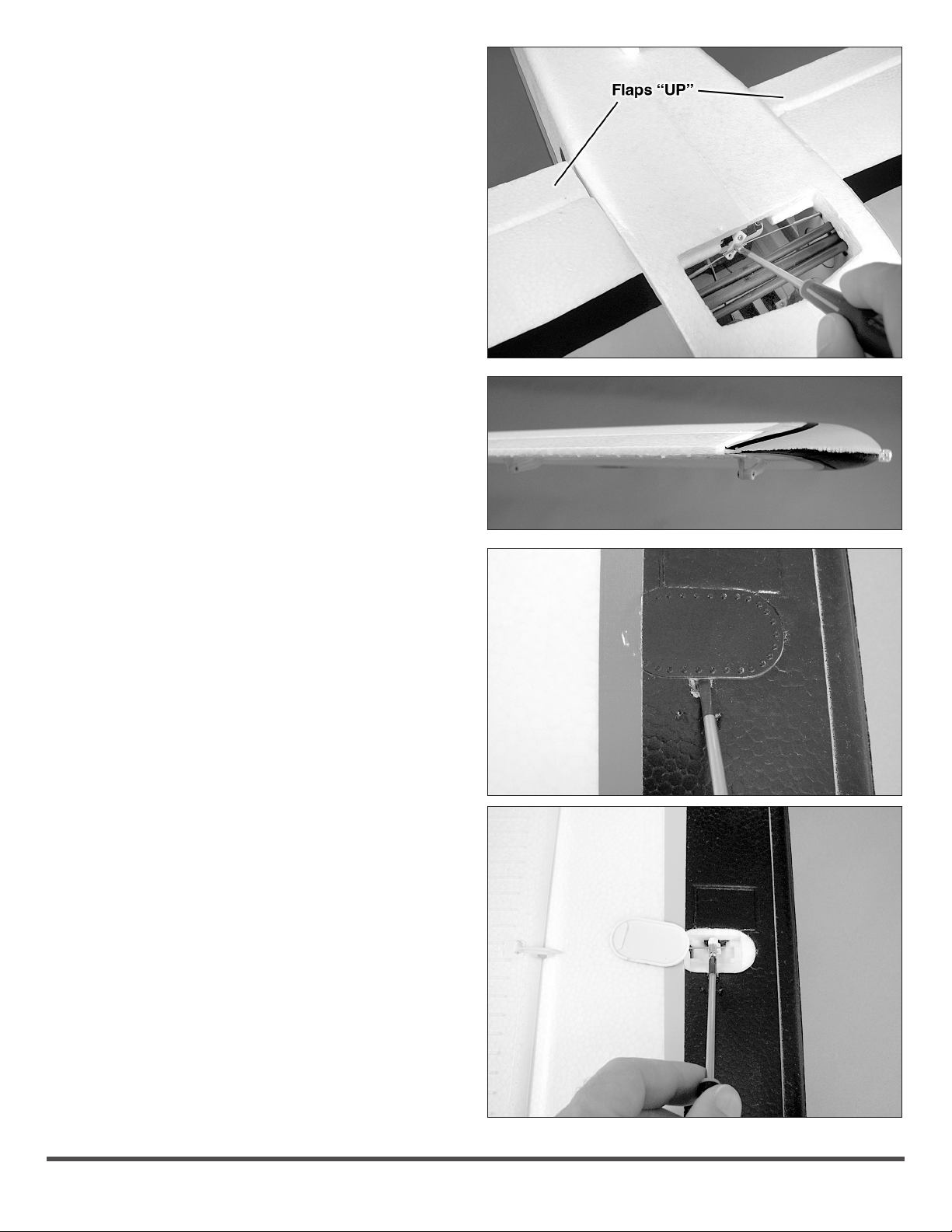

3. Move the dial or switch on your transmitter that controls the
aps to the “up” position, rotating the ap servo arm clockwise.
Remove the screw in the ap servo arm, wet the threads with
threadlock, and then reinstall and tighten the screw so the aps
will be in their fully retracted (“up”) position.
4. With the system still on, make sure the ailerons are centered and
aligned with the wing tips. If necessary, apply a few clicks of
aileron trim to get the ailerons centered.
TIP: If more than a few clicks of trim are required, or if you
cannot get both ailerons neutralized, a small screwdriver may
be used to pop off one or both aileron servo covers to access
the pushrods. Adjust the pushrods in the connectors to get the
ailerons centered. When nished, replace the cover, press into
position, and hold in place with tape or a dab of glue.
14
Page 15

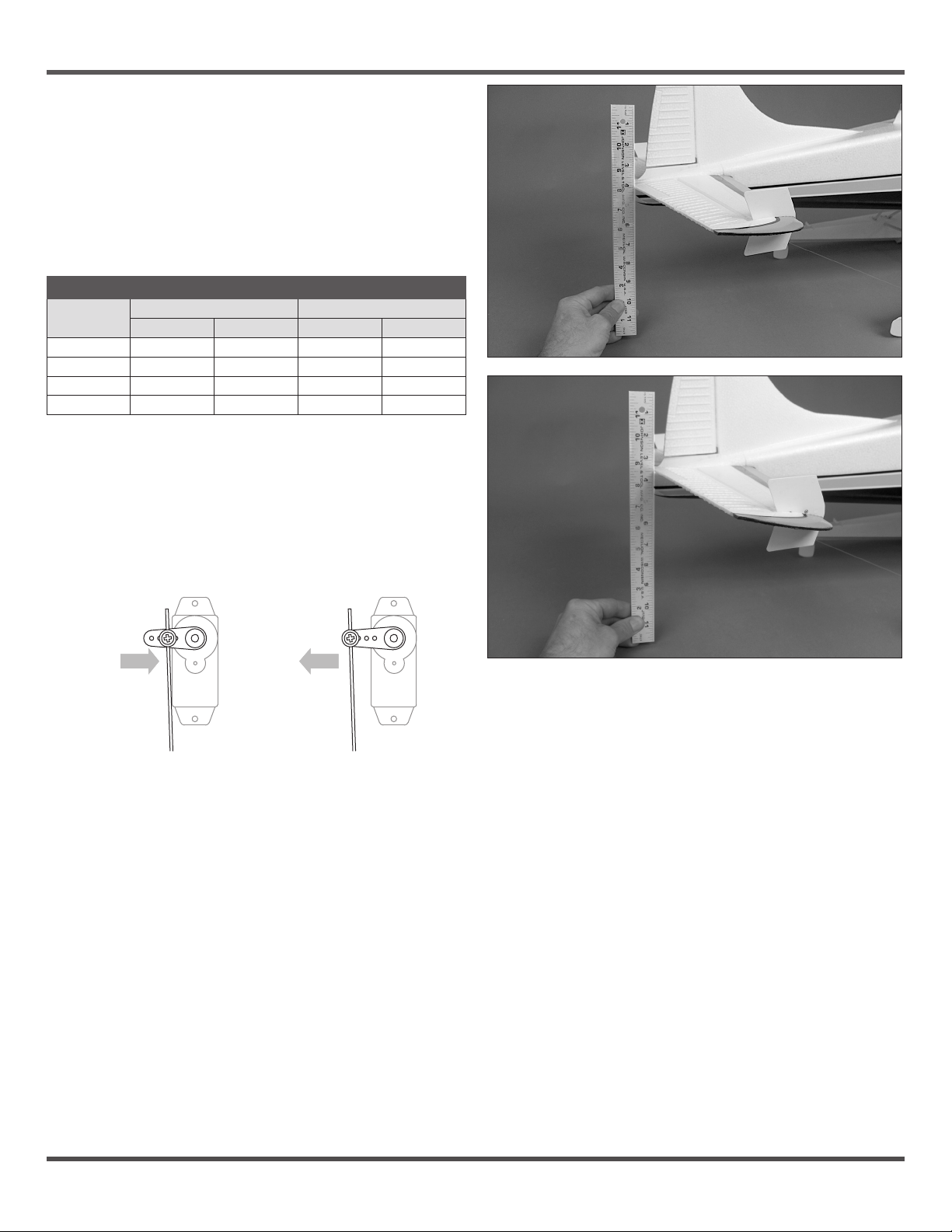

Control Throws
Because the servos and pushrods are factory installed the control
throws should be correct. Because of the effect the control throws
have on a model, it’s always a good idea to conrm they are correct.
1. Conrm the controls respond in the correct direction according
to control inputs from the transmitter. If necessary, use the
servo reversing program in your transmitter to change the servo
direction of any controls that are moving the wrong way.
2. If the aircraft is congured with the conventional landing gear,
prop up the back of the fuselage so the wings and stab are level.
3. Measure and set the control throws according to the
measurements below. Measure the throws at the widest part
(front-to-back) of each surface.
Recommended Control Throws
High Rate Low Rate
Up Down Up Down
Elevator 11mm 11mm 8mm 8mm
Ailerons 13mm 13mm 10mm 10mm
Rudder 32mm 32mm 22mm 22mm
Flap 11mm
If any of the control throws require adjustment use the programming
in your transmitter to increase or decrease the throws accordingly.
If the programming isn’t enough or if your radio doesn’t have
adjustable throws, the pushrod connectors on the servo arms can
be relocated in different holes inward or outward to increase or
decrease the throw—moving the pushrods inward on the servo arms
decreases the throw and moving the pushrods outward on the servo
arms increases the throw.
Less Control Throw
Pushrod
Farther In
More Control Throw
Pushrod
Farther Out
15
Page 16
Propeller and Spinner Installation
Failure to follow these safety precautions may result in severe injury to yourself and others.
• Wear safety glasses whenever in the proximity of a spinning
propeller.
• Do not operate the motor in an area of loose gravel or sand; the
propeller may throw such material in your face or eyes.
• Keep spectators as well as your own face and body out of the
plane of rotation of the propeller.
• Never connect the battery to the ESC while indoors with the
propeller installed.
• Always remove the propeller when testing or making repairs to
the model.

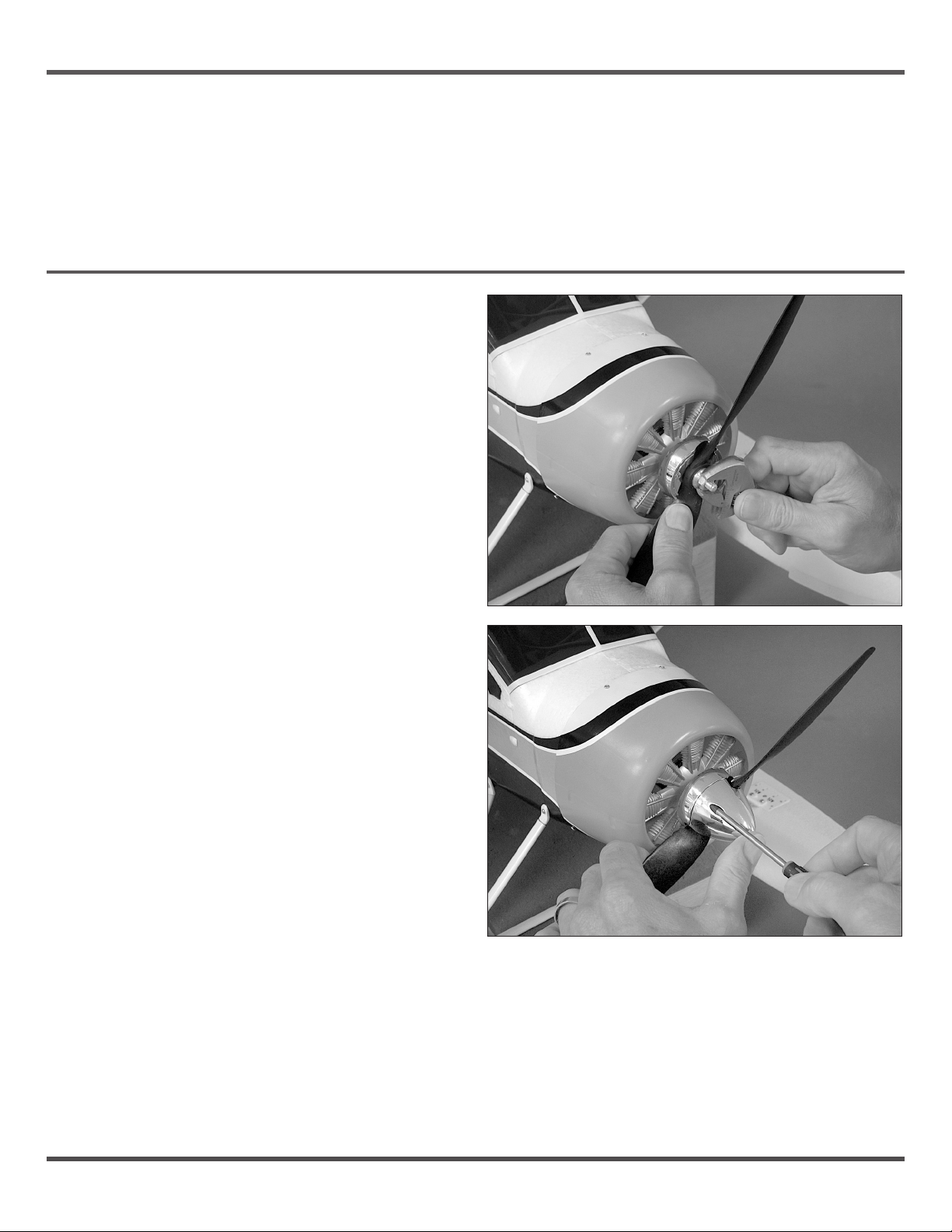

1. Secure the backplate, propeller, washer and nut. Make sure the
assembly is secure to the aircraft.
• Always stay behind the arc of the propeller when handling the
model.
• Always assume the motor may start unexpectedly when the
ight battery is connected.
• Always remain outside the arc of the propeller when installing
and/or removing the ight battery.
• Keep all loose clothing, long hair or any other loose objects such
as pencils or screwdrivers that may fall out pockets away from
the propeller.
2. Tighten the two Phillips head screws to the spinner.
16
Page 17

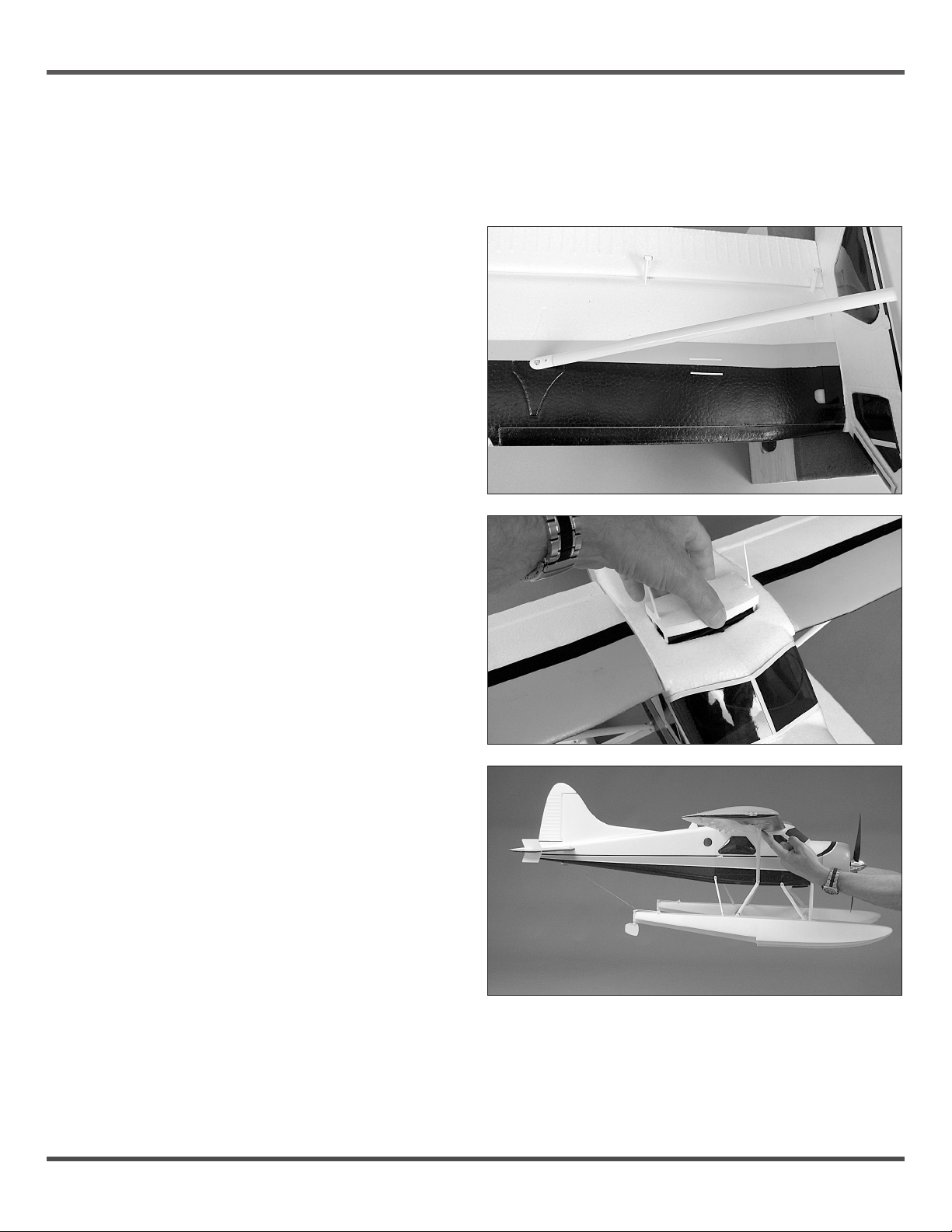

Center Of Gravity (CG)
Same as the control throws, the center of gravity has a great effect
on how every model ies.
• If the model is tail heavy it may be unstable and respond too
quickly to the controls.
• If the model is nose heavy it may be too stable and not respond
fast enough.
Either case may possibly cause a crash.
IMPORTANT: Do not overlook this important procedure.
1. Mark the forward and aft C.G. limits on both sides of the bottom
of the wing 2 and 2-1/2in (51mm and 64mm) back from the
leading edge where shown—using narrow strips of tape will
allow you to feel the marks when lifting the model with your
ngertips to balance.
2. Install the battery, battery hatch and cabin hatch. At this point
the Beaver must be in ready-to-y condition with everything
attached and installed including the oats or wheels and battery
and propeller.
3. Lift the model by your ngers between the lines indicating the
balance range. As long as the Beaver sits level with your ngers
on the forward or aft lines or anywhere between the lines it is
properly balanced and ready to y. If you have to move your
ngertips outside the lines the Beaver is out of balance and
should not be own. If necessary, add squares of stick-on
lead to the nose or tail to get the Beaver to balance within the
specied range.
17
Page 18
Before Every Flight
To help avoid ight accidents, ground inspections should be performed prior to every ight.
• Ensure all screws are secure, the servo arms and horns are
properly connected and the wing is properly secured.
• Install the recommended battery (not included), adjusting
the placement to ensure the center of gravity is correct, as
recommended in the manual.
• Ensure both the ight battery and the transmitter battery are
undamaged and fully charged.
• Ensure the transmitter throttle stick is at the lowest position prior
to powering on the aircraft.
• After the aircraft is powered on, perform a control surface check
to ensure both proper travel and the surfaces return to neutral
when the transmitter sticks are returned to neutral.
• With all body parts and loose items away from the propeller and
the aircraft securely held, gently push the throttle up to check for
correct rotation of the propeller.
• For inexperienced pilots, always seek assistance from an
experienced pilot.
Flying Tips
When powering the aircraft on, make sure the throttle stick is in the
minimum (0%) position. Always power on the transmitter before
plugging the battery into the plane.
The aircraft ies mostly the same as any similar, high-wing
airplane, but you may nd that the roll rate is a little slower. This
suits the Beaver well as it is a scale-like, STOL (Short TakeOff and
Landing) craft. Just give yourself more time and altitude before
trying your rst full roll.
Flying With Flaps
The only peculiarity arises when the aps are extended—if you
extend the aps too soon before the Beaver has lost enough ying
speed the nose will pitch up. Avoid this by making sure you have
given the Beaver enough time to slow after cutting the throttle. You
can also roll in the aps gradually. If you have a computer radio
you could also mix in some down elevator with aps. Once the
Beaver reaches “equilibrium” and has initiated a gliding descent
the nose will resume a normal, downward glide angle. Similarly,
when powering up the throttle with the aps extended the nose will
pitch up. Be prepared to counter with down elevator.
Flying From Water
Taken verbatim from our ight log book… “Flying the Beaver from
water with oats can be described with many adjectives including
astonishing, easy, fun, smooth, remarkable, etc.”
Unless weather conditions are poor, you should have no trouble
ying the Beaver from either rough or calm water. The water
rudders direct the Beaver well and they don’t have to be perfectly
centered to be effective (so don’t spend an exorbitant amount of
time on the work bench working on them!). The Beaver turns more
tightly at idle speeds, so if you need to do a U-turn throttle back to
bring the Beaver around. At higher speeds during a takeoff run the
water rudders have the correct amount of effectiveness to steer the
Beaver on its intended path. Takeoffs can be long and graceful or
short and steep—either way the oats handle the water well. If the
winds are really high the Beaver can still be own from water, but
avoid turning it directly across the wind. The wind can get under
the wing and ip the aircraft over. In the air, the only effect of the
oats is that the Beaver ies slightly slower.
Power Consumption
Flying “normally” (using half-throttle for general cruising and fullthrottle only when required) the Beaver consumes about 200mAh/
minute for recommended ight times of about 7 minutes with an
1800mAh battery and about 8.5 minutes with a 2100mAh battery.
Flying more aggressively using higher throttle settings, the current
draw increases closer to 260mAh/minute for recommended ight
times of 5.5 minutes with an 1800mAh battery and 6.5 minutes
with a 2100mAh battery.
To nd out for yourself how long you can y, set your timer to a
conservative 5 minutes. Fly until the timer sounds, then land. Use
a charger with a digital display to nd out how much capacity it
took to recharge the battery (indicating how much capacity was
used). To avoid over discharging your LiPos use only 80% of
your battery’s capacity, so multiply your battery’s capacity by .8
to nd out how much you have available. Compare the capacity
used to 80% of your battery’s capacity and adjust your ight time
accordingly.
For example: If you’re using the recommended 1800mAh battery,
your target capacity to use for a ight is 1440mAh (1800mAh x
.8 = 1440mAh). If you y for ve minutes and it takes 1000mAh
to recharge your battery, you still have 440mAh to go before
you should land, so adjust your timer to increase your ight time
accordingly until you reach your 1440mAh target. (You could also
divide 1000mAh by ve minutes to gure a current consumption
rate of 200mAh/minute. Divide 1440mAh by 200mAh/minute to
conclude that you can y for 7.2 minutes [7 min. 12 sec.]—but
round down to 7 minutes.)
When powering down, always unplug the battery from the plane
before turning the transmitter OFF.
It’s also a great idea to use a LiPo battery checker (HCAP0275)
to check the battery before each ight (to make sure you haven’t
inadvertently grabbed a discharged battery) and to check the
battery after ight to make sure you haven’t over discharged your
battery by ying too long. A safe, conservative, minimum voltage is
3.65V – 3.7V per cell right after a ight.
One nal note about ying your model. Have a goal or ight plan
in mind for every ight. This can be learning a new maneuver(s),
improving a maneuver(s) you already know, or learning how the
model behaves in certain conditions (such as on high or low rates).
This is not necessarily to improve your skills (though it is never a
bad idea!), but more importantly so you do not surprise yourself
by impulsively attempting a maneuver and suddenly nding that
you’ve run out of time, altitude or airspeed. Every maneuver should
be deliberate, not impulsive. For example, if you’re going to do
a loop, check your altitude, mind the wind direction (anticipating
rudder corrections that will be required to maintain heading),
remember to throttle back at the top, and make certain you are on
the desired rates (high/low rates). A ight plan greatly reduces the
chances of crashing your model just because of poor planning and
impulsive moves. Remember to think.
18
Page 19
Repairs
Parts damaged beyond repair can be purchased separately. Often
parts can be repaired and you can get your Beaver back into the
air with a little glue and ingenuity.
The Beaver is made from injection-molded EPO (expanded
polyolen) foam which can be glued with just about anything. Most
people use regular CA. With CA no clamping is required, but some
prefer softer, more exible adhesives such as white glue or canopy
glue. These will require clamps or tape to hold the parts together
while the glue dries.

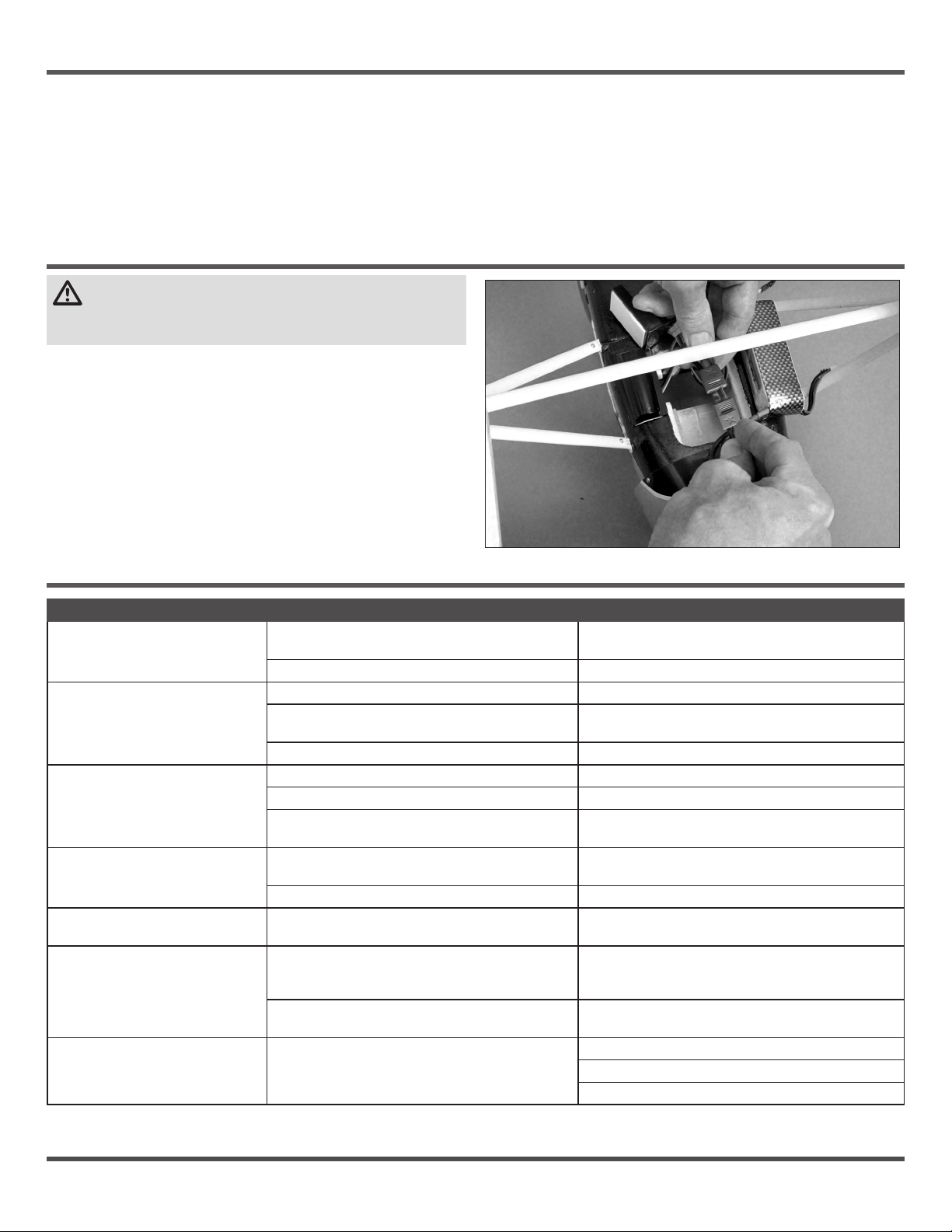

Electronic Speed Control Calibration
CAUTION: Remove the spinner and propeller before
performing the electronic speed control calibration
procedure. Failure to remove the propeller may cause serious
injury in the event of accidental motor startup.
IMPORTANT: Because different transmitters have different
throttle ranges, calibrate throttle range before ying.
To set the throttle range
1. Move the throttle stick to the highest position.
2. Connect battery to the ESC. The motor will emit one low, long
tone to indicate startup, then the respective number of mediumlength mid-tones to indicate the battery cell count. The motor
sounds 2 long tones (B—B—), which means the highest position
of the throttle range is recognized by the ESC.
3. Move the throttle stick to the lowest position within 2 seconds of
the tones. The ESC recognizes the low throttle position and exits
the throttle range calibrating process.
Troubleshooting
Problem Possible Cause Solution
Aircraft will not respond to the
throttle but responds to other
controls
Extra propeller noise or vibration
Reduced ight time
or aircraft is underpowered
Control surface does not move,
or is slow to respond to control
inputs
Controls reversed Channels are reversed in the transmitter
Motor loses power or pulses
then loses power
LED on receiver ashes slowly Power loss to the receiver
ESC is not armed
Throttle channel is reversed Reverse throttle channel on the transmitter
Damaged spinner, propeller, motor or mount Replace damaged parts
Loose propeller and spinner parts
Propellor installed backwards Remove and install the propeller correctly
Flight battery charge is low Completely recharge ight battery
Propeller installed backwards Remove and install the propeller correctly
Flight battery damaged
Control surface, control horn, linkage or servo
damage
Wire damaged or connections loose Do a check of connections for loose wiring
Damage to motor or battery
ESC uses default soft Low Voltage Cutoff (LVC)
Lower throttle stick and throttle trim to lowest
settings
Tighten parts for propeller adapter, propeller and
spinner
Replace the ight battery and follow ight battery
instructions
Replace or repair damaged parts and adjust
controls
Do the control direction test and adjust controls
for aircraft and transmitter
Do a check of batteries, transmitter, receiver,
ESC, motor and wiring for damage and replace as
needed
Land aircraft immediately and recharge the ight
battery
Check connection from the ESC to the receiver
Check servos for damage
Check linkages for binding
19
Page 20
Replacement Parts
Part # Description
TOWA137501 Fuselage: DHC-2 Beaver 1.5m
TOWA137502 Wing Set: DHC-2 Beaver 1.5m
TOWA137503 Horizontal Stabilizer: DHC-2 Beaver 1.5m
TOWA137504 Vertical Stabilizer: DHC-2 Beaver 1.5m
TOWA137505 Main Landing Gear: DHC-2 Beaver 1.5m
TOWA137506 Tailwheel Assembly: DHC-2 Beaver 1.5m
TOWA137507 Cowling: DHC-2 Beaver 1.5m
TOWA137508 Propeller, 12 x 6: DHC-2 Beaver 1.5m
TOWA137509 Spinner: DHC-2 Beaver 1.5m
TOWA137510 Propeller Adapter: DHC-2 Beaver 1.5m
TOWA137511 Float Set: DHC-2 Beaver 1.5m
TOWA137512 Float Brackets: DHC-2 Beaver 1.5m
TOWA137513 Water Rudders: DHC-2 Beaver 1.5m
TOWA137514 Wing Retainers: DHC-2 Beaver 1.5m
TOWA137515 Hatch Set: DHC-2 Beaver 1.5m
TOWA137516 4011-850Kv Motor: DHC-2 Beaver 1.5m
TOWA137517 40A ESC, EC3: DHC-2 Beaver 1.5m
TOWA137518 Wheel Set: DHC-2 Beaver 1.5m
TOWA137519 9g Sub-Micro Servo: DHC-2 Beaver 1.5m
Part # Description
TOWA137520 Wing Strut Set: DHC-2 Beaver 1.5m
TOWA137521 Decal Set: DHC-2 Beaver 1.5m
TOWA137522 Servo Arm Set: DHC-2 Beaver 1.5m
TOWA137523 Screw Set: DHC-2 Beaver 1.5m
TOWA137524 Light Set: DHC-2 Beaver 1.5m
TOWA137525 Elevator Control Horn: DHC-2 Beaver 1.5m
Recommended Parts
Part # Description
SPMAR637T AR637T 6CH SAFE and AS3X TelemRX
SPMR8200 NX8 8 Ch DSMX Transmitter Only
SPMX22003S30 2200mAh 3S 11.1V Smart 30C; IC3
SPMXC2080 Smart S1100 AC Charger, 1x100W
Optional Parts
Part # Description
ONXP22003S40 2200mAh 3S 11.1V 40C , EC3, LED
Important Federal Aviation Administration (FAA) Information
Use the QR code below to learn more about the Recreational
UAS Safety Test (TRUST), as was introduced by the 2018 FAA
Reauthorization Bill. This free test is required by the FAA for all
recreational yers in the United States. The completed certicate must
be presented upon request by any FAA or law enforcement ofcial.
If your model aircraft weighs more than .55lbs or 250 grams, you
are required by the FAA to register as a recreational yer and apply
your registration number to the outside of your aircraft. To learn
more about registering with the FAA, use the QR code below.
Recreational UAS Safety Test FAA DroneZone
AMA National Model Aircraft Safety Code
Effective January 1, 2018
A model aircraft is a non-human-carrying device capable of sustained ight within visual line of sight of the pilot or spotter(s). It may not
exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. All model ights must be
conducted in accordance with this safety code and related AMA guidelines, any additional rules specic to the ying site, as well as all
applicable laws and regulations.
As an AMA member I agree:
• I will not y a model aircraft in a careless or reckless manner.
• I will not interfere with and will yield the right of way to all
human-carrying aircraftusing AMA’s See and Avoid Guidance
and a spotter when appropriate.
• I will not operate any model aircraft while I am under the
inuence of alcohol or any drug that could adversely affect my
ability to safely control the model.
• I will avoid ying directly over unprotected people, moving
vehicles, and occupied structures.
• I will y Free Flight (FF) and Control Line (CL) models in
compliance with AMA’s safety programming.
• I will maintain visual contact of an RC model aircraft without
enhancement other than corrective lenses prescribed to me.
When using an advanced ight system, such as an autopilot,
or ying First-Person View (FPV), I will comply with AMA’s
Advanced Flight System programming.
• I will only y models weighing more than 55 pounds, including
fuel, if certied through AMA’s Large Model Airplane Program.
• I will only y a turbine-powered model aircraft in compliance
with AMA’s Gas Turbine Program.
• I will not y a powered model outdoors closer than 25 feet to
any individual, except for myself or my helper(s) located at the
ightline, unless I am taking off and landing, or as otherwise
provided in AMA’s Competition Regulation.
• I will use an established safety line to separate all model aircraft
operations from spectators and bystanders.
20
Page 21
Limited Warranty
What this Warranty Covers
Horizon Hobby, LLC, (Horizon) warrants to the original purchaser
that the product purchased (the “Product”) will be free from
defects in materials and workmanship at the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic
damage, (ii) damage due to acts of God, accident, misuse, abuse,
negligence, commercial use, or due to improper use, installation,
operation or maintenance, (iii) modication of or to any part of the
Product, (iv) attempted service by anyone other than a Horizon
Hobby authorized service center, (v) Product not purchased from
an authorized Horizon dealer, (vi) Product not compliant with
applicable technical regulations, or (vii) use that violates any
applicable laws, rules, or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON
MAKES NO OTHER WARRANTY OR REPRESENTATION, AND
HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER
ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT
THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF
THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive
remedy shall be that Horizon will, at its option, either (i) service, or
(ii) replace, any Product determined by Horizon to be defective.
Horizon reserves the right to inspect any and all Product(s)
involved in a warranty claim. Service or replacement decisions are
at the sole discretion of Horizon. Proof of purchase is required for
all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED
UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND
EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF
PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY
WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED
IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT
LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF
HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. Further, in no event shall the liability of Horizon
exceed the individual price of the Product on which liability
is asserted. As Horizon has no control over use, setup, nal
assembly, modication or misuse, no liability shall be assumed
nor accepted for any resulting damage or injury. By the act of use,
setup or assembly, the user accepts all resulting liability. If you
as the purchaser or user are not prepared to accept the liability
associated with the use of the Product, purchaser is advised to
return the Product immediately in new and unused condition to
the place of purchase.
Law
These terms are governed by Illinois law (without regard to conict
of law principals). This warranty gives you specic legal rights,
and you may also have other rights which vary from state to state.
Horizon reserves the right to change or modify this warranty at any
time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide
warranty support or service. Once assembly, setup or use of the
Product has been started, you must contact your local distributor
or Horizon directly. This will enable Horizon to better answer your
questions and service you in the event that you may need any
assistance. For questions or assistance, please visit our website
at www.horizonhobby.com, submit a Product Support Inquiry,
or call the toll free telephone number referenced in the Warranty
and Service Contact Information section to speak with a Product
Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant
in the country you live and use the Product in, please use the
Horizon Online Service Request submission process found on
our website or call Horizon to obtain a Return Merchandise
Authorization (RMA) number. Pack the Product securely using a
shipping carton. Please note that original boxes may be included,
but are not designed to withstand the rigors of shipping without
additional protection. Ship via a carrier that provides tracking
and insurance for lost or damaged parcels, as Horizon is not
responsible for merchandise until it arrives and is accepted at
our facility. An Online Service Request is available at http://
www.horizonhobby.com/content/service-center_render-servicecenter. If you do not have internet access, please contact Horizon
Product Support to obtain a RMA number along with instructions
for submitting your product for service. When calling Horizon,
you will be asked to provide your complete name, street address,
email address and phone number where you can be reached
during business hours. When sending product into Horizon, please
include your RMA number, a list of the included items, and a brief
summary of the problem. A copy of your original sales receipt
must be included for warranty consideration. Be sure your name,
address, and RMA number are clearly written on the outside of the
shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have
any issue with a LiPo battery, please contact the appropriate
Horizon Product Support office.
Warranty Requirements
For Warranty consideration, you must include your original sales
receipt verifying the proof-of-purchase date. Provided warranty
conditions have been met, your Product will be serviced or
replaced free of charge. Service or replacement decisions are at
the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be
completed and payment will be required without notication or
estimate of the expense unless the expense exceeds 50% of the
retail purchase cost. By submitting the item for service you are
agreeing to payment of the service without notication. Service
estimates are available upon request. You must include this
request with your item submitted for service. Non-warranty service
estimates will be billed a minimum of ½ hour of labor. In addition
you will be billed for return freight. Horizon accepts money orders
and cashier’s checks, as well as Visa, MasterCard, American
Express, and Discover cards. By submitting any item to Horizon
for service, you are agreeing to Horizon’s Terms and Conditions
found on our website http://www.horizonhobby.com/content/
service-center_render-service-center.
ATTENTION: Horizon service is limited to Product compliant in
the country of use and ownership. If received, a non-compliant
Product will not be serviced. Further, the sender will be
responsible for arranging return shipment of the un-serviced
Product, through a carrier of the sender’s choice and at the
sender’s expense. Horizon will hold non-compliant Product
for a period of 60days from notification, after which it will be
discarded.
10/15
21
Page 22
Warranty and Service Contact Information
Country of Purchase Horizon Hobby Contact Information Address
United States of America
Horizon Service Center
(Repairs and Repair Requests)
Horizon Product Support
(Product Technical Assistance)
Sales
servicecenter.horizonhobby.com/RequestForm/
[email protected]
877-504-0233
[email protected]
800-338-4639
2904 Research Rd
Champaign, IL 61822
FCC Information
Supplier’s Declaration of Conformity
Tower DHC-2 Beaver 1.5m (TOWA1375)
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Horizon Hobby, LLC
2904 Research Road
Champaign, IL 61822
Email: [email protected]
Web: HorizonHobby.com
IC Information
IC: CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus complies with Canadian ICES-003.
22
Page 23
23
Page 24
Tower Hobbies, the Tower Hobbies logo, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.
The Spektrum trademark is used with permission of Bachmann Industries, Inc.
All other trademarks, service marks and logos are property of their respective owners. US 8,672,726 US 9,056,667
Created 06/23 TOWA1375 724912
©2023 Horizon Hobby, LLC.
http://www.horizonhobby.com/
Loading...
