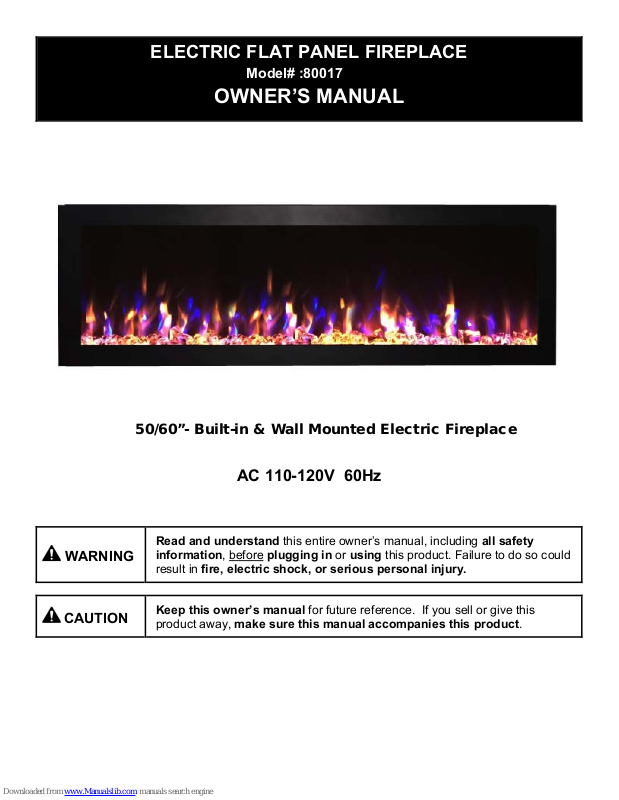

Page 1
ELECTRIC FLAT PANEL FIREPLACE
Model# :80017
OWNER’S MANUAL
50/60”- Built-in & Wall Mounted Electric Fireplace
AC 110-120V 60Hz
Read and understand this entire owner’s manual, including all safety
WARNING
CAUTION
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
Page 2
IMPORTANT SAFETY INFORMATION!
WARNING
Read all instructions before using this fireplace!
DO NOT operate any fireplace with a damaged cord or plug or after the fireplace
malfunctions, has been dropped or damaged in any manner. Discard fireplace, or return to
authorized service facility for examination and/or repair.
DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs, runners,
or similar coverings. DO NOT route power cord under furniture or appliances. Arrange power
cord away from traffic area, and where it will not be tripped over.
Connect to properly grounded outlets ONLY.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as
this may cause electric shock or fire, or damage the fireplace.
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so could
cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become blocked.
A fireplace has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this fireplace only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
NEVER hang this unit on a wall directly below an electrical outlet.
NEVER permanently install in a recessed area of the wall. This may result in blocked air
flow, overheating, or fire.
ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.
NEVER use a wall mount bracket from another manufacturer.
For residential use only! NOT for commercial use! Any commercial or public use of this
fireplace voids all warranties, and could cause injury.
This product is not intended to be a primary heat source. It is for supplemental heat only.
INDOOR and OUTDOOR use!
Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
NEVER modify this fireplace. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
ALWAYS turn this fireplace off before unplugging it from the outlet.
ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
NEVER leave this fireplace unattended. ALWAYS unplug this fireplace when not in use.
2
Page 3
ONLY use this fireplace on a 120V AC 10-Amp grounded circuit. NEVER overload the
circuit. If this fireplace trips the circuit breaker, unplug all other appliances on the same circuit
before the next use. Avoid plugging other appliances into the same circuit as this fireplace.
NEVER plug this fireplace into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this fireplace into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
ALWAYS check your fireplace cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) fireplaces draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or face plate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
The power cord supplied with the fireplace has three
prongs: two flat blades (live and neutral) and one
round pin (ground). If a 3-slot receptacle is not
available, an adapter MUST be used. The adapter
MUST be properly grounded to the outlet box (see
figure at right). [NOTE: Adapter NOT INCLUDED.]
With Leakage protection plug.
SAVE THESE INSTRUCTIONS!
Preparation
This product includes a GLASS panel! Always use extreme caution when handling
glass. Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts
and assembly steps are grouped for free-standing or wall-hanging use. Check the parts list to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape
measure; electric drill; 1/4” wood drill bit, hammer.
3
Page 4
Parts and Hardware
B – Wood Screws ( 4) C – Drywall anchors (4 )
A – Fireplace ( 1 )
RC – Remote Control (1)
Installation and Assembly
Rear View of Fireplace
Minimum 39.4”
19.7”
(50 cm)
(100 cm)
Minimum
19.7” (50 cm)
19.7”
(50 cm)
Step 1. Find a safe location.
Minimum clearance on each side:
19.7” (50 cm).
Minimum clearance below:
19.7” (50 cm).
Minimum clearance above:
39.4” (100 cm).
Minimum clearance from the front
and sides: 19.7” (50 cm).
Choose a location near an outlet so
an extension cord is not required.
DO NOT position the unit directly
below a power outlet.
See Safety Information on pages
2 and 3 for warnings about safe
placement, safe installation, and
proper use of this product.
ALWAYS unplug this fireplace fireplace before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock, fire, or personal injury.
4
Page 5

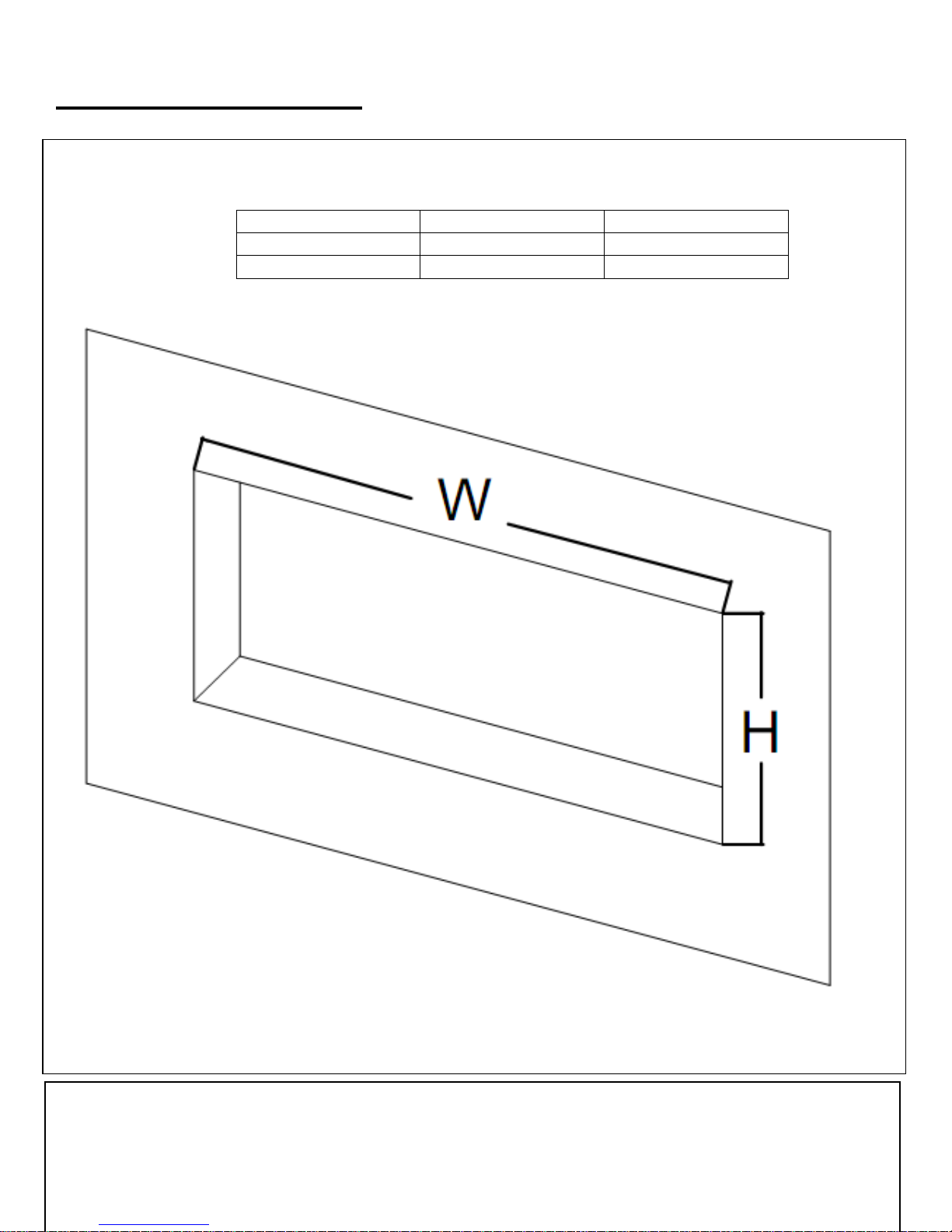

Bulit-in Installation
STEP 1. Selection a dry wall to open a hole for fireplace box. Size of holes as below chart
Model No. W H
BEF-50BIF 48.19” 17.2”
BEF-60BIF 58.19” 17.2”
Figure ( A )
5
Page 6

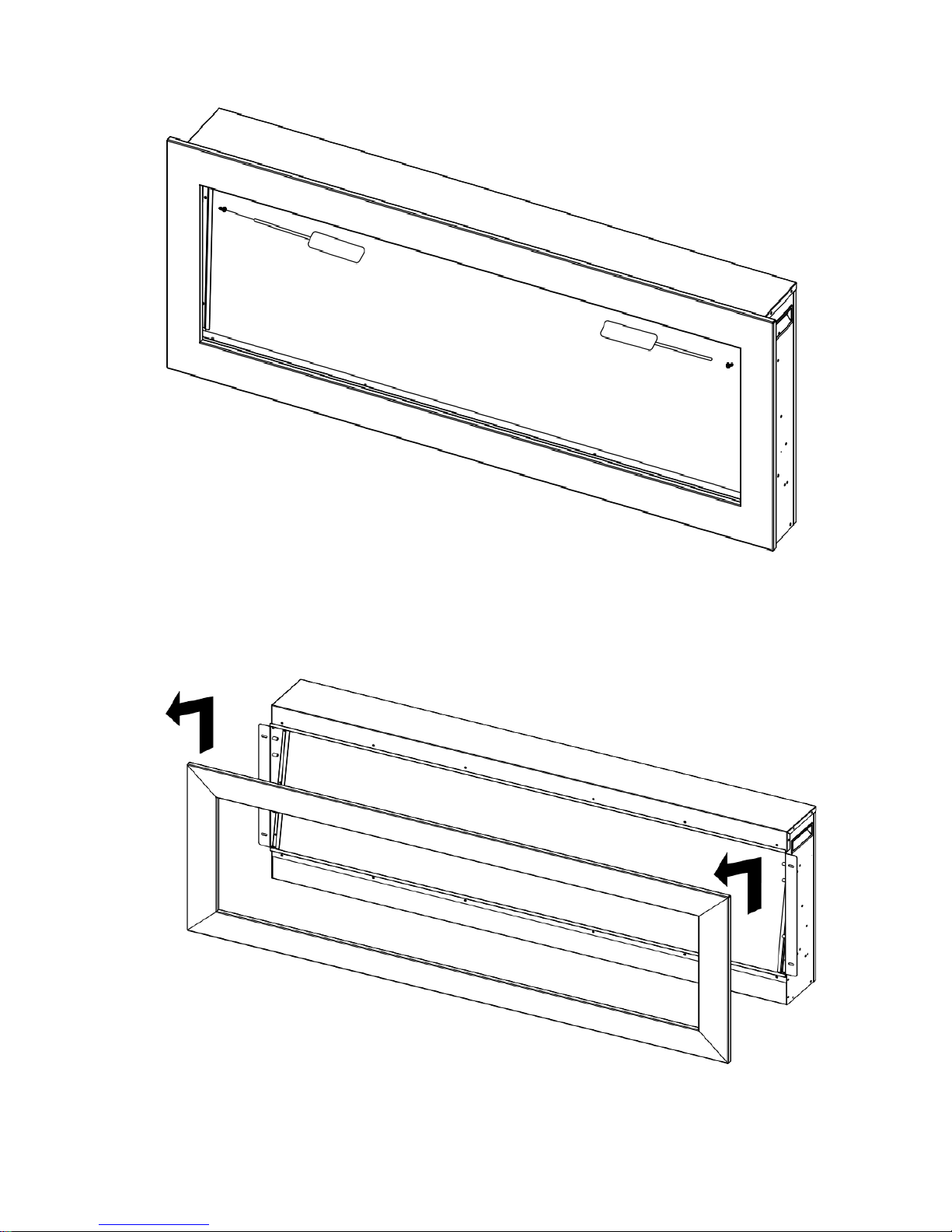

Figure ( B )
STEP 2. Place the fireplace to a soft clean place. using the screw driver to take off the TWO screws
in both sides. Figure (B)
Figure ( C )
STEP 3. Have two people to pull the trim up, then take them out of the fireplace box. Figure (C)
6
Page 7

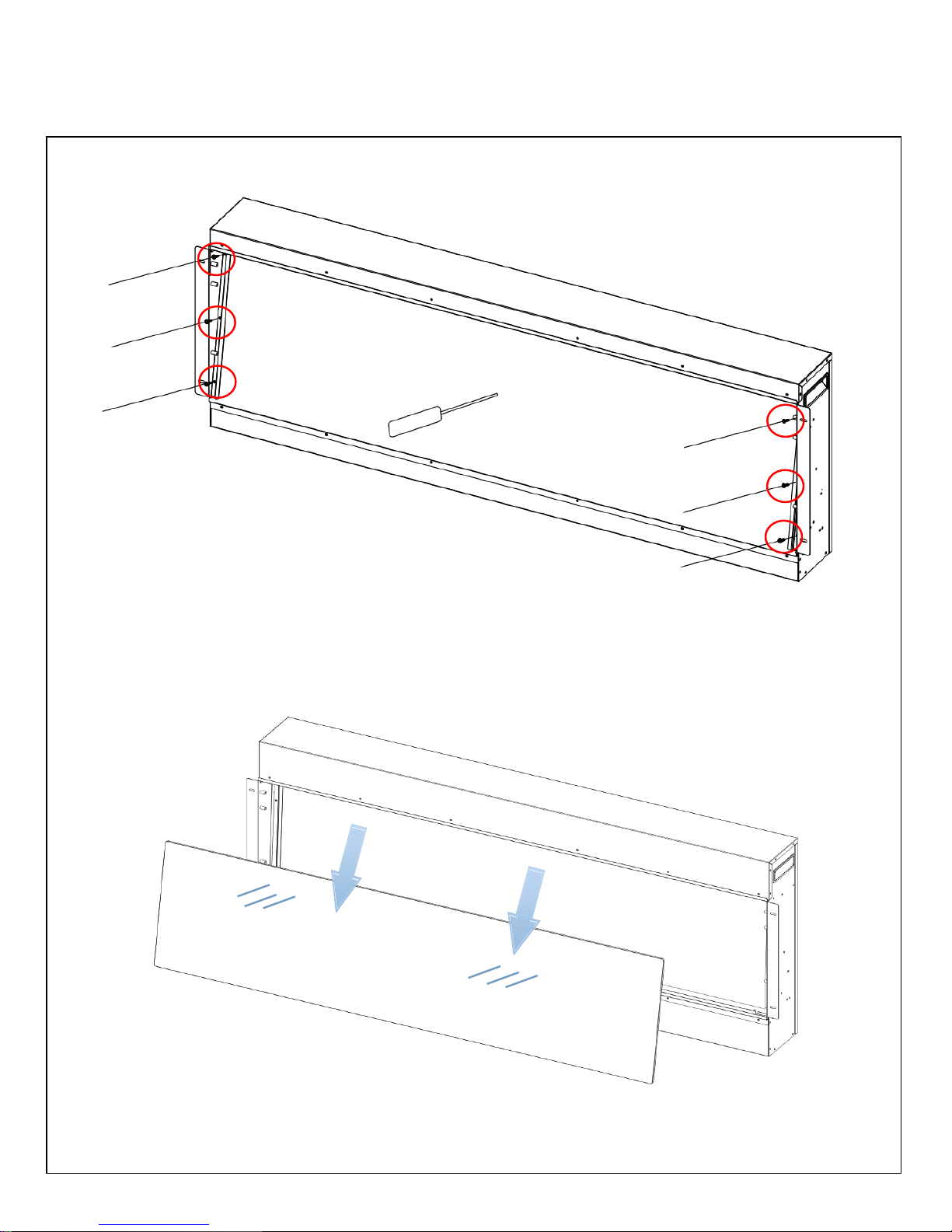

Figure ( D )
STEP 4. Using the screw driver to take off the 8 screws as above Figure (D), have two people to take
out the glass panel Figure (E) and move it to a clean soft place to avoid the scratching.
Figure ( E )
7
Page 8

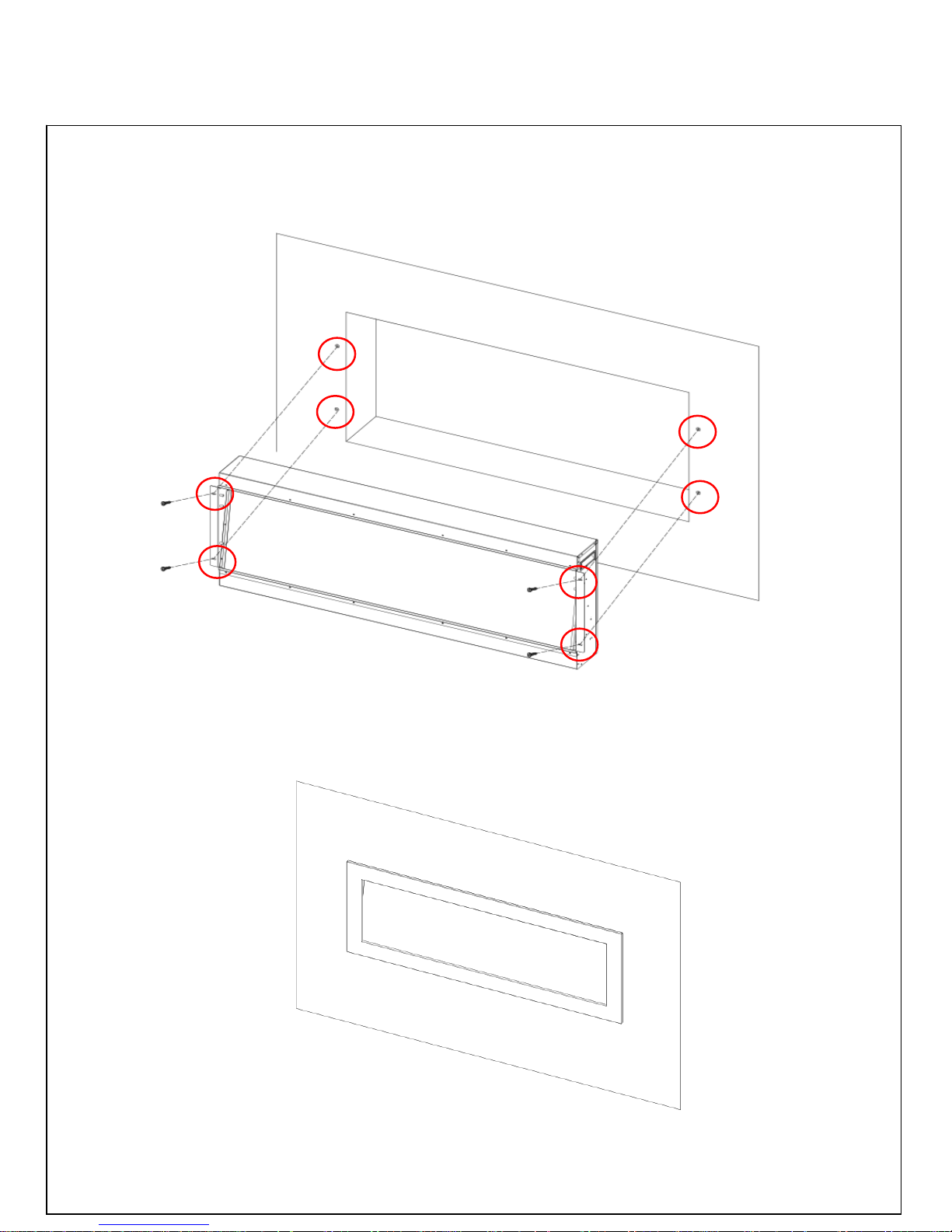

STEP 5. Have two people to lift the fireplace box and put it into the opened hole. Fixing the FOUR
wall screws in each side of the fireplace box. Figure (F)
Figure ( F )
STEP 6. Place the decorative crystals (For crystals ember installation please refer to Page 10).
Move and screw back the glass panel and metal trim. Fireplace will finished as below Figure (G)
Figure ( G )
8
Page 9

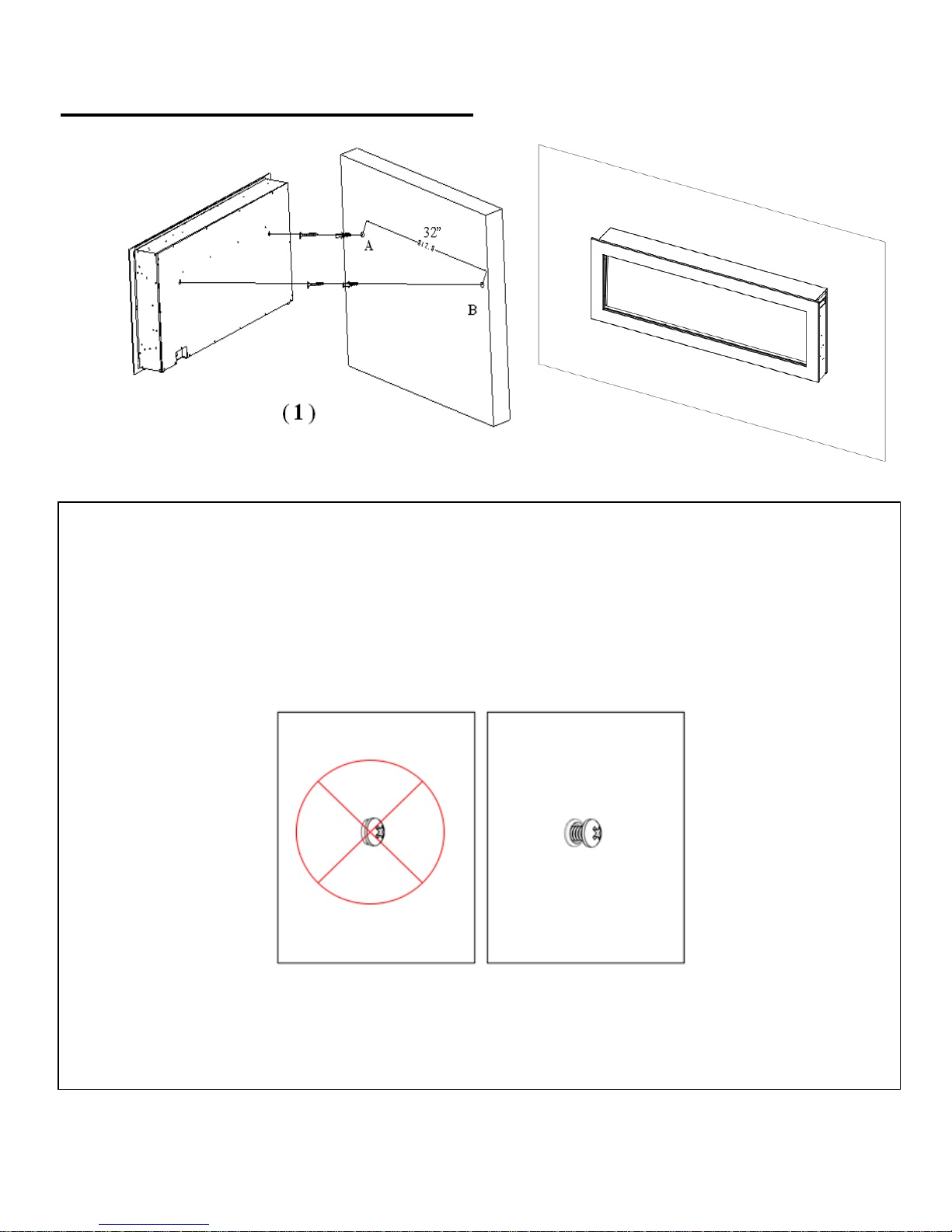

Wall Mounted Installation
STEP1 ) Select a location that is not prone to moisture and is located at least 36" away from
combustible materials such as curtain drapes, furniture, bedding, paper, etc. then use a ￠1/4 drill
to drill the two holes A,B and use the Hammer to thread the Drywall anchors into the hole till it keep
flat with the wall. (The distance of the two holes is 32”.) Figure (1)
STEP2 ) Thread the two wood screws into pilot hole in the wall stud and into the drywall
anchors. IMPORTANT! DO NOT SCREW IN ALL THE WAY. Leave the screw heads sticking
out from the wall about 3/16” (4.8 mm).
STEP 3. Have two people lift the appliance up and insert the two screws into the two designed
holes on the back of the fireplace box. Check the appliance for stability ensuring that the fireplace
will not pull free from the wall.
9
Page 10
Operation
Read and understand this entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, or death.
Power
Make sure the ON/OFF switch, located on the left side panel, is in the OFF position. Plug the power
cord into a 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on
Pages 2 and 3). Make sure the outlet is in good condition and that the plug is not loose. NEVER
exceed the maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.
Methods of Operation

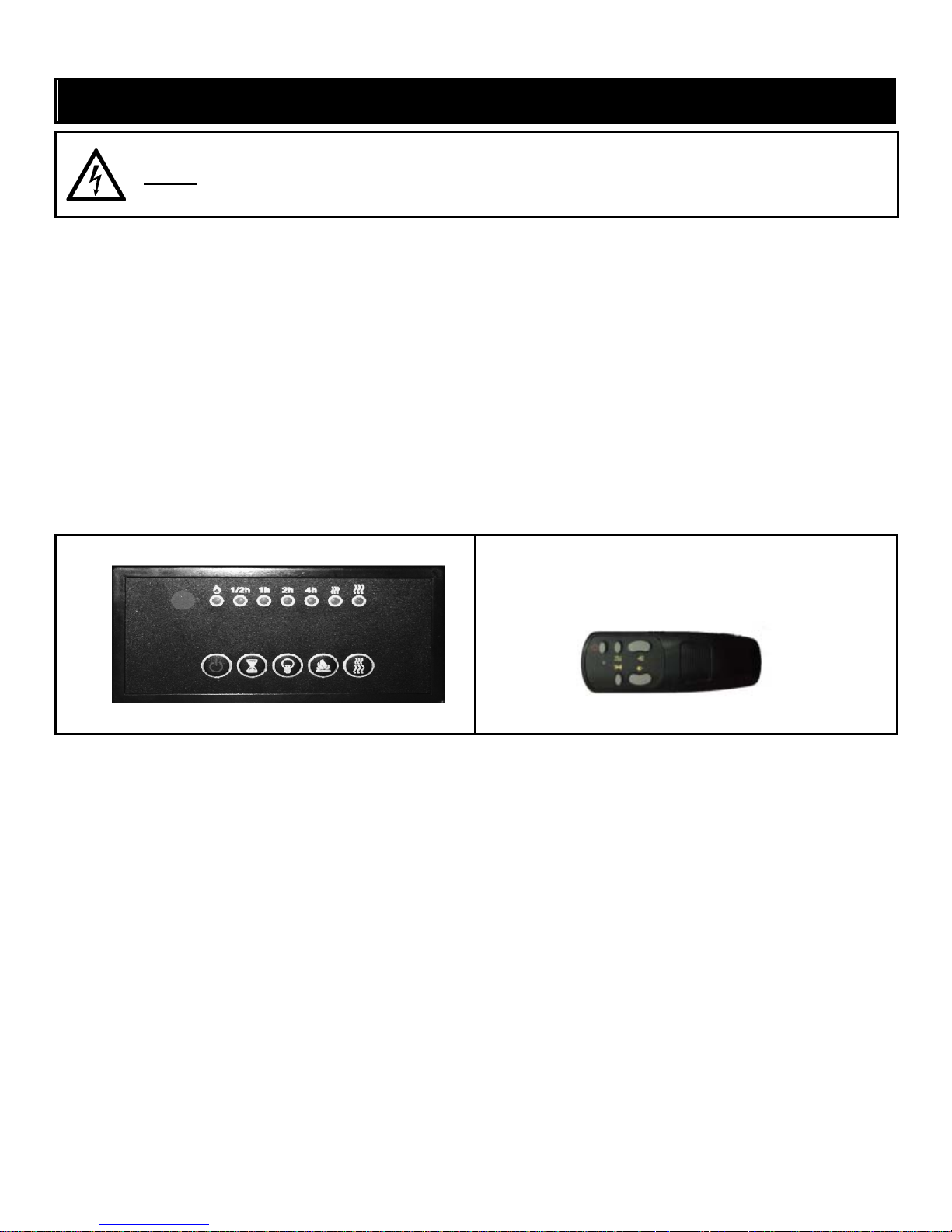

This electric fireplace can be operated by the CONTROL PANEL, located on the right side panel of
the fireplace (see figure below), or by the battery-powered REMOTE CONTROL.
The operation and functions of the two methods are the same.
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and
heed all warnings.
10
Page 11

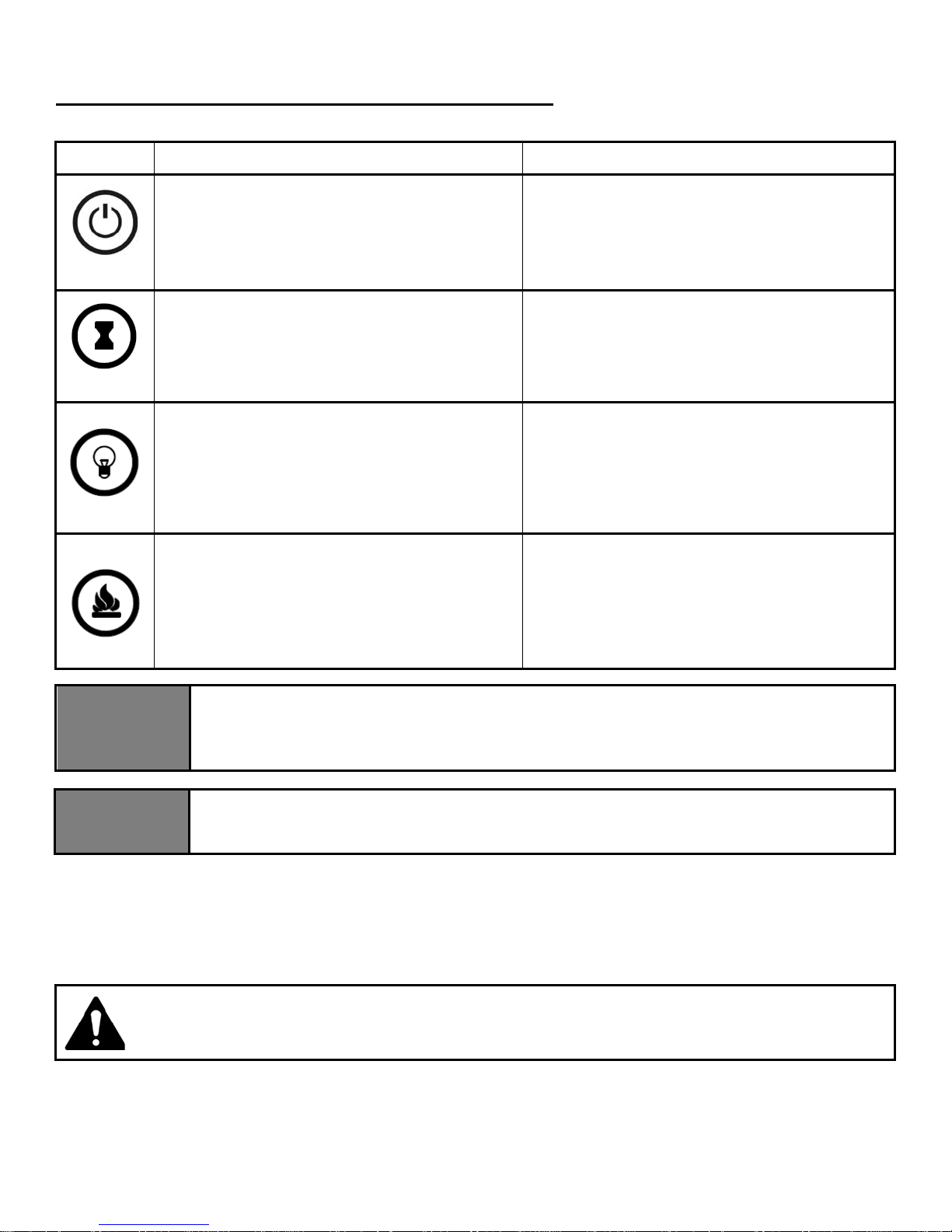

Remote Control &Control Panel Operation
(Control panel POWER switch must be ON to use remote control.)
BUTTON FUNCTION ACTION & INDICATION
POWER
TIMER
FLAME
COLOR
ON: Enables control panel functions and
remote control. Turns on flame effect.
OFF: Disables control panel functions and
remote control. Turns off flame effect.
TIMER button: Controls timer settings to
turn off fireplace at selected time.
Settings range from 0.5 hours to 7.5 hours.
FLAME button: Makes flame effect
dimmer and brighter.
NOTE: Flame effect stays on until power
button is turned off. Flame effect must be
on for fireplace to turn on.
COLOR button: Makes the color flame
effect changing.
NOTE: color effect stays on until power
button is turned off. Color flame effect
must be on for fireplace to turn on.
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame effect turns off. Unit
goes to standby. All functions turn off.
1. Press once. Indicator light turns on.
Timer is set to 0.5 hours.
2. Press again until desired setting is
reached. Indicator lights show setting.
1. Press once. Flame brightness effect
gets changing.
2. Press again. until desired setting is
reached.
1. Press once. Flame color effect gets
changing.
2. Press again until desired setting is
reached.total 3 colors.
When the fireplace is first turned on, a slight odor may be present. This is normal
NOTICE
and should not occur again unless the fireplace is not used for a long period of
time.
To improve operation, aim the remote control at the front of the fireplace. DO NOT
NOTICE
press the buttons too quickly. Give the unit time to respond to each command.
Remote Control Battery Information
This remote control uses TWO AAA battery (not included).
Instructions for battery installation are on the Remote Control battery compartment.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.
11
Page 12
Care and Maintenance
Cleaning
ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper
towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
Use a vacuum or duster to remove dust and dirt from the fireplace and vent areas.
Plastic:
Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
Risk of electric shock! DO NOT OPEN any panels ! No user-serviceable parts
inside!
ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
The fan motors are lubricated at the factory and will not require lubrication.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
Store fireplace in a clean dry place when not in use.
WARNING! NO SERVICING of the internal or electrical parts should be performed by the
consumer. Do not service the unit yourself.
12
Page 13
13
Loading...
