Touchstone 80011, 80013, 80015, 80014, 80004 Owner's Manual
SIDELINE SERIES ELECTRIC FIREPLACE HEATER
Model # : 80004, 80011, 80013, 80014, 80015
OWNER’S MANUAL
WARNING
CAUTION
36"/50"/60”/72"
Sideline Series
Recessed Electric Fireplace
AC 110-120V 60Hz 1500W
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
Recessed Electric Fireplace
2
www.touchstonehomeproducts.com 800.215.1990
Recessed Electric Fireplace
3
Table of Contents
Contents
General Information ................................................................................................................................................... 5
CSA Approval Listing Information ........................................................................................................................... 5
Fireplace Specifications ............................................................................................................................................ 5
Dimensional Drawings ............................................................................................................................................. 6
80004 – Sideline 50” Dimensions............................................................................................................................. 6
80011 – Sideline 60” Dimensions............................................................................................................................. 7
80013 – Sideline Steel 50” Dimensions.................................................................................................................... 8
80014 – Sideline 36” Dimensions............................................................................................................................. 9

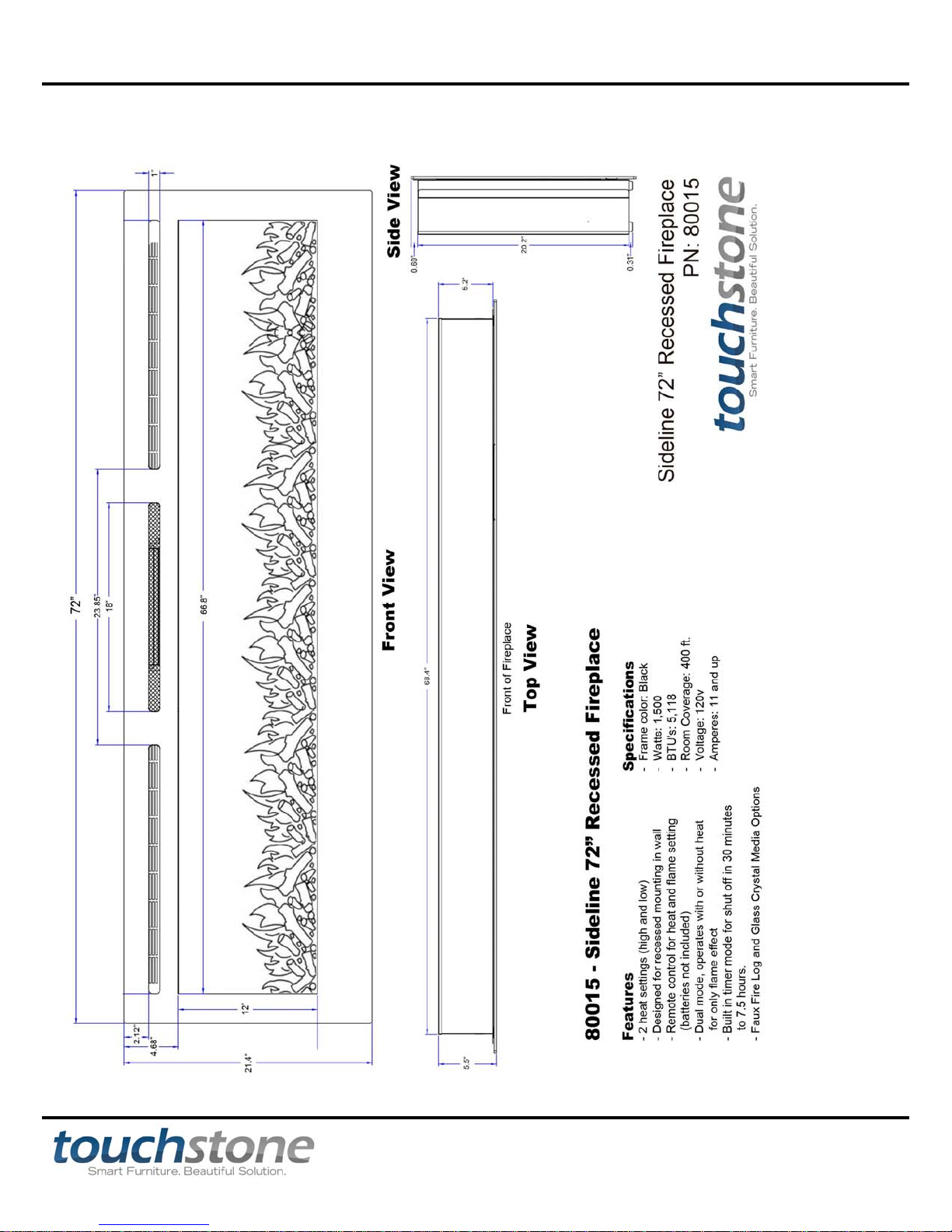

80015 – Sideline 72” Dimensions........................................................................................................................... 10
Unpacking Your Fireplace ....................................................................................................................................... 11
Parts and Hardware ............................................................................................................................................... 11
Tools Required .................................................................................................................................................... 11

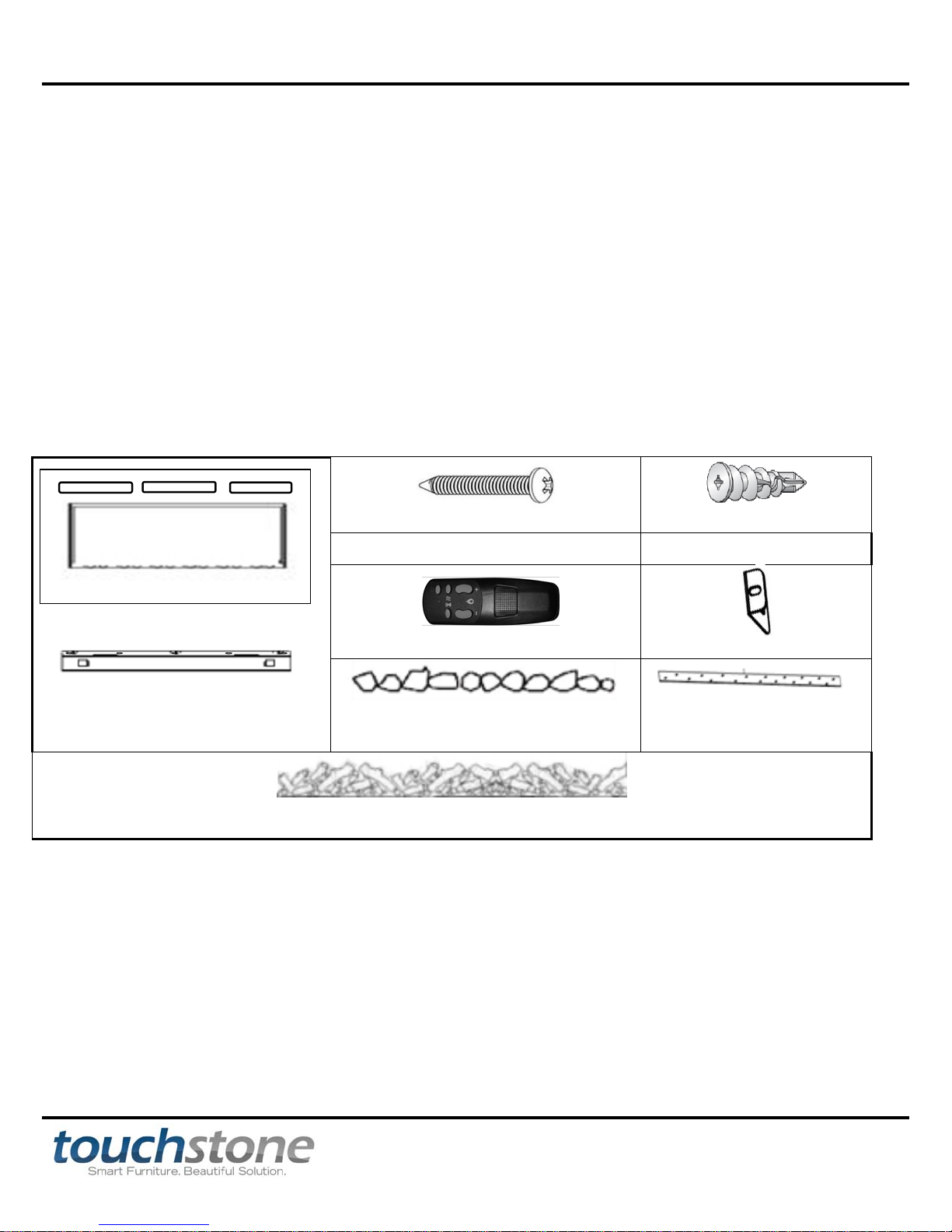

What’s in the Box ............................................................................................................................................... 11
Unpacking and Setup .............................................................................................................................................. 11
Unpacking Instructions: ...................................................................................................................................... 11
Wiring ..................................................................................................................................................................... 12
Testing the Fireplace Prior to Installation ........................................................................................................... 12

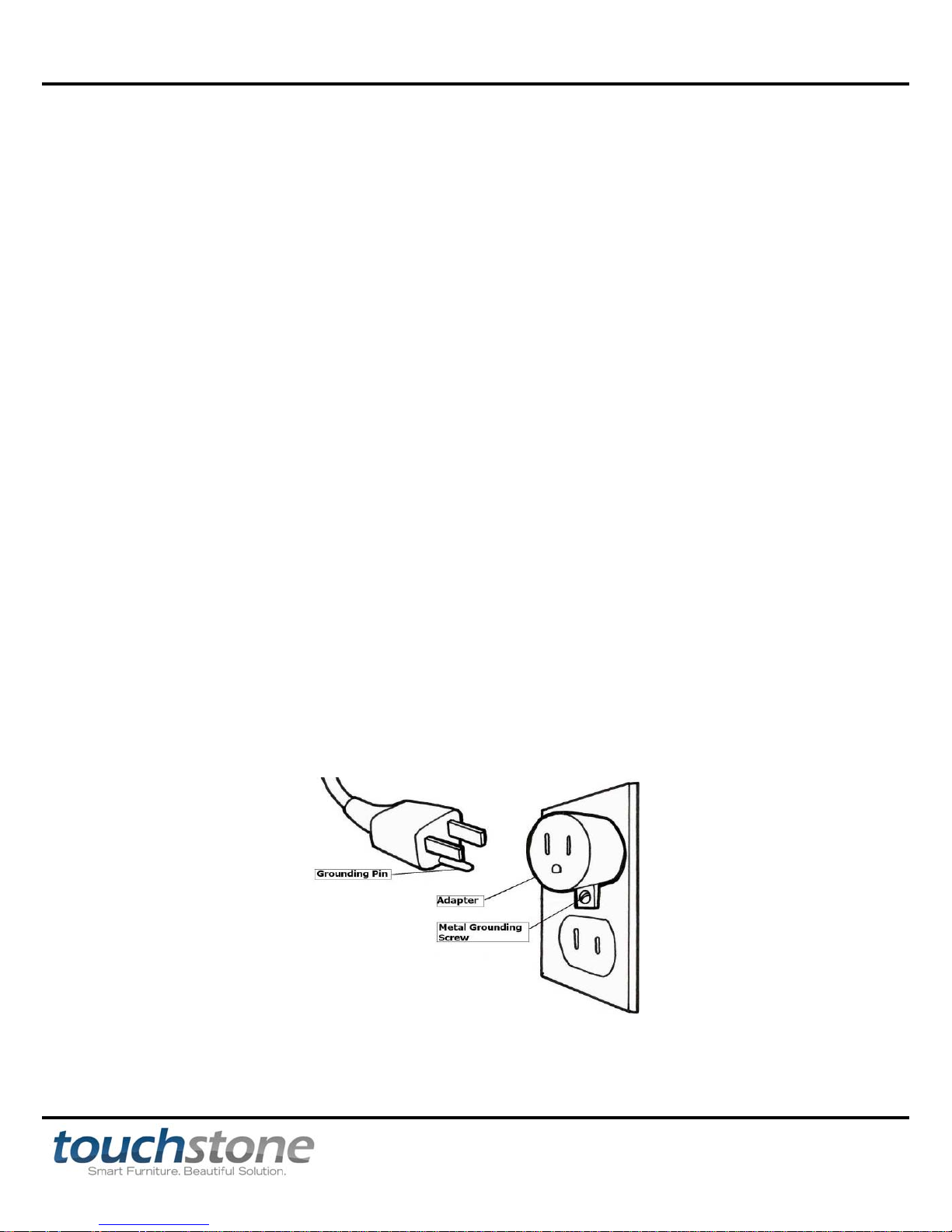

3-prong Outlet Installation .................................................................................................................................. 12

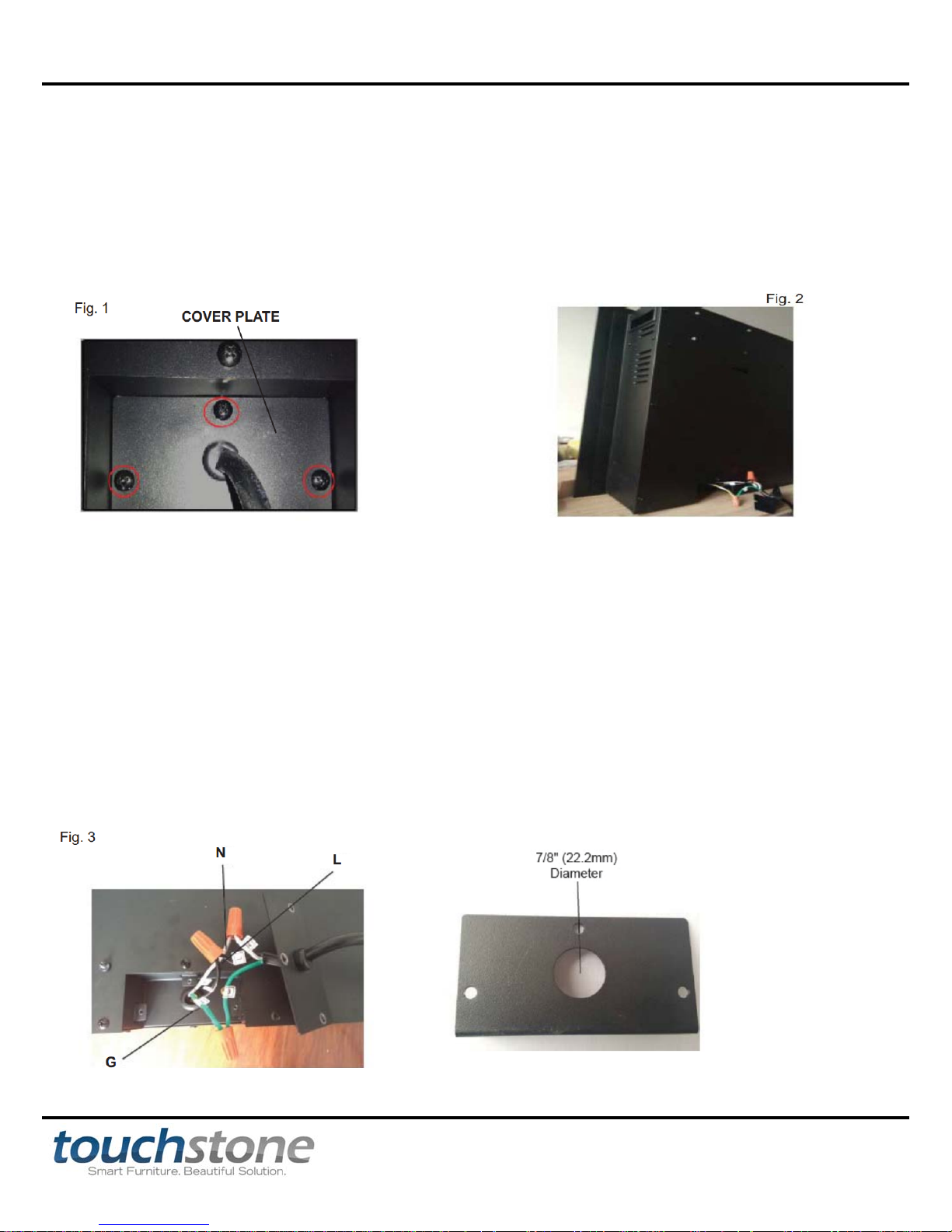

Hard Wire Connection ........................................................................................................................................ 13
Installation ................................................................................................................................................................. 14
WARNINGS ....................................................................................................................................................... 14
Choosing Installation Location............................................................................................................................... 14

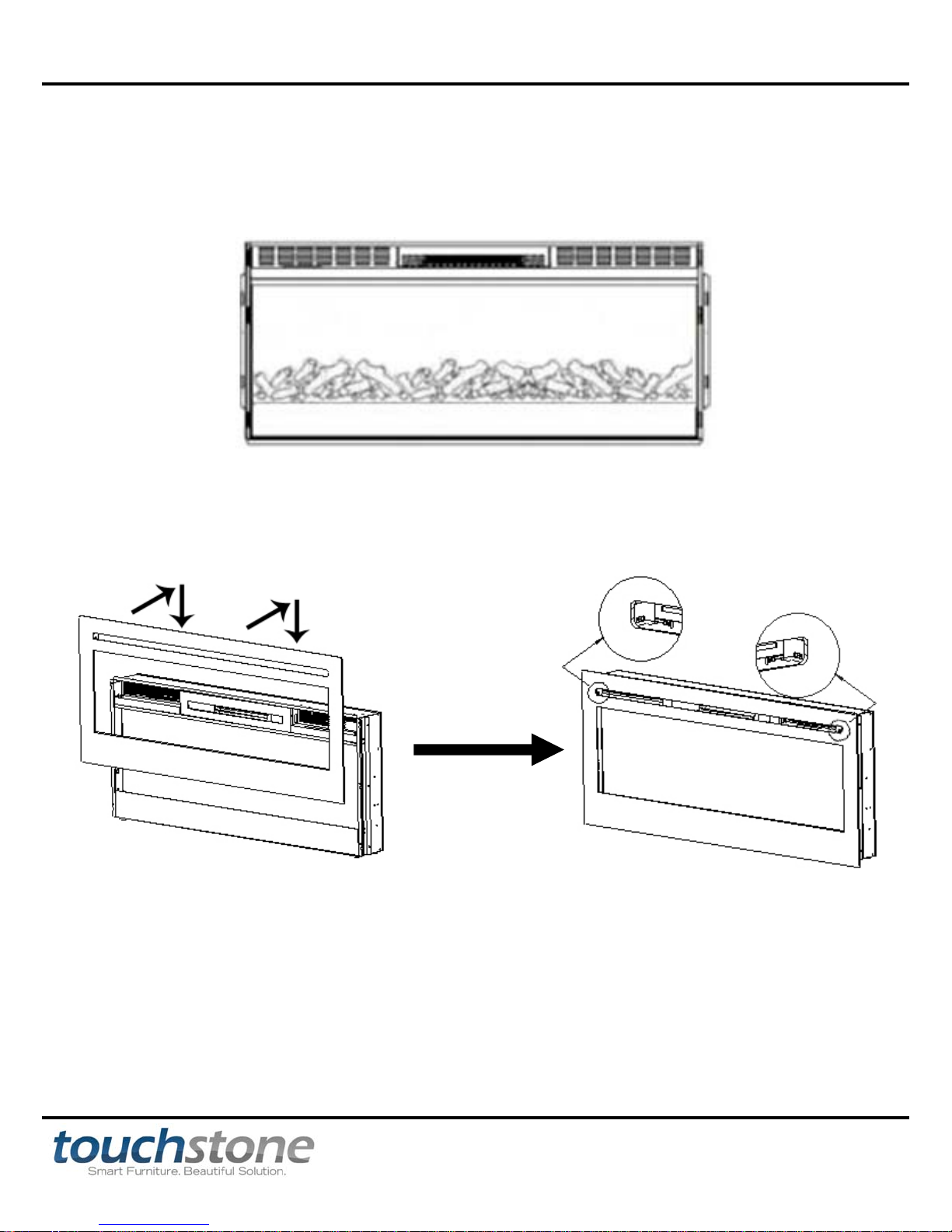

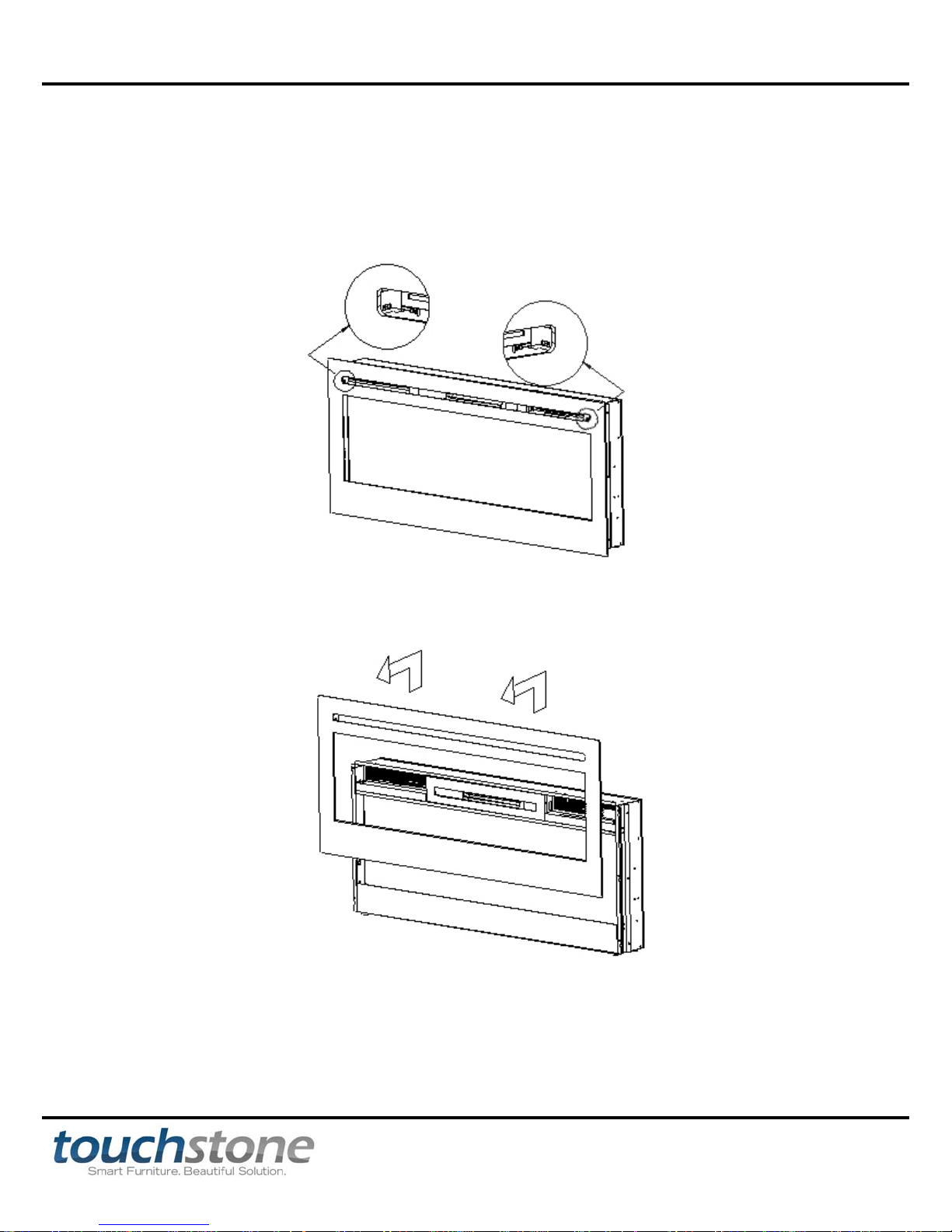

Removing The Glass Panel ..................................................................................................................................... 15

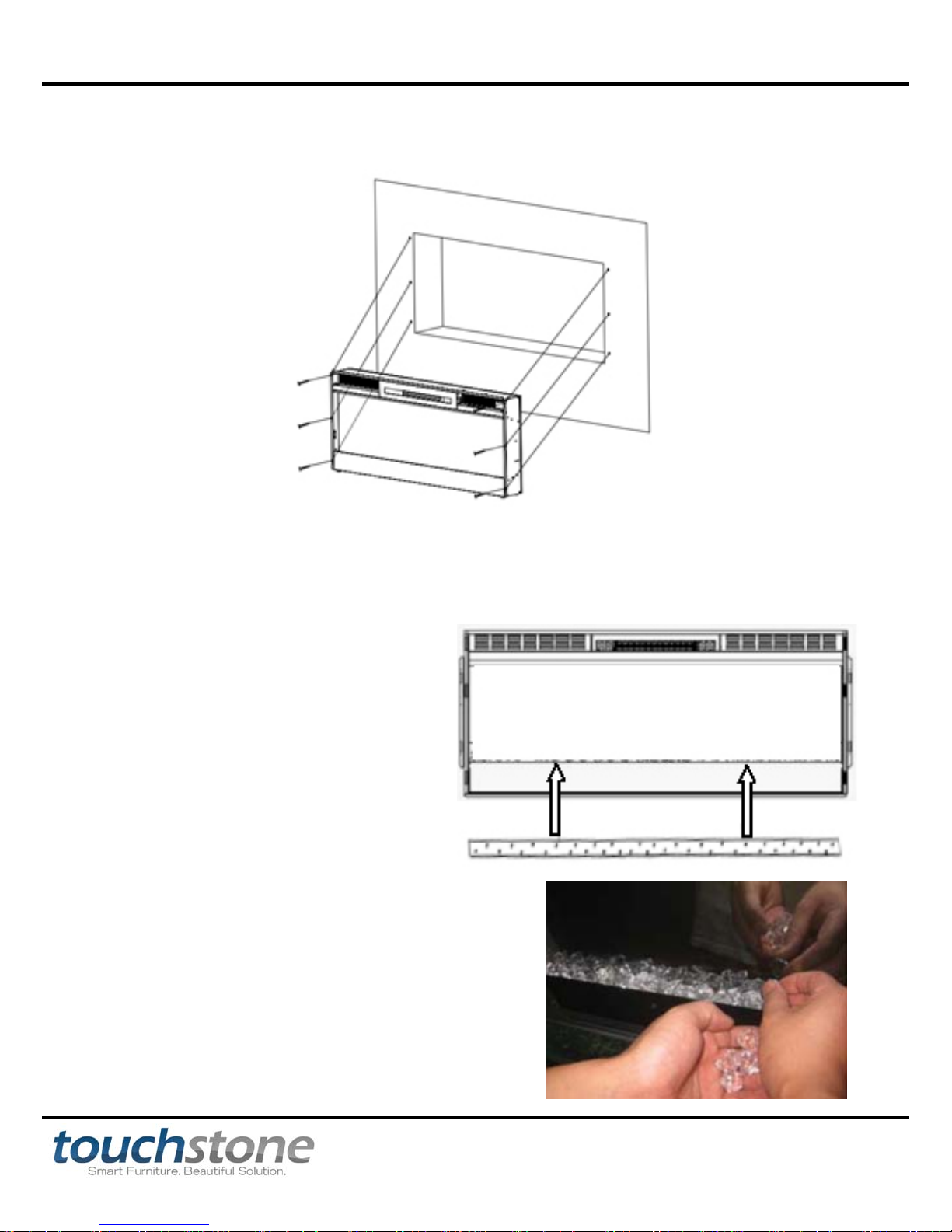

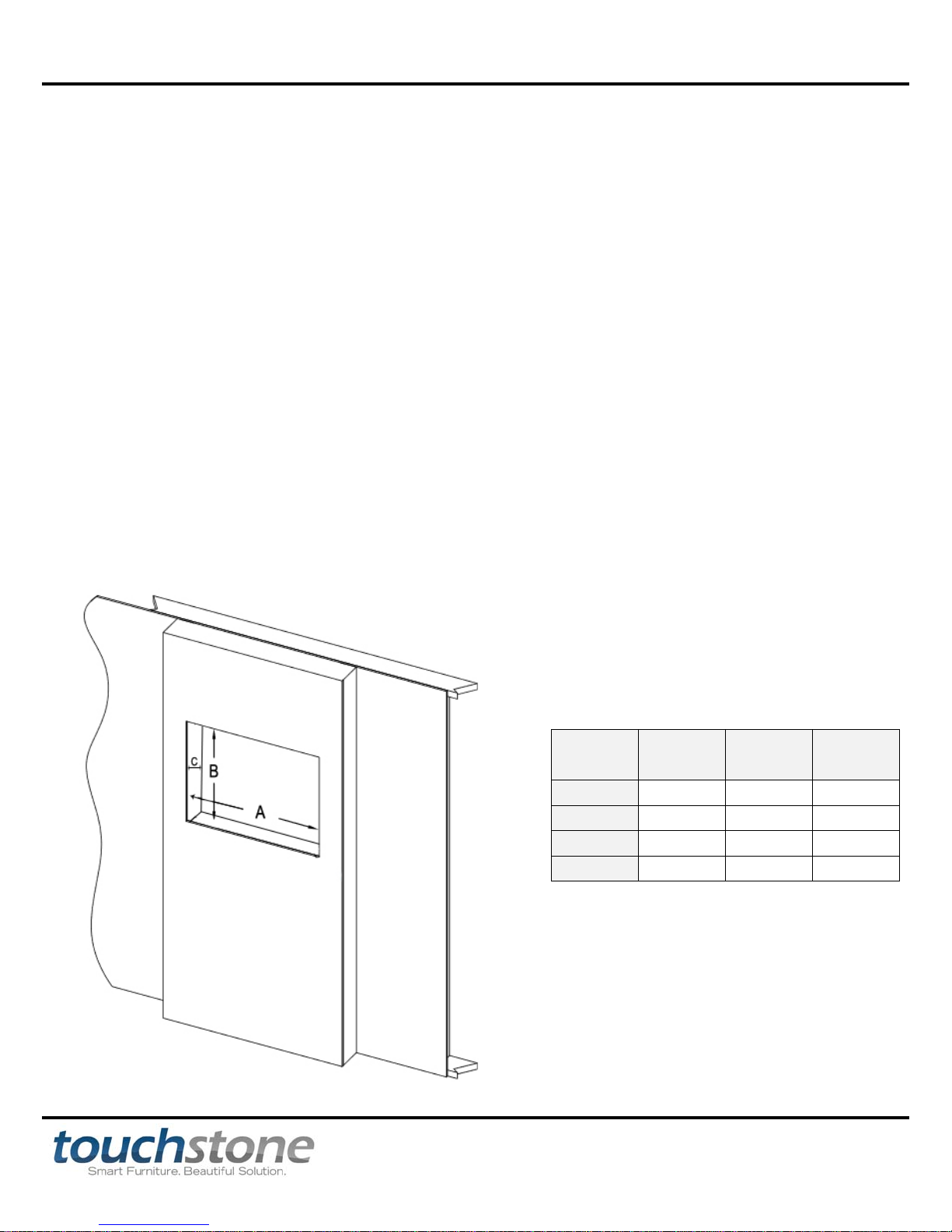

Recessed Installation .............................................................................................................................................. 16
a. Crystal Ember Installation............................................................................................................................... 17
Recessed Installation – cont. ............................................................................................................................... 18
b. Fire log Installation ......................................................................................................................................... 18

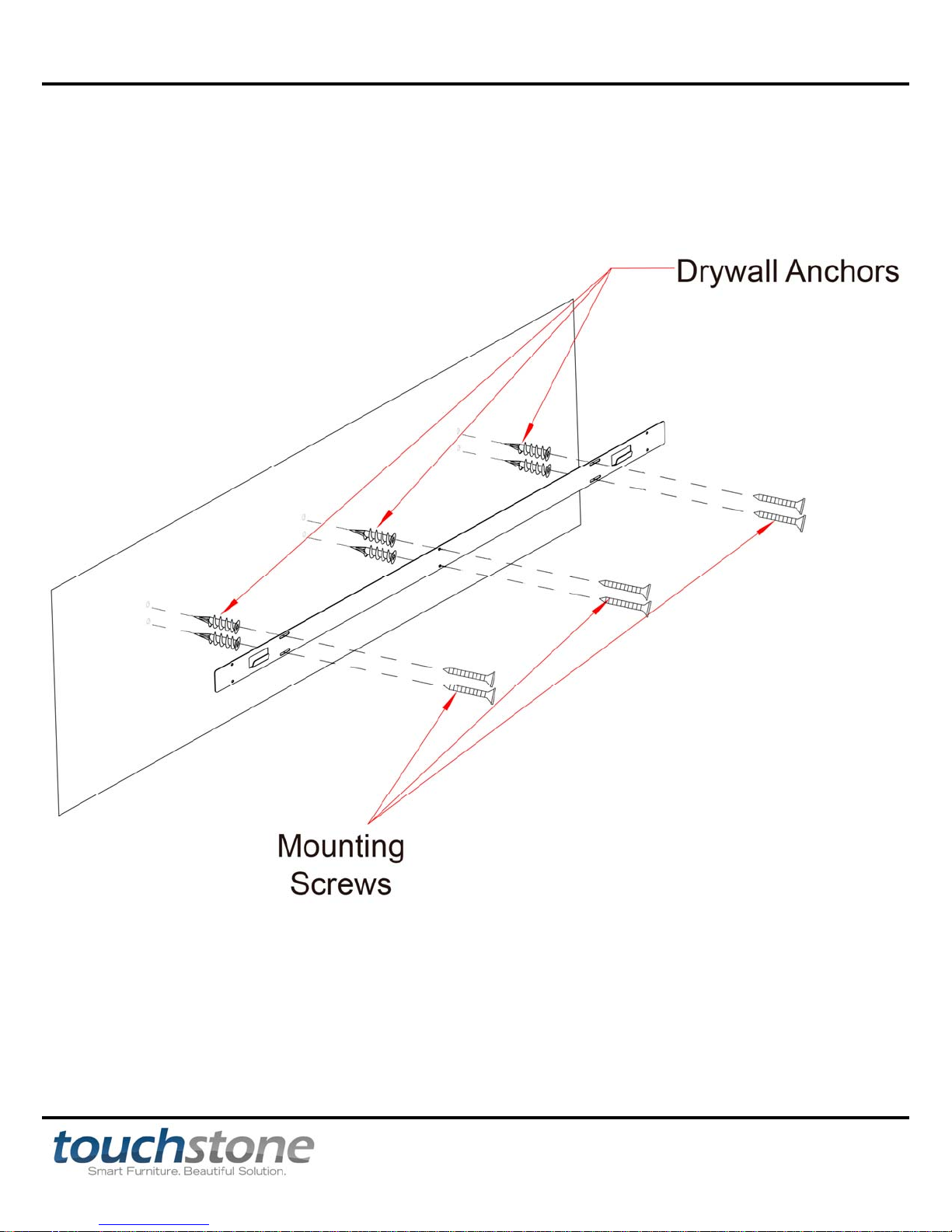

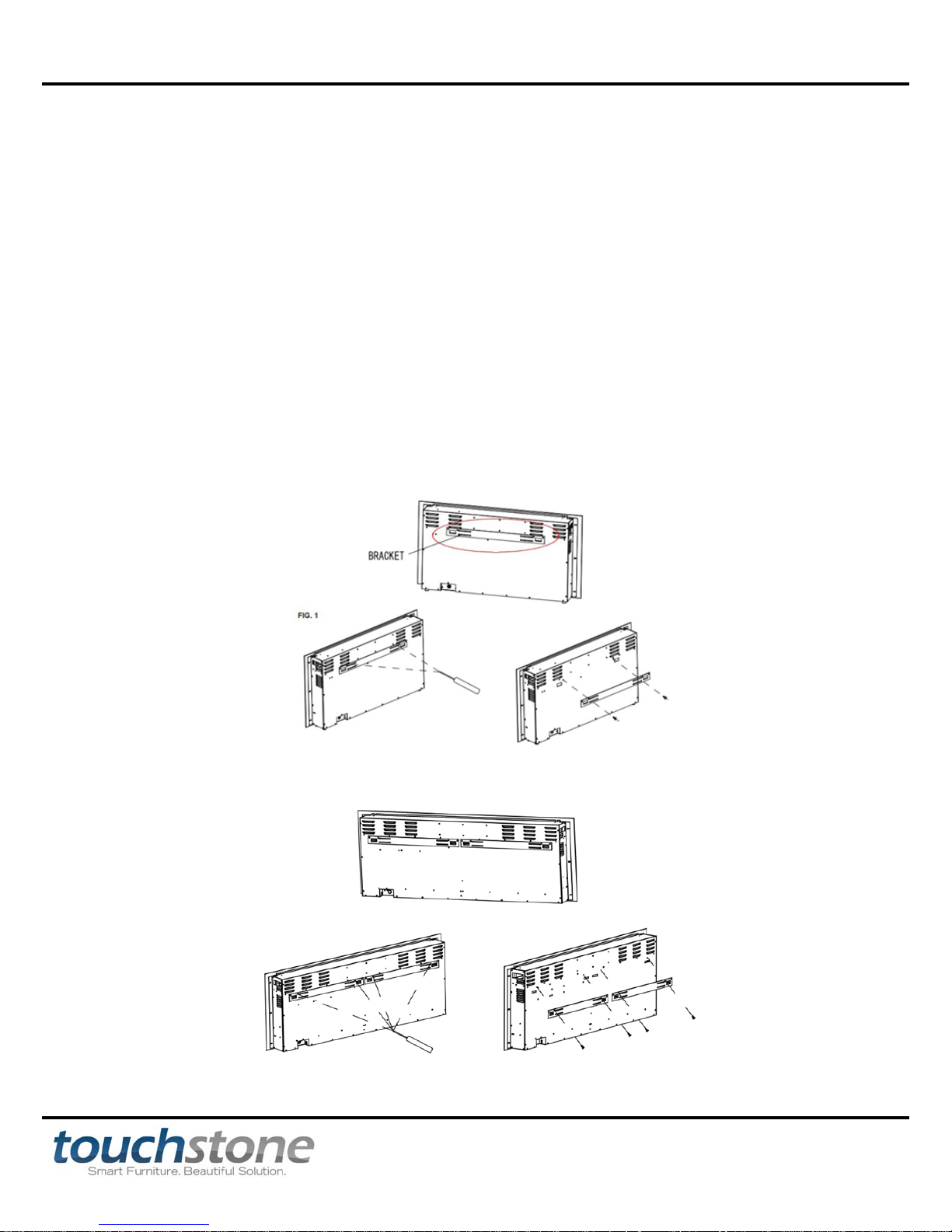

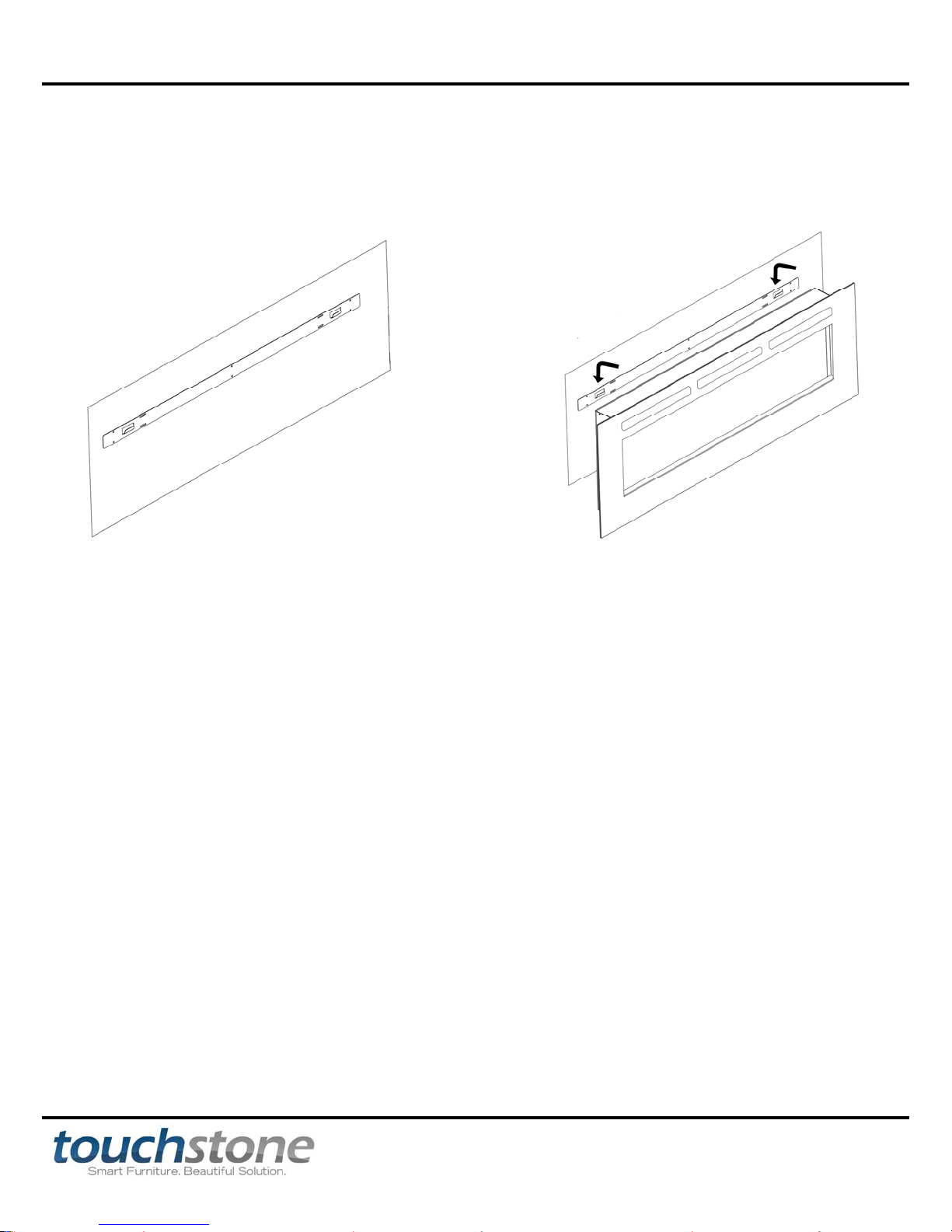

Wall Mounted Installation ...................................................................................................................................... 19
Operating Fireplace .................................................................................................................................................. 22
Power ...................................................................................................................................................................... 22
Methods of Operation ............................................................................................................................................. 22

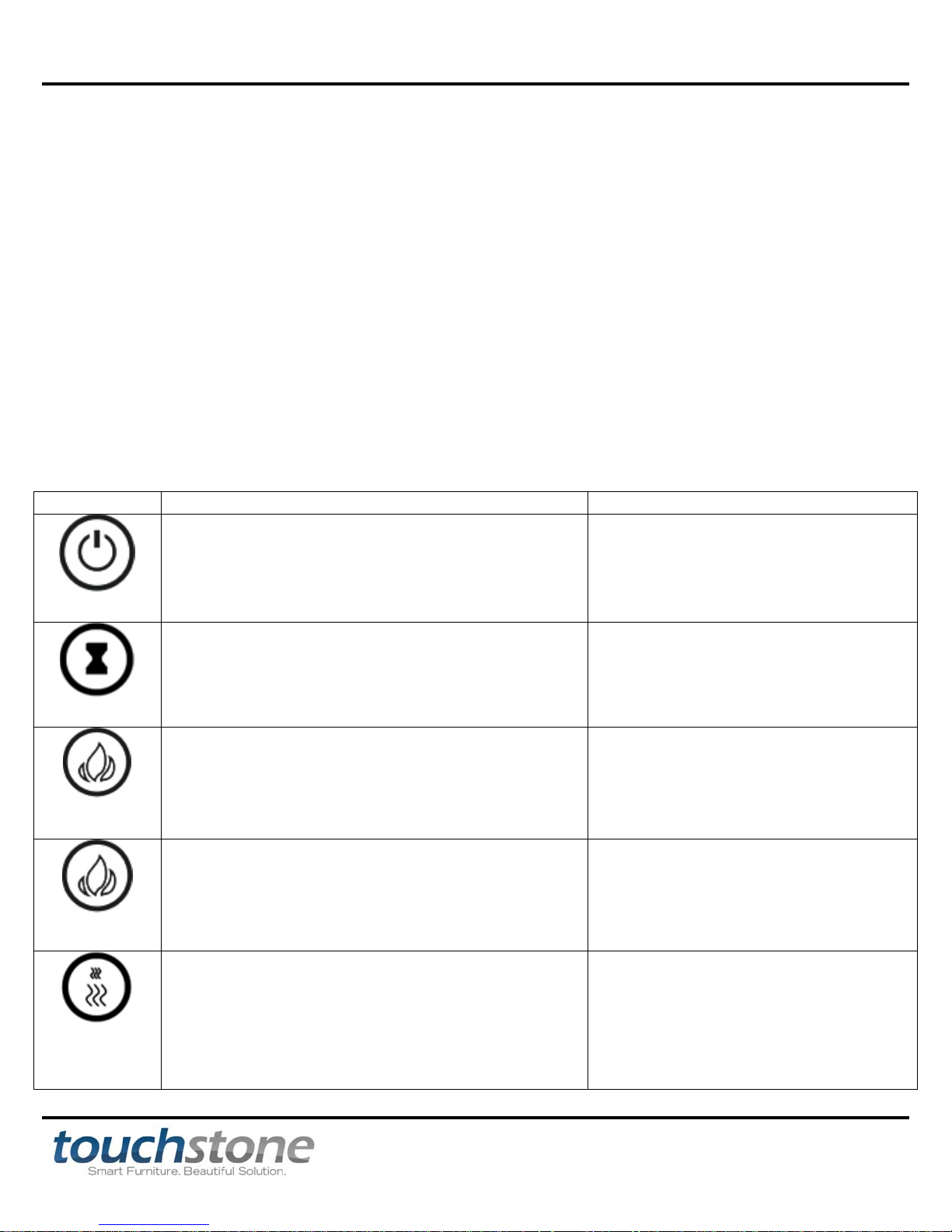

Control Panel and Remote Control Functions .................................................................................................... 22
Remote Control Operation ...................................................................................................................................... 23
Temperature Limiting Control ................................................................................................................................ 23
Care and Maintenance ............................................................................................................................................. 24
Cleaning .................................................................................................................................................................. 24
Maintenance ............................................................................................................................................................ 24
Warranty ................................................................................................................................................................... 25
www.touchstonehomeproducts.com 800.215.1990
Recessed Electric Fireplace
IMPORTANT SAFETY INFORMATION
WARNING!
THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS
Do not operate fireplace before reading and understanding operating instructions. Failure to operate
fireplace according to operating instructions could cause fire or injury.
Risk of burns. This fireplace is HOT when in operation and heating element is ON. Power to the fireplace
should be turned off and the fireplace allowed to cool before servicing. To disconnect power to the
fireplace, turn controls to off, then remove plug from outlet.
Do not install damaged, incomplete, or substitute components.
Young children should be carefully supervised when they are in same room with fireplace. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to the fireplace, install an
adjustable safety gate to keep toddlers, young children and other at risk individuals away from the fireplace
and hot surfaces.
Clothing and other flammable material should not be placed on or near the fireplace.
Due to high temperatures, the fireplace should be located out of traffic and away from furniture and
draperies.
Ensure that you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
It is imperative that that the control compartments, circulating blower, and its passageway is the fireplace is
kept clean.
Under no circumstances should this fireplace be modified.
Do not use the fireplace if any part has been under water.
Do not operate the fireplace with the glass panel removed, cracked or broken.
Keep the packaging material out of the reach of children. As with all plastic bags, these are not toys and
should be kept away from children and infants.
Servicing should only be done while the fireplace is disconnected from the power outlet.
Unplug fireplace if not being used for an extended period of time.
Do not operate this fireplace with a damaged cord or plug after the fireplace malfunctions, has been
dropped, or damaged in any manner.
Do not use outdoors.
Never locate fireplace where it may fall into a bathtub or other water container.
Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord
away from traffic area and where it will not be tripped over.
Connect to properly grounded outlets only.
Do not insert foreign objects into any ventilation or exhaust opening as this may cause and electric shock,
fire, or damage to the fireplace.
To prevent a possible fire, do not block the air intakes or exhaust in any manner. Do not use on soft
surfaces, like a carpet, where openings may be blocked.
Ensure clearances to combustibles are maintained when building a mantel or shelves above the fireplace.
Elevated temperatures on the wall or in the air above the fireplace can cause melting, discoloration or
damage to the decorations, a TV or other electronic components.
4
www.touchstonehomeproducts.com 800.215.1990
Recessed Electric Fireplace
5
General Information
CSA Approval Listing Information
This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room
appliances in the United States and Canada. If you need assistance during installation, please contact our technical
support department at 800-215-1990 option 2.
Note: This fireplace must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition in the United States or the
Canadian Electric Code, CSA C22.1 in Canada.
Fireplace Specifications
Model Number 80004 80011 80013
Description
Voltage
Watts
Amps
Fireplace Width
Fireplace Height
Fireplace Depth
Net Weight
Gross Weight
Sideline50 Sideline60 Sideline50
120v AC 120v AC 120v AC
Max 1500W Max 1500W Max 1500W
15 AMP Grounded
Circuit
50” 60” 50”
21.5” 21.5” 24
5.5” 5.5” 5.5”
60 lbs 70 lbs 60 lbs
65 lbs 100 lbs 65 lbs
15 AMP Grounded
Circuit
15 AMP Grounded
Circuit
Model Number 80014 80015
Description
Voltage
Watts
Amps
Fireplace Width
Fireplace Height
Fireplace Depth
Net Weight
Gross Weight
Sideline36 Sideline72
120v AC 120v AC
Max 1500W Max 1500W
15 AMP Grounded
Circuit
36” 72”
21.5” 21.5”
5.5” 5.5”
50 lbs 110 lbs
54 lbs 150 lbs
15 AMP Grounded
Circuit
www.touchstonehomeproducts.com 800.215.1990
Recessed Electric Fireplace
Dimensional Drawings
80004 – Sideline 50” Dimensions
6
www.touchstonehomeproducts.com 800.215.1990
Recessed Electric Fireplace
80011 – Sideline 60” Dimensions
7
www.touchstonehomeproducts.com 800.215.1990
Recessed Electric Fireplace
80013 – Sideline Steel 50” Dimensions
8
www.touchstonehomeproducts.com 800.215.1990
Recessed Electric Fireplace
80014 – Sideline 36” Dimensions
9
www.touchstonehomeproducts.com 800.215.1990
