Touch Revolution K32A Series User Manual

K32A Series Touch Screen LCD Monitors
USER’s GUIDE
Rev.A
The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced,translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission. Windows is a registered trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective holders.
The test results show that this device meets the FCC rules. Those limits are set to protect residential areas from the devices with harmful emission. This device will produce, use and radiate radio frequency energy. In addition, failure to follow the user’s manual to install or use this device might produce harmful interference with radio communication. Not withstanding the foregoing, it does not guarantee that this type of harmful interference does not occur in some special installations. The interference caused by this device to the reception of radio or television signals may be verifi ed by turning it on and off. Any changes or modifi cations to this TFT LCD would void the user’s authority to operate this device.
Important Recycle Instructions:
LCD lamps inside this product may contain mercury. This product may contain
other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specifi c disposal information check WWW.LAMPRECYCLE.ORG.
Table of Contents
Usage Notice
Precautions............................................................................................................................. 1
Introduction
About K32A Series ................................................................................................................. 2
Touch Screen for K32A Series ............................................................................................... 2
Package Overview ...................................................................................................... 3
Installation
Product Overview ........................................................................................................ 4
Front View .............................................................................................................. 4
Bottom View ........................................................................................................... 4
VESA Mount for Your Monitor ...................................................................................... 5
Connecting the Display (Figure 7.1) ............................................................................. 6
(Figure 7.1) ............................................................................................................. 7
User Controls
Rear Panel Controls .................................................................................................... 8
How to Use the OSD Menus ........................................................................................ 9
On-Screen Display Menus ..........................................................................................10
Appendix
Troubleshooting ..........................................................................................................11
Warning Signal ...........................................................................................................12
No Signal ...............................................................................................................12
Going to Sleep........................................................................................................12
Out of Range ..........................................................................................................12
Product Dimensions ...................................................................................................13
Bezel Free .............................................................................................................13
Compatibility Modes ...................................................................................................14
Touch Screen Driver Installation .................................................................................15
K32A Optional Calibration Tool Install .....................................................................15
Usage Notice
! Warning - To prevent the risk o
f fi
re or shock hazards, do not expose
this product to rain or moisture.
! Warning - Please do not open or disassemble the product as this ma
y
cause elec
tric shock.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit.
Do:
• Turn off the product before cleaning.
• Touch screen surface may be cleaned using a soft clean cloth moistened with mild window glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.
• Use a soft cloth moistened with mild detergent to clean the display housing.
Don’t:
• Do not touch the LCD Display screen surface with sharp or hard objects.
• Do not use abrasive cleaners.
• Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic fi eld.
- In direct sunlight.
1
Introduction
About K32A Series
The K32A Series is a 31.5" fl at panel screen with an active matrix, thin-fi lm transistor (TFT)
liquid crystal display (LCD).
Features include:
• Direct Analog signal input
• Direct Digital signal input
• Active matrix TFT LCD technology
• 1920 x 1080 resolution
• 31.5" viewable display area - 16:9 aspect ratio
• 31.47 ~ 67.5 KHz horizontal scan
• 47 ~ 63 Hz high refresh rate
• 0.36375mm x 0.36375mm pixel pitch
• Auto adjustment function
• Multilingual OSD user control
• 400mm x 200mm VESA mount
• K32A Series - Projected Capactive touch screen with USB controller
• Audio - 8W x 2
Touch Screen for K32A Series
• Project Capacitive touch screen for fi nger input only
• Surface: Clear glass
• Interface: USB controller
• HID Multi-Touch: Windows 7
2

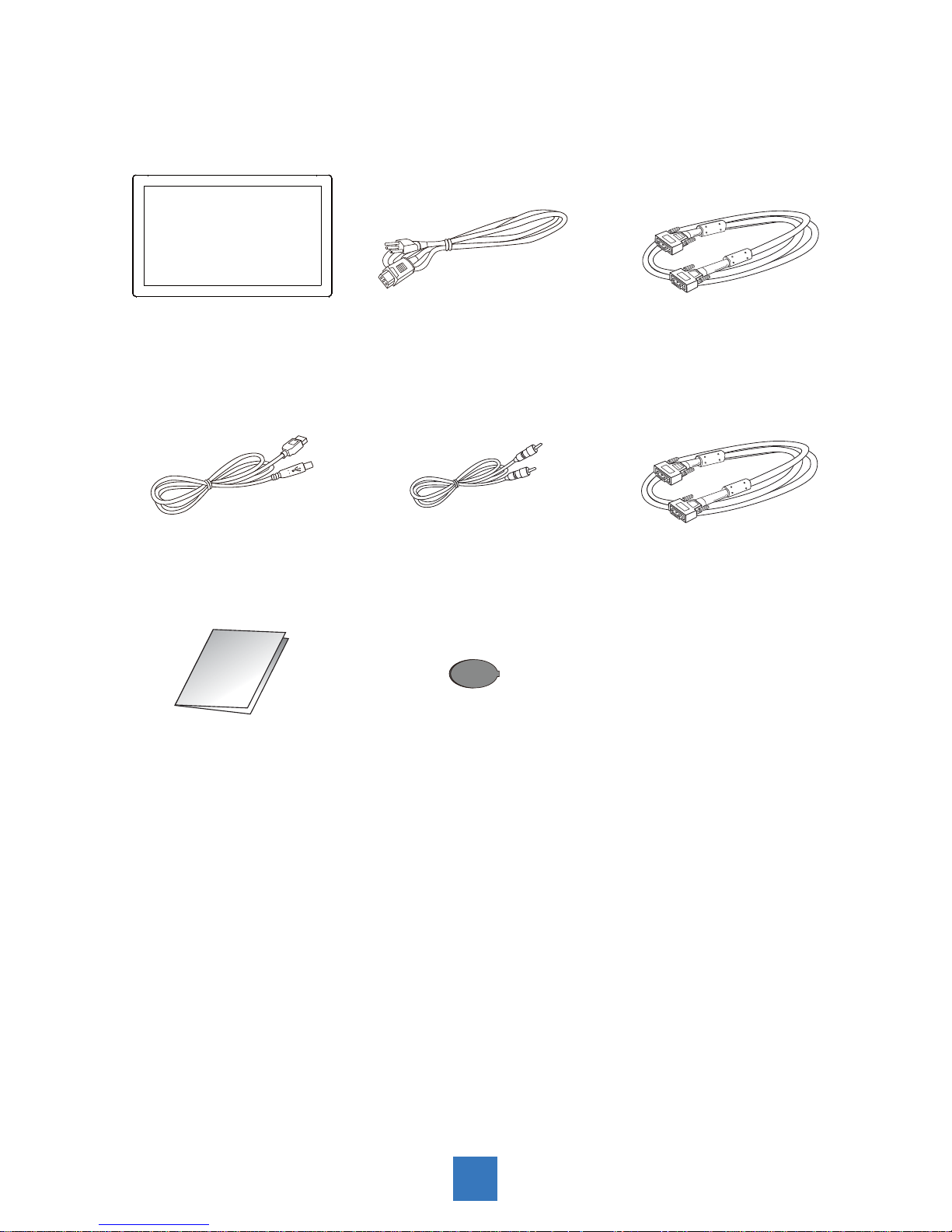

Package Overview
3
LCD Display
Power Cord
USB Cable (A to B)
Audio-in Cable
Quick Start Guide
VGA Signal Cable
DVI-D Cable
Handle Screw Caps
4
Installation
Product Overview
• Front View
• Bottom View
AC IN
AUDIO OUT
Remote Key
COM OUT
VGA IN
DVI IN
AUDIO IN
USB
COM IN
VESA Mount for Your Monitor
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which defi nes a physical mounting interface for fl at panel monitors, and corresponding with the standards of fl at panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is located on the back of your monitor.
To mount the monitor on a UL certifi ed swing arm or other mounting fi xture, follow the instructions included with the mounting fi xture to be used.
M6
400.0mm
200.0mm144.2mm
!
Warning!
Please select the proper screws!
The distance between the back cover surface and the bottom of the screw hole is 8 mm. Please use four M6 screws diameter with proper length to mount your monitor.
Please note: the mounting stand must be able to support at least 44.1 lbs (20Kg).
5
6
Connecting the Display (Figure 7.1)
To setup this display, please refer to the following fi gure and procedures.
1. Be sure all equipment is turned off.
2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (7.1).
3. Connect the D-SUB or DVI cable from the display’s VGA input connector to the D-SUB or DVI connector of your host computer and tighten the screws (7.1).
4. Connect the Audio-In cable from the audio input port of your display to the Audio-out port of your computer (7.1).
5. Connect the USB cable from USB port of your display to USB port of your computer (7.1).
6. Once the touch screen is confi gured, the monitor is ready for use.
!
Notice!
To ensure the LCD display works well with your computer, please confi gure the display mode of your graphics card to make it less than or equal to 1920 x 1080 resolution and make sure the timing of the display mode is compatible with the LCD display.
We have listed the compatible “Video Modes” of your LCD display in the appendix (on page 14) for your reference.
7
(Figure 7.1)
8
User Controls
Rear Panel Controls
OSD
Key
Menu off status Menu on status
Menu appear Menu disappear / return to main item
Brightness Main item select up / Adjust up
Mute Main item select down / Adjust down
Auto Adjust Select sub-item function
Power On / Off
Icon Key Name
Menu
Up
Down
Select
Power
9
How to Use the OSD Menus
1. Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down” button
to select among the six functions in the main menu.
2. Choose the adjustment items by pressing the “Select” button.
3. Adjust the value of the adjustment items by pressing the “Up” or “Down” button.
4. With the OSD menu on screen, press “ Menu” button to return main menu or exit OSD.
5. The OSD menu will automatically close, if you have left it idle for a pre-set time.
6. To Lock the OSD / Power menu buttons, please follow the instructions below.
(Please note: the monitor has to be turned ON with a valid signal pre-set)
(a.) Press “Menu” key , the OSD menu will pops upon display.
(b.) Press and hold the “Menu” key again with the OSD menu on the screen, the OSD
menu will disappear. Then press the “Power” key 1 time while the menu key is still
being pressed. The “Lock/Unlock” menu will appear for 3 seconds.
(c.) Use the “Select” key to select OSD or Power setting then set at “Lock” by pushing the
“UP” or “Down” button.
(d.) When the “UP” or “Down” button is released, the previous setting will be saved and
exit the “Lock/Unlock” menu automatically.
7. To Unlock the OSD / Power menu buttons, please follow the instructions below.
(Please note: the monitor has to be turned ON with a valid signal pre-set)
(a.) Press and hold the “Menu” key then press the “Power” key simultaneously, the “Lock/
Unlock” menu will appear for 3 seconds.
(b.) Use the “Select” key to select OSD or Power setting then set at “Unlock” by pushing the
“UP” or “Down” button.
(c.) When the “UP” or “Down” button is released, the previous setting will be saved and exit
the “Lock/Unlock” menu automatically.
Please note:
a. When the OSD Lock function is selected, this indicates that all the buttons except “power”
button are now disabled.
b. When the Power Lock function is selected, this indicates that the power key is disabled;
user can not to turn off the monitor by “Power” key.
Icon Key Name
Menu
Up
Down
Select
Power
10
On-Screen Display Menus
Main OSD Menu:
ITEM CONTENT
Contrast The monitor luminance level control. Brightness The monitor backlight level control.
Auto Adjust Fine-tune the image to full screen automatically.
Left/Right Moving screen image horizontal position to left or right.
Up/Down Moving screen image vertical position to up or down.
Horizontal size The screen image horizontal dot clock adjustment.
Fine The screen image pixel phase adjustment.
OSD Left/Right Moving OSD menu horizontal position to left or right.
OSD Up/Down Moving OSD menu vertical position to up or down.
OSD Time out OSD auto-disappear time selection.
OSD Language
OSD menu language selection. ( English, French, Japanese, Deutsch,
Spanish, Italian, Traditional Chinese and Simplifi ed Chinese)
Factory Reset Factory default value restored.
RGB Color temperature selection. (9300K, 6500K, 5500K, 7500K, User)
Volume Audio volume adjustment.
Mute Audio On/Off control.
11
Appendix
Troubleshooting
If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your local dealer or our service center.
Problem: No image appears on screen.
Check that all the I/O and power connectors are correctly and well connected as described in the “Installation” section. Make sure the pins of the connectors are not crooked or broken.
Problem: Partial Image or incorrectly displayed image.
Check to see if the resolution of your computer is higher than that of the LCD display. Reconfi gure the resolution of your computer to make it less than or equal to 1920 x 1080.
Problem: Image has vertical fl ickering line bars.
Use “Fine” to make an adjustment. Check and reconfi gure the display mode of the vertical refresh rate of your graphic card to make it compatible with the LCD display.
Problem: Image is unstable and fl ickering
Use “Fine”to make an adjustment.
Problem: Image is scrolling
Check and make sure the VGA signal cable (or adapter) is securely connected. Check and reconfi gure the display mode of the vertical refresh rate of your graphics card to make it compatible with the LCD display.
Problem: Vague image (characters and graphics)
Use “Fine”to make an adjustment. If this problem still exists, use “Horizontal size” to make an adjustment.
Warning Signal
If you see warning messages on your LCD screen, this means that the LCD display cannot receive a clean signal from the computer graphics card.
Below are the three kinds of Warning Signal. Please check the cable connections or contact your local dealer or our service center for more information.
No Signal
This message means that the LCD display has been powered on but it cannot receive any signal from the computer graphics card. Check all the power switches, power cables, and VGA/DVI signal cable.
Going to Sleep
The LCD display is under the power saving mode. In addition, the LCD display will enter power saving mode when experiencing a sudden signal disconnecting problem. The monitor can be activated by pressing any keyboard, triggering the mouse or touching the screen.
Out of Range
This message means that the signal of the computer graphic card is not compatible with the LCD display. When the signal is not included in the “Video Modes” list we have listed in the Appendices of this manual, the LCD monitor will display this message.
12

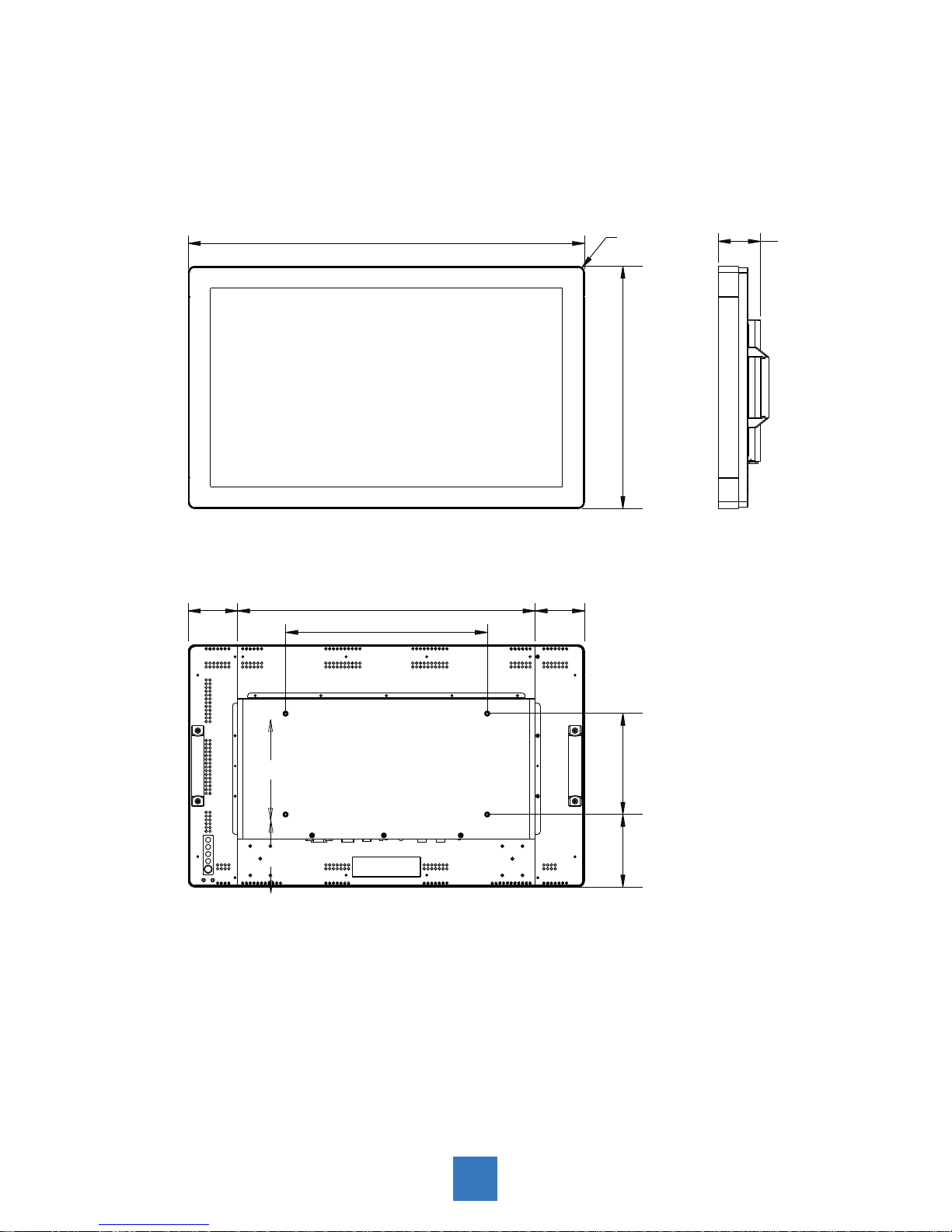

Product Dimensions
Bezel Free
786.1mm 4- R13
480.7mm
84mm
590.0mm
98.1mm 98.1mm
400.0mm
200.0mm144.1mm
200
144.17
13
Side View
Back View
Front View
Compatibility Modes
Mode Resolution H-Frequency(khz) V-Frequency(hz)
IBM VGA 640X480 31.47 60
VESA SVGA 800X600 35.16 56
VESA SVGA 800X600 37.88 60
VESA XGA 1024X768 48.36 60
VESA SXGA 1280X1024 64.00 60
VESA SXGA 1280X960 60.00 60
WXGA+ 1440X900 56.00 60
WSXGA+ 1680X1050 65.20 60
VESA WXGA 1280X768 47.776 60
VESA WXGA 1280X720 44.77 60
VESA WXGA 1366X768 47.71 60
WSXGA+ 1920X1080 67.50 60
14
Touch Screen Driver Installation
The K32A Series is available with USB connection.
Please Note:
1. The K32A Series is Microsoft Windows® HID (Human Interface Device) compatible if you use the USB touch screen interface. No additional software driver is required for general operation of the touch screen.
2. This K32A Series touch display is compatible with Win 7 only.
3. When using K32A Series touch display for the fi rst time or switching from monitor to PC. Please execute calibration tool, and do not touch the screen during executing calibration tool.
4. Microsoft Windows® 7 operating system requires 15 seconds to recognize the K32A Series after connecting the USB cable and power cable.
K32A Optional Calibration Tool Install:
If you would like to use the Optional Calibration Tool, follow the instructions.
1. Please go www.touchrev.com to download calibration tool.
2. Select size - 32”
3. Select model - K32A Series
4. Run or save calibration
