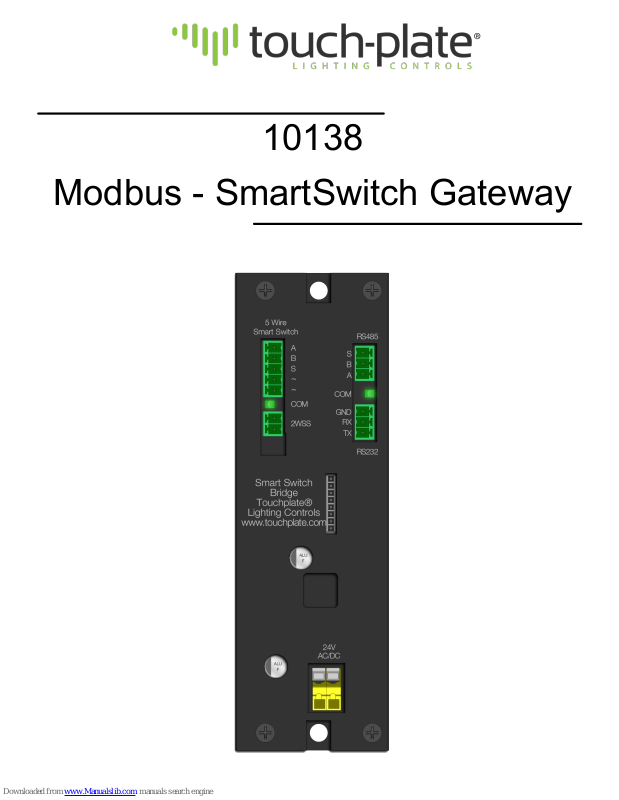

Page 1

10138

bus - SmartSwitch Gateway

Page 2

Features

Easy Integration of SmartSwitches into a Modbus network

Supports up to 8 two-wire SmartSwitch stations, or up to 50 five-wire SmartSwitch stations

Each button has its own momentary and maintain registers

Button press buffer register allows for monitoring a single register for all button presses

Supports intensity, color, and flash patterns for station LEDs (certain station types only)

Modbus RTU RS485 Interface

Baud rates up to 115.2K supported

Page 3

A – 24V AC or DC power Input

– Modbus Address DIP

B C – Modbus Baud Rate, Parity, & Stop Bits DIP D – Modbus RS232 Port E – Modbus RS485 Port F – 5 Wire SmartSwitch Port G – 2 Wire SmartSwitch Port

ecifications

Ele

ctrical

Rate Voltage: 18 – 24 V AC or DC, Power supply must be Class 2

wer Consumption: 1.7VA + 0.75VA for each SmartSwitch attached

Dimensions

1.76" width x 5.6" long

Page 4

additional 2 wire

SmartSwitches (total 8)

2 Wire SmartSwitches (backside shown)

Use Belden 9740 cable or Equivalent Wire connections are not polarity sensitive Max cable length is 500 feet

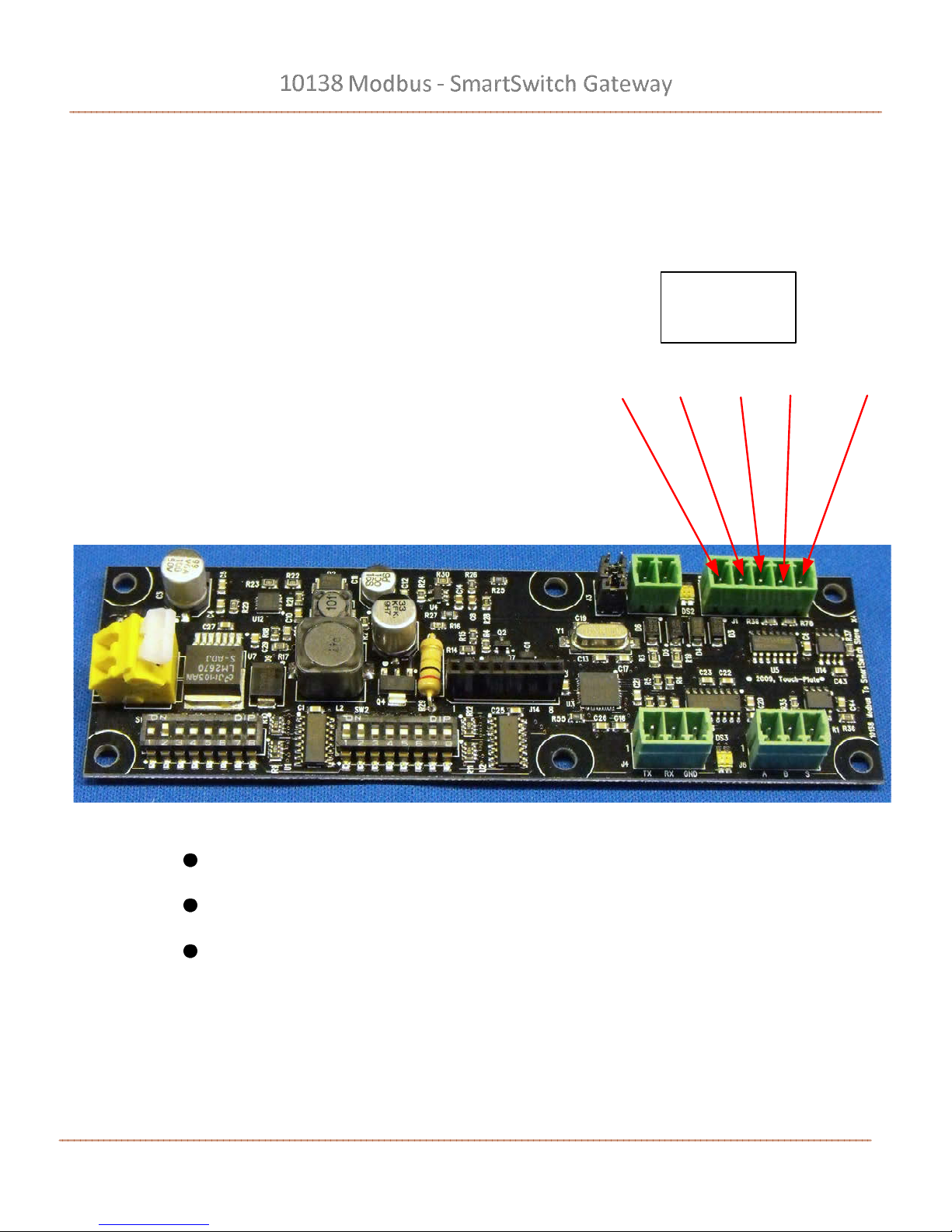

Page 5

SmartSwitches can be connected to either the 2 wire or 5 wire port. Both ports can be used at the same time, allowing for a mix of 2 wire and 5 wire stations.

5 Wire

artSwitch

Port Pinout

24V

GND

-Data

+Data

Use Belden 1502 cable or Equivalent Connect in a daisy chain manner Up to 50 Five-wire SmartSwitches can be

isy chained together.

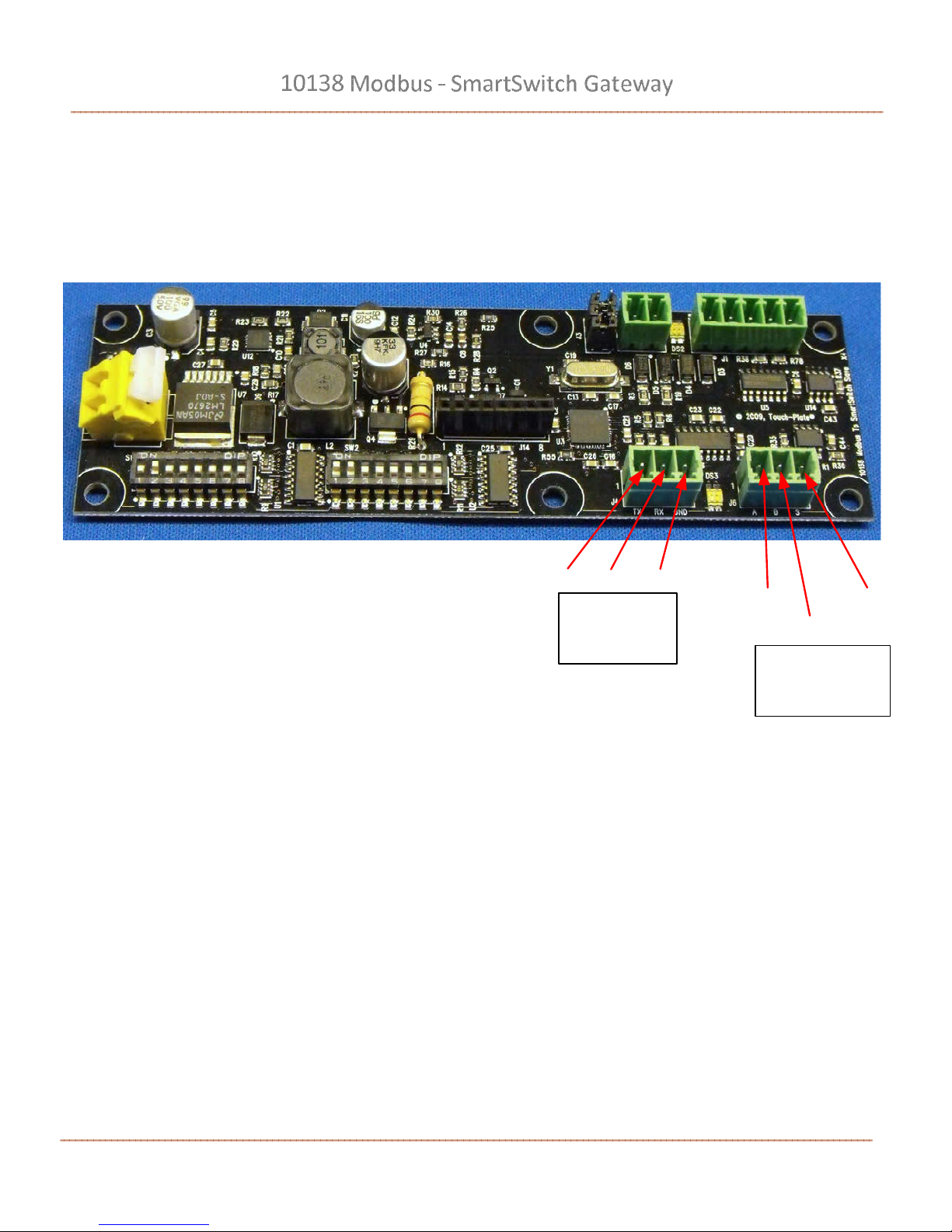

Page 6

Modbus

-232 Port

Pinout

Modbus communication to the gateway can be either through the RS-232 port or through the RS-485 port. Only use one port at a time. There is no configuration to change to switch from one port to the other.

+Data

ata

-D

Modbus

-485 Port Pinout

GND

Page 7

Positional Value 1

Positional Value

Switch Number

Address

Positional Value

Switch Number

Address

Positional Value

Switch Number

Address

Switch Number 1 2 3 4 5 6 7 8

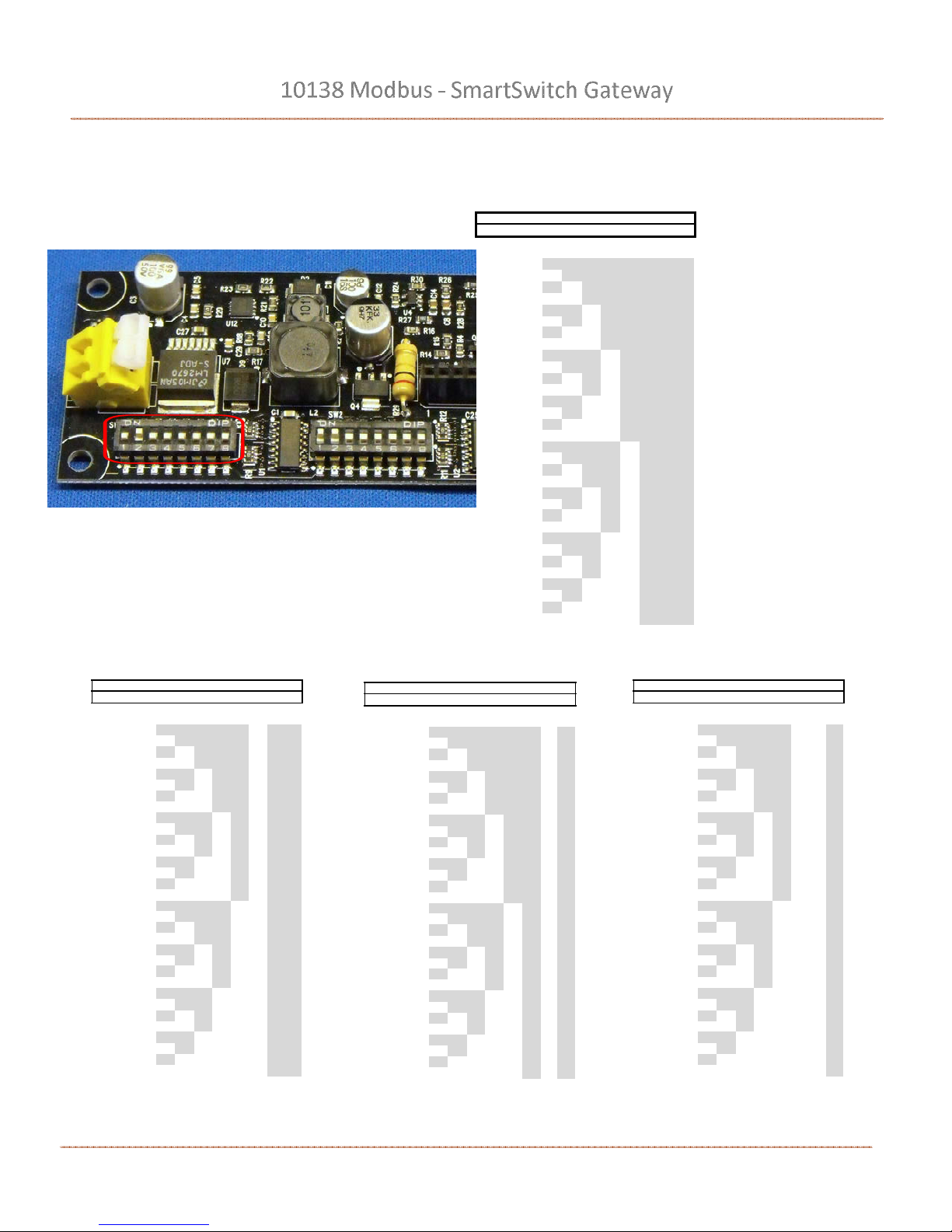

Set the Modbus address using the SW1 DIP switches.

4 8 16 32 64 128

Address

0* OFF OFF OFF OFF OFF OFF OFF OFF

1 ON OFF OFF O FF OFF OFF OFF OFF 2 OFF ON OFF O FF OFF OFF OFF OFF 3 ON ON OFF OFF OFF OFF OFF OFF 4 OFF OFF ON O FF OF F OFF OFF OFF 5 ON OFF ON OFF OF F OFF OFF O FF 6 OFF ON ON OFF OF F OFF OFF O FF 7 ON ON ON OFF OFF OFF OFF OFF 8 OFF OFF OFF ON OFF OF F OFF OFF

9 ON OFF OFF ON OF F OFF OFF O FF 10 OFF ON OFF ON OFF OFF OF F OFF 11 ON ON OFF ON OFF OFF OFF OFF 12 OFF O FF ON ON OF F OFF OFF OFF 13 ON OFF ON ON OFF OFF OFF O FF 14 OFF ON ON ON OFF OFF OFF OFF 15 ON ON ON ON OFF OFF OFF OFF 16 OFF O FF OFF OFF ON OFF OFF OFF 17 ON OFF OFF O FF ON OFF OFF OFF 18 OFF ON OFF OF F ON OF F OFF OFF 19 ON ON OFF OFF ON OFF OFF O FF 20 OFF O FF ON OFF ON OF F OFF OFF 21 ON OFF ON OFF ON OFF OFF O FF 22 OFF ON ON OFF ON OFF OFF OFF 23 ON ON ON OFF ON OFF OFF OFF 24 OFF O FF OFF ON ON OFF OF F OFF 25 ON OFF OFF ON ON OFF OFF O FF 26 OFF ON OFF ON ON OFF OFF OFF 27 ON ON OFF ON ON OF F OFF OFF 28 OFF O FF ON ON ON OFF OFF O FF 29 ON OFF ON ON ON OFF OFF OFF 30 OFF ON ON ON ON OFF OFF O FF 31 ON ON ON ON ON OFF OFF OFF

1 2 4 8 16 32 64 12 8 1 2 3 4 5 6 7 8

32 OFF OFF OFF OFF OFF ON OFF OFF 33 ON OFF OFF OFF OFF ON OFF OFF 34 OFF ON OFF OFF OFF ON OFF OFF 35 ON ON OFF OFF OFF ON OFF O FF 36 OFF OFF ON OFF OFF ON OFF OFF 37 ON OFF ON OFF O FF ON OFF OFF 38 OFF ON ON OFF O FF ON OFF OFF 39 ON ON ON OFF OFF ON OFF OFF 40 OFF OFF OFF ON OFF ON OFF OFF 41 ON OFF OFF ON OFF ON OFF OFF 42 OFF ON OFF ON O FF ON OFF OFF 43 ON ON OFF ON OFF ON OFF OFF 44 OFF OFF ON ON OFF ON OFF O FF 45 ON OFF ON ON OFF ON OFF OFF 46 OFF ON ON ON OFF ON OFF OFF 47 ON ON ON ON OFF ON OFF O FF 48 OFF OFF OFF OFF ON ON OFF OFF 49 ON OFF OFF OFF ON ON OFF OFF 50 OFF ON OFF OFF ON ON OFF OFF 51 ON ON OFF OFF ON ON OFF OFF 52 OFF OFF ON OFF ON ON OFF OFF 53 ON OFF ON OFF ON ON OFF OFF 54 OFF ON ON OFF ON ON OFF OFF 55 ON ON ON OFF ON ON OFF O FF 56 OFF OFF OFF ON ON ON OFF OFF 57 ON OFF OFF ON ON ON OFF OFF 58 OFF ON OFF ON ON ON OFF OFF 59 ON ON OFF ON ON ON OFF O FF 60 OFF OFF ON ON ON ON OFF OFF 61 ON OFF ON ON ON ON OFF OFF 62 OFF ON ON ON ON ON OFF OFF 63 ON ON ON ON ON ON OFF OFF

1 2 4 8 16 32 64 12 8 1 2 3 4 5 6 7 8

64 OFF OFF OFF O FF OFF OFF ON OFF 65 ON OFF OFF OFF OFF OFF ON OFF 66 OFF ON OFF OFF OFF OFF ON OFF 67 ON ON OFF OFF OFF OFF ON OFF 68 OFF OFF ON OFF OFF OFF ON OFF 69 ON OFF ON OFF OFF OFF ON OFF 70 OFF ON ON OFF OFF OFF ON OFF 71 ON ON ON OFF OFF OFF ON OFF 72 OFF OFF OFF ON OFF OFF ON OFF 73 ON OFF OFF ON OFF OFF ON OFF 74 OFF ON OFF ON O FF OFF ON OFF 75 ON ON OFF ON OFF OFF ON OFF 76 OFF OFF ON ON O FF OFF ON OFF 77 ON OFF ON ON OFF OFF ON OFF 78 OFF ON ON ON OFF OFF ON OFF 79 ON ON ON ON OFF OFF ON OFF 80 OFF OFF OFF O FF ON OFF ON OFF 81 ON OFF OFF OFF ON OFF ON OFF 82 OFF ON OFF OFF ON OFF ON OFF 83 ON ON OFF OFF ON OFF ON OFF 84 OFF OFF ON OFF ON OFF ON OFF 85 ON OFF ON OFF ON OFF ON OFF 86 OFF ON ON OFF ON OFF ON OFF 87 ON ON ON OFF ON OFF ON OFF 88 OFF OFF OFF ON ON OFF ON OFF 89 ON OFF OFF ON ON OFF ON OFF 90 OFF ON OFF ON ON OFF ON OFF 91 ON ON OFF ON ON OFF ON OFF 92 OFF OFF ON ON ON OFF ON OFF 93 ON OFF ON ON ON OFF ON OFF 94 OFF ON ON ON ON OFF ON OFF 95 ON ON ON ON ON OFF ON OFF

1 2 4 8 16 32 64 12 8 1 2 3 4 5 6 7 8

96 OFF OFF OFF OFF OFF ON ON OFF 97 ON OFF OFF OFF OFF ON ON OFF 98 OFF ON OFF OFF OFF ON ON OFF

99 ON ON OFF OFF OFF ON ON OFF 100 OFF OFF ON OFF OFF ON ON OFF 101 ON OFF ON OFF OFF ON ON OFF 102 OFF ON ON OFF OFF ON ON OFF 103 ON ON ON OFF OFF ON ON OFF 104 OFF OFF OFF ON OFF ON ON OFF 105 ON OFF OFF ON OFF ON ON OFF 106 OFF ON OFF ON OFF ON ON OFF 107 ON ON OFF ON OFF ON ON OFF 108 OFF OFF ON ON OFF ON ON OFF 109 ON OFF ON ON OFF ON ON OFF 110 OFF ON ON ON OFF ON ON OFF 111 ON ON ON ON OFF ON ON OFF 112 OFF OFF OFF OFF ON ON ON OFF 113 ON OFF OFF OFF ON ON ON OFF 114 OFF ON OFF OFF ON ON ON OFF 115 ON ON OFF OFF ON ON ON OFF 116 OFF OFF ON OFF ON ON ON OFF 117 ON OFF ON OFF ON ON ON OFF 118 OFF ON ON OFF ON ON ON OFF 119 ON ON ON OFF ON ON ON OFF 120 OFF OFF OFF ON ON ON ON OFF 121 ON OFF OFF ON ON ON ON OFF 122 OFF ON OFF ON ON ON ON OFF 123 ON ON OFF ON ON ON ON OFF 124 OFF OFF ON ON ON ON ON OFF 125 ON OFF ON ON ON ON ON OFF 126 OFF ON ON ON ON ON ON OFF 127 ON ON ON ON ON ON ON OFF

Page 8

Positional Value

1 2 4 8 16 3 2 6 4 128

Switch Number

Address

Positional Value

Switch Number

Address

Positional Value

Switch Number

Address

Positional Value

Switch Number

Address

1 2 3 4 5 6 7 8

1 2 4 8 16 3 2 6 4 128 1 2 3 4 5 6 7 8

1 2 4 8 16 32 6 4 12 8 1 2 3 4 5 6 7 8

128 OFF OFF OFF OFF OFF OFF OFF ON 129 ON OFF OFF OFF OFF OFF OFF ON 130 OFF ON OFF OFF OFF OFF OFF ON 131 ON ON OFF O FF OFF OFF OFF ON 132 OFF OFF ON OFF OFF OFF OFF ON 133 ON OFF ON OFF OFF OFF OFF ON 134 OFF ON ON OFF OFF OFF OFF ON 135 ON ON ON OFF OFF OFF OFF ON 136 OFF OFF OFF ON OFF OFF OFF ON 137 ON OFF OFF ON OFF OFF OFF ON 138 OFF ON OFF ON OFF OFF OFF ON 139 ON ON OFF ON OFF OFF OFF ON 140 OFF OFF ON ON OFF OFF OFF ON 141 ON OFF ON ON OFF OFF OFF ON 142 OFF ON ON ON OFF OFF OFF ON 143 ON ON ON ON OFF OFF OFF ON 144 OFF OFF OFF OFF ON OFF OFF ON 145 ON OFF OFF OFF ON OFF OFF ON 146 OFF ON OFF OFF ON OFF OFF ON 147 ON ON OFF O FF ON OFF OFF ON 148 OFF OFF ON OFF ON OFF OFF ON 149 ON OFF ON OFF ON OFF OFF ON 150 OFF ON ON OFF ON OFF OFF ON 151 ON ON ON OFF ON OFF OFF ON 152 OFF OFF OFF ON ON OFF OFF ON 153 ON OFF OFF ON ON OFF OFF ON 154 OFF ON OFF ON ON OFF OFF ON 155 ON ON OFF ON ON OFF OFF ON 156 OFF OFF ON ON ON OFF OFF ON 157 ON OFF ON ON ON OFF OFF ON 158 OFF ON ON ON ON OFF OFF ON 159 ON ON ON ON ON OFF OFF ON

1 2 4 8 16 3 2 64 12 8

1 2 3 4 5 6 7 8

160 OFF OFF OFF OFF OFF ON OFF ON 161 ON OFF OFF OFF OFF ON OFF ON 162 OFF ON OFF OFF OFF ON OFF ON 163 ON ON OFF O FF OFF O N OFF ON 164 OFF OFF ON OFF OFF ON OFF ON 165 ON OFF ON OFF OFF ON OFF ON 166 OFF ON O N OFF OFF O N OFF ON 167 ON ON O N OFF OFF O N OFF ON 168 OFF OFF OFF ON OFF ON OFF ON 169 ON OFF OFF ON OFF ON OFF ON 170 OFF ON OFF ON OFF ON OFF ON 171 ON ON OFF ON OFF O N OFF ON 172 OFF OFF ON ON OFF ON OFF ON 173 ON OFF ON ON OFF ON OFF ON 174 OFF ON O N ON OFF ON OFF ON 175 ON ON O N ON OFF ON OFF ON 176 OFF OFF OFF OFF ON ON OFF ON 177 ON OFF OFF OFF ON ON OFF ON 178 OFF ON OFF OFF ON ON OFF ON 179 ON ON OFF O FF ON ON OFF ON 180 OFF OFF ON OFF ON ON OFF ON 181 ON OFF ON OFF ON ON OFF ON 182 OFF ON O N OFF ON ON OFF ON 183 ON ON O N OFF ON ON OFF ON 184 OFF OFF OFF ON ON ON OFF ON 185 ON OFF OFF ON ON ON OFF ON 186 OFF ON OFF ON ON ON OFF ON 187 ON ON OFF ON ON ON OFF ON 188 OFF OFF ON ON ON ON OFF ON 189 ON OFF ON ON ON O N OFF ON 190 OFF ON O N ON ON ON OFF ON 191 ON ON O N ON ON ON OFF ON

192 OFF OFF OFF OFF OFF OFF ON ON 193 ON OFF OFF OFF OFF OFF ON ON 194 OFF ON OFF OFF OFF OFF ON ON 195 ON ON OFF OFF OFF OFF ON ON 196 OFF OFF ON OFF OFF OFF ON ON 197 ON OFF ON OFF OFF OFF ON ON 198 OFF ON O N OFF OFF OFF ON ON 199 ON ON O N OFF OFF OFF ON ON 200 OFF OFF OFF ON OFF OFF ON ON 201 ON OFF OFF ON OFF OFF ON ON 202 OFF ON OFF ON OFF OFF ON ON 203 ON ON OFF ON OFF OFF ON ON 204 OFF OFF ON ON OFF OFF ON ON 205 ON OFF ON ON OFF OFF ON ON 206 OFF ON O N ON OFF OFF ON ON 207 ON ON O N ON OFF OFF ON ON 208 OFF OFF OFF OFF ON OFF ON ON 209 ON OFF OFF OFF ON OFF ON ON 210 OFF ON OFF OFF ON OFF ON ON 211 ON ON OFF OFF ON OFF ON ON 212 OFF OFF ON OFF ON OFF ON ON 213 ON OFF ON OFF ON OFF ON ON 214 OFF ON O N OFF ON OFF ON ON 215 ON ON O N OFF ON OFF ON ON 216 OFF OFF OFF ON ON OFF ON ON 217 ON OFF OFF ON ON OFF ON ON 218 OFF ON OFF ON ON OFF ON ON 219 ON ON OFF ON ON OFF ON ON 220 OFF OFF ON ON ON OFF ON ON 221 ON OFF ON ON ON OFF ON ON 222 OFF ON O N ON ON OFF ON ON 223 ON ON O N ON ON OFF ON ON

224 OFF OFF OFF OFF OFF ON ON ON 225 ON OFF OFF OFF OFF ON ON ON 226 OFF ON OFF OFF OFF ON ON ON 227 ON ON OFF OFF OFF ON ON ON 228 OFF OFF ON OFF OFF ON ON O N 229 ON OFF ON OFF OFF ON ON ON 230 OFF ON ON OFF OFF ON ON ON 231 ON ON ON OFF OFF ON ON ON 232 OFF OFF OFF ON OFF ON ON ON 233 ON OFF OFF ON OFF ON ON ON 234 OFF ON OFF ON OFF ON ON ON 235 ON ON OFF ON OFF ON ON ON 236 OFF OFF ON ON OFF ON ON ON 237 ON OFF ON ON OFF ON ON ON 238 OFF ON ON ON OFF ON ON ON 239 ON ON ON ON OFF ON ON O N 240 OFF OFF OFF OFF ON ON ON ON 241 ON OFF OFF OFF ON ON ON ON 242 OFF ON OFF OFF ON ON ON ON 243 ON ON OFF OFF ON ON ON ON 244 OFF OFF ON OFF ON ON ON ON 245 ON OFF ON OFF ON ON ON ON 246 OFF ON ON OFF ON ON ON ON

247 ON ON ON OFF ON ON ON O N 248 * OFF OFF OFF ON ON ON ON ON 249 * ON OFF OFF ON ON ON ON ON 250 * OFF ON OFF ON ON ON ON ON 251 * ON ON OFF ON ON ON ON ON 252 * OFF OFF O N ON ON ON ON ON 253 * ON OFF ON ON ON ON ON ON 254 * OFF ON ON ON ON ON ON ON 255 * ON ON ON ON ON ON ON ON

* Addresses 0, 248 – 255 are not valid for Modbus

Page 9

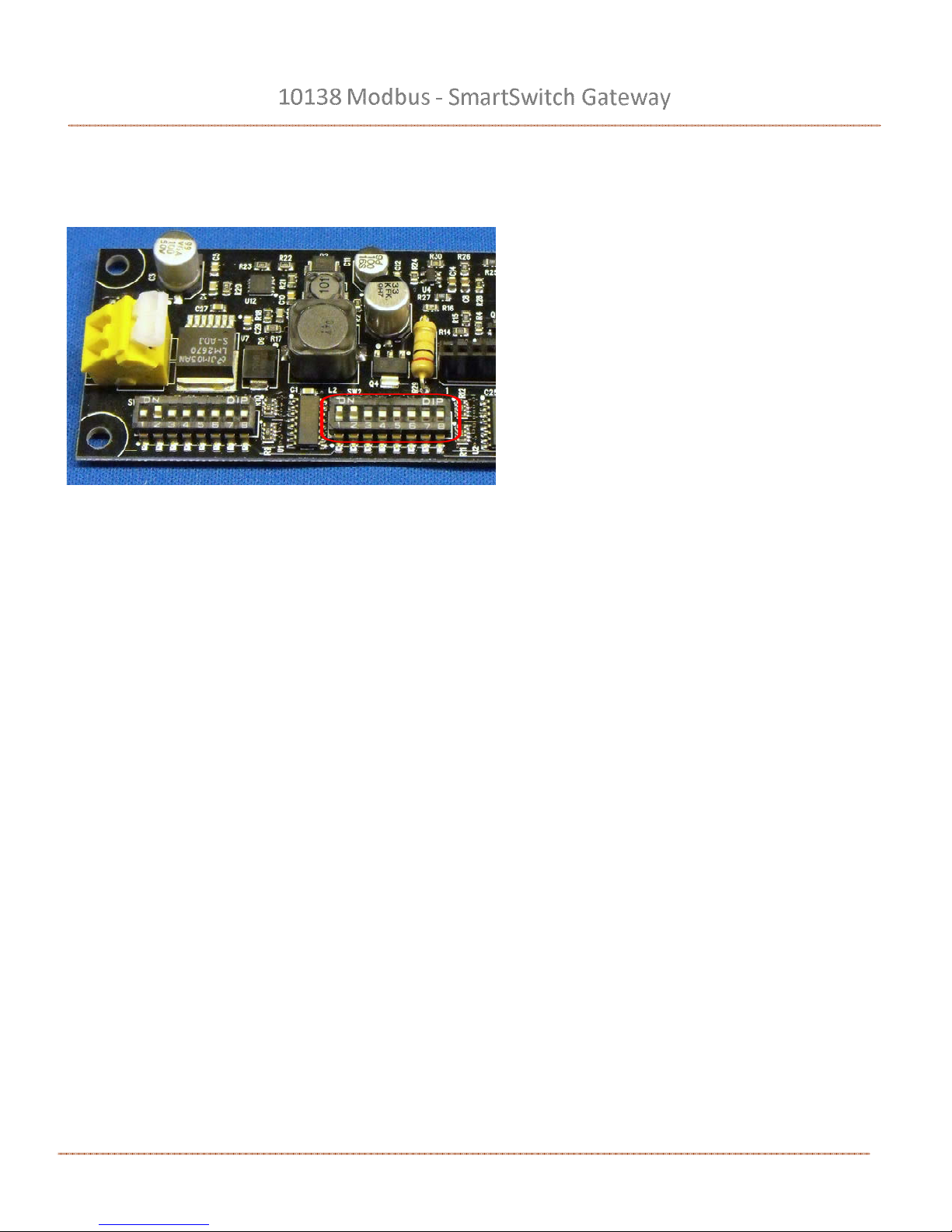

Set the Baud rate, Parity, and Stop bits using the SW2 DIP switches, all unused

tches should be off.

swi

1 2 3 Ba

ud OFF OFF OFF 9600 ON OFF OFF 19200 OFF ON OFF 28800 ON ON OFF 38400 OFF OFF ON 57600 ON OFF ON 76800 OFF ON ON 115.2K

4 Parity OFF Even ON NONE

5 Stop Bits OFF 1 ON 2

Page 10

Page 11

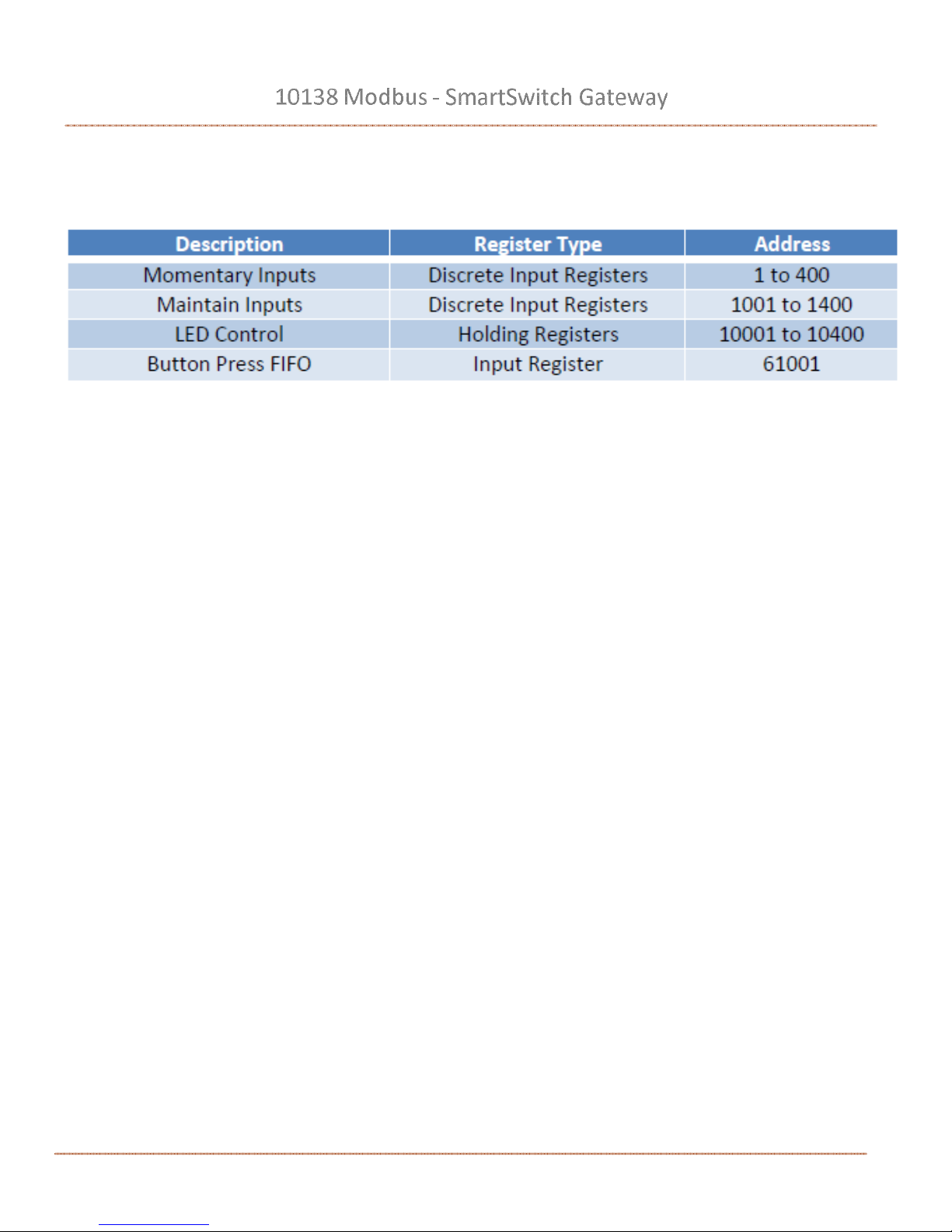

1 to 400 Discrete Inputs Momentary Inputs

These registers expose the state of the station buttons. There is a register for each of the station buttons. Register 1 is Station 1/Button 1, Register 9 is Station 2/Button 1, etc. Each station requires 8 registers. On SmartSwitches with less than 8 buttons some registers will be unused. Register # = ((Station #-1)*8+ Button #) Example (Station 7-1)*8+Button 3)=6*8+3= Register 51

Momentary inputs toggle state each time a button is pressed.

If Station 1/Button 1 is pressed

1001 to 1400 Discrete Inputs Maintain Inputs

These registers expose the state of the station buttons. There is a register for each of the station buttons. Register 1001 is Station 1/Button 1, Register 1009 is Station 2/Button 2, etc. Some versions of the SmartSwitches have 8 buttons so each station is take 8 registers. On SmartSwitches with less than 8 buttons some registers will be unused. Register # = 1000+((Station #-1)*8+ Button #) Example 1000+ (Station 7-1)*8+Button 3)=1000+6*8+3= Register 1051

Maintain inputs will read as a 1 while the button is presse

d and held, and read as 0 when the

button is released.

610

01 Input Register Button Press FIFO Buffer

This read-only register allow you to retrieve the button presses and releases from a FIFO buffer, similar to the keyboard buffer on a computer. When a button is pressed its number (1 to 400, indicating falling edge) is added to the to the buffer. When the button is released the button number +1000 is added to the buffer (1001 to 1400 indicating rising edge). When read the first value in the buffer is returned. That value is then cleared and the remaining values in the buffer shift one position. When the buffer is empty a read will return 0. Values remain the in buffer until read, there is no automatic timeout of values.

This register allows you to see all button presses and releases register.

while only polling a single

Page 12

10001 to 10400 Holding Registers Button Color/Intensity/Flash pattern value

These registers allow you to set the LED color, LED intensity, and LED flash pattern for each LED on every station. Register 10001 is Station 1/LED 1, register 10009 is Station 2/LED 1. Each station uses 8 registers, one for each LED. On stations with less than 8 LEDs some registers are unused. The table below shows what value to write to achieve a particular intensity, color, and flash pattern. Writing 0 will turn the LED off until another value is written. Register # = 10000+(Station # - 1)*8+LED #

Color Intensity Slow flash Slow flash reverse Fast flash Fast flash reverse Wink Wink reverse On

Red 25% 9 09 10 0A 11 0B 12 0C 13 0D 14 0E 15 0F Red 50% 73 49 74 4A 75 4B 76 4C 77 4D 78 4E 79 4F Red 75% 137 89 138 8A 139 8B 140 8C 141 8D 142 8E 143 8F Red 100% 201 C9 202 CA 203 CB 204 CC 205 CD 206 CE 207 CF

Green 2 5% 17 11 18 12 19 13 20 14 21 15 22 16 23 17 Green 5 0% 81 51 82 52 83 53 84 54 85 55 86 56 87 57 Green 7 5% 145 91 146 92 147 93 148 94 149 95 150 96 151 97 Green 100% 209 D1 210 D2 211 D3 212 D4 213 D5 214 D6 215 D7

Blue 25% 25 19 26 1A 27 1B 28 1C 29 1D 30 1E 31 1F Blue 50% 89 59 90 5A 91 5B 92 5C 93 5D 94 5E 95 5F Blue 75% 1 53 99 154 9A 155 9B 156 9C 157 9D 158 9E 159 9F Blue 100% 217 D9 218 DA 219 DB 220 DC 221 DD 222 DE 223 DF

Yellow 25% 33 21 34 22 35 23 36 24 37 25 38 26 39 27 Yellow 50% 97 61 98 62 99 63 100 64 101 65 102 66 103 67 Yellow 75% 161 A1 162 A2 163 A3 164 A4 165 A5 166 A6 167 A7 Yellow 100% 225 E1 226 E2 227 E3 228 E4 229 E5 230 E6 231 E7

Purple 25% 41 29 42 2A 43 2 B 44 2C 45 2D 46 2E 47 2F Purple 50% 105 69 106 6A 107 6B 108 6C 109 6D 110 6E 111 6F Purple 75% 169 A9 170 AA 171 AB 172 AC 173 AD 174 AE 175 AF Purple 100% 233 E9 234 EA 235 EB 236 EC 237 ED 238 EE 2 39 EF

Cyan 25% 49 31 50 32 51 33 52 34 53 35 54 36 55 37 Cyan 50% 113 71 114 72 115 73 116 74 117 75 118 76 119 77 Cyan 75% 177 B1 178 B2 179 B3 180 B4 181 B5 182 B6 183 B7 Cyan 100% 241 F1 242 F2 243 F3 244 F4 245 F5 246 F6 247 F7

White 25% 57 39 58 3A 59 3B 60 3C 61 3D 62 3E 63 3F White 50% 121 79 122 7A 123 7B 124 7C 125 7D 126 7 E 127 7F White 75% 185 B9 186 BA 187 BB 188 BC 189 BD 190 BE 1 91 BF White 100% 249 F9 250 FA 251 FB 252 FC 253 FD 254 FE 255 FF

Dec. Hex Dec. Hex Dec. Hex Dec. Hex Dec. Hex Dec. Hex Dec. Hex

Example #1: Writing 219 to Holding register 10001 would turn on the first LED on station

to blue at 100% intensity, with a fast flash.

Example #2: Writing 215 to Holding register 10009 would turn on the first LED on station #2 to green at 100% intensity, with no flash pattern (solid on).
