Touchland KUB Basic M280, KUB premium M280L User Manual

USER GUIDE

KUB Basic & KUB premium

English

Instructions

1. Important safety information ....................................................... 4

2. TECHNICAL ASPECTS ................................................................. 8

3. INCLUDED IN THE BOX ............................................................... 9

4. ELECTRIC RATING ...................................................................... 10

5. OPERATING AND STORAGE TEMPERATURES ...................... 10

5. Install your Touchland KUB smart dispenser (STEP 1) ............... 11

6. Activate smart features by downloading the APP (STEP 2) ..... 13

7. Install the sanitizer Refeel Cartridge (STEP 3) ............................ 14

8. Start using your dispenser (STEP 4) ............................................ 14

9. Connect external supply for KUB BASIC ................................. 15

10. Charge the battery for KUB PREMIUM ONLY ........................ 15

11. Cleaning and maintenance ......................................................... 17

12. Service.......................................................................................... 17

13. DISPOSING For the European Union market

(For Kub Premium) ........................................................................... 17

Intellectual property ........................................................................ 19

Warranty information ...................................................................... 19

TABLE OF CONTENTS

4 5

IMPORTANT SAFETY INFORMATION

READ THIS INFORMATION BEFORE USING YOUR DEVICE

Before you use your Touchland device, it is important that you read the
compliance information and the legal notice guidelines for the safe use of
your device that are found in this guide. To find the latest information, visit
www.touchland.com.
Please read the legal notice below carefully as the notice contains
limitations and exclusions of the liability of Touchland Limited and its
subsidiaries. This instruction manual covers 2 versions of Kub devices: Kub
Basic model n° M280 and Kub premium model n° M280L.

• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.

• This product is not a toy. Intended for adult use only.

• Children should be supervised to ensure that they do not play with the
appliance.

• Cleaning and user maintenance shall not be made by children without
supervision.

• The appliance must be disconnected from the supply mains when
removing the battery;

• Do not immerse in water.

• This product is for indoor use only. Do not use outdoors.

• It is not intended for use in wet, damp or condition of extreme humidity.
Operation in these conditions could severely affect the life of the product
and could compromise its safety.

• To reduce the risk of injury, close supervision is necessary when a product
is used near children. KEEP OUT OF REACH OF CHILDREN.

• DO NOT put fingers, hands, metal or other foreign objects in the product.

• DO NOT expose the appliance to fire or excessive temperature. Exposure
to fire or temperature above 130°C/265ºF may cause explosion. Devices are
not inherently safe and cannot be used in the presence of explosive fumes,
explosive dust or other explosive chemicals. Sparks in such areas could cause
an explosion or fire resulting in serious injury, death or damage to property.

• USE ONLY Touchland refill. Touchland will not be held responsible for
damage, injury or poor performance caused by use of any other refills in
Touchland device.

• Do not modify or attempt to repair the appliance except as indicated in
the instructions for use and care. Have servicing performed by a qualified
repair person using only identical replacement parts. This will ensure that
the safety of the product is maintained.

• Do not place the device or accessory on any unstable surface. It could fall,
thereby potentially causing serious injury to a person and serious damage
to the device or device accessory. Take care when using the device with any
power supply accessory to route the power cord in a way that reduces the
risk of injury to other, such as by tripping or choking.

6 7

• Always keep the consumable and the device in an upright position. Do
not operate with wet hands or metal objects.

For Kub Basic (Model: M280):

• Batteries are to be inserted with the correct polarity.

• Non-rechargeable batteries are not to be recharged.

• Rechargeable batteries are to be removed from the appliance
before being charged.

• Different types of batteries or new and used batteries are not to
be mixed.

• Exhausted batteries are to be removed from the appliance and
safely disposed of.

• If the appliance is to be stored unused for a long period, the
batteries should be removed.

• The appliance shall be supplied at safety extra low voltage
corresponding to 5Vdc, max. 1000 mA, when use USB Inlet.

• The supply terminals are not to be short-circuited.

• Batteries must be recycled. The batteries must be removed from
the appliance before it is scrapped.

• If any Leakage from the batteries is noted, remove them
immediately and remove any leaked material.

• Ensure that the 4 D Cell 1,5 Vdc alkaline batteries are inserted
correctly aligning the (+) and (-) terminals as indicated under the
battery door. Open the battery door insert the batteries and close
the battery door. Use the same process to remove the batteries

For Kub Premium (Model: M280L):

• Use only with adaptors listed below with plug shape for
appropriate countries:
HJ-0501000B2-EU, for Europe; HJ-0501000B2-US, for American
HJ-0501000B2-UK, for United Kingdom; HJ-0501000B2-AU, for
Australia; HJ-0501000B2-KR, for Korea; HJ-0501000B2-CN, for China;
HJ-0501000B2-AR, for Argentina; HJ-0501000B2-JP, for Japan or
HJ-0501000B2-MX, for Mexico, with an output: 5VDC - 1000 mA.

• WARNING: For the purposes of recharging the battery, only use
the detachable supply unit provided with this appliance.

• Follow all charging instructions and do not charge the appliance
outside of the temperature range specified in the instructions.
Charging improperly or at temperatures outside of the specified
range may damage the battery and increase the risk of fire.

PRODUCT SAFETY

The device uses a consumable containing Alcohol as parts of its process.
Please read and understand the instruction before using the device, taking
care to take the necessary precautions. During the consumable change
procedure, it is recommended to take measures to avoid the substance
contacting eyes. Keep out of eyes. In case of eye contact immediately flush
eyes with water. If irritation persists, get medical attention. If swallowed,
contact physician. For external use only. Keep out of reach of children.
Flammable, keep away from heat of flames.

SAVE THESE INSTRUCTIONS

8 9

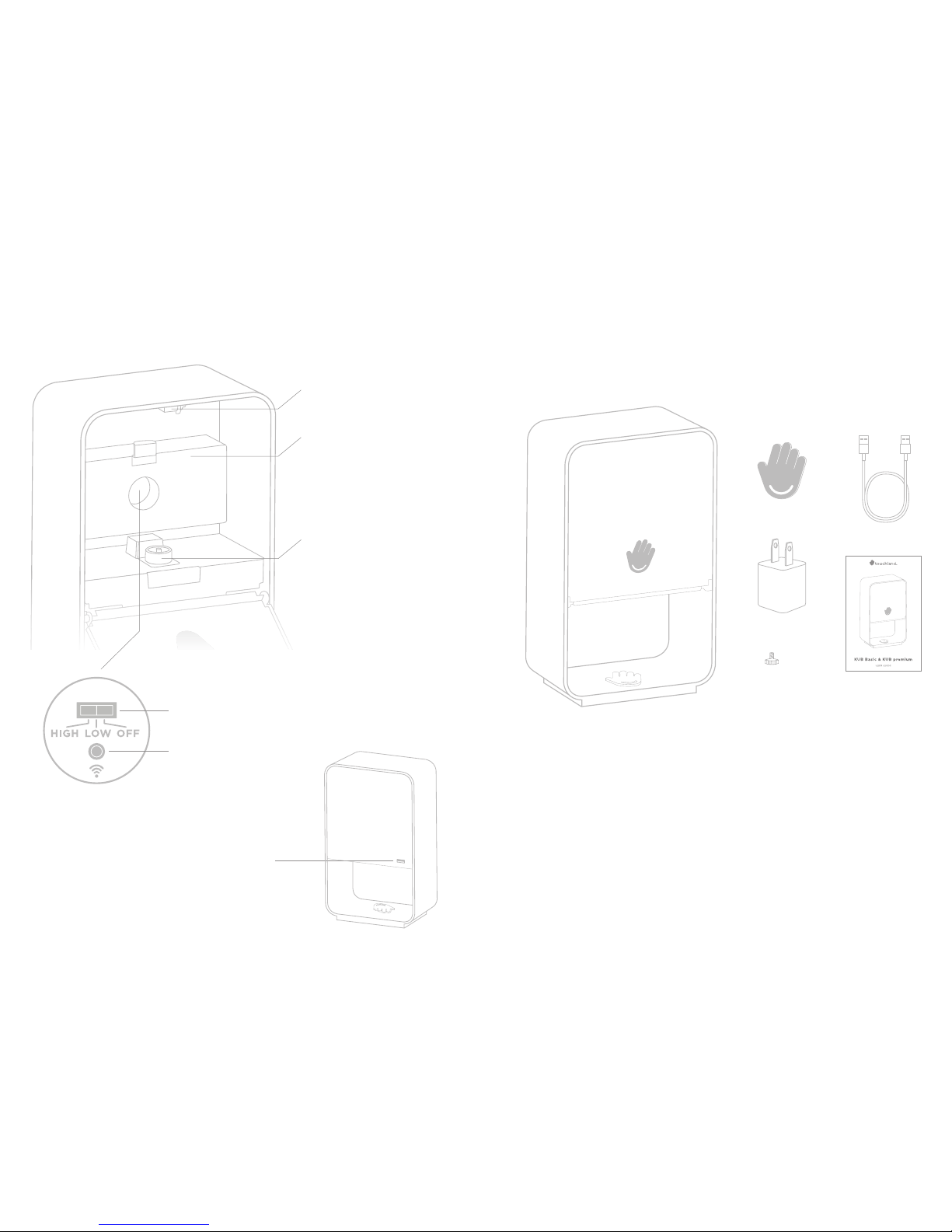

Security magnetic lock

Power source:

-KUB Basic: 4 D cell
alkaline batteries

-KUB Premium: Lithium
battery 3250 mAh

Pump house

1. KUB device

2. Magnetic locker key

3. USB cable

4. 5V/1000 mA USB Charger (ONLY INCLUDED FOR KUB PREMIUM)

5. Surface protector plugs (x4) or support fixing plugs*

6. User guide

Dosage switch

Pairing button

USB Port

Check the sections connect external

supply (Kub Basic) and charge the

battery (Kub Premium)

TECHNICAL ASPECTS INCLUDED IN THE BOX

1. 2.

5.

4.

3.

6.

x4

10 11

1. Open dispenser by pushing the door.

STEP 1ELECTRIC RATING

ELECTRIC RATING OPERATING AND STORAGE TEMPERATURES

Situate the device or device accessories away from heat
sources, such as radiators, cooking or heating appliances.
Do not store your device in temperature below 41ºF (5°C) or
above 122ºF (50°C).
Do not operate your device in temperature below 59ºF (15°C)
or above 95ºF (35°C).
Do not store your Touchland® refill in temperature below 41ºF
(5°C) or above 86ºF (30°C).

This appliance is designed to work maximum 5 cycles per
minute, higher frequency usage is not allowed.

Install your TOUCHLAND KUB Smart dispenser.

CAUTION: When removing the security
red tape on the locker, door will remain
blocked once closed. Magnetic key is
needed to unlock the door.
Place the magnetic key on the middle
top, frontward, then press the front
door. The metal click sound means
that the door has been unlocked.
Keep magnets away from devices and
objects that could be damaged by
strong magnetic fields.

OPTIONAL

Security lock activation

Security red tape.

Supply type

Battery

External
supply

For Kub Basic
(Model: M280):

6V ,alkaline
batteries Type D x 4;

Micro USB connected,
supplied at safety
extra low voltage
corresponding to 5Vdc,
max. 1000 mA

Power supply, type
HJ-0501000B2-zz:
Input: 100-240VAC,
50/60Hz, 0.15A
Output: 5 VDC, 1000mA

3.8V ,3250 mAh
Lithium-ion
rechargeable battery

For Kub Premium
(Model: M280L):

*To install the surface protector plugs into the device, screw the plugs on the
bottom of the device holes to avoid scratches on the surface. The surface
protector plugs are also valid to fix the device into the floor-stand or wall-mount
accessories (sold separately with their own assembly instructions).

1312

1. Download TOUCHLAND App through the Google play store
(Android) or App store (iOs) by searching for “touchland”.

2. Follow the instructions on the App to activate your Smart
Dispenser.

Note: The app will indicate you to push the pairing button that is
located in the inner circle of control (please check photo).

2. Place 4 D batteries by opening the battery box cover.
(Not applicable for KUB Premium – go to next point directly).

Ensure that the 4 D Cell 1,5 Vdc alkaline batteries are inserted correctly aligning
the (+) and (-) terminals as indicated under the battery door. Open the battery
door, insert the batteries and close the battery door. Use the same process to
remove the batteries.

x4 D cell alkaline batteries

3. Your device comes in OFF position. To activate, switch the
indicator to the preferred dosage:

LOW = 0.017 fl oz (0.5 mL) or,
HIGH = 0.027 fl oz (0.8 mL)
OFF = turn off device.

4. Indicator light will blink white twice once dosage has been selected.

IMPORTANT: you must complete step #2 before using your dispenser
with all its smart features. Or pass directly to step 3 if you don’t want
activate its smart features.

STEP 2

Activate smart features by downloading the App.

You will need:

- A Wi-fi enabled device

- Your wi-fi network name and password (wi-fi network
cannot have a permission attached)

- An active e-mail account.

14 15

STEP 3

Install the sanitizer REFEEL Cartridge

1. Open dispenser by pushing the door.

2. Remove the red cap from REFEEL CARTRIDGE.

3. Place the REFEEL CARTRIDGE inside the dispenser (you need
to read the frontal side as showed below in the drawing) and
ensure that the it is sitting properly in the pump house.

Start using your dispenser

Place your palm under the sensor.

Note: May few activations are needed
before the device starts dispensing the
liquid after refeel change.

To receive additional product, remove
hands from below dispenser and repeat
action again.

STEP 4

4. When REFEEL
cartridge is properly
placed indicator light will
blink GREEN.

5. Close the door of the
dispenser.

KUB BASIC (Model: M280) only

Connect external supply

KUB PREMIUM (Model: M280L) only

Charge the battery

1. Insert the USB cable into the USB charger / Accessory port.

Caution: Use only charging devices approved by Touchland. Using other
accessories may invalidate your warranty and may cause damage.

2. Connect the USB cable to a 5V/1000 mA USB charger, and
then plug the USB charger into a standard outlet.

3. Once connected to the plug, batteries will not be charged.
Device will only be powered by the cable.

Your device is powered by a rechargeable, standard Li-Ion battery.

Use only with HJ-0501000B2-zz supply unit, sux zz changes
as per the dierent world plug configurations (5V DC - 1000 mA).

The battery comes partially charged. You can use the device
while charging.

1 > 2 >

16 17

When to Charge the Battery

When the battery is low, the device will alert with two red
warning lights once placing the hand under the sensor. In this
condition, your device conserves its remaining battery power by
dispensing for few more doses. When the battery level becomes
too low, the device automatically turns o.

For a quick check of your battery level:
> View the battery charge indicator trough
the APP listed on the “device list” section.

While charging, the device and the
charger may become hot. This does not
aect the device’s lifespan or performance
and is in the device’s normal range of
operation.

If the device heats up while charging the
battery:

1. Disconnect the charger from the device.

2. Wait for the device to cool down, and
then begin charging the device again.

If the device overheats, check for damage to the connected USB
cable. Replace the damaged USB cable with a new Touchland

approved cable.

CLEANING AND MAINTENANCE

To clean exterior surfaces, disconnect all supply, switch o and
wipe with a dry cloth. DO NOT USE ABRASIVE CLEANERS.
Store your device in temperature below 41ºF (5°C) or above
122ºF (50°C).

SERVICE

Only qualified service personnel should perform repairs to the
device. Refer to the device documentation if any of the following
situations occur:

• Liquid has been spilled or objects have fallen into the device.

• The device has been exposed to rain or water.

• The device or power supply accessory becomes very hot to
the touch.

• The device has been dropped or damage in any way.

• The device does not operate normally by following the
instruction in the user documentation.

• The device exhibits a distinct change in performance.

• Do not attempt to disassemble the device or any power supply
accessories.

• An improper adjustment of other controls might cause damage
and will often require extensive work by a qualified technician
to restore the device, power supply accessory or any other
accessory to normal operation.

• Failure to observe all safety instructions contained in the user
documentation for the device will void the limited warranty as set
out in the legal notice below.

DISPOSING (For Kub Premium):

IMPORTANT: The below instructions are only applicable to
comply with the lithium-ion rechargeable battery and device
disposal for the European Union Market:

• This appliance contains batteries that are not replaceable.

1. Insert the USB cable into the USB charger / Accessory port.

Caution: Use only USB chargers approved by Touchland. Touchland accessories
are designed for your device to maximize battery life. Using other accessories
may invalidate your warranty and may cause damage.

2. Connect the USB cable to the USB charger, and then plug the
USB charger into a standard outlet.

3. Unplug the USB charger from the outlet and remove the USB
cable from the device when charging is complete.

18 19

• The battery must be removed from the appliance before it is
scrapped;

• This product contains a lithium-ion rechargeable battery that
cannot be replaced and should not be disposed of with normal
household waste.

• Exhausted batteries are to be removed from the appliance by
skilled and trained technician and safely disposed of according
to local regulations. Follow the instructions below to remove the
battery from the unit:
Step 1: Remove the screw on the battery cover (located above
the switch) by using a cross-head screwdriver,
Step 2: Remove the battery cover box;
Step 3: Remove the connector of the battery from the circuit
board and free the battery.
Please note that this process is not reversible.

This marking indicates that the product at the end
of its lifespan, is subjected to separate collection
and must not be disposed of among urban waste.

The apparatus contains substances that can cause
damage to the environment or be a health hazard. Therefore,
please dispose of this product at the designated dierentiated
collection centers supplied by the local authorities, or at the
deaderships that supply this service. For information on the
dierentiated collection and recycling of this product, please
consult the dealership.

INTELLECTUAL PROPERTY

In order to protect Touchland proprietary and confidential information and/
or trade secrets, this documentation may describe some aspects of Touchland
technology in generalized terms.

All Intellectual Property, as defined below, owned by or which is otherwise the
property of Touchland or its respective suppliers relating to the TOUCHLAND
device, including but not limited to, accessories, parts, or software relating
thereto, is proprietary to Touchland and protected under federal laws, state
laws, and international treaty provisions. Intellectual Property includes, but is
not limited to, inventions (patentable or unpatentable), patents, trade secrets,
copyrights, software, computer programs, and related documentation and
other works of authorship. You may not infringe or otherwise violate the rights
secured by the Intellectual Property. Moreover, you agree that you will not
(and will not attempt to) modify, prepare derivative works of, reverse engineer,
decompile, disassemble, or otherwise attempt to create source code from the
software. No title to or ownership in the Intellectual Property is transferred
to you. All applicable rights of the Intellectual Property shall remain with
TOUCHLAND and its suppliers.

WARRANTY INFORMATION

Touchland LLC. / Distribuciones Touchland S.L (“Touchland”) warrants that
Touchland’s devices and accessories (“Products”) are free from defects in
material and workmanship under normal use and service.

Touchland LLC.
117 SW 10TH ST
MIAMI, FL 33130 – USA
Phone:
1-646-401-0090

Distribuciones Touchland S.L.
Calle Ronda Maiols 1, BMC – local 351
08192 Sant Quirze del Valles - Spain
Phone:
[phone]

Internet Address:
touchland.com

20 21

and (b) comply with Touchland return shipping instructions. Touchland will have
no warranty obligations with respect to a returned Product if it determines, in
its reasonable discretion after examination of the returned Product, that the
Product is an Ineligible Product (defined below). Touchland will bear all costs of
return shipping to owner and will reimburse any shipping costs incurred by the
owner, except with respect to any Ineligible Product, for which owner will bear
all shipping costs.

4. WHAT THIS LIMITED WARRANTY DOES NOT COVER

This Limited Warranty does not cover the following (collectively “Ineligible
Products”): Products marked as “sample” or “Not for Sale”, or sold “AS IS”; or
Products that have been subject to: (a) modifications, alterations, tampering,
or improper maintenance or repairs; (b) handling, storage, installation, testing,
or use not in accordance with the User’s Guide or other instructions provided
by Touchland; (c) abuse or misuse of the Product; (d) breakdowns, fluctuations,
or interruptions in electric power or the telecommunications network; or (e)
Acts of God, including but not limited to lightning, flood, tornado, earthquake,
or hurricane. This Limited Warranty does not cover consumable parts, including
batteries, unless damage is due to defects in materials or workmanship of the
Product, or software (even if packaged or sold with the product). Touchland
recommends that you use only authorized service providers for maintenance
or repair. Unauthorized use of the Product or software can impair the Product’s
performance and may invalidate this Limited Warranty.

5. DISCLAIMER OF WARRANTIES

EXCEPT AS STATED ABOVE IN THIS LIMITED WARRANTY, AND TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, TOUCHLAND
DISCLAIMS ALL EXPRESS, IMPLIED, AND STATUTORY WARRANTIES AND
CONDITIONS WITH RESPECT TO THE PRODUCT, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
TOUCHLAND ALSO LIMITS THE DURATION OF ANY APPLICABLE IMPLIED
WARRANTIES OR CONDITIONS TO THE DURATION OF THIS LIMITED
WARRANTY.

6. LIMITATION OF DAMAGES

IN ADDITION TO THE ABOVE WARRANTY DISCLAIMERS, IN NO EVENT
WILL TOUCHLAND BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL,
EXEMPLARY, OR SPECIAL DAMAGES, INCLUDING ANY DAMAGES FOR LOST

THIS LIMITED WARRANTY CONTAINS IMPORTANT INFORMATION
ABOUT YOUR RIGHTS AND OBLIGATIONS, AS WELL AS LIMITATIONS
AND EXCLUSIONS THAT MAY APPLY TO YOU.

1. WHAT THIS LIMITED WARRANTY COVERS; PERIOD OF COVERAGE

Touchland LLC / Distribuciones Touchland S.L.. (“Touchland”), Miami, Florida
USA, warrants to the owner of the enclosed product that the product contained
in this box (“Product”) will be free from defects in materials and workmanship
for a period of two (2) years from the date of delivery following the original
retail purchase (the “Warranty Period”). If the Product fails to conform to
this Limited Warranty during the Warranty Period, Touchland will, at its sole
discretion, either (a) repair or replace any defective Product or component; or
(b) accept the return of the Product and refund the money actually paid by the
original purchaser for the Product. Repair or replacement may be made with a
new or refurbished product or components, at Touchland sole discretion. If the
Product or a component incorporated within it is no longer available, Touchland
may, at Touchland sole discretion, replace the Product with a similar product of
similar function. This is your sole and exclusive remedy for breach of this Limited
Warranty. Any Product that has either been repaired or replaced under this
Limited Warranty will be covered by the terms of this Limited Warranty for the
longer of (a) ninety (90) days from the date of delivery of the repaired Product
or replacement Product, or (b) the remaining Warranty Period. This Limited
Warranty is transferable from the original purchaser to subsequent owners, but
the Warranty Period will not be extended in duration or expanded in coverage
for any such transfer.

Notes:

Consumable supplies or accessories used with this product including REFEEL
cartridges are not covered by this warranty.

2. TOTAL SATISFACTION RETURN POLICY

If you are the original purchaser of the Product and you are not satisfied with
this Product for any reason, you may return it in its original condition within
thirty (30) days of the original purchase and receive a full refund.

3. WARRANTY CONDITIONS; HOW TO GET SERVICE IF YOU WANT
TO CLAIM UNDER THIS LIMITED WARRANTY

Before making a claim under this Limited Warranty, the owner of the Product
must (a) notify Touchland of the intention to claim by visiting touchland.com
during the Warranty Period and providing a description of the alleged failure,

22

DATA OR LOST PROFITS, ARISING FROM OR RELATING TO THIS LIMITED
WARRANTY OR THE PRODUCT, AND NEST LABS’ TOTAL CUMULATIVE
LIABILITY ARISING FROM OR RELATED TO THIS LIMITED WARRANTY OR
THE PRODUCT WILL NOT EXCEED THE AMOUNT ACTUALLY PAID FOR
THE PRODUCT BY THE ORIGINAL PURCHASER.

7. LIMITATION OF LIABILITY

THE TOUCHLAND ONLINE SERVICES (“SERVICES”) PROVIDE YOU
INFORMATION (“PRODUCT INFORMATION”) REGARDING YOUR TOUCHLAND
PRODUCTS OR OTHER PERIPHERALS CONNECTED TO YOUR PRODUCTS
(“PRODUCT PERIPHERALS”). THE TYPE OF PRODUCT PERIPHERALS THAT
MAY BE CONNECTED TO YOUR PRODUCT MAY CHANGE FROM TIME TO
TIME. WITHOUT LIMITING THE GENERALITY OF THE DISCLAIMERS ABOVE,
ALL PRODUCT INFORMATION IS PROVIDED FOR YOUR CONVENIENCE,“AS
IS”, AND “AS AVAILABLE”. TOUCHLAND DOES NOT REPRESENT, WARRANT,
OR GUARANTEE THAT PRODUCT INFORMATION WILL BE AVAILABLE,
ACCURATE, OR RELIABLE OR THAT PRODUCT INFORMATION OR USE OF THE
SERVICES OR PRODUCT WILL PROVIDE SAFETY IN YOUR HOME. YOU USE
ALL PRODUCT INFORMATION, THE SERVICES, AND THE PRODUCT AT YOUR
OWN DISCRETION AND RISK. YOU WILL BE SOLELY RESPONSIBLE FOR (AND
TOUCHLAND DISCLAIMS) ANY AND ALL LOSS, LIABILITY, OR DAMAGES,
INCLUDING TO YOUR WIRING, FIXTURES, ELECTRICTY, HOME, PRODUCT,
PRODUCT PERIPHERALS, COMPUTER, MOBILE DEVICE, AND ALL OTHER
ITEMS AND PETS IN YOUR HOME, RESULTING FROM YOUR USE OF THE
PRODUCT INFORMATION, SERVICES, OR PRODUCT. PRODUCT INFORMATION
PROVIDED BY THE SERVICES IS NOT INTENDED AS A SUBSTITUTE

FOR DIRECT MEANS OF OBTAINING THE INFORMATION. FOR EXAMPLE, A
NOTIFICATION PROVIDED THROUGH THE SERVICE IS NOT INTENDED AS A
SUBSTITUTE FOR AUDIBLE AND VISIBLE INDICATIONS IN THE HOME AND
ON THE PRODUCT, NOR FOR A THIRD PARTY MONITORING SERVICE THAT
MONITORS ALARM STATE.

8. YOUR RIGHTS AND THIS LIMITED WARRANTY

This Limited Warranty gives you specific legal rights. You may also have other
legal rights that vary by state, province, or jurisdiction. Likewise, some of the
limitations in this Limited Warranty may not apply in certain states. The terms
of this Limited Warranty will apply to the extent permitted by applicable law.
For a full description of your legal rights you should refer to the laws applicable
in your jurisdiction and you may wish to contact a relevant consumer
advisory service.
