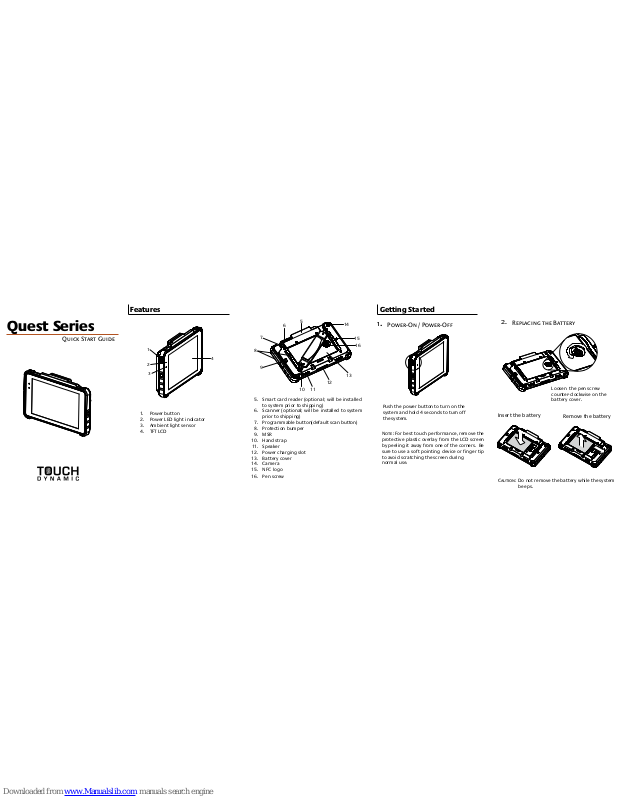

Quick Start Guide
Quest Series
1
.
Power-On / Power-Off
2.
Replacing the Battery
1. Power button
2. Power LED light indicator
3. Ambient light sensor
4. TFT LCD
5. Smart card reader (optional; will be installed
to system prior to shipping)
6. Scanner (optional; will be installed to system
prior to shipping)
7. Programmable button(default scan button)
8. Protection bumper
9. MSR
10. Hand strap
11. Speaker
12. Power charging slot
13. Battery cover
14. Camera
15. NFC logo
16. Pen screw
Loosen the pen screw
counter-clockwise on the
battery cover.
Insert the battery
Remove the battery
Push the power button to turn on the
system and hold 4 seconds to turn off
the system.
Features Getting Started
Note: For best touch performance, remove the
protective plastic overlay from the LCD screen
by peeling it away from one of the corners. Be
sure to use a soft pointing device or finger tip
to avoid scratching the screen during
normal use.
1
2
3
4
Caution: Do not remove the battery while the system
beeps.
5
6
7
8
9
10
11
12
13
14
15
16
Green LED On:
Battery power full
Orange LED On:
Battery power charging
Red LED:
Flash: Battery low
ON: Critical battery low
More Information on the Quest Series
See technical manual in the Driver Bank
4.
Replacing a Micro SD card
LED Indicator
P/N: Version: 1.0
Support Information Safety Information
Battery Caution
Risk of explosion if battery is replaced by an
incorrectly type. Dispose of used battery
according to the local disposal instructions.
Safety
Regulatory Information
Caution: Only use approved and UL Listed
accessories, battery packs and battery chargers.
Do NOT attempt to charge damp/wet mobile
computers or batteries. All components must be
dry before connecting to an external power source.
Warning for Use of Wireless Devices
Please observe all warning notices with regard to
the usage of wireless devices.
Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end
of their life must be returned to the reseller for
recycling.
Insert or replace a Micro SD card afÂter opening the battery cover.
3
.
Using the Charging Cradle
Connect the USB-AC adapter to the
connector on the bottom of the cradle
charger and the power outlet.
To download the most recent drivers and utilities,
and obtain advice regarding the installation of
your equipment, please visit the Touch Dynamic
Website: www.touchdynamic.com
