All specifications are subject to change without notice

Receipt Printer User’s Manual

MODEL : PR-T25

1. Parts Identications 3

2. Setting up the printer 4

2.1 Unpacking 4

2.2 Connecting the cables 5

2.3 Loading the roll paper 9

2.4 Managing a cutter Jam 11

3. Control panel and other functions 12

3.1 Control panel 12

3.2 Error Indicating 12

4. Self Test 13

5. ASCII Print 14

6. Select Baudrate Mode 14

7. Hexadecimal Dump 15

8. Specications 16

8.1. General Specications 18

8.2. Auto Cutter Specications 18

8.3. Interface 18

8.4. Electrical Characteristics 18

8.5. Environmental Requirements 19

8.6. Reliability 19

8.7. Certication 19

9. Command List 20

Table of Contents

1. Parts Identifications

FRONT COVER

CONTROL LABEL

POEWR SWITCH

POWER CONNECTOR

PERIPHERAL DRIVE CONNECTOR

INTERFACE CONNECTOR

INTERFACE CONNECTOR (USB)

Open this cover to load or replace paper

Features LED indicators to indicate printer status and switches to operate the printer.

Used to turn on/off power to the printer

2-2. Connecting the Cables

All cables connect to the connector panel on the back of the printer which is shown below:

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

2-1. Unpacking

Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance.

The Printer User's Manual Roll Paper

Adaptor(Option) Interface Cable(option)

2. Setting Up the Printer

INTERFACE CONNECTOR

PERIPHERAL DRIVE CONNECTOR

POWER CONNECTOR

INTERFACE CONNECTOR (USB)

For connection to a host computer.

For connection of the AC adapter. Never unplug the AC adapter while the printer is on.

Connects to peripheral units such as cash drawer, etc. Do not connect this to a telephone.

Centronics Parallel Interface

PIN SIGNAL I/O DESCRIPTION 1 STROBE- Input Synchronize signal Data received 2~9 DATA0~7 Input/Output Data bit Transmitted 0~7 10 ACK- Output Data receiving completed. 11 BUSY Output Impossible to print of data receiving. 12 PE Output Paper empty 13 SELECT Output Printer status for ON/OFF line 14 AUTO FEED- Input Paper auto feed signal 15 GROUND - System ground 16 GROUND - System ground 17 NC 18 LOGIC-H - +3.3V 19~30 GROUND - System ground 31 INIT- Input Initialize 32 ERROR- Output Printer error 33 GROUND - System ground 34 NC 35 NC 36 SELLECT IN- Input Printer select signal

Ethernet Interface

PIN SIGNAL I/O

1 Data Out + Output Data + 2 Data Out - Output Data 3 GND Ground 4 Data IN + Input Data + 5 Data IN -

Input Data 6 N.C 7 N.C 8

N.C

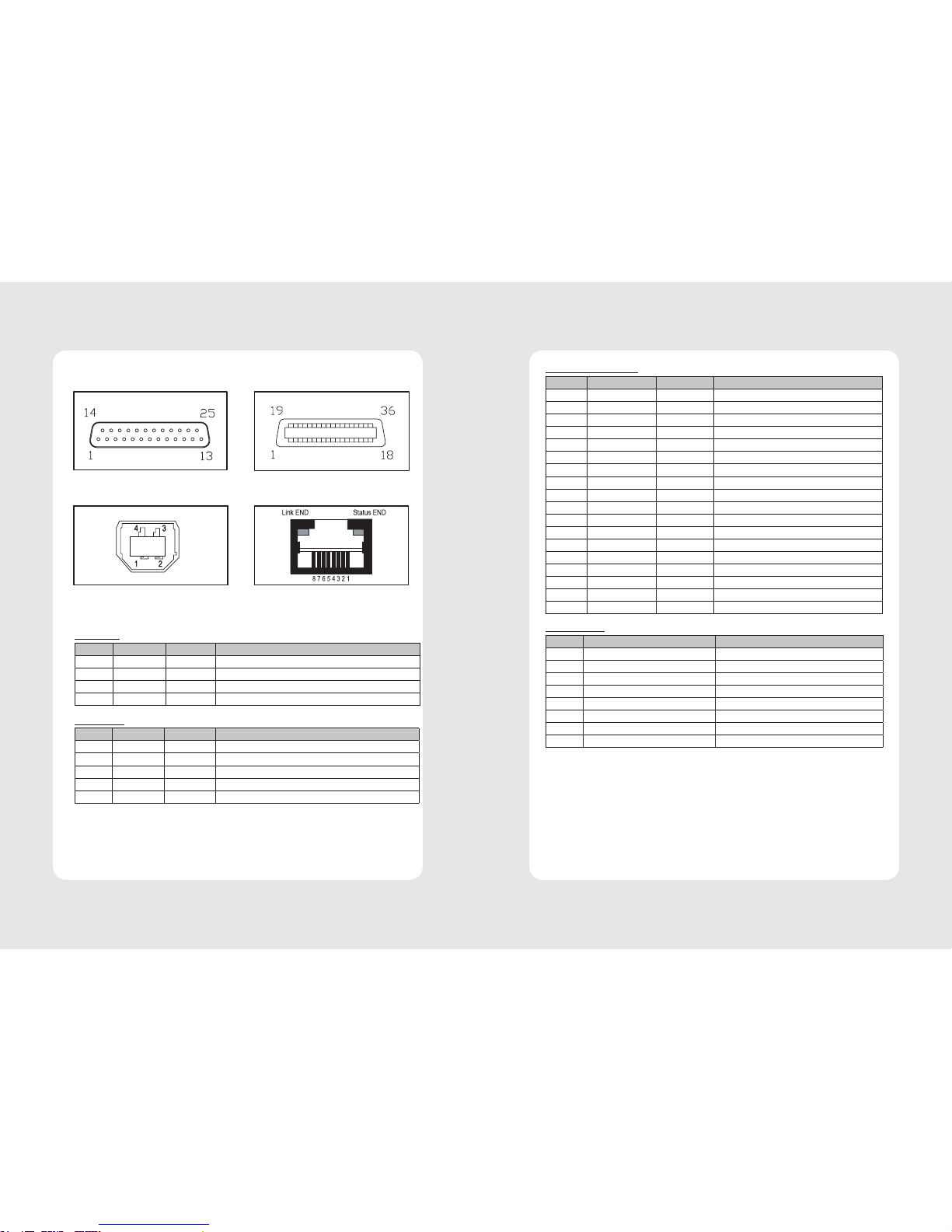

2-2-1. Interface Connector

<D-SUB 25 Female Serial> <Centronics Parallel>

USB Interface

PIN SIGNAL I/O DESCRIPTION 1 +5V - +5V 2 DATA-

- Printer transmit data line 3 DATA+ - Printer transmit data line 4 GND - System Ground

Serial Interface

PIN SIGNAL I/O DESCRIPTION 2 TxD Output Printer transmit data line RS-232C level 3 RxD Input Printer receive data line RS-232C level 4, 20 DTR Output Printer handshake to host line RS-232C level 6 DSR Input Data Send Ready 1, 7 GND - System Ground

2-3. Loading the Roll Paper

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.

♣Turn off power switch.

1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

2. Open the paper roll cover by pushing down the cover open push button.

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing.

PIN SIGNAL DESCRIPTION

1 Signal GND 2 Drawer kick-out drive signal 1 Output 3 Drawer open/close signal Input 4 +24V 5 Drawer kick-out drive signal 2 Output 6 Signal GND -

5. Note the correct direction that the paper comes off the roll:

6. Pull out a small amount of paper as shown. Then, close the cover.

7. Close the paper with both hands and run the paper line up by pressing feed button.

2-4. Managing a cutter Jam

♣CAUTION:

When the paper cutter is jammed, the top cover might be stuck closed. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the paper jam.

1. Make sure the printer turns off.

2. Release Cutter Jam Cover as shown the figure

3. Rotate the bolt with driver until the cutter goes into the initial stage

NOTE

If the users close the cover with one hand, it would not be closed completely. Please use both hands to close.

3-1. Control panel

You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights let you to monitor the printer’s status.

Control Panel

Button

The button can be disabled by the ESC c 5 command.

Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed paper continuously.

3-2. Error indicators

This section explains the different patterns signaled by the two LED indicators located on the top cover of the printer.

STATUS

PAPER ERROR POWER

REMARKS

RED RED GREEN

Power off OFF OFF OFF

Normal power is not supplied to the printer

Power on OFF OFF ON Normal power is supplied to the printer On line OFF OFF ON Normal error-free mode Cover open OFF ON ON Close cover Paper empty OFF ON ON Insert new paper roll Paper near end ON OFF ON Paper is low

3. Control panel and other functions

The self-test result indicated whether the printer is operating properly. Also with this, user can check following options or status of the printer.

 Controlcircuit  Printermechanism  Printingquality  ROMversion  Interfacesetting

Thistestisindependentofanyotherequipmentorsoftware.

Running the self test

1. Make sure the printer is turned off and the printer cover is closed properly before performing the self test

2. Turn the printer on holding the FEED button, then the self-test will start. The self-test prints the printer setting value and then prints the following, and pauses. (Error LED On)

SELECT MODE BY BUTTON

1. ASCII PRINT

2. SELECT BAUDRATE MODE

3. HEXADUMP MODE

3. Press the FEED button consecutively (1~3)

1. ASCII PRINT (press the FEED button once)

2. SELECT BAUDRATE MODE (press the FEED button twice)

3. HEXADUMP MODE (press the FEED button triple time)

Printing test page constructed with ACII code.

Set the speed of Serial Interface (You can set the BAUDRATE in this mode)

Printing the HEX value received from the interface



♣

Wait for 5~6 seconds if you want to exit. Printer performs a cutting when exiting this mode

4. The printer is ready to receive data after finishing setting.

4. Self Test

ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works properly with this The ASCII PRINT test automatically ends and cuts the paper after printing the following:

*** Completed ***

The printer is ready to receive data as soon as it completes the ASCII PRINT.

5. ASCII Print

After entering the BAUDRATE MODE, the list which can select the BPS will be printed. Similar like Self Test, you can press the FEED button to select a BAUDRATE. Once the input performs properly, the printer shows a result and store. The printer is ready to receive data as soon as it completes the SELECT BAUDRATEMODE.

SELECT BAUDRATE BY BUTTON

1. 9600bps

2. 19200bps

3. 38400bps

4. 115200bps

6. Select Baudrate Mode

This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you go into the hex dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands.

To use the hex dump feature, follow these steps

1. Please turn printer off.

2. Please turn printer on while press down “Feed” button.

3. Press the FEED button three times when the Self Test printed.

4. Now printer had entered into Hexa dump mode.

5. Run any software program that sends data to the printer. The printer prints ”Hexadecimal printing mode…” and then all the codes it receives in a two-column format. The first column contains the hecadecimal codes and the second column gives the ASCII characters that correspond to the codes.

Hecadecimal Dump 1B 21 00 1B 26 02 40 40 .!..& . @ @ 1B 25 01 1B 63 34 00 1B .%..c4 .. 41 42 43 44 45 46 47 48 ABCDEFGH

□Aperiod(.)isprintedforeachcodethathasnoASCIIequivalent.

6. Turn off the printer.

7. Turn on the printer.

7. Hexadecimal Dump

(8) Overall dimension

8-1. General Specifications

(1) Printing Method Direct line thermal printing.

(2) Print speed 200mm/sec

(3) Dot density (Hor / Ver) 180 DPI X 180 DPI

(4) Dot Pitch 0.142mm X 0.142mm

(5) Printing Width Max 72mm (512 dots)

(6) Number of print columns.

Font “A” Font “B”

42 columns 56 columns

(7) Roll paper Refer to chapter 2 for details on the recommended roll Paper. Paper width : 50mm~82.5mm Roll diameter : Max. ø83.0mm

(8) Weight 1.4 Kg

8. Specifications

♣Important!

When using a printer power supply other than optional AC adaptor, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. Be careful about installing the printer in an area where there is noise. Take the appropriate measure to protect against electrostatic AC line noise, etc.

8-5. Environmental Requirements

(1) Operating Temperature 5°C to 40°C Humidity 10% to 90% RH (without condensation)

(2) Transport/Storage (except paper) Temperature -20°C to 60°C Humidity 10% to 90% RH (without condensation)

8-6. Reliability

(1) MCBF 60 million lines (based on an average printing rate of 12.5% with paper thickness in the range 65µm to 75µm) 35 million lines (based on an average printing rate of 12.5% with paper thickness in the range 76µm to 150µm)

(2) Head Life 160Km

(3) Cutter Life 1,500,000 cuts

8-7. Certification

(1)FCC PART15 CLASS A (2)CE EMCD/LVD (CE-EMCD class B should use parallel shield cable complied with IEEE-1284 standards) (3) UL/cUL (UL 60950-1) (4) KC (5) ENERGY STAR

This equipment is indoor use and all the communication wiring are limited to inside of the building”

8-2. Auto Cutter Specifications

(1)CuttingFrequency  Max.30cutsperminute

(2) Thickness of paper 0.06 ~ 0.09 mm

(3) Cutter Life 1.5 million cuttings

8-3. Interface

RS232 Serial Interface, Centronics Parallel Interface(IEEE1284), USB Interface, Ethernet Interface(100Mbps)

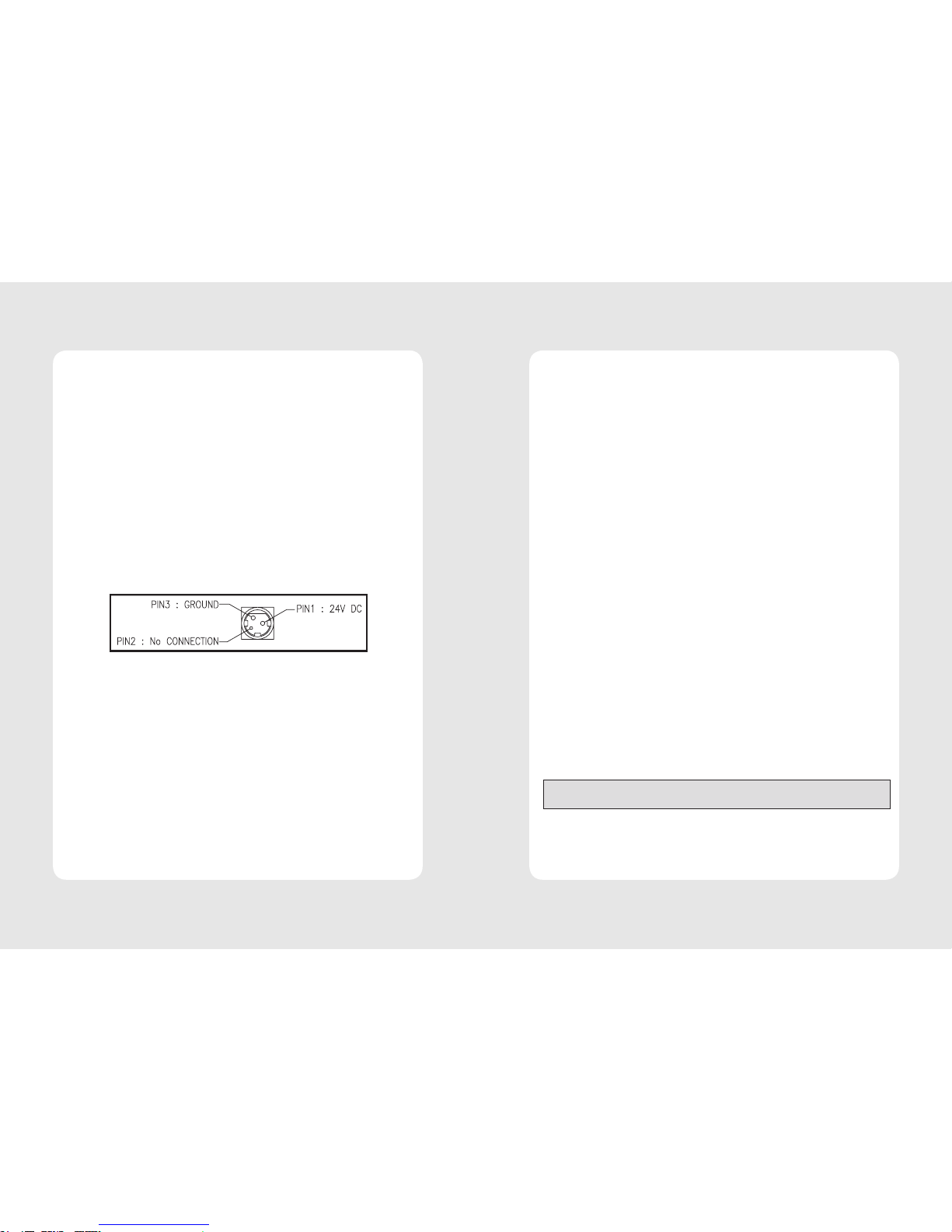

8-4. Electrical Characteristics

(1) Input Voltage DC 24V ± 10%

(2) Current Consumption Operating: Approx. 1.5 A (at ASC∥ printing) Peak : Approx. 10 A (at print duty 100%, For 10 seconds or less) Stand-by : Approx. 0.03 A (3) Power Connector

♣

Preventing Overheating

To prevent the motor from overheating, continuous operation of the printer should be

1.5 m or less in print length. Set the pause time for 30 seconds or more than it.

No. Command Function REMARKS 40 ESC t Select character code table 41 ESC { Turn upside-down printing mode on/off 42 FS p Print NV bit image 43 FSq Define NV bit image 44 GS ! Select character size 45 GS $ Set absolute vertical print position in page mode 46 GS * Define downloaded bit image 47 GS / Print downloaded bit image 48 GS B Turn white/black reverse printing mode on/off 49 GS H Select printing position of HRI characters 50 GS I Transmit printer ID 51 GS L Set left margin 52 GS P Set horizontal and vertical motion units 53 GS V Select cut mode and cut paper 54 GS W Set printing area width 55 GS ＼ Set relative vertical print position in page mode 56 GS a Enable/disable Automatic Status Back(ASB) 57 GS f Select font for HRI characters 58 GS h Set bar code height 59 GS k Print bar code 60 GS r Transmit status 61 GS v 0 Print raster bit image 62 GS w Set bar code width

< Add > 1 ESC i Full cut 2 ESC m Partial cut 3 FS ! Set print mode(s) for Kanji characters 4 FS & Select Kanji character mode 5 FS - Turn underline mode on/off for Kanji character 6 FS . Cancel Kanji character mode 7

FS 2 c1 d1…dk

Define user-defined Kanji characters 8 FS C Select Kanji character code system 9 FS S 1 2 Set Kanji character spacing

10 FS W Turnquadruple-sizemodeon/offforKanjicharacter

No. Command Function REMARKS

1 HT Horizontal tab 2 LF Print and line feed 3 CR Print and carriage return 4 FF Print and return to standard mode(in page mode) 5 CAN Cancel print data in page mode 6 DLE EOT Real-time status transmission 7 DLE ENQ Real-timerequesttoprinter 8 DLE DC4 Generate pulse at real-time

9 ESC FF Print data in page mode 10 ESC SP Set right-side character spacing 11 ESC ! Select print mode(s) 12 ESC $ Set absolute print position 13 ESC % Select/cancel user-defined character set 14 ESC & Define user-defined characters 15 ESC * Set bit-image mode 16 ESC - Turn underline mode on/off 17 ESC 2 Select default line spacing 18 ESC 3 Set line spacing 19 ESC = Select peripheral device 20 ESC ? Cancel user-defined characters 21 ESC @ Initialize printer 22 ESC D Set horizontal tab positions 23 ESC E Turn emphasized mode on/off 24 ESC G Turn double-strike mode on/off 25 ESC J Print and feed paper using minimum units 26 ESC L Select page mode 27 ESC M Select character font 28 ESC R Select an international character set 29 ESC S Select standard mode 30 ESC T Select print direction in page mode 31 ESC V Turn 90° clockwise rotation mode on/off 32 ESC W Set printing area in page mode 33 ESC ＼ Set relative print position 34 ESC a Select justification 35 ESC c 3 Select paper sensor(s) to output paper-end signals 36 ESC c 4 Select paper sensor(s) to stop printing 37 ESC c 5 Enable/disable panel buttons 38 ESC d Print and feed paper n lines 39 ESC p General pulse

9. Command List

T25 Rev 1.0 11/12
