Touch Dynamic Jupiter PC User Manual

USER MANUAL

Jupiter PC

VERSION 1.3 JANUARY 2011

ii

Copyright 2011
All Rights Reserved
Manual Version 1.3
Part Number:

The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and fitness for a particular
purpose. We shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of
this material.

This document contains proprietary information that is protected by copyright. All
rights are reserved. No part of this document may be photocopied, reproduced
or translated to another language without the prior written consent of the
manufacturer.

TRADEMARK

Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
Other trademarks mentioned herein are the property of their respective owners.

Safety

IMPORTANT SAFETY INSTRUCTIONS

To disconnect the machine from the electrical power supply, turn off the power 1.
switch and remove the power cord plug from the wall socket. The wall socket must
be easily accessible and in close proximity to the machine.
Read these instructions carefully. Save these instructions for future reference.2.
Follow all warnings and instructions marked on the product.3.
Do not use this product near water.4.
Do not place this product on an unstable cart, stand, or table. The product may fall, 5.
causing serious damage to the product.
Slots and openings in the cabinet and the back or bottom are provided for 6.
ventilation to ensure reliable operation of the product and to protect it from
overheating. These openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should never be placed near or over a radiator or heat
register or in a built-in installation unless proper ventilation is provided.
This product should be operated from the type of power indicated on the marking 7.
label. If you are not sure of the type of power available, consult your dealer or local
power company.
Do not allow anything to rest on the power cord. Do not locate this product where 8.
persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots as they 9.

may touch dangerous voltage points or short out parts that could result in a re or

electric shock. Never spill liquid of any kind on the product.

iii

CE MARK

This device complies with the requirements of the EEC directive 2004/108/EC with
regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”.

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.

CAUTION ON LITHIUM BATTERIES

There is a danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.

Battery Caution

Risk of explosion if battery is replaced by an incorrectly type. Dispose of used
battery according to the local disposal instructions.

Safety Caution

Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S)
related legislation, peripherals shall be 4.7.3.2 “Materials for fire enclosure”
compliant.

4.7.3.2Materialsforreenclosures

For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material

of a FIRE ENCLOSURE, in the thinnest signi cant wall thickness used, shall be of

V-1 CLASS MATERIAL or shall pass the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all
STATIONARY EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest

signi cant wall thickness used, shall be of 5VB CLASS MATERIAL or shall pass the

test of Clause A.1

iv

LEGISLATION AND WEEE SYMBOL

2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment,
collection, recycling and disposal of electric and electronic devices and their
components.

The crossed dust bin symbol on the device means that it should not be disposed
of with other household wastes at the end of its working life. Instead, the device
should be taken to the waste collection centers for activation of the treatment,
collection, recycling and disposal procedure.
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of
the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

v

Revision History

Changes to the original user manual are listed below:

Revision Description Date

1.0 Initial release• 2009 March

1.1

B68 motherboard added•
Jumper setting updated•

2009 December

1.2

C48 motherboard added•
Specication updated•
B68, B98 Jumper Setting updated•
Safety message updated•
Cash Drawer Controller Register updated•

2010 October

1.3

Model name changed•
C48 motherboard updated to V2.1•

2011 January

vi

Table of Contents

1. PackingList .............................. 1

1-1. Standard Accessories .............................................. 1

1-2. Optional Accessories ...............................................1

2. System View ............................. 2

2-1. Front and Side View ................................................2

2-2. I/O view ....................................................................3

2-3. Dimensions ..............................................................3

3. ComponentsReplacing ........... 4

3-1. RAM Module Replacing ...........................................4

3-2. HDD Replacing ........................................................5

3-3. pSSD Card Module Replacing .................................5

3-4. Wall-mount module installing ...................................6

3-5. Power Adapter Replacing ........................................7

3-6. Wireless LAN Installing ............................................8

3-7. Cash Drawer Installing ............................................9

4. Specication ........................... 11

vii

5. JumperSetting ........................ 13

5-1. For C48 Motherboard .............................................13

5-1-1. Motherboard Layout ................................................ 13

5-1-2. Connectors & Functions ..........................................14

5-1-3. Jumper Setting ........................................................ 15

5-2. For B68 Motherboard .............................................18

5-2-1. Motherboard Layout ................................................ 18

5-2-2. Connectors & Functions ..........................................19

5-2-3. Jumper Setting ........................................................ 21

5-3. For B98 Motherboard .............................................23

5-3-1. Motherboard Layout ................................................ 23

5-3-2. Connectors & Functions ..........................................24

5-3-3. Jumper Setting ........................................................ 25

Appendix: Drivers Installation .... 27

1

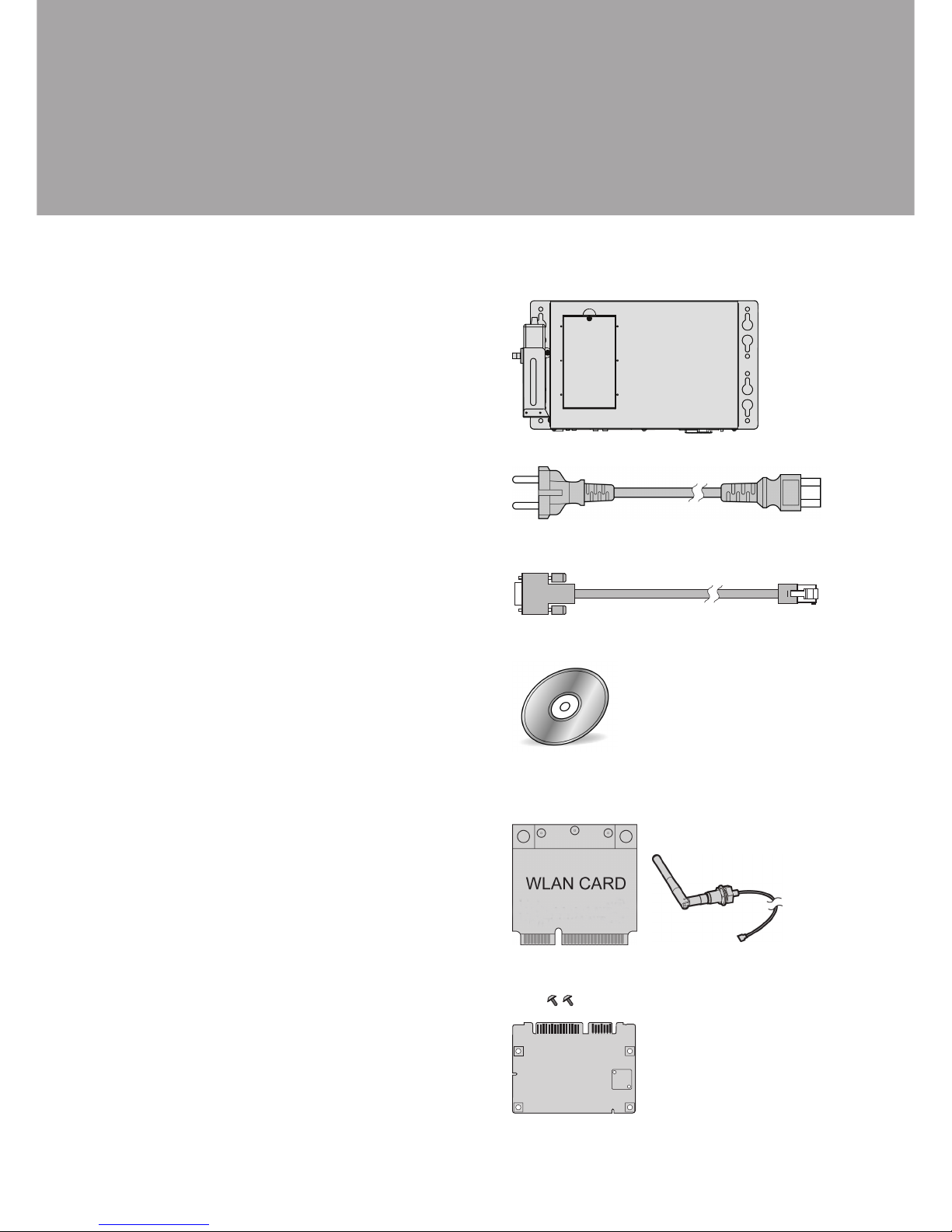

PackingList1.

StandardAccessories

1-1.

OptionalAccessories

1-2.

System boxa.
Power Cordb.
RJ45 to DB9 cablec.
Driver bankd.

WLAN Card + internal antennaa.
pSSD card moduleb.

pSSD Card

a

a

b

b

d

c

2

System View2.

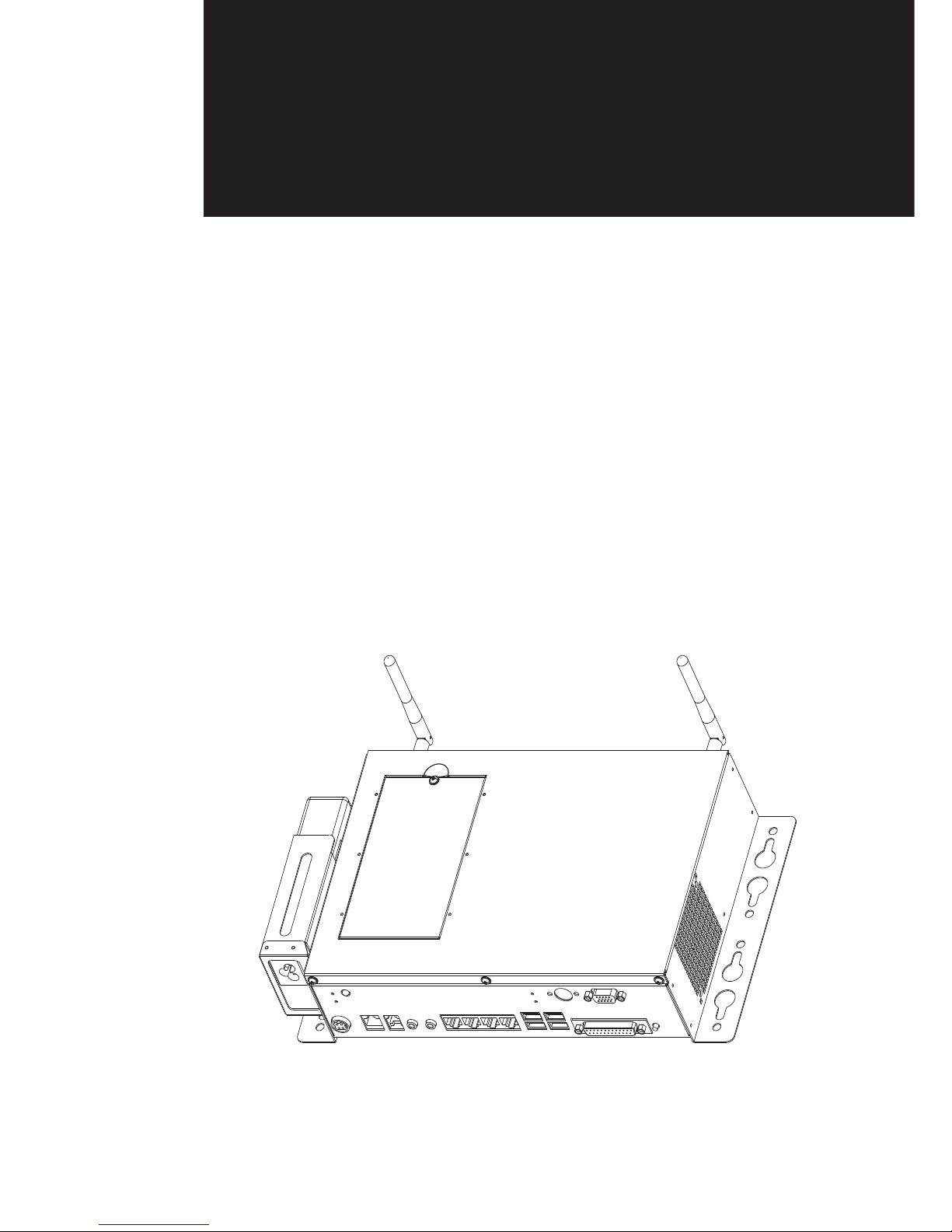

Front and Side View

2-1.

Power adapter holding bracket1.
HDD Door2.
I/O Placement3.
External antennas (Options) (installing for either one)4.
Ventilation holes5.
VESA and wall-mount mounting holes6.

2

3

4

5

6

1

3

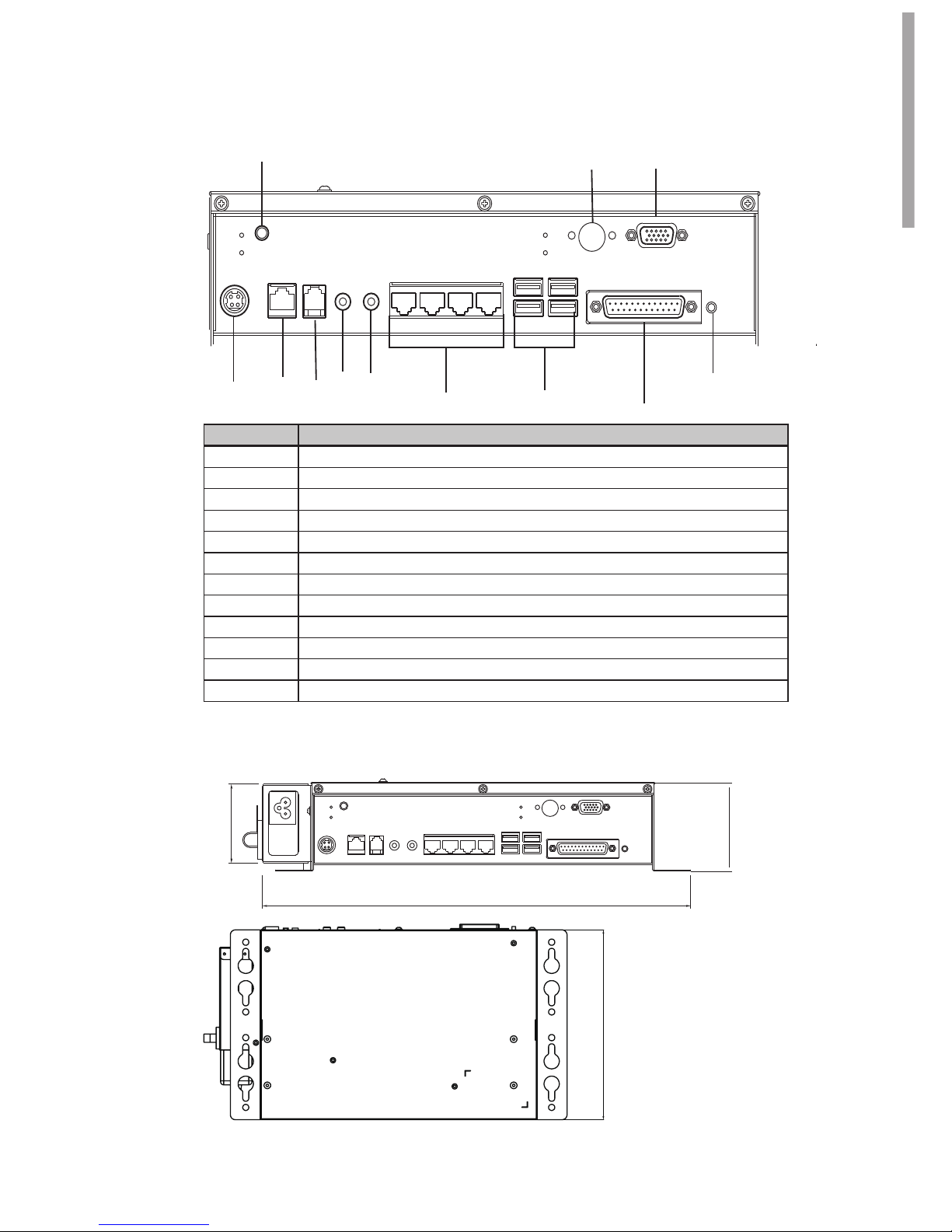

I/O view

2-2.

Dimensions

2-3.

Item No. Description

a DC Jack
b LAN Port
c Cash Drawer Port
d MIC-in
e Line-Out

f COM Port 1, 2, 3, 4 (from left to right)
g USB x 4
h Parellel Port

i Power Button

j Power LED Indicator
k PS/2

l VGA Port

a

b

c

d

e

f

g

h

i

k

j

185mm

l

70.3mm

62.3mm

335mm

4

ComponentsReplacing3.

RAMModuleReplacing

3-1.

RemovingaRAMmodule

Use both fingers to pull the ejector clips out of the sides of the module.1.

Slide out to remove the memory module from the memory slot.2.

InstallingaRAMmodule

Slide the memory module into the memory slot and press down until the ejector clips 1.
click in place.

Please unfasten the screws (x3) and gently flip up the rear cover to access the

motherboard rst, please refer to the motherboard layout to nd the RAM module place.

5

HDDReplacing

3-2.

Open the HDD door by unfastening the screw (x1).1.

Disconnect the HDD connectors (x2) and replace the hard drive disk.2.

If your system is equipped with HDD as storage device, please replace it as
following steps.

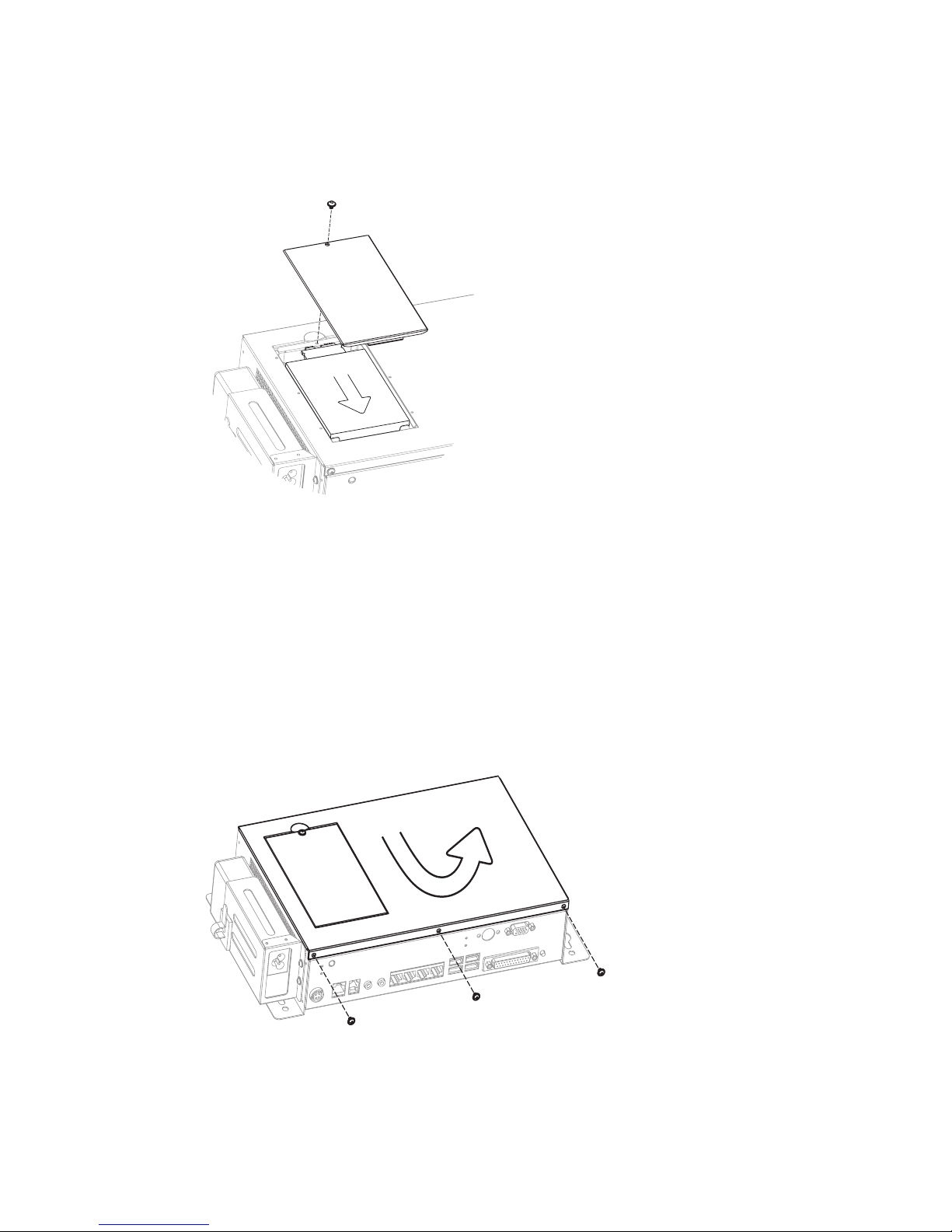

pSSDCardModuleReplacing

3-3.

If your system is equipped with a pSSD card as storage device, please replace it
as following steps.

Please unfasten the screws (x3) and 1. gently flip up the top cover.

6

Turn the inside out and disconnect the SATA cable. 2.

Unscrew the screws (x2) to remove and replace the pSSD card from the 3.
inside of the top cover.

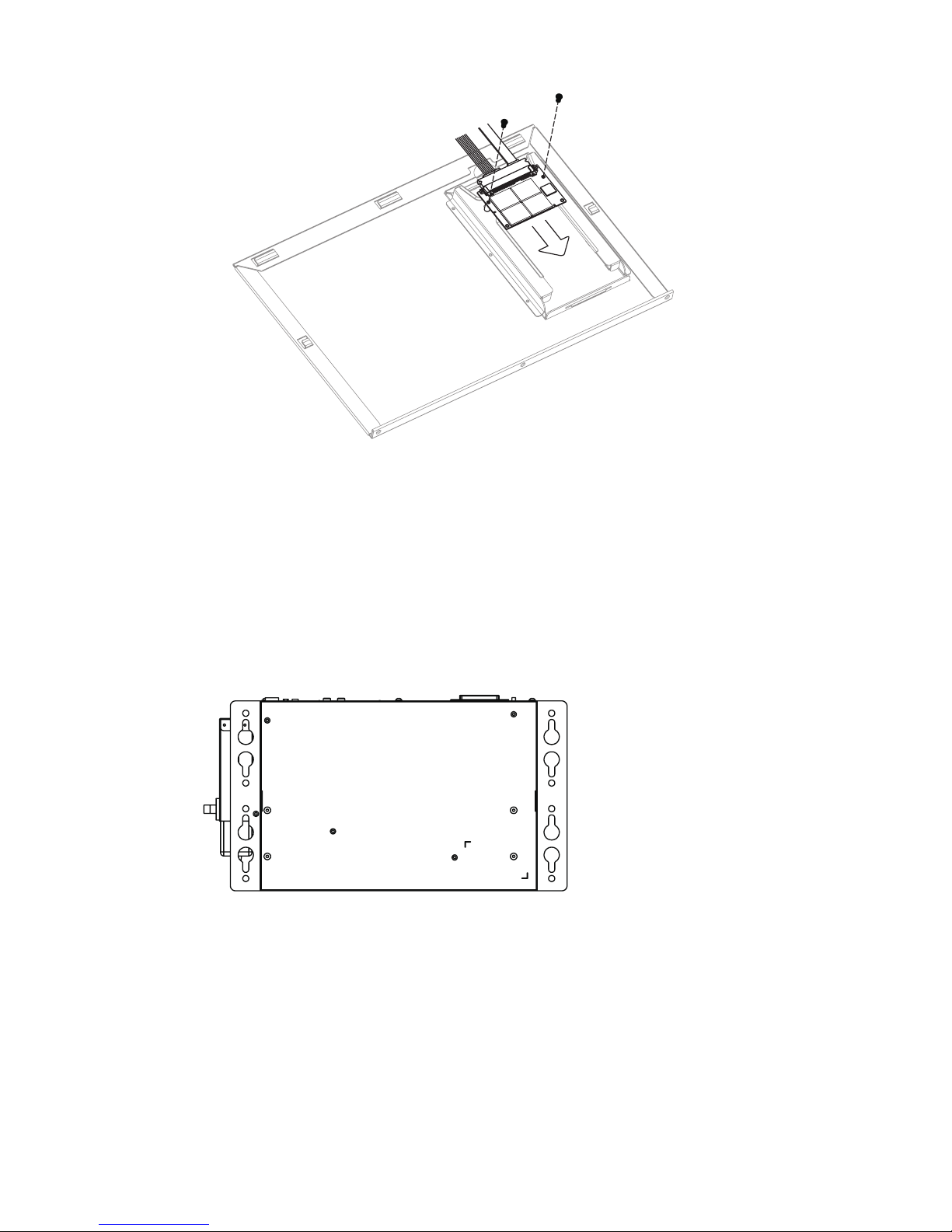

Wall-mountmoduleinstalling

3-4.

You can assemble the system box with your wall-mount bracket, please refer to
the steps below.

You can assemble the system box with your wall-mount bracket, please refer to
the steps below.

There are 8 holes at both sides (4 with tear-drop shaped holes and 4 with 1.
circle shaped holes) for securing your own wall-mount bracket or screws to fix
the system box onto the wall.

7

Disconnect the power cord from the adapter and the I/O panel.1.

PowerAdapterReplacing

3-5.

The system is equipped with a 90W power adapter that is held securely in a
power holding bracket. Please replace the power adapter as below steps.

Slide the power adapter out of the holding bracket.2.

8

WirelessLANInstalling

3-6.

If you install the wireless LAN module after manufacturer, please buy wireless
LAN module with external antenna from your local distributor or dealer.
The installation procedure is slightly different depending on which motherboard
your system is equipped with. Please refer the location of motherboard layout on
Chapter.

To external antenna

For B68/C48 Motherboard

To external antenna

For B98 Motherboard

Please open the rear cover first. (See Chapter 3-1).1.

Press-out the blind hole on the enclosure before starting to assemble the 2.
external antenna and the antenna coaxial cable.

Assemble the coaxial cable, nut, washer and the external cable as above 3.
picture instructs.

For B68/C48 motherboard: 4. Insert the WLAN card into the mPCI-e slot on
the motherboard. Press down the WLAN card and fix it to the motherboard by
fastening the screw (x1) provided.
For B98 motherboard: Insert the WLAN card into the mPCI slot until the
ejector clips lock it in place.

Connect the other end of the antenna coaxial cable to the “Main” connector 5.
on the WLAN card.

9

CashDrawerInstalling

3-7.

You can install a cash drawer through the cash drawer port. Please verify the pin
assignment before installation.

CashDrawerPinAssignment

Pin Signal

1 GND
2 DOUT bit0
3 DIN bit0
4 12V / 19V
5 DOUT bit1
6 GND

CashDrawerControllerRegister

The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.

RegisterLocation: 48Ch

Attribute: Read / Write

Size: 8bit

BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

Attribute Reserved Read Reserved Write Reserved

7 6 5 4 3 2 1 0

X

X X X X

Reserved

Cash Drawer “DOUT bit0” pin output control

Cash Drawer “DOUT bit1” pin output control

Reserved

Cash Drawer “DIN bit0” pin input status

Reserved

1

6

10

Bit 7: Reserved
Bit 6: Cash Drawer “DIN bit0” pin input status.
= 1: the Cash Drawer closed or no Cash Drawer
= 0: the Cash Drawer opened
Bit 5: Reserved
Bit 4: Reserved
Bit 3: Cash Drawer “DOUT bit1” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 2: Cash Drawer “DOUT bit0” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 1: Reserved
Bit 0: Reserved

Note: Please follow the Cash Drawer control signal design to control the Cash
Drawer.

Cash Drawer Control Command Example

Use Debug.EXE program under DOS or Windows98

Command Cash Drawer

O 48C 04 Opening
O 48C 00 Allow to close

Set the I/O address 48Ch bit2 =1 for opening Cash Drawer by “DOUT bit0” pin ►
control.
Set the I/O address 48Ch bit2 = 0 for allow close Cash Drawer. ►

Command Cash Drawer

I 48C Check status

The I/O address 48Ch bit6 =1 mean the Cash Drawer is opened or not exist. ►
The I/O address 48Ch bit6 =0 mean the Cash Drawer is closed. ►

11

Specication4.

Mainboard C48 B68 B98

CPU

Intel Pineview D525

dual core 1.8G L2 1M,

FSB800Mhz

Intel® AtomTM N270

Processor 1.6GHz L2

512K FSB 533MHz

Intel® Celeron® M 1.86G,

CoreTM 2 Duo 1.66G,

CoreTM Duo 2.0G

Chipset CPU with Graphic built-in +

ICH 8M

Intel

®

945GSE + ICH 7M Intel® 945GME + ICH 7M

System Memory

2 x DDR3 DIMM up to

4GB, FSB 800Mhz

2 x DDR2 DIMM up to

2GB FSB 533MHz

2 x DDR2 DIMM

socket up to 4GB FSB

400/533/667MHz

Graphic Memory Intel GMA 3150 share

system memory up to

256MB

Intel GMA 950 share system memory up to 224MB

BIOS AMI AWARD PnP

Storage Device

Hard Drive 2.5" SATA HDD bay
Flash Memory pSSD™ Modular Solid State Drive (optional)

Compact Flash Card (optional)

Expansion

Mini PCI Socket N/A 1
Mini PCI-E Socket 1 N/A

I/O Ports

USB Port 4 x USB 2.0
Serial / COM 4 x RJ 45 COM

(COM1/COM2 standard

RS-232 without power,

COM3 /COM4 powered

COM with power enable /

disable by BIOS setting and

+5V/+12V by MB setting.

COM3 default +5V/ COM4

default +12V )

4 x COM ports RJ-45 connectors

( COM1 & COM2 standard RS-232; COM3 & COM4

pin9 with 5V /12V power by jumper )

Parallel 1
LAN Port

1 x RJ-45 (10/100/1000Mbps Giga LAN)
VGA 1
Cash Drawer Port 1 (12V / 24V)
MIC-in 1
Line-out 1
DC Jack 1
Power Button 1

LED indicators

Power LED 1

12

Mainboard C48 B68 B98

Power

19V /90W ext. power adapter

Certicate

EMC & Safety FCC / CE Class A, LVD, UL

Environment

Operating
Temperature

5°C ~ 35°C (41°F ~ 95°F)

Storage
Temperature

-20°C ~ 55°C (-4°F ~ 140°F)

Operating Humidity 20% ~ 80% RH non-condensing
Storage Humidity 20% ~ 85% RH non-condensing

Communication
Wireless LAN

802.11 b/g/n wireless LAN card

System color

Black

Dimensions
(W x D x H)

335 x 185 x 70.3 mm (13.2" x 7.3" x 2.8")

Weight
(N.W./G.W.)

3kgs / 3.5kgs

OS Supported

Windows® XP Professional, Windows Embedded POSReady 2009, WePOS,

Windows XP Professional for Embedded, Windows 7, Linux

* This specication is subject to change without prior notice.

13

For C48 Motherboard

5-1.

JumperSetting5.

Motherboard Layout

5-1-1.

14

Connectors&Functions

5-1-2.

Connector Purpose

CN1 Power Button Connector
CN3 Printer Port Reset
CN4 Printer Port
CN5/8 HDD Power
CN11 COM5 For Touch
CN13 Card Reader Connector
CN14 Line out
CN15 HDD LED
CN16 Speaker & MIC
CN17 CD IN
CN18 MIC IN
CN19 Power LED
CN20/JP10 System Indicator
CN21 LAN LED
CN22 USB Port
CN23 PS2 KEYBOARD
CN24 +19V DC IN
CN25 For GM2621 Debug
CN26 LVDS
CN27 Inverter Connector
CN28 Key Pad
CN29 System Fan
DDR3_A1 DDR3 SO-DIMM1
SATA1 SATA Connector
SATA2 SATA Connector
SW1 Power Button
JP1 CMOS Operation Mode
JP3/6 VGA Port
JP4/5 COM2 RS232/485/422 Setting
JP8 LCD ID Setting
JP9 Power Mode Setting
JP12 System Reset
JP14 Inverter Selection
JP18 COM3/4 Power Setting
JP19 Cash Drawer Power Setting

15

JumperSetting

5-1-3.

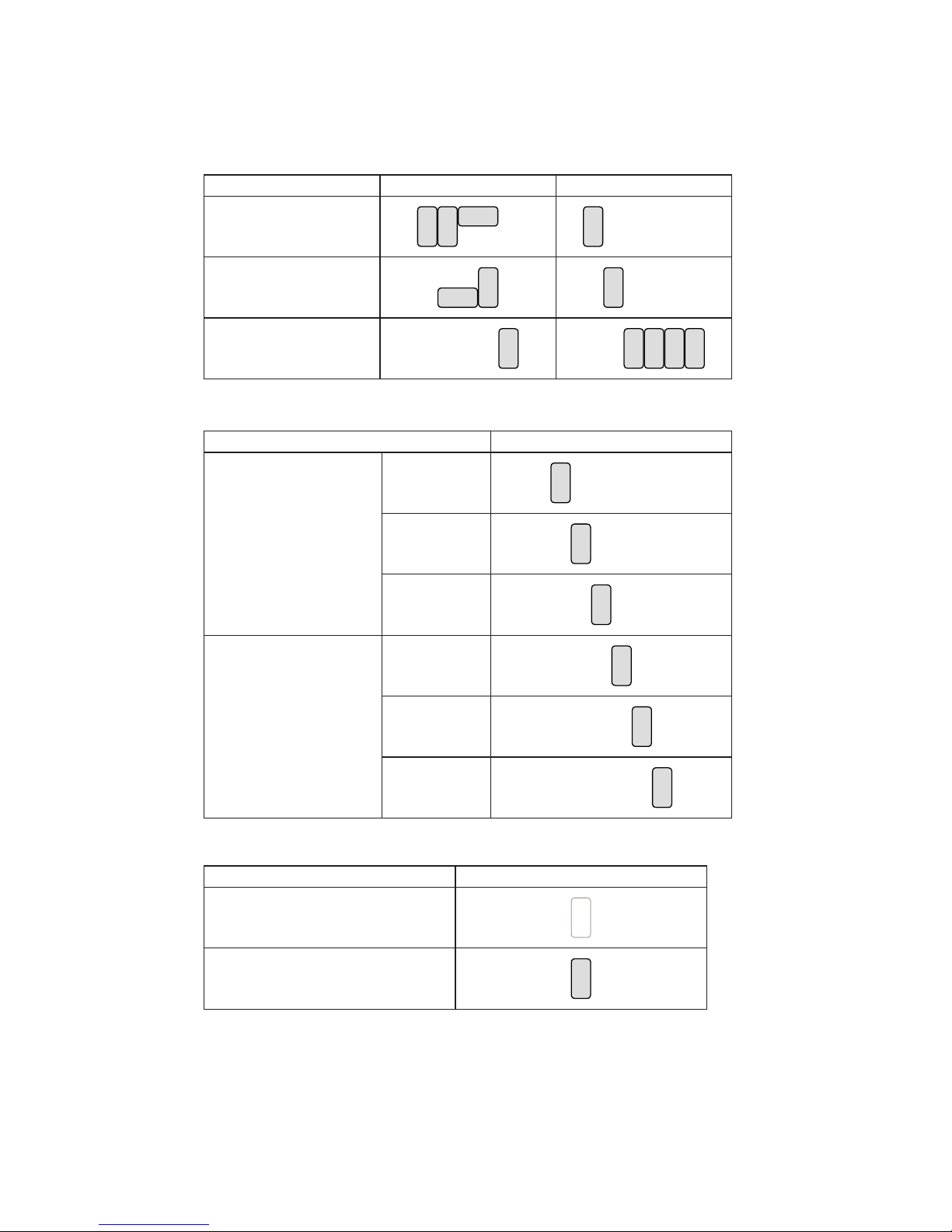

COM2RS232/485/422Setting

Function JP5 JP4

▲RS232

1 3 5 7 9
2 6 8 104

5 7 9 11

2

1 3

6 8 10 124

RS485

8 10

5 7 9

2

1

3

64

11
128 10

5 7 9

2

1 3

64

RS422

8 10

5 7 9

2

1 3

64

10

5 7 9 11

2

1 3

6 8 124

COM3&COM4PowerSetting

COM3 and COM4 can be set to provide power to your serial device.
The voltage can be set to +5V or 12V by setting jumper JP18 on the mother­board.
When enabled, the power is available on pin 10 of the RJ45 serial connector..
If you use the serial RJ45 to DB9 adapter cable, the power is on pin 9 of the DB9
connector.

By default, the power option is disabled in the BIOS.

BIOS/Utility setup

Press <DEL> key to enter BIOS 1.
SETUP UTILITY when system
boot up.
Find tab "Advanced".2.
Select "Power Conguration 3.
COM/VGA Ports" and press
<Enter> to go to sub screen.

16

COM3/COM4 Jumper setup

Function JP18

COM3

▲+5V

8

5 7

2

1 3

64

+12V

8

5 7

2

1 3

64

COM4

+5V

8

5 7

2

1 3

64

▲+12V

8

5 7

2

1 3

64

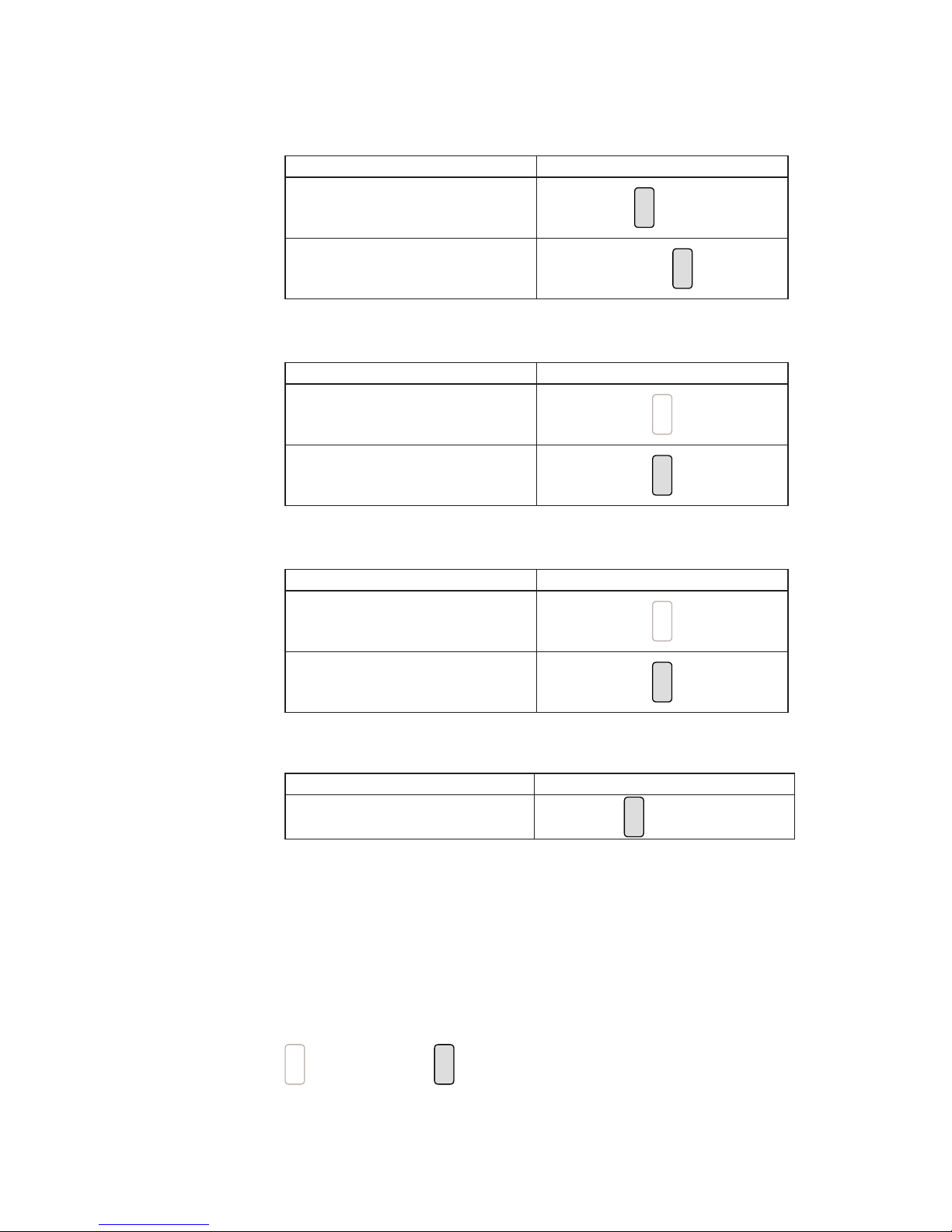

CashDrawerPowerSetting

Function JP19

▲+19V

(for +24V Cash Drawer)

2

1 3

4

+12V

2

1 3

4

PowerModeSetting

Function JP9

▲ATX Power

2

1

AT Power

2

1

▲ = Manufacturer Default Setting

4. To switch on the power, select
"Power". Please save the
change before exiting BIOS
so as to go for physical jumper
adjustment.

17

SystemIndicator

Function JP10

▲Disable

8

5 7

2

1 3

64

Enable

8

5 7

2

1 3

64

CMOS Operation Mode

CMOS Reset

To clear the CMOS,

1. Remove the power cable from the system.

2. Open the system, and set the ‘CMOS Operation jumper’ from ‘CMOS Normal’
to ‘CMOS Reset’. (refer to the jumper shown below)

3. Connect the power cable to the system, and power on the system:
in ATX mode: press the power button and it will fail power on
in AT mode: turn on system power

4. Remove the power cable from the system.

5. Return the "CMOS Operation mode" jumper setting from "CMOS Reset" to
"CMOS normal".

6. Connect the power cable and power on the system.

Function JP1

▲CMOS Normal

2

1

CMOS Reset

2

1

LCDIDSetting

Output Interface JP8

▲CRT

(Pineview CRT Only)

8

5 7

2

1 3

64

▲ = Manufacturer Default Setting

18

FAN_CPU1

CN1

CN23

CN22

SW1 PRN1

USB1 USB2

RJ45-1

CN11 CN13

RJ11-1

RJ45-2

CN19

CN20

CN15CN14

CN17

PWR1

CPU1

DRR2_A1

U12

CN21/JP2

JP10

JP12

BZ1

MINI_PCIE1

CN16

CN18

CN10

CN6

CN4

CN8

CN12

CN9CN7

CN3

CN5

SATA2SATA1

JP1

CN2

SKT1

U37

BAT1

JP3

JP4

JP9

JP7

JP5

JP6

JP11

JP8

JP3

JP4

JP9

JP5
JP6

JP11

JP8

JP1

JP2

JP12

For B68 Motherboard

5-2.

Motherboard Layout5-2-1.

19

Connector Purpose

BAT1 CMOS Battery Base ( Use CR2023)
CN1 Power On Button
CN2 Touch Sensor
CN3 Power LED
CN4 SATA1 HDD Power Connector
CN5 SATA2 HDD Power Connector
CN6 LCD Interface Connector
CN7 IrDA Connector
CN8 For External Touch Connector
CN9 Inverter Connector
CN10 Card Reader Connector
CN11 Line Out
CN12 LED Power
CN13 MIC In
CN14 Speaker & MIC CONN
CN18 USB5
CN19 DC-Jack
CN20 PS2 KEYBOARD
DDR2_A1 DDR2 SO-DIMM1
DDR2_A2 DDR2 SO-DIMM2
PRN1 Parallel Port
PWR1 +19V Power Adaptor
RJ11_1 Cash Drawer Connector
RJ45_1 COM1, COM2, COM3, COM4
RJ45_2 LAN
SATA1 SATA Connector
SATA2 SATA Connector
SKT1 SPI ROM
USB1 USB1, USB2
USB2 USB3, USB4
SW1 Power On Bottom
JP1 CRT Connector

Connectors&Functions5-2-2.

20

Connector Purpose

JP2 CRT Power/I2C Connector
JP3 COM3/COM4 Power Setting
JP4 VGA Power Setting
JP5 / JP6 COM2 RS232/422/485 Setting
JP7 LCD ID Setting
JP8 COMS Operation Mode
JP9 Power Mode Setting
JP11 Cash Drawer Power Setting (+12V,+19V)
JP12 Hardware Reset

21

COM2RS232/485/422Setting

Function JP6 JP5

▲RS232

5 7 9

2

1 3

6 8 104

5 7 9 11

2

1 3

6 8 10 124

RS485

8 10

5 7 9

2

1

3

64

11
128 10

5 7 9

2

1 3

64

RS422

8 10

5 7 9

2

1 3

64 10

5 7 9 11

2

1 3

6 8 124

COM3&COM4PowerSetting

Function JP3

COM3 Pin10

▲RI

5 7 9 11

2

1 3

6 8 10 124

+5V

11
128 10

5 7 9

2

1 3

64

+12V

11
128 10

5 7 9

2

1 3

64

COM4 Pin10

▲RI

11
128 10

5 7 9

2

1 3

64

+5V

11
128 10

5 7 9

2

1 3

64

+12V

11
128 10

5 7 9

2

1 3

64

Hardware Reset

Function JP12

▲System Normal

2

1

System Reset

2

1

▲ = Manufacturer Default Setting

JumperSetting5-2-3.

22

CashDrawerPowerSetting

Function JP11

+12V

2

1 3

4

▲+19V

(for +24V Cash Drawer)

2

1 3

4

PowerModeSetting

Function JP9

▲ATX Power

2

1

AT Power

2

1

CMOS Operation Mode

Function JP8

▲CMOS Normal

2

1

CMOS Reset

2

1

VGAPowerSetting

Function JP4

▲No Power

2

1

+12V

2

1

LCDIDSetting

Output Interface JP7

▲CRT

8

5 7

2

1 3

64

▲ = Manufacturer Default Setting

2

1

Jumper open

2

1

Jumper short

23

JP11

JP7

JP8

JP5

JP6

JP4

JP3

JP9

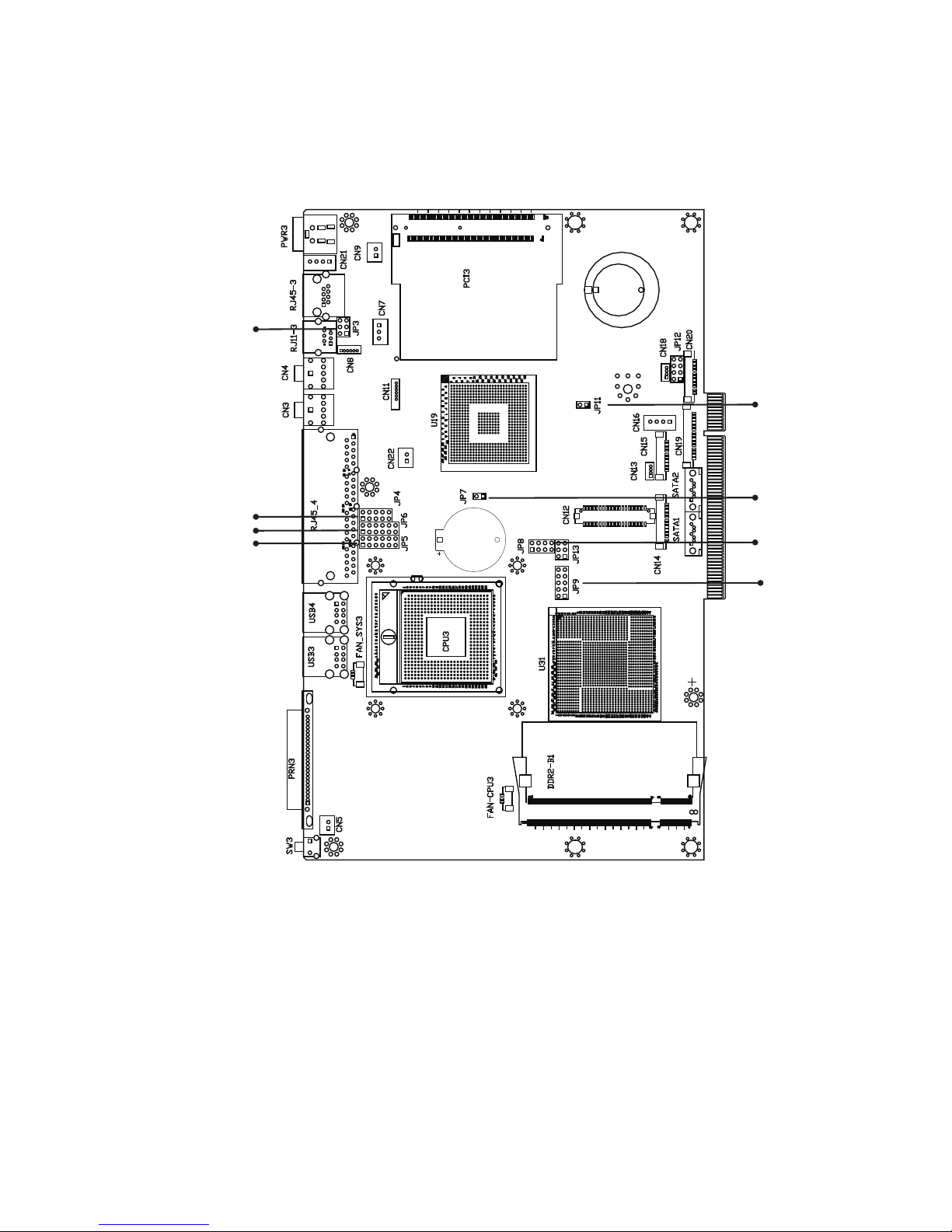

For B98 Motherboard

5-3.

Motherboard Layout5-3-1.

BAT3

24

Connectors&Functions5-3-2.

Connector Purpose

BAT3 CMOS Battery Base (Use CR2023)
CN3 Audio Line Out
CN4 MIC In
CN5 Internal Power On Switch Connector
CN8 Speaker & MIC Connector
CN11 CD-IN / Line-In Connector
CN12 LCD Interface Connector
CN14 Inverter Connector
CN15 COM5 for Touch
CN16 Power Connector For HDD
CN18 USB5
CN19 Card Reader Connector
CN21 Internal Input Power Connector
CN22 Hardware Reset
DDR2_A1 DDR2 SO-DIMM
DDR2_B1 DDR2 SO-DIMM
FAN_CPU3 CPU FAN Connector
FAN_SYS3 System FAN Connector
MINI_PCIE3 Mini PCI-E Socket
PCI3 Mini PCI Socket
PRN3 Parallel Port
PWR3 +19V Power Adaptor
RJ11_3 Cash Drawer Connector
RJ45_3 LAN (On Board)
RJ45_4 COM1, COM2, COM3, COM4
SATA1 SATA Connector
SATA2 SATA Connector
SKT1 SPI ROM
SW3 Power On Button
USB3 USB1, USB2
USB4 USB3, USB4
JP3 Cash Drawer Power Setting
JP4/JP6 COM2 RS232/485/422 Setting
JP5 COM3/COM4 Power Setting
JP7 CMOS Operation Mode
JP8 LCD ID Setting
JP9 VGA Port
JP11 Power Mode Setting

25

JumperSetting5-3-3.

COM2RS232/485/422Setting

Function JP6 JP4

▲RS232

5 7 9 11

2

1 3

6 8 10 124

5 7 9

2

1 3

6 8 104

RS485

11

128 10

5 7 9

2

1 3

64

5 7 9

2

1 3

6 8 104

RS422

10

5 7 9 11

2

1 3

6 8 124

8 10

5 7 9

2

1 3

64

COM3&COM4PowerSetting

Function JP5

COM3 Pin10

▲RI

5 7 9 11

2

1 3

6 8 10 124

+5V

11
128 10

5 7 9

2

1 3

64

+12V

11
128 10

5 7 9

2

1 3

64

COM4 Pin10

▲RI

11
128 10

5 7 9

2

1 3

64

+5V

11
128 10

5 7 9

2

1 3

64

+12V

11
128 10

5 7 9

2

1 3

64

▲ = Manufacturer Default Setting

26

CashDrawerPowerSetting

Function JP3

+12V

5

2

1 3

64

▲+19V

(for +24V Cash Drawer)

5

2

1 3

64

PowerModeSetting

Function JP11

▲ATX Power

2

1

AT Power

2

1

CMOS Operation Mode

Function JP7

▲CMOS Normal

2

1

CMOS Reset

2

1

LCDIDSetting

Output Interface JP8

▲CRT

8

5 7

2

1 3

64

▲ = Manufacturer Default Setting

2

1

Jumper open

2

1

Jumper short

27

Appendix: Drivers Installation

The shipping package includes a Driver CD in which you can nd every individual

driver and utility that enables you to install the drivers on the system.
Please insert the Driver CD into the drive and double click on the “index.htm” to
select the models. You can refer to the drivers installation guide for each driver in
the “Driver/Manual List”.
