Revision V1.1 September 2012
EC150 Touch Monitor
1
EC150 Monitor Manual
V1.1
Warning! It will cause malfunction if the monitor is operating with unspecified power
supply unit or incorrect power voltage. Do not exposure this unit in the rain or moisture
environment to reduce the risk of fire or electric shock.
Content:
I. FCC Warning Statement................................................................................ 2
II. Introduction ................................................................................................... 3
Features ..................................................................................................................... 3
Unpacking the monitor ............................................................................................... 4
III. Installation ..................................................................................................... 5
I/O placement ............................................................................................................. 5
To PC ......................................................................................................................... 6
Touch Driver installation ............................................................................................. 7
MSR installation (optional) ......................................................................................... 9
VFD (optional) .......................................................................................................... 11
Control Buttons ........................................................................................................ 13
Structure of OSD settings ......................................................................................... 14
IV. For your safety ............................................................................................ 15
V. Support timing chart: .................................................................................. 15
VI. Mechanical Dimension ................................................................................ 16
VII. Product General Specification ................................................................... 17
2
EC150 Monitor Manual
V1.1
I. FCC Warning Statement
WARNING
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Notice:
(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to
prevent interference to the nearby radio and television reception. It is essential that only the
supplied power cord by used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
3
EC150 Monitor Manual
V1.1
II. Introduction
Touch Dynamic’s EC150 is color TFT LCD monitor, integrate with resistive touch, suitable for
many types of applications.
Features
- Optimal display resolution 1024 * 768
- VESA 75 * 75 mm wall mount standard
- Durable and sturdy base design
- Optional 3 tracks Magnetic Strip Reader (MSR)
- Optional Rear Customers Display
- DVI-D or VGA interface
- Serial or USB touch Interface
- Adjustable viewing angel freely up to 90 degrees horizontally
- Low power consumption only 20W with CCFL backlight
4
EC150 Monitor Manual
V1.1
Unpacking the monitor
- Put the monitor on a clean surface, make sure the box in upright position.
- Remove packing materials from inside of box.
Check accessory
Please make sure all the accessory are included:
Standard Items
a. b. c.
d. e. f.
Optional Items
g. h.
a. LCD Monitor
b. VGA cable
c. Touch driver / User Manual CD
d. Touch cable（USB or Serial Type）
e. Power adaptor
f. Power cable
g. MSR (USB Interface)
h. Customers Display
5
EC150 Monitor Manual
V1.1
III. Installation
I/O placement
1 DC JACK
2 DVI
3 VGA
4 USB B Type
5 Dual USB A Type
6 RS232
7 RJ45 (+12V for VFD ONLY )
Warning：Please do not plug non-powered peripheral devices（e.g. printers,
scanners etc）into the powered COM ports- as you can permanently damage your
device!
1 2 3 4 5 6 7
6
EC150 Monitor Manual
V1.1
To PC
1. Connect VGA cable from monitor to PC
2. Connect USB touch cable to PC (Connect to the Serial port if you
have serial interface touch)
3. Connect DC plug to monitor and the other side to wall outlet
7
EC150 Monitor Manual
V1.1
Touch Driver installation
Please download the driver from Touch Dynamic's website
1. Double click “setup.exe” from driver menu 2. Click “next” from welcome window
3. Click “next” from choose destination location window 4. Click “next” from ready to install the program
5. Click “next” from setup type 6. Click “finish” when setup completed
8
EC150 Monitor Manual
V1.1
Calibration procedures:
1. Double click “POS Touch+” icon to run calibration function
2. Follow 9 points linearity calibration procedures and save the data
3. Follow free draw calibration
4. Exit calibration menu
5. Reboot PC
9
EC150 Monitor Manual
V1.1
MSR
Screws
MSR installation (optional)
Components of MSR Kit:
1. Open the MSR back cover.
2. Connect the USB cable.
❶
❷
❹
❸
10
EC150 Monitor Manual
V1.1
3. Fasten the screws (x2).
4. Close the MSR back cover and fasten screw (x1).
11
EC150 Monitor Manual
V1.1
Customers Display (optional)
Components of Customers Display Kit:
Screw
Customers
Display
3. Connect the Customers Display cable to the COM port of the monitor.
4. Place the Hinge Cover onto the rear side of the display.
1. Remove the screws (x3).
2. Open the Hinge Cover and I/O Cover
12
EC150 Monitor Manual
V1.1
5. Fasten the screws (x2) to fix the Customers Display bracket to the Hinge bracket.
6. Fix the Stand by fasten the screws (x2).
13
EC150 Monitor Manual
V1.1

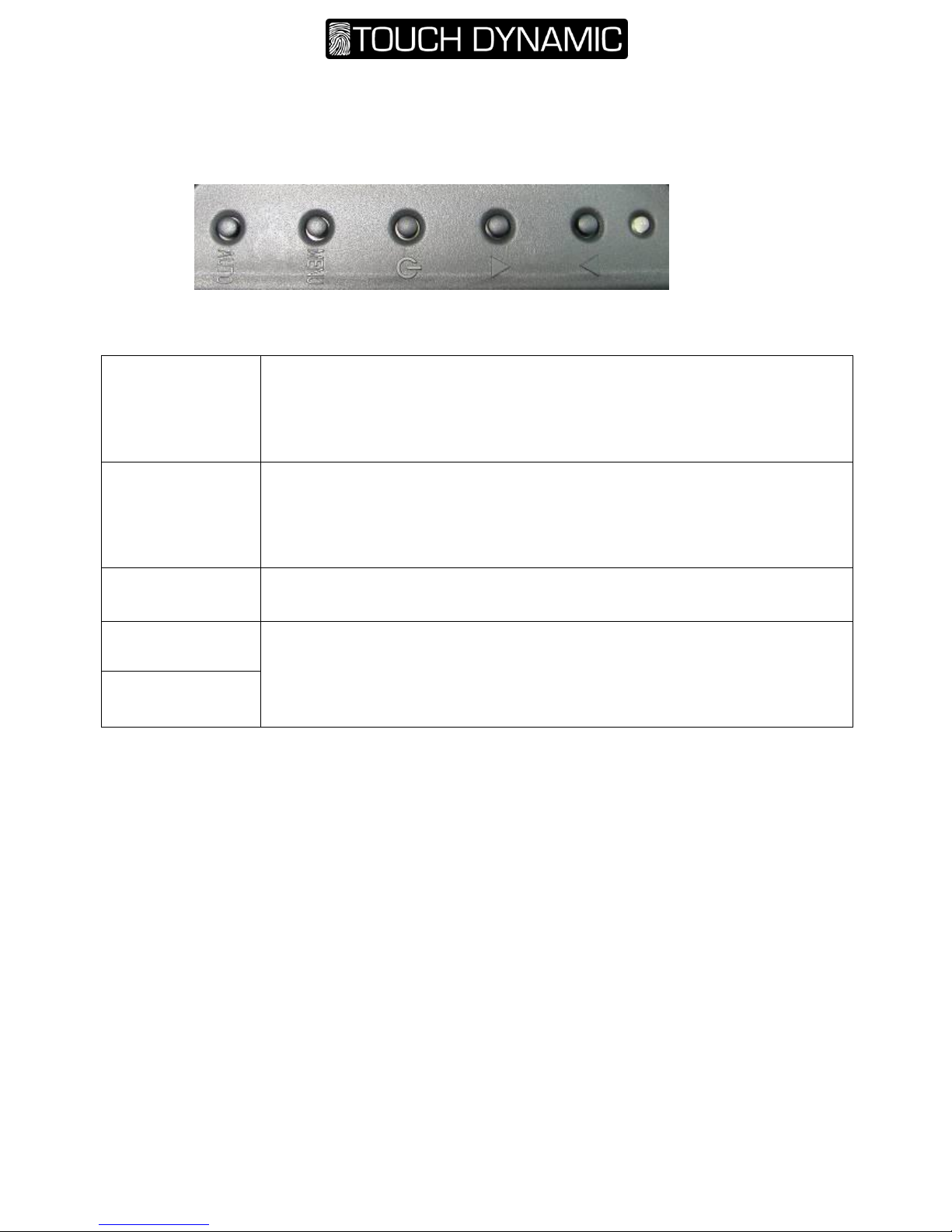

Control Buttons
Auto Adjusting
a.) Pressing to execute AUTO-Adjusting function. This function will set the
monitor display area to the optimal position.
b.) Sometimes this function can't achieve the optimal effects. Please follow
the manual adjusting procedure.
Menu
When the light bar move other item, the key are used to select it, and read to
adjust. Press the MENU key to activate the On Screen Display (OSD). Press
twice to turn off the OSD. After 30 sec idle time, the OSD screen will
automatically turn off.
Power
Use the power switch to turn the power ON or OFF. We recommend to turn
your system power on first, then the LCD monitor.
Up
a.) When OSD mode is activated (When “MENU” key is pressed). The two
keys are used to select the adjustment items.
b.) When adjustment item is selected, the two keys are defined to decrease
or increase the value of each selected item.
Down
14
EC150 Monitor Manual
V1.1
Structure of OSD settings
Main
Men
u
First Level
Second Level
Third
Level
Operating Procedure
Auto Adjust
Press “UP” or “DOWN” to adjust H-phase &
H-position & V-position clock automatically.
Luminance
Brightness
Contrast
Exit
Press “UP” key to increase brightness, “DOWN”
key to decrease brightness.
Press “UP” key to increase contrast, “DOWN”
key to decrease contrast.
Geometry
H. Position
V. Position
Clock
Phase
Exit
Press “UP” key to shift screen right, “DOWN”
key to shift screen left.
Press “UP” key to shift picture upward, “DOWN”
key to shift picture downward.
Adjust sampling clock of analog to digital
converter until clock is equal to pixel frequency
of video input.
By varying this “UP” “DOWN” control the exact
sampling time within the pixel can be adjusted.
Color
9300K
6500K
5800K
Press “UP” or “DOWN” to choose three types of
color temperature 9300°k, 6500°k and user
define.
User Preset
Red
Green
Blue
Exit
Exit
OSD
H. Position
V. Position
OSD Timeout
Exit
Adjust OSD frame horizontal location, press
“UP” key to shift frame right, “DOWN” key to shift
frame left , timeout and preset OSD.
Adjust OSD frame vertical location, press “UP”
key to shift frame upward, “UP” key to shift
frame downward , timeout and preset OSD.
Language
English
French
German
Italian
Spanish
Japanese
T. Chinese
S. Chinese
Press “UP” or “DOWN” to choose any one of the
following language, English, French, Germany,
Italy, Spain , Japanese, Traditional Chinese and
Simplified Chinese.
Recall
Color Recall
Recall All
Exit
Recall the default value.
Miscellaneou
s
Sharpness
Display
Information
Exit
Press “UP” key to increase sharpness, “DOWN”
key to decrease sharpness.
Exit
15
EC150 Monitor Manual
V1.1
IV. For your safety
1. When move the monitor, always switch off power and disconnect all cables to avoid any
danger.
2. Please use the power and signal cables correctly when install or bend it.
3. In case of notice any abnormal smell or noise, please stop operation and call the nearest
dealer or service center.
V. Support timing chart:
Timing
Mode
Reference
Standard
Resolution
Pixel
MHz
FH KHz
FV Hz
Interlace
H
Polarity
V
Polarity
Mode 1
VESA
1024×768
65.000
48.363
60.004
NO - -
Mode 2
VESA
1024×768
75.000
56.476
70.069
NO - -
Mode 3
VESA
1024×768
75.011
57.524
72.000
NO
Mode 4
VESA
1024×768
78.750
60.023
75.029
NO
16
EC150 Monitor Manual
V1.1
VI. Mechanical Dimension
17
EC150 Monitor Manual
V1.1
VII. Product General Specification
Model
EC150
Cabinet color
Black
Display size
15.0"
Active Area
304 * 228 mm
Optimal Resolution
1024 * 768
Color Arrangement
RGB-stripe
Brightness
250 cd/m² (typ)
Contrast Ratio
600:1
Response Time
8 ms (typ)
Viewing Angle
160 degrees (H)
160 degrees (V)
Input Video Format
VGA/DVI
Input Video signal connector
VGA(D-Sub 15 pins), DVI-D
Power consumption
20W
Input Frequency
Horizontal : 31.5 kHz~60.2 kHz
Vertical : 56.3Hz~75Hz
Power supply
DC 12V +/- 10%
Temperature
Operating : 0℃~40℃
Storage : -10℃~50℃
Humidity
Operating : 20%~80%
Storage : 10%~90%
Weight
4.6kg(net)
Approvals
CE, FCC
Wall Mount
VESA 75 * 75 mm
