Touchboards mimio Xi Setup Manual

Use this guide to quickly setup and use your mimio Xi

interactively with a projector.

For Mac OS X 10.3.9 or later

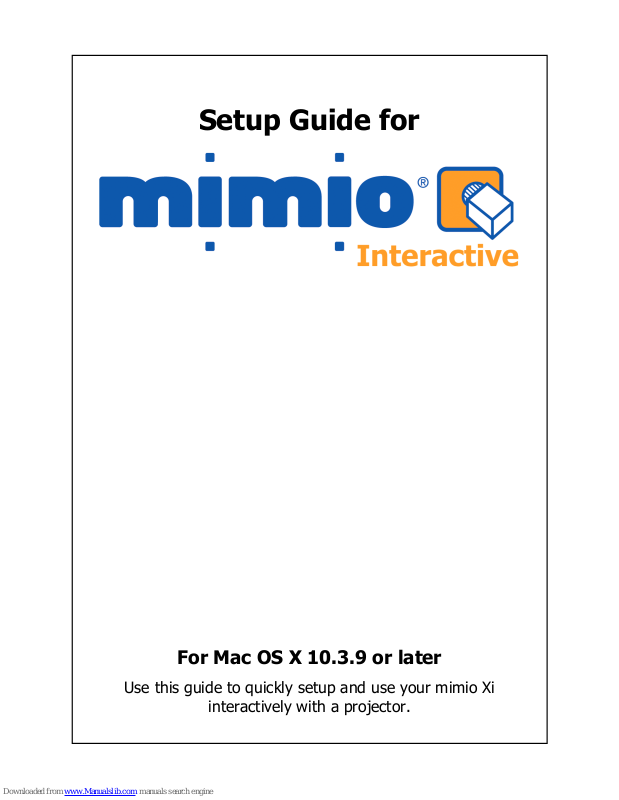

Setup Guide for

1

1

Check your contents

Your mimio Interactive contains the following components:






mimioStudioCD

mimioMouse

mimioXi

x1AABatteries

MountingBrackets

USBCable



1

2

2

Install mimio Studio

1. Insert the mimio Studio CD into your CD ROM drive.

2. When the CD's icon appears on the desktop, double­click the icon to display the CD's contents.

3. Double-click the mimio Studio icon. An installation
application will launch.

4. Follow the onscreen instructions.

2

3

3

Setup your mimio Xi

1. Unfold the mimio Xi.

2. Plug the included mini-USB cable into the socket on the
bottom recessed end of the mimio Xi.

3

3. Attach the mimio Xi to your whiteboard, using one of
the following:

• For periods of extended use or repeated use in any

location, attach the mimio Xi using the mounting
brackets:
a. Snap the mounting brackets over the suction

cups, making sure they clip into the recesses on
the edges of the mimio Xi.

b. Carefully peel the backing from the adhesive

strips.

4

c. Mount the mimio Xi by pressing the bar, with

mounting bracket in place, in the upper left­hand corner of your whiteboard.

• For short periods of use, attach the mimio Xi using

the suction cups.
a. Clean the surface of the whiteboard with a

damp cloth.

5

b. Press the mimio Xi in the upper left-hand corner

of your whiteboard.

4. Plug the other end of the USB cable into your computer
USB port. The capture bar should be automatically
detected by the computer and the mimio Studio
software. Refer to your system documentation if you
are unable to find the USB port, or if your capture bar is
not automatically detected.

6

4

3. Put the battery cover back on by gliding the cover back
into place.

4

Setup your mimio Mouse

1. Remove the battery cover by lightly pressing down and
pushing the cover back away from the mimio Mouse tip.

2. Insert AA battery.

7

5

5

Calibrate with a projector

1. Project your Desktop image onto your whiteboard.
Make sure there is a 2-3” buffer between the projected
image and:

• The edges of the whiteboard

• The mimio device

2. Press the Interactive

button on your mimio

device.

3. Follow the onscreen instructions.

8

6

•

teract with applications.

•

6

Using the Interactive Mode

Use the mimio Mouse as a mouse to control your
Desktop or in

Press the Hover

(front) button, to hover the

Desktop or application.

•

mimio Mouse over your

Press the Right-click

(back) button, to execute a

right-click at the current mimio Mouse location.

• Use the mimio Tools to annotate over any application.

1. Right-Click the mimio Studio on the Dock and

select mimio Tools.

2. Click Screen Markup

to “freeze” whatever

screen or application you are in.

3. Annotate the frozen screen with the mimio Tools.

4. Click Mouse

to “unfreeze” the scr ll

omat se

s.

• imio Notebook to create content and
present content.

1. Right-Click the mimio Studio on the Dock and

select mimio Notebook.

2. Use the mimio Tools to create or edit content.

For more information about using the Interactive Mode
check out the comprehensive mimio Studio User’s Guide on
the mimio Studio CD.

een. A
annotations are aut ically archived for later u
in the mimio Markup

Use the m

9

7

7

Accessories and Add-ins

Visit the mimio Store at http://www.mimio.com/buy/store
(for eseller to

acc

o

to

ping over cables or whether the

i - it

mimio logo.

USA customers) or contact your local r

purchase add-ons and essories.

mimio wireless

mimio Wireless is an upgrade available for mimi
Xi. With mimio wireless you no longer need
worry about trip
USB cable is long enough to reach your
computer.

mimio Xi Carry Case

Get to that next meeting in style! Use this
attractive carry case to move your mimio X
holds the capture bar (folded), eraser, styli,
cable, and software in a sturdy shell
embroidered with the

10
