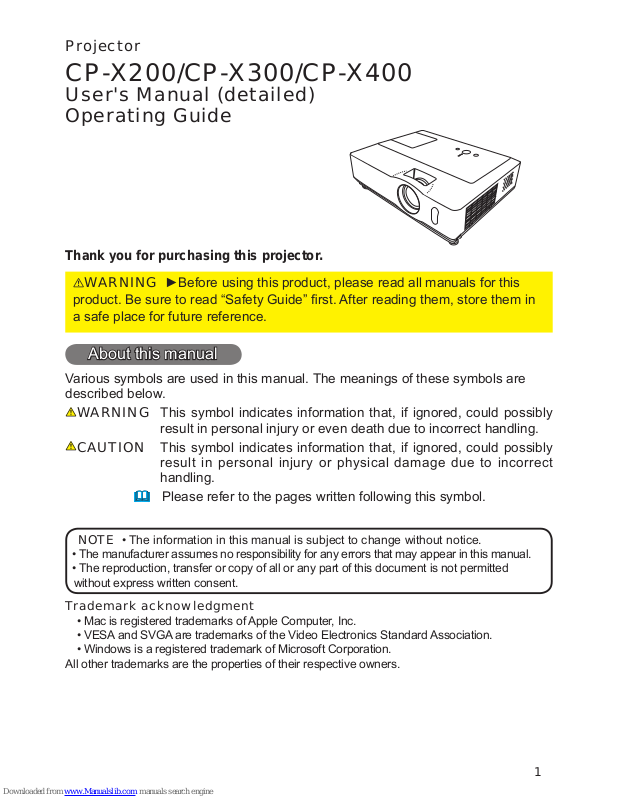

Touchboards CP-X200, CP-X400, CP-X300 Operating Manual

1
Projector
CP-X200/CP-X300/CP-X400
User's Manual (detailed) Operating Guide
Thank you for purchasing this projector.
WARNING ►Before using this product, please read all manuals for this
About this manual
Various symbols are used in this manual. The meanings of these symbols are described below.
WARNING This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
CAUTION This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect handling.
Please refer to the pages written following this symbol.
NOTE • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.
Trademark acknowledgment
• Mac is registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the properties of their respective owners.
2
About this manual . . . . . . . . . . 1
Content . . . . . . . . . . . . . . . . . . 2
Projector features . . . . . . . . . . 3
Preparations . . . . . . . . . . . . . . 3
Contents of package . . . . . . . . . . . . .3
Fastening the lens cover . . . . . . . . . .3
Part names . . . . . . . . . . . . . . . 4
Projector . . . . . . . . . . . . . . . . . . . . . .4
Control panel . . . . . . . . . . . . . . . . . . .5
Rear panel . . . . . . . . . . . . . . . . . . . . .5
Remote control . . . . . . . . . . . . . . . . .6
Setting up . . . . . . . . . . . . . . . . 7
Arrangement . . . . . . . . . . . . . . . . . . .7
Connecting your devices . . . . . . . . .10
Connecting power supply . . . . . . . .12
Using the security bar and slot . . . .12
Remote control . . . . . . . . . . . 13
Putting batteries . . . . . . . . . . . . . . .13
About the remote control signal . . . .13
Changing the frequency of remote
control signal
. . . . . . . . . . . . . . . . .14
Using as a
simple PC mouse & keyboard . . .14
Power on/off . . . . . . . . . . . . . 15
Turning on the power . . . . . . . . . . . .15
Turning off the power . . . . . . . . . . . .15
Operating . . . . . . . . . . . . . . . 16
Adjusting the volume . . . . . . . . . . . .16
Temporarily muting the sound . . . . .16
Selecting an input signal . . . . . . . . .16
Searching an input signal . . . . . . . .17
Selecting an aspect ratio . . . . . . . . .17
Adjusting the projector's elevator . .18
Adjusting the zoom and focus . . . . .18
Using the automatic adjustment feature
. .19
Adjusting the position . . . . . . . . . . .19
Correcting the keystone distortions
. .20
Using the magnify feature . . . . . . . .20
Freezing the screen . . . . . . . . . . . . .21
Temporarily blanking the screen . . .21
Using the menu function . . . . . . . . .22
Content
Content
EASY MENU. . . . . . . . . . . . . . 24
A
spect
, A
uto keystone
execute
,
K
eystone
, P
icture mode
, B
rightness
,
C
ontrast
, C
olor
, T
int
, S
harpness
,
W
hisper
, M
irror
, R
eset
, F
ilter time
,
L
anguage
, G
o to Advanced Menu...
PICTURE menu . . . . . . . . . . . 26
Brightness, Contrast, Gamma, Color temp, Color, Tint, Sharpness, My memory
IMAGE menu . . . . . . . . . . . . . 29
Aspect, Over scan, V position, H position, H phase, H size, Auto adjust execute
INPUT menu . . . . . . . . . . . . . 31
P
rogressive
, V
ideo nr
, C
olor space
,
C
omponent
, V
ideo format
,
F
rame lock
, C
omputer in
,
R
esolution
SETUP menu . . . . . . . . . . . . . 34
A
uto keystone
execute
, K
eystone
,
W
hisper
, M
irror
, V
olume
,
S
peaker
, A
udio
SCREEN menu . . . . . . . . . . . . 36
Language, Menu position, Blank, Start up, M
yScreen
, M
yScreen Lock
,
Message, Source name
OPTION menu . . . . . . . . . . . . 40
Auto search, Auto keystone , Auto on, Auto off, Lamp time, Filter time, My button, Service,
Security
Maintenance . . . . . . . . . . . . . 51
Lamp . . . . . . . . . . . . . . . . . . . . . . . .51
Air lter . . . . . . . . . . . . . . . . . . . . . .53
Other care . . . . . . . . . . . . . . . . . . . .54
Troubleshooting . . . . . . . . . . 55
Related messages . . . . . . . . . . . . . .55
Regarding the indicator lamps . . . . .56
Shutting the projector down . . . . . . .57
Resetting all settings . . . . . . . . . . . .57
Phenomena that may be easy
to be mistaken for machine defects
. .58
Specications . . . . . . . . . . . . 60
3
Fastening the lens cover
To avoid losing the lens cover, please fasten the lens cover to the projector using the enclosed strap.
1.
Fix the strap to the strap hole of the lens cover.
Thread one end of the strap through the strap hole of the lens cover and make the loop at the end, and let the other end of the strap through the loop. Not have a knot in the strap at either end.
2.
Fix the strap to the strap hole of the projector. Thread the other end of the strap through the strap hole of the projector and make
the loop there. Let the lens cover with the one end of strap though the loop.
Projector features / Preparations
Projector features
This projector has a capability to project various picture signals onto a screen. This projector requires only a minimal amount of space for installation and can produce a large projected image from even a short distance. This projector boasts a variety of I/O port and low noise. These features provide you with the broad use of this projector.
Preparations
Contents of package
Please see the “Contents of package” in the “User’s Manual (concise)” which is a book. Your projector should come with the items shown there. Contact immediately your dealer if anything is missing.
NOTE • Keep the original packing materials, for future reshipment. Be sure
to use the original packing materials when moving the projector. Use special
caution for the lens.
4
Part names
Part names
Projector
(1) Lamp cover (
51)
The lamp unit is inside.
(2) Focus ring (
18)
(3) Zoom ring (
18)
(4) Control panel (
5)
(5) Elevator buttons (x 2) (
18)
(6) Elevator feet (x 2) (
18)
(7) Remote sensor (
13)
(8) Lens (
18, 54)
(9) Lens cover (
3)
(10) Intake vents (11) Filter cover (
53)
The air lter and intake vent are inside.
(12) Speaker (
35)
(13) Exhaust vent (14) AC inlet (
12)
(15) Power switch (
15)
(16) Rear panel (
5)
(17) Security bar (
12)
(18) Security slot (
12)
WARNING ►HOT! : Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot. ►Do not look into the lens or vents while the lamp is on, since the strong light is not good for your eyes. ►Do not handle the elevator buttons without holding the projector, since the projector may drop down.
CAUTION ►
Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air lter periodically.
HOT!
(1) (2) (3) (4)
(7)
(10)
(9)
(8)
(11)
(6)
(5)
HOT!
(13)
(12)
(6)
(6)
(6)
(18)
(16)
(17)
(15)
(14)
(4)
(13)
(1)
(10)
(11)
5
Part names
Control panel
(1) STANDBY/ON button (
15)
(2) INPUT button (
16, 22)
(3) MENU button (
22)
It consists of four cursor buttons.
(4) POWER indicator (
15, 56)
(5) TEMP indicator (
56)
(6) LAMP indicator (
56)
Rear panel
(1) AUDIO IN1 port (
10)
(2) AUDIO IN2 port (
10)
(3) AUDIO OUT port (
10)
(4) COMPUTER IN1 port (
10)
(5) COMPUTER IN2 port (
10)
(6) MONITOR OUT port (
10)
(7) Shutdown switch (
57)
(8) CONTROL port (
10)
(9) USB port (
10)
(10) COMPONENT
(Y, Cb/Pb, Cr/Pr) port (
10)
(11) VIDEO port (
10)
(12) S-VIDEO port (
10)
(13) AUDIO IN3 (L,R) ports (
10)
CAUTION ►Do not use the security bar and slot to prevent the projector
from falling down, since it is not designed for it. ►Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down.
(1)
(2)
(3) (4) (7)
(10)
(9)(8) (11)
(6)(5)
(12)(13)
(1) (2)(3)
(4)
(6) (5)
6
Part names
Remote control
(1) VIDEO button (
17)
(2) COMPUTER button (
16)
(3) SEARCH button (
17)
(4) STANDBY/ON button (
15)
(5) ASPECT button (
17)
(6) AUTO button (
19)
(7) BLANK button (
21)
(8) MAGNIFY - ON button (
20)
(9) MAGNIFY - OFF button (
14, 20)
(10) HOME button (
14)
(11) END button (
14)
(12) PAGE UP button (
14)
(13) PAGE DOWN button (
14)
(14) VOLUME button (
16)
(15) MUTE button (
14, 16)
(16) FREEZE button (
21)
(17) MY BUTTON - 1 button (
42)
(18) MY BUTTON - 2 button (
42)
(19) KEYSTONE button (
20)
(20) POSITION button (
19, 22)
(21) MENU button (
22)
(22) ▲/▼/◄/► cursor buttons (
14, 22, 23)
(23) ENTER button (
14, 22, 23)
(24) ESC button (
14, 22)
(25) RESET button (
14, 22, 23)
(26) Battery cover (
13)
Back of
the remote control
(2) (1) (5)
(10)
(8) (9)
(11) (16) (17) (20) (22)
(24)
(3) (4) (6)
(7) (12) (14) (15) (13) (19) (18) (21) (23) (25)
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER
(26)
7
Setting up
Setting up
Install the projector according to the environment and manner the projector will be used in.
On a horizontal surface
Suspended from the ceiling
• Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.
• Consult with your dealer before a special installation such as suspending from a ceiling.
Screen size
(diagonal)
4 : 3 screen 16 : 9 screen
Projection distance
Screen
height
Screen
height
Projection distance
Screen
height
Screen
height
min. max.
min. max.
inch m m inch m inch cm inch cm inch m inch m inch cm inch cm inch
30 0.8 0.9 34 1.1 41 41 16 5 2 1.0 38 1.1 45 39 15 -1 0 40 1.0 1.2 46 1.4 56 55 22 6 2 1.3 50 1.5 61 51 20 -2 -1 50 1.3 1.5 58 1.8 70 69 27 8 3 1.6 63 1.9 76 64 25 -2 -1 60 1.5 1.8 70 2.1 84 82 32 9 4 1.9 76 2.3 91 77 30 -2 -1 70 1.8 2.1 81 2.5 98 96 38 11 4 2.3 89 2.7 107 90 35 -3 -1 80 2.0 2.4 93 2.8 112 110 43 12 5 2.6 102 3.1 122 103 41 -3 -1
90 2.3 2.7 105 3.2 126 123 49 14 5 2.9 115 3.5 138 116 46 -4 -1 100 2.5 3.0 117 3.6 140 137 54 15 6 3.2 127 3.9 153 129 51 -4 -2 120 3.0 3.6 140 4.3 169 165 65 18 7 3.9 153 4.7 184 154 61 -5 -2 150 3.8 4.5 176 5.4 211 206 81 23 9 4.9 192 5.8 230 193 76 -6 -2 200 5.1 6.0 235 7.2 282 274 108 30 12 6.5 256 7.8 307 257 101 -8 -3 250 6.4 7.5 294 9.0 353 343 135 38 15 8.1 320 9.8 384 322 127 -10 -4 300 7.6 9.0 352 10.8 423 411 162 46 18 9.8 384 11.7 461 386 152 -12 -5
b
a
b
c1
c1 c2
c2
Arrangement
Refer to the illustrations and tables below to determine screen size and projection distance.
<CP-X200 / CP-X400>
The values shown in the table are calculated for a full size screen: 1024×768. (a) Screen size (diagonal) (b) Projection distance (±10%) (c1), (c2) Screen height (±10%)
8
Setting up
On a horizontal surface
Suspended from the ceiling
• Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.
• Consult with your dealer before a special installation such as suspending from a ceiling.
<CP-X300>
The values shown in the table are calculated for a full size screen: 1024×768. (a) Screen size (diagonal) (b) Projection distance (±10%) (c1), (c2) Screen height (±10%)
Screen size
(diagonal)
4 : 3 screen
16 : 9 screen
Projection distance
Screen
height
Screen
height
Projection distance
Screen
height
Screen
height
min. max.
min. max.
inch m m inch m inch cm inch cm inch m inch m inch cm inch cm inch
30 0.8 0.9 35 1.1 43 41 16 5 2 1.0 39 1.2 47 39 15 -1 0
40 1.0 1.2 47 1.4 57 55 22 6 2 1.3 52 1.6 62 51 20 -2 -1
50 1.3 1.5 59 1.8 71 69 27 8 3 1.6 65 2.0 78 64 25 -2 -1
60 1.5 1.8 71 2.2 86 82 32 9 4 2.0 78 2.4 94 77 30 -2 -1
70
1.8 2.1 83 2.5 100 96 38 11 4 2.3 91 2.8 109 90 35 -3 -1 80 2.0 2.4 95 2.9 115 110 43 12 5 2.6 104 3.2 125 103 41 -3 -1 90 2.3 2.7 107 3.3 129 123 49 14 5 3.0 117 3.6 141 116 46 -4 -1
100 2.5 3.0 119 3.6 144 137 54 15 6 3.3 130 4.0 156 129 51 -4 -2 120 3.0 3.6 143 4.4 172 165 65 18 7 4.0 156 4.8 188 154 61 -5 -2 150 3.8 4.6 179 5.5 216 206 81 23 9 4.9 195 6.0 235 193 76 -6 -2 200 5.1 6.1 239 7.3 288 274 108 30 12 6.6 261 8.0 314 257 101 -8 -3 250 6.4 7.6 299 9.1 360 343 135 38 15 8.3 326 10.0 392 322 127 -10 -4 300 7.6 9.1 359 11.0 432 411 162 46 18 9.9 391 12.0 471 386 152 -12 -5
b
a
b
c1
c1 c2
c2
Arrangement (continued)
9
Setting up
WARNING ►Place the projector in a stable horizontal position. If the
projector falls or is knocked over it could cause injury and/or damage to the projector. Using a damaged projector could then result in re and/or electric shock.
• Do not place the projector on an unstable, slanted or vibrational surface such as a wobbly or inclined stand.
• Do not place the projector on its side, front or rear position.
• Consult with your dealer before a special installation such as suspending from a ceiling.
►Place the projector in a cool place, and ensure that there is sufcient ventilation. The high temperature of the projector could cause re, burns and/ or malfunction of the projector.
• Do not stop-up, block or otherwise cover the projector's vents.
• Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.
• Do not place the projector on metallic thing or anything weak in heat.
• Do not place the projector on carpet, cushions or bedding.
• Do not place the projector in direct sunlight or near hot objects such as heaters.
• Do not anything near the projector lens or vents, or on top of the projector.
• Do not place anything that may be sucked into or stick to the vents on the bottom of the projector. This projector has some intake vents also on the bottom.
►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause re, electric shock and/or malfunction of the projector.
• Do not place the projector in a bathroom or the outdoors.
• Do not place anything containing liquid near the projector.
CAUTION ►Avoid placing the projector in smoky, humid or dusty place.
Placing the projector in such places could cause re, electric shock and/or malfunction of the projector.
• Do not place the projector near humidiers, smoking spaces or a kitchen.
►Position the projector to prevent light from directly hitting the projector's remote sensor.
10
Setting up
Connecting your devices
Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.
WARNING ►Do not disassemble or modify the projector and accessories.
►Be careful not to damage the cables, and do not use damaged cables.
CAUTION ►Turn off all devices and unplug their power cords prior to
connecting them to projector. Connecting a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction or damage to the device and the projector. ►Use appropriate accessory or otherwise designed cables. Ask your dealer about non-accessory cables which may have to be of a specic length or equipped with a core. For cables with a core only at one end, connect the end with the core to the projector. ►Make sure that devices are connected to the correct ports. An incorrect connection may result in malfunction or damage to the device and the projector.
AUDIO IN
Y CB/PB CR/PR
COMPONENT VIDEO OUT
L R
AUDO IN OUT
VIDEO OUT
L R
AUDO IN OUT
L R
AUDO IN OUT
S-VIDEO OUT
AUDIO OUT
RGB OUT
AUDIO OUT
USB
RGB OUT
RS-232C
RGB IN
VCR/DVD
player
Speakers
PC
Monitor
11
Setting up
NOTE • Be sure to read the manuals for devices before connecting them to the
projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution.
- Some signal may need an adapter to input this projector.
- Some PCs have multiple screen display modes that may include some signals which are not supported by this projector.
- Although the projector can display signals with resolution up to UXGA (1600X1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.
• While connecting, make sure that the shape of the cable's connector ts the port to
connect with. And be sure to tighten the screws on connectors with screws.
• When connecting a laptop PC to the projector, be sure to activate the PC’s external
RGB output. (Set the laptop PC to CRT display or to simultaneous LCD and CRT display.) For details on how this is done, please refer to the instruction manual of the corresponding laptop PC.
• When the picture resolution is changed on a pc depending on an input, automatic
adjustment function may take some time and may not be completed. In this case, you may not be able to see a check box to select “Yes/No” for the new resolution on Windows. Then the resolution will go back to the original. It might be recommended to use other CRT or LCD monitors to change the resolution.
• In some cases, this projector may not display a proper picture or display any picture on
screen. For example, automatic adjustment may not function correctly with some input signals. An input signal of composite sync or sync on G may confuse this projector, so the projector may not display a proper picture.
About Plug-and-Play capability
Plug-and-Play is a system composed of a PC, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and­Play can be used by connecting this projector to a pc that is VESA DDC (display data channel) compatible.
• Take advantage of this feature by connecting an RGB cable to the COMPUTER IN1
port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.
• Please use the standard drivers in your pc as this projector is a Plug-and-Play monitor.
Connecting your devices (continued)
12
Setting up
Connecting power supply
At rst, make sure that the power switch of the projector is set to OFF position (marked "O").
1.
Put the connector of the power cord into the AC inlet of the projector.
2.
Firmly plug the power cord’s plug into the outlet.
WARNING ►Please use extra caution when connecting the power cord, as
incorrect or faulty connections may result in re and/or electrical shock.
• Only use the power cord that came with the projector. If it is damaged, contact
your dealer to newly get correct one.
• Only plug the power cord into an outlet rated for use with the power cord's
specied voltage range. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.
• Never modify the power cord.
Using the security bar and slot
A commercial anti-theft chain or wire up to 10 mm in diameter can be attached to the security bar on the projector. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.
WARNING ►Do not use the security bar and slot to prevent the projector
from falling down, since it is not designed for it.
CAUTION ►Do not place anti-theft chain or wire near the exhaust vents. It
may become too hot.
NOTE • The security bar and slot is not comprehensive theft prevention
measures. It is intended to be used as supplemental theft prevention measure.
AC inlet
Power cord
13
Remote control
Putting batteries
Please set the batteries to the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.
1.
Holding the hook part of the battery cover, remove it.
2.
Align and insert the two AA batteries according to their plus and minus terminals
as indicated in the remote control.
3.
Replace the battery cover in the direction of the arrow and snap it back into place.
Remote control
WARNING ►Always handle the batteries with care and use them only as
directed. Improper use may result in battery explosion, cracking or leakage, which could result in re, injury and/or pollution of the surrounding environment.
• Be sure to use only the batteries specied. Do not use batteries of different
types at the same time. Do not mix a new battery with used one.
•
Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Keep a battery away from children and pets.
• Do not recharge, short circuit, solder or disassemble a battery.
•
Do not allow a battery in a re or water. Keep batteries in a dark, cool and dry place.
•
If you observe battery leakage, wipe out the leakage and then replace a battery. If the
leakage adheres to your body or clothes, rinse well with water immediately.
• Obey the local laws on disposing the battery.
About the remote control signal
The remote control works with the projector ’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active: 60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.
NOTE • The remote control signal reected in the screen or the like may
be available. If it is difcult to send the signal to the sensor directly, attempt to make the signal reect.
• The remote control uses infrared light to send signals to the projector (Class 1 LED),
so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.
•
The remote control may not work correctly if strong light (such as direct sun light) or light
from an extremely close range (such as from an inverter uorescent lamp) shines on the
remote sensor of the projector. Adjust the position of projector avoiding those lights.
30º
30º
Approx.
3 m
14
Using as a simple PC mouse & keyboard
The enclosed remote control works as a simple mouse and keyboard of the PC, when the projector's USB port (B type) connects with the PC's USB port (A type) port via a mouse cable.
(1) HOME key: Press HOME button. (2) END key: Press END button. (3) PAGE UP key: Press PAGE UP button. (4) PAGE DOWN key: Press PAGE DOWN button. (5) Mouse left button: Press ENTER button. (6) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►. (7) ESC key: Press ESC button. (8) Mouse right button: Press RESET button.

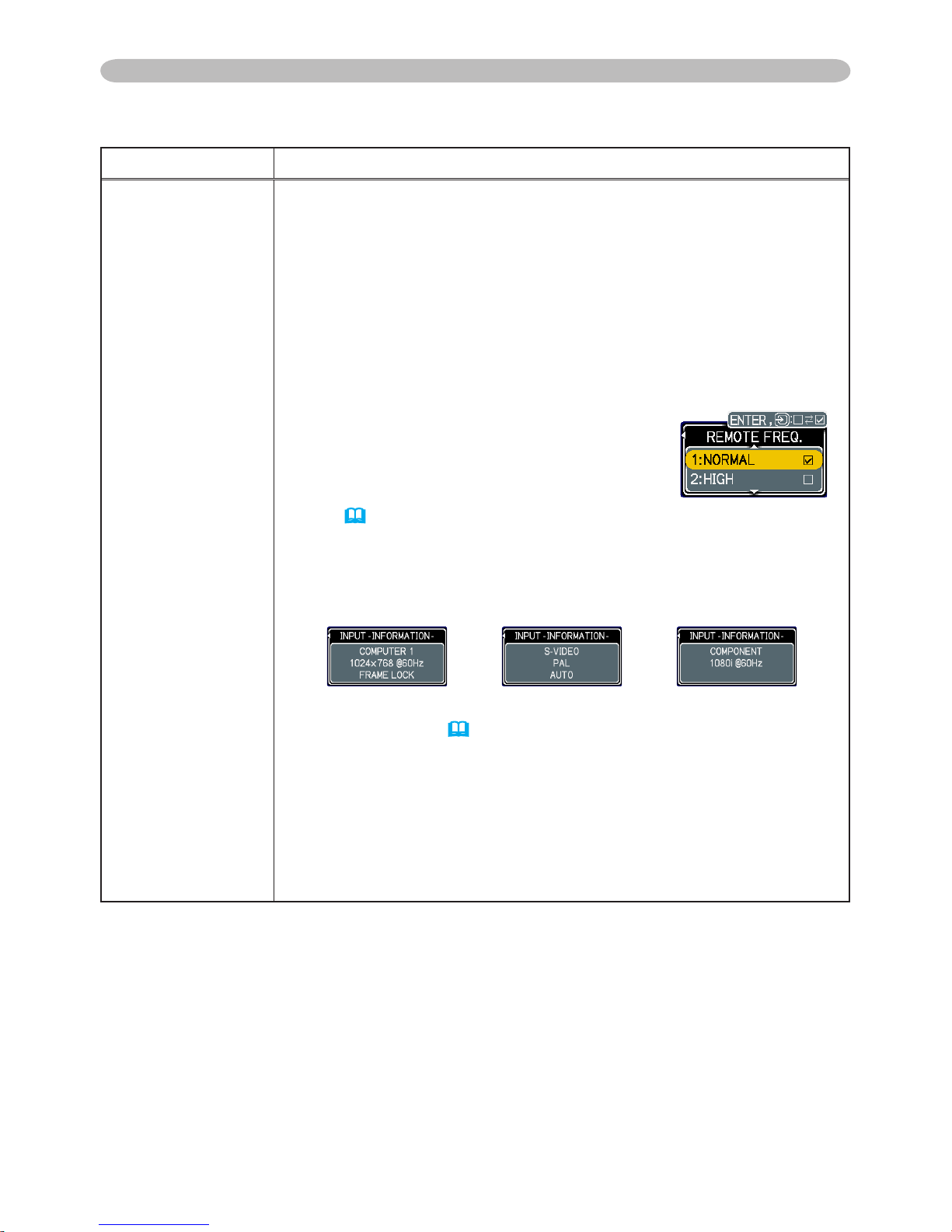

Changing the frequency of remote control signal
The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds. (1) Set to Mode 1:NORMAL... MUTE and RESET buttons (2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION menu (
44) of the projector to be controlled
should be set to the same mode as the remote control.
Remote control
NOTE •
When the simple mouse & keyboard function of this product does not work
correctly, please check the following.
- When the mouse cable connects this projector with a PC having a built-in pointing
device (e.g. track ball) like a notebook PC, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.
- Windows 95 OSR 2.1 or higher is required for this function. And also this function may
not work depending on the PC’s congurations and mouse drivers.
- You cannot do things like press two buttons at once (for instance, pressing two buttons
at the same time to move the mouse pointer diagonally).
- This function is activated only when the projector is working properly. This function is
not available while the lamp is warming up (the POWER indicator blinks green), and while adjusting the volume and display, correcting for keystone, zooming in on the
screen, using the BLANK function, or displaying the menu screen.
CAUTION ►Improper use of the simple mouse
& keyboard function could damage your equipment. While using this function, please connect this product only to a PC. Be sure to check your PC’s manuals before connecting this product to the PC.
(1)(2)
(3)(1)
(2)
(5)
(7)
(4)
(6)
(8)
USB port
USB
USB STORAGE
AUDIO OUT
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER
15
Turning on the power
1.
Make sure that the power cord is rmly and correctly connected to the projector and the outlet.
2.
Remove the lens cover, and set the power switch to
ON position (marked “ I “).
The POWER indicator will light up in steady orange (
56). Then wait several seconds because the
buttons may not function for these several seconds.
3.
Press STANDBY/ON button on the projector or the
remote control.
The projection lamp will light up and POWER indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in steady green (
56).
To display the picture, select an input signal according to the section “Selecting an input signal” (
16).
Power on/off
WARNING
►A strong light is emitted when the projector’s power is on. Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings. ►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.
NOTE • Turn the power on/off in right order. Please power on the projector prior
to the connected devices. Power off the projector after all of connected devices are powered off.
•
The projector has the AUTO ON function, which can make the projector automatically
turn on. For more information, please see AUTO ON item of OPTION menu
(
40).
• Use the shutdown switch (57) only when the projector is not turned off by
normal procedure.
Power on/off
Turning off the power
1.
Press the STANDBY/ON button on the projector or the remote control. The message “Power off?” will appear on the screen for about 5 seconds.
2.
Press the STANDBY/ON button again while the message appears.
The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete(
56).
3.
Make sure that POWER indicator lights in steady orange, and set the
power switch to OFF position (marked “O“).
POWER indicator will go off. Attach the lens cover.
Do not turn the projector on for about 10 minutes or more after turning it off. Turning the projector on again too soon could shorten the lifetime of some consumable parts of the projector.
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER
16
Selecting an input signal
1.
Press INPUT button on the projector.
Each time you press the button, the projector switches
its input port as below. COMPUTER IN 1  COMPUTER IN 2
VIDEO  S-VIDEO
COMPONENT (Y, Cb/Pb, Cr/Pr)
Operating
Adjusting the volume
1.
Press VOLUME button on the remote control.
A dialog will appear on the screen to aid you in adjusting the
volume.
2.
Use the ▲/▼ cursor buttons to adjust the volume.
To close the dialog and complete the operation, press the VOLUME button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.
● When is selected for current picture input port, the volume adjustment is disable. Please see AUDIO item of SETUP menu
(
35)
.
Temporarily muting the sound
1.
Press MUTE button on the remote control.
A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the MUTE or VOLUME button. Even if you do not do anything, the dialog will automatically disappear after a few seconds.
● When is selected for current picture input port, the sound is always muted. Please see AUDIO item of SETUP menu
(
35)
.
1.
Press COMPUTER button on the remote control.
Each time you press the button, the projector switches
its input port as below. COMPUTER IN 1  COMPUTER IN 2
●
If COMPUTER button is pushed to switch from a signal from VIDEO, S-VIDEO or COMPONENT port, when TURN ON is selected for AUTO SEARCH item in OPTION menu
(
40)
, the projector will check COMPUTER IN1 port rst. If no input is detected at the port, the projector will check COMPUTER IN2 port.
(continued on next page)
MUTE
COMPUTER
Operating
VOLUME
▲/▼
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
MENU
COMPUTER
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
MENU
COMPUTER
17
Operating
Searching an input signal
1.
Press SEARCH button on the remote control.
The projector will start to check its input ports in order to nd any input signals. When an input is found, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.
COMPUTER IN 1  COMPUTER IN 2 VIDEO  S-VIDEO
COMPONENT (Y, Cb/Pb, Cr/Pr)
Selecting an input signal (continued)
1.
Press VIDEO button on the remote control.
Each time you press the button, the projector switches its input port as below.
COMPONENT(Y, Cb/Pb, Cr/Pr)  S-VIDEO  VIDEO
● If VIDEO button is pushed to switch from a signal from COMPUTER IN1 or 2 port, when TURN ON is selected for AUTO SEARCH item in OPTION menu
(
40)
, the projector will check COMPONENT port rst. If no input is detected at the port, the projector will check the other port in above order.
Selecting an aspect ratio
1.
Press ASPECT button on the remote control.
Each time you press the button, the projector switches the
mode for aspect ratio in turn.
For a computer signal
NORMAL
4:3  16:9  SMALL
For a video signal, s-video signal or component video
signal
4:3  16:9  14:9  SMALL
For no signal
4:3 (xed)
● ASPECT button does not work when no proper signal is inputted.
● NORMAL mode keeps the original aspect ratio setting.
VIDEO
SEARCH
ASPECT
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
MENU
COMPUTER
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
MENU
COMPUTER
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
MENU
COMPUTER
18
Adjusting the zoom and focus
1.
Use the zoom ring to adjust the screen size.
2.
Use the focus ring to focus the picture.
Operating
Focus ring
Zoom ring
Adjusting the projector's elevator
When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 10 degrees. This projector has 2 elevator feet and 2 elevator buttons. An elevator foot is adjustable while pushing the elevator button on the same side as it.
1.
Holding the projector, push the elevator buttons to loose the elevator feet.
2.
Position the front side of the projector to the desired height.
3.
Release the elevator buttons in order to lock the elevator feet.
4.
After making sure that the elevator feet are locked, put the projector gently.
5.
If necessary, the elevator feet can be manually twisted to make more precise adjustments. Hold the projector when twisting the feet.
CAUTION ►Do not handle the elevator buttons without holding the
projector, since the projector may drop down. ►Do not tilt the projector other than it elevating its front within 10 degrees using the adjuster feet. A tilt of the projector exceeding the restriction could cause malfunction or shortening the lifetime of consumables, or the projector itself.
To loose an elevator foot, push the elevator button on the same side as it.
To nely adjust, twist the foot.
19
Adjusting the position
1.
Press POSITION button on the remote control when no menu is indicated.
The “POSITION” indication will appear on the screen.
2.
Use the ▲/▼/◄/► cursor buttons to adjust the picture position.
When you want to reset the operation, press RESET button on the remote control during the operation. To complete this operation, press POSITION button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.
● When this function is performed on a video signal, s-video signal or component video signal, some image such as an extra-line may appear at outside of the picture.
● When this function is performed on a video signal, s-video signal or component video signal, the range of this adjustment depends on OVER SCAN in IMAGE menu
(
29)
setting. It is not possible to adjust when OVER SCAN is set to 10.
● If POSITION button is pressed when a menu is indicated on screen, the displayed picture does not move its position but the menu does.
Operating
Using the automatic adjustment feature
1.
Press AUTO button on the remote control.
Pressing this button performs the following.
For a computer signal
The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. And the horizontal size
will be automatically set to the default.
Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.
For a video signal, s-video signal or component video signal
The video format best suited for the respective input signal will be selected automatically. This function is available only when AUTO is selected for VIDEO FORMAT item in INPUT menu
(
32)
.
The vertical position and horizontal position will be automatically set to the default. For a component video signal, also the horizontal phase will be automatically set to the default.
● The automatic adjustment operation requires several seconds. Also please
note that it may not function correctly with some input. When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.
●
The items adjusted by this function may vary when FINE or DISABLE is
selected for AUTO ADJUST item of SERVICE item in OPTION menu
(
43)
.
POSITION
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER
AUTO
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
MENU
COMPUTER
Loading...
+ 42 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
