Touch TE3201S User Manual

32 INCH INTERAVTIVE SIGNAGE KIOSK
TE3201S USER MANUAL
1
TOUCH INTERNATIONAL
WELCOME TO USE
TE3201S is a intelligent display deviceis mainly used as an advertising screen.
Display advertising messages in showcase or hung outdoors.
It will be used in the following places:
1.Airports or shopping malls are used to indicate routes or store layout.
2.Store showcase display popular products or discount.
and so on,
greater than 20 cm away from the person.
The manufacturer stated that the TE3201S would be installed in a position
Welcome t o the website:
www.touchinternational.com
;
2
TOUCH INTERNATIONAL
CONTENTS
CHAPTER 1 : OVERVIEW
--------------------------------------------------------------------
Overview
Applications
Status Icon
--------------------------------------------------------------------
CHAPTER 2 : INTRODUCTION TO USE
--------------------------------------------------------------------
Important Note
Power Supply
How to connect to Internet
--------------------------------------------------------------------
CHAPTER 3 : FUNDAMENTAL FUNCTION
--------------------------------------------------------------------
How to use applications
Check the notification
Text input
--------------------------------------------------------------------
CHAPTER 4 : DETAILED FUNCTION INTRODUCTION
--------------------------------------------------------------------
Camera
3
TOUCH INTERNATIONAL
Leisure and entertainment
Internet
Add ICONS
Download more programs
System tools
Utilities
--------------------------------------------------------------------
4
TOUCH INTERNATIONAL
Chapter 1 Overview
Overview
Welcome to u s e T E 3 2 0 1 S , th e 32 inch interactive sig nage kiosk, thi s user manual w i l l t e l l y o u how to use the TE3201S.
You can g et more details o n t h e w e b sit e:
www.touchi nternational . com
5
TOUCH INTERNATIONAL

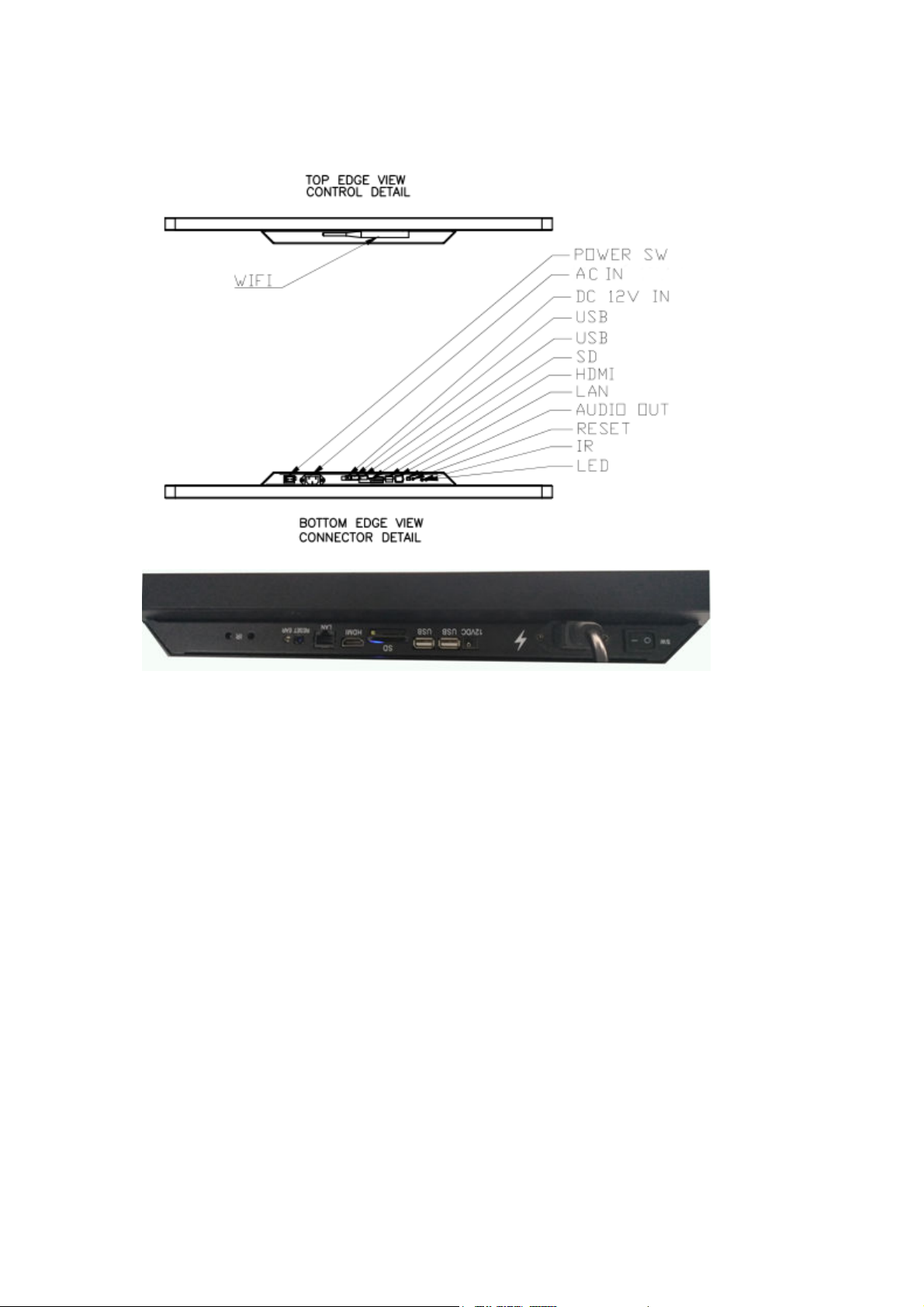

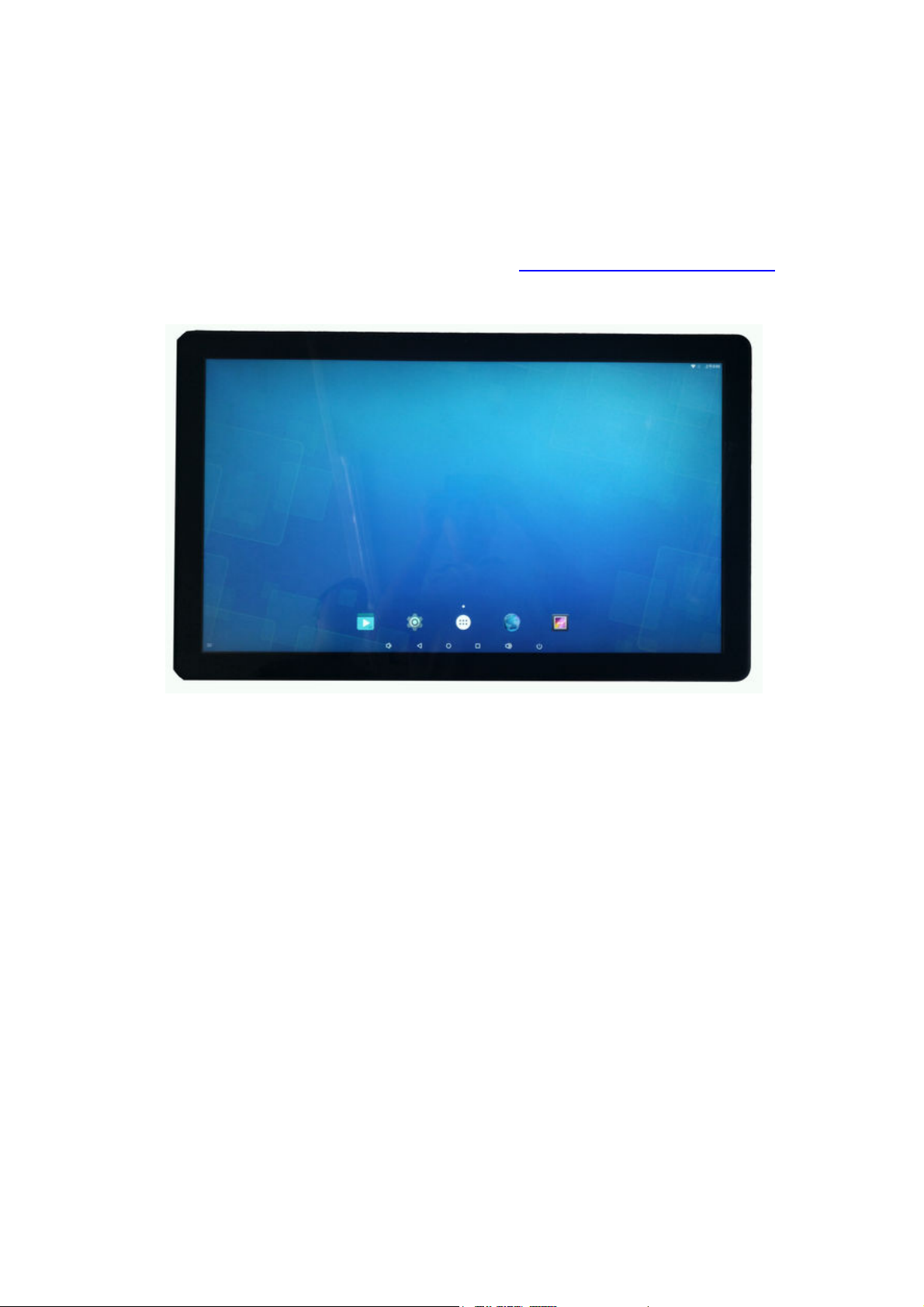

Remark: Thi s image is f o r r e f e r e n c e only.
Power Switch
You can s elect the power ON/OFF, w hen the AC c able plug -in;
WIFI Antenna
You can expa n d t h e a ntenna, when you need use t he WIFI;
Backup 12V DC
TBD
USB Port
You can use t h ese usb por t s t o c o n n e ct external equipment, eg.mo use, keyboard an d s o o n ;
6
TOUCH INTERNATIONAL
You can use o n e o f t h em to upgrade system;
SD Card Port
This port p rovide a optio n t o u s e S D card, you can expand the sy s t e m capacity .
HDMI Port
You can use a n e x t e r n a l H D video signal through this p o r t .
LAN Port
You can con nect to the L A N t h r o ug h this port.
Audio Port
You can con nect to an ex t e r n a l a m p l i f ying device through this port .
Reset
System rese t .
IR
You can s witch ON/OFF t h e d e v i c e t hrough the IR remote cont rol.
IR LED
IR remote LE D .
7
TOUCH INTERNATIONAL
Applications
-----------------------------------------------------------------------------------------------
Photo album program supports the folder path at the picture, you can
strike by double-clicking or two fingers to zoom a single image, can control the slide to switch on a picture or the next, click the picture to show or hide the menu control project.
-----------------------------------------------------------------------------------------------

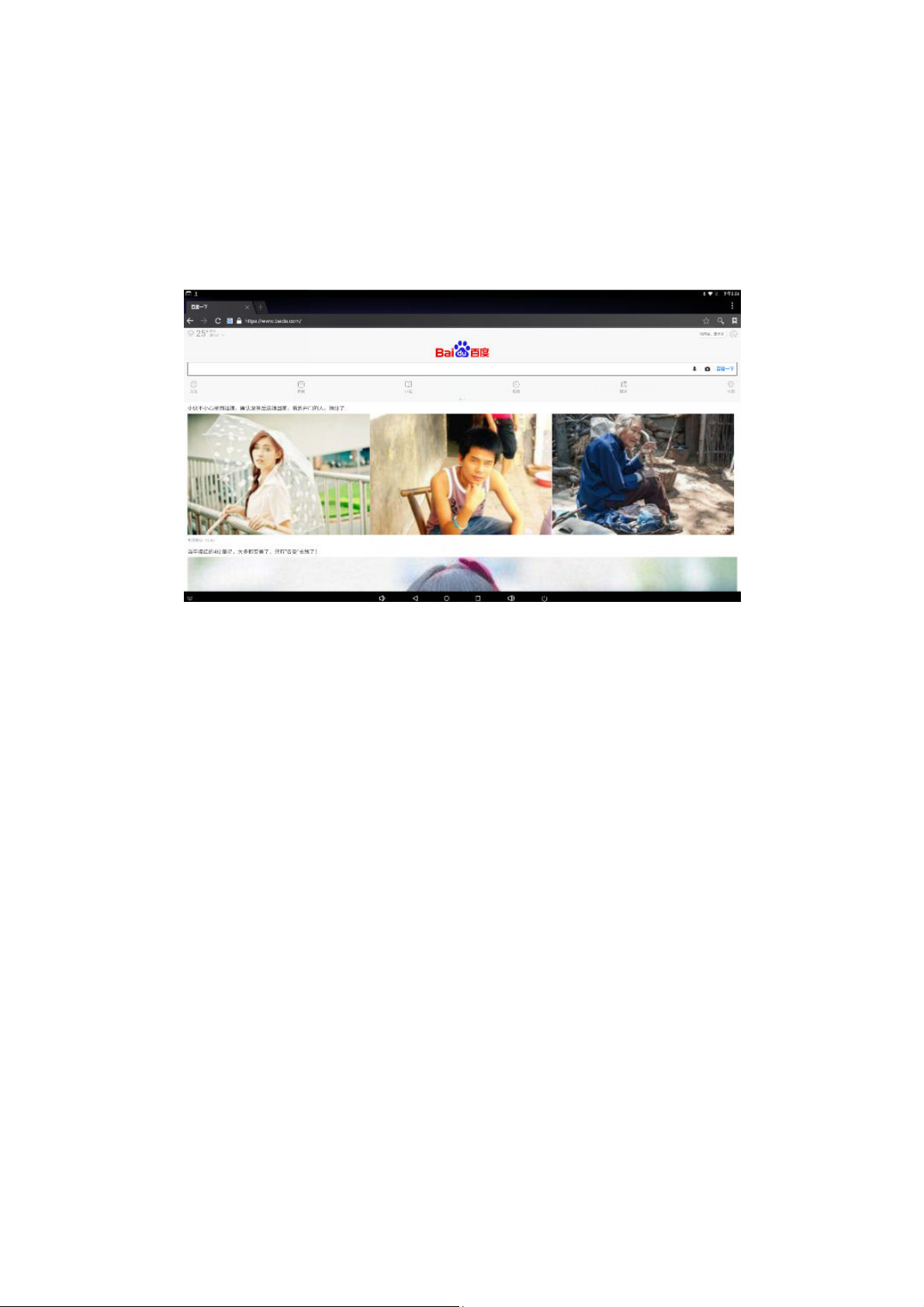

The browser allows you to double click or double click to zoom in and
out of a web page. Fast access to frequently used websites via url navigation. Support multiple tags, click on the label to switch pages. Intelligent full screen, best fit for viewing area.
-----------------------------------------------------------------------------------------------
Camera program to take high-quality photos, support rapid
adjustment of focal length.
-----------------------------------------------------------------------------------------------
Music program supports playing local music, and supports playing local
songs in different modes according to song name, singer, album and playlist.
-----------------------------------------------------------------------------------------------
Support to play local HD and 4K video, support WMV, AVI, FLV, RM,
RMVB, etc.
-----------------------------------------------------------------------------------------------
Centralized management of content downloaded through system
applications.
8
TOUCH INTERNATIONAL
Status Icon
You The sta t us bar displa y s t h e t i m e , notification icon, WIFI connection s t a t u s a n d s o on
WIFI : Shows that you have connected to a wireless network, the
more cells you have, the stronger the signal;
SIM : This function is TBD;
PS : Projection screen;
Airplane Mode : You can use LAN or WIFI, when this function is
enable;
Screenshot : You can have a screen capture, when this function is
enable;
For more ICONS, you can refer to the notification bar.
9
TOUCH INTERNATIONAL
CHAPTER 2 : INTRODUCTION TO USE
Important Note
To avoid unnecessary damage, please read all safety information before
using the machine.
The equipment operating temperature ranges is from 0 to 70 degrees
centigrade, when the ambient temperature is too high or too low, it may cause the equipment failure.
Please keep the machine dry.
Please do not repair the product by yourself, if you have any questions,
please contact the manufacturer.
When you connect other equipment, please refer to the user’s manual,
do not use the unmatched equipment.
10
TOUCH INTERNATIONAL
Safety warning
If you need to upgrade the system, please contact the manufacturer.
Other upgrades can result to equipment failure or data loss, as well as damage to the system’s security capability, and then trigger safety risk.
Power Supply
Use a standard power line to connect to the city power, turn on the
power switch.
How to connect to Internet
You can use WIFI to connect to the Internet, or use a network cable to
connect to the Internet.
11
TOUCH INTERNATIONAL
CHAPTER 3 : FUNDAMENTAL FUNCTION

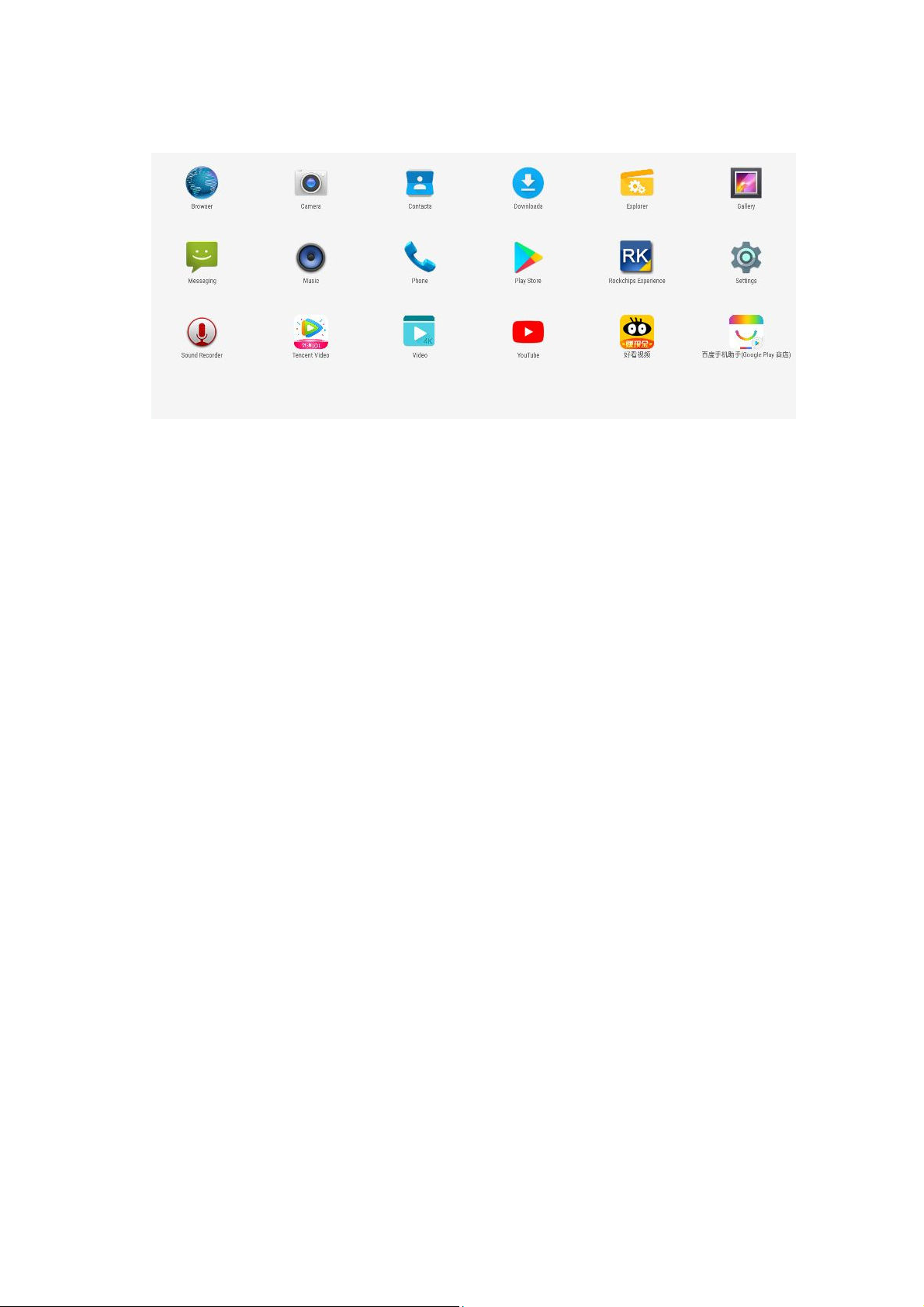

How to use applications
Click its icon on the screen, you can open the application.
To return to the home screen, click the return button at the bottom of
the screen.
Switch to another screen, slide your finger left or right.
Check the notification
When a notification icon is displayed in the status bar, it indicates a new
notification.

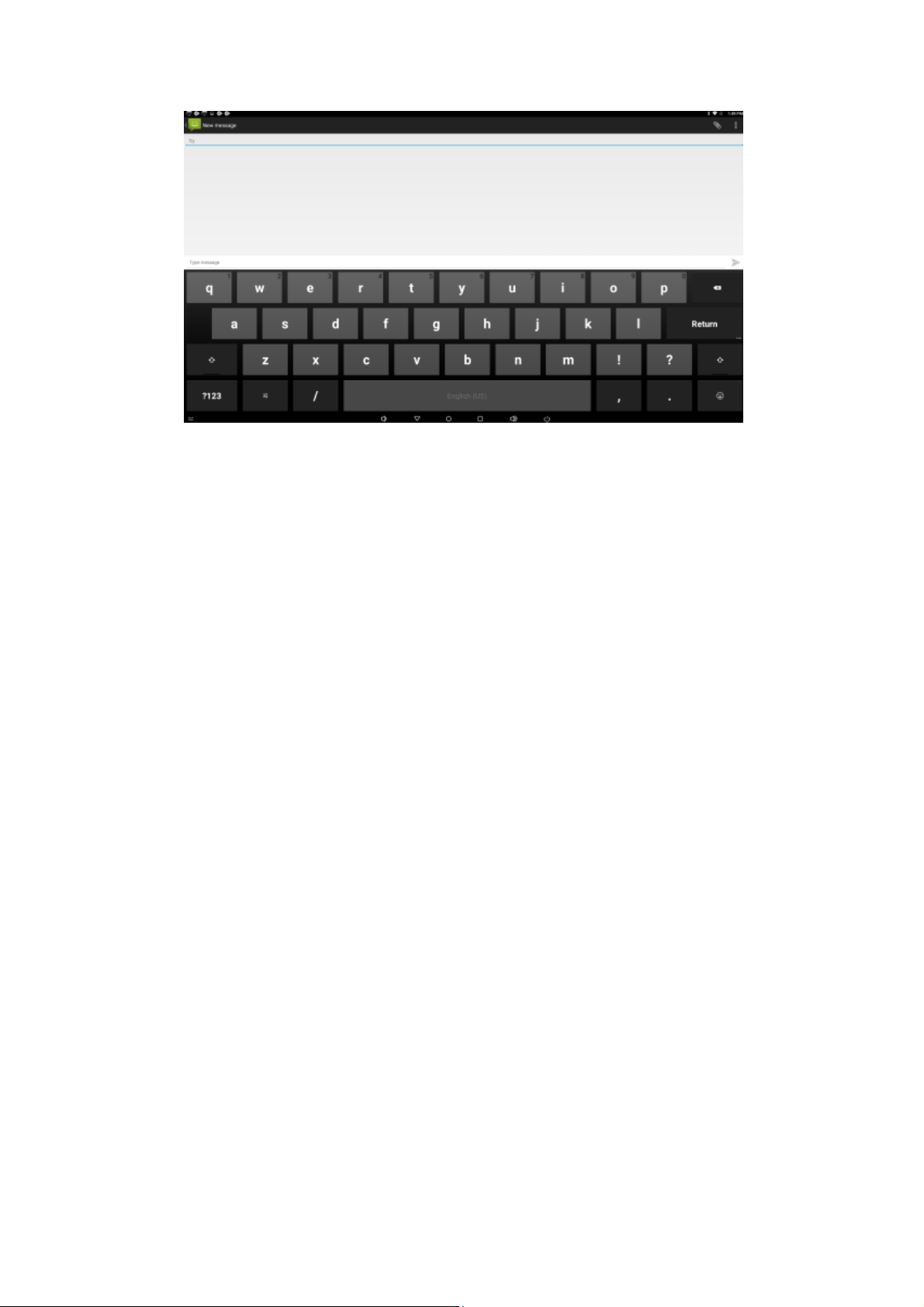

Text input
You can use the screen’s virtual buttons to enter letters, symbols and
numbers.
Here is an input example:
1. Click the input box to bring up the keyboard, the input box has the cursor flashing now;
2. Click the key on the keyboard to enter;
12
TOUCH INTERNATIONAL
13
TOUCH INTERNATIONAL
CHAPTER 4 : DETAILED FUNCTION INTRODUCTION

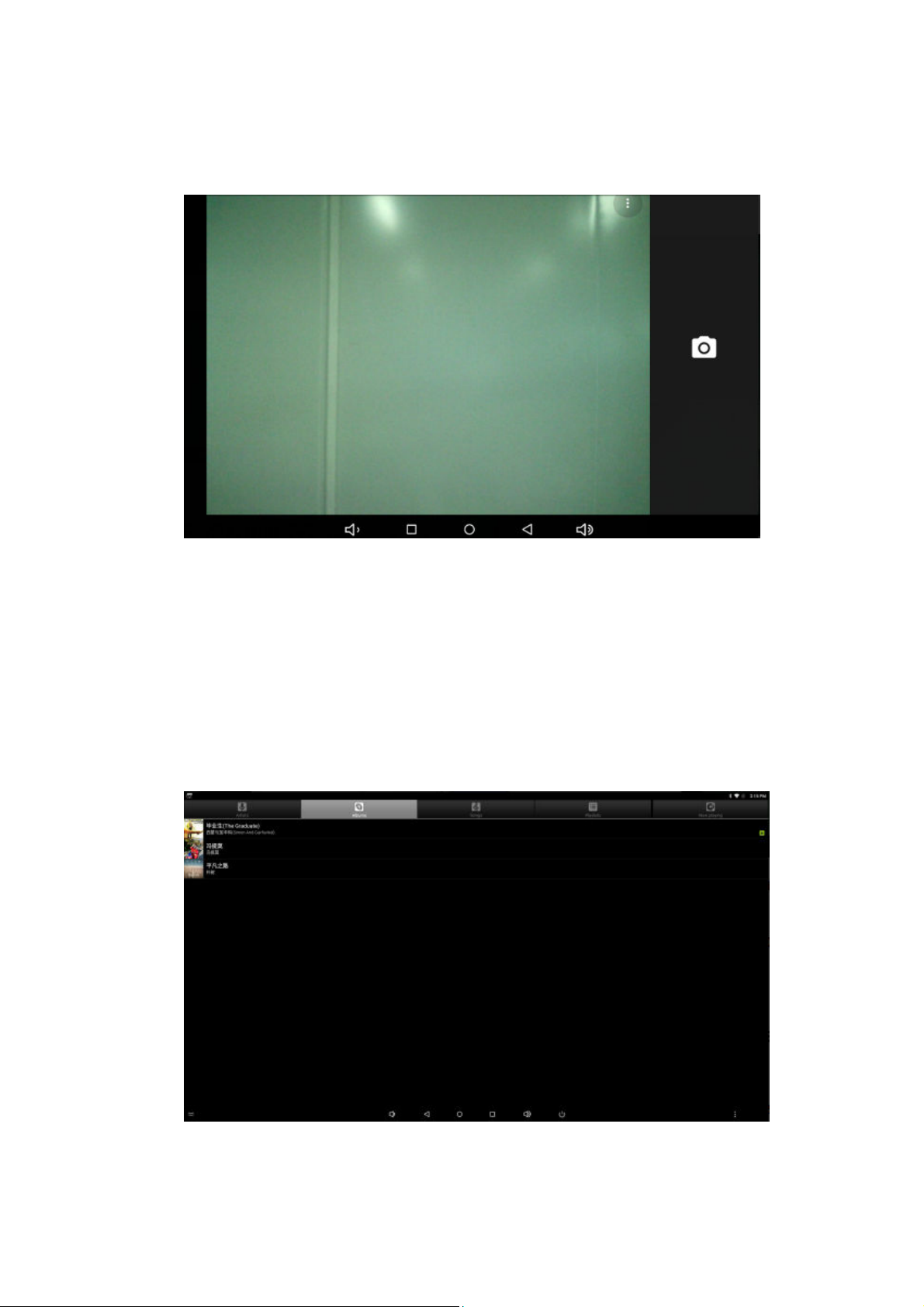

Take Pictures and Take Videos
Open the camera program to take high-quality photos, it also can
support multiple professional photo modes;
Click the next button to take pictures and take videos, and also support
1080p;
Leisure and entertainment
Listen to music
14
TOUCH INTERNATIONAL
Music programs support local and online playback;
Click play at the bottom of the application to enter the play page, can
control the song progress and other operations;
Internet
Fast access to frequently used websites via url navigation;
Support multiple tags, click on the label to switch pages;
Add ICONS
To add desktop widgets, you can long press the menu button and drag it
out of the menu;
Download more programs
Open the system application store, you can download more applications;
System tools
File Management
Understand the use of system memory through file management, so as
to better manage and use the system;
15
TOUCH INTERNATIONAL
Security Center
Support system garbage cleaning, permission management and other
related operations;
System Update
Contact your local vendor for the latest version of the system;
Utilities
Note Pad
Note pad can help you quickly record text messages;
Calendar
You can check dates, holidays, etc. in your calendar;
Online Customer Service
If you want more information, please visit :
www.touchinternational.com;
