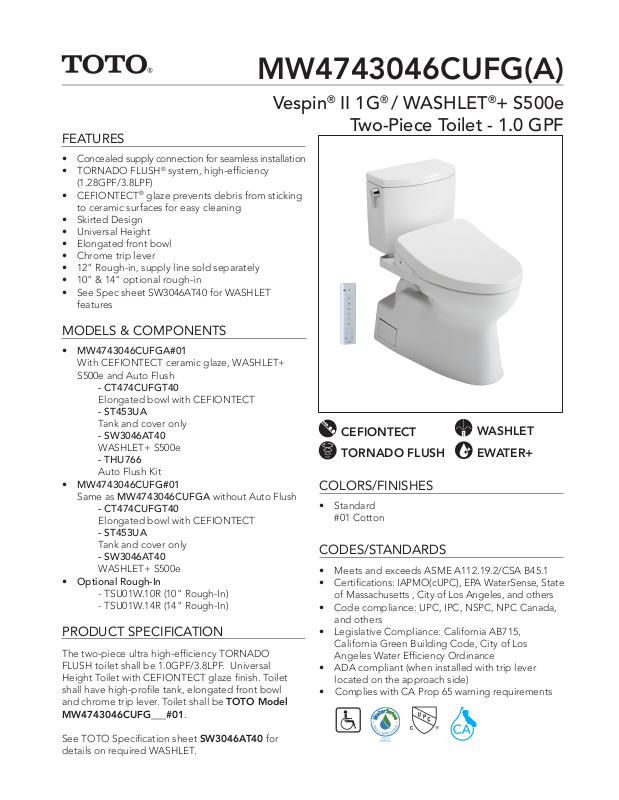

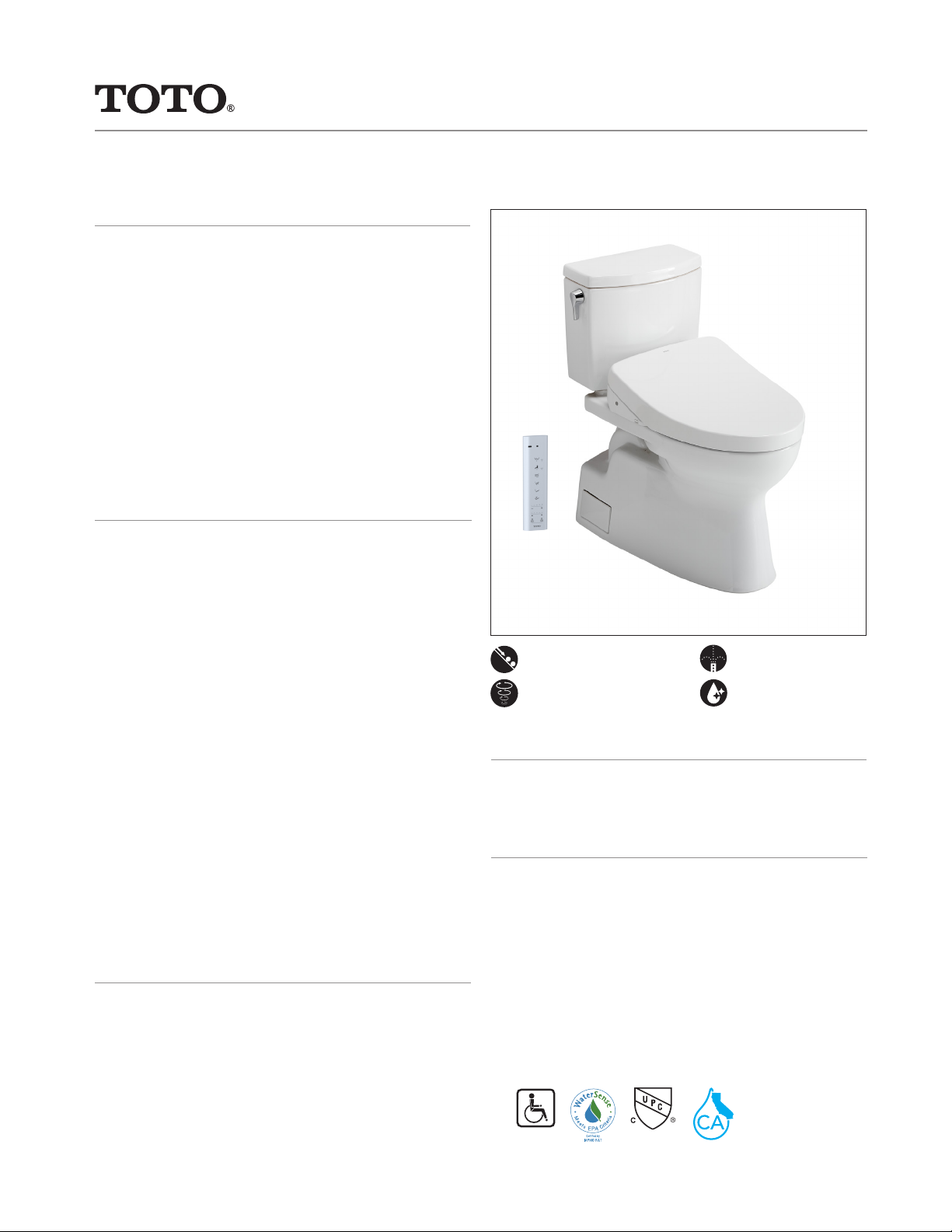

Page 1

MW4743046CUFG(A)

Vespin® II 1G® / WASHLET®+ S500e

FEATURES

• Concealed supply connection for seamless installation

• TORNADO FLUSH® system, high-efﬁciency (1.28GPF/3.8LPF)

• CEFIONTECT® glaze prevents debris from sticking to ceramic surfaces for easy cleaning

• Skirted Design

• Universal Height

• Elongated front bowl

• Chrome trip lever

• 12" Rough-in, supply line sold separately

• 10" & 14" optional rough-in

• See Spec sheet SW3046AT40 for WASHLET features

MODELS & COMPONENTS

• MW4743046CUFGA#01

With CEFIONTECT ceramic glaze, WASHLET+

S500e and Auto Flush

- CT474CUFGT40

Elongated bowl with CEFIONTECT

- ST453UA

Tank and cover only

- SW3046AT40

WASHLET+ S500e

- THU766

Auto Flush Kit

• MW4743046CUFG#01

Same as MW4743046CUFGA without Auto Flush

- CT474CUFGT40

Elongated bowl with CEFIONTECT

- ST453UA

Tank and cover only

- SW3046AT40

WASHLET+ S500e

• Optional Rough-In

- TSU01W.10R (10" Rough-In)

- TSU01W.14R (14" Rough-In)

PRODUCT SPECIFICATION

The two-piece ultra high-efciency TORNADO

FLUSH toilet shall be 1.0GPF/3.8LPF. Universal Height Toilet with CEFIONTECT glaze nish. Toilet

shall have high-prole tank, elongated front bowl

and chrome trip lever. Toilet shall be TOTO Model MW4743046CUFG___#01.

See TOTO Specication sheet SW3046AT40 for details on required WASHLET.

Two-Piece Toilet - 1.0 GPF

CEFIONTECT

TORNADO FLUSH

COLORS/FINISHES

• Standard #01 Cotton

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1

• Certications: IAPMO(cUPC), EPA WaterSense, State

of Massachusetts , City of Los Angeles, and others

• Code compliance: UPC, IPC, NSPC, NPC Canada,

and others

• Legislative Compliance: California AB715,

California Green Building Code, City of Los

Angeles Water Efciency Ordinance

• ADA compliant (when installed with trip lever located on the approach side)

• Complies with CA Prop 65 warning requirements

WASHLET

EWATER+

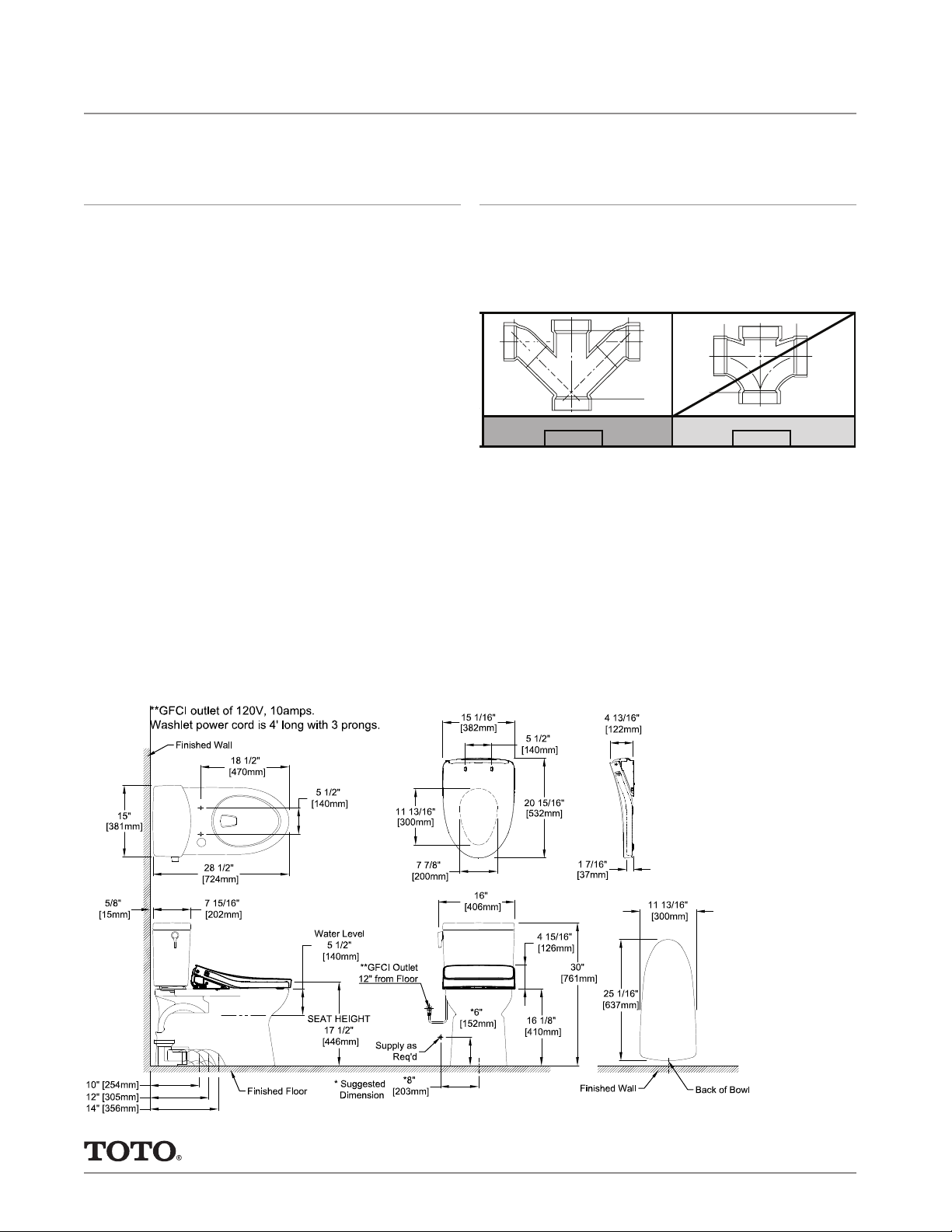

Page 2

MW4743046CUFG(A)

Vespin® II 1G® / WASHLET®+ S500e Two-Piece Toilet - 1.0 GPF

SPECIFICATIONS

• Water Use 1.0 GPF/3.8LPF

• Flush System TORNADO FLUSH

• Min. Water Pressure 8 psi (static)

• Water Surface 6-7/8" x 9-3/4"

• Trap Diameter 2-1/8"

• Rough-in 12" (10" or 14" Optional)

• Trap Seal 2-1/8"

• Warranty One Year Limited Warranty

• Material Vitreous china

• Shipping Weight CT474CUFGT40: 75lbs. ST453UA 28.0lbs.

SW3046AT40 15.6lbs.

• Shipping Dimensions CT474CUFGT40

30-1/8"L x 16-3/4"W x 22"H ST453UA

18" L X 9" W X 16" H

SW3046AT40

23-3/4"L X 17"W X 9-1/2"H

• See Spec sheet SW3046AT40 for WASHLET details

INSTALLATION NOTES

Back-to-Back Toilet Installations:

TOTO recommends the use of a nationally listed,

double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.

Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend

YES NO

Install this product according to the installation guide.

Will comply with ADA when installed per Section 604

Water Closetsand Toilet Compartments of the ADA 2010 Accessible Design Standard with seat height

between 17” to 19”, trip lever on approach side and

ush actuation force of less than 5lbs.

Will comply with CSA B651 when installed per Clause

6.2.6 Toilets of the CSA 2012 Accessible Design

Standard with seat height between 17” to 19”, trip lever on approach side and ush actuation force of

less than 5lbs.

These dimensions and specications are subject to change without notice

SS-01795 v.01
