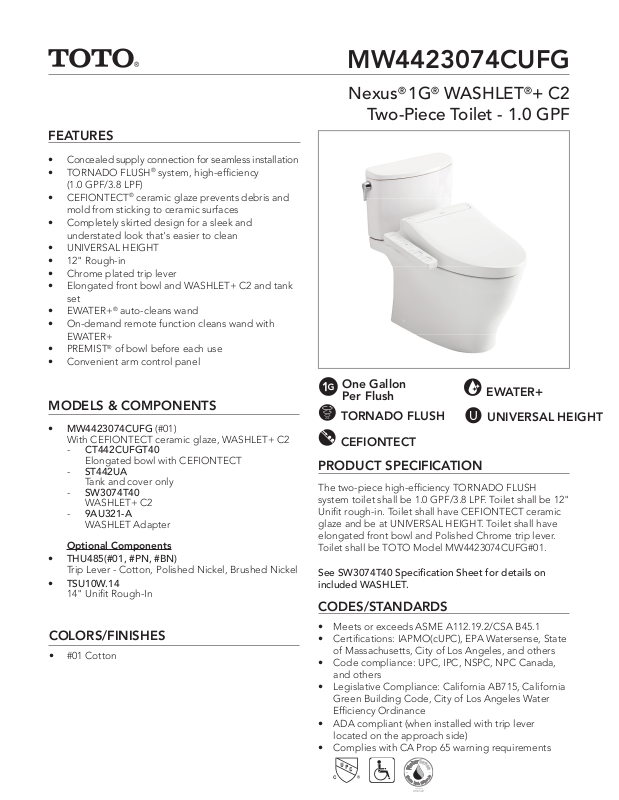

Page 1
FEATURES
• Concealed supply connection for seamless installation
• TORNADO FLUSH® system, high-effi ciency
(1.0 GPF/3.8 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Completely skirted design for a sleek and
understated look that's easier to clean
• UNIVERSAL HEIGHT
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ C2 and tank
set
• EWATER+® auto-cleans wand
• On-demand remote function cleans wand with
EWATER+
• PREMIST® of bowl before each use
• Convenient arm control panel
MW4423074CUFG
Nexus® 1G® WASHLET®+ C2
Two-Piece Toilet - 1.0 GPF
MODELS & COMPONENTS
• MW4423074CUFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ C2
- CT442CUFGT40
Elongated bowl with CEFIONTECT
- ST442UA
Tank and cover only
- SW3074T40
WASHLET+ C2
- 9AU321-A
WASHLET Adapter
Optional Components
• THU485(#01, #PN, #BN)
Trip Lever - Cotton, Polished Nickel, Brushed Nickel
• TSU10W.14
14" Unifi t Rough-In
COLORS/FINISHES
• #01 Cotton
One Gallon
Per Flush
TORNADO FLUSH
EWATER+
UNIVERSAL HEIGHT
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-effi ciency TORNADO FLUSH
system toilet shall be 1.0 GPF/3.8 LPF. Toilet shall be 12"
Unifi t rough-in. Toilet shall have CEFIONTECT ceramic
glaze and be at UNIVERSAL HEIGHT. Toilet shall have
elongated front bowl and Polished Chrome trip lever.
Toilet shall be TOTO Model MW4423074CUFG#01.
See SW3074T40 Specifi cation Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Effi ciency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MW4423074CUFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Nexus® 1G® WASHLET+ C2
Two-Piece Toilet - 1.0 GPF
SPECIFICATIONS
Water Use 1.0 GPF (3.8 LPF)
Flush System TORNADO FLUSH
Min. Water
Pressure
Water Surface 6-5/8" x 9-1/8"
Trap Diameter 2-1/8"
Rough-in 12" (14"Optional)
Tra p Seal 2-1/4"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight
Shipping
Dimensions
See SW3074T40 Specication Sheet for details on included WASHLET.
8 psi (Static)
CT442CUFGT40
87 lbs
ST442UA
25 lbs
CT442CUFGT40
29-3/4"L x 18-1/4"W x 18-3/4"H
ST442UA
17-1/4"L x 7-7/8"W x 17-1/2"H
®
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the oor ange at a nominal
12” rough-in distance.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01879 v.01
