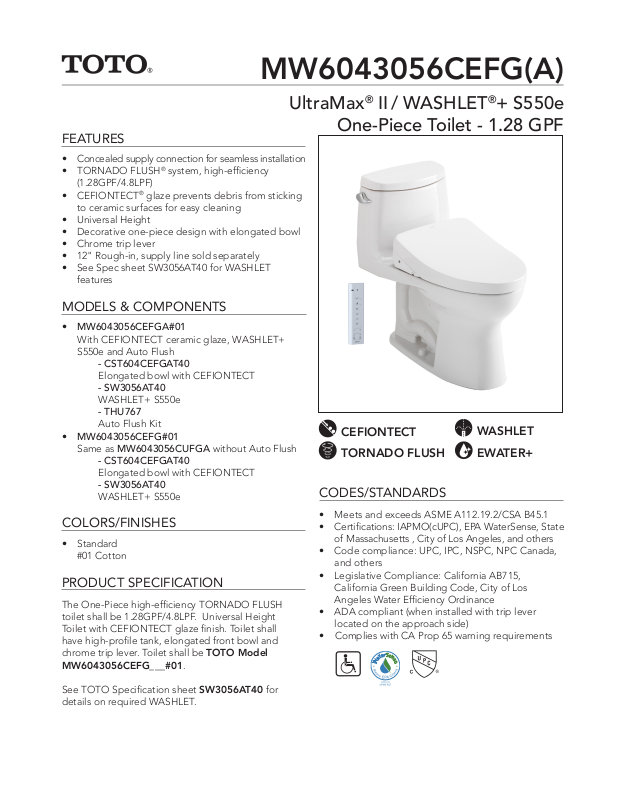

Page 1
MW6043056CEFG(A)
UltraMax® II / WASHLET®+ S550e
FEATURES
• Concealed supply connection for seamless installation
• TORNADO FLUSH® system, high-efficiency
(1.28GPF/4.8LPF)
• CEFIONTECT® glaze prevents debris from sticking
to ceramic surfaces for easy cleaning
• Universal Height
• Decorative one-piece design with elongated bowl
• Chrome trip lever
• 12" Rough-in, supply line sold separately
• See Spec sheet SW3056AT40 for WASHLET
features
MODELS & COMPONENTS
• MW6043056CEFGA#01
With CEFIONTECT ceramic glaze, WASHLET+
S550e and Auto Flush
- CST604CEFGAT40
Elongated bowl with CEFIONTECT
- SW3056AT40
WASHLET+ S550e
- THU767
Auto Flush Kit
• MW6043056CEFG#01
Same as MW6043056CUFGA without Auto Flush
- CST604CEFGAT40
Elongated bowl with CEFIONTECT
- SW3056AT40
WASHLET+ S550e
One-Piece Toilet - 1.28 GPF
CEFIONTECT
TORNADO FLUSH
CODES/STANDARDS
WASHLET
EWATER+
COLORS/FINISHES
• Standard
#01 Cotton
PRODUCT SPECIFICATION
The One-Piece high-efciency TORNADO FLUSH
toilet shall be 1.28GPF/4.8LPF. Universal Height
Toilet with CEFIONTECT glaze nish. Toilet shall
have high-prole tank, elongated front bowl and
chrome trip lever. Toilet shall be TOTO Model
MW6043056CEFG___#01.
See TOTO Specication sheet SW3056AT40 for
details on required WASHLET.
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efciency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MW6043056CEFG(A)
UltraMax® II / WASHLET®+ S550e One-Piece Toilet - 1.28 GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System TORNADO FLUSH
• Min. Water Pressure 8 psi (static)
• Water Surface 6-3/4" x 8-5/8"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CST604CEFGAT40: 99lbs.
SW3056AT40: 16.3lbs.
• Shipping Dimensions CST604CEFGAT40
32"L x 20"W x
17-3/4"H1 x 28-3/4"H
SW3056AT40
23-3/4"L X 17"W X 9-1/2"H
• See Spec sheet SW3056AT40 for WASHLET details
®
2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Install this product according to the installation guide.
Will comply with ADA when installed per Section 604
Water Closetsand Toilet Compartments of the ADA
2010 Accessible Design Standard with seat height
between 17” to 19”, trip lever on approach side and
ush actuation force of less than 5lbs.
Will comply with CSA B651 when installed per Clause
6.2.6 Toilets of the CSA 2012 Accessible Design
Standard with seat height between 17” to 19”, trip
lever on approach side and ush actuation force of
less than 5lbs.
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
SS-01801 v.01
