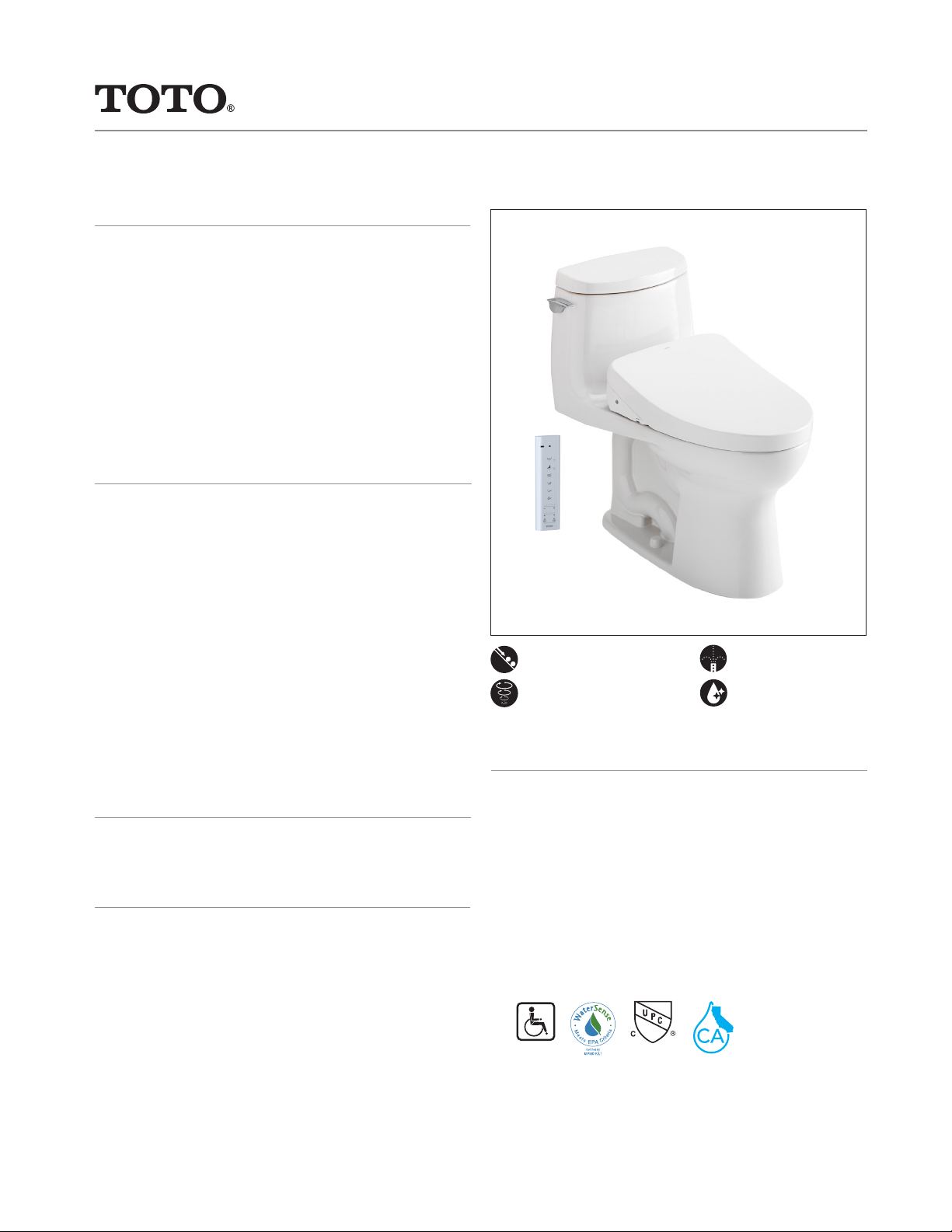

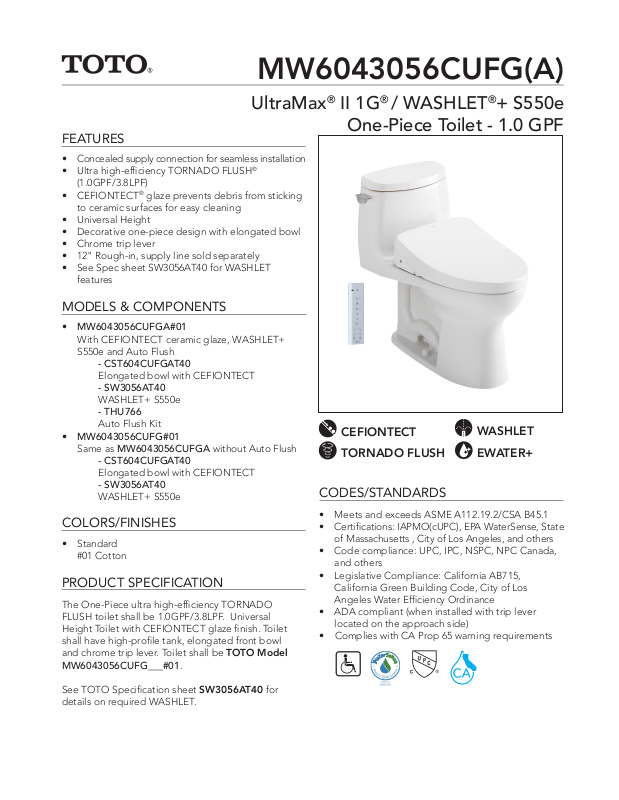

FEATURES

MW6043056CUFG(A)

UltraMax® II 1G® / WASHLET®+ S550e

One-Piece Toilet - 1.0 GPF

• Concealed supply connection for seamless installation

• Ultra high-efciency TORNADO FLUSH (1.0GPF/3.8LPF)

• CEFIONTECT® glaze prevents debris from sticking to ceramic surfaces for easy cleaning

• Universal Height

• Decorative one-piece design with elongated bowl

• Chrome trip lever

• 12" Rough-in, supply line sold separately

• See Spec sheet SW3056AT40 for WASHLET features

MODELS & COMPONENTS

• MW6043056CUFGA#01

With CEFIONTECT ceramic glaze, WASHLET+

S550e and Auto Flush

- CST604CUFGAT40

Elongated bowl with CEFIONTECT

- SW3056AT40

WASHLET+ S550e

- THU766

Auto Flush Kit

• MW6043056CUFG#01

Same as MW6043056CUFGA without Auto Flush

- CST604CUFGAT40

Elongated bowl with CEFIONTECT

- SW3056AT40

WASHLET+ S550e

CEFIONTECT

TORNADO FLUSH

CODES/STANDARDS

WASHLET

EWATER+

COLORS/FINISHES

• Standard

#01 Cotton

PRODUCT SPECIFICATION

The One-Piece ultra high-efciency TORNADO

FLUSH toilet shall be 1.0GPF/3.8LPF. Universal Height Toilet with CEFIONTECT glaze nish. Toilet

shall have high-prole tank, elongated front bowl

and chrome trip lever. Toilet shall be TOTO Model MW6043056CUFG___#01.

See TOTO Specication sheet SW3056AT40 for details on required WASHLET.

• Meets and exceeds ASME A112.19.2/CSA B45.1

• Certications: IAPMO(cUPC), EPA WaterSense, State

of Massachusetts , City of Los Angeles, and others

• Code compliance: UPC, IPC, NSPC, NPC Canada,

and others

• Legislative Compliance: California AB715,

California Green Building Code, City of Los

Angeles Water Efciency Ordinance

• ADA compliant (when installed with trip lever

located on the approach side)

• Complies with CA Prop 65 warning requirements

Page 2

MW6043056CUFG(A)

UltraMax® II 1G® / WASHLET®+ S550e One-Piece Toilet - 1.0 GPF

SPECIFICATIONS

• Water Use 1.0 GPF/3.8LPF

• Flush System TORNADO FLUSH

• Min. Water Pressure 8 psi (static)

• Water Surface 6-3/4" x 8-5/8"

• Trap Diameter 2-1/8"

• Rough-in 12"

• Trap Seal 2-1/8"

• Warranty One Year Limited Warranty

• Material Vitreous china

• Shipping Weight CST604CUFGAT40 99lbs. SW3056AT40 16.3lbs.

• Shipping Dimensions CST604CUFGAT40

32"L x 20"W x

17-3/4"H1 x 28-3/4"H

SW3056AT40

23-3/4"L X 17"W X 9-1/2"H

• See Spec sheet SW3056AT40 for WASHLET details

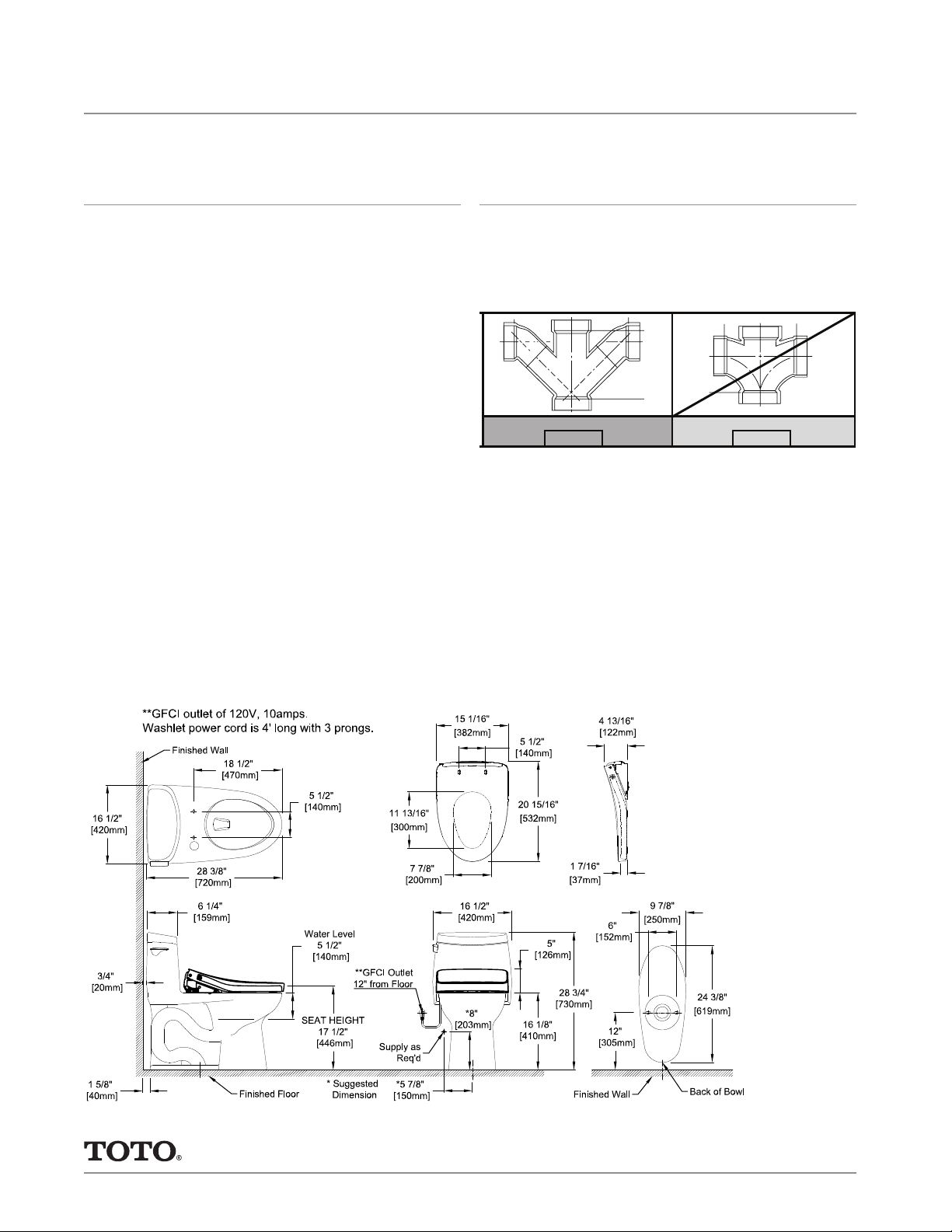

INSTALLATION NOTES

Back-to-Back Toilet Installations:

TOTO recommends the use of a nationally listed,

double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.

Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend

YES NO

Install this product according to the installation guide.

Will comply with ADA when installed per Section 604

Water Closetsand Toilet Compartments of the ADA 2010 Accessible Design Standard with seat height between 17” to 19”, trip lever on approach side and

ush actuation force of less than 5lbs.

Will comply with CSA B651 when installed per Clause

6.2.6 Toilets of the CSA 2012 Accessible Design Standard with seat height between 17” to 19”, trip lever on approach side and ush actuation force of

less than 5lbs.
