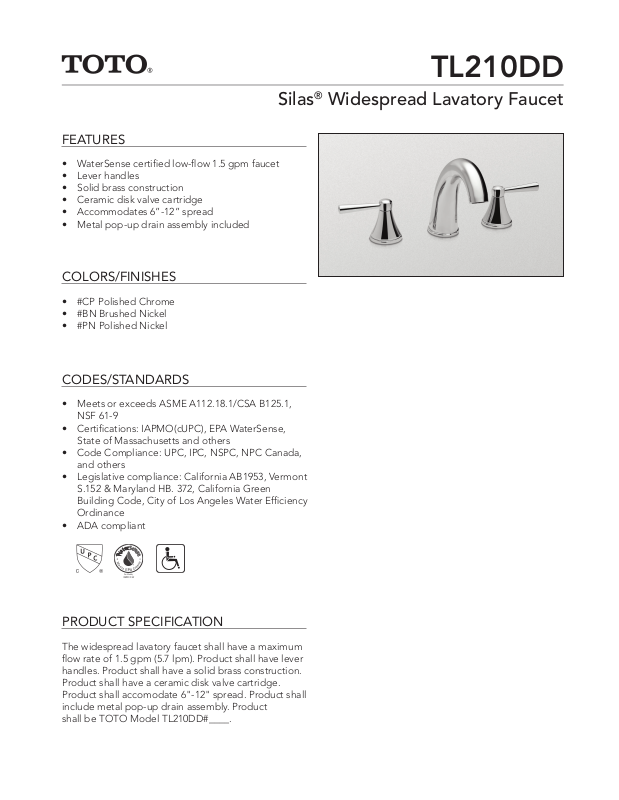

Page 1
FEATURES
• WaterSense certified low-flow 1.5 gpm faucet
• Lever handles
• Solid brass construction
• Ceramic disk valve cartridge
• Accommodates 6”-12” spread
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TL210DD
Silas® Widespread Lavatory Faucet
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9
• Certifications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative compliance: California AB1953, Vermont
S.152 & Maryland HB. 372, California Green
Building Code, City of Los Angeles Water Efficiency
Ordinance
• ADA compliant
Certified by
PRODUCT SPECIFICATION
The widespread lavatory faucet shall have a maximum
flow rate of 1.5 gpm (5.7 lpm). Product shall have lever
handles. Product shall have a solid brass construction.
Product shall have a ceramic disk valve cartridge.
Product shall accomodate 6"-12" spread. Product shall
include metal pop-up drain assembly. Product
shall be TOTO Model TL210DD#____.
Page 2
TL210DD
SPECIFICATIONS
Silas® Widespread Lavatory Faucet
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Dimensions 13-1/2"L x 7-1/2"W x
4-3/4"H
• Shipping Weight 8.6 lbs.
• Maximum Flow Rate 1.5 gpm (5.7 lpm)
Close
90
Open
Open
90
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
Close
0 100 200 300 400 500
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
0.0
6-12" [152-305mm]
2-1/8"
54mm
1-5/16”-1-7/16"
[33-37mm]
Mounting Hole
2-11/16"
69mm
2-1/8"
4-5/16"
3-1/16"
54mm
79mm
109mm
1/2" NPSM
HOT
COLD
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
4-1/4"
108mm
1-3/4" [44mm] Max.
Deck Thickness
2-1/8"
1-5/16"
54mm
34mm
28
5-5/16"
7-5/8"
194mm
135mm
1-1/4"
32mm
6-1/16"
154mm
#SS-00804, v.05
