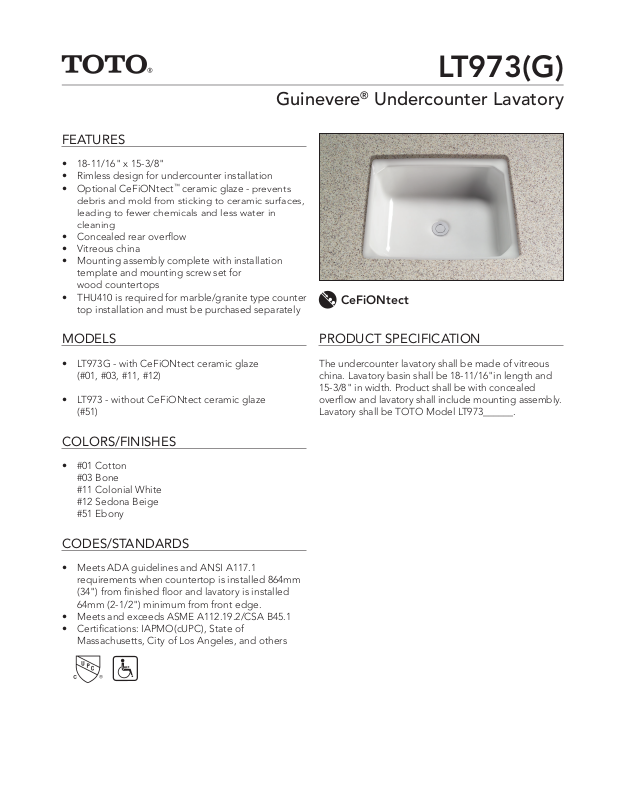

Page 1

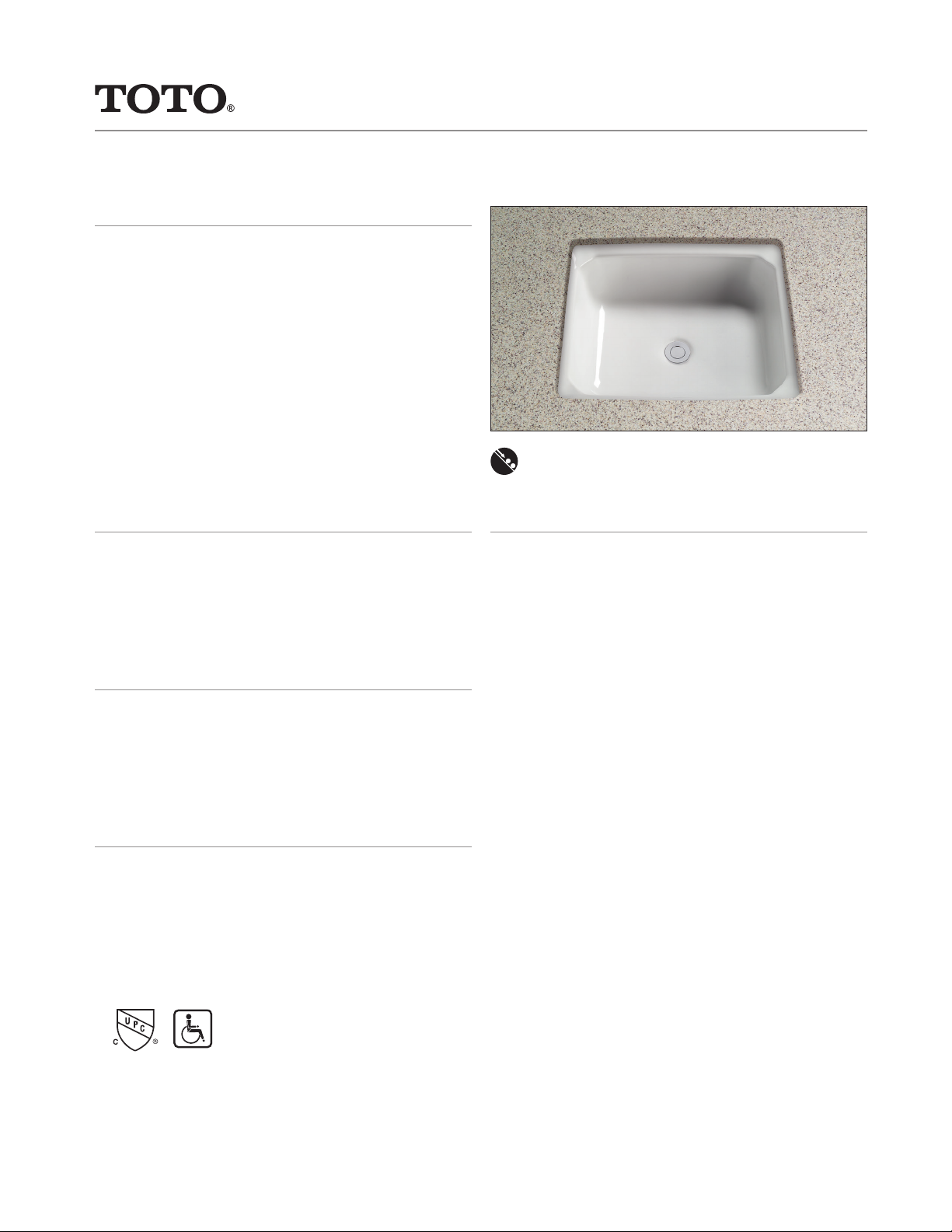

Guinevere® Undercounter Lavatory
FEATURES
• 18-11/16" x 15-3/8"
• Rimless design for undercounter installation
• Optional CeFiONtect™ ceramic glaze -
debris and mold from sticking to ceramic surfaces,
leading to fewer chemicals and less water in
cleaning
• Concealed rear overflow
• Vitreous china
• Mounting assembly complete with installation
template and mounting screw set for
wood countertops
• THU410 is required for marble/granite type counter
top installation and must be purchased separately
prevents
LT973(G)
CeFiONtect
MODELS
• LT973G - with CeFiONtect ceramic glaze
(#01, #03, #11, #12)
• LT973 - without CeFiONtect ceramic glaze
(#51)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
CODES/STANDARDS
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
64mm (2-1/2") minimum from front edge.
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous
china. Lavatory basin shall be 18-11/16"in length and
15-3/8" in width. Product shall be with concealed
overflow and lavatory shall include mounting assembly.
Lavatory shall be TOTO Model LT973______.

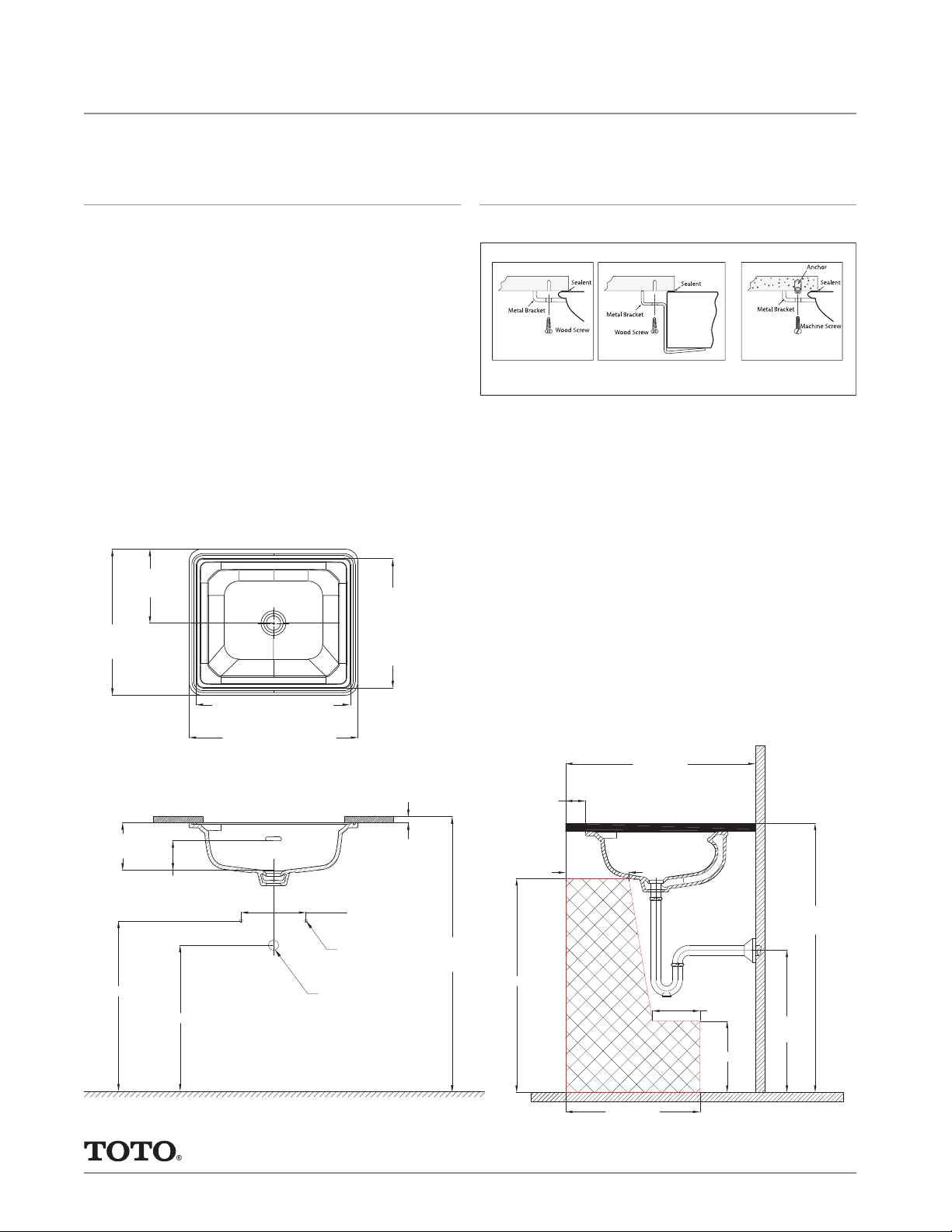

Page 2
LT973(G)
*
Mounting Hardware
Guinevere® Undercounter Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 20-13/16"W x 18"D
• Basin 18-11/16"W x 15-3/8"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 29 lbs.
• Shipping Dimensions 25"W x 19-1/4"D
x 10-1/2"H
Wood/Composite Wood/Etc.
THU408 or THU409
(Included)
Marble/Granite/Etc.
THU410
(Sold Separately)
18-1/16"
(458mm)
5-7/8"
(149mm)
21" (533mm)
9-1/8"
(232mm)
3-5/8"
(92mm)
18" (457mm)
*
18-11/16" (475mm)
BASIN WIDTH
20 13/16" (529mm)
* Suggested Dimensions
15-3/8"
(391mm)
BASIN
DEPTH
(19mm)
*
8" (203mm)
*3/8" SUPPLY
*1-1/4" WASTE
3/4"
*34"
(864mm)
2-1/2" (64mm)
MINIMUM
27" (686mm)
ADA COMPLIANCE CHECK
24" (610mm)
8" (203mm)
6" (152mm)
9" (229mm)
34" (864mm)
18"
(456mm)
MAX
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
17" (432mm)
#SS-00891 v.03
