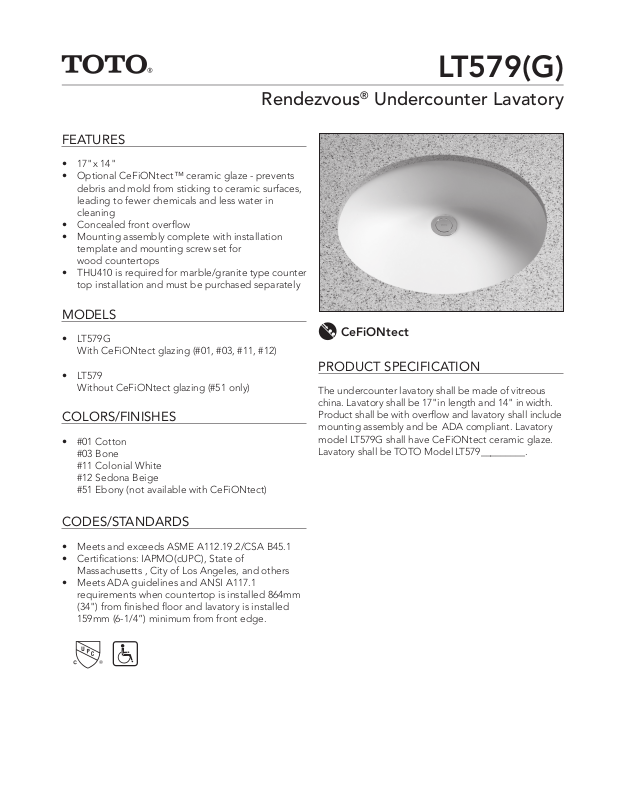

Page 1
Rendezvous® Undercounter Lavatory
FEATURES
• 17"x 14"
• Optional CeFiONtect™ ceramic glaze - prevents
debris and mold from sticking to ceramic surfaces,
leading to fewer chemicals and less water in
cleaning
• Concealed front overflow
• Mounting assembly complete with installation
template and mounting screw set for
wood countertops
• THU410 is required for marble/granite type counter
top installation and must be purchased separately
MODELS
• LT579G
With CeFiONtect glazing (#01, #03, #11, #12)
• LT579
Without CeFiONtect glazing (#51 only)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available with CeFiONtect)
LT579(G)
CeFiONtect
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 17"in length and 14" in width.
Product shall be with overflow and lavatory shall include
mounting assembly and be ADA compliant. Lavatory
model LT579G shall have CeFiONtect ceramic glaze.
Lavatory shall be TOTO Model LT579_________.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
159mm (6-1/4”) minimum from front edge.
Page 2
LT579(G)
34" [864mm]*
SUPPLIES
21" [533mm]*
18" [457mm]*
*SUGGESTED DIMENSIONS
FINISHED FLOOR
7 3/8" [188mm]
1-1/4" O.D.
WASTE
4 5/16" [110mm]
WATER LEVEL
8" [203mm]
16 3/16" [411mm]
14" [355mm]
17" [432mm]
19 3/16" [488mm]
3 3/4" [96mm]
1 1/8" [28mm]
1 1/8" [28mm]
Mounting Hardware
Rendezvous® Undercounter Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Overall size 19-1/4"W x 16-1/4"D
• Basin 17"W x 14"D
• Cutout 16"W x 13"D
• Warranty One Year Limited
Warranty
• Material Vitreous china
• Shipping Weight 17.4 lbs.
• Shipping Dimensions 22"W x 8-1/2"H x
18-1/2"L
Wood/Composite Wood/Etc.
THU408 or THU409
(Included)
Marble/Granite/Etc.
THU410
(Sold Separately)
These dimensions and specications are subject to change without notice
#SS-00294 v.05Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTOT USA
