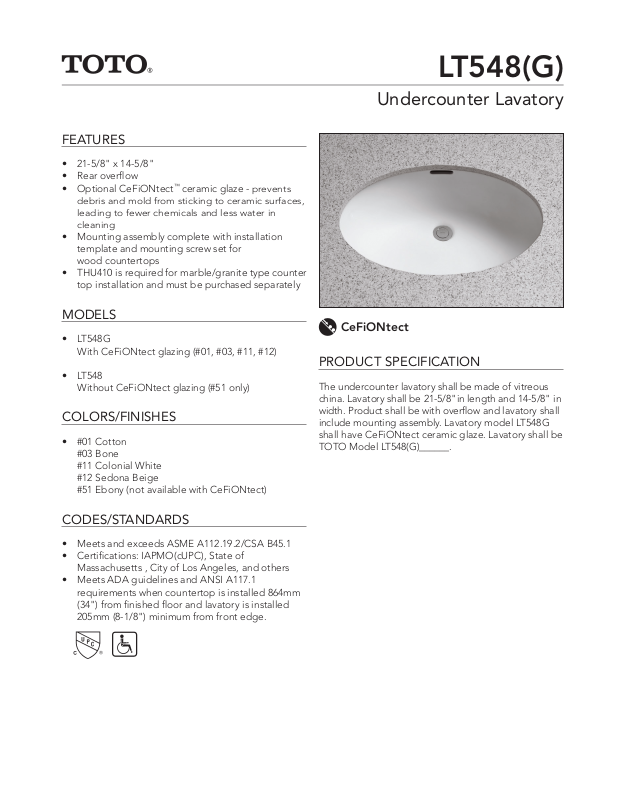

Page 1
FEATURES
• 21-5/8" x 14-5/8"
• Rear overflow
• Optional CeFiONtect™ ceramic glaze -
debris and mold from sticking to ceramic surfaces,
leading to fewer chemicals and less water in
cleaning
• Mounting assembly complete with installation
template and mounting screw set for
wood countertops
• THU410 is required for marble/granite type counter
top installation and must be purchased separately
prevents
MODELS
• LT548G
With CeFiONtect glazing (#01, #03, #11, #12)
• LT548
Without CeFiONtect glazing (#51 only)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available with CeFiONtect)
LT548(G)
Undercounter Lavatory
CeFiONtect
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 21-5/8"in length and 14-5/8" in
width. Product shall be with overflow and lavatory shall
include mounting assembly. Lavatory model LT548G
shall have CeFiONtect ceramic glaze. Lavatory shall be
TOTO Model LT548(G)______.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
205mm (8-1/8") minimum from front edge.
Page 2
LT548(G)
24" (610mm )
Mounting Hardware
Undercounter Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 23-5/8"W x 16-1/2"D
• Basin 21-5/8"W x 14-5/8"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 25.5 lbs.
• Shipping Dimensions 24-5/8"W x 17-3/8"L x 11"H
Wood/Composite Wood/Etc.
THU408 or THU409
(Included)
Marble/Granite/Etc.
THU410
(Sold Separately)
1"
(25mm)
*13-1/8"
(333mm)
*12"
(305mm)
23-5/8" (600mm)
21-5/8" (550mm)
20-5/8" (525mm)
*8" (203mm)
14-5/8"
(370mm)
1" (25mm)
8-1/2"
(215mm)
*Suggested Dimensions
16-1/2"
(420mm)
ADA Compliance Check
8" (203mm)
3-1/2" (88mm )
27" (685mm)
6"
(152mm)
33" (839mm)
9" (228mm)
34" (865mm )
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specications are subject to change without notice
#SS-00292 v.04
