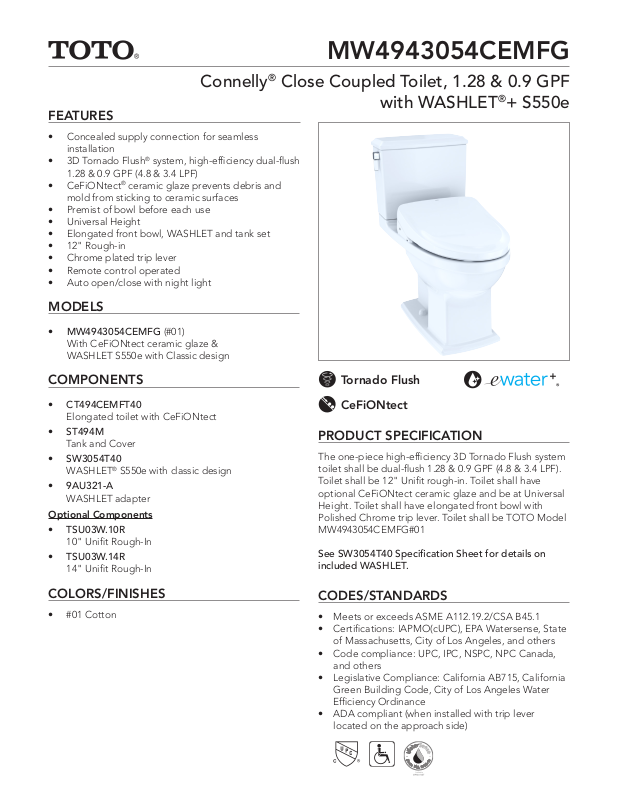

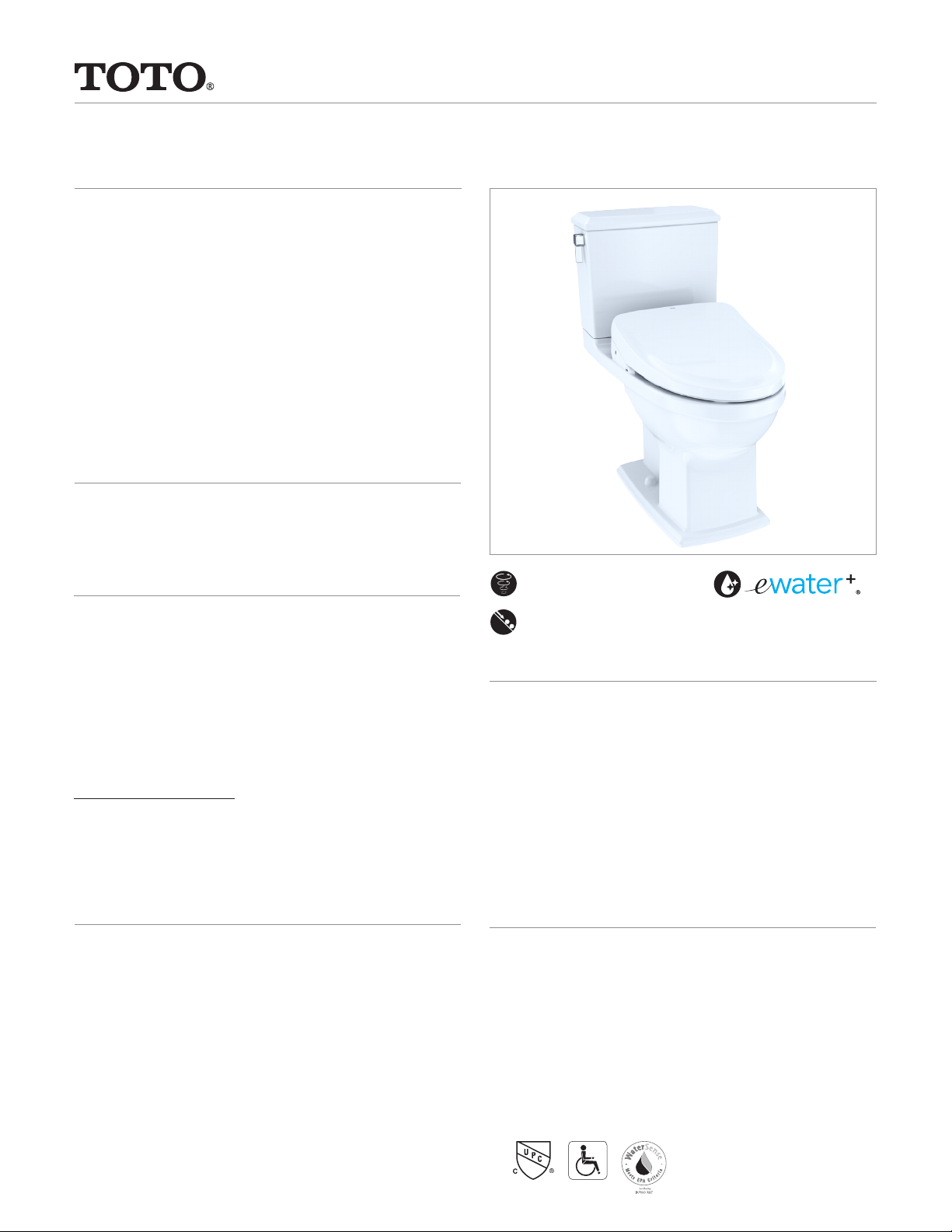

Connelly® Close Coupled Toilet, 1.28 & 0.9 GPF
FEATURES
• Concealed supply connection for seamless
installation
• 3D Tornado Flush® system, high-efficiency dual-flush
1.28 & 0.9 GPF (4.8 & 3.4 LPF)
• CeFiONtect® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Premist of bowl before each use
• Universal Height
• Elongated front bowl, WASHLET and tank set
• 12" Rough-in
• Chrome plated trip lever
• Remote control operated
• Auto open/close with night light
MODELS
• MW4943054CEMFG (#01)
With CeFiONtect ceramic glaze &
WASHLET S550e with Classic design
MW4943054CEMFG
with WASHLET®+ S550e
COMPONENTS
• CT494CEMFT40
Elongated toilet with CeFiONtect
• ST494M
Tank and Cover
• SW3054T40
WASHLET® S550e with classic design
• 9AU321-A
WASHLET adapter
Optional Components
• TSU03W.10R
10" Unifit Rough-In
• TSU03W.14R
14" Unifit Rough-In
COLORS/FINISHES
• #01 Cotton
Tornado Flush
CeFiONtect
PRODUCT SPECIFICATION
The one-piece high-efficiency 3D Tornado Flush system
toilet shall be dual-flush 1.28 & 0.9 GPF (4.8 & 3.4 LPF).
Toilet shall be 12" Unifit rough-in. Toilet shall have
optional CeFiONtect ceramic glaze and be at Universal
Height. Toilet shall have elongated front bowl with
Polished Chrome trip lever. Toilet shall be TOTO Model
MW4943054CEMFG#01
See SW3054T40 Specification Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2

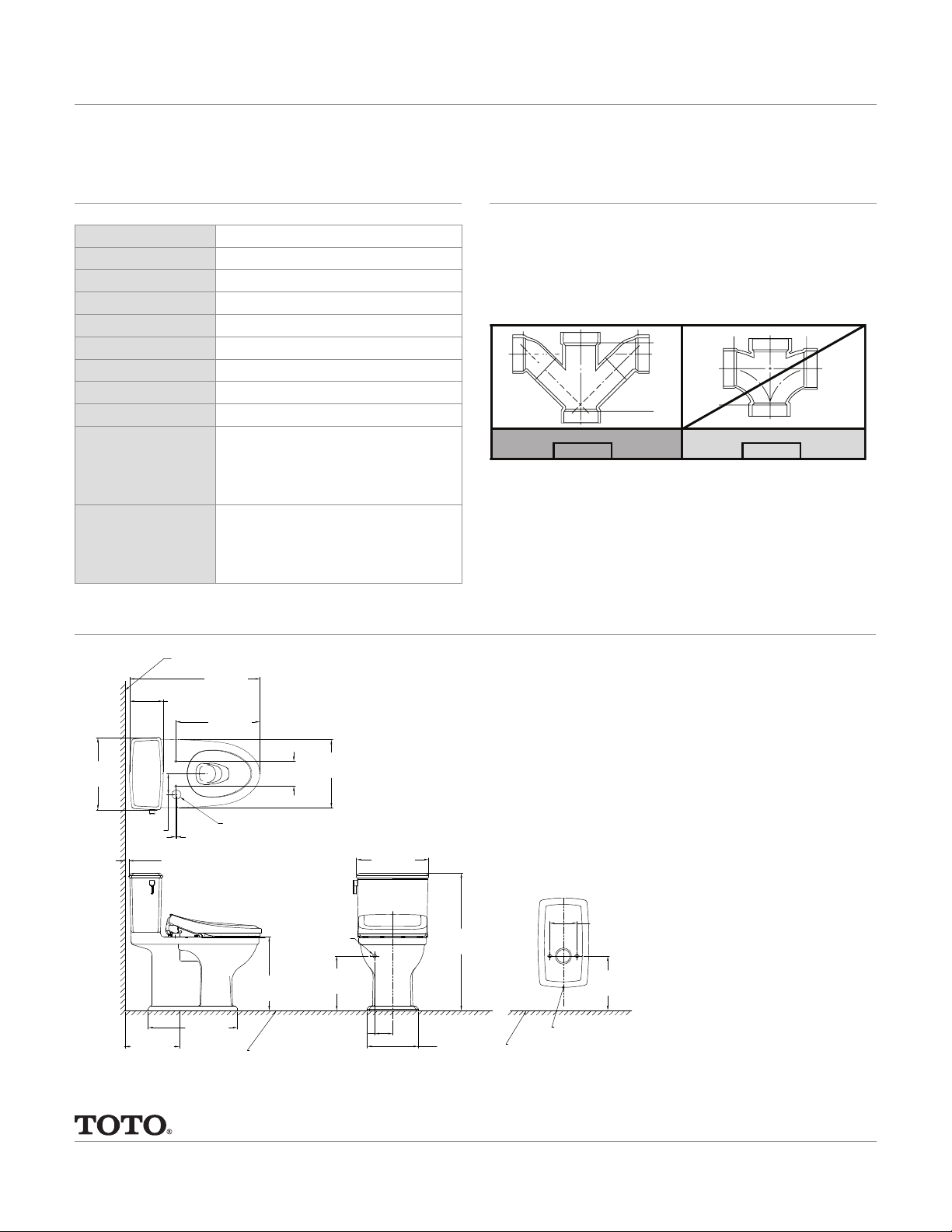

MW4943054CEMFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Finished Wall
*Suggested Dimensions
Connelly® Close Coupled Toilet, 1.28 & 0.9 GPF
with WASHLET®+ S550e
SPECIFICATIONS
Water Use 1.28 & 0.9 GPF (4.8 & 3.4 LPF)
Flush System 3D Tornado Flush
®
Min. Water Pressure 8 psi (Flowing)
Water Surface 5-5/8" x 4-1/8"
Trap Diameter 2-1/8"
Rough-in 12" (10" & 14" Optional)
Tra p Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
CT494CEF(G)T40
Shipping Weight
70 lbs
ST494M
31 lbs
CT494CEMFT40
Shipping
Dimensions
30-3/4"L x 17-3/8"W x 20-1/2"H
ST494M
17-1/4"L x 7-7/8"W x 17-1/2"H
See SW3054T40 Specication Sheet for details on included WASHLET.
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
15 7/8"
4 5/8"
[117mm]
12"
[305mm]
7 3/8"
[188mm]
7/8"
[22mm]
28 3/4"
[729mm]
18 1/2"
[470mm]
1/8"
[4mm]
19 5/8"
[500mm]
Ă2"
[Ă50mm]
16 1/8"
[411mm]
5 1/2"
[140mm]
Finished Floor
15"
[380mm]
Supply
as Req'd
12"
[305mm]*
[101mm]*
15 7/8"
[404mm]
6"
30 1/4"
[768mm]
4"
11 1/4"
[285mm]
Finished Wall
[152mm]
[305mm]
Back of Bowl
12"
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01342 v.02
