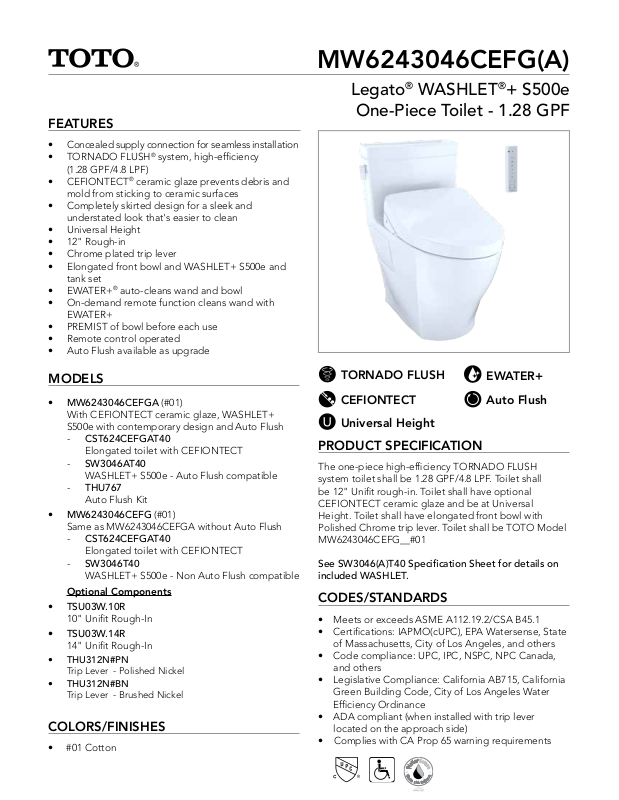

Page 1
FEATURES
• Concealed supply connection for seamless installation
• TORNADO FLUSH® system, high-efficiency
(1.28 GPF/4.8 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Completely skirted design for a sleek and
understated look that's easier to clean
• Universal Height
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ S500e and
tank set
• EWATER+
• On-demand remote function cleans wand with
EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Flush available as upgrade
®
auto-cleans wand and bowl
MW6243046CEFG(A)
Legato® WASHLET®+ S500e
One-Piece Toilet - 1.28 GPF
MODELS
• MW6243046CEFGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+
S500e with contemporary design and Auto Flush
- CST624CEFGAT40
Elongated toilet with CEFIONTECT
- SW3046AT40
WASHLET+ S500e - Auto Flush compatible
- THU767
Auto Flush Kit
• MW6243046CEFG (#01)
Same as MW6243046CEFGA without Auto Flush
- CST624CEFGAT40
Elongated toilet with CEFIONTECT
- SW3046T40
WASHLET+ S500e - Non Auto Flush compatible
Optional Components
• TSU03W.10R
10" Unifit Rough-In
• TSU03W.14R
14" Unifit Rough-In
• THU312N#PN
Trip Lever - Polished Nickel
• THU312N#BN
Trip Lever - Brushed Nickel
COLORS/FINISHES
• #01 Cotton
TORNADO FLUSH
CEFIONTECT
EWATER+
Auto Flush
Universal Height
PRODUCT SPECIFICATION
The one-piece high-efficiency TORNADO FLUSH
system toilet shall be 1.28 GPF/4.8 LPF. Toilet shall
be 12" Unifit rough-in. Toilet shall have optional
CEFIONTECT ceramic glaze and be at Universal
Height. Toilet shall have elongated front bowl with
Polished Chrome trip lever. Toilet shall be TOTO Model
MW6243046CEFG__#01
See SW3046(A)T40 Specification Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MW6243046CEFG(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Legato® WASHLET®+ S500e
One-Piece Toilet - 1.28 GPF
SPECIFICATIONS
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH
Min. Water Pressure 8 psi (Flowing)
Water Surface 7-3/4" x 9-3/8"
Trap Diameter 2-1/8"
Rough-in 12" (10" & 14" Optional)
Tra p Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight 119 lbs
Shipping
Dimensions
See SW3046(A)T40 Specication Sheet for details on included WASHLET.
32"L x 20"W x 17-3/4" H
®
1
x 28-3/4" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
2
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01331 v.03
