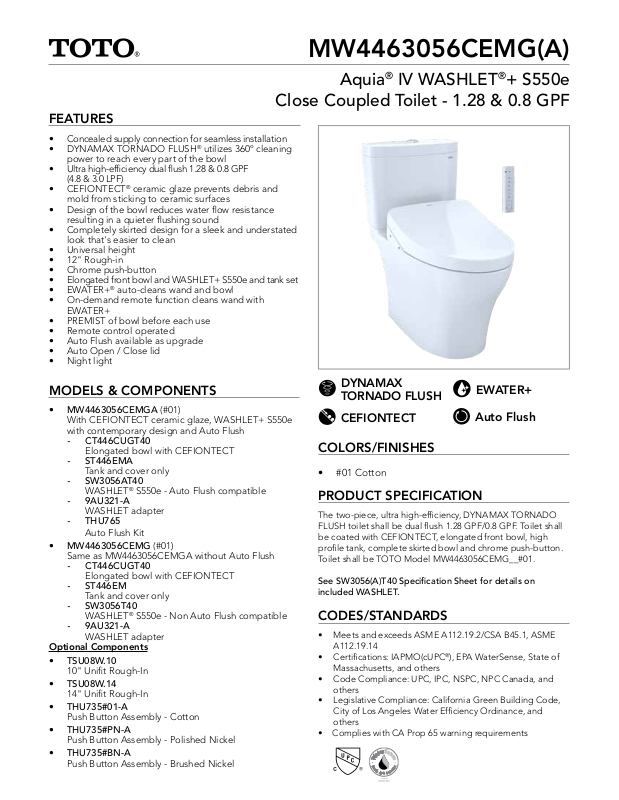

Page 1
FEATURES
MW4463056CEMG(A)
Aquia® IV WASHLET®+ S550e
Close Coupled Toilet - 1.28 & 0.8 GPF
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH
power to reach every part of the bowl
• Ultra high-efficiency dual flush 1.28 & 0.8 GPF
(4.8 & 3.0 LPF)
• CEFIONTECT
mold from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Completely skirted design for a sleek and understated
look that's easier to clean
• Universal height
• 12" Rough-in
• Chrome push-button
• Elongated front bowl and WASHLET+ S550e and tank set
• EWATER+
• On-demand remote function cleans wand with
EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Flush available as upgrade
• Auto Open / Close lid
• Night light
®
ceramic glaze prevents debris and
®
auto-cleans wand and bowl
®
utilizes 360º cleaning
MODELS & COMPONENTS
• MW4463056CEMGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S550e
with contemporary design and Auto Flush
- CT446CUGT40
Elongated bowl with CEFIONTECT
- ST446EMA
Tank and cover only
- SW3056AT40
WASHLET
- 9AU321-A
WASHLET adapter
- THU765
Auto Flush Kit
• MW4463056CEMG (#01)
Same as MW4463056CEMGA without Auto Flush
- CT446CUGT40
Elongated bowl with CEFIONTECT
- ST446EM
Tank and cover only
- SW3056T40
WASHLET
- 9AU321-A
WASHLET adapter
Optional Components
• TSU08W.10
10" Unifit Rough-In
• TSU08W.14
14" Unifit Rough-In
• THU735#01-A
Push Button Assembly - Cotton
• THU735#PN-A
Push Button Assembly - Polished Nickel
• THU735#BN-A
Push Button Assembly - Brushed Nickel
®
S550e - Auto Flush compatible
®
S550e - Non Auto Flush compatible
DYNAMAX
TORNADO FLUSH
CEFIONTECT
EWATER+
Auto Flush
COLORS/FINISHES
• #01 Cotton
PRODUCT SPECIFICATION
The two-piece, ultra high-efficiency, DYNAMAX TORNADO
FLUSH toilet shall be dual flush 1.28 GPF/0.8 GPF. Toilet shall
be coated with CEFIONTECT, elongated front bowl, high
profile tank, complete skirted bowl and chrome push-button.
Toilet shall be TOTO Model MW4463056CEMG__#01.
See SW3056(A)T40 Specification Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1, ASME
A112.19.14
• Certifications: IAPMO(cUPC
Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada, and
others
• Legislative Compliance: California Green Building Code,
City of Los Angeles Water Efficiency Ordinance, and
others
• Complies with CA Prop 65 warning requirements
®
), EPA WaterSense, State of
Page 2
MW4463056CEMG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Aquia® IV Close Coupled Toilet, 1.28 & 0.8 GPF
with WASHLET®+ S550e
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3056(A)T40 Specication Sheet for details on included WASHLET.
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DynaMax Tornado Flush
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12" (10" & 14" Optional)
2-1/8"
One Year Limited Warranty
Vitreous China
CT446CUGT40
85 lbs
ST446EMA
29 lbs
CT446CUGT40
30-3/4"L x 17-3/8"W x 20-1/2"H
ST446EMA
17-1/4"L x 7-7/8"W x 17-1/2"H
®
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01325 v.03
