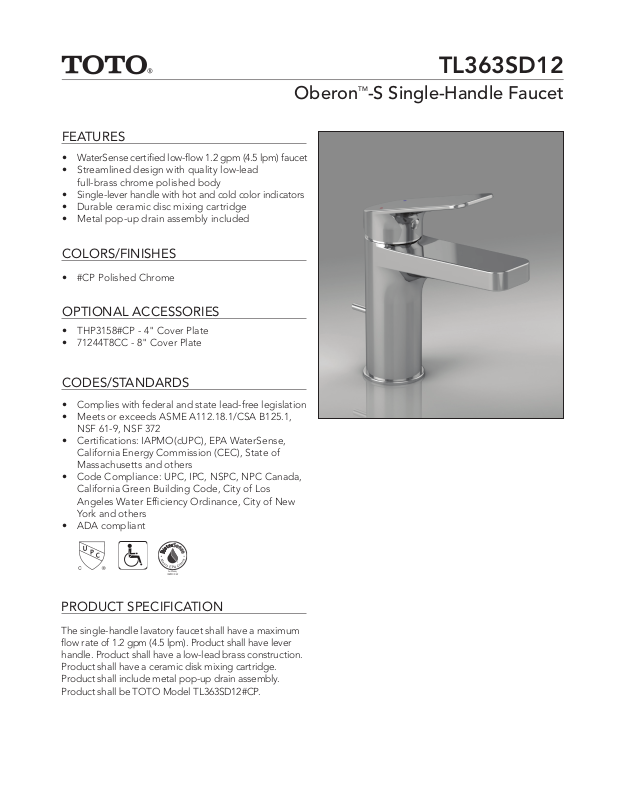

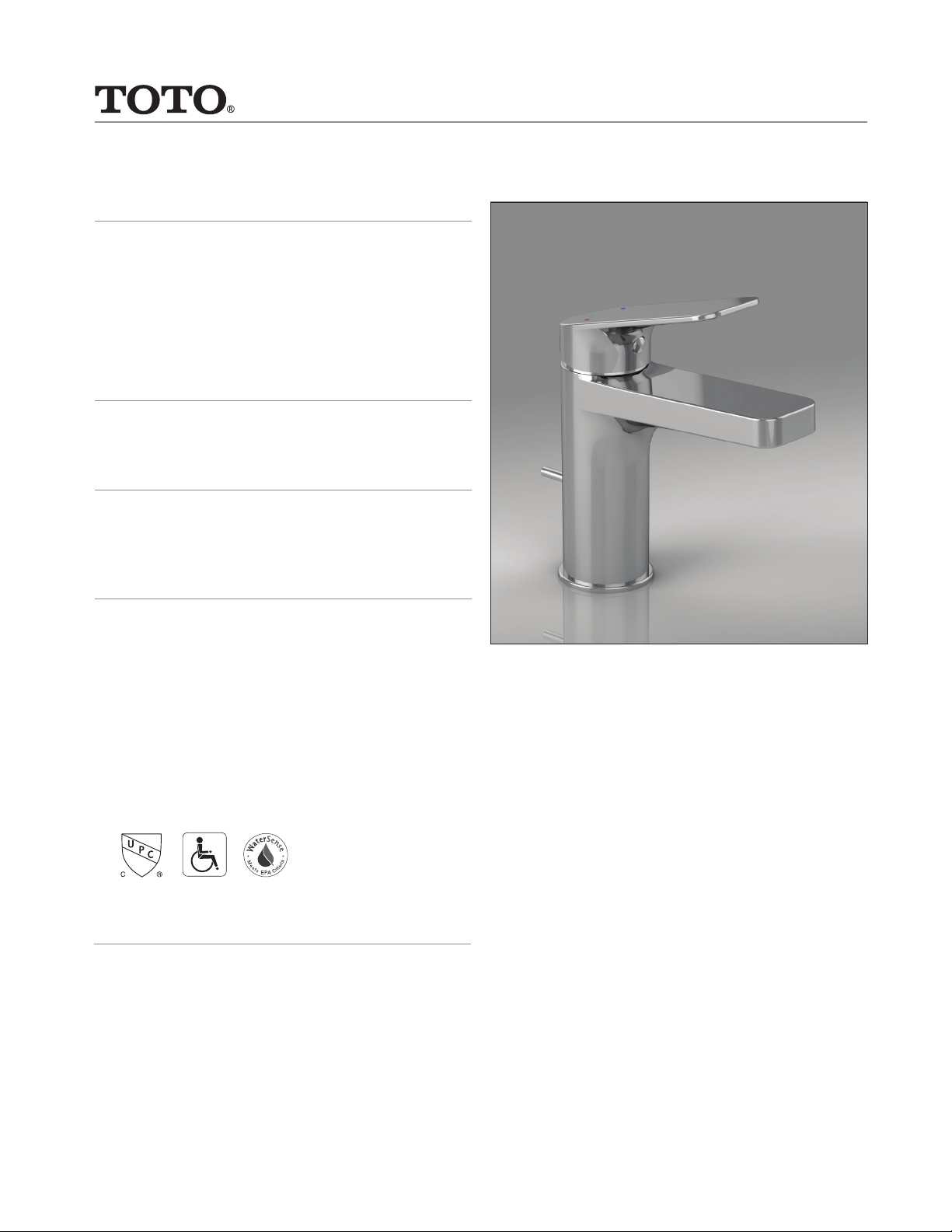

OberonTM-S Single-Handle Faucet
FEATURES
• WaterSense certified low-flow 1.2 gpm (4.5 lpm) faucet
• Streamlined design with quality low-lead
full-brass chrome polished body
• Single-lever handle with hot and cold color indicators
• Durable ceramic disc mixing cartridge
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• THP3158#CP - 4" Cover Plate
• 71244T8CC - 8" Cover Plate
TL363SD12
CODES/STANDARDS
• Complies with federal and state lead-free legislation
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifications: IAPMO(cUPC), EPA WaterSense,
California Energy Commission (CEC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance, City of New
York and others
• ADA compliant
Certified by
PRODUCT SPECIFICATION
The single-handle lavatory faucet shall have a maximum
flow rate of 1.2 gpm (4.5 lpm). Product shall have lever
handle. Product shall have a low-lead brass construction.
Product shall have a ceramic disk mixing cartridge.
Product shall include metal pop-up drain assembly.
Product shall be TOTO Model TL363SD12#CP.
Page 2

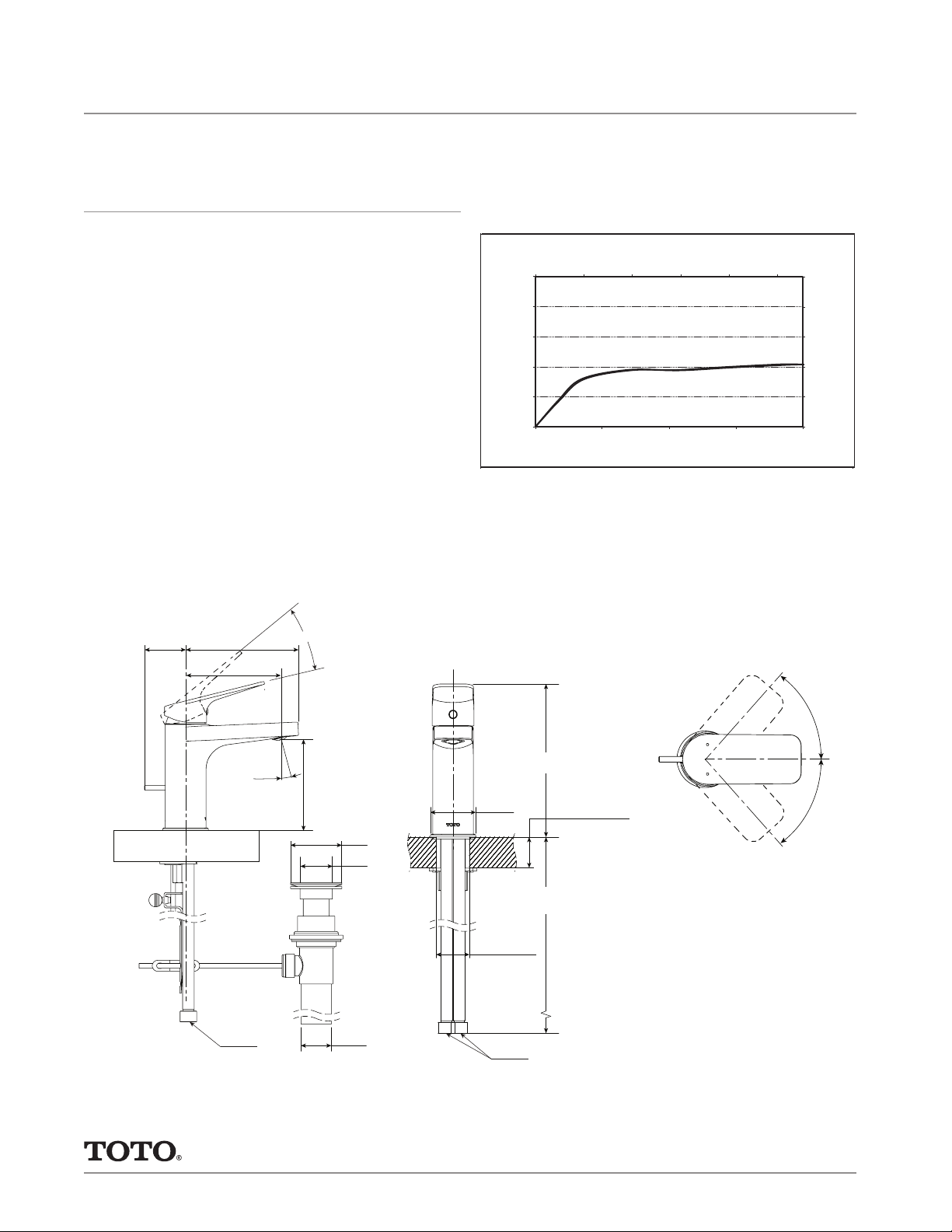

TL363SD12
Deck Thickness
1-5/16" [38mm] Max.
1-5/16”-1-7/16"
[33-37mm]
Mounting Hole
3/8 Comp.
6-3/16”
[156mm]
12-5/8” [320mm]
Hose length
COLD
HOT
45°
45°
for Rough in
TL363SD#$$
1-15/16"
[48mm]
Deck Thickness
1-5/16" [38mm] Max.
1-5/16”-1-7/16"
[33-37mm]
Mounting Hole
3/8 Comp.
6-3/16”
[156mm]
12-5/8” [320mm]
Hose length
for Rough in
TL363SD#$$
1-15/16"
[48mm]
for Rough in
TL363SD#$$
Chart below scaled (axes) for lavatory faucets
Flow rate data / chart
Part No.: TL363SD12#CP
Description: OBERON-S single handle lavatory faucet
SPECIFICATIONS
Oberon™-S Single-Handle Faucet
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass (low-lead)
• Maximum Flow Rate 1.2 gpm (4.5 lpm)
• Shipping Dimensions 21"L x 10"W x 3-1/2"H
• Shipping Weight 6.5 lbs
1-11/16”
[43mm]
4-11/16”
[118.5mm]
[100mm]
OPEN
22°
4”
CLOSE
Pressure (kPa)
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Pressure (psi)
COLD
9.5
7.6
5.7
3.8
1.9
0.0
45°
Flow rate (lpm)
15°
3/8 Comp.
3-3/4” [95mm]
2-3/8”
[60mm]
1-3/16”
[30mm]
1-1/4”
[32mm]
These dimensions and specifications are subject to change without notice
45°
HOT
