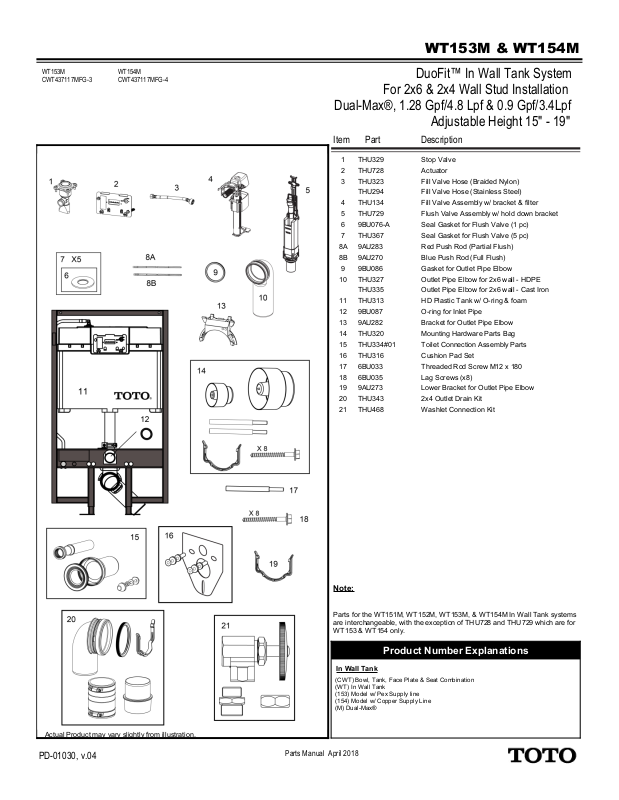

WT153M & WT154M
WT153M
WT154M
DuoFit™ In Wall Tank System
Adjustable Height 15" - 19"
In Wall Tank
WT153 & WT154 only.
Product Number Explanations
Note:
Item
Part
Description

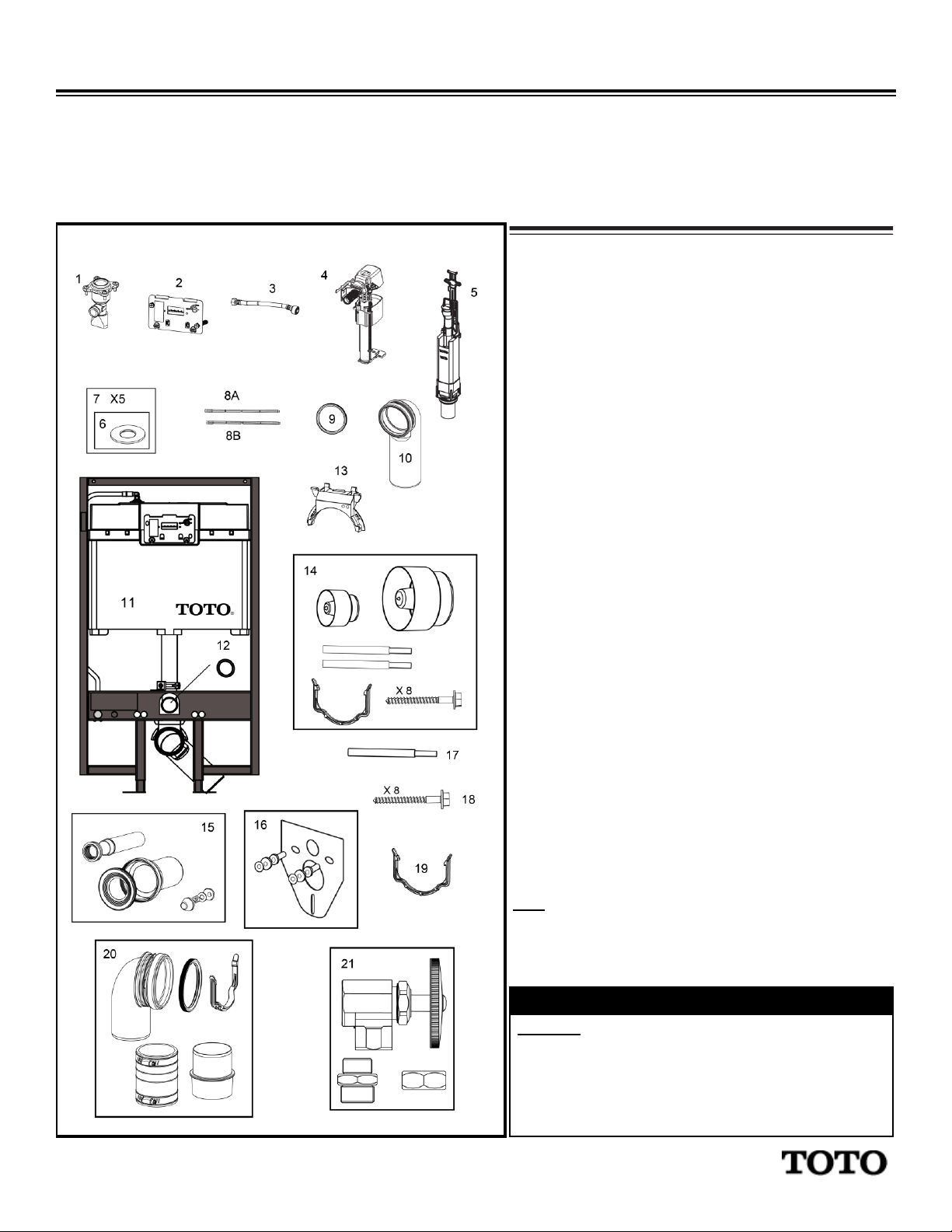

(CWT) Bowl, Tank, Face Plate & Seat Combination
Actual Product may vary slightly from illustration.
1
THU329
Stop Valve
2
THU728
Actuator
3
THU323
Fill Valve Hose (Braided Nylon)
4
THU134
Fill Valve Assembly w/ bracket & filter
5
THU729
Flush Valve Assembly w/ hold down bracket
6
9BU076-A
Seal Gasket for Flush Valve (1 pc)
7
THU367
Seal Gasket for Flush Valve (5 pc)
8A
9AU283
Red Push Rod (Partial Flush)
8B
9AU270
Blue Push Rod (Full Flush)
9
9BU086
Gasket for Outlet Pipe Elbow
10
THU327
Outlet Pipe Elbow for 2x6 wall - HDPE
11
THU313
HD Plastic Tank w/ O-ring & foam
12
9BU087
O-ring for Inlet Pipe
13
9AU282
Bracket for Outlet Pipe Elbow
14
THU320
Mounting Hardware Parts Bag
15
THU334#01
Toilet Connection Assembly Parts
16
THU316
Cushion Pad Set
17
6BU033
Threaded Rod Screw M12 x 180
18
6BU035
Lag Screws (x8)
19
9AU273
Lower Bracket for Outlet Pipe Elbow
20
THU343
2x4 Outlet Drain Kit
21
THU468
Washlet Connection Kit
PD-01030, v.04
Parts Manual April 2018
CWT437117MFG-3
CWT437117MFG-4
For 2x6 & 2x4 Wall Stud Installation
Dual-Max®, 1.28 Gpf/4.8 Lpf & 0.9 Gpf/3.4Lpf
THU294 Fill Valve Hose (Stainless Steel)
THU335 Outlet Pipe Elbow for 2x6 wall - Cast Iron
Parts for the WT151M, WT152M, WT153M, & WT154M In Wall Tank systems
are interchangeable, with the exception of THU728 and THU729 which are for
(WT) In W all Tank
(153) Model w/ Pex Supply line
(154) Model w/ Copper Supply Line
(M) Dual-Max®
