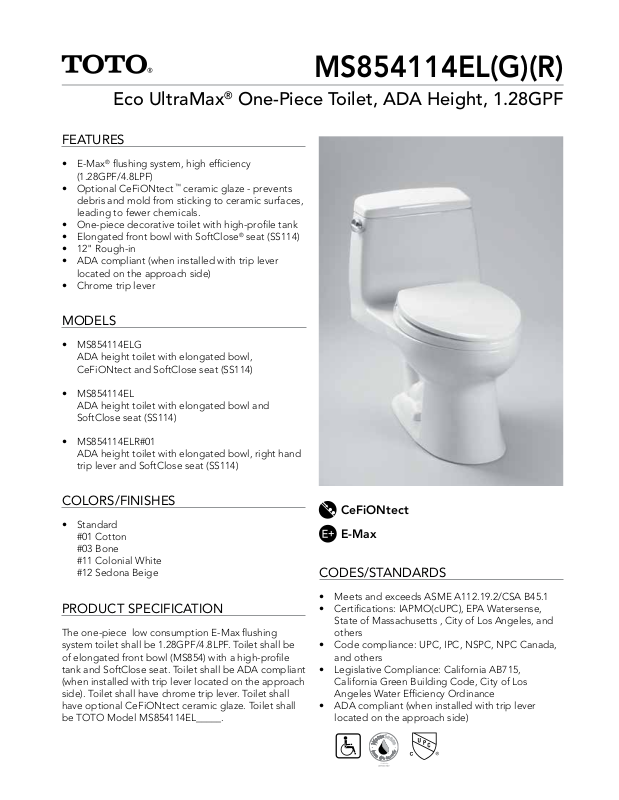

Page 1
Eco UltraMax® One-Piece Toilet, ADA Height, 1.28GPF
FEATURES
• E-Max® flushing system, high efficiency
(1.28GPF/4.8LPF)
• Optional CeFiONtect ™ ceramic glaze - prevents
debris and mold from sticking to ceramic surfaces,
leading to fewer chemicals.
• One-piece decorative toilet with high-profile tank
• Elongated front bowl with SoftClose® seat (SS114)
• 12" Rough-in
• ADA compliant (when installed with trip lever
located on the approach side)
• Chrome trip lever
MODELS
• MS854114ELG
ADA height toilet with elongated bowl,
CeFiONtect and SoftClose seat (SS114)
MS854114EL(G)(R)
• MS854114EL
ADA height toilet with elongated bowl and
SoftClose seat (SS114)
• MS854114ELR#01
ADA height toilet with elongated bowl, right hand
trip lever and SoftClose seat (SS114)
COLORS/FINISHES
• Standard
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
PRODUCT SPECIFICATION
The one-piece low consumption E-Max flushing
system toilet shall be 1.28GPF/4.8LPF. Toilet shall be
of elongated front bowl (MS854) with a high-profile
tank and SoftClose seat. Toilet shall be ADA compliant
(when installed with trip lever located on the approach
side). Toilet shall have chrome trip lever. Toilet shall
have optional CeFiONtect ceramic glaze. Toilet shall
be TOTO Model MS854114EL_____.
CeFiONtect
E-Max
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense,
State of Massachusetts , City of Los Angeles, and
others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2
MS854114EL(G)
Eco UltraMax® One-Piece Toilet, ADA Height, 1.28GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8 LPF
• Flush System E-Max
• Min. Water Pressure 8 psi (static)
• Water Surface 10-1/4" x 8-1/4"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight MS854114EL(G) 117 lbs.
• Shipping Dimensions 32" L x 20"W x 17-3/4" H1
®
x 28-3/4" H2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
These dimensions and specications are subject to change without notice
# SS-00207 v.10Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
